Size
Description

SPECIFICATIONS

About US: We Are The FACTORY

Brand Name: Aigoodele

Certification: CE

Contact Load: High Power

Current: 10A 25A 40A 60A 80A 100A 120A 150A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Input: 3-32VDC

Material: Mental

Model Number: LSSR-3

Origin: Mainland China

Output: 40-480VAC

Power Source: Ac

Protect Feature: Sealed

Shipment: Ship out in 3 days

Theory: Solid State Relay

Use: General Purpose

Voltage: 380V

Warranty: 180 DAYS

is_customized: no

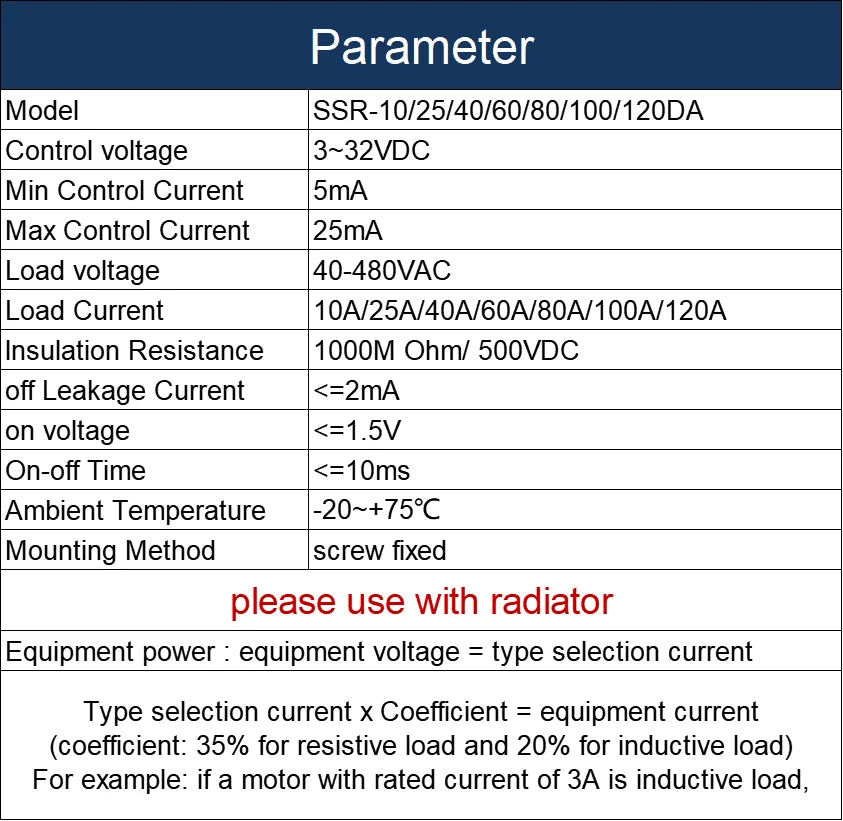

Specifications:

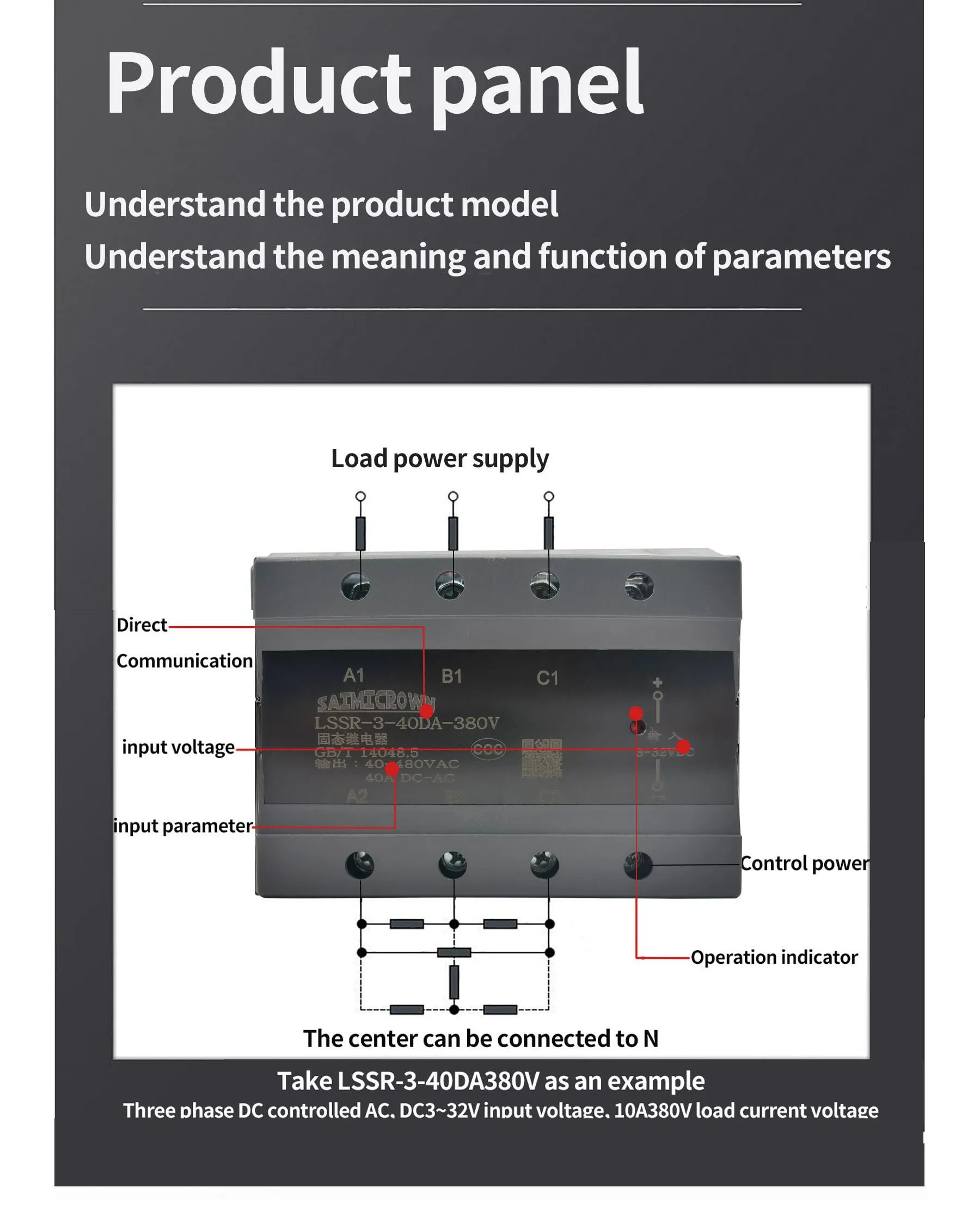

Model No. LSSR-3-DA

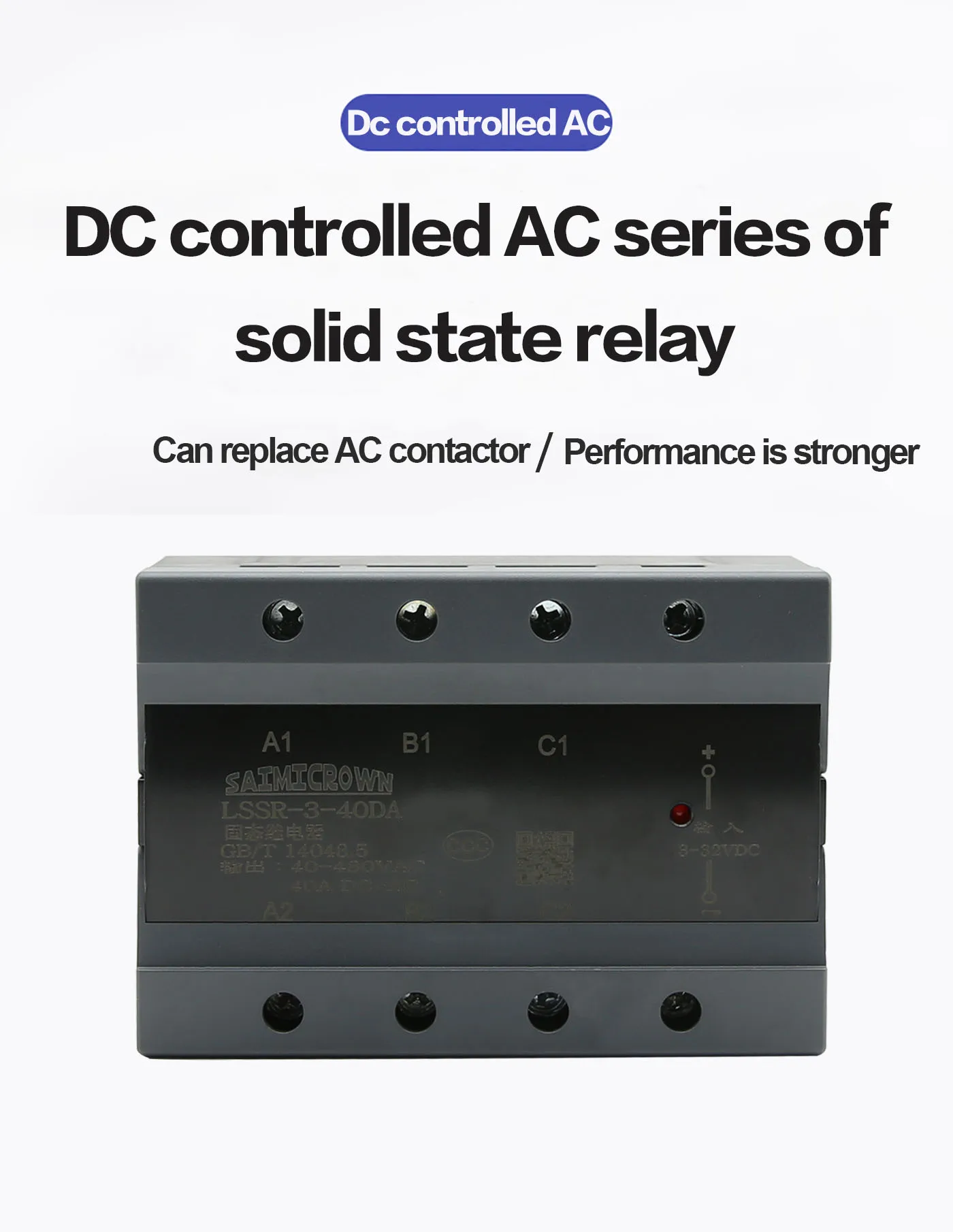

Control DC control AC

Load Current: 10A 25A 40A 60A 80A 100A 120A

Control Voltage: 3-32VDC 40-480VAC

Maximum input current: 25mA

Output Voltage: 40-480VAC

Peak Voltage: 1000V

Ambient Temperature-20~+75°C

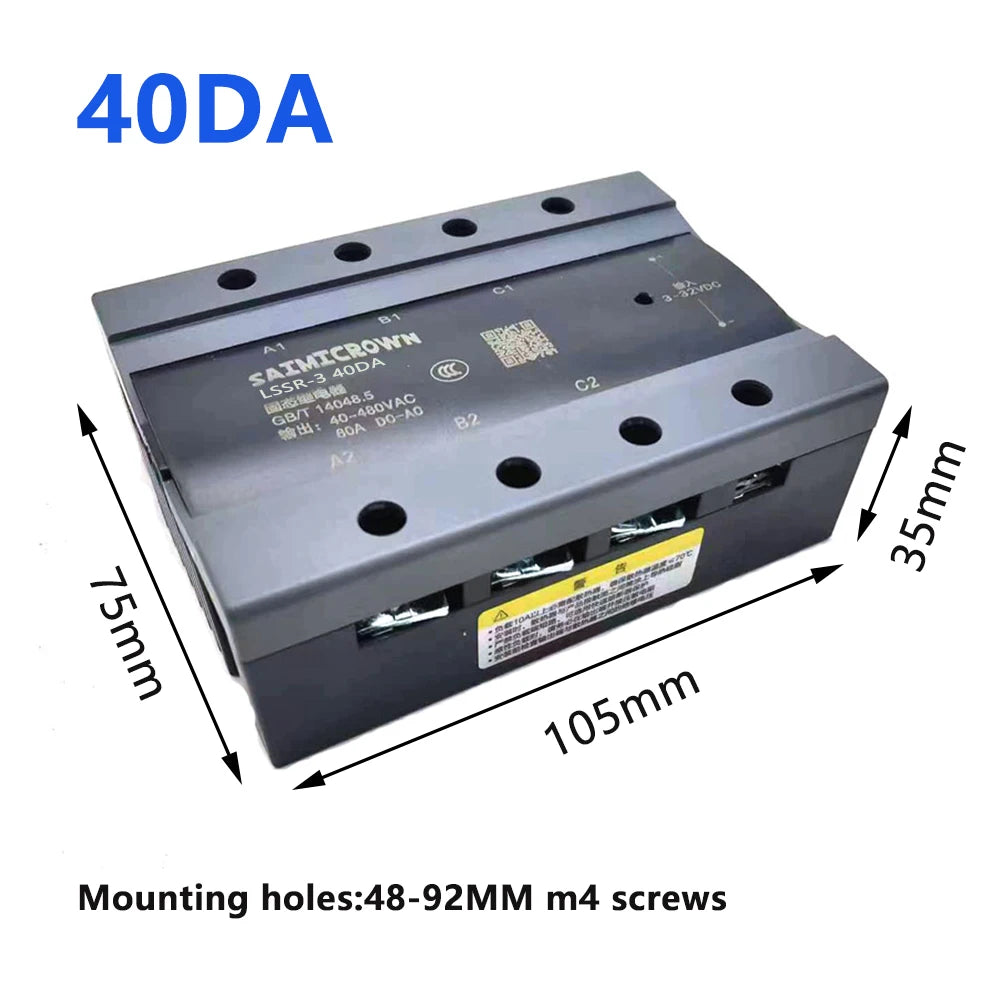

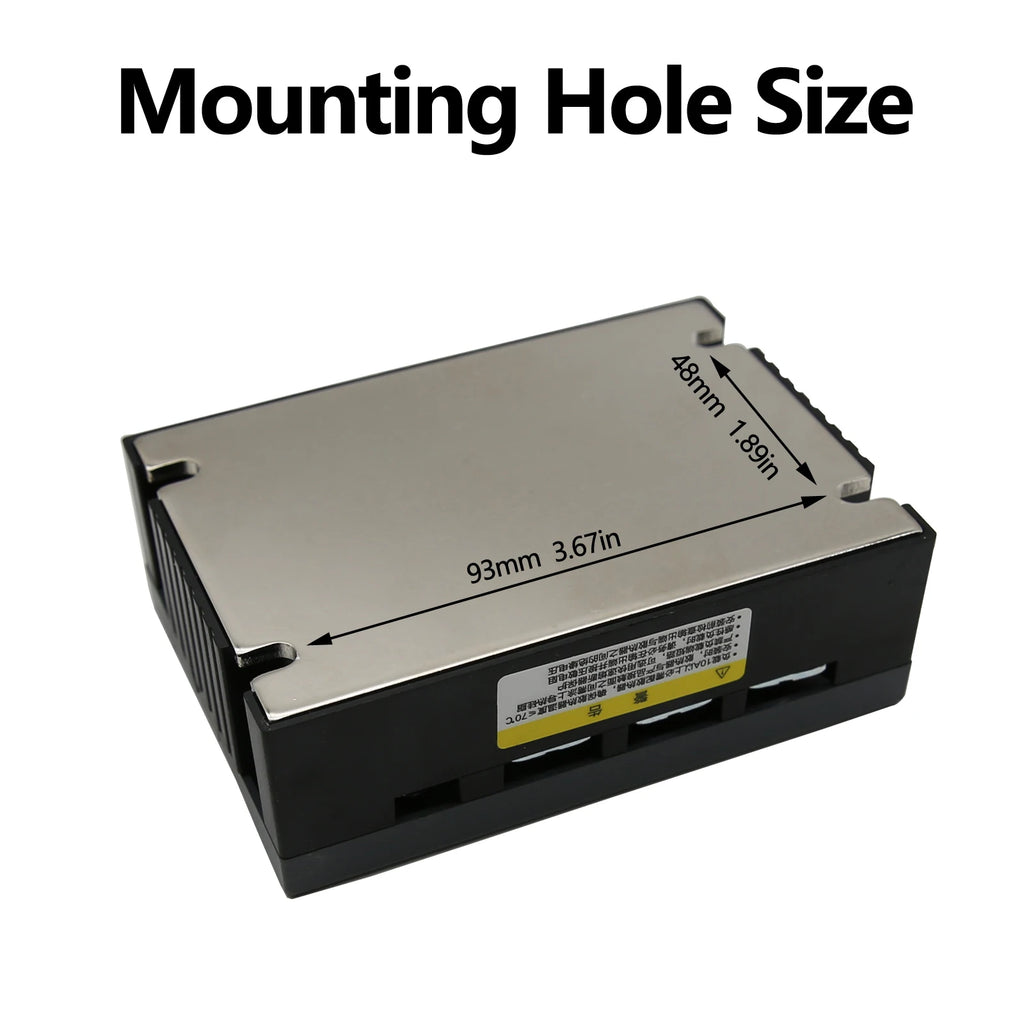

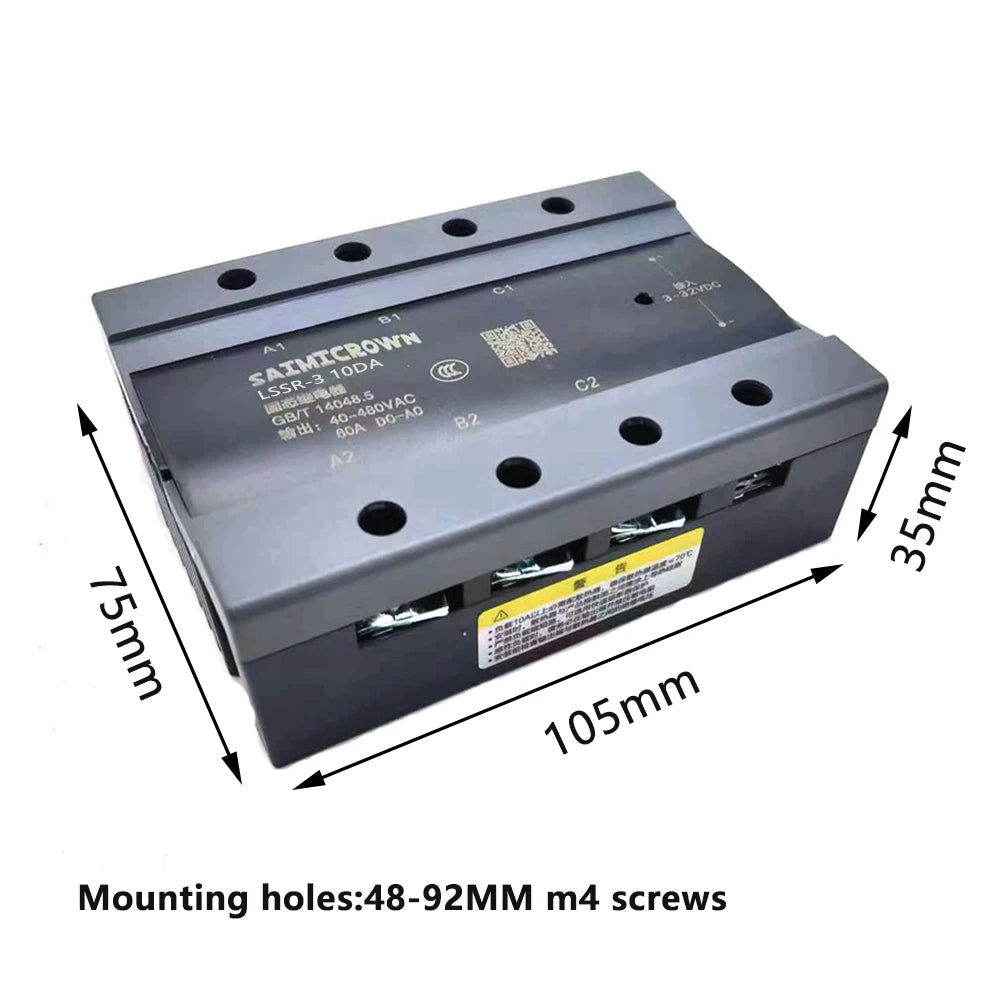

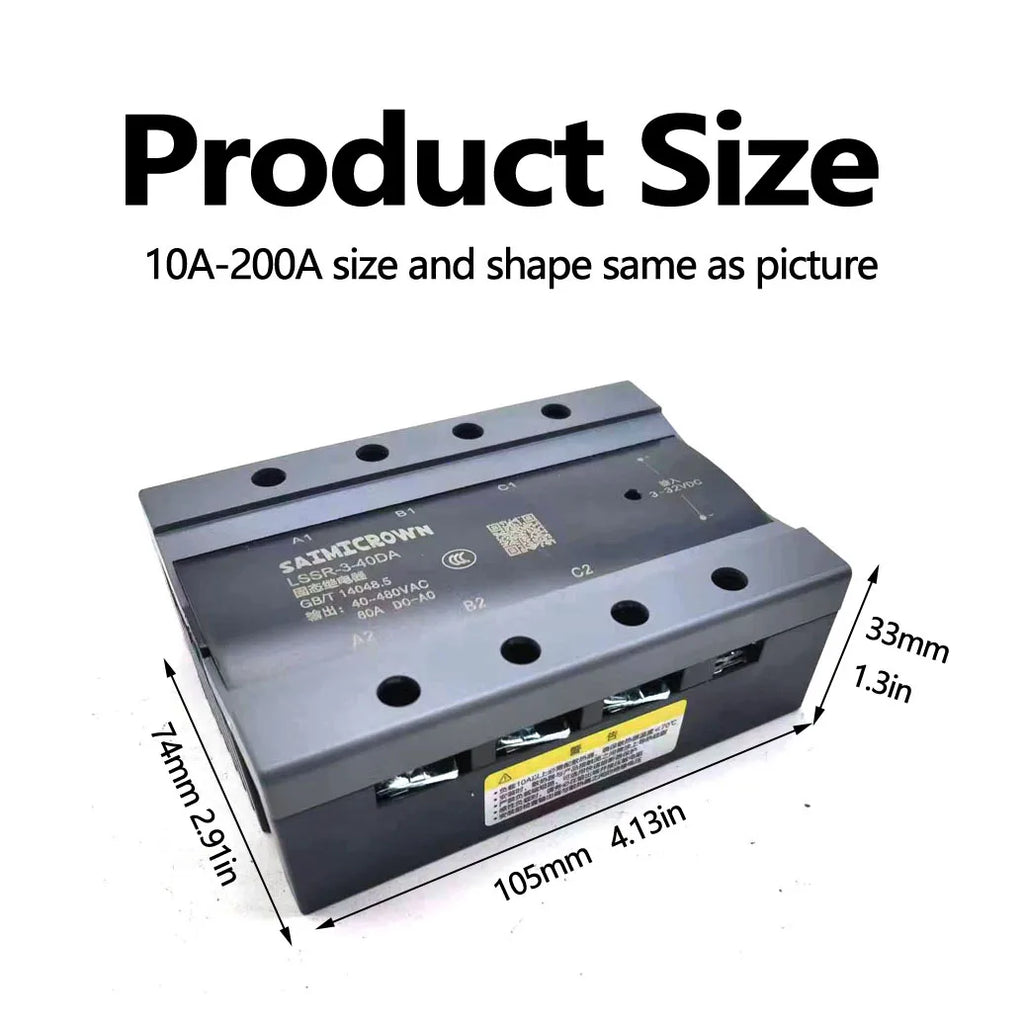

Dimension (mm) 105*75*35


Product features

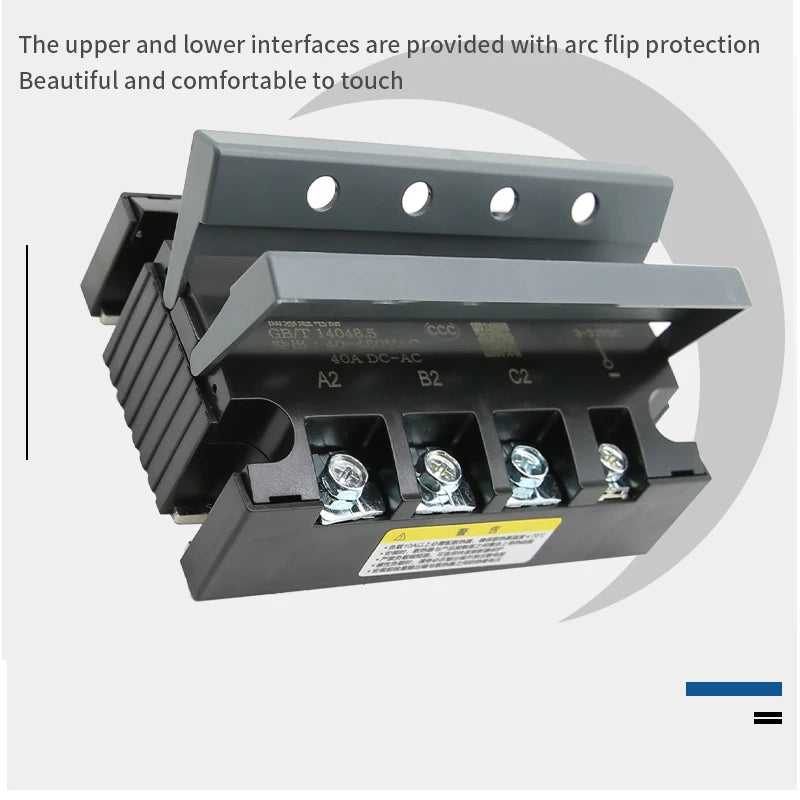

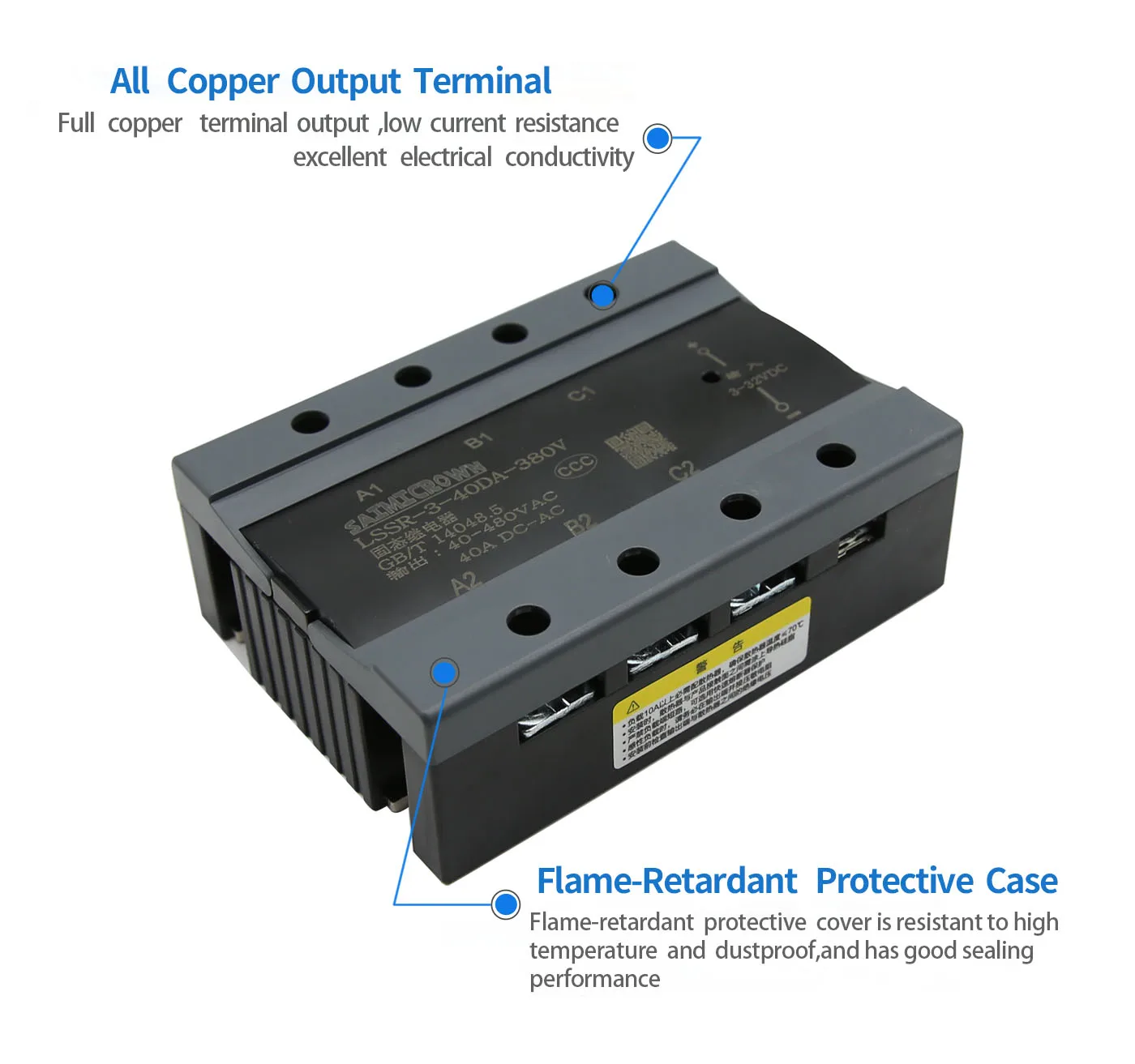

1. Flame retardant housing

2. With LED indicator.

3. Non-contact solid state


Cautions and Notes


1. If the load will bring large inrush current (e.g. light bulb, etc.), please make sure that the SSR can withstand the inrush current. 2.

2. If the inrush current is out of range, a fast fuse must be connected to the output.

3. if the transient voltage is out of range, a varistor must be connected in parallel with the output, a 750V varistor is recommended.

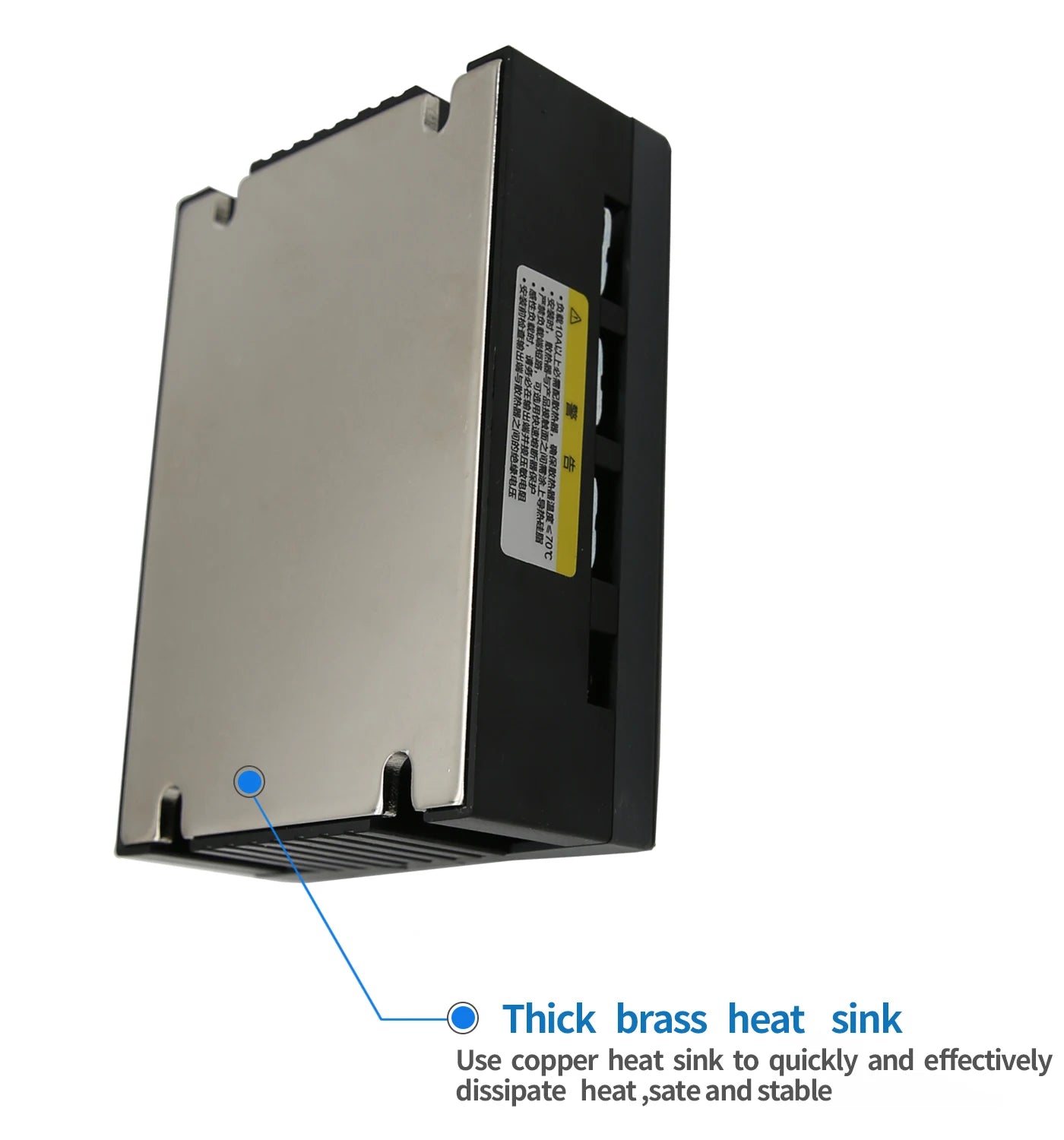

4. More than 10A, it is recommended to use with heat sink and fan, heat dissipation is good, the product service life is longer!




Translated with DeepL.com (free version)

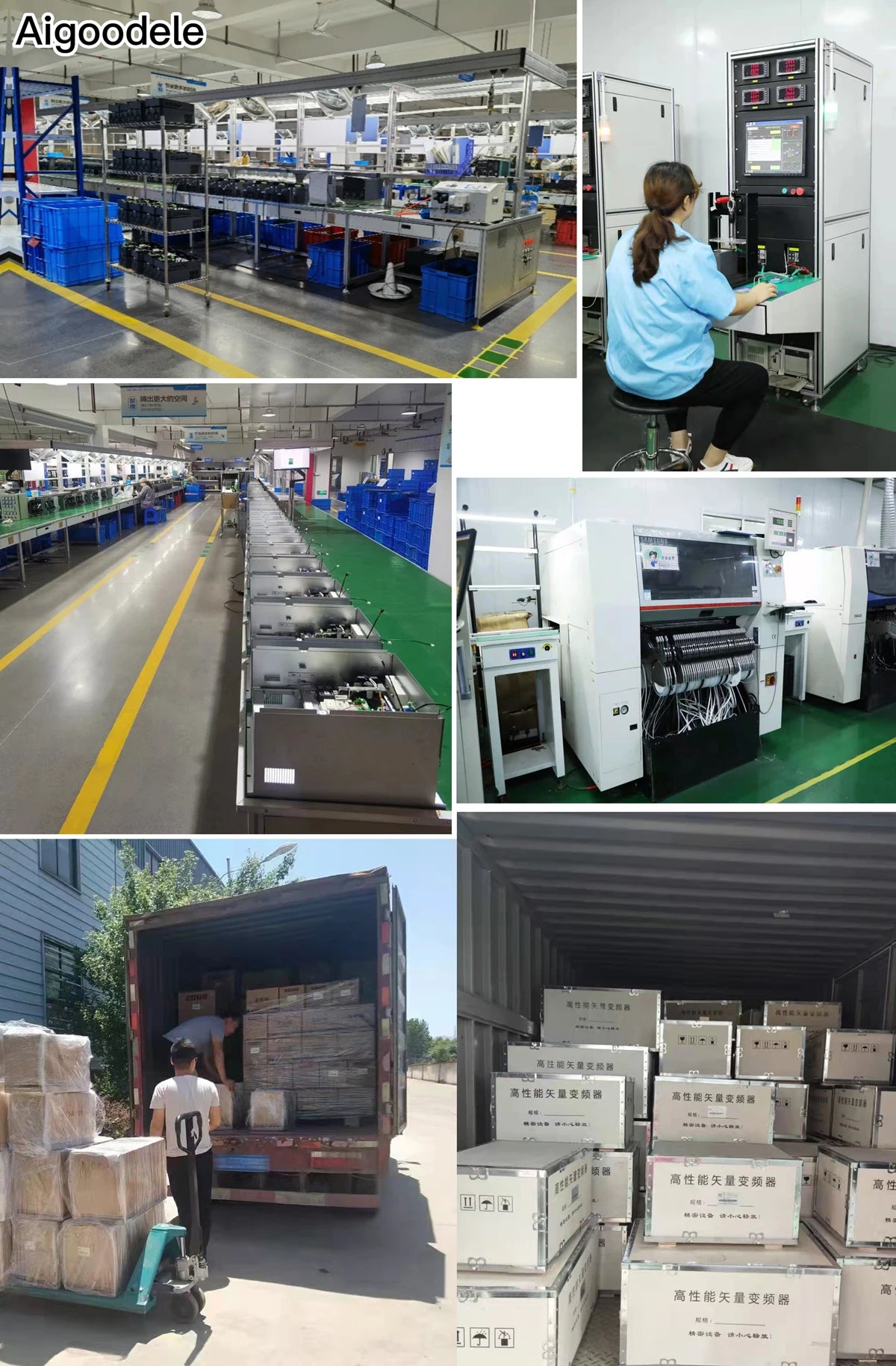

Zhejiang Lingshine Electric Co., Ltd (Aigoodele), is a high-tech enterprise integrating production, sales and service. Our main products are frequency converter (VFD), soft starter (LSRQ), solid state relay (SSR), solid state voltage regulator (LSCR), high power rectifiers and so on (KP, ZP, MTC, MDS, MDQ, MDC, MDK, ETC). These products have been widely used in energy, petroleum, metallurgy, chemical industry, construction, plastics, textile, water supply, paper making, mining, printing and many other industrial fields. In addition, our products not only perform well in the domestic market, but have also been exported to dozens of countries and regions in Asia, Africa, Europe and other continents, winning wide international recognition.
