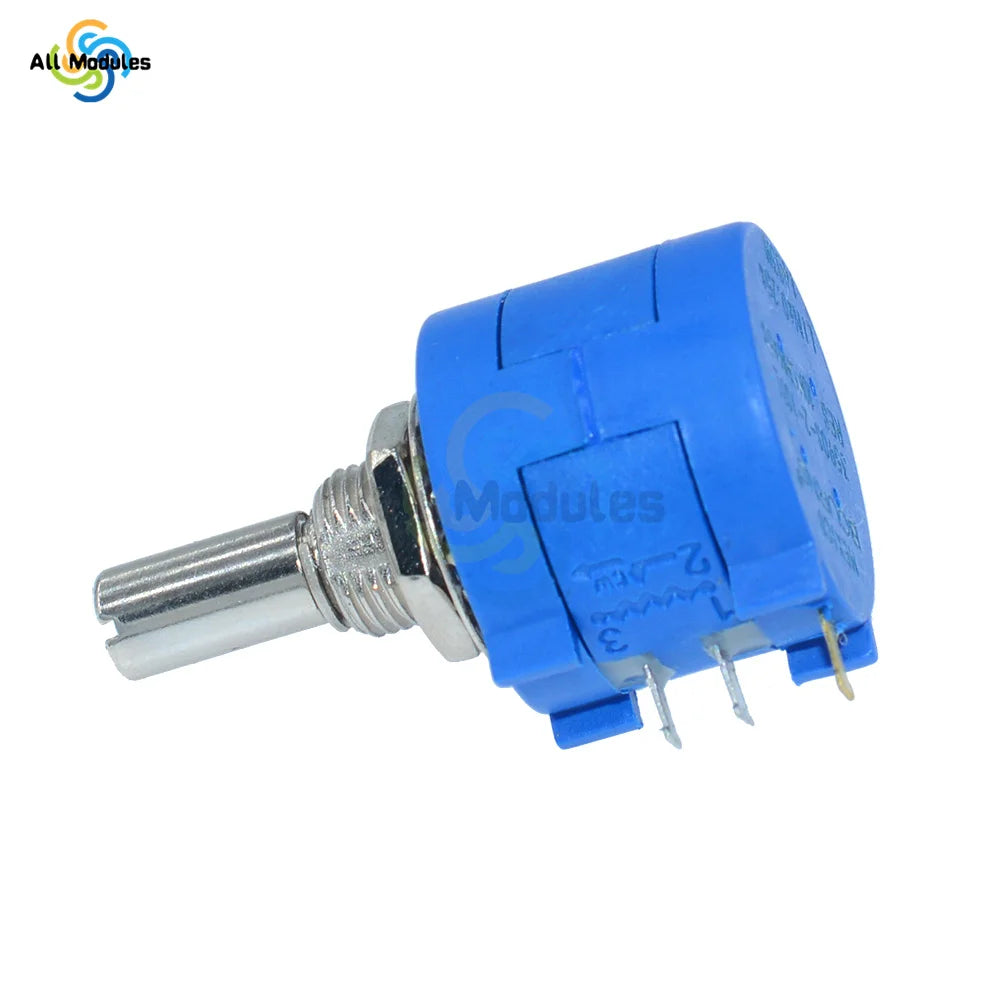

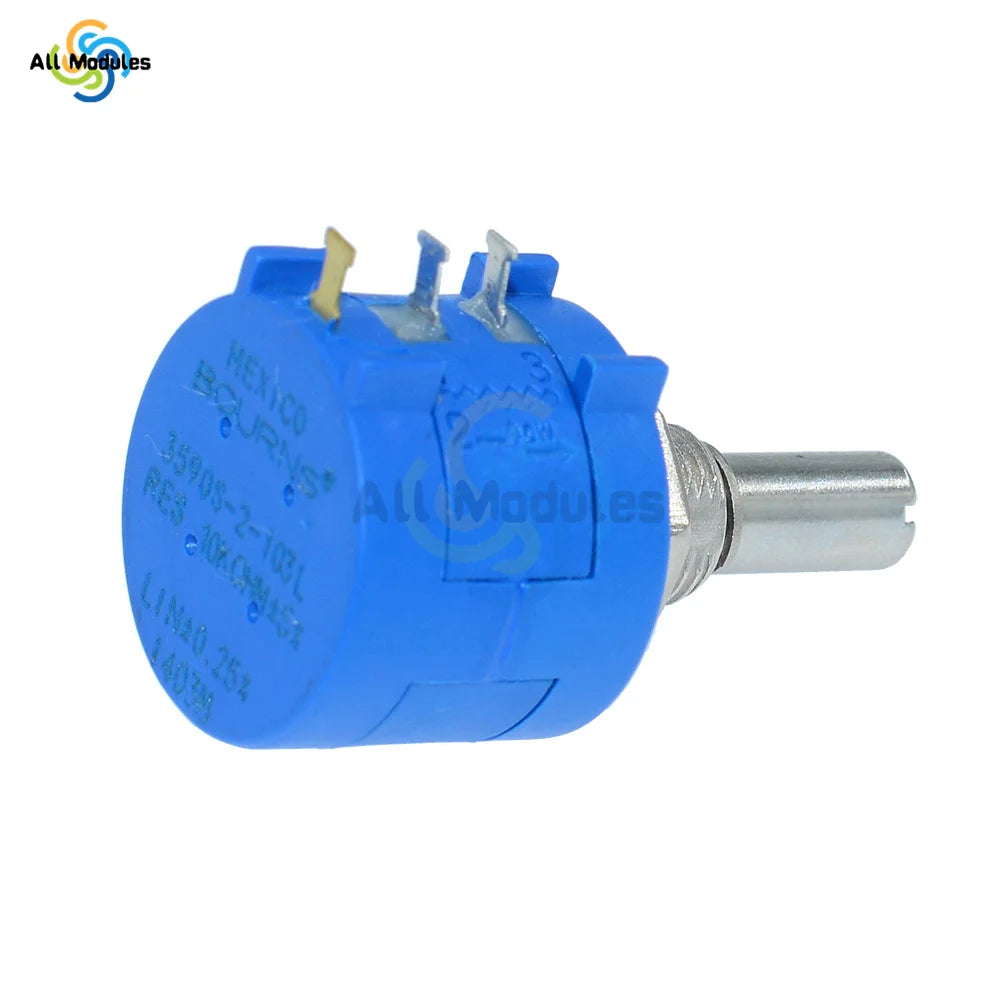

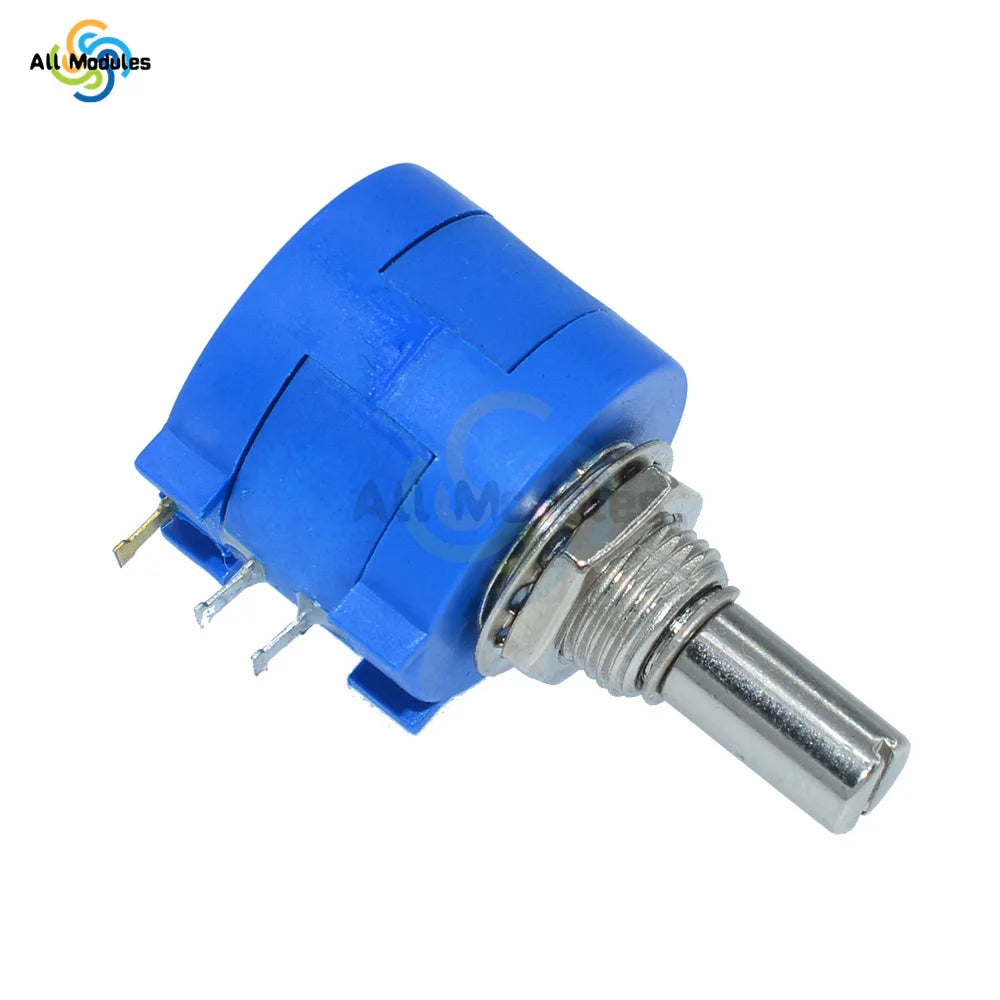

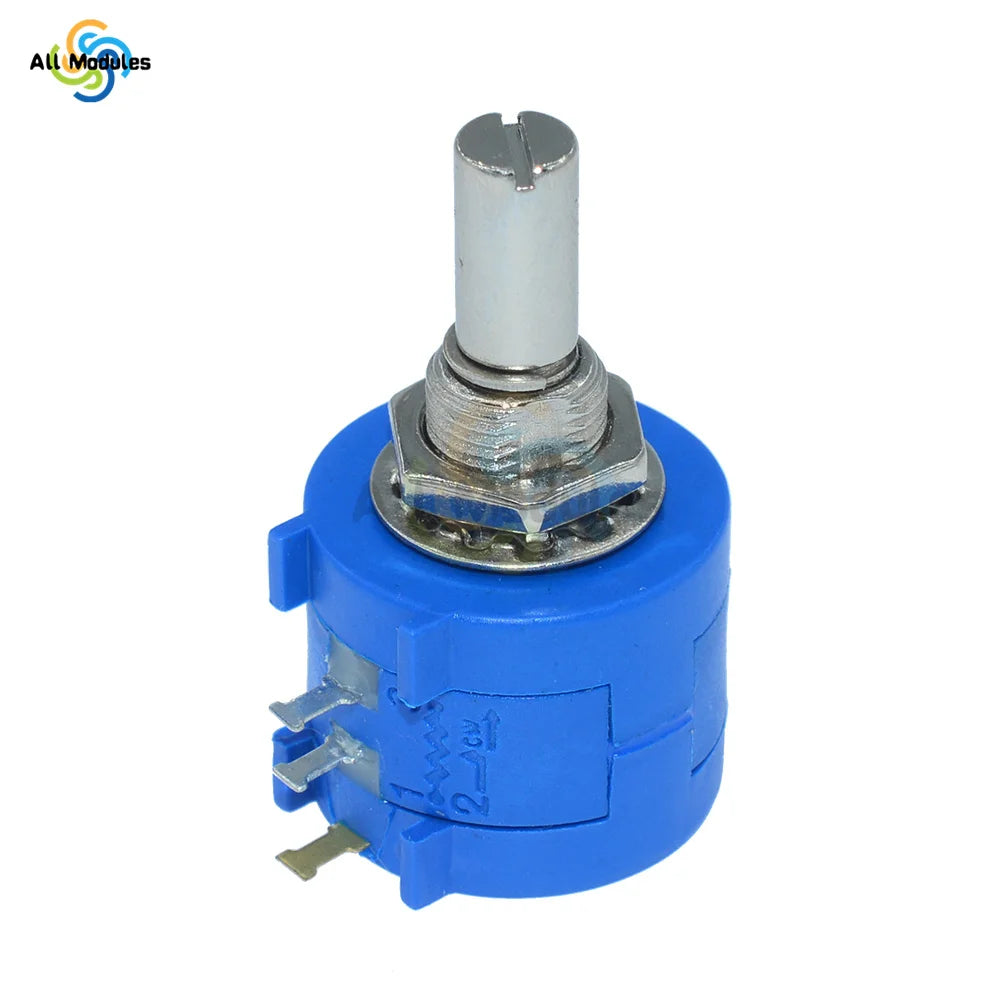

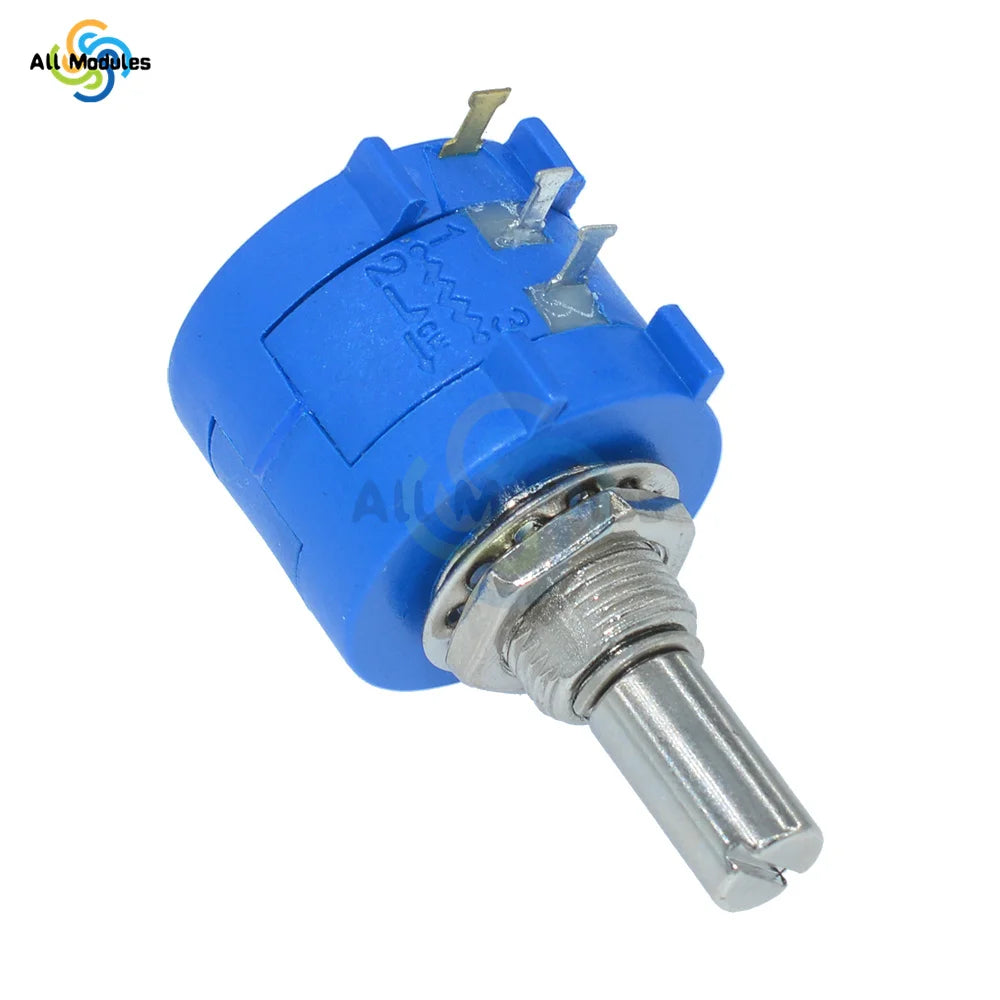

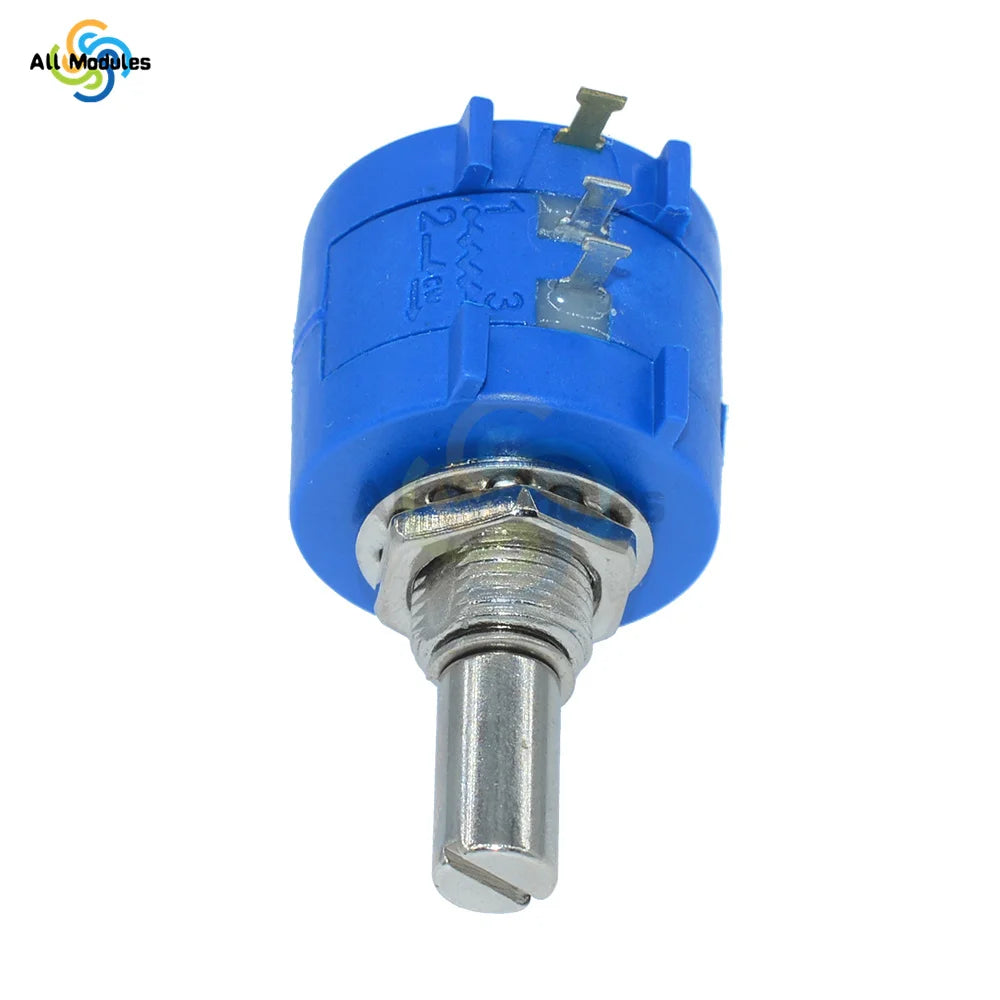

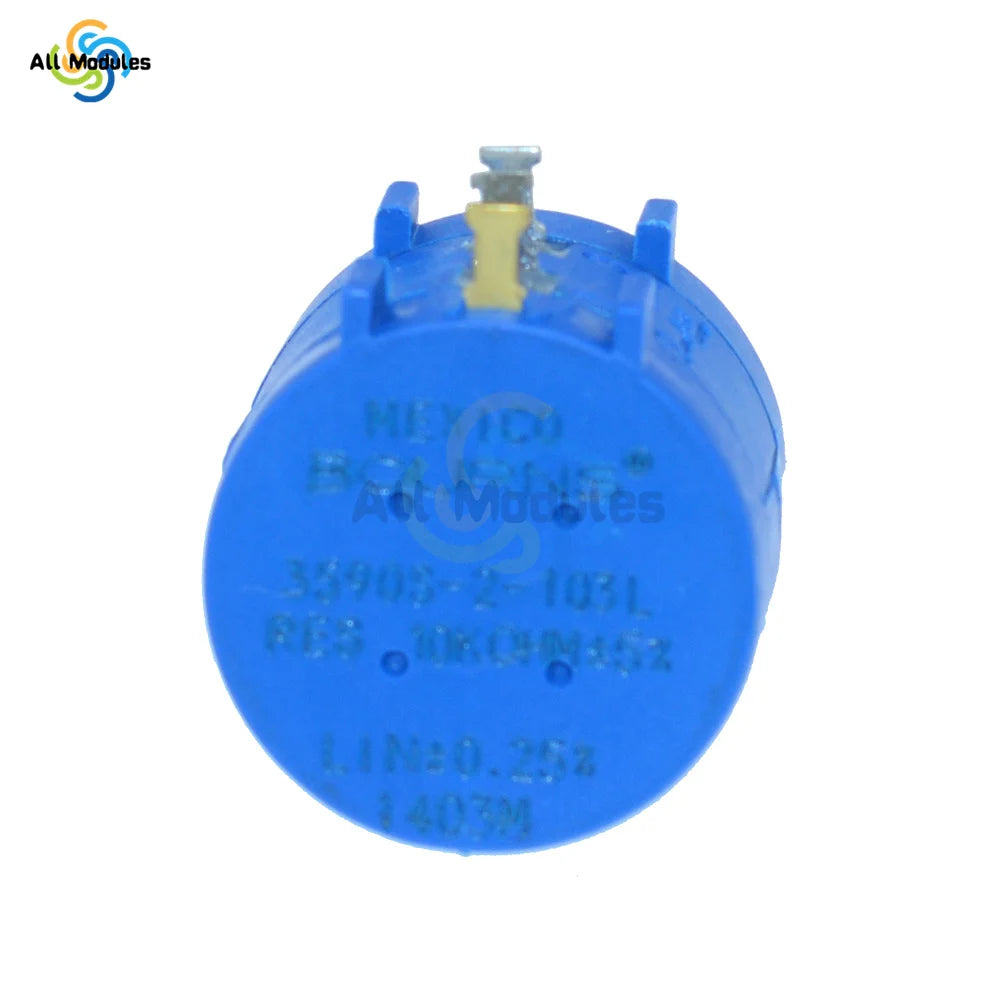

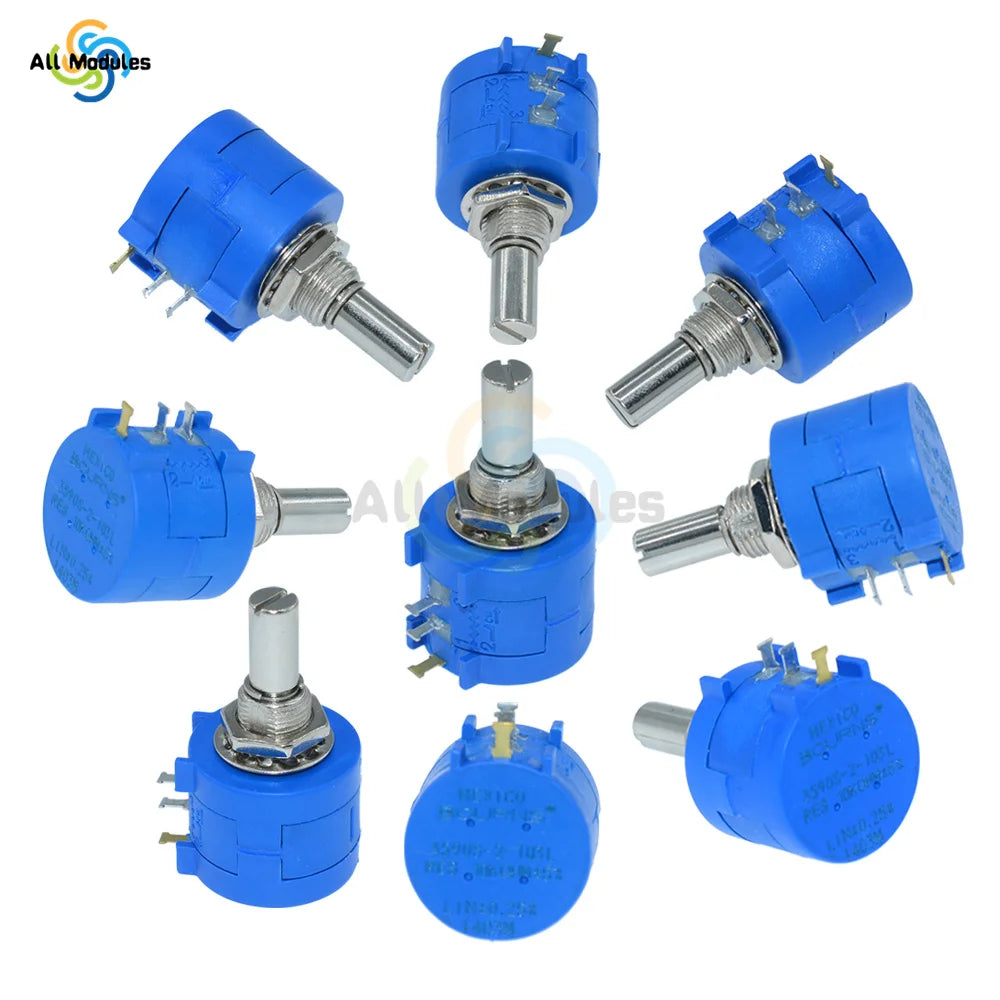

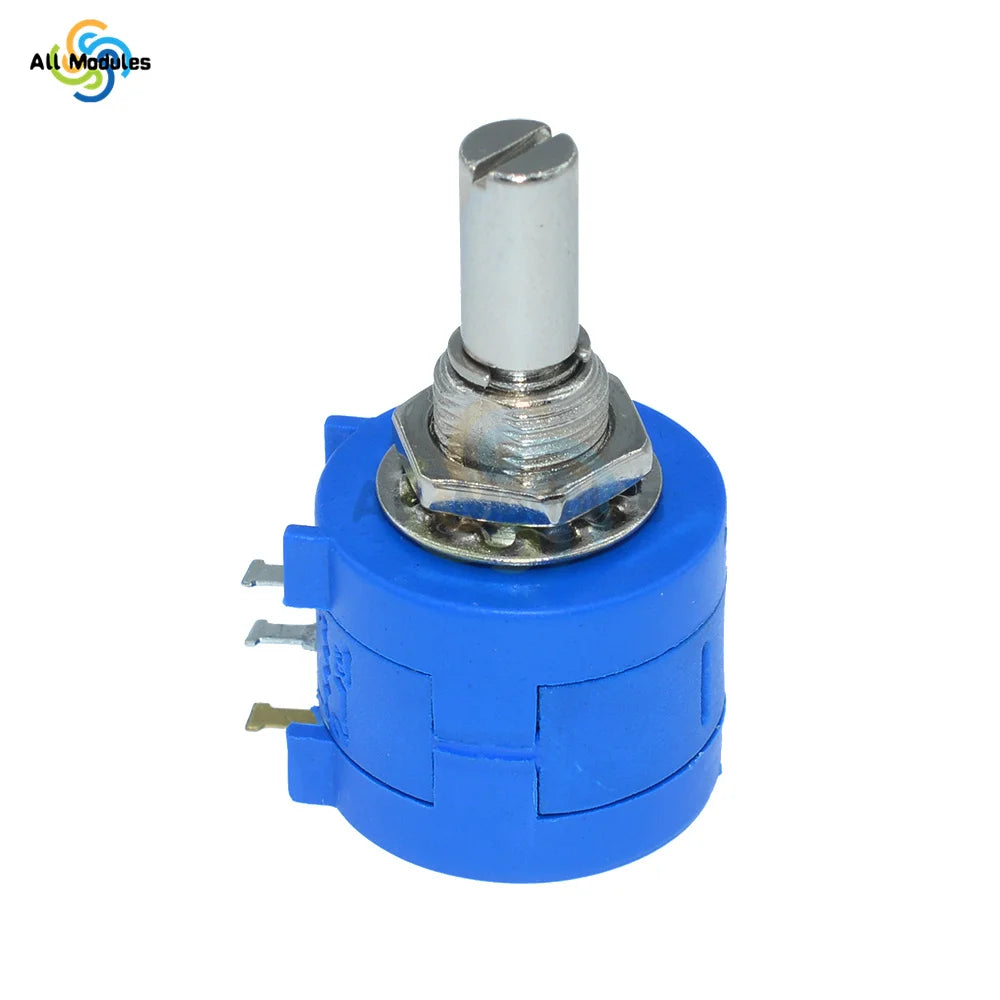

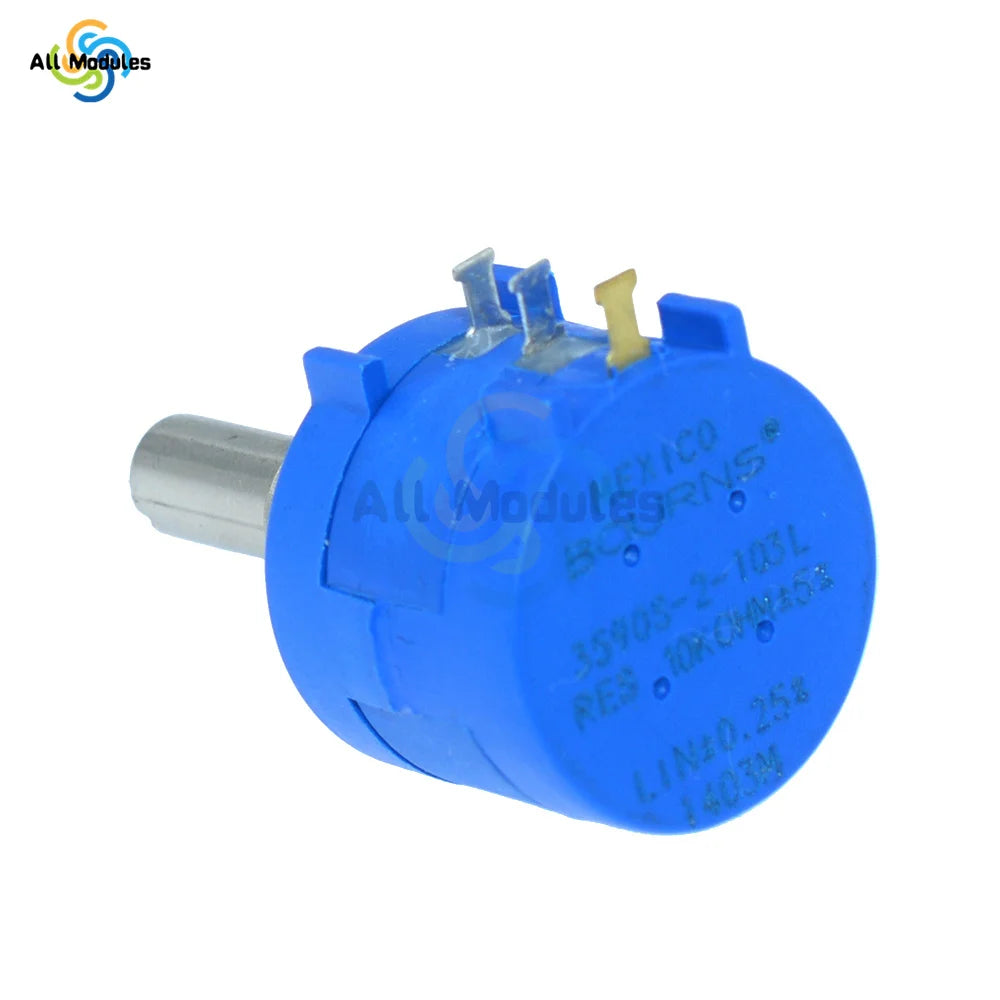

3590S Multiturn Potentiometer 500 1K 2K 5K 10K 20K 50K 100K Ohm Wirewound Potentiometer Adjustable Resistor 3590 102 202 502 103
100K Ohm
$15.66
Sale price
$15.66
Regular price
$0.00
Skip to product information
3590S Multiturn Potentiometer 500 1K 2K 5K 10K 20K 50K 100K Ohm Wirewound Potentiometer Adjustable Resistor 3590 102 202 502 103
$15.66
Sale price
$15.66
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: diymore
Choice: yes
Condition: New
Max. Operating Voltage: 450V
Model Number: 3590S
Operating Temperature: -55-125
Origin: Mainland China
Rated Power: 2W
Resistance Tolerance: 5%
Technology: Wirewound
Type: Wirewound Potentiometer
is_customized: Yes
semi_Choice: yes
3590S Multiturn Potentiometer 500 1K 2K 5K 10K 20K 50K 100K Ohm Wirewound Potentiometer Adjustable Resistor 3590 102 202 502 103
Specification:
Material: Plastic
Color: Blue
Model: 3590S-2-501L, 3590S-2-102L, 3590S-2-202L, 3590S-2-502L, 3590S-2-103L, 3590S-2-203L, 3590S-2-503L, 3590S-2-104L
Type: Rotary Shaft
Technology: Wirewound
Turns: 10
Spinning life: 1,000,000 revolutions
Power: 2W
Resistance Value: 500R Ohm, 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm (Option)
Resistance Tolerance: ±5%
Linearity: ±0.25%
Shaft Diameter: 6mm/0.24"
Threaded Diameter: 9mm/0.35"
Total Length: 40mm/1.6"
Load life: 1000 hours
Mechanical angle: 3600° ±10°
Operating temperature range: -55℃ - 125℃
Size(No Include Shaft): 22x19mm/0.9"x0.7"(DxH)
Pacakge Included:
1 * 3590S Wirewound Potentiometer
