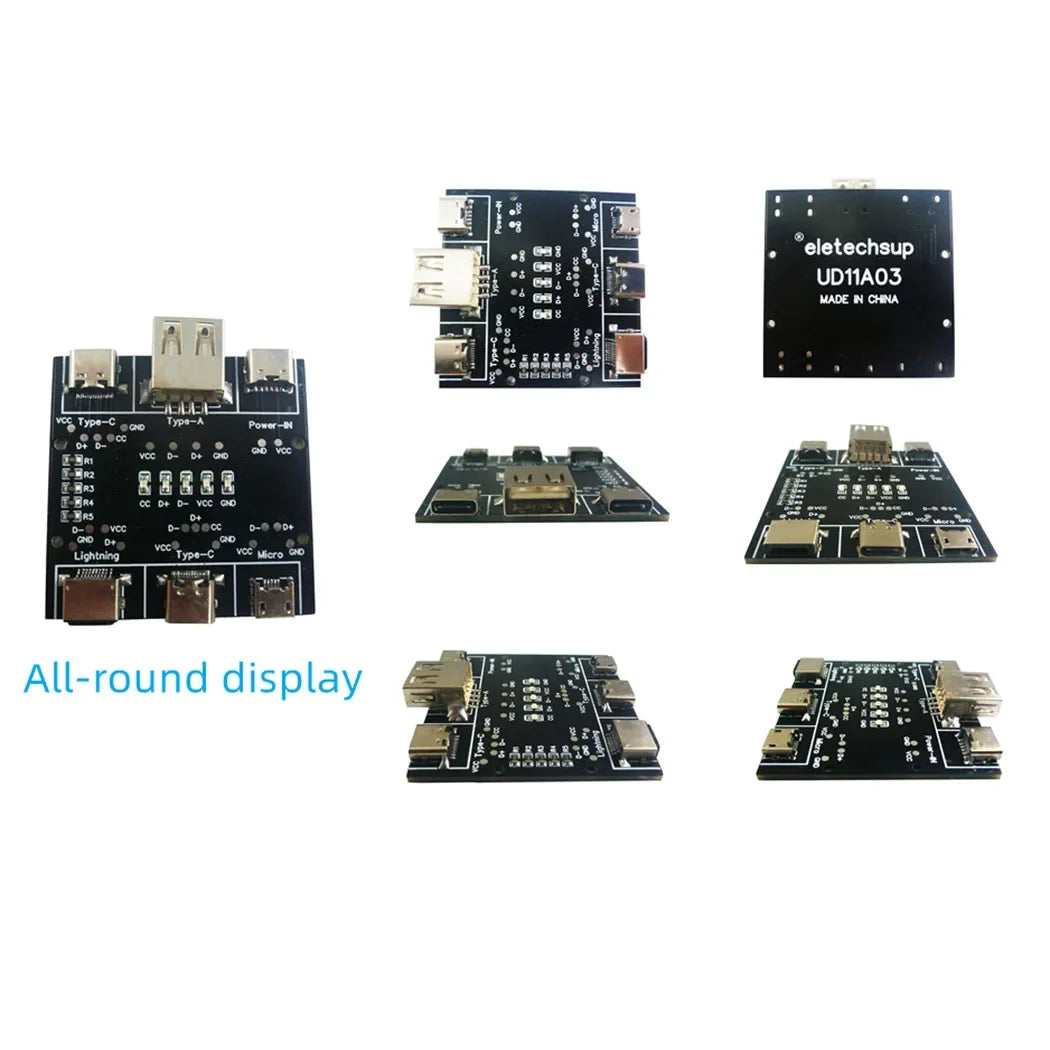

3PCS UD11A03 USB Cable Tester DC5V Type C Input Compatible DT3 Test 4 Kinds Data Line USB A Lightning Type C

3PCS UD11A03 USB Cable Tester DC5V Type C Input Compatible DT3 Test 4 Kinds Data Line USB A Lightning Type C

$43.74

$43.74 $0.00

Description

SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

semi_Choice: yes

Product Name: 3PCSUD11A03 USB Cable Tester DC5V Type C Input Compatible DT3 Test 4 Kinds Data Line USB A Lightning Type C

Packing list:

1 pcs USB A Type-C Cable Tester

Description:

Working power: DC 5V(TYPE-C Input)
Working current: 10-20MA

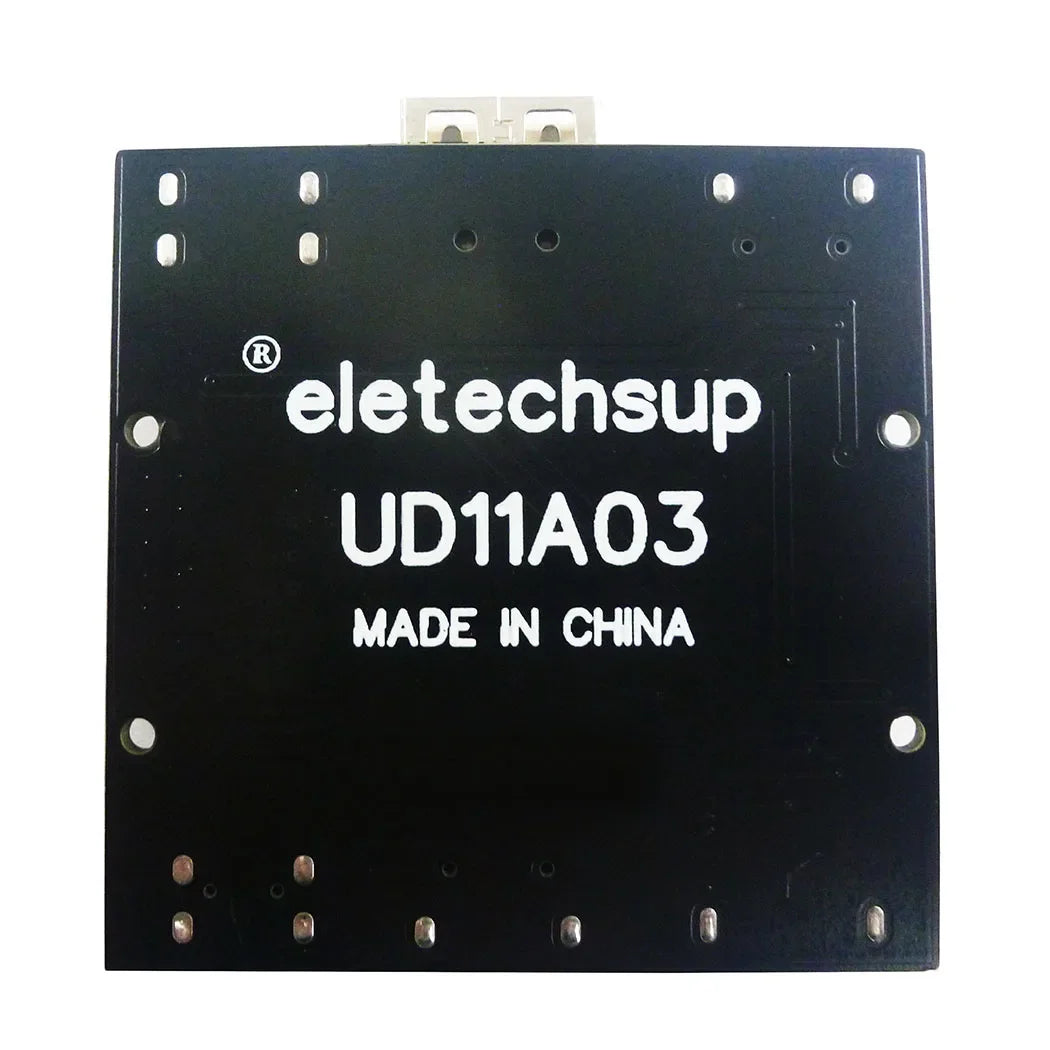

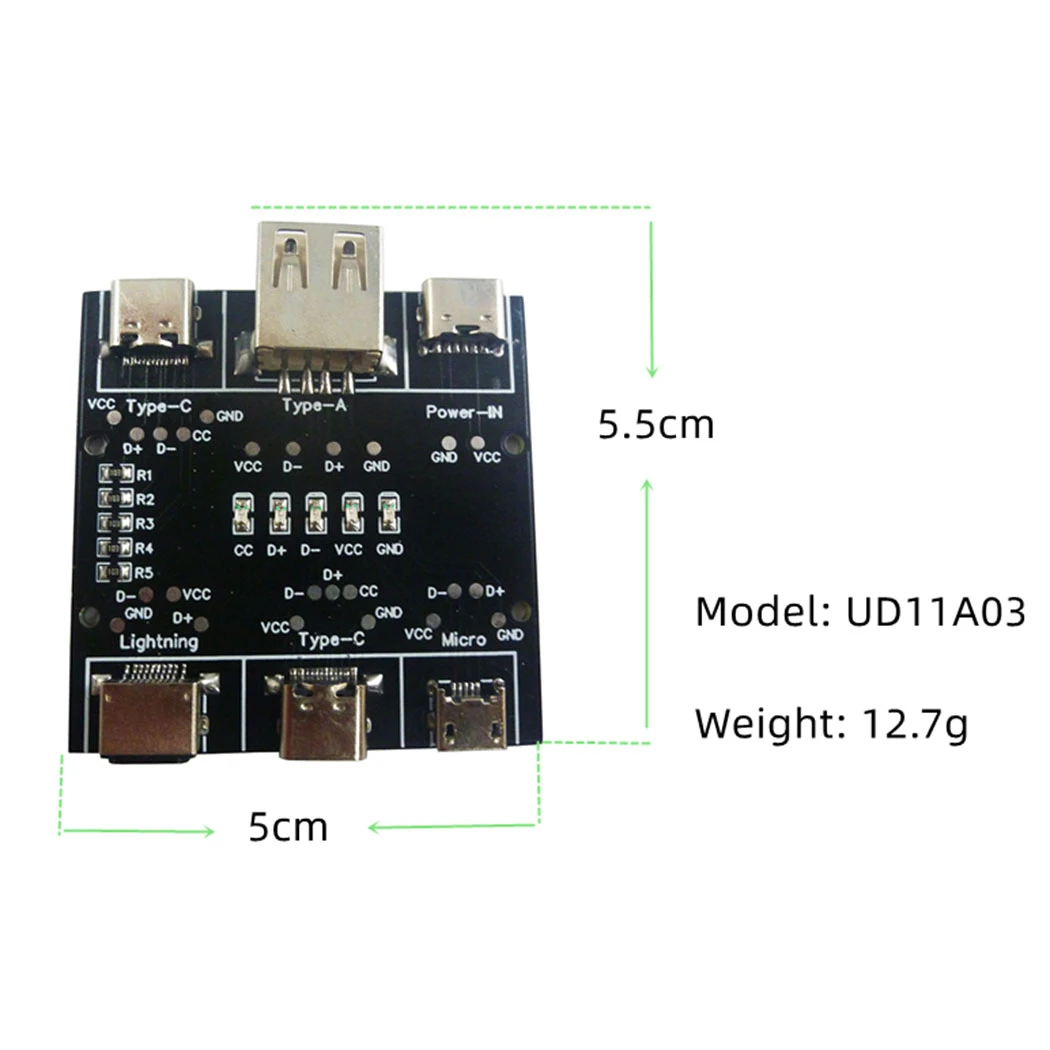

Model : UD11A03 (compatible with DT3)
Weight: 12.7g
Size: 50*50*10MM

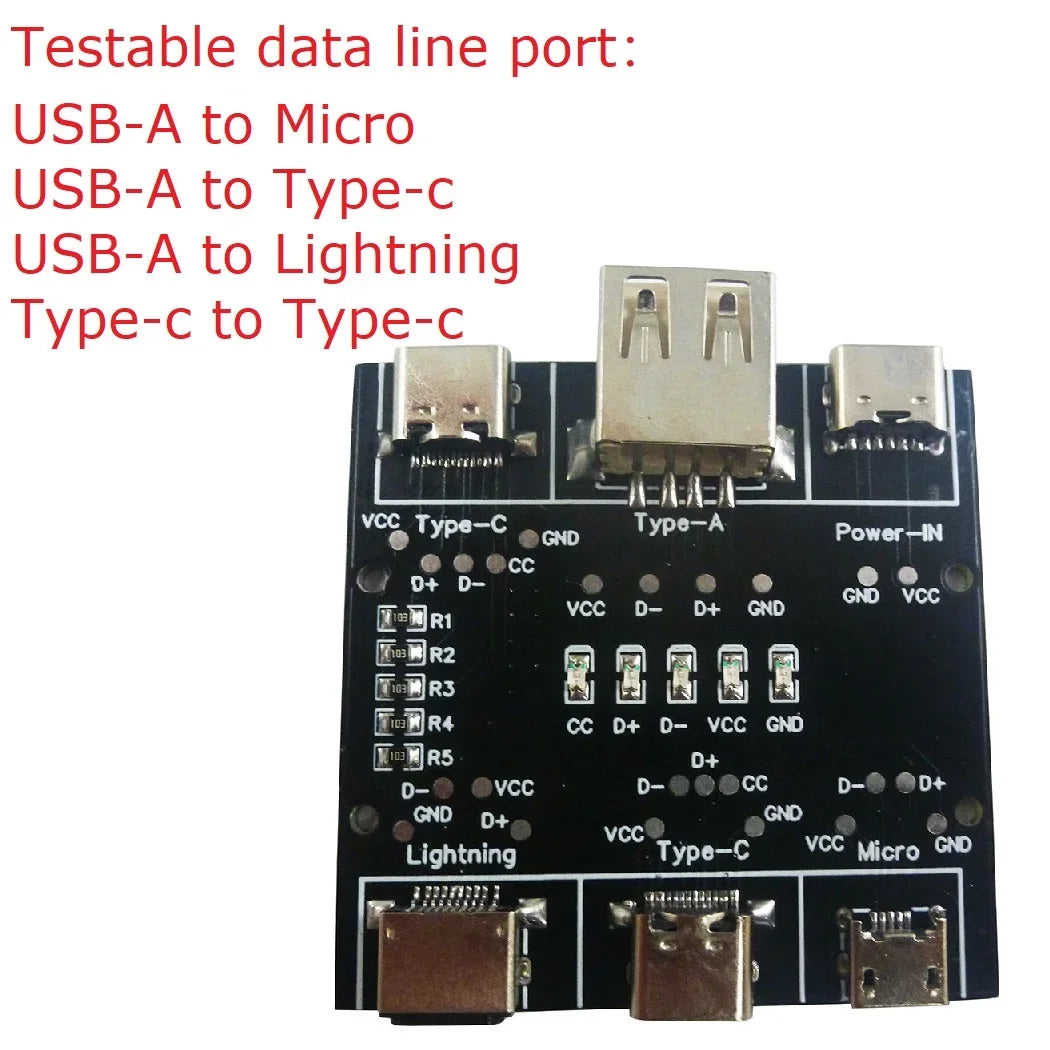

Testable data line port:

USB-A to Micro
USB-A to Type-c
USB-A to Lightning
Type-c to Type-c

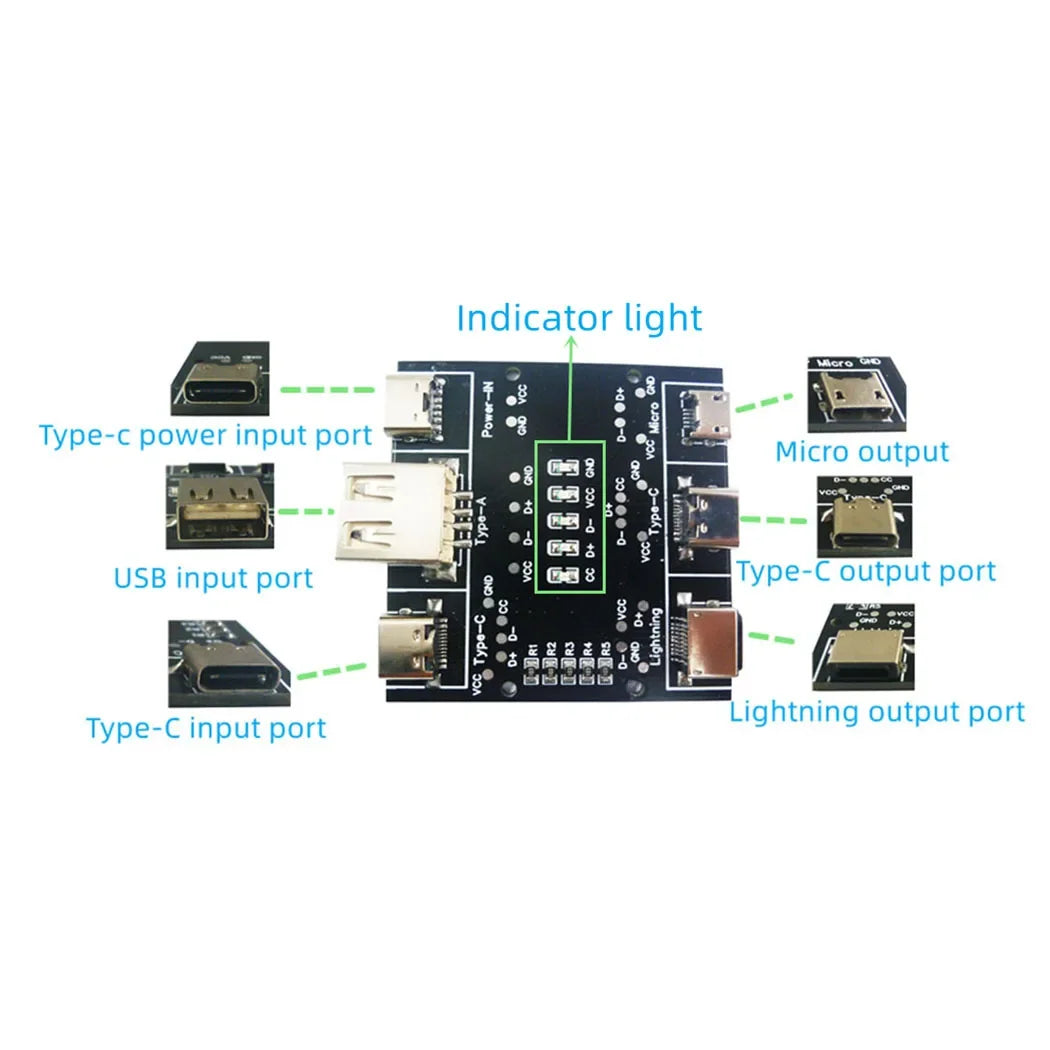

Instruction of The Tester:

1 Use the Type-c charging cable to plug into the Power-IN interface to supply power to the PCB board.
2 Insert one end of the data cable to be tested into the corresponding input port, and the other end into the corresponding output port.
3 Observe the indicator light.

Indicator light description:

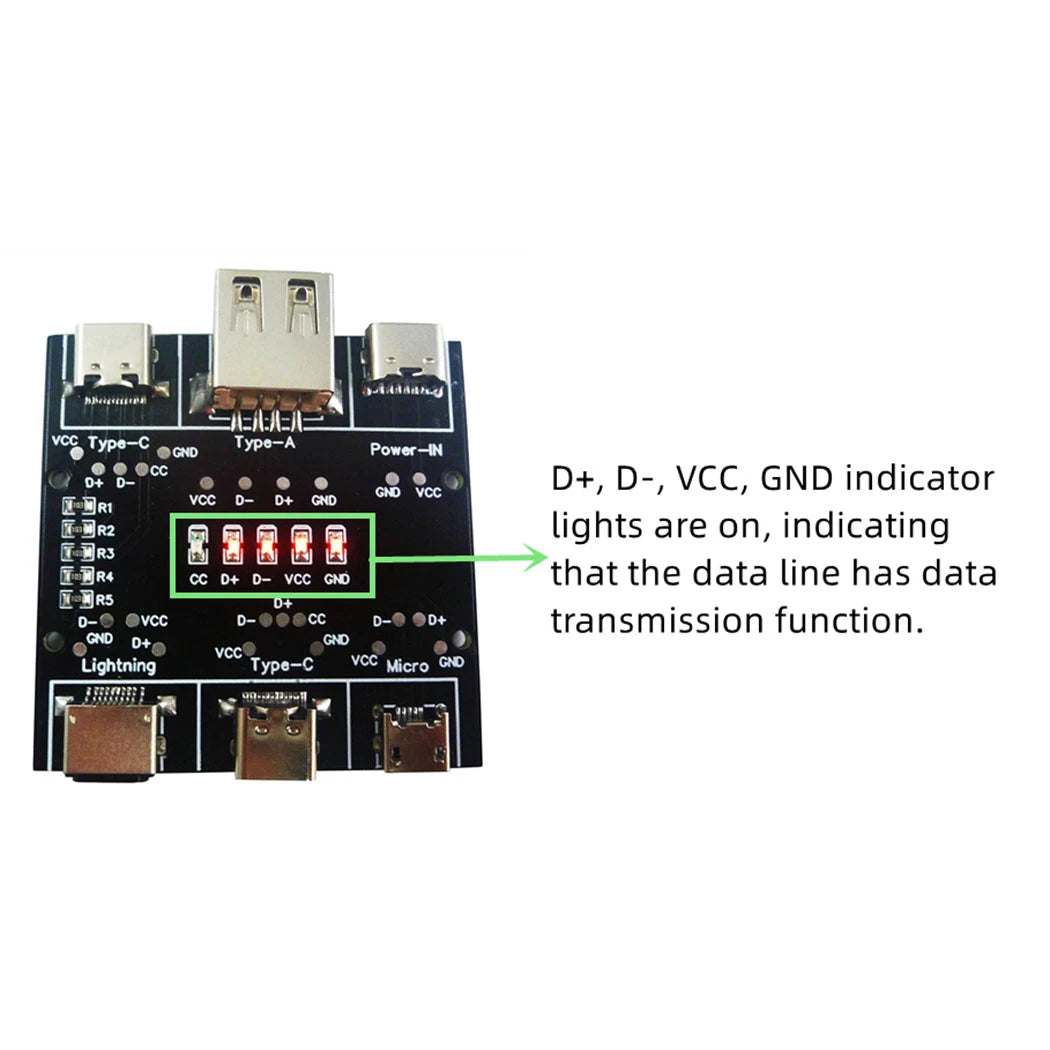

1 D+, D-, VCC, GND indicator lights are on, indicating that the data line has data transmission function.

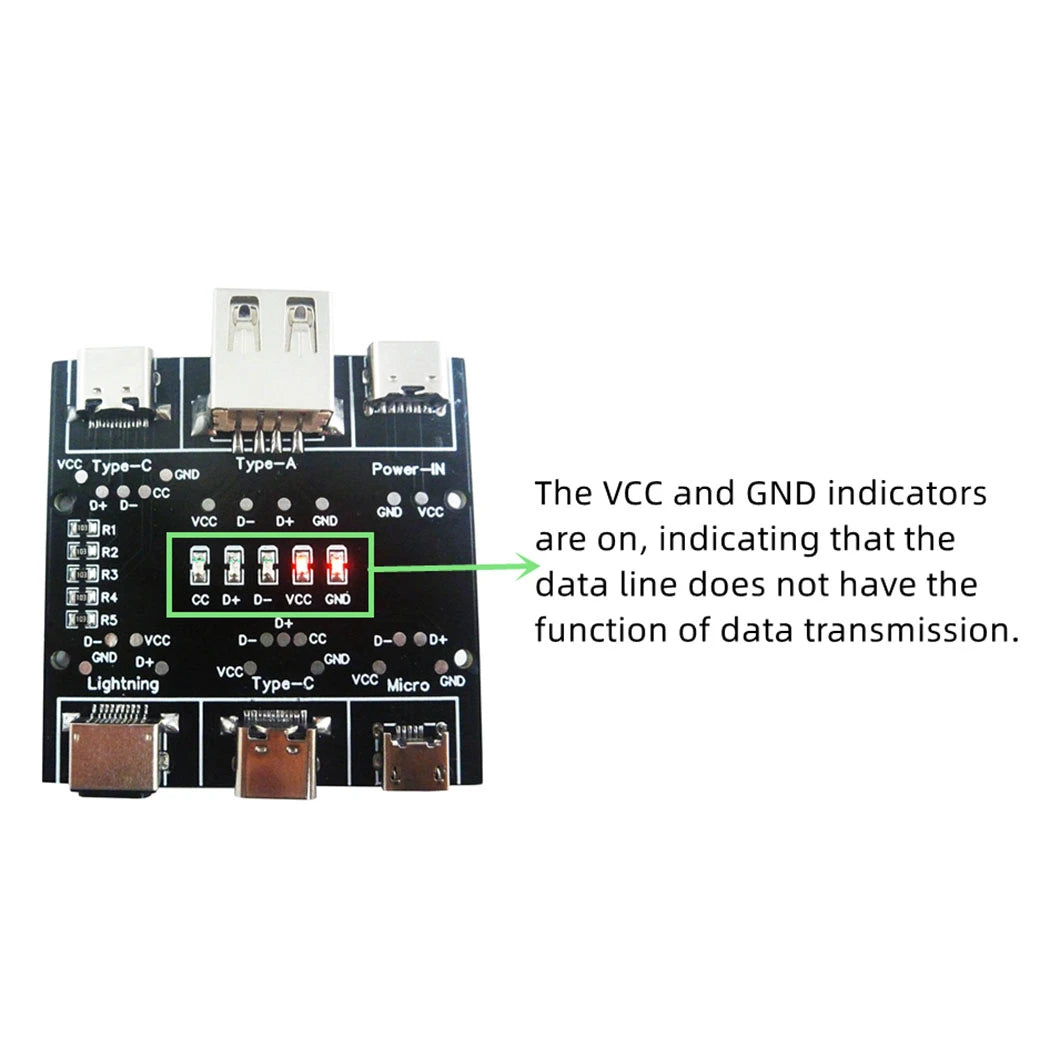

2 The VCC and GND indicators are on, indicating that the data line does not have the function of data transmission.

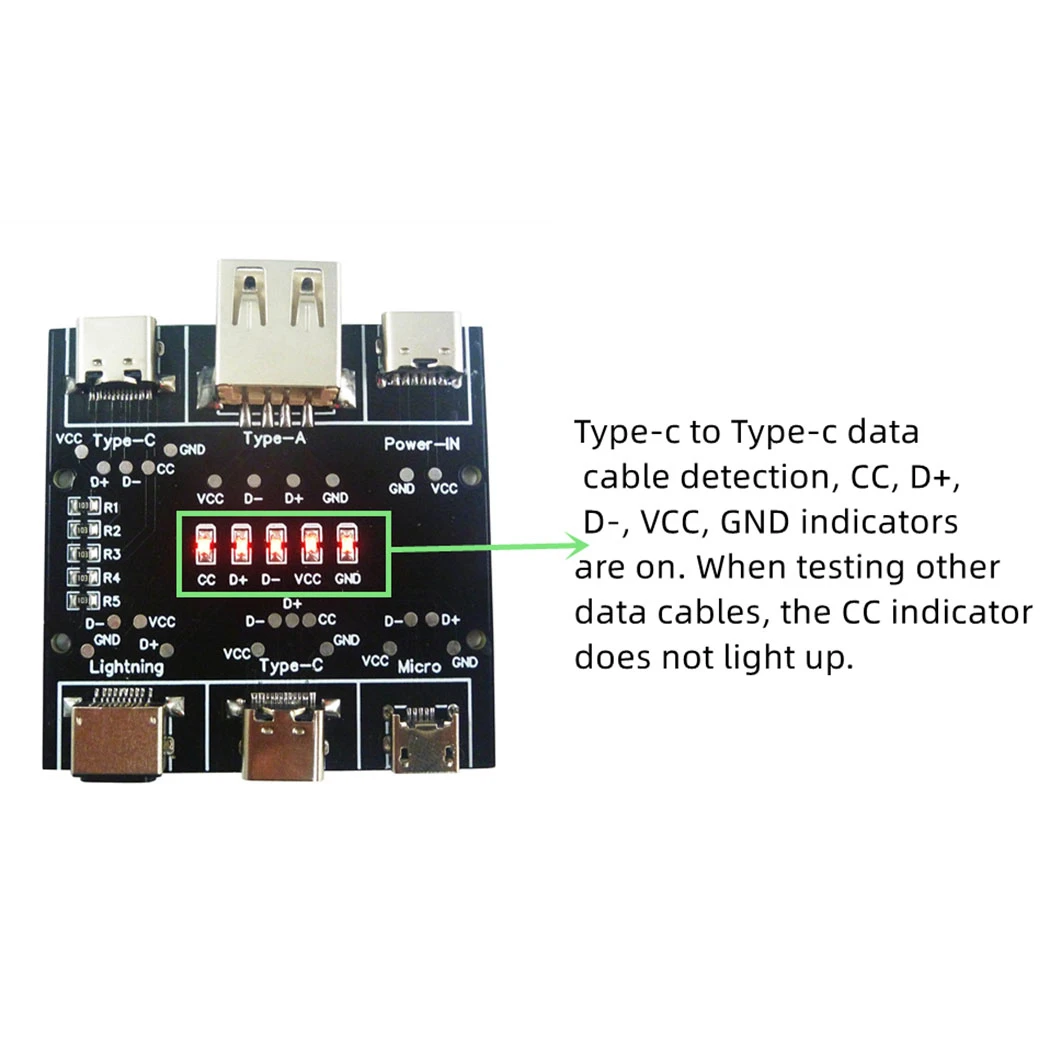

3 Type-c to Type-c data cable detection, CC, D+, D-, VCC, GND indicators are on. When testing other data cables, the CC indicator does not light up.

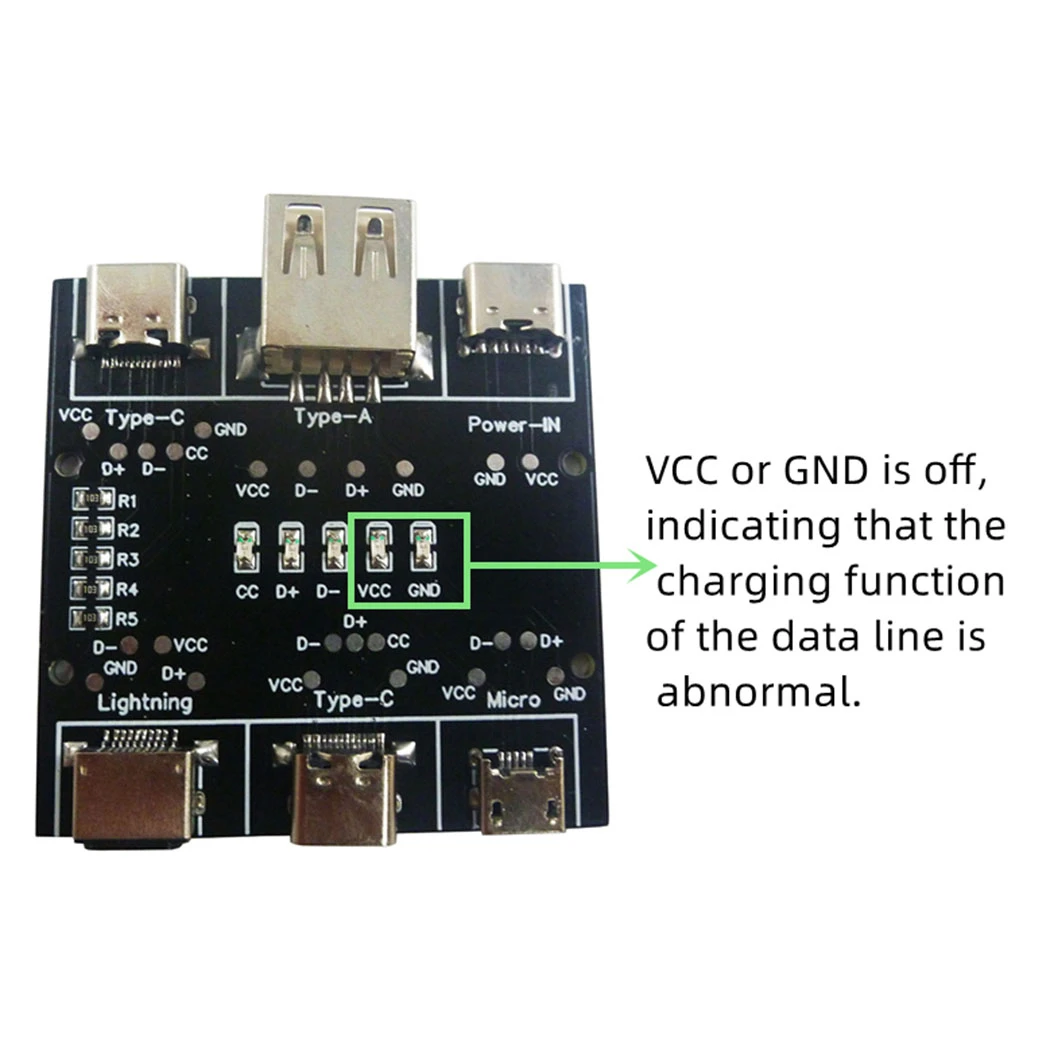

4 VCC or GND is off, indicating that the charging function of the data line is abnormal.

Notice:
During the test, except for the Power-IN port, the input and output ports of the test data line, other ports cannot be connected to the data line, otherwise the test result will be affected.
