SPECIFICATIONS

Accuracy Class: 0.2% 0.5%

Battery Included: no

Brand Name: NONE

Certification: CE,FCC,RoHS

Choice: yes

DIY Supplies: Electrical

Data Record: No

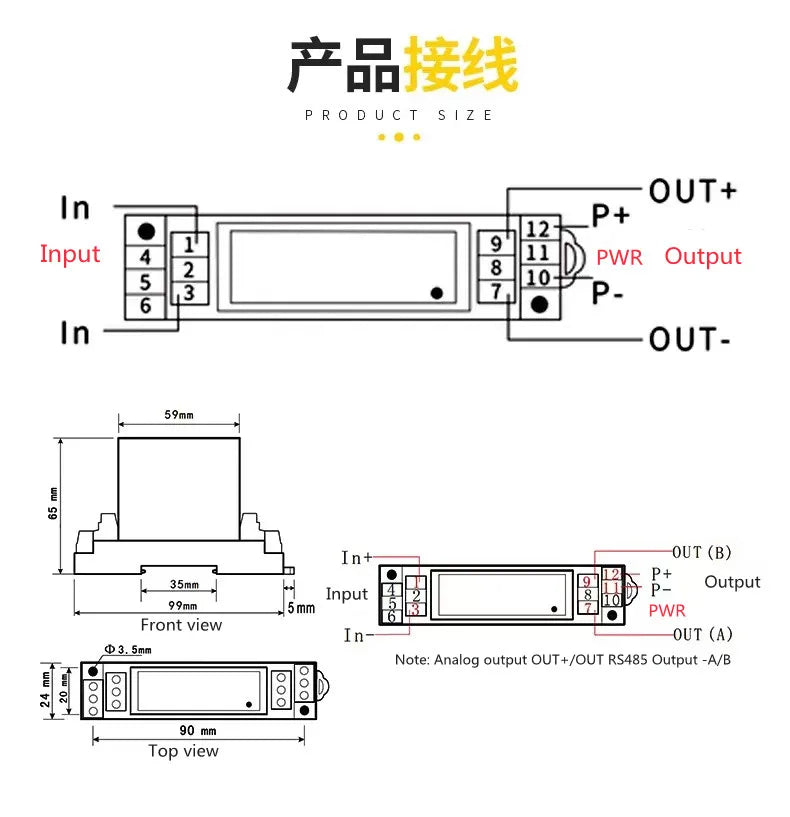

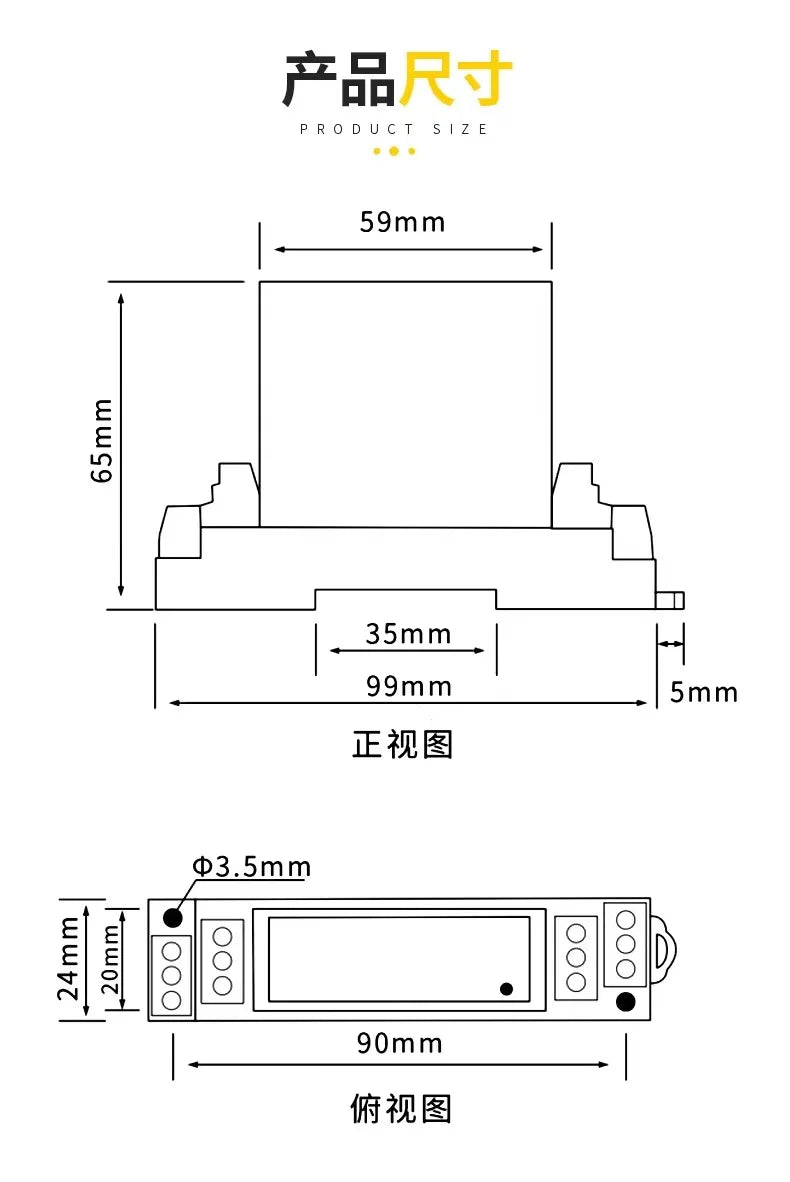

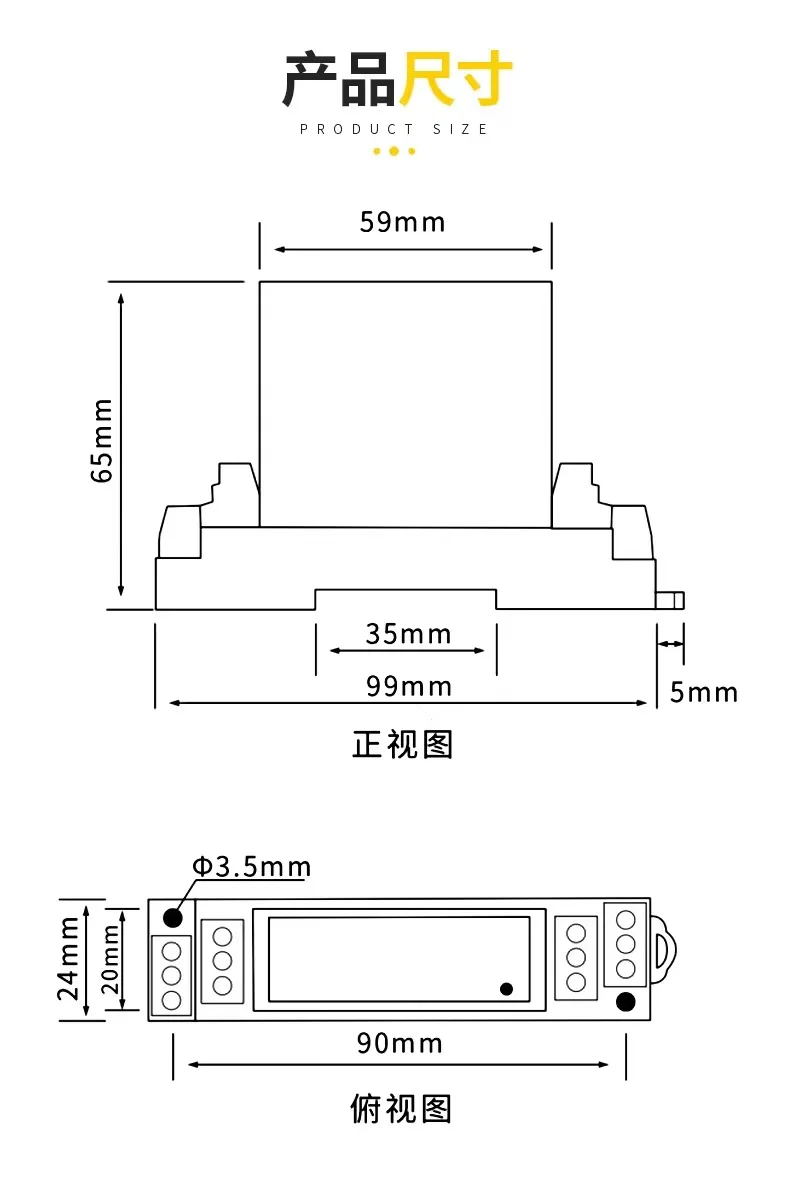

Dimensions: 99*65*24mm

Display Type: Analog Only

Frequency range: 40-60HZ

High-concerned chemical: none

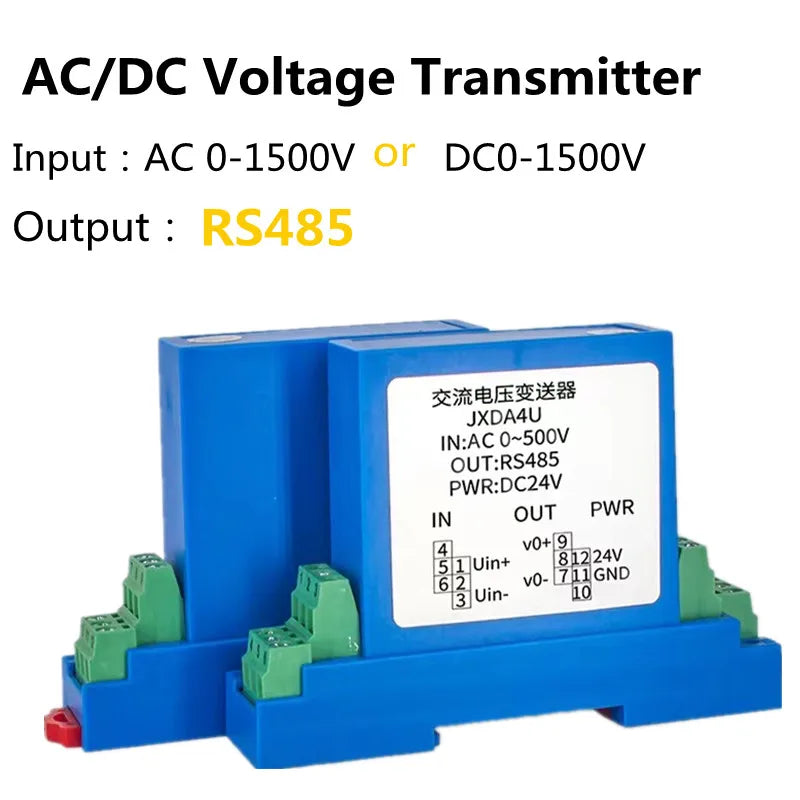

Input: AC or DC 0-1500V

Installation method: DIN 35mm rail+ plane screw

Model Number: JXDA4U

Operating Temperature: -20-55C,-30℃~+85℃

Origin: Mainland China

Output: 4-20mA,0-5V,0-10V,RS485

PWR: DC24V ,DC12V,AC220V

Power Supply: DC

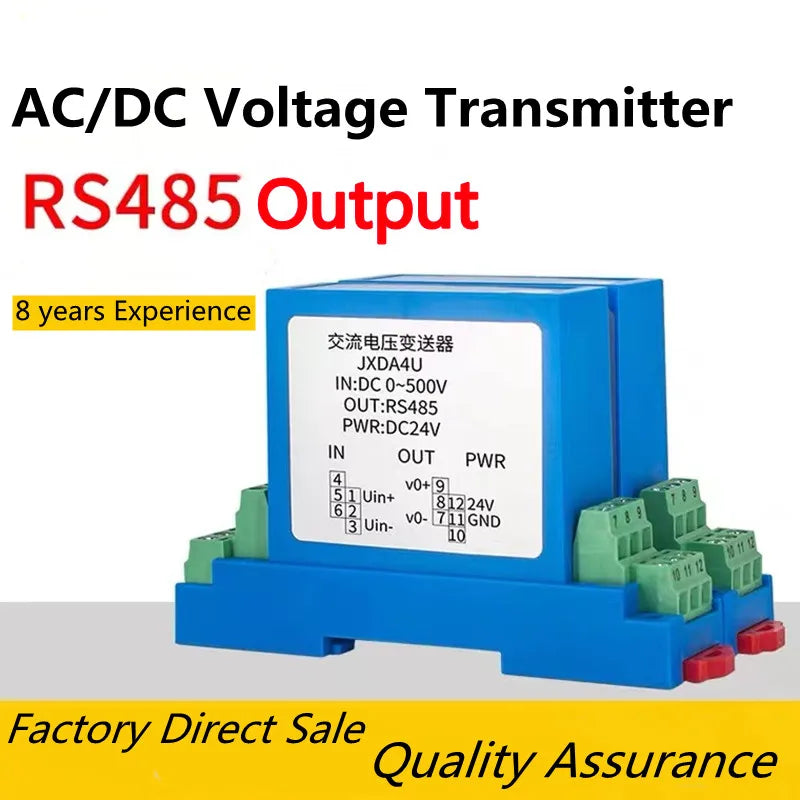

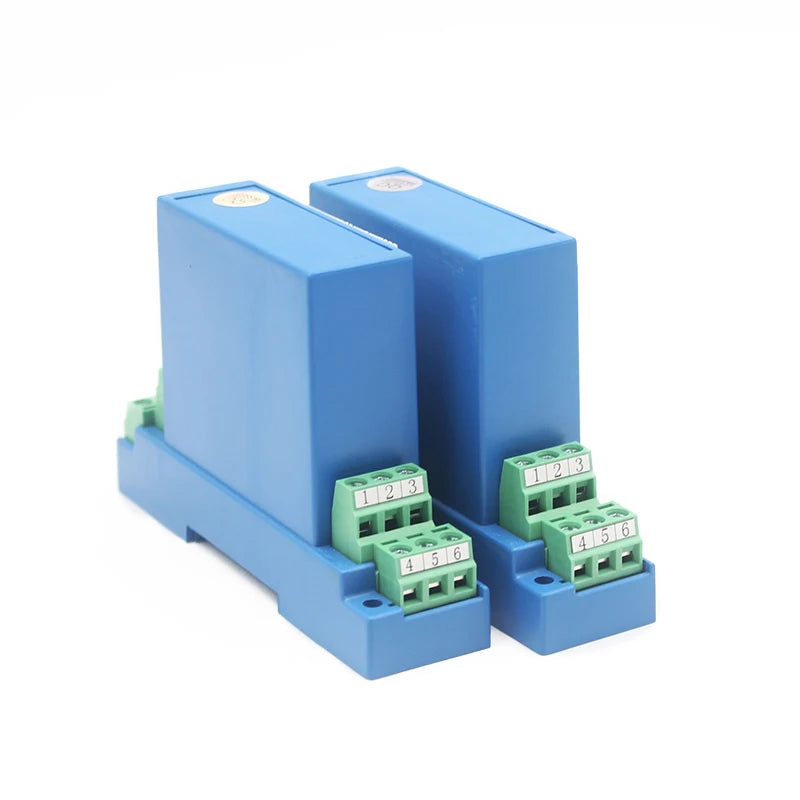

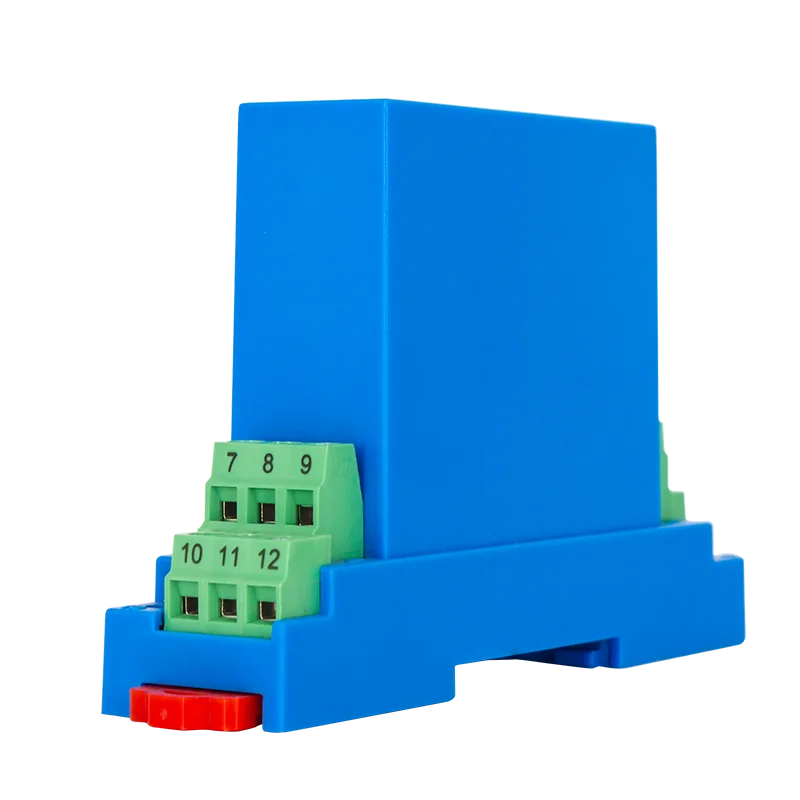

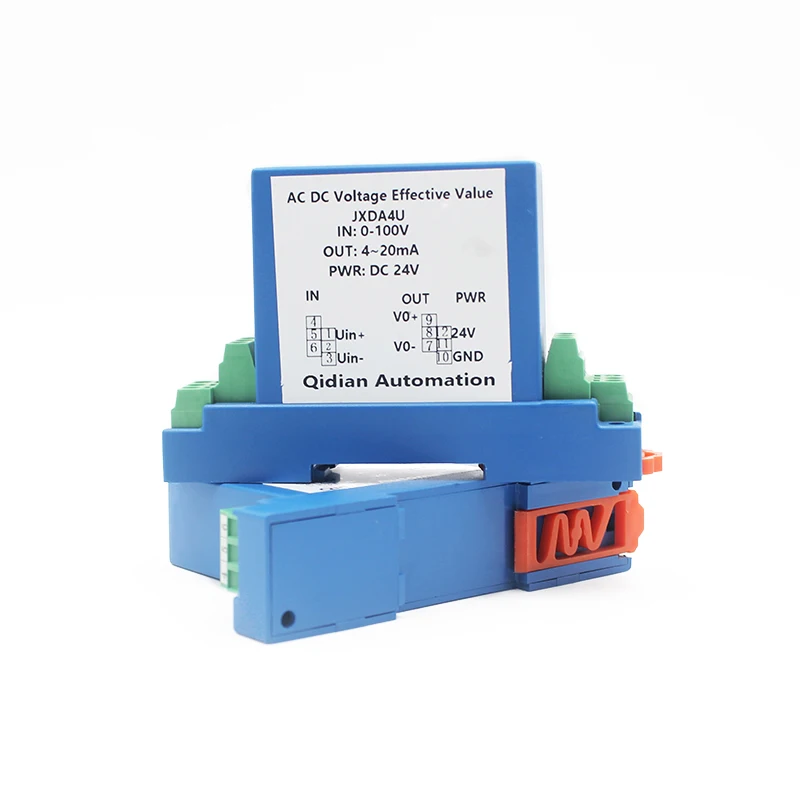

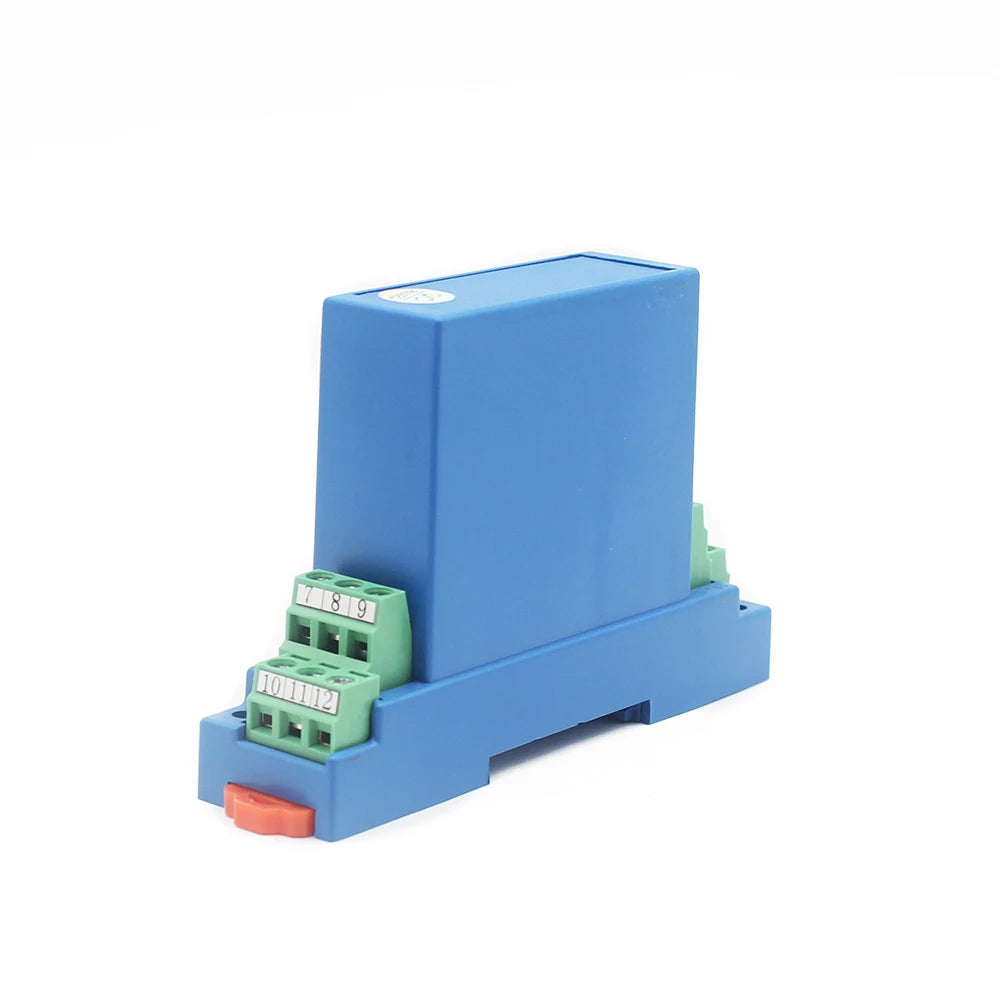

Product name: JXDA4U AC/DC Voltage transmitter

Semi-finishedproduct: No

Voltage range: 12/48-1000V AC

semi_Choice: yes

This link is special for DC voltage transducer.

If you need AC voltage input ,pls leave us a message.TKS

Introduction

1>>. Working principle: Linear photoelectric isolation.

2>>. Usage: Used for special place for measuring input signal frequency variation and input waveform.AC DC universal.

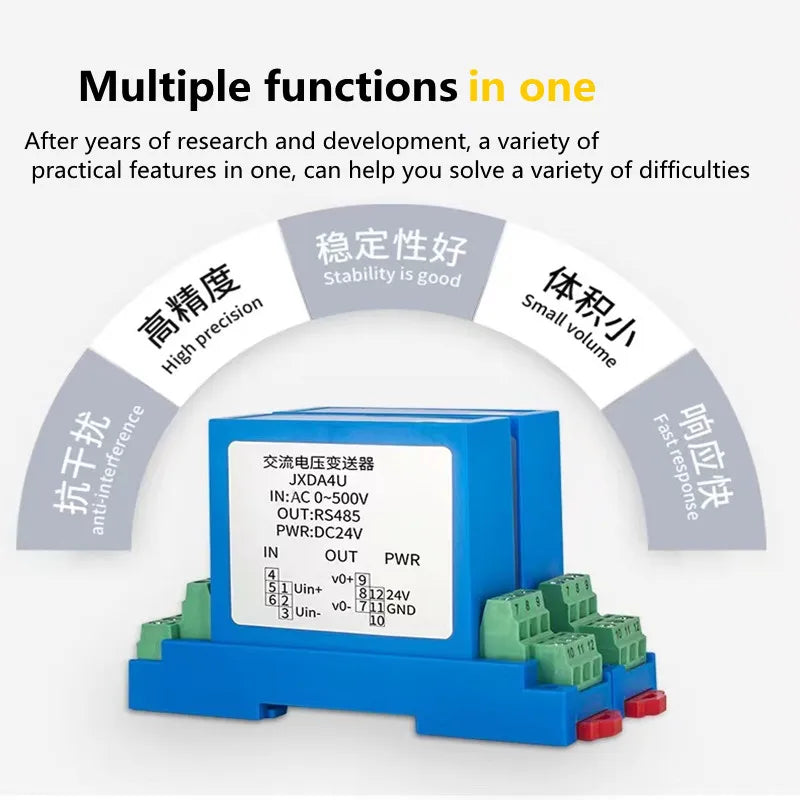

3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.

4>>. Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable.

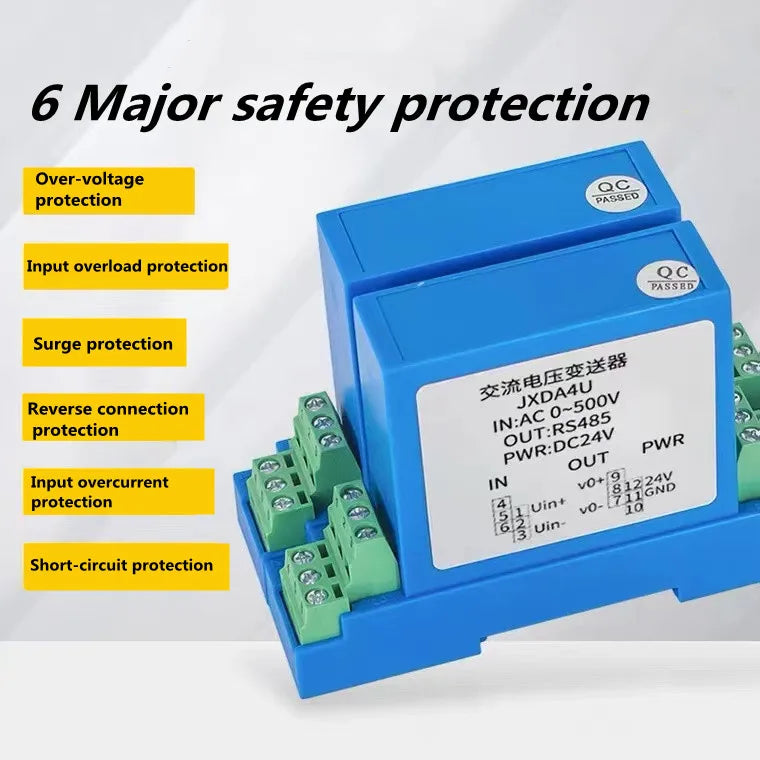

5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.

6>>. Full channel configuration,parameters customized.

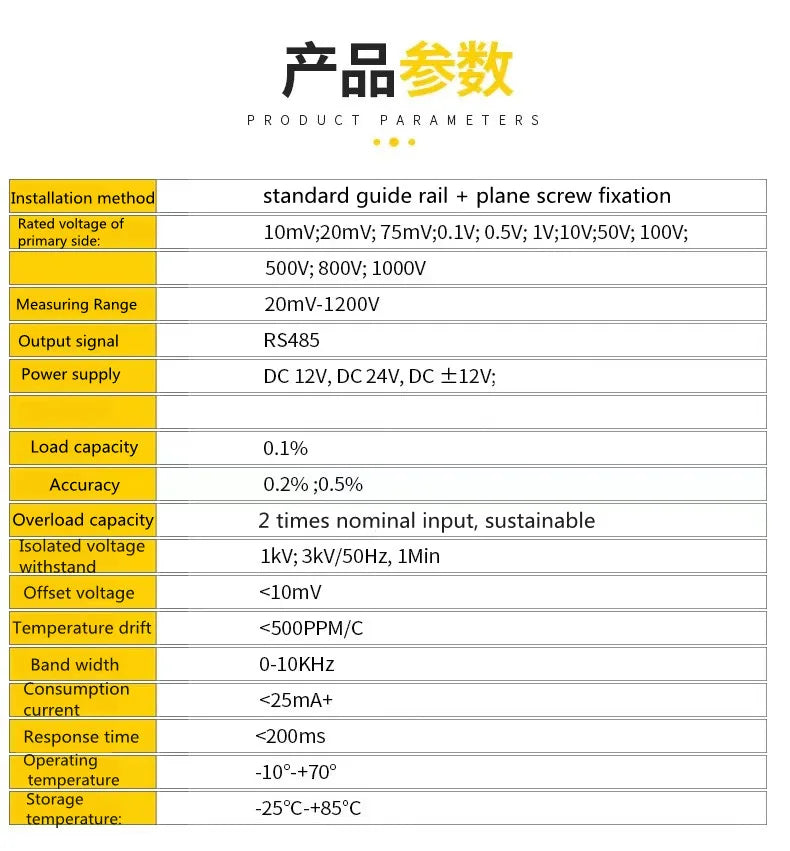

Technical Specifications
