SPECIFICATIONS

Application: AC / Motor

Brand Name: NONE

Choice: yes

Color: WHITE

High-concerned chemical: none

Model Number: CBB60 Motor Run Capacitors

Operating Temperature: --

Origin: Mainland China

Package Type: Through Hole

Rated Voltage: 450V

Structure: Fixed Capacitor

Type: Paper-dielectric Capacitor

is_customized: Yes

semi_Choice: yes

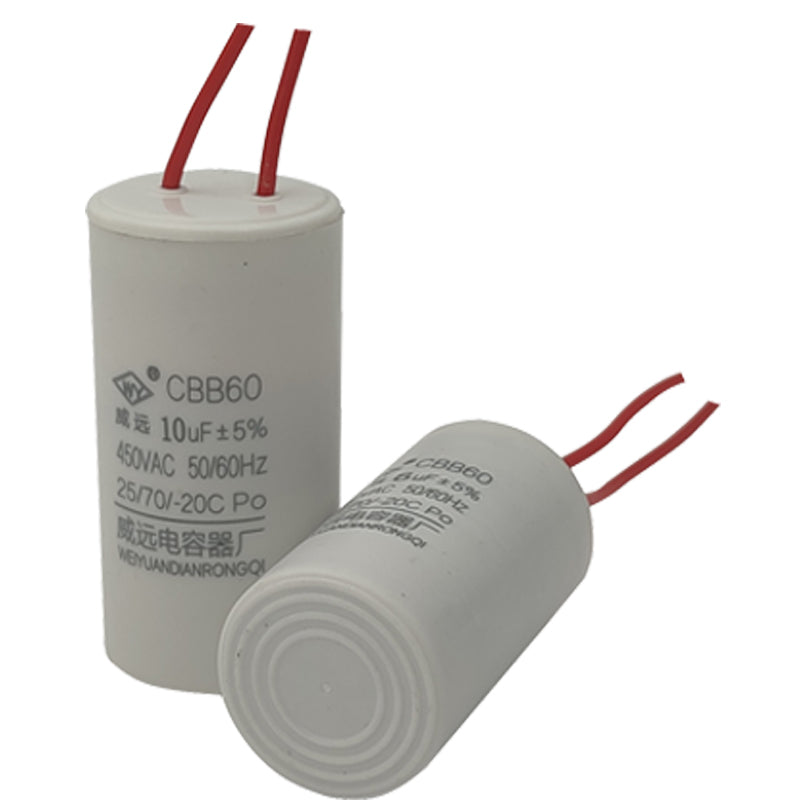

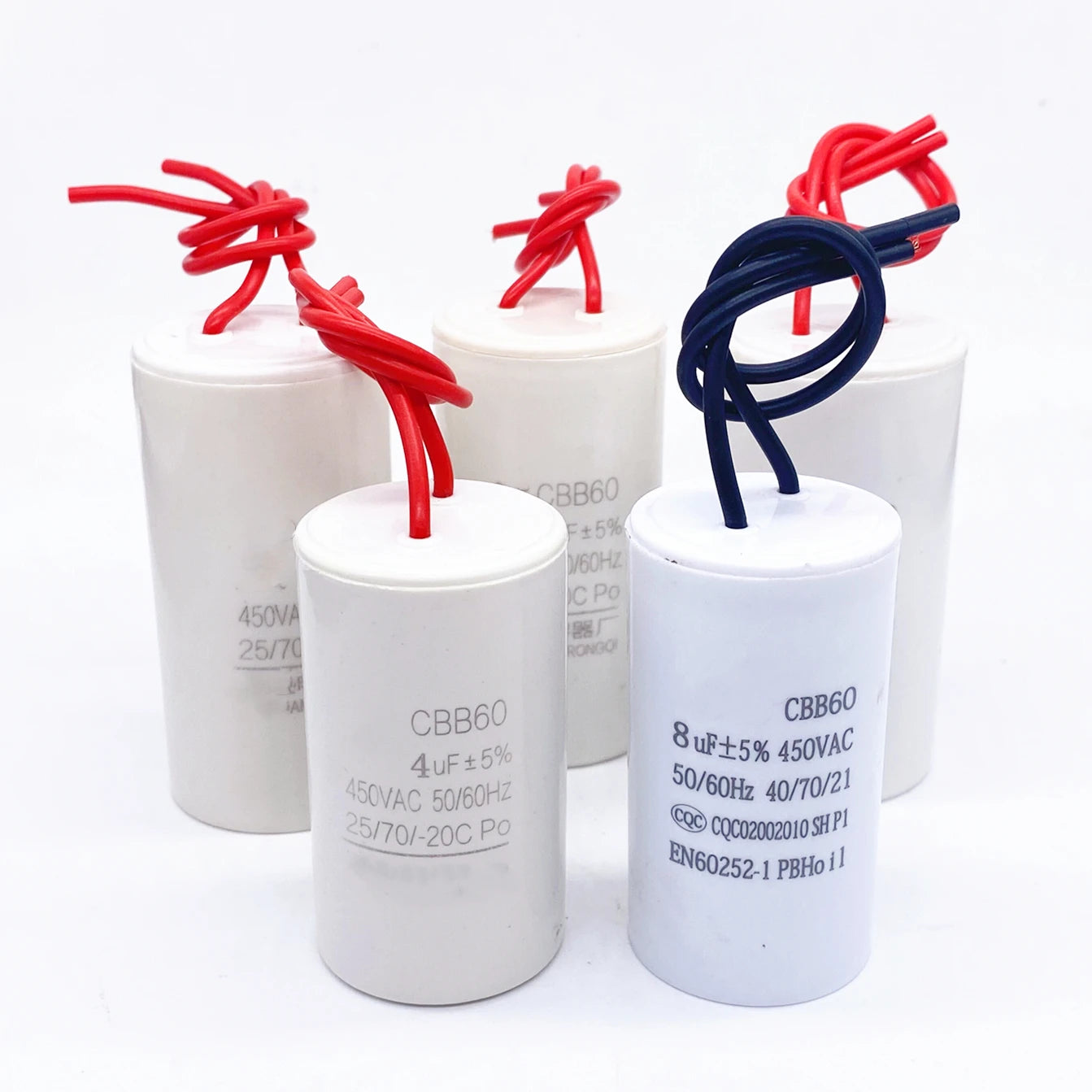

CBB60 450VAC Capacitors

Used asWorking and starting, to run electric motors of washing machines, refrigeration compressors, air conditioners, pumps, etc. The capacitors of this series are also used as phase-moving to start three-phase engines from a 220 volt network.


Cbb-60 sulfur capacitors are analogs of k78-17 series domestic capacitors.


Characteristics of cbb-60 capacitor:


Nominal capacity:3to 60UF


Permissible capacity deviation:± 5%


Rated AC voltage:450VAC


Working frequency:50/60Hz


Minimum permissible temperature:-25 & deg; C


Maximum permissible temperature:+ 85 ° C


Life:B. -10000 Hours at 400vac); c-3000 hours at 450vac; D-1000 hours at 500vac.


Protection class:P0-без.
