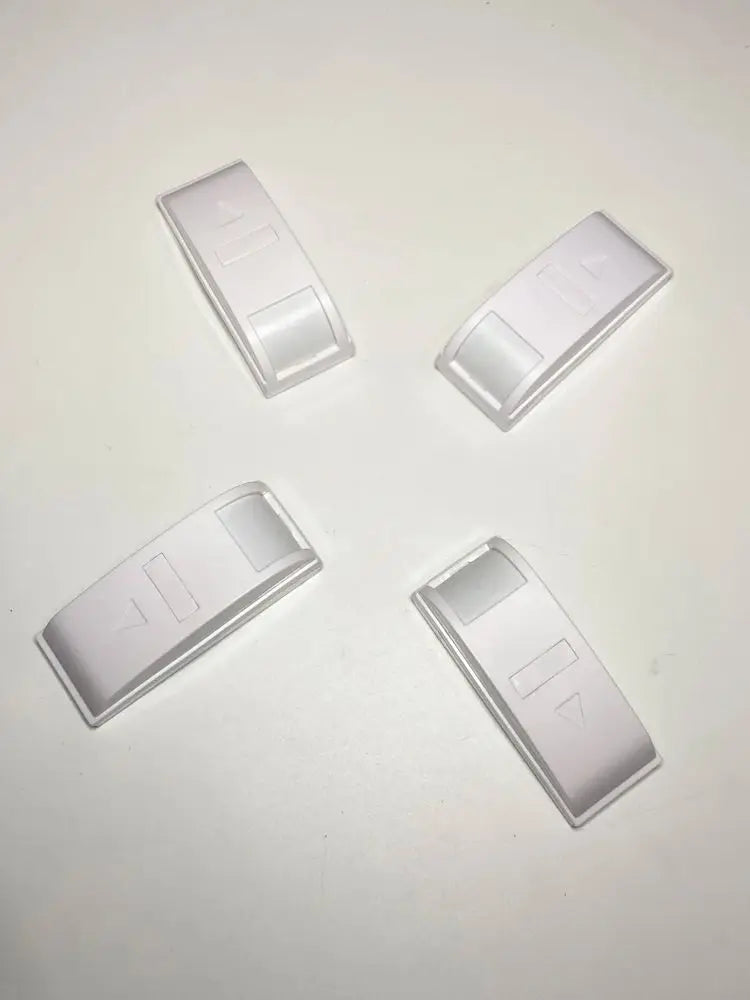

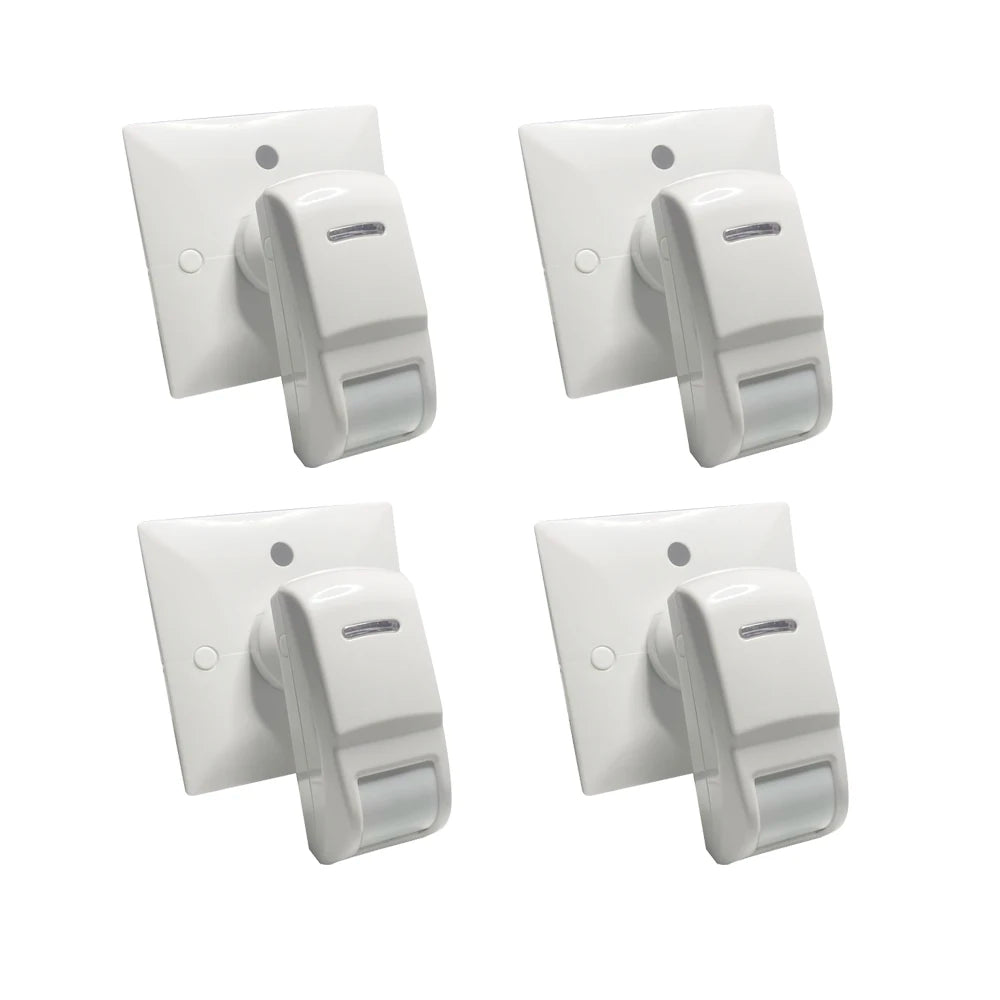

4Pcs Mini Curtain PIR Motion Detector Security System Sensor Wall Mounted PA461 Wired Infrared Alarm For Burglar Anti Theft
809 / China Mainland
$139.95
Sale price
$139.95
Regular price
$0.00
Skip to product information
4Pcs Mini Curtain PIR Motion Detector Security System Sensor Wall Mounted PA461 Wired Infrared Alarm For Burglar Anti Theft
$139.95
Sale price
$139.95
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: SAIFULI
Certification: NONE
High-concerned chemical: none
Model Number: 461
Origin: Mainland China
Smart home platform: NONE
alarm output: 100mA/30V 18ohm
alarm time: 3 S
curretn: 12.5mA(12VDC)
detection distance: 6m
installation height: 3.6M max
installation type: wall mounted

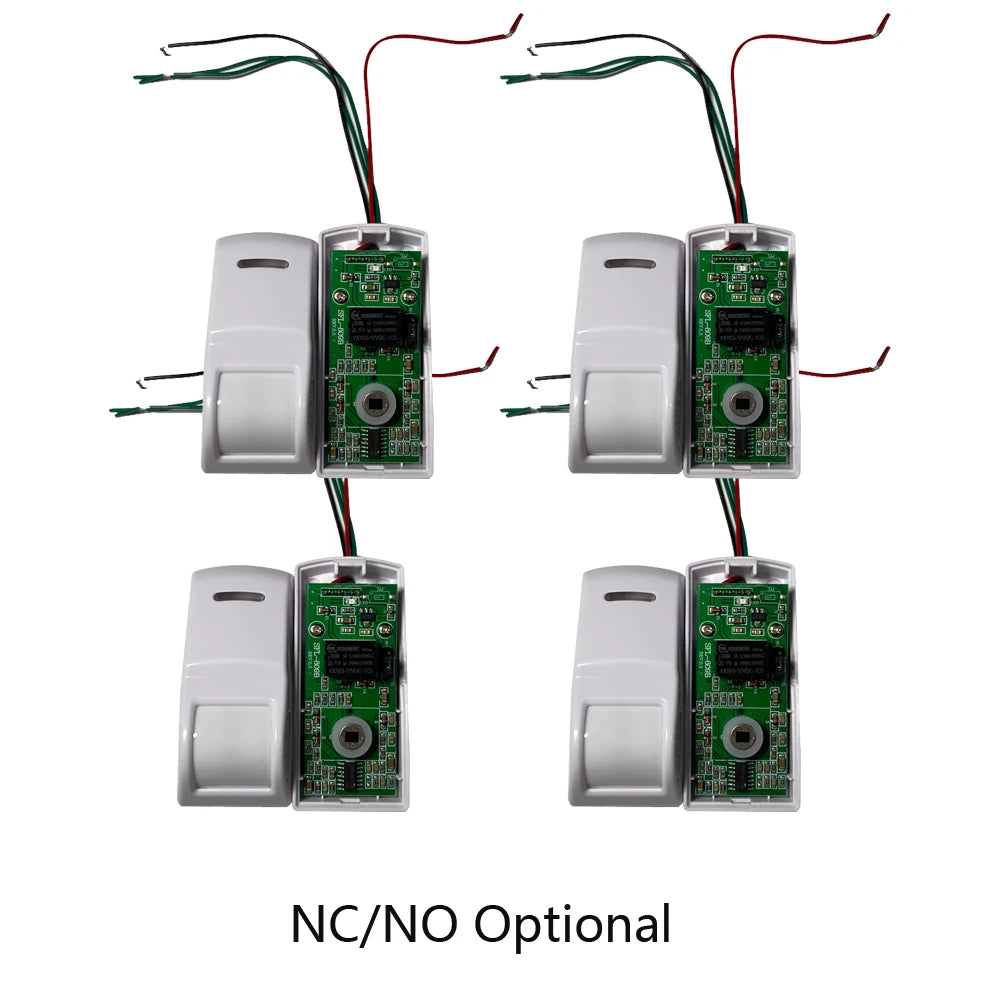

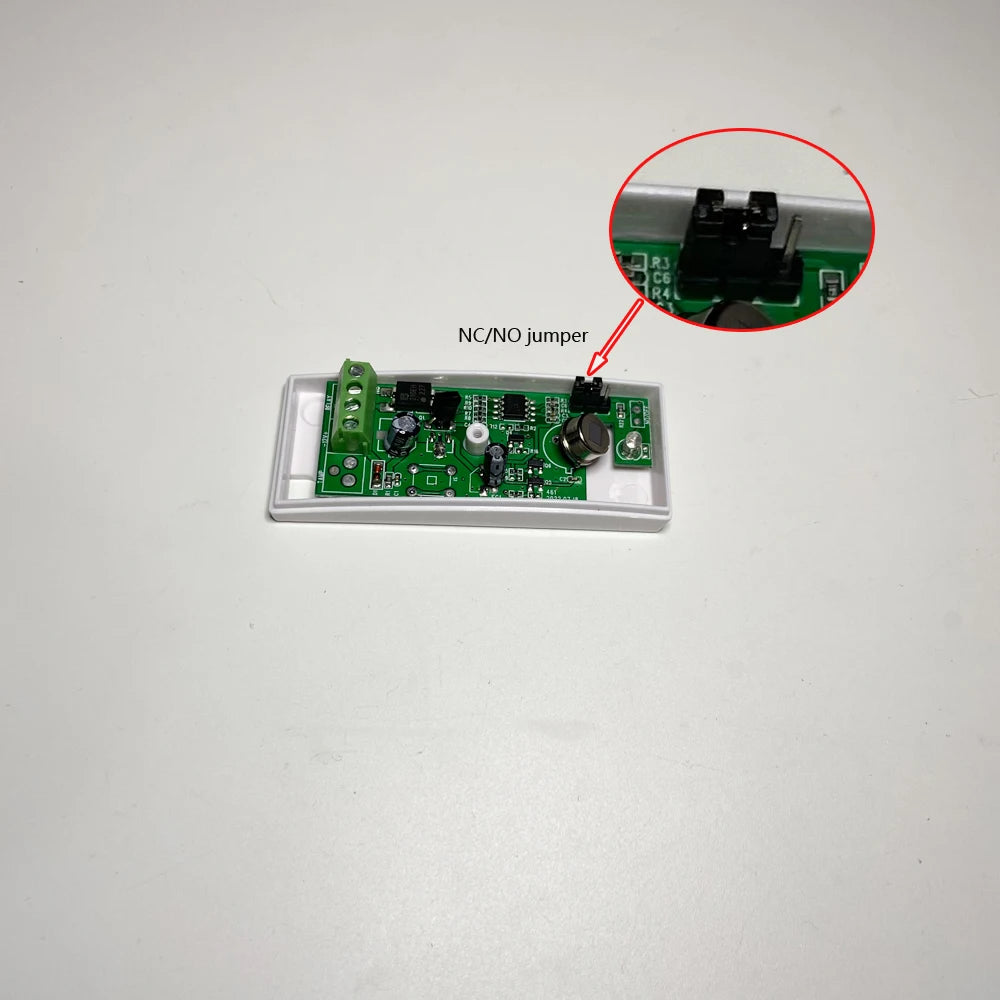

output signal: NC
voltage: 10-16vdc
working angle: 15 degree
working temprature: -20 to 60 degree
Parameter:
Voltage: 10-16VDCcurrent: 12.5mA @12VDC
Alarm output: N.C up to 100mA/30V,approx.18ohms
internal resistance. circuit opens upon alarm
Alarm time: 3 seconds
Sensor: Dual low noise heat
release sensor

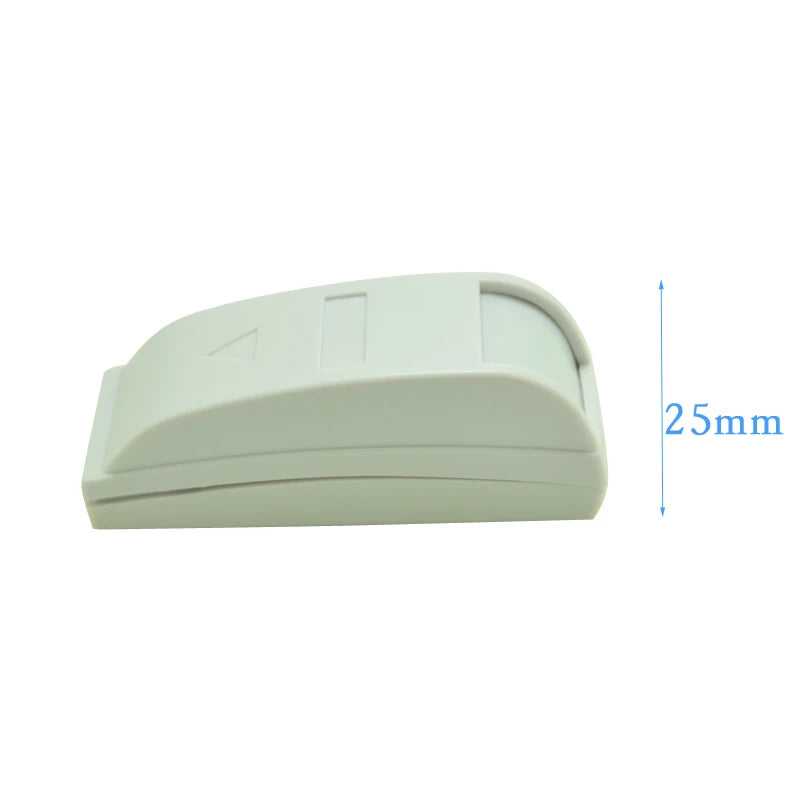

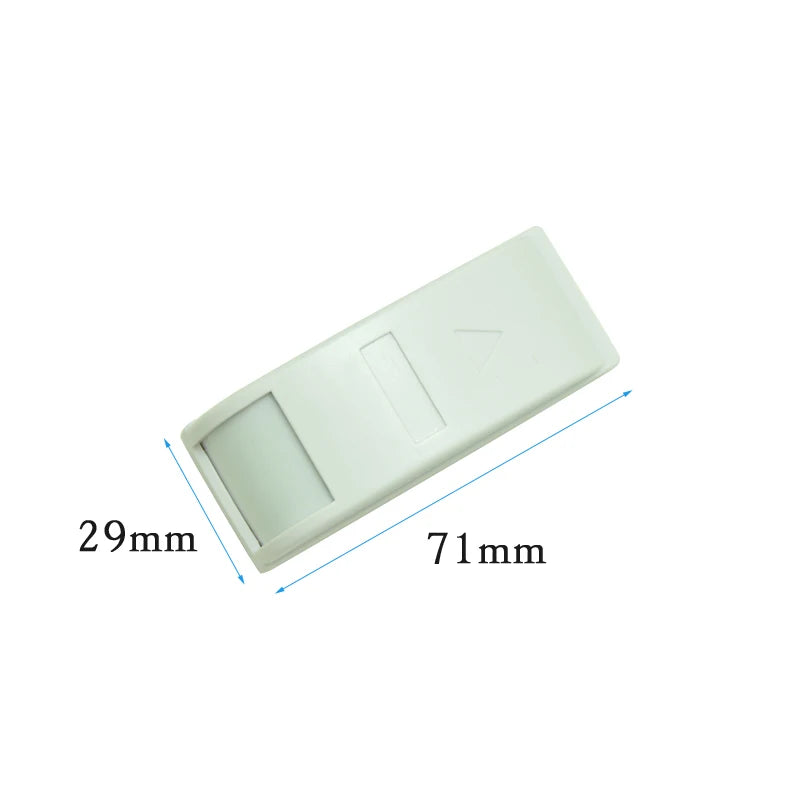

Size: 70*28*25mmweight: 25g
Color: whiteworking temperature:
-10 to 50 degree
Storage temperature: -20 to 60
degree
RFI protection:Over20V/m to
1000Mhz

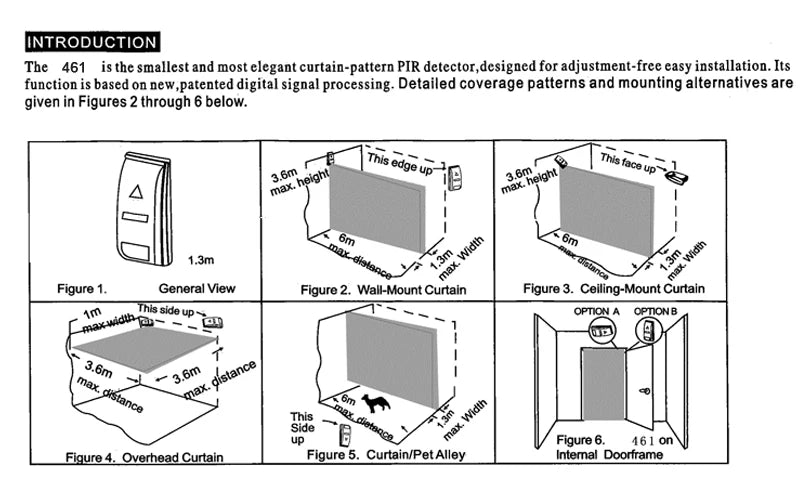

Installation:
1.Choose
a position where the burglar across can be detection
2.If
you installation by ceiling type, the height below 3.6M and the detection
distance is 6M max, and the angle is 15degree
3.To
make the sensitivity, please make sure the sensor is far away these: heater. Lamp.
Sun light
4.The
sensor need to installation on a steady surface

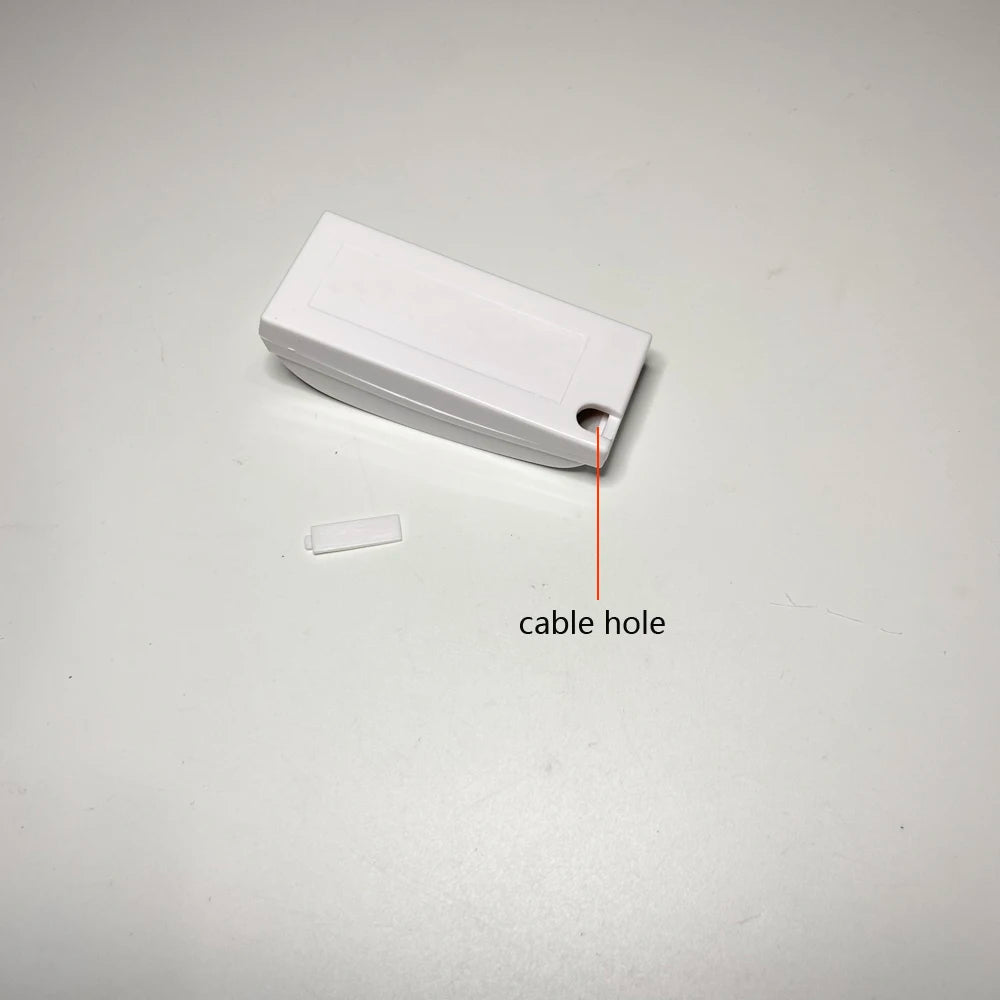

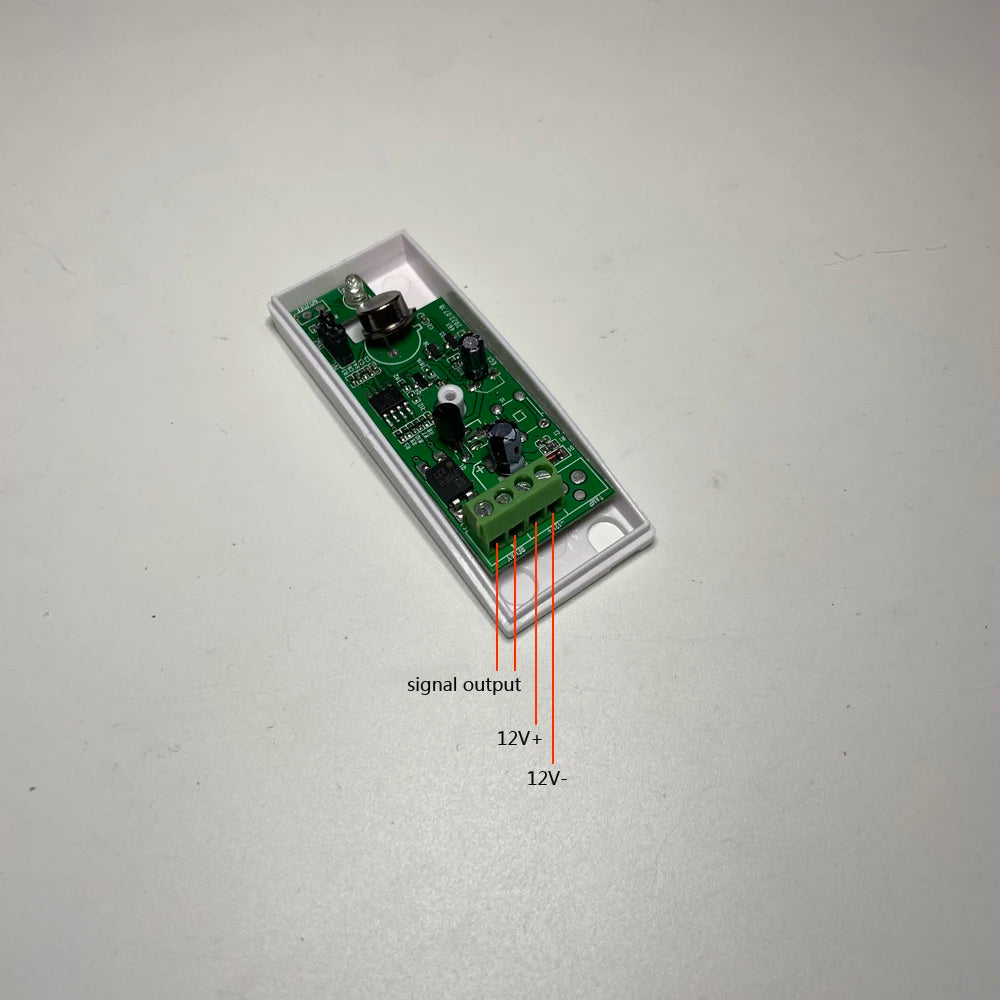

Cable:
12V+: positive of the 12VDC
12V-: negative of the 12VDC
signal output: alarm output signal cable
