4PCS Stepper Motor Driver TB6600 Upgrade Nema 23 Nema17 4A DC9-42V + 1Pcs Breakout Board CNC USB MACH3 100Khz 4 Axis Controller

4PCS Stepper Motor Driver TB6600 Upgrade Nema 23 Nema17 4A DC9-42V + 1Pcs Breakout Board CNC USB MACH3 100Khz 4 Axis Controller

$154.80

$154.80 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

Color: black

Does it include a Battery?: No

Does it include wireless functionality?: No

For 1: TB6600

For 10: CNC

For 11: CNC USB MACH3

For 12: Driver

For 2: Stepper Motor Driver

For 3: Nema17

For 4: Nema23 Motor

For 5: Nema 23

For 7: 100Khz

For 8: MACH3

For 9: 4 Axis Controller

High-concerned chemical: none

Model Number: TB6600

Motor: Stepper Motor

Motor Type: Stepper Motor

Origin: Mainland China

Power Supply: DC

semi_Choice: yes

4PCS Stepper Motor Driver TB6600 Upgrade Nema 23 Nema17 4A DC9-42V + 1Pcs Breakout Board CNC USB MACH3 100Khz 4 Axis Controller

Package 1 ：TB6600 x 4PCS

Package 2 ：TB6600 x 4PCS + Breakout board x 1PCS

Introduction:

The upgraded version of TB6600 is a driver suitable for 57/42 type two-phase hybrid stepping motor with phase current below 4.0A.

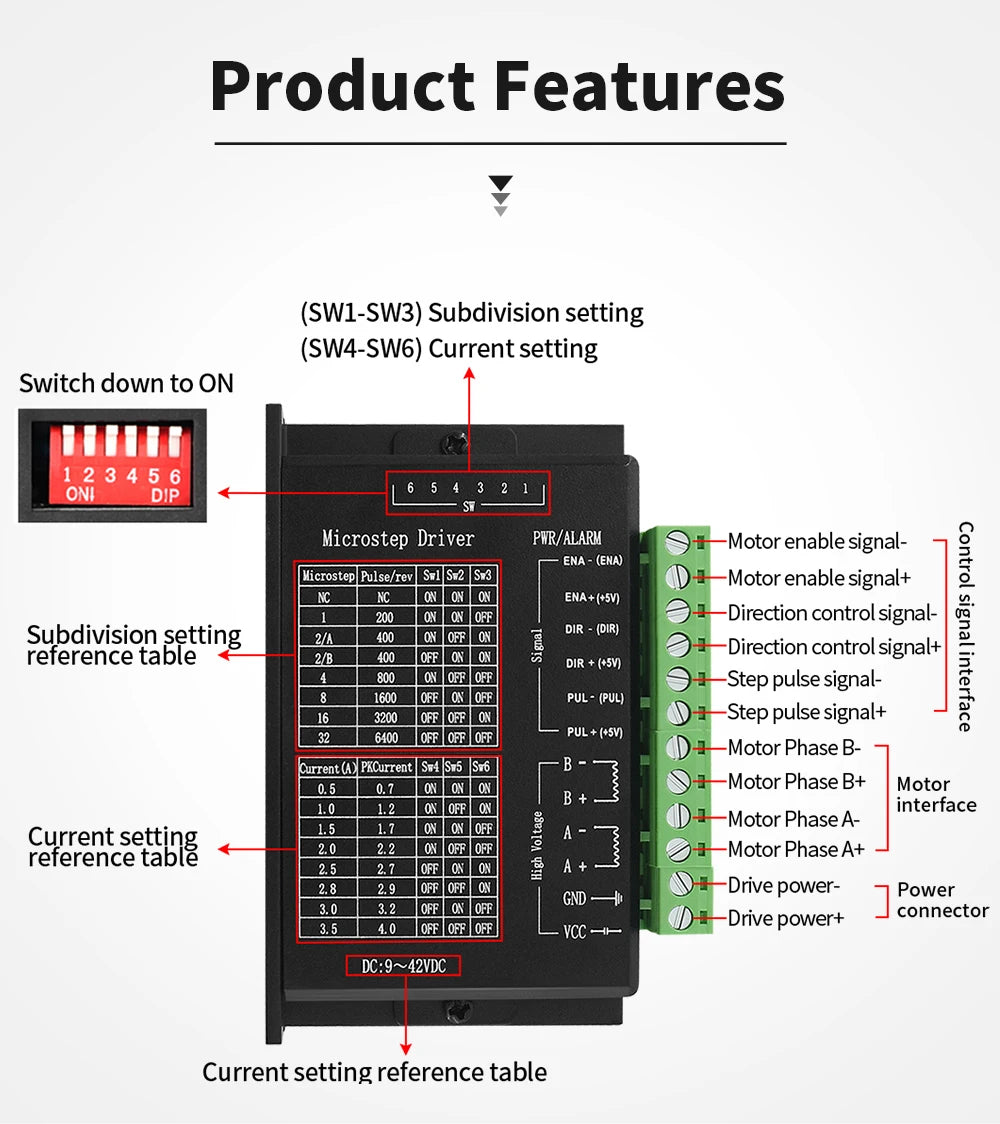

Set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch

And 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)

Widely used in various small and medium-sized automation equipment and hardware,

Such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc.

The best application object is 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below.

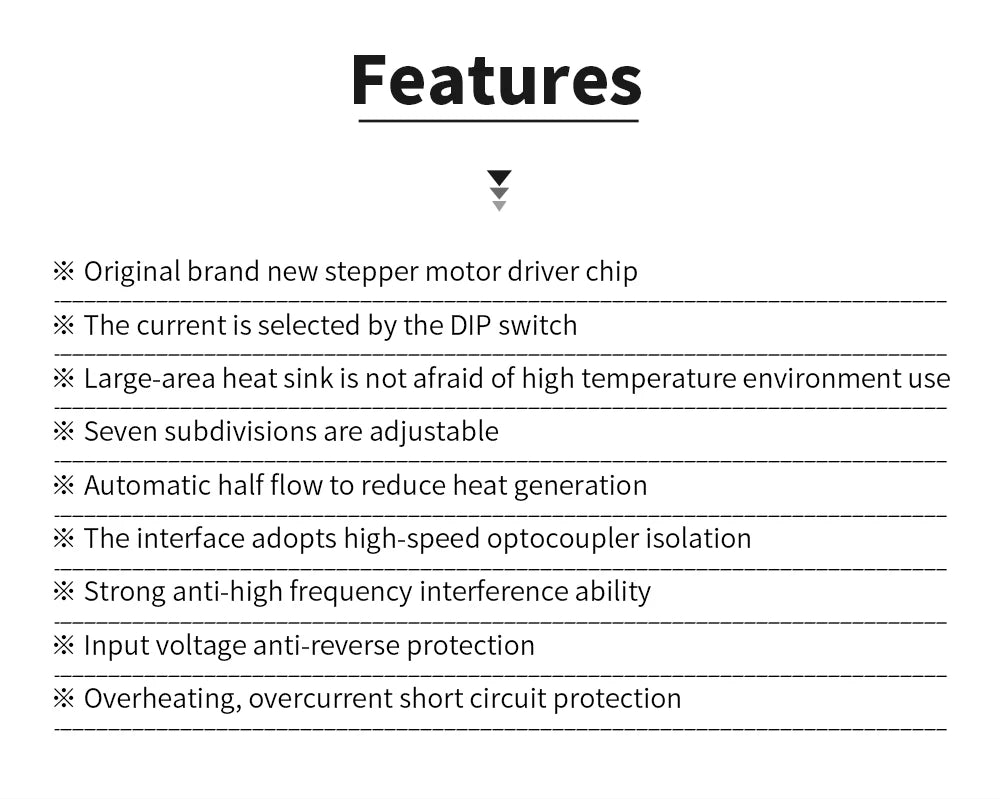

Product features：

※ DC 9-42V power supply, 12-30V power supply is the best

※ The control signal input voltage is 3.3-24V universal (no string resistance required)

※ Subdivision accuracy 1-32 subdivision optional

※ Output peak current 4.0A

※ H-bridge bipolar constant current drive

※ Input signal high-speed optocoupler isolation

※ Built-in temperature protection and overcurrent protection

※ Automatic half flow to reduce heat generation

※ Motor noise optimization function

※ Small size, save space

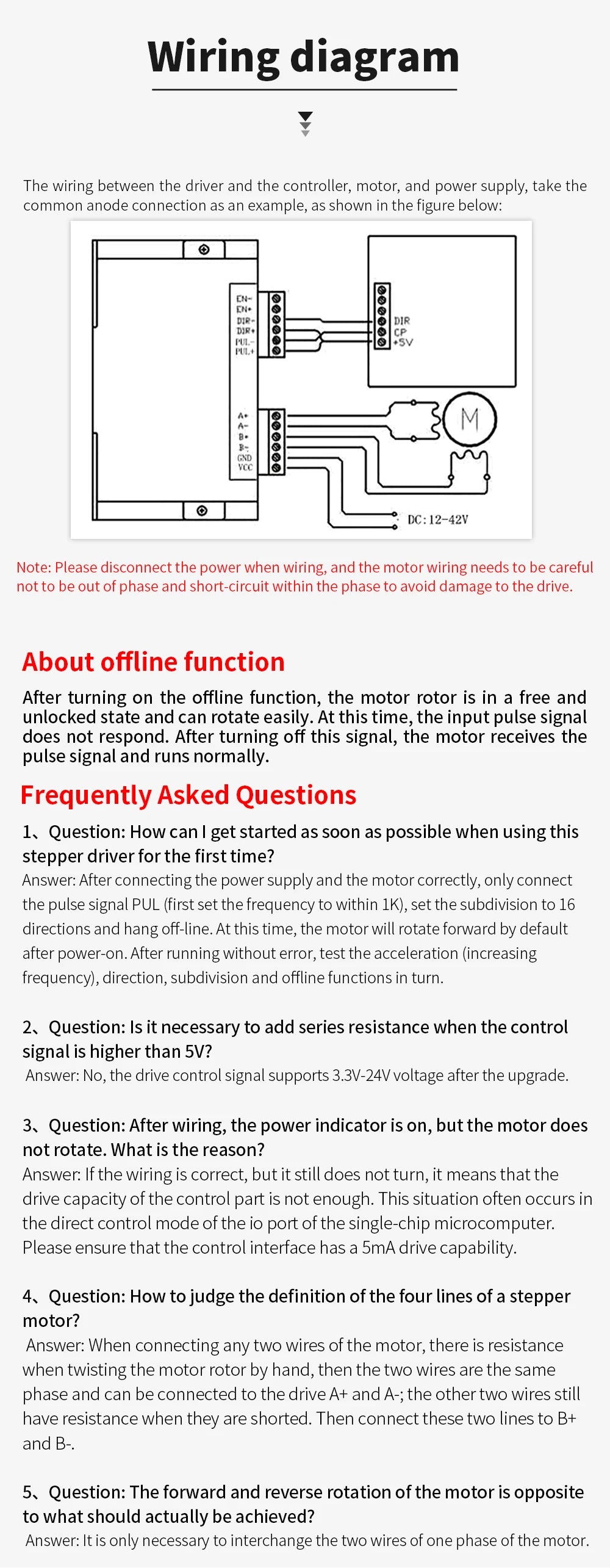

Frequently Asked Questions:

1. Question: How can I get started as soon as possible when using this stepper driver for the first time?

Answer: After the power supply and the motor are correctly connected,

only the pulse signal PUL is connected (first set the frequency to within 1K),

the subdivision is set to 16, the direction and offline are suspended, and the motor defaults to forward after power on. After the operation is correct, test the acceleration (increasing frequency),

direction, subdivision and offline functions in turn.

2. Question: Is it necessary to add series resistance if the control signal is higher than 5V?

Answer: The upgraded TB6600 does not need to add series resistance.

3. Question: The power indicator light is on after wiring, but the motor does not rotate. What is the reason?

Answer: If the wiring is correct, but still does not turn, it means that the drive capacity of the control part is not enough.

This situation mostly occurs in the direct control mode of the io port of the single-chip microcomputer.

Please ensure that the control interface has a 5mA drive capability.

4. Question: How to judge the definition of the four lines of a stepper motor?

Answer: Connect any two wires of the motor together. At this time,

there is resistance when twisting the motor rotor by hand.

Then the two lines are the same phase and can be connected to the driver A+, A-;

There is still resistance when the other two lines are short-circuited, so connect these two lines to B+ and B-.

5. Q: The forward and reverse rotation of the motor is opposite to what should be actually achieved?

Answer: It is only necessary to interchange the two wires of one phase of the motor.

For more information, please contact us. thanks.

-------------------------------------------------- -------------------------------------------------- -------
