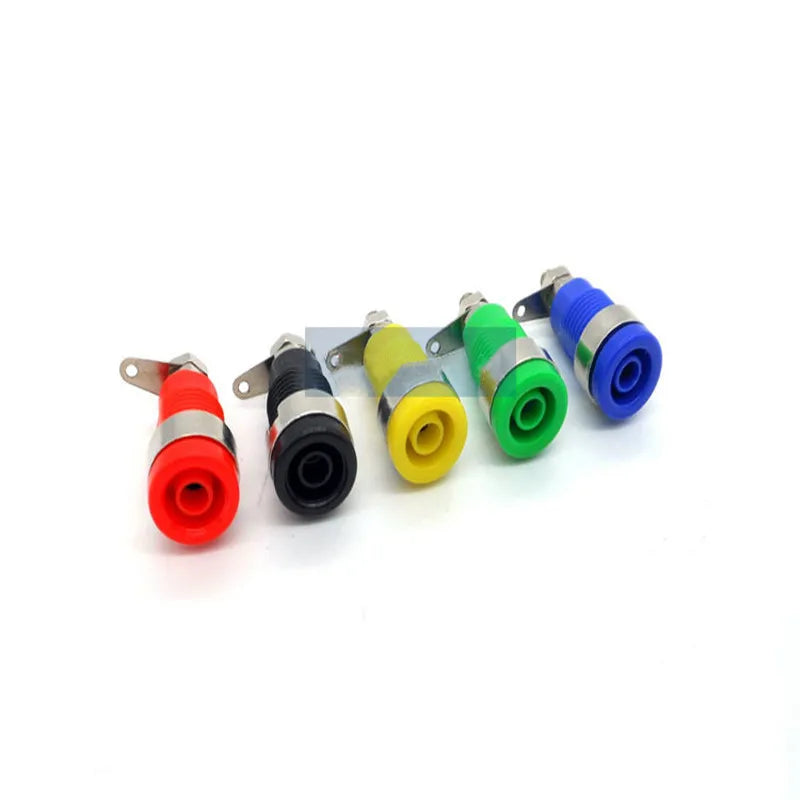

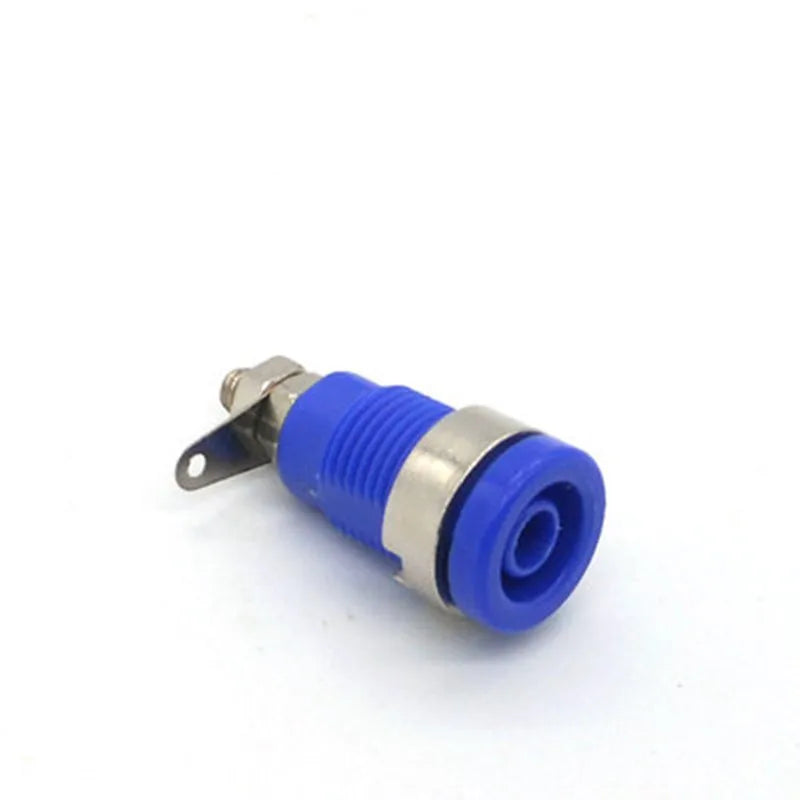

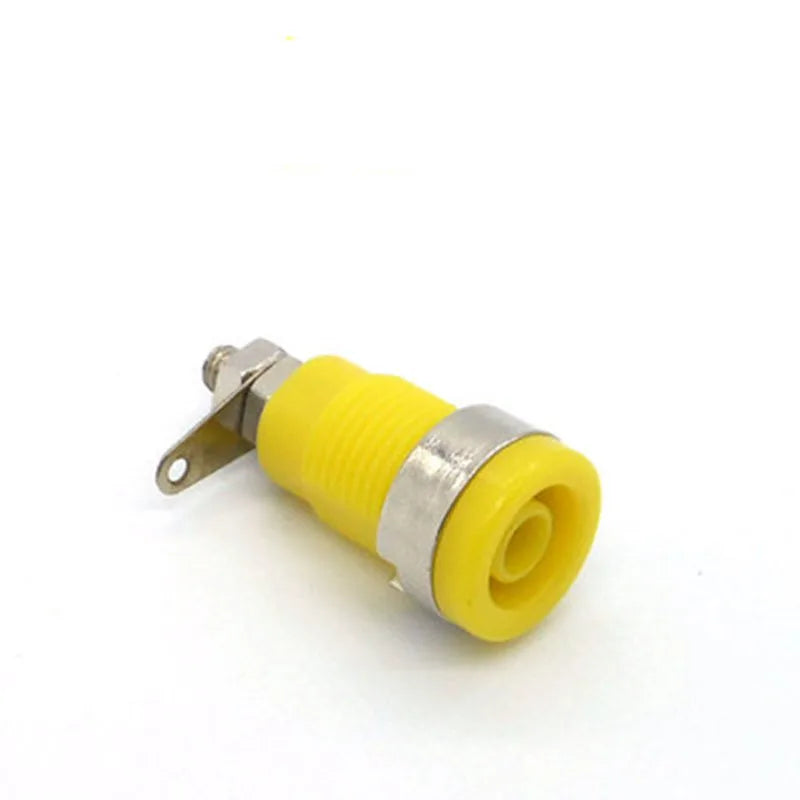

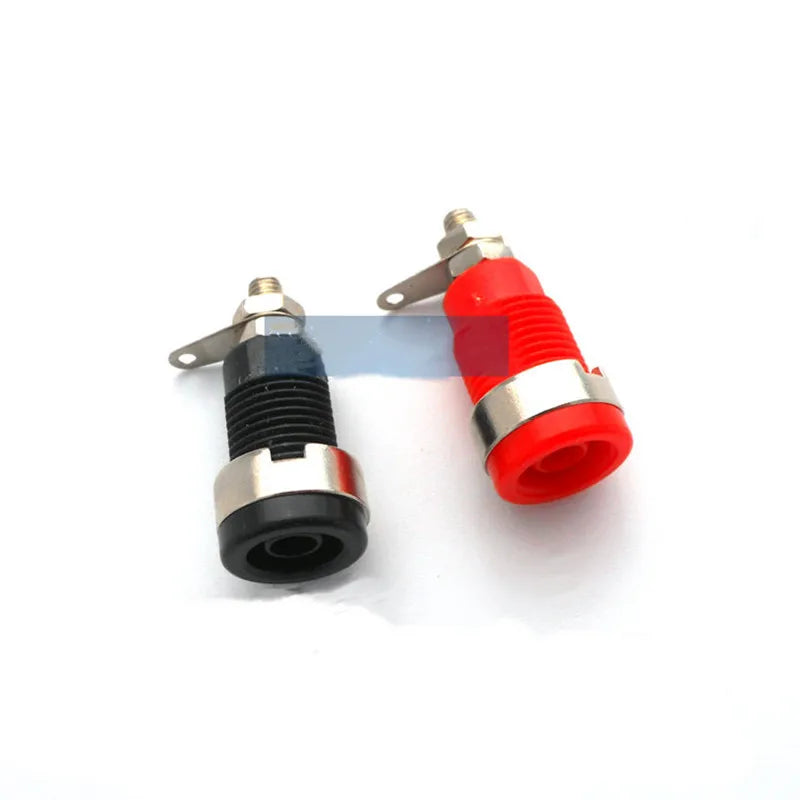

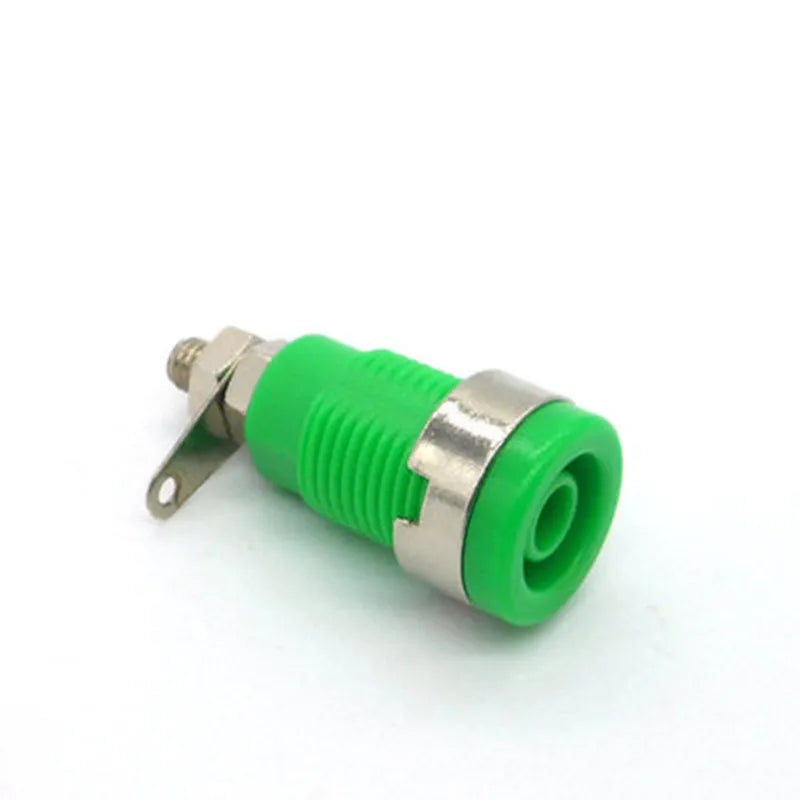

5pcs 32A insulation safety 4mm banana plug socket jack panel mount terminal connector multimeter socket banana head female
green
$7.60
Sale price
$7.60
Regular price
$0.00
Skip to product information
5pcs 32A insulation safety 4mm banana plug socket jack panel mount terminal connector multimeter socket banana head female
$7.60
Sale price
$7.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Does it include a Battery?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: 4mm
Origin: Mainland China
Voltage: 5 V 12 V 20 V 30 V
电压: 1V 2V 4V 5V 12V 12V 等 或自定义
Baby description:
High-grade pure copper high-current 4mm banana socket, experimental test equipment panel socket, power socket.
Features:
The conductor adopts pure copper nickel-plated socket, which has good conductivity, resistance to insertion and removal, and oxidation resistance is more durable. The insulator adopts a high-insulation body, with a high voltage resistance of 2kV. Comes with two nuts, which are more tightly fixed and not easy to loosen. Long-term use in product aging detection, test equipment panel as power jack output, HIFI power amplifier audio jack and so on. It has the characteristics of large current, good electrical conductivity, high voltage resistance, good strength, high safety factor, resistance to insertion and removal, and long life.
Product parameters:
Insulation body: pressure-resistant plastic
Conductor material: conductive brass (the surface is nickel-plated and anti-oxidation treatment)
Voltage: CATIII protection 2KV
Current: Maximum 32A
Total length: 30mm
Panel opening: 12mm
Insert specification: 6*0.8*13mm

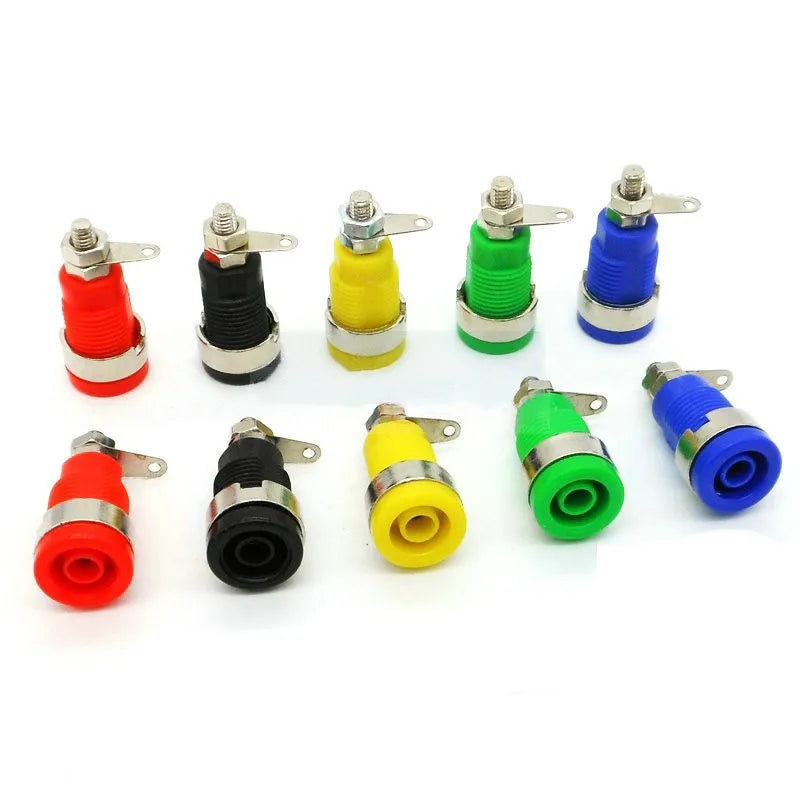

The colors are: red, black, yellow, green, blue.
High-grade pure copper high-current 4mm banana socket, experimental test equipment panel socket, power socket.
Features:
The conductor adopts pure copper nickel-plated socket, which has good conductivity, resistance to insertion and removal, and oxidation resistance is more durable. The insulator adopts a high-insulation body, with a high voltage resistance of 2kV. Comes with two nuts, which are more tightly fixed and not easy to loosen. Long-term use in product aging detection, test equipment panel as power jack output, HIFI power amplifier audio jack and so on. It has the characteristics of large current, good electrical conductivity, high voltage resistance, good strength, high safety factor, resistance to insertion and removal, and long life.
Product parameters:
Insulation body: pressure-resistant plastic
Conductor material: conductive brass (the surface is nickel-plated and anti-oxidation treatment)
Voltage: CATIII protection 2KV
Current: Maximum 32A
Total length: 30mm
Panel opening: 12mm
Insert specification: 6*0.8*13mm
The colors are: red, black, yellow, green, blue.
