SPECIFICATIONS

Accessory Type: Battery Accessories

Battery Included: no

Brand Name: RIXITE

Certification: CE

Charger included: N

Electronic: no

High-concerned chemical: none

Item Type: others

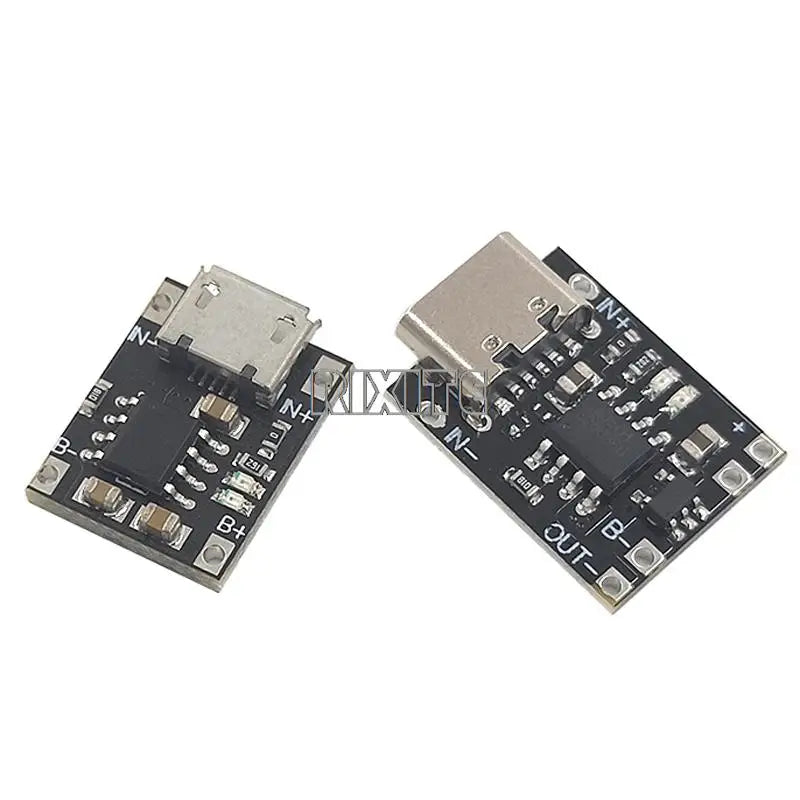

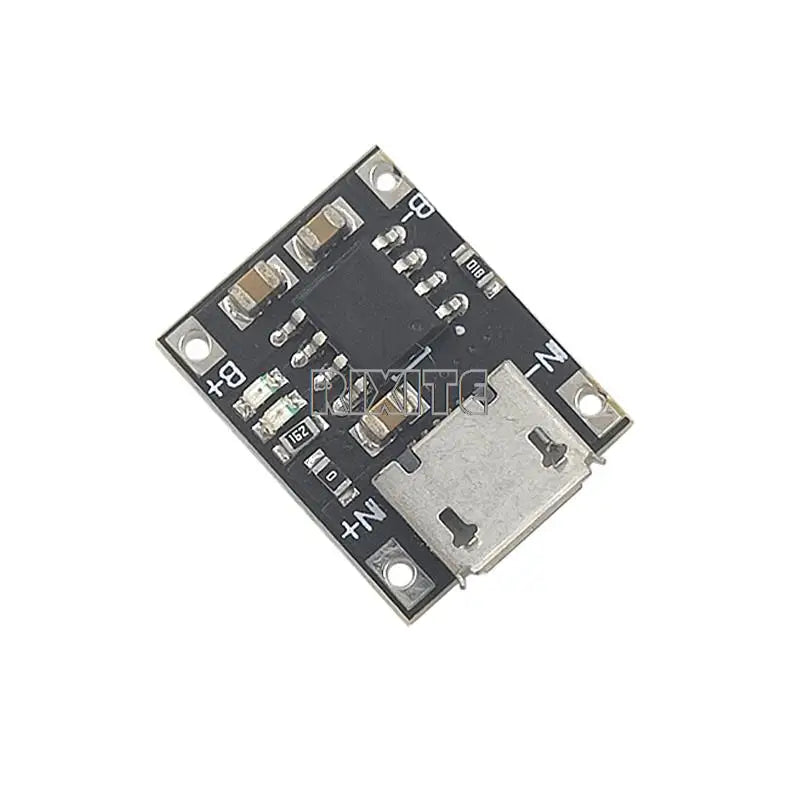

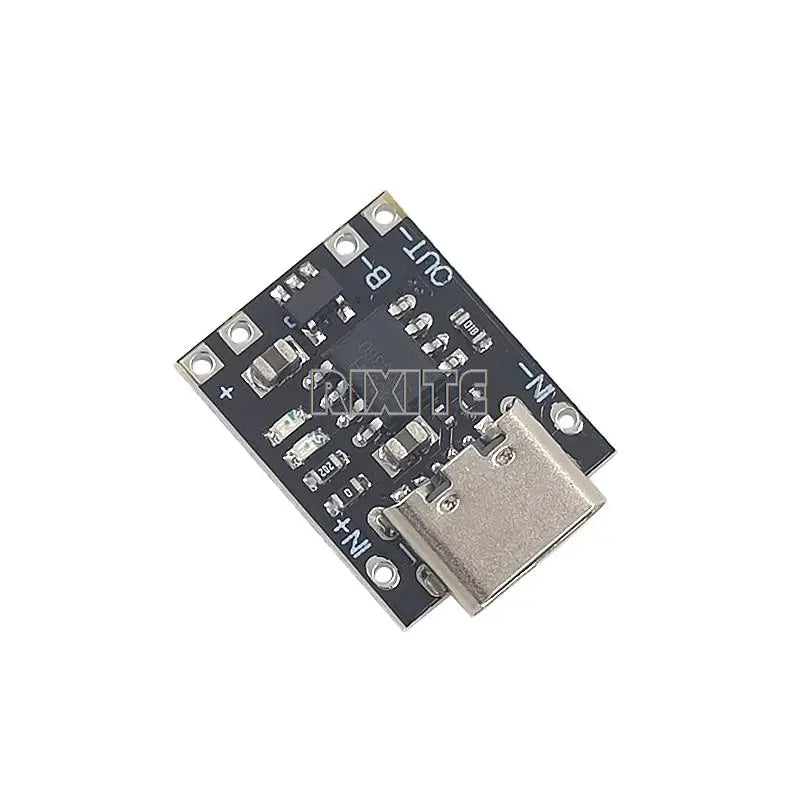

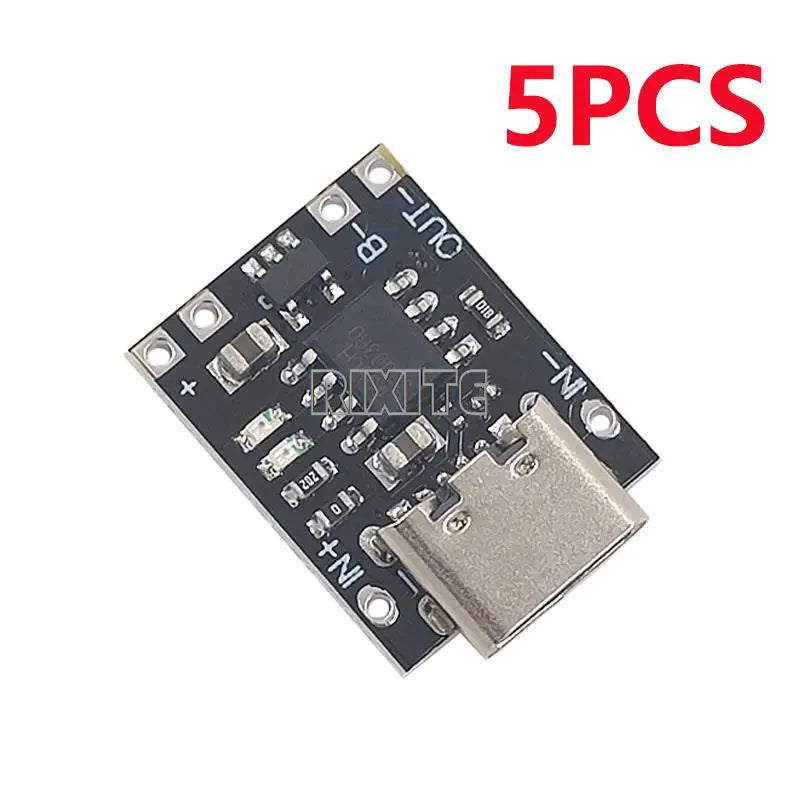

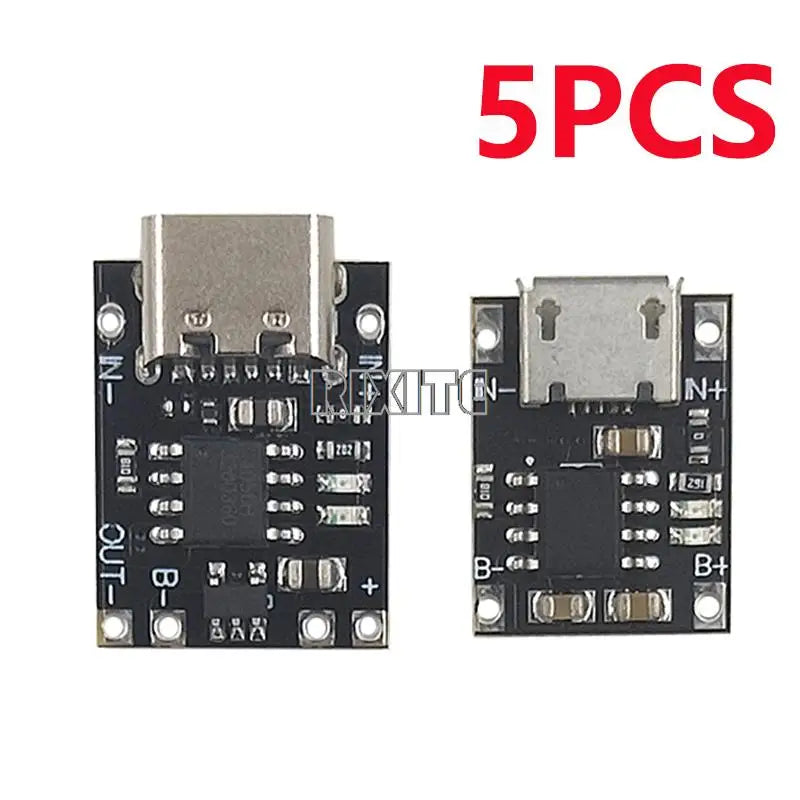

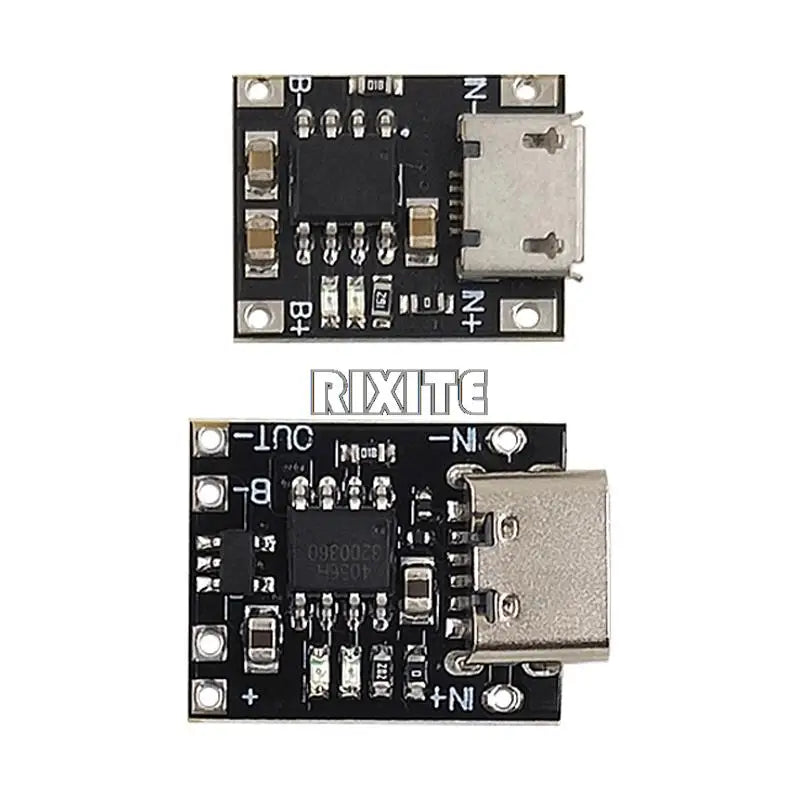

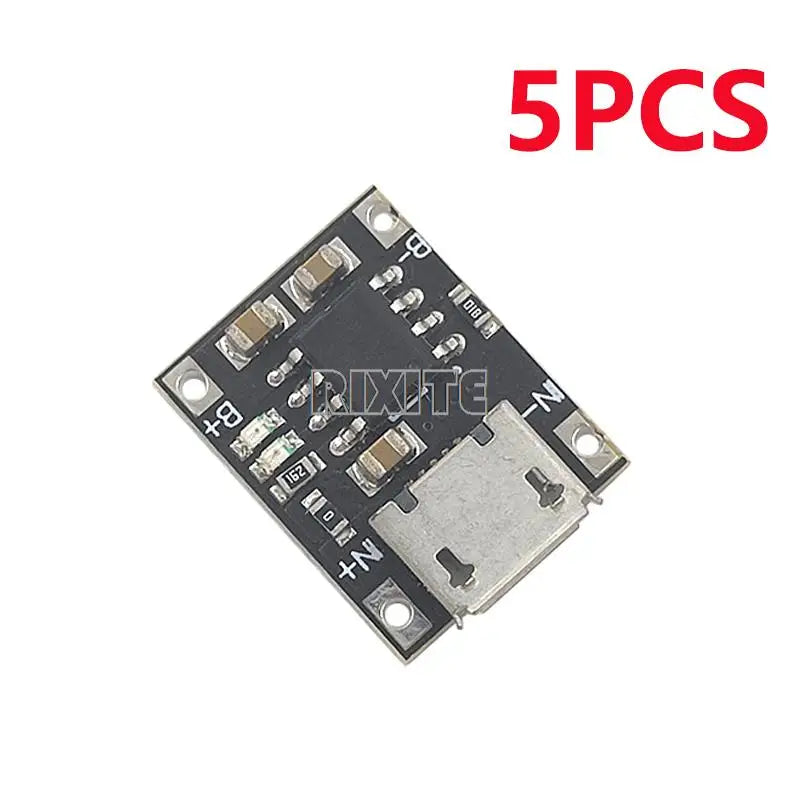

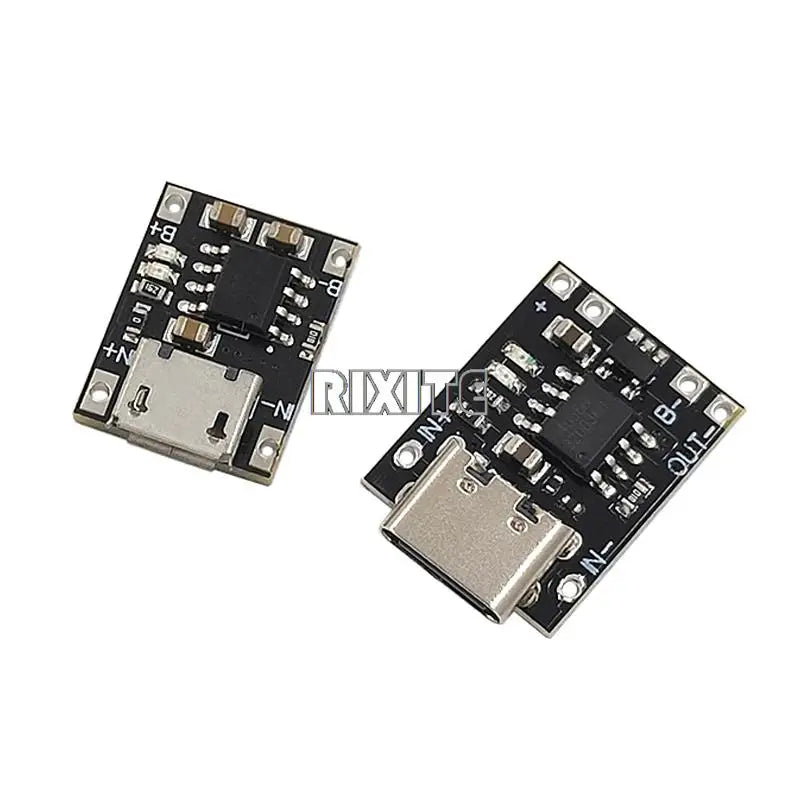

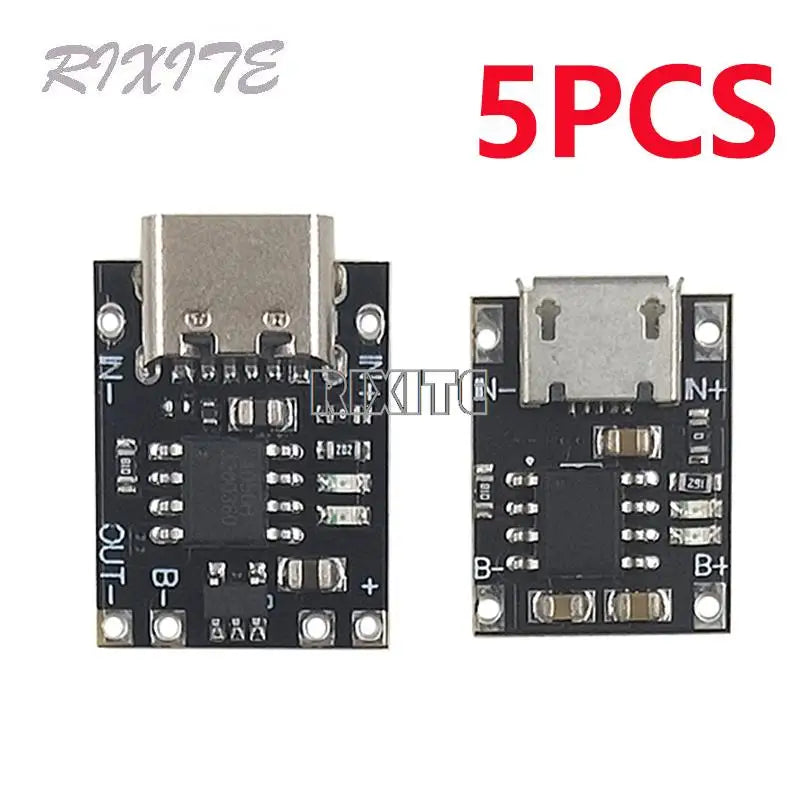

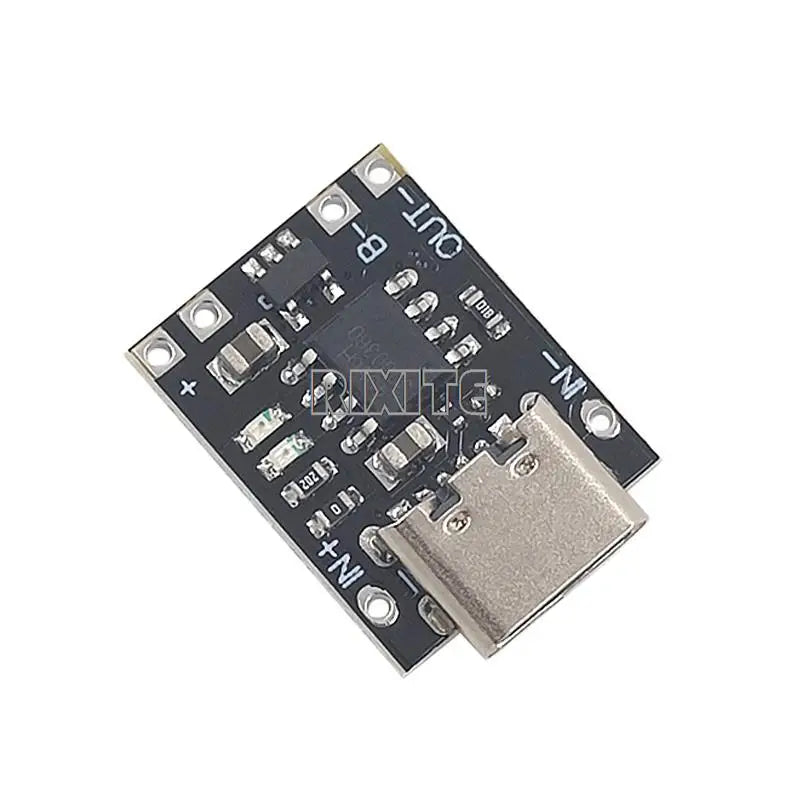

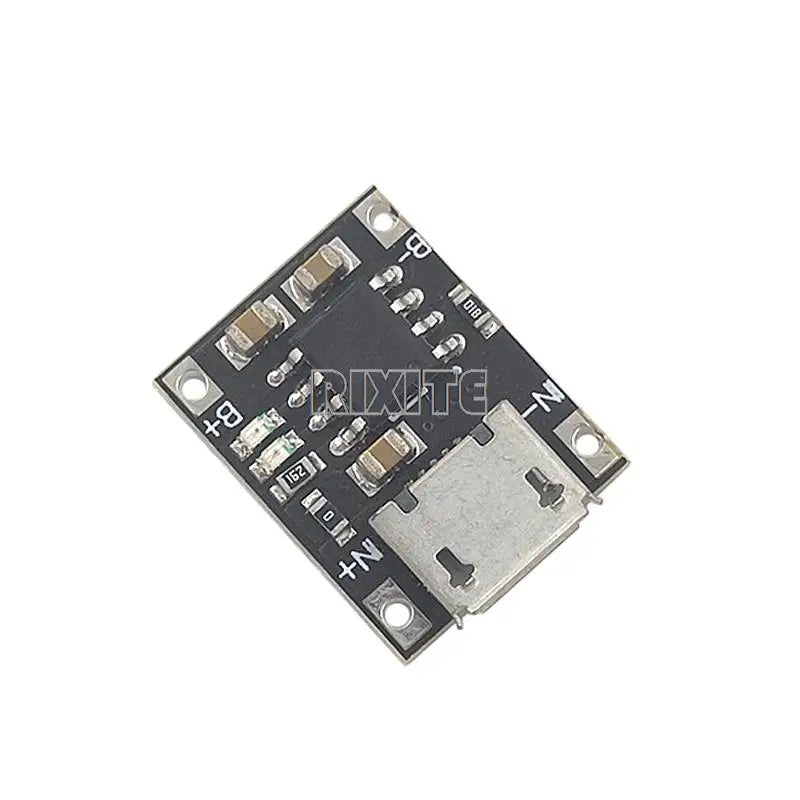

Model Number: Lithium Battery Charging Module Charging Board

Origin: Mainland China

PCBincluded: Yes

Use: others

Voltage range: USB (5-20V DC)

Basic parameters
Input voltage range: 5~6V
Output voltage: 4.2
Charging current: 1A

Instructions
C port input or wiring input is available. Batteries cannot be connected in series, only in parallel. The wire needs to be welded, and the wire cannot be too thin, otherwise it will not work properly. The battery cannot be connected reversely.

Features
When the charging current drops to 100mA after reaching the final float voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.05V (roughly corresponding to 80% to 90% of battery capacity), the charging cycle begins again.
When the battery voltage is lower than 2.9V, the battery will be precharged with a current of 100mA. *With protection board, over-voltage protection, over-discharge protection, and over-current protection. Over-discharge protection value: 2.4V, over-current protection value: 4A.
Tip: For first time use, you need to connect the power supply to activate the protection board!!!

      The battery cannot be connected in reverse, otherwise it will damage the motherboard.
      The battery terminal voltage cannot exceed the product overshoot voltage.
      Batteries cannot be connected in series, but can only be connected in parallel. The number is not limited.
