7 Inch DSI Touch Screen for Raspberry Pi 5 4B 3B+ 3B IPS Display 800*480 LCD MIPI CSI Cable With Standard Monitor for RPI 5 Pi5
Screen Only
$129.60
Sale price
$129.60
Regular price
$0.00
Skip to product information
7 Inch DSI Touch Screen for Raspberry Pi 5 4B 3B+ 3B IPS Display 800*480 LCD MIPI CSI Cable With Standard Monitor for RPI 5 Pi5
$129.60
Sale price
$129.60
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: LCD Screen
Battery Included: no
Brand Name: iPistBit
Compatible With: Raspberry Pi
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Industrial Automation

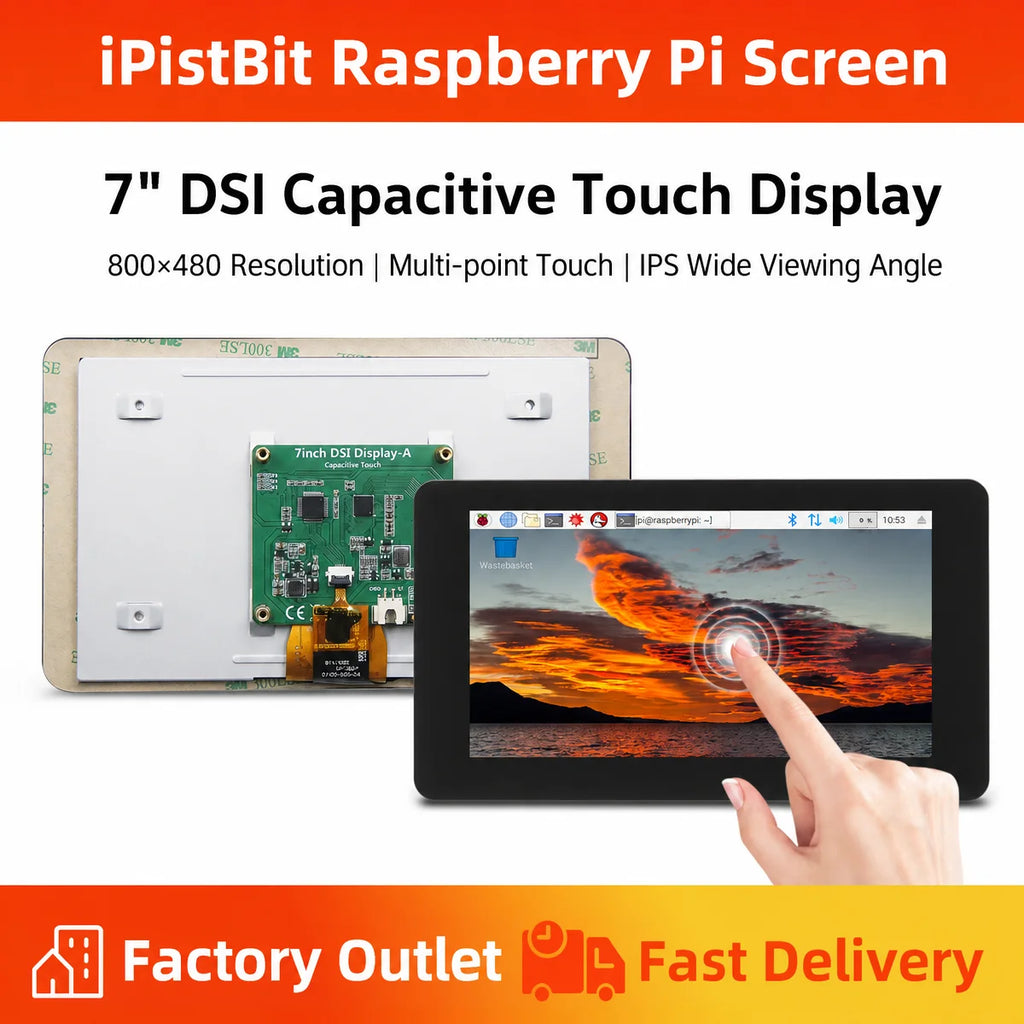

7-inch capacitive touch screen with hardware resolution of 800×480

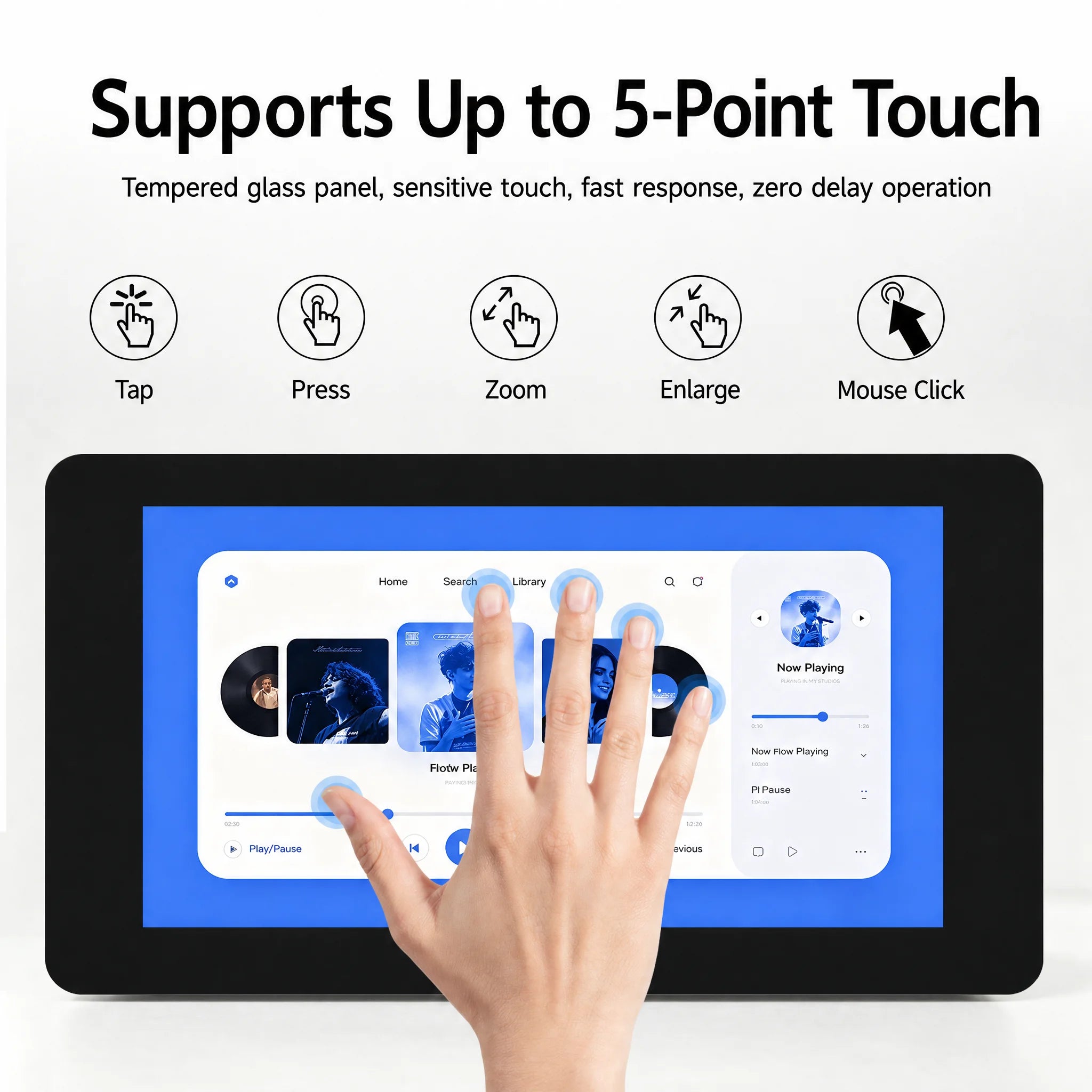

Capacitive 5-point touch control
Tempered glass capacitive touch panel, hardness up to 6H

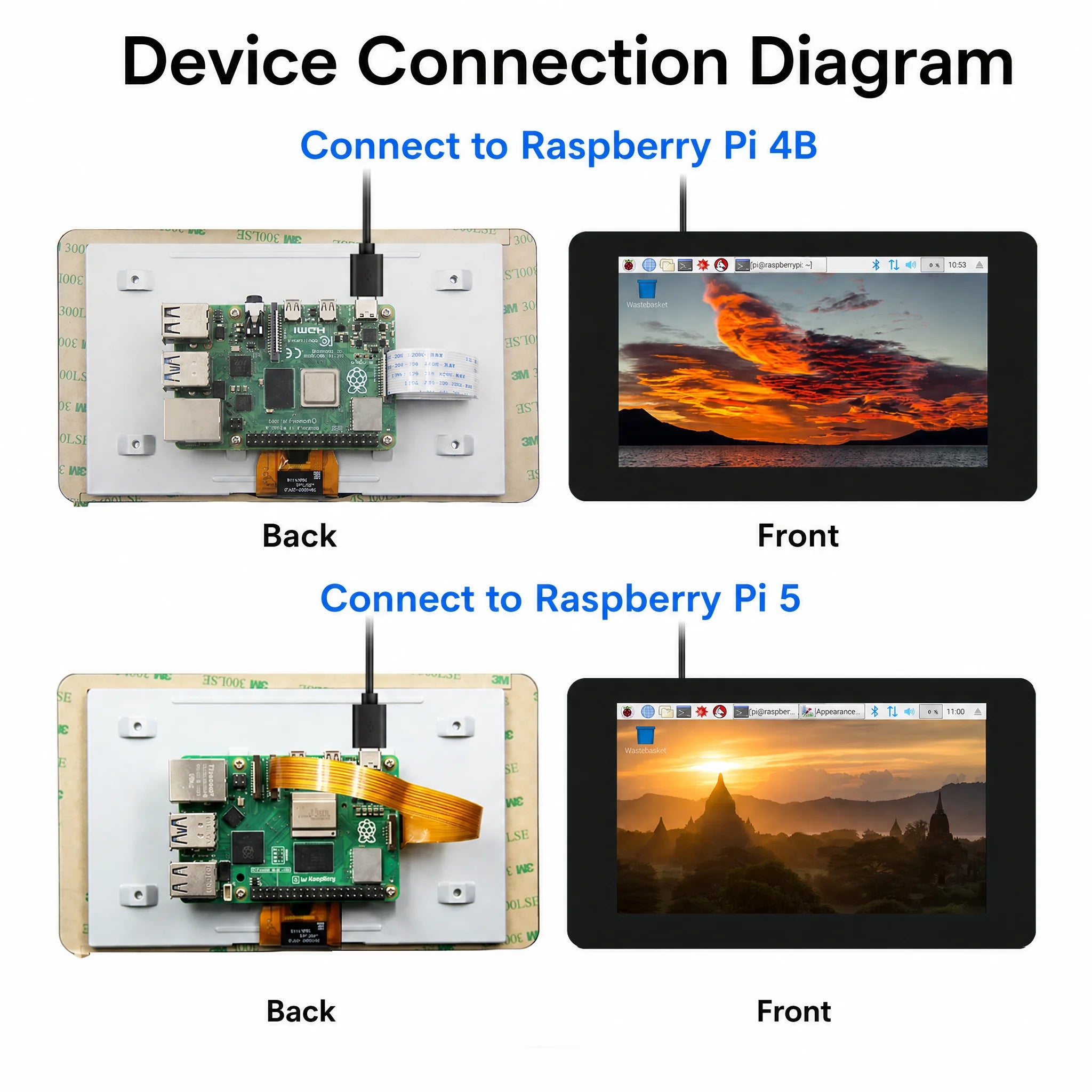

Support Pi5/4B/CM4/3B+/3A+/3B/CM3/CM3+/2B/B+/A+

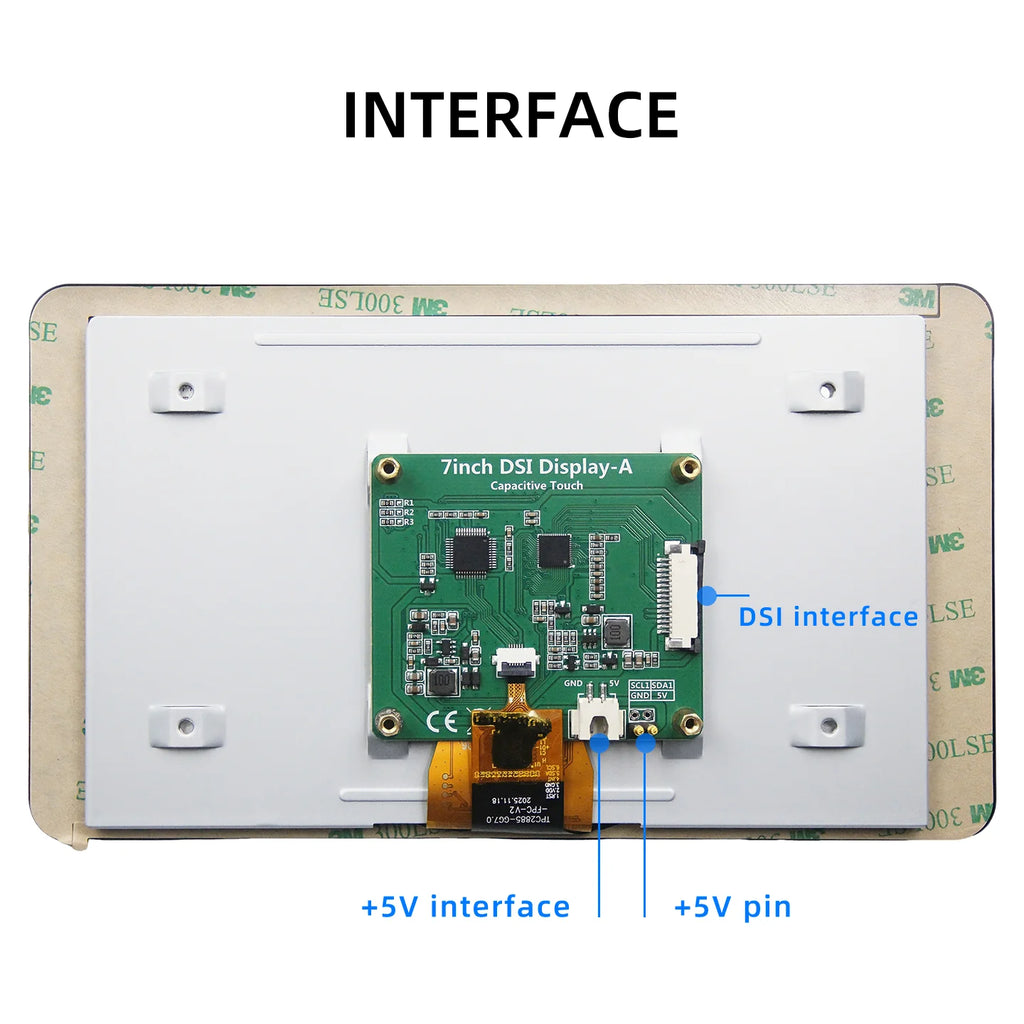

Drive the LCD directly through the Raspberry Pi's DSI interface, with a refresh rate of up to 60Hz
When used with Raspberry Pi, it supports Raspberry Pi OS/Ubuntu/Kali/Volumio and Retropie, drive-free
When used with VisionFive2, it supports Usb, single touch, and drive-free
When used with Tinker Board 2, it supports Linux/Android, five-point touch, and drive-free
When used with Core3566, it supports Debian/Ubuntu, five-point touch, and drive-free
Support software control of backlight brightness
PIN |
Pin Label |
PIN |
Pin Label |
1 |
GND |
9 |
MIPI DSI1_DP0 |
2 |
MIPI DSI1_DN1 |
10 |
GND |
3 |
MIPI DSI1_DP1 |
11 |
SCL0 |
4 |
GND |
12 |
SDA0 |
5 |
MIPI DSI1_CN |
13 |
GND |
6 |
MIPI DSI1_CP |
14 |
3.3V |
7 |
GND |
15 |
3.3V |
8 |
DSI1_DN0 |
LCD Screen Parameters | |
Screen type |
IPS TFT |
Resolution |
800xRGBx480(pixels) |
display area |
|
colors | |
65K(RGB565) | |
Driver IC |
|
Display interface |
DSI |
Backlight brightness |
300 cd/m2 |
Backlight type |
White LED*12 |
Working temperature |
-30~80(℃) |
Storage temperature |
-30~80(℃) |
