SPECIFICATIONS

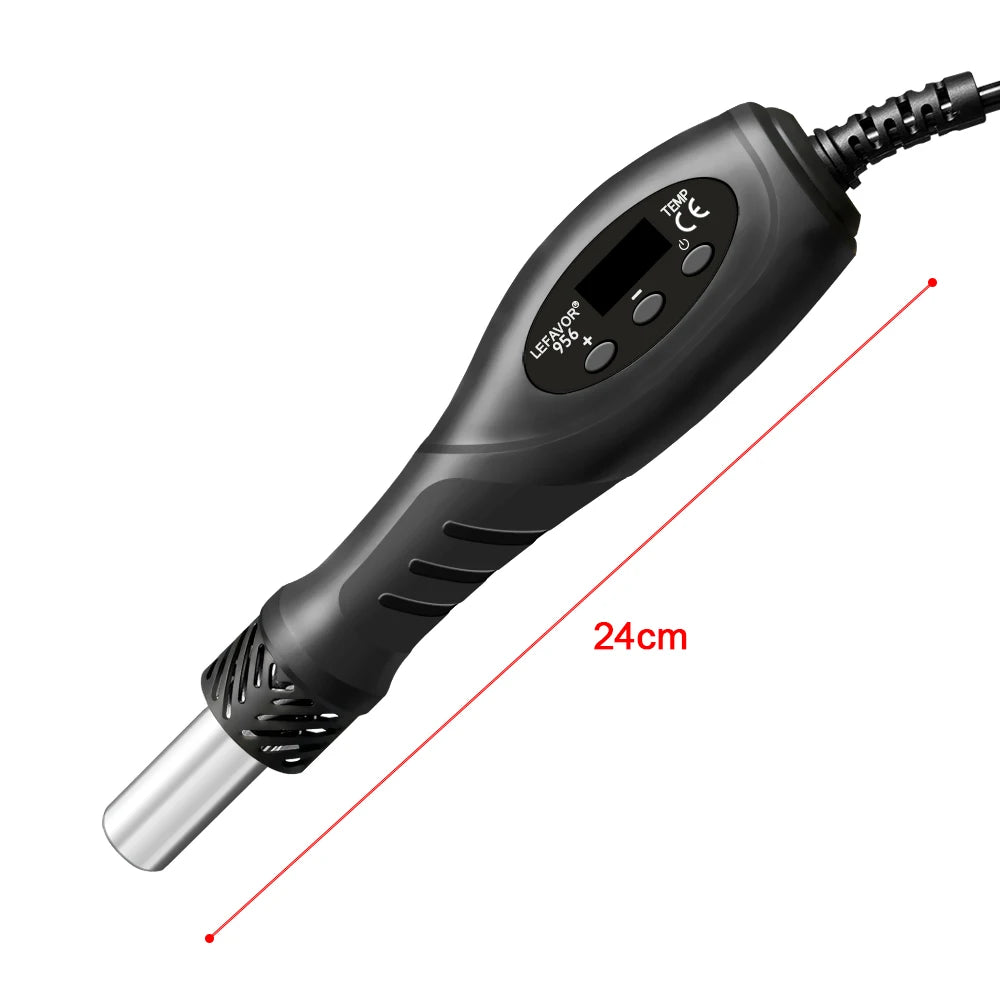

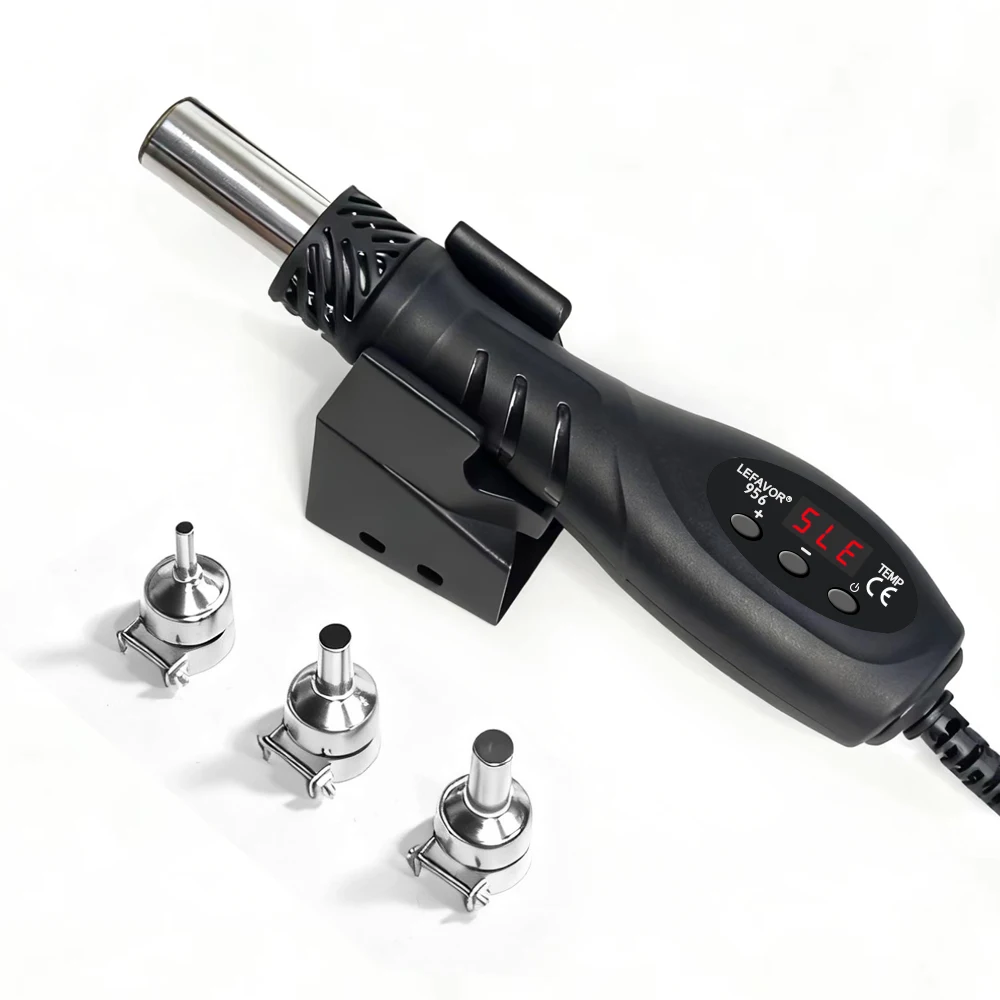

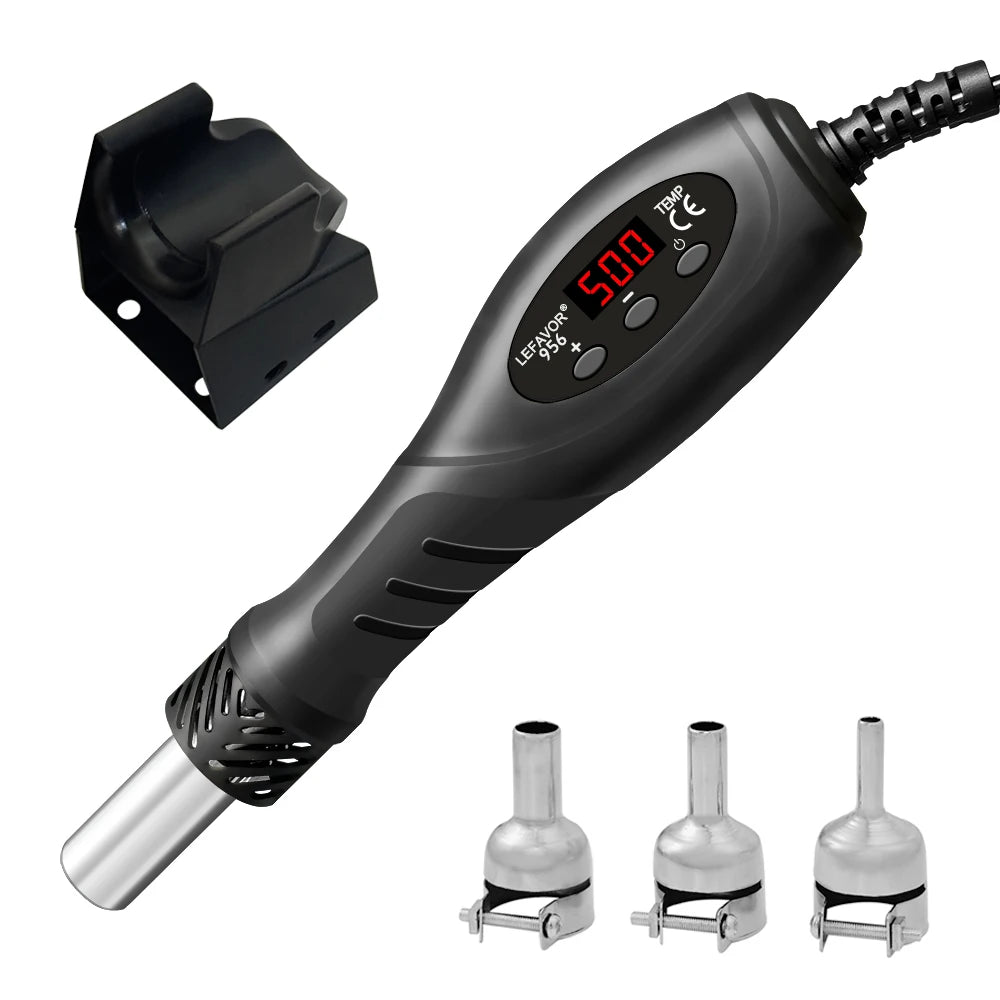

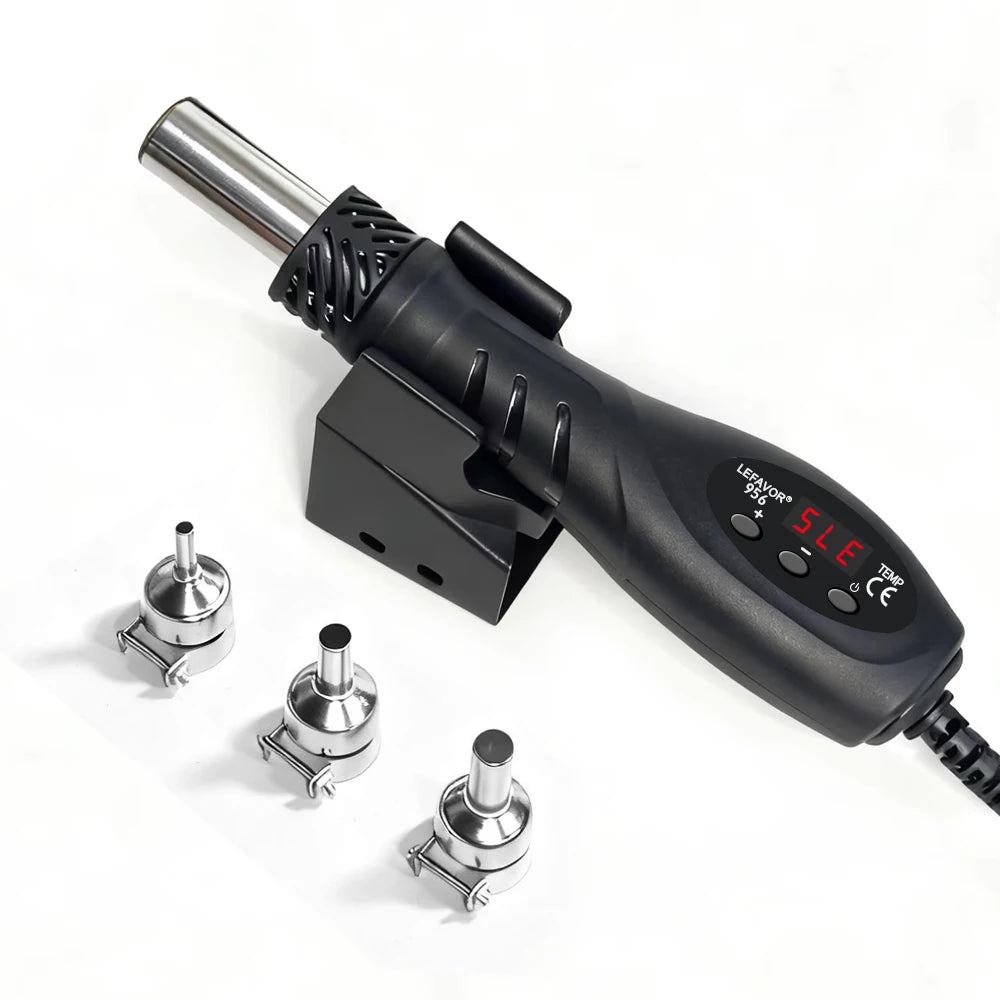

1: hot air gun

Brand Name: lefavor

Certification: CE,FCC,RoHS

Choice: yes

Electrified: No

Function 1: Sleep function

Function 2: Digital display

Function 3: adjustable wind speed

Function 4: Adjustable temperature

Function 5: C/F

High-concerned chemical: none

Model Number: LF956

No-Load Speed: 1200rpm

Origin: Mainland China

Power Source: Ac

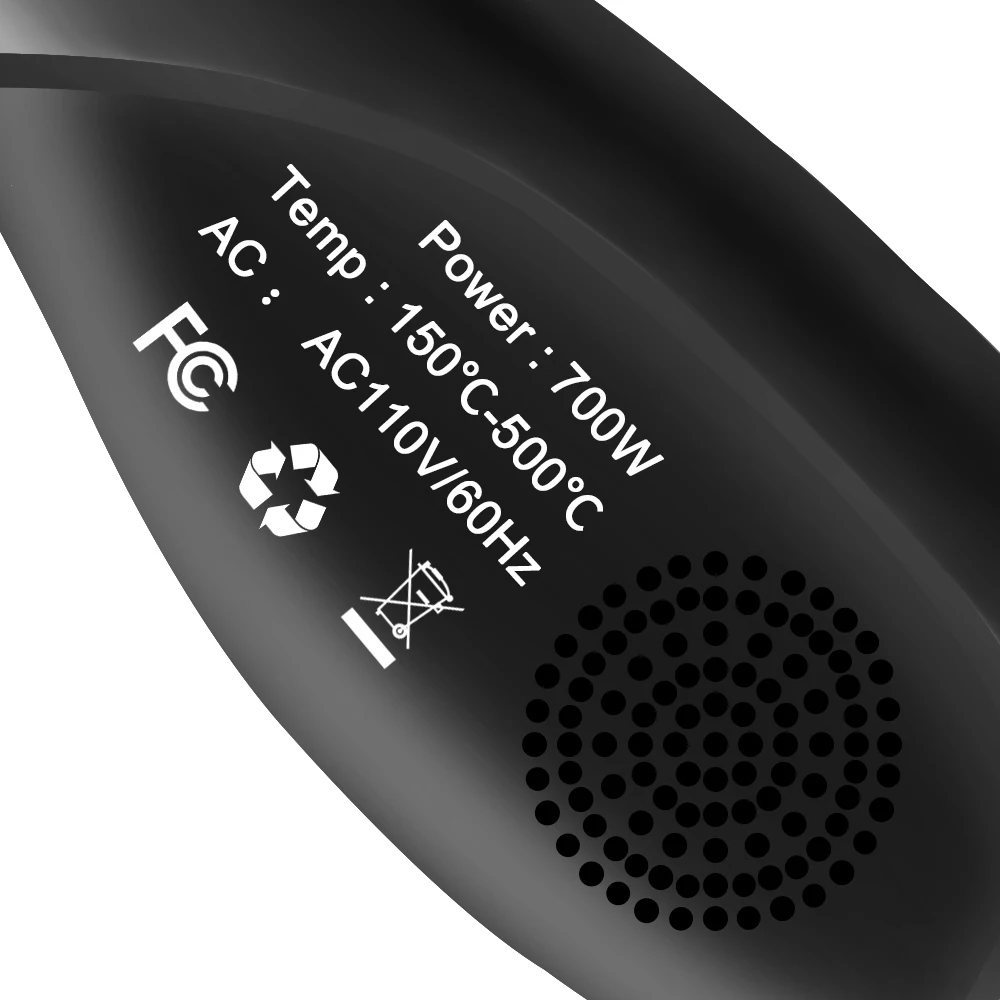

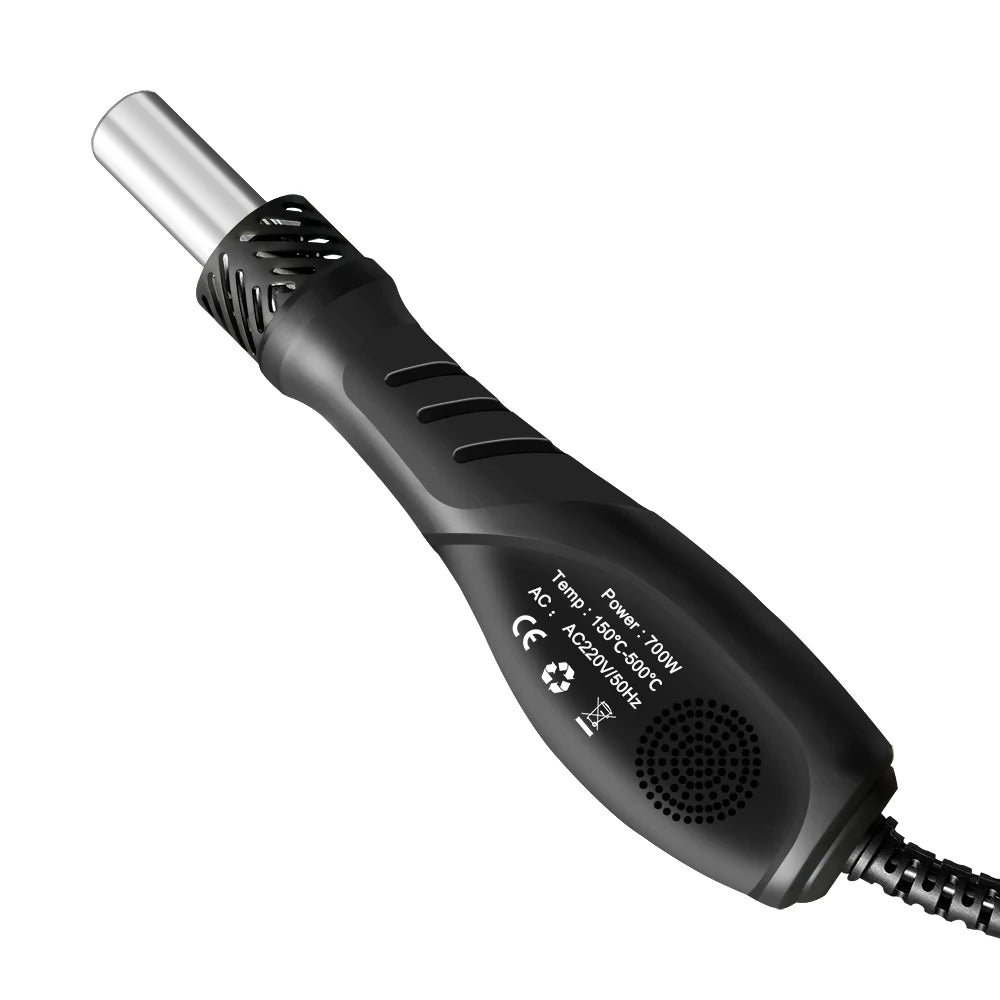

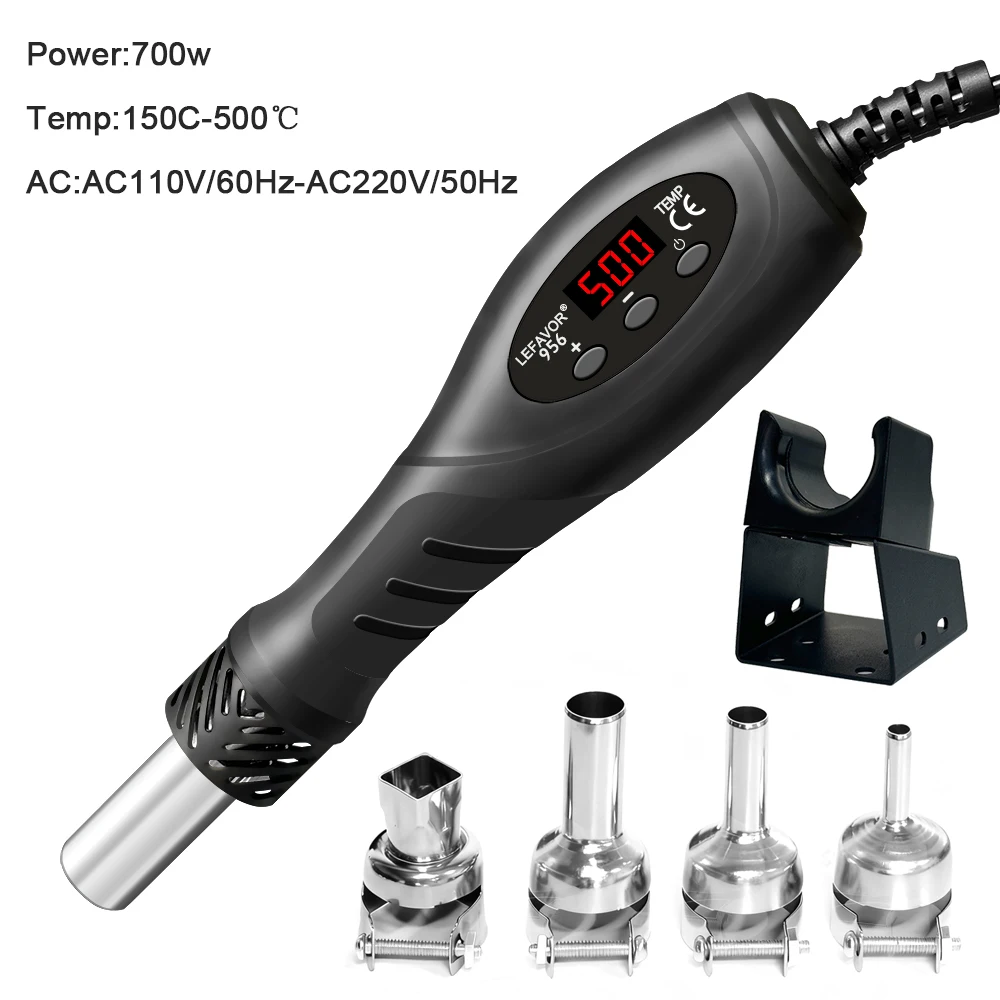

Rated Output Power: 700W

Rated Voltage: Other

Use: Commercial Manufacture

Weight: 600g

is_customized: Yes

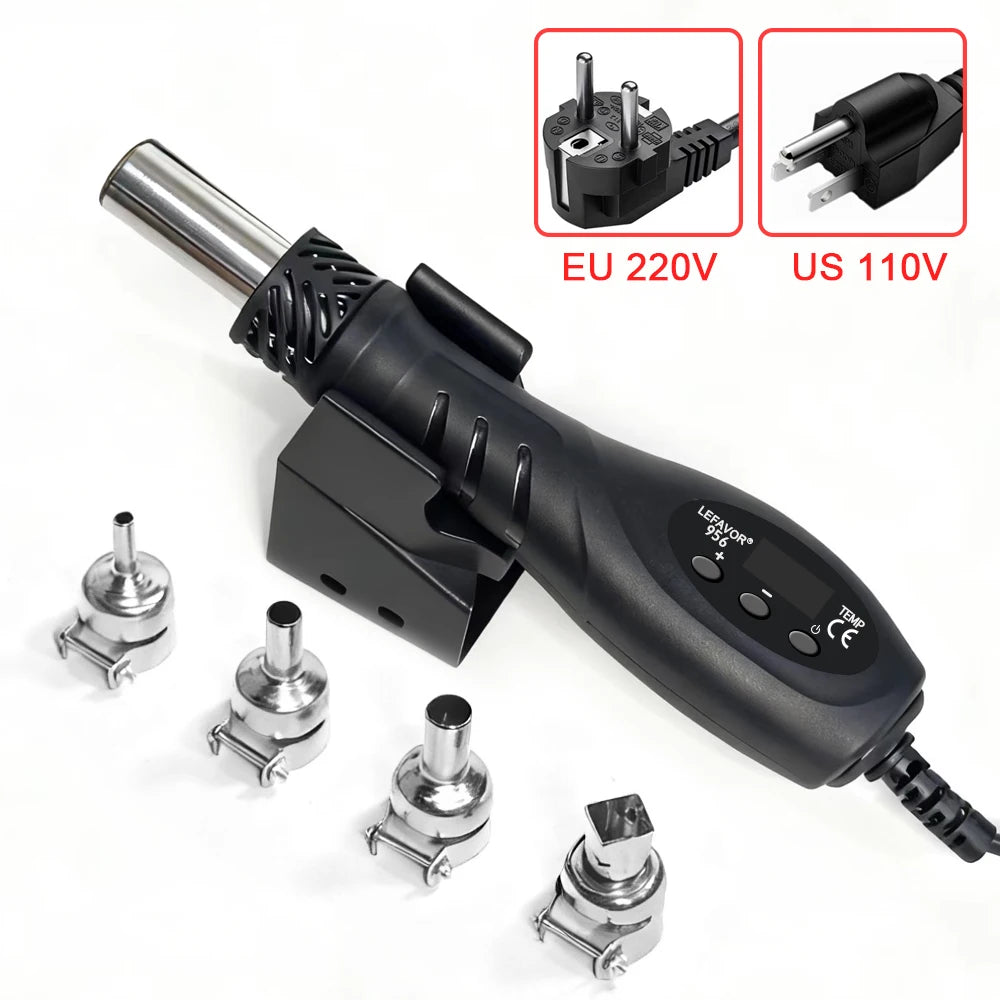

Please note before placing an order: the power plug is divided into 110V US PLUG and 220V EU plug,

The heating core is a consumable, the first start-up can be used normally, there is no quality guarantee, the first use, there may be smoke, this is a normal phenomenon, not a quality problem, this is the insulation of the heating core of the oil on the mother paper, after a while will return to normal use

Operation Instructions

1 . Power On/Off

When the air gun is off,the display shows "OFF".

Press and hold the power button for 1.5 seconds to turn on the device.

After power-on,the display shows the temperature value.The rightmost
decimal point flashes to indicate the heating state.

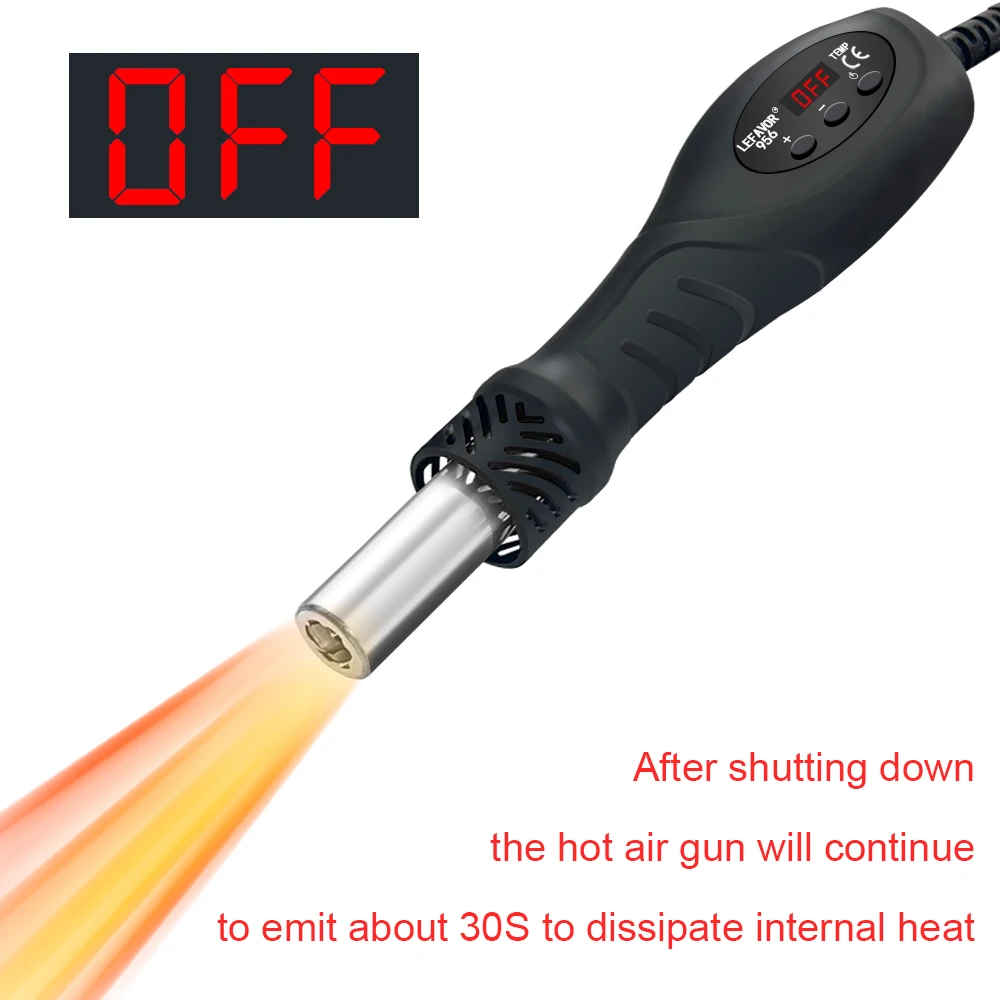

In the power-on state,press and hold the power button for 1.5 seconds
to shut down.If the temperature of the air gun is higher than 60℃ when
shutting down,the air gun will blow air at maximum volume to cool down until the temperature drops to 60℃ and then shut down completely. During the shutdown process,the display will flash "OFF".In
addition,pressing and holding the power button during shutdown can
re-enter the heating state.

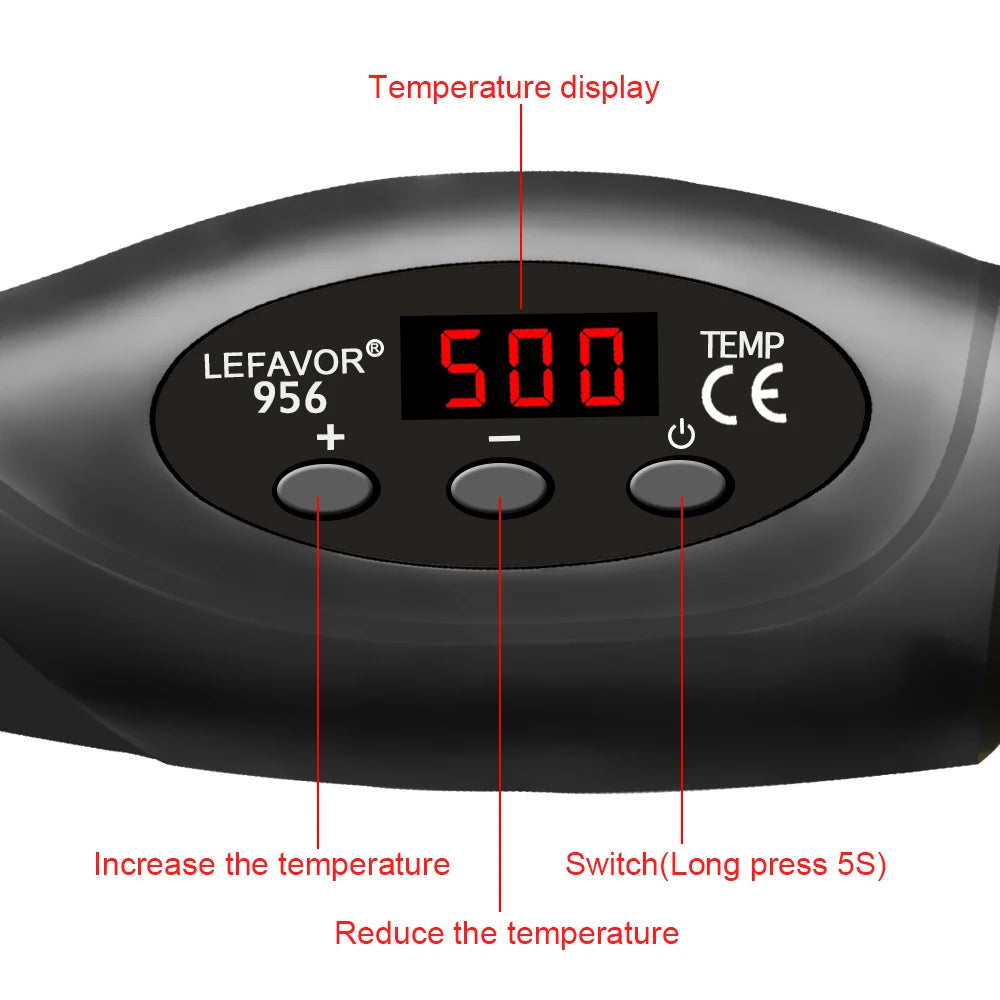

2.Temperature Adjustment

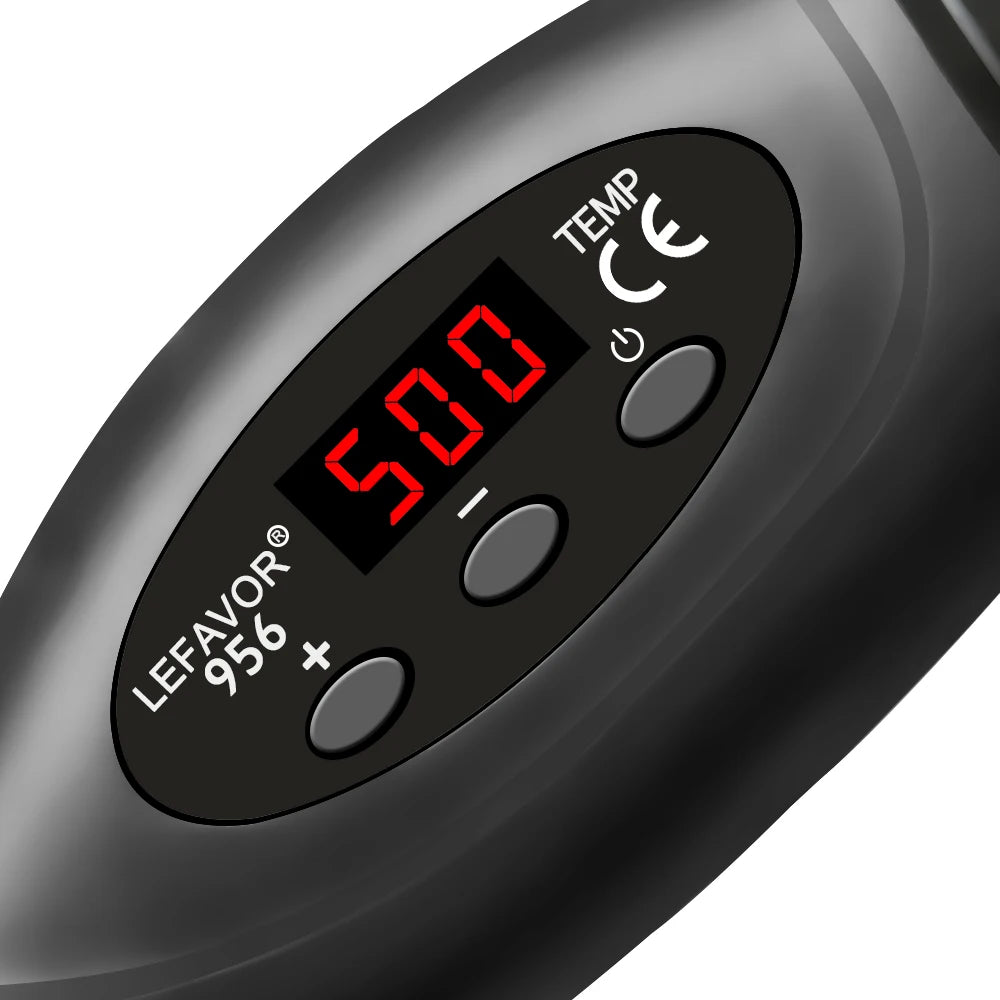

On the power-on interface,press the+/-buttons to adjust the temperature:

A short press on +or-increases or decreases the set temperature by 1;
press and hold to adjust quickly.The adjustment range is(Celsius:150-

500)(Fahrenheit:302-932).

3. Air Volume Adjustment and Function Switching

In the power-on mode,short-press the power button to switch between
temperature and air volume(F10-F99)settings.After entering the setting
state,the set temperature or air volume value will flash (press and hold +or -
for quick adjustment).It will automatically exit the setting state after 3 seconds,
and the flashing willstop after 3 times.

4.System Settings

In the shutdown or heating mode,press the power button twice quickly to
enter the system setting interface,which has three menus:0,1,and 2.

Select Menu 0 and press the power button to exit the setting state.

1.Select Menu 1 and press the power button to enter the temperature
unit setting.You can switch between Celsius(C)and Fahrenheit(F) by

pressing the up and down buttons.After setting,press the power
button to confirm and exit.
down until the temperature drops to 60℃ and then shut down

2.Select Menu 2 to enter the calibration interface.You can calibrate within the range of±99 degrees by pressing the up and down buttons.After
setting,press the power button to confirm and exit.

Notes

When using the air gun,ensure operation in a well-ventilated
environment to avoid safety hazards caused by high temperature.

Do not touch high-temperature parts such as the air outlet when the air
gun is working to prevent burns.
Clean and maintain the air gun regularly to ensure stable performance. Supports 50HZ and 60HZ power supply detection.If the detection fails,
"Err"will flash.
