SPECIFICATIONS

Application: Ethernet

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Operating Temperature: -10~60

Origin: Mainland China

Supply Voltage: 10V-30V

Type: Logic ICs

is_customized: Yes

1. Product description

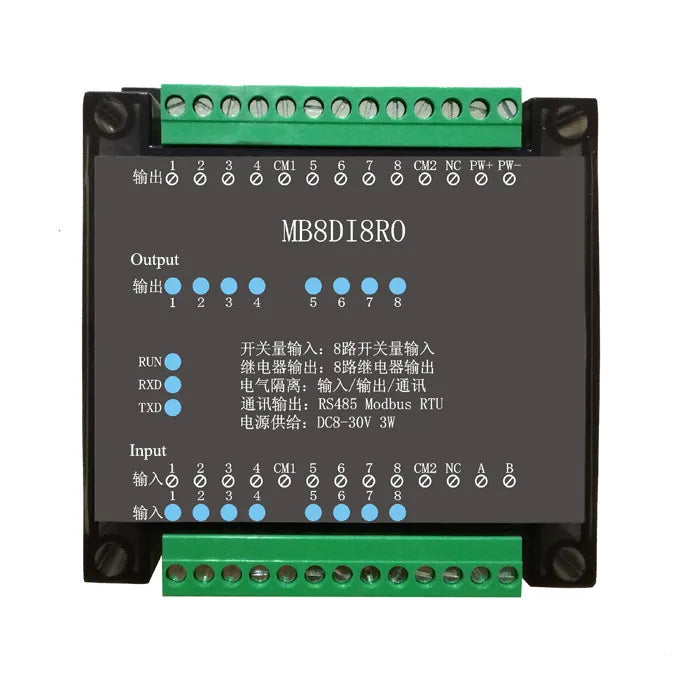

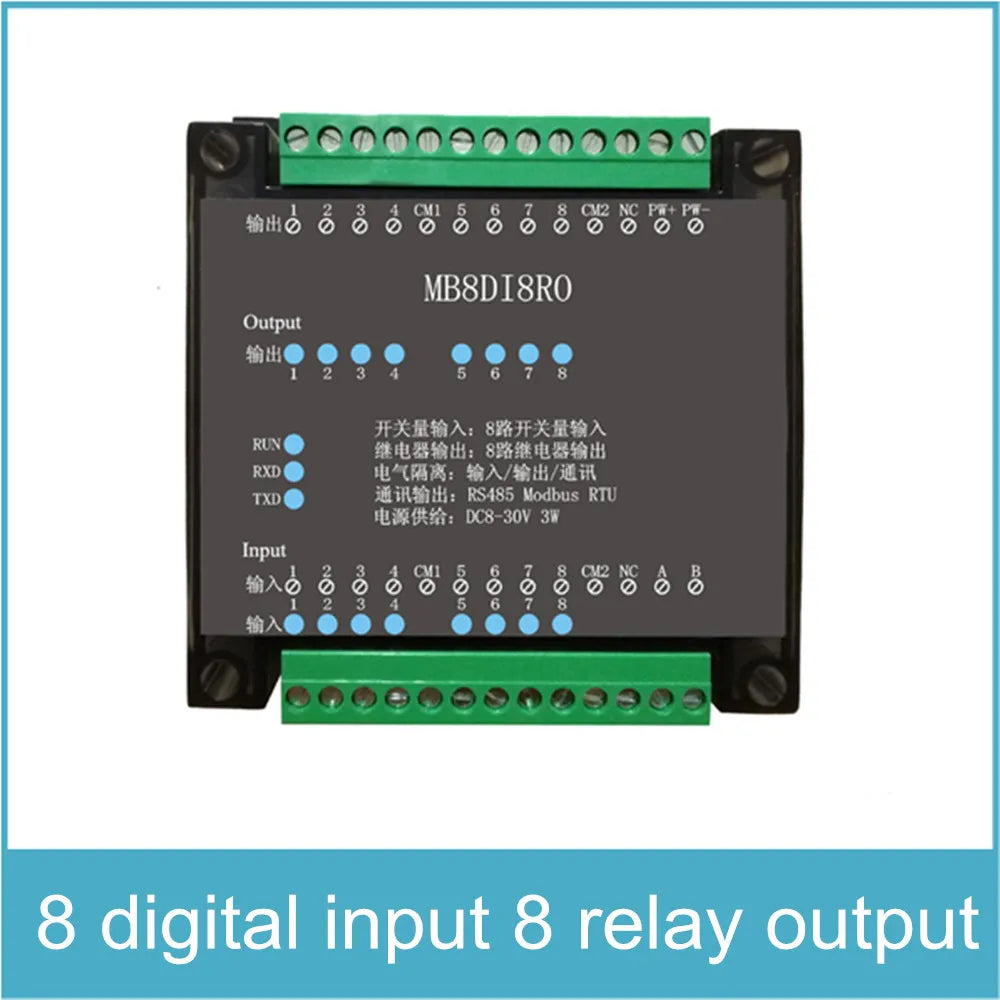

8DI8RO module is 8 channels digital isolated input, 8 channels relay isolated output, output through the RS485 interface.

The module uses the standard Modbus RTU communication, adapts many kinds of software, PLC, DCS and so on. The module power supply, RS485 communication electrical signals isolated from each other, effectively inhibit the series mode and common mode interference.

Using RS485 MODBUS RTU standard communication, configuration software, PLC and industrial touch screen can form network.
Signal control, power supply, RS485 communication electrical signals isolated from each other.
Communication circuit with lightning protection, anti-interference, power polarity protection.
Communication circuit lightning protection, anti interference.
RS485 communication signal output interface with over-voltage over-current double protection
Signal acquisition and control can be widely used in industrial field devices.
Communication format can be set by software.
This module has hardware watchdog and output protection mechanism to protect your equipment.

The MCU will be reset in 2 cases. One is when the MCU is dead. The other is that the master station does not send data to the slave module, the module will reset the MCU after 6 seconds. The output protection mechanism is very necessary.

For example, when a digital output module controls a motor, the master station keeps the motor in operation. If the 485 bus is disconnected, when the master wants to send a signal to disconnect the motor, the slave module will not receive data, then the motor will be running, there is a security risk.

With this function, the module constantly checks itself. When the 485 network fails,the module will automatically disconnect the output.This avoids accidents.

2. Main Specifications

Project	Specifications
Signal input / output	A. the input channel: 8 channels digital input B. the output channel: 8 channels relay output C. Load capacity: Resistive load 5A / channel
Communication output	A. Communication protocol: MODBUS-RTU B. Interface type: isolated RS485 communication, the output interface with over-voltage over-current double protection C. The baud rate: 4800bps, 9600bps, 19200bps, 38400bps, 57600bps D. Parity: no parity, even parity, odd parity E. Set mode: module address, baud rate, parity can be set through the software F. Communication distance: @ 9600bps 1200 meters

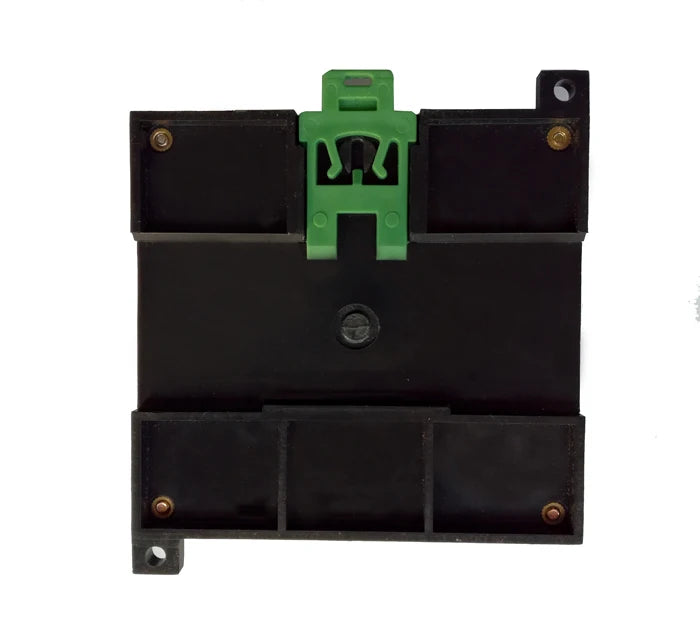

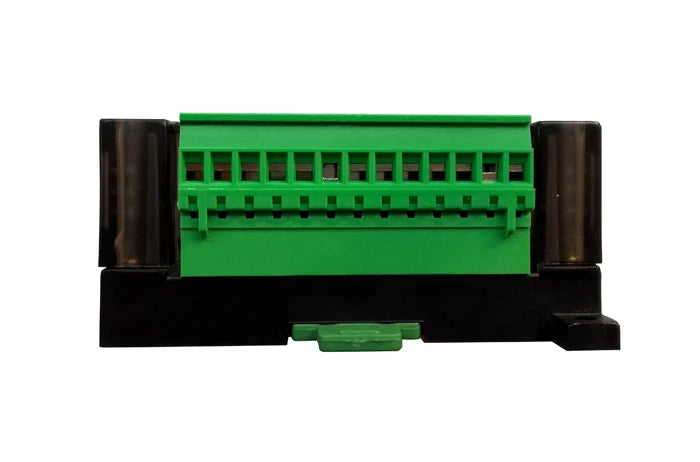

Module size and installation	A. Installation: standard DIN rail mounting or screw mounting B. Dimensions: 125 × 73 × 35mm
Working environment	Temperature: -10 ~ +60 ℃ Humidity: 35 ~ 85% (no condensation)
Working power	A. Power supply voltage: 10V ~ 30V wide range of power supply, with power polarity protection B. Power consumption: less than 3W

3. Interface definition

Terminal name	Description	Terminal name	Description
PW+	External power input positive terminal	485A	RS485 signal A +
PW-	External power input negative terminal	485B	RS485 signal B-
DI1	Digital input channel1	RO1	Relay output channel 1
DI2	Digital input channel2	RO2	Relay output channel 2
DI3	Digital input channel3	RO3	Relay output channel 3
DI4	Digital input channel4	RO4	Relay output channel 4
DI5	Digital input channel5	RO5	Relay output channel 5
DI6	Digital input channel6	RO6	Relay output channel 6
DI7	Digital input channel7	RO7	Relay output channel 7
DI8	Digital input channel8	RO8	Relay output channel 8
CM1	Public input terminal 1	CM1	Public output terminal 1
CM2	Public input terminal 2	CM2	Public output terminal 1
