8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial Automation

8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial Automation

$20.72

$20.72 $0.00

Description

SPECIFICATIONS

Application: Other

Brand Name: eletechsup

Bus Interface: RS485

Choice: yes

Condition: New

Dissipation Power: 0.1W

High-concerned chemical: none

Operating Temperature: -40-85

Operating Voltage: DC 6-24V

Origin: Mainland China

Package: SMD

Standby current: 12MA

Supply Voltage: DC 6-24V

Type: Logic ICs

is_customized: Yes

semi_Choice: yes

Product Name: 8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial automation

Package inlcuded:

1 x 8 bit Digital Switch TTL LvTTL CMOS IO Input UART RS485 Modbus

Description:

1 Working voltage: DC 12V (6-24V)

2 Working current: 8-12MA

3 MODBUS RTU 03 06 command control mode

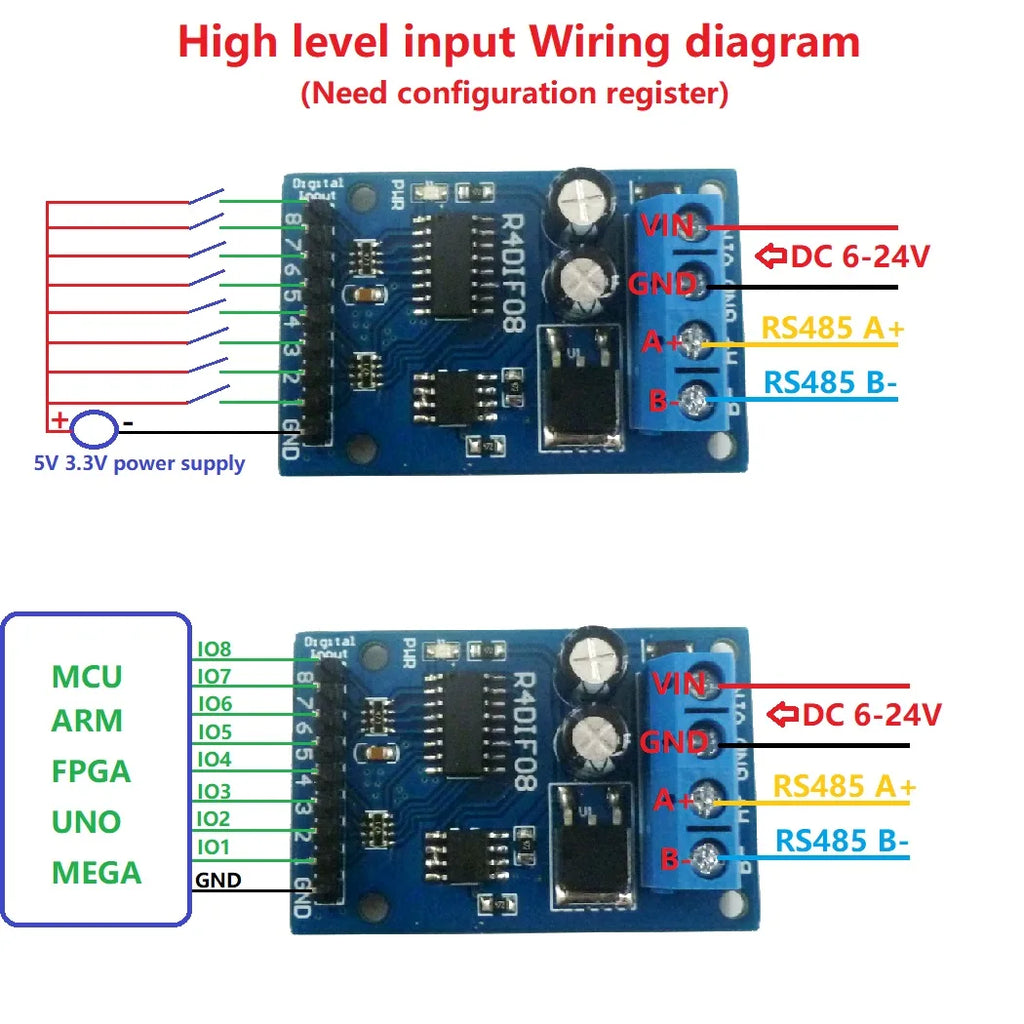

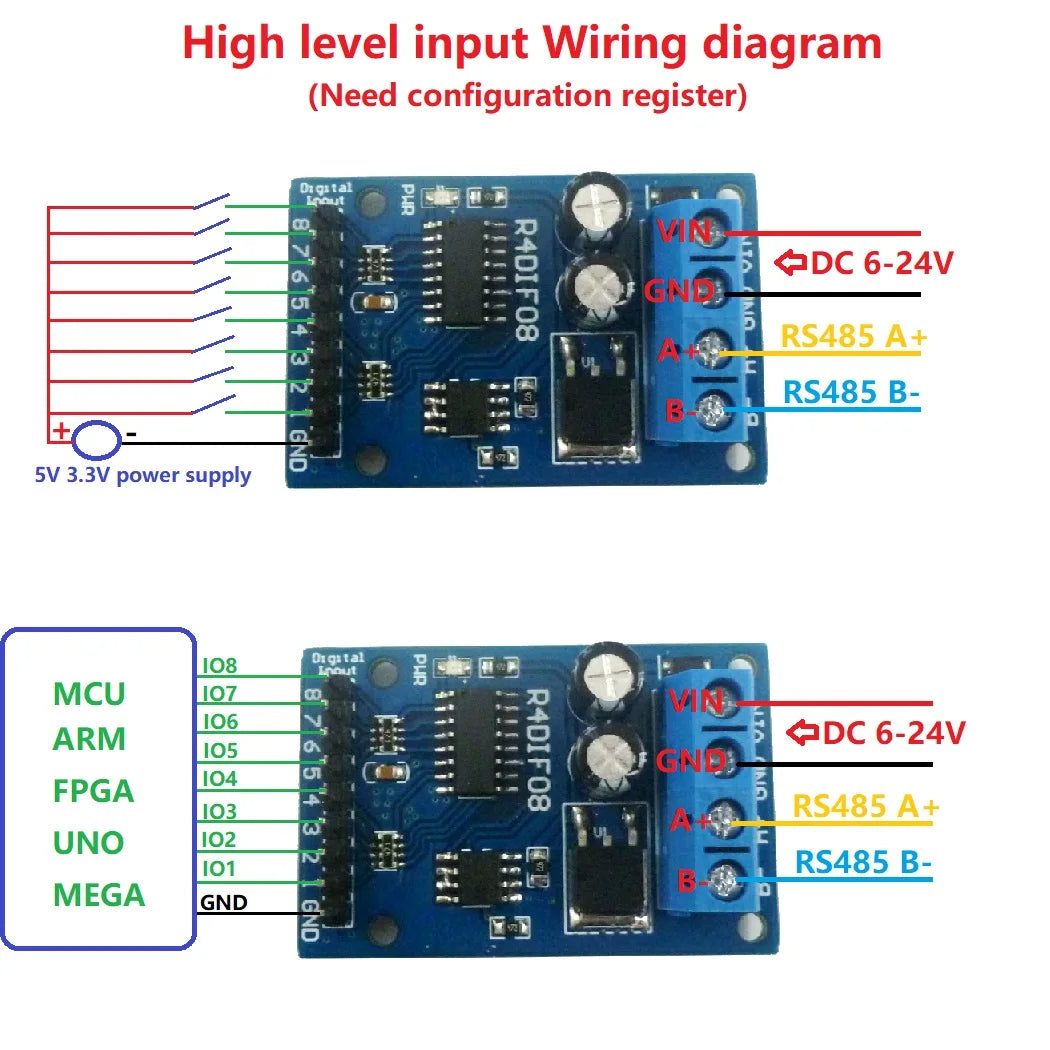

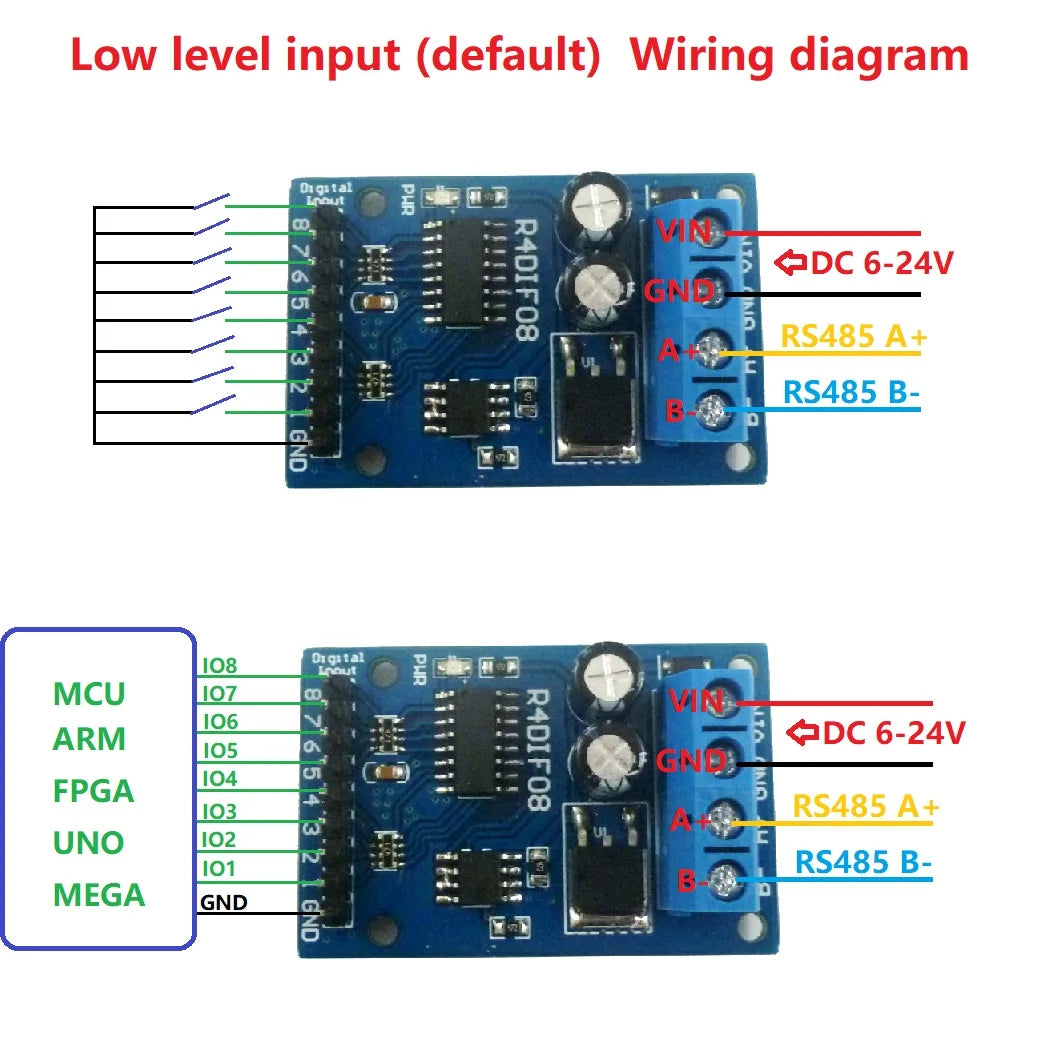

4 There are two input modes: low-level input (default) and high-level input

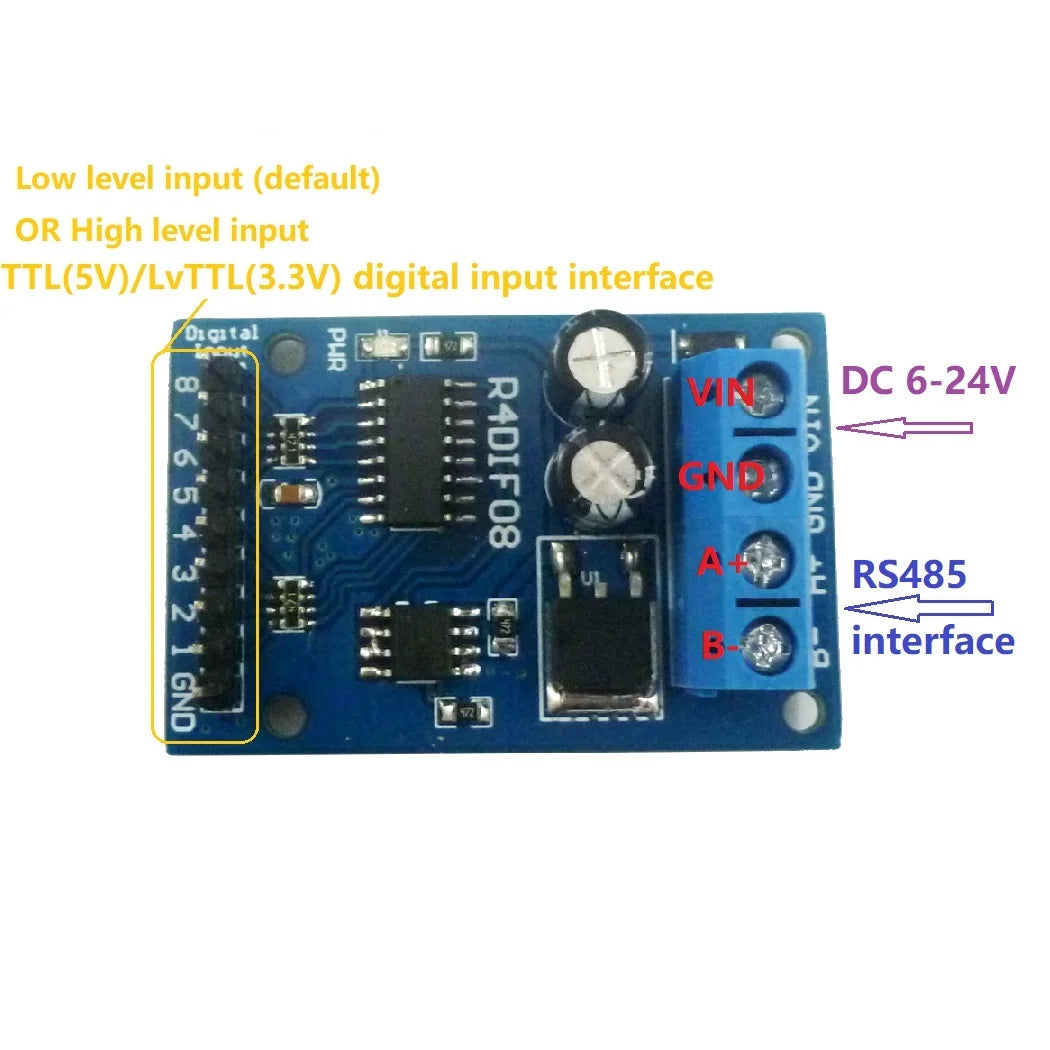

5 Input ports support TTL (5V) /LvTTL(3.3V) and compatible level

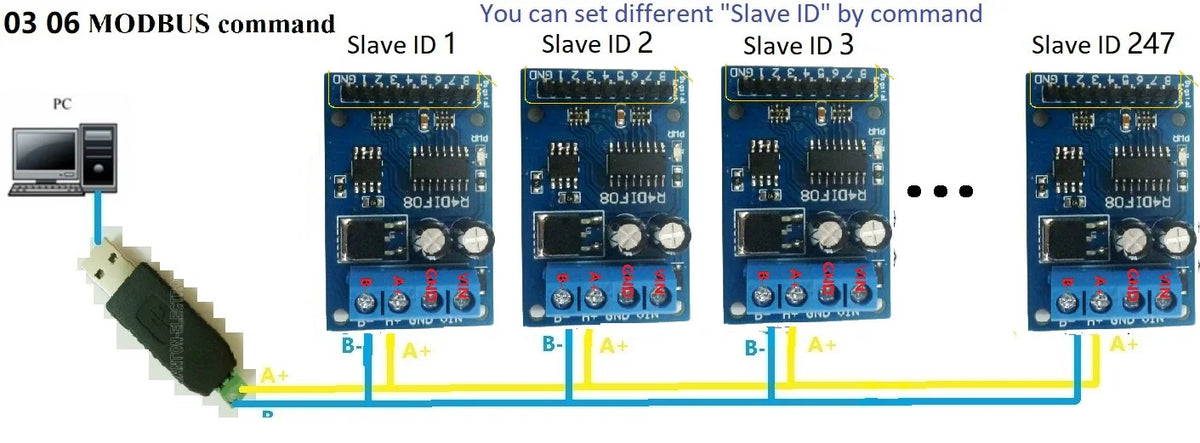

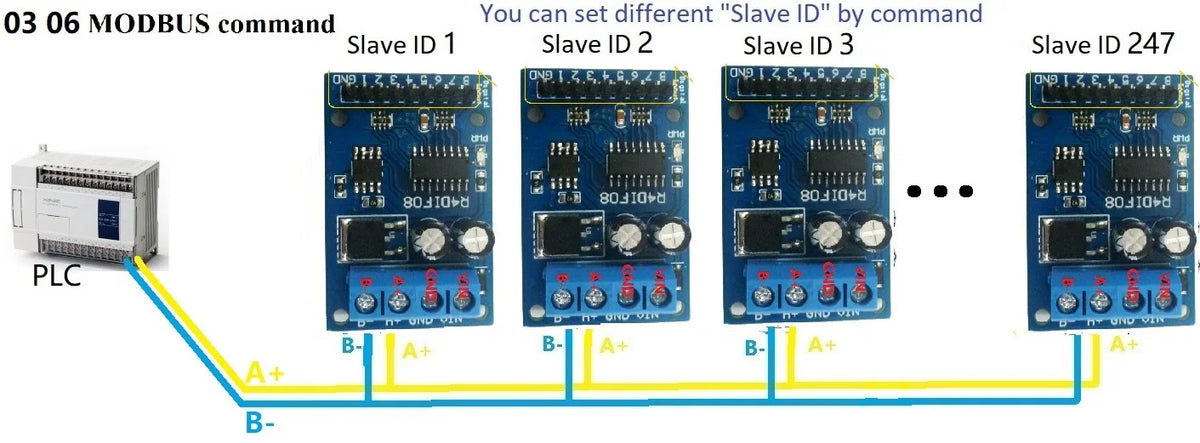

6 In MODBUS command mode, it can support up to 247 devices to be used in parallel

7 Input port status supports query (default) and automatic reporting

8 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate

9 Size: 44*29*15

10 Weight: 10 grams

Instruction manual Please ask us after the purchase

Application

Automated industry PLC

Digital to RS485

Smart Home,Home Automation ;

Identification system;

CCTV Camera PTZ Control;

Security system;

RS485 remote control;
