SPECIFICATIONS

Brand Name: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: LinkONE LTEM NBLoT LoRaWAN

Specification 2: RAK10715 LoRaWAN

Specification 3: BG77 LoRa

Specification 4: NRF52840 LoRaWAN Device

Specification 5: LoRaWAN

Type: IR

Link.ONE is a multi-functional device that integrates Nordic nRF52840, Semtech SX1262, and Quectel BG77, providing LoRa/LoRaWAN, Bluetooth Low Energy, and LTE CAT M1 and CAT NB2 communication. It features a 32-bit ® Cortex-M4F CPU with a 64MHz CPU clock. The device supports LoRaWAN based on stack V1.0.2, which is compatible with all official regions, and Bluetooth Low Energy compliant with BLE 5.0 specifications.

The Link.ONE includes a cellular NB-IoT and LTE-M module that supports CAT M1 and CAT NB2 cellular IoT wireless protocols. It operates at 800MHz for EU868/RU864/N865 and 900MHz for US915/AU915/KR920/AS923. The device is based on the WisBlock Modular ecosystem, allowing users to add sensors by plugging them into the device.

To ensure optimal connectivity, the device comes in a modified Unify Enclosure measuring 100x75x38mm, equipped with USB access and an external 2.1 dBi LTE antenna.

Color: As Shown
Material: PCB
Specification: 800MHz / 900MHz

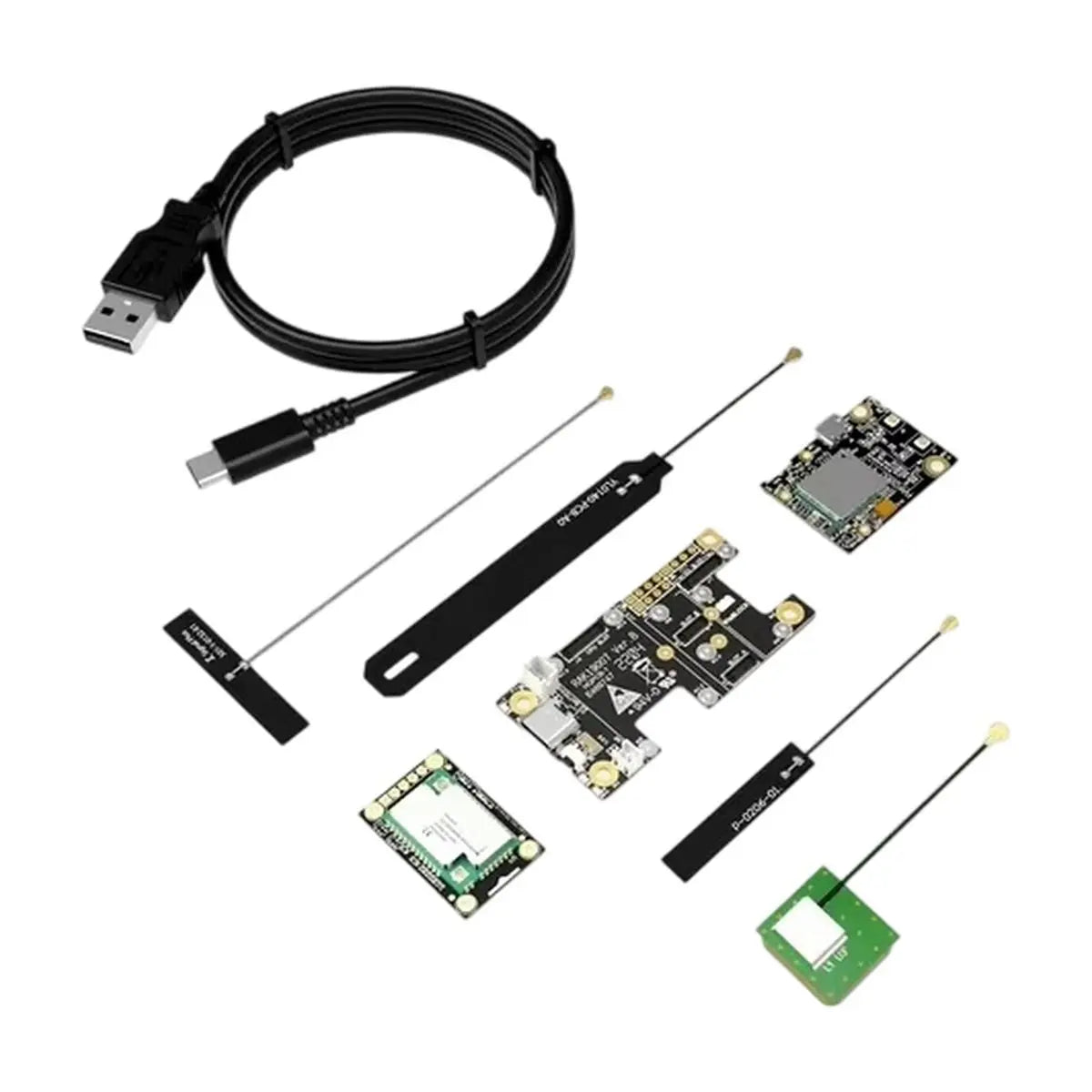

Package Contents:
1*RAK10715 LoRaWAN board kits (Line color is random)



Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
