Description

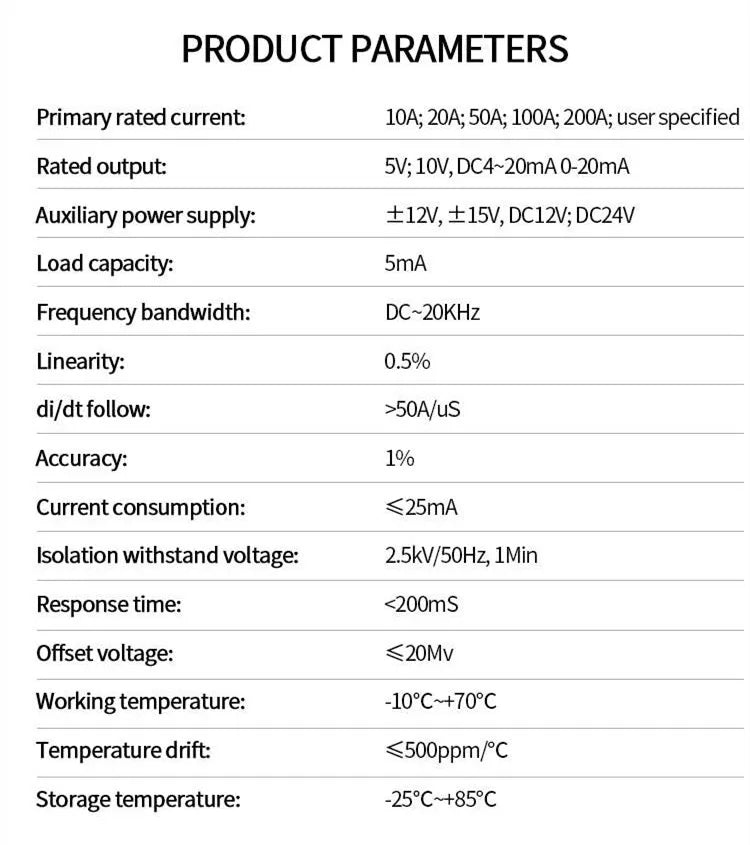

SPECIFICATIONS

Accuracy Class: 0.2%FS

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Choice: yes

DIY Supplies: Electrical

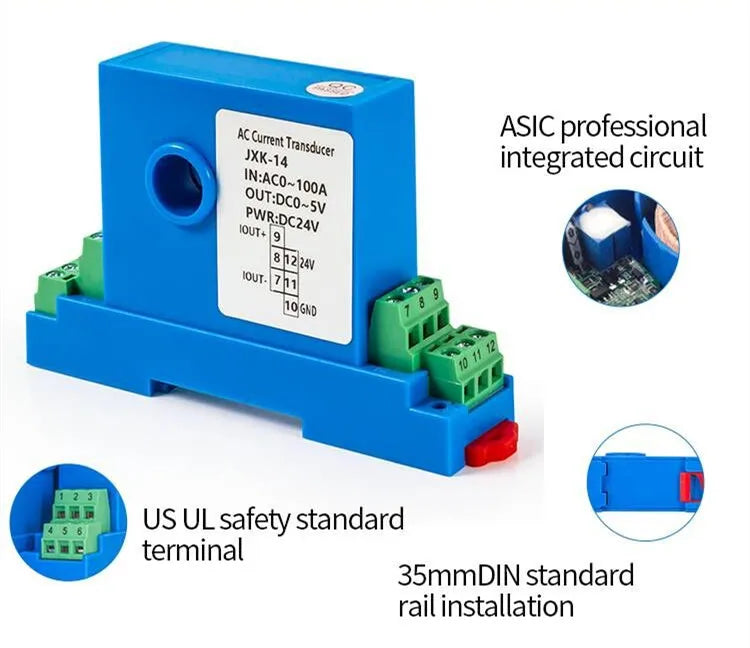

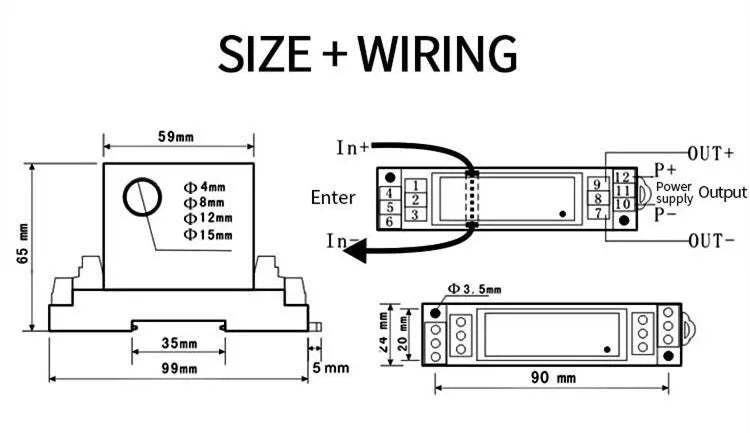

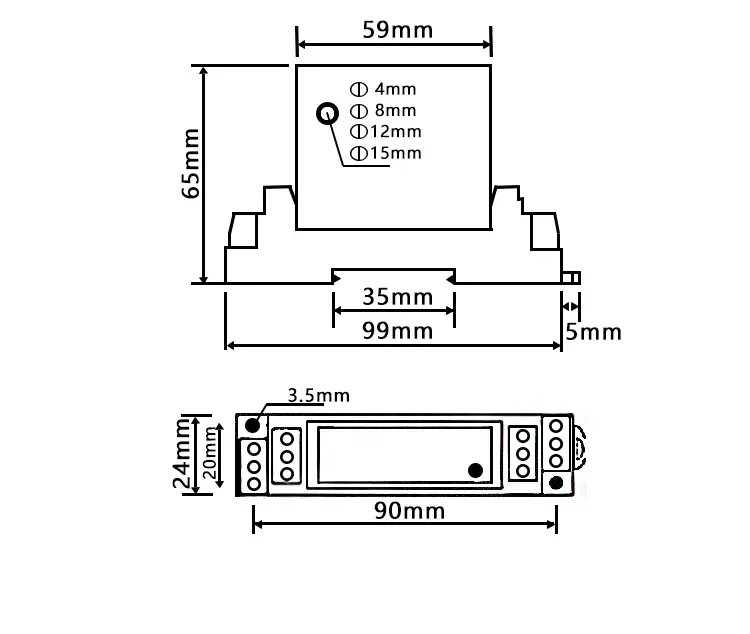

Dimensions: 35mm DIN Rail Installtion or screw,24 * 99 * 65 mm

Display Type: Analog Only

High-concerned chemical: none

Hole size: 4,8,12,15mm

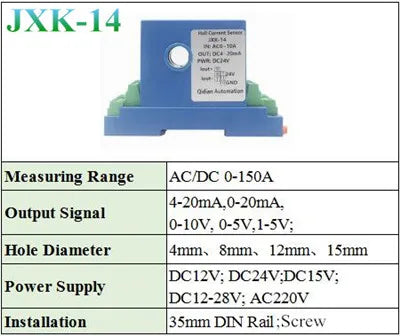

Input: 0-150A

Model Number: JXK-14

Operating Temperature: -20 ° C ~ 60 ° C

Origin: Mainland China

Output: 4-20mA,0-10V,0-5V,1-5V etc

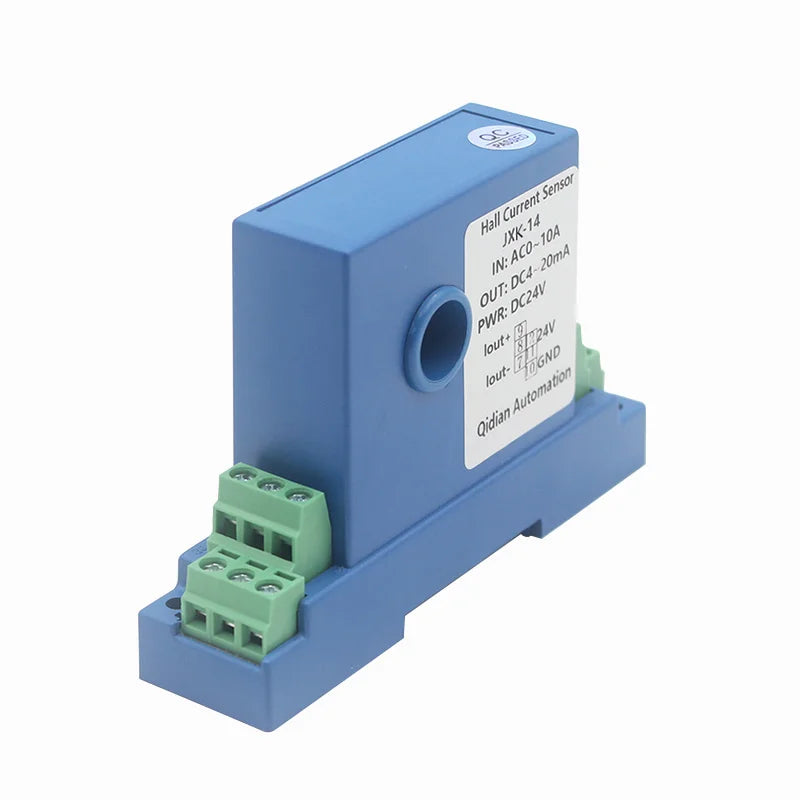

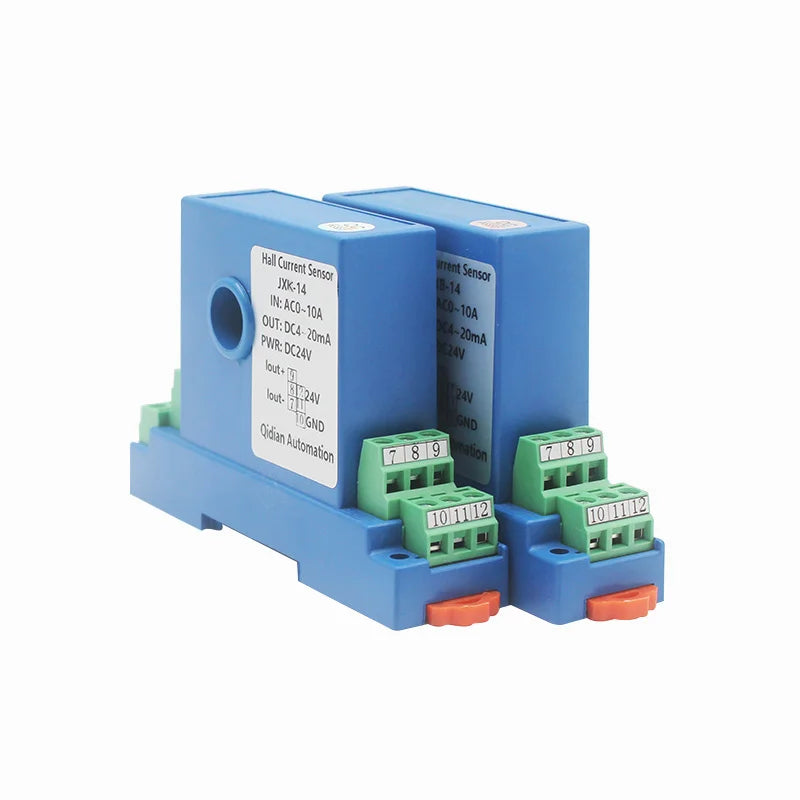

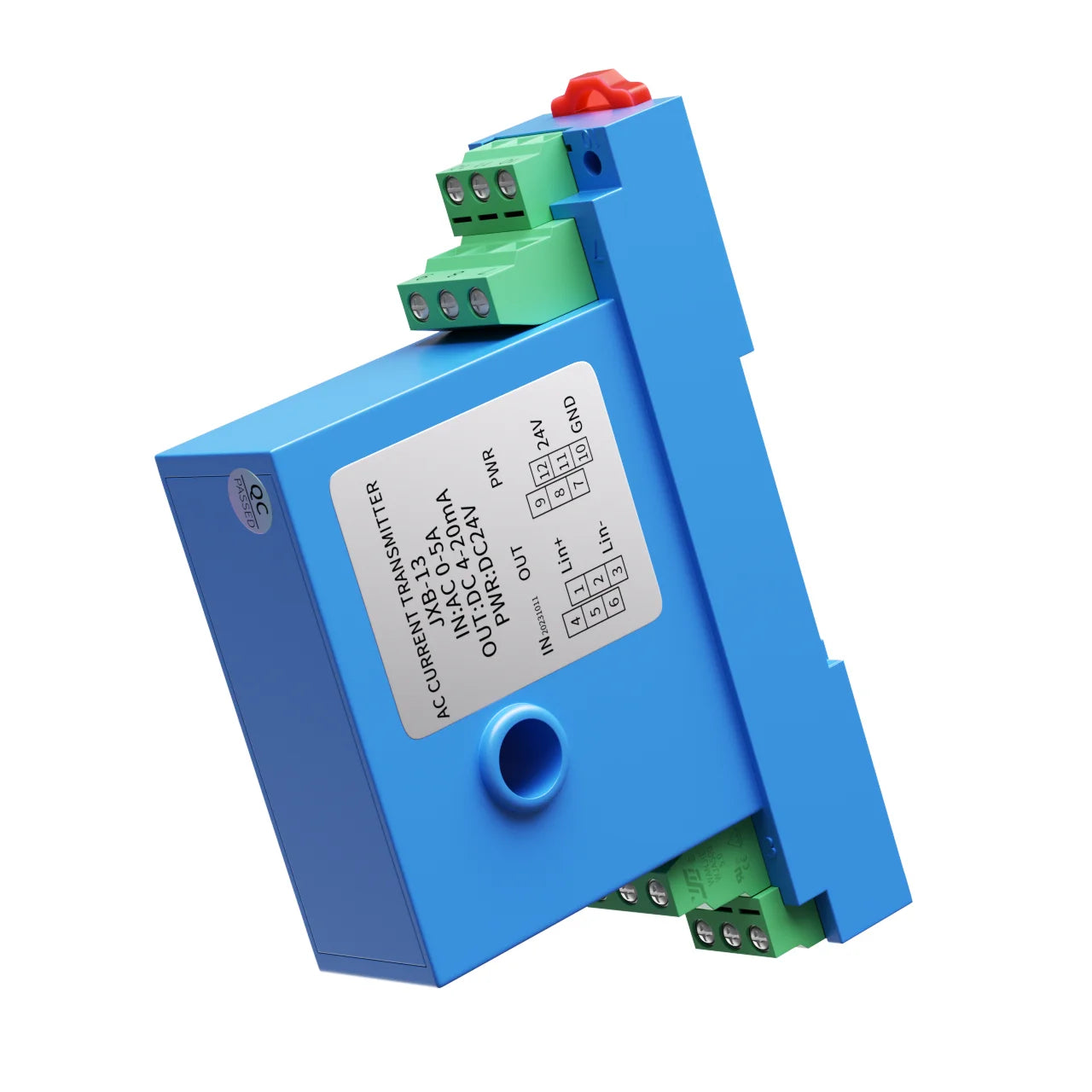

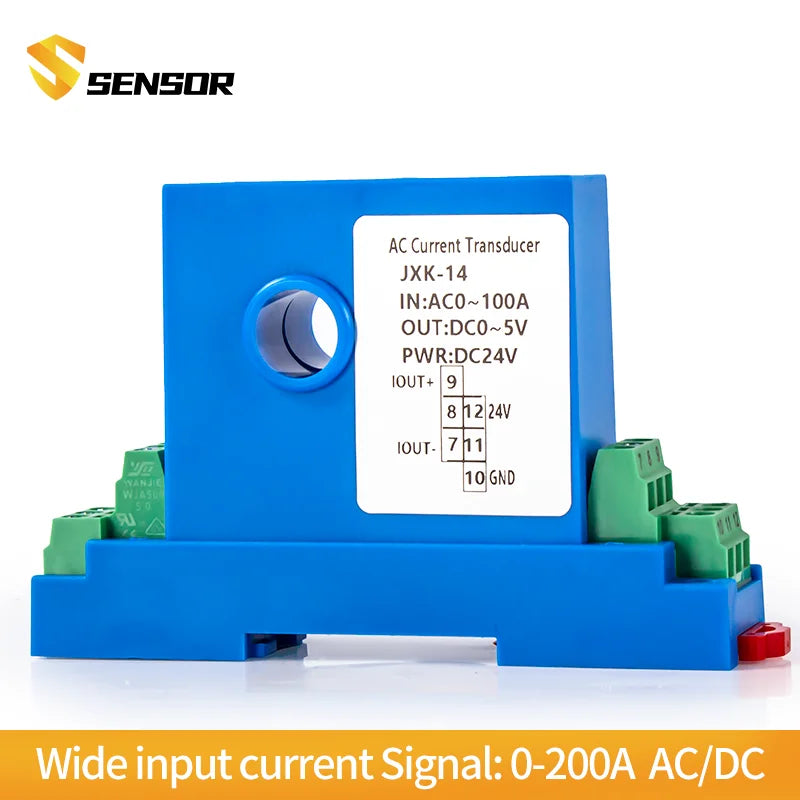

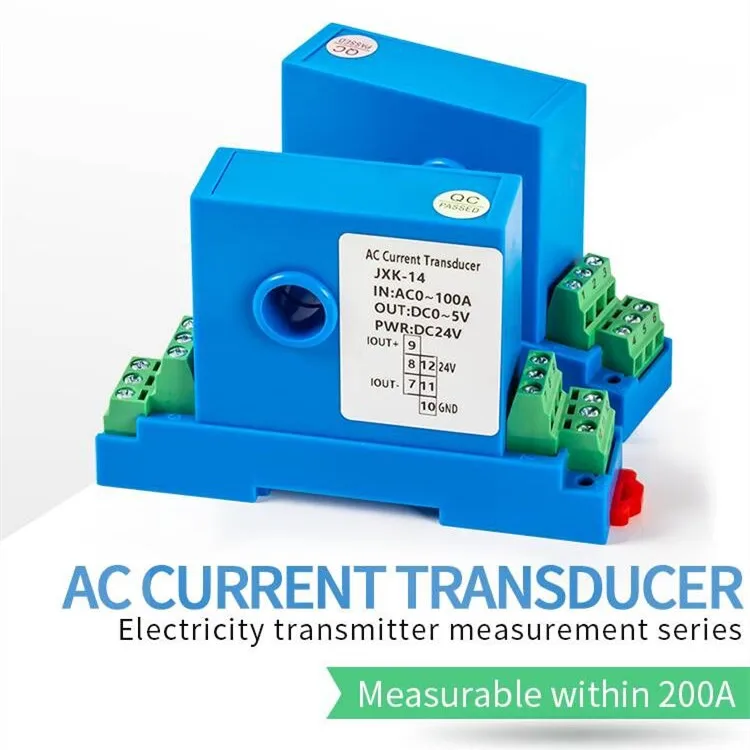

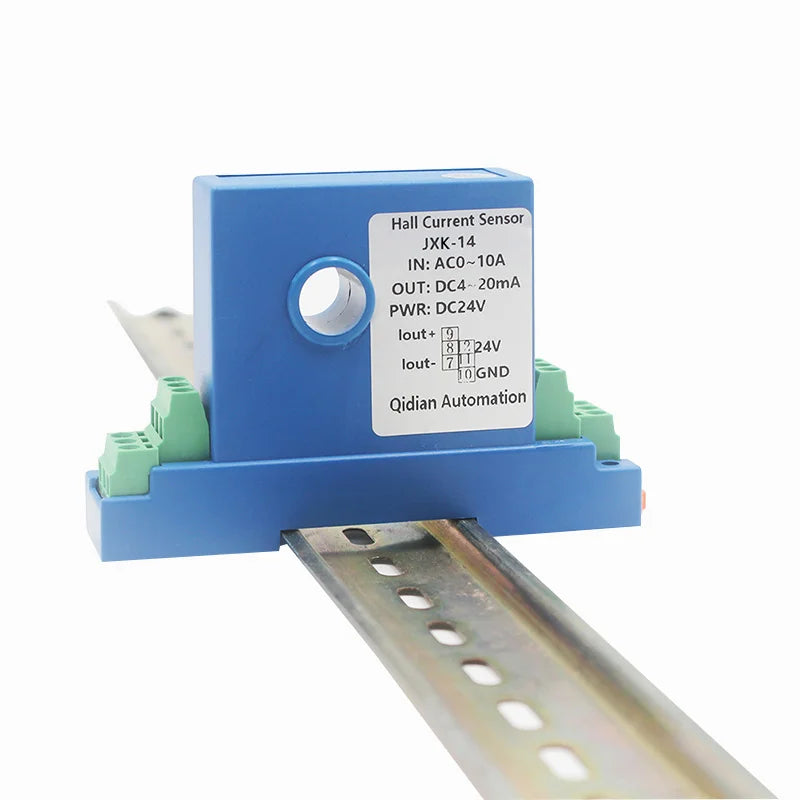

Product name: JXK-14 current sensor

Semi-finishedproduct: No

Supply Voltage: DC24V

semi_Choice: yes

Introduction:

<1>. Working Principle: Open loop direct measurement.

<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.

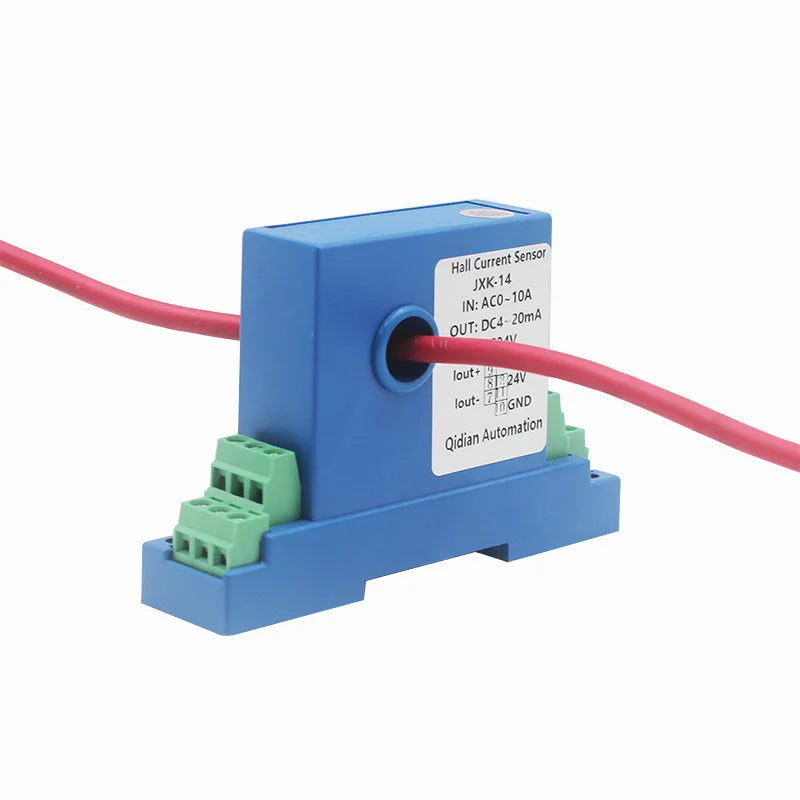

<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.

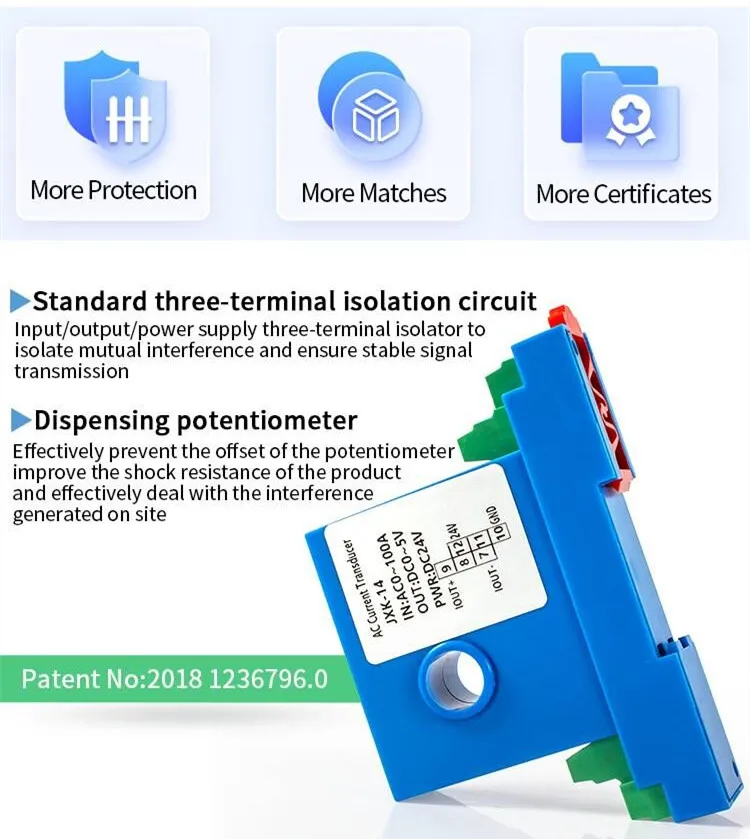

<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.

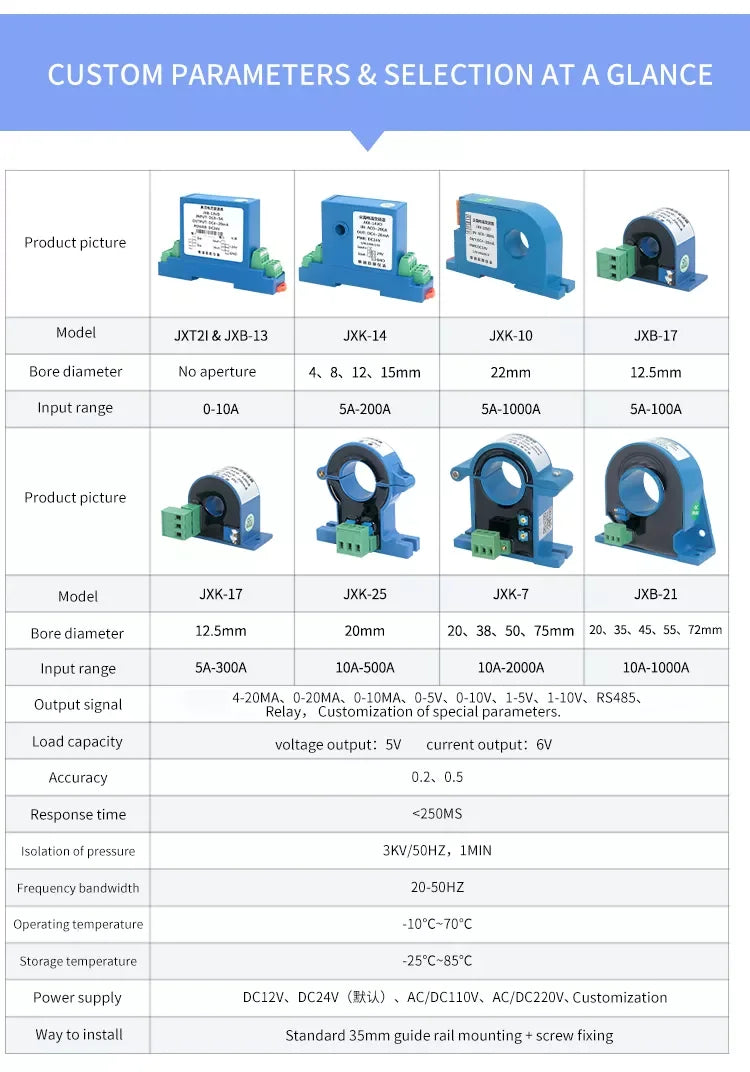

Full channel configuration,Parameter customizable

FEATURES:
