SPECIFICATIONS

Accuracy Class: 0.5%

Battery Included: no

Brand Name: NONE

Certification: CE,FCC,RoHS

DIY Supplies: Electrical

High-concerned chemical: none

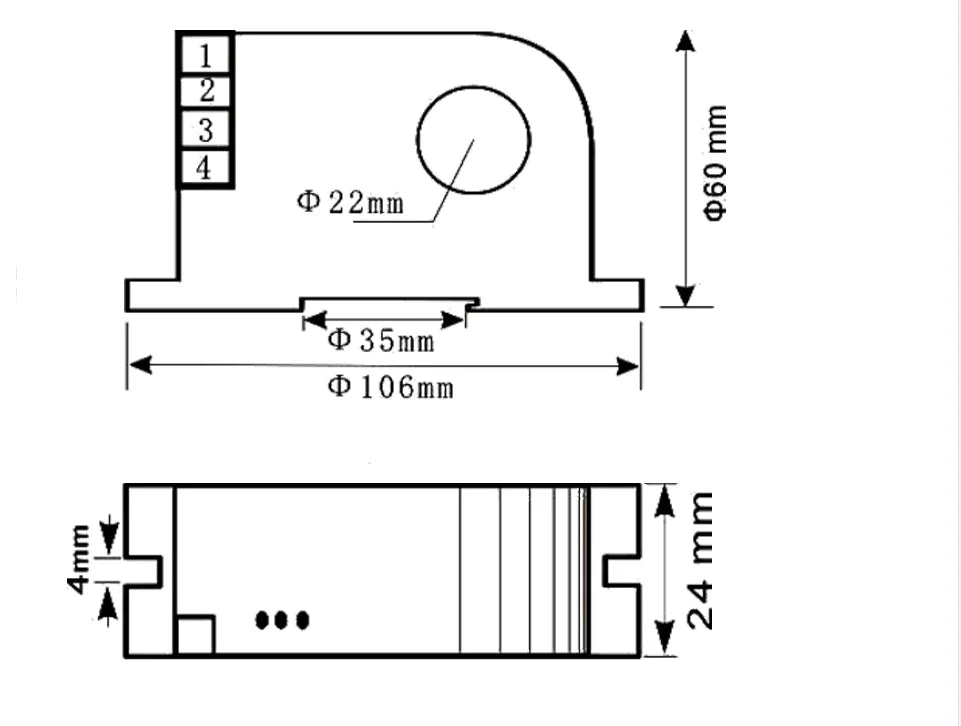

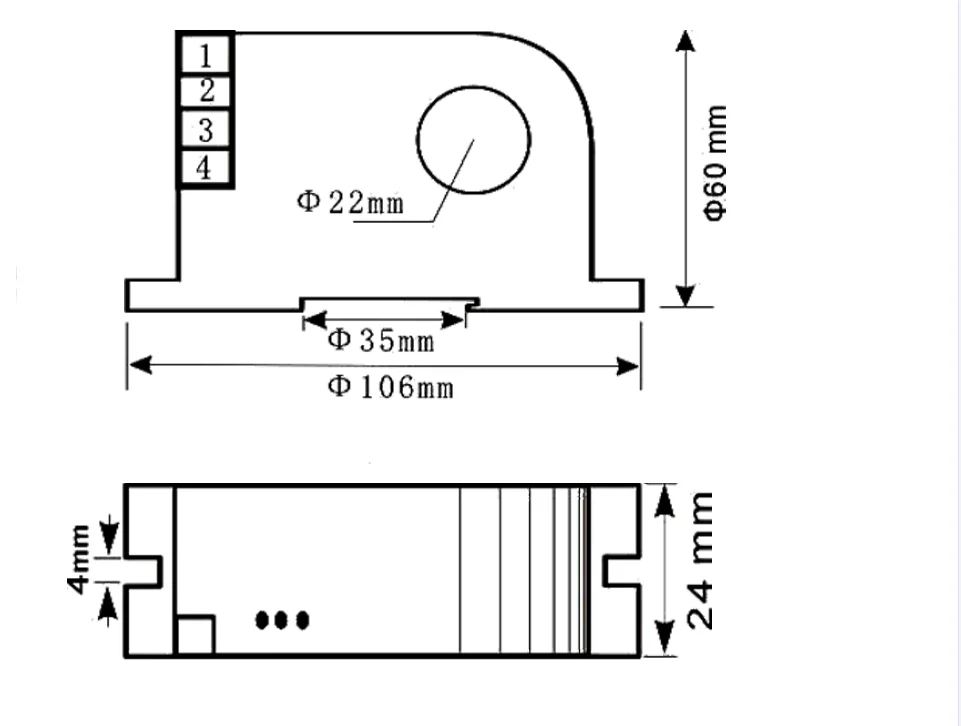

Hole size: 22mm

Input current: AC/DC0-600A customized

Model Number: jxk-10

Operating Temperature: -20~60C

Origin: Mainland China

Output signal: 4-20mA,0-10v,0-5V, RS485

PWR: DC12V,DC24V

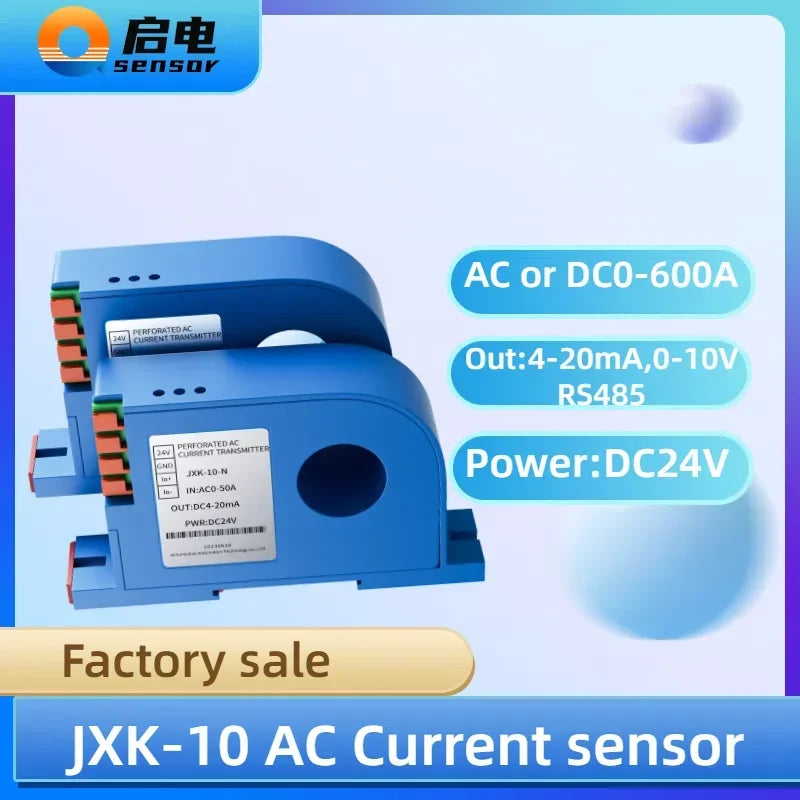

Product name: JXK-10 DC current sensor

Semi-finishedproduct: No

Supply Voltage: DC12V,DC24V

AC or DC 0-600A input can be customized ,

(if you need other input current,output signal,power supply, pls contact us to

have a customization.TKS)

JXK-10 AC/DC Current transducer

<1>Product uses: Used for measuring DC, AC, pulse current and other arbitrary waveform current.

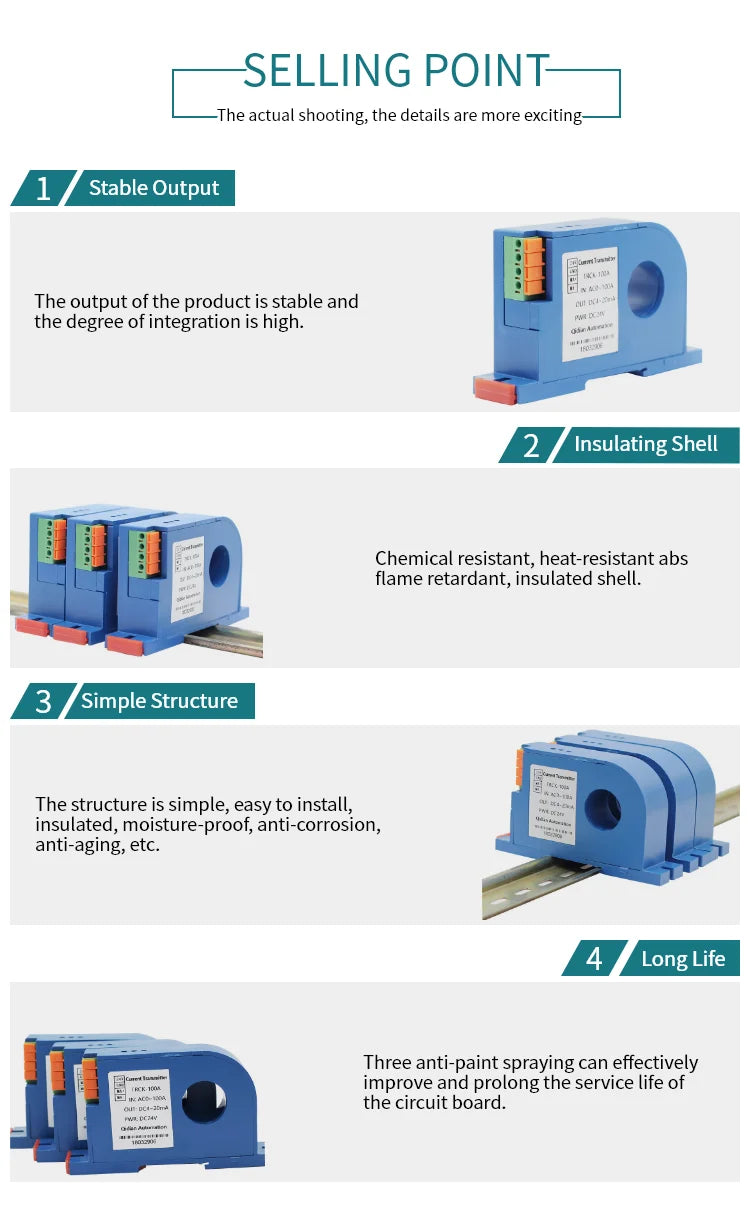

<2>Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.

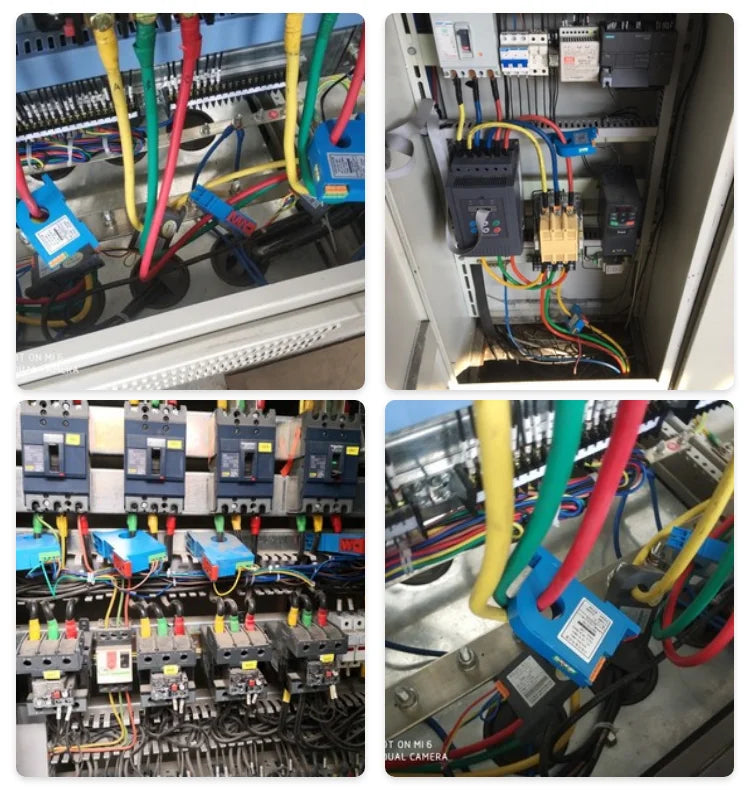

<3>Product application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.

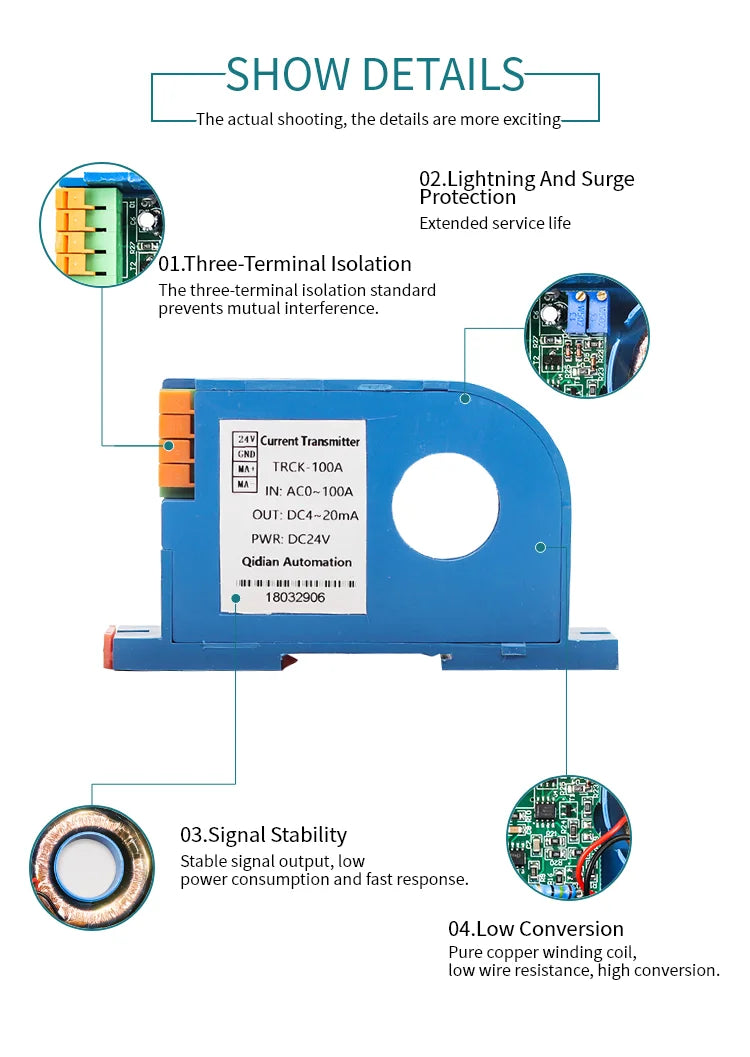

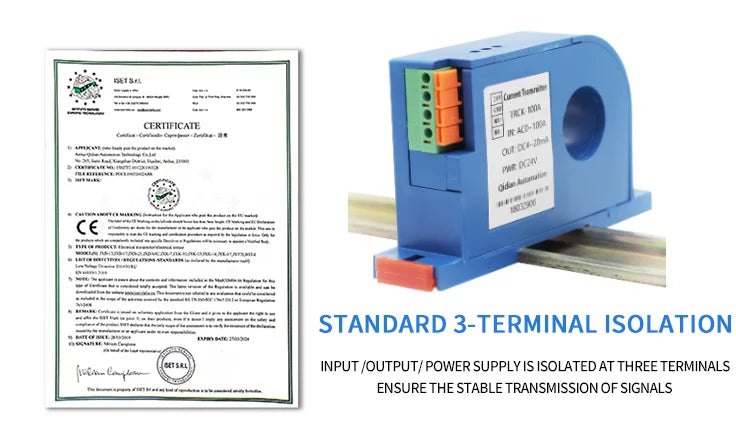

<4>The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<5>Full channel configuration,Parameter customizable.

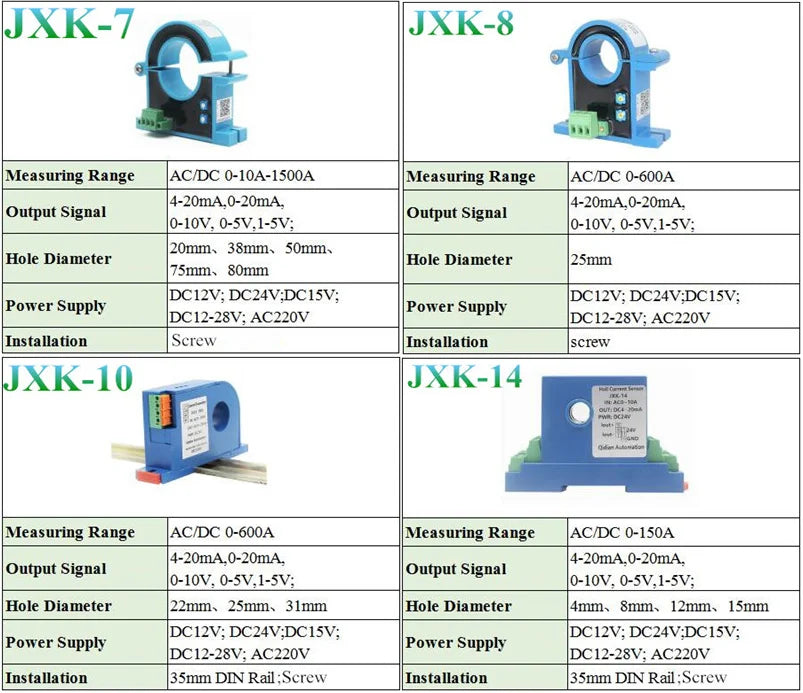

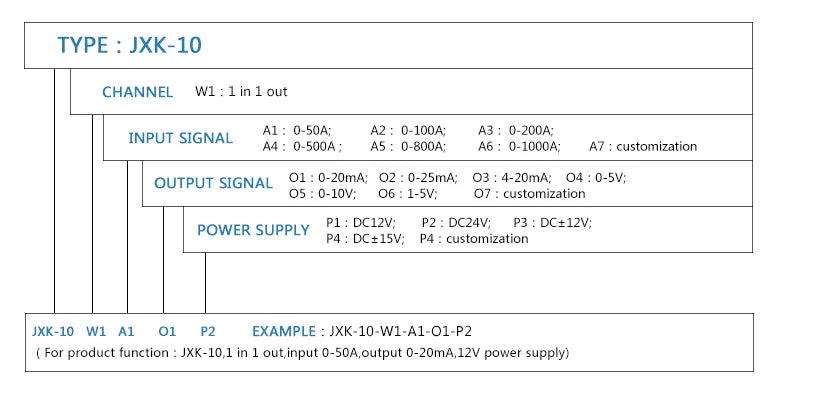

SELECTION

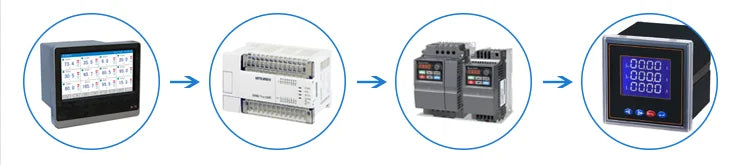

Work with
