SPECIFICATIONS

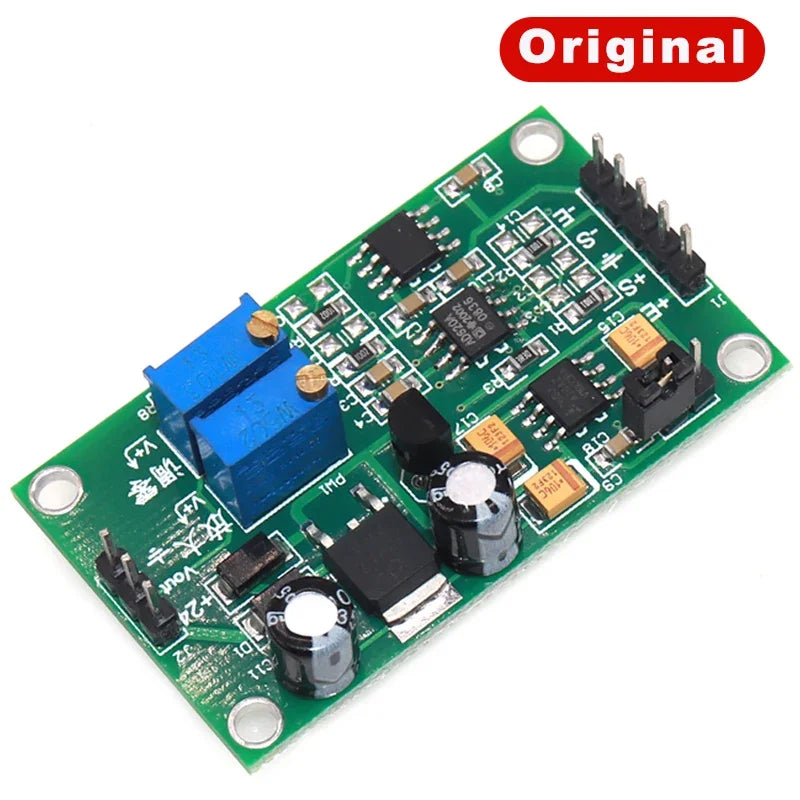

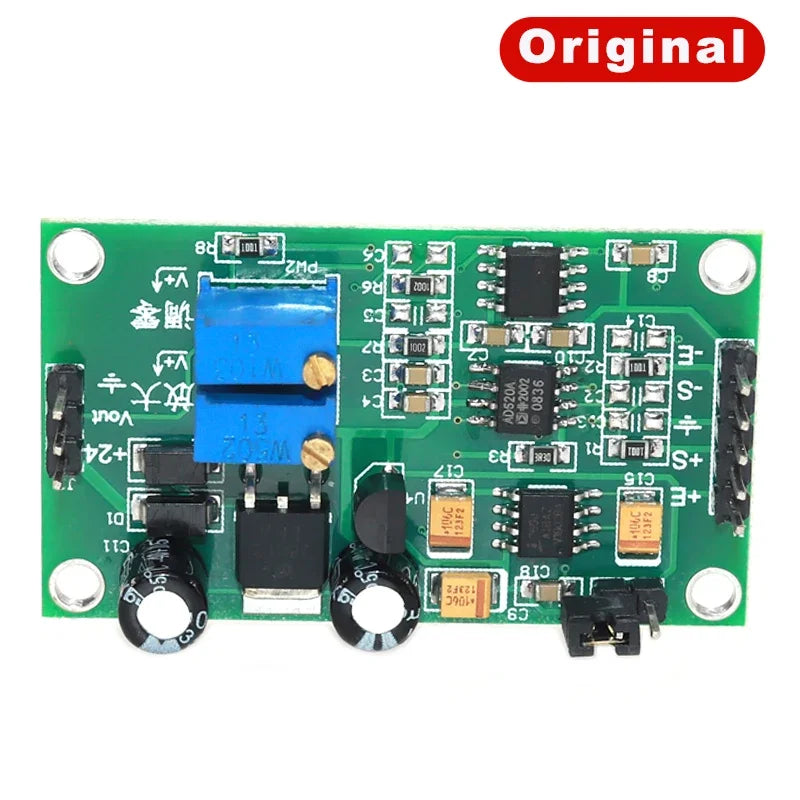

AD620 High precision millivolt microvolt small signal differential voltage Instrumentation amplifier weak signal module AD623

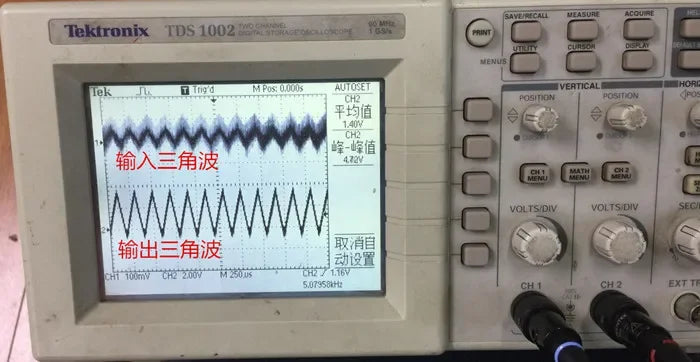

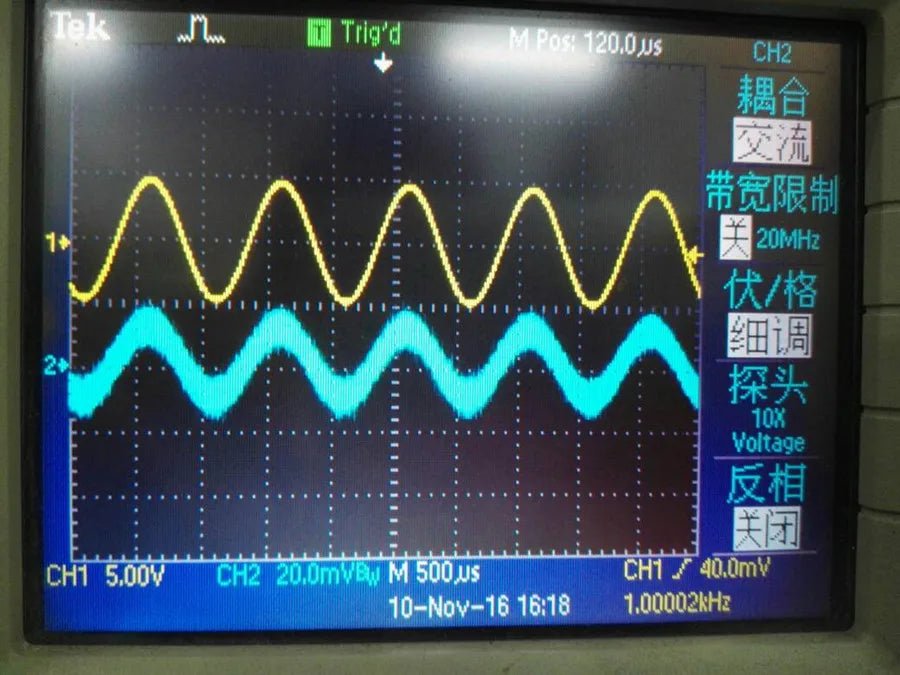

Advantages of this product:

1: Wide input range: This product adopts AD620 amplification, which can amplify microvolts and millivolts, with higher accuracy and better linearity than LM358 on the market.

2: The Potentiometer is used to amplify the input signal, and the amplification is up to 1000 times. Only one Potentiometer is needed to adjust the amplification (10-1000 times are adjustable by default, and customer service needs to be contacted below 10 times).

3: Wide power supply range with input of 5-30V DC power supply

4: The size of the ultra mini model is 50 * 29mm, with four 3mm positioning holes evenly distributed around it, and the spacing between the positioning holes is 45 * 24mm; The outer distance between the two sides of the array is 1.7mm.

Ultra low Input offset voltage: 50 μ V.

Ultra low input bias current: 1.0nA (maximum).

Common-mode rejection ratio: 100dB

Ultra low Input offset voltage drift: 0.6 μ V/℃ (maximum).

Super stable, time: 2 μ V/month maximum

Wiring diagram

The black line does not require a buyer to connect, the buyer only needs to connect the blue line.

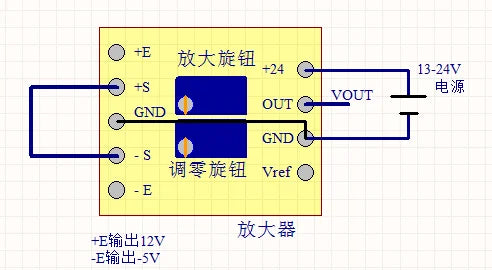

1: Zero adjustment is required before using the wiring diagram

Adjust the zero setting according to the wiring diagram above, and adjust the zero setting knob to set the output Vout to 0.

2: Sensor without power supply wiring diagram This wiring diagram is applicable to

Sensors such as silicon photocells.

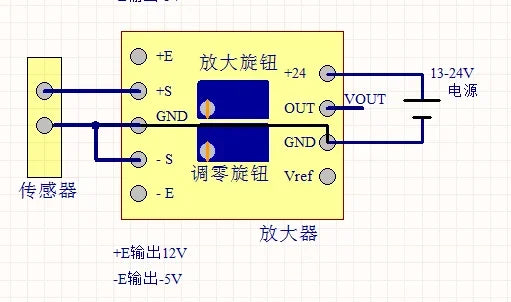

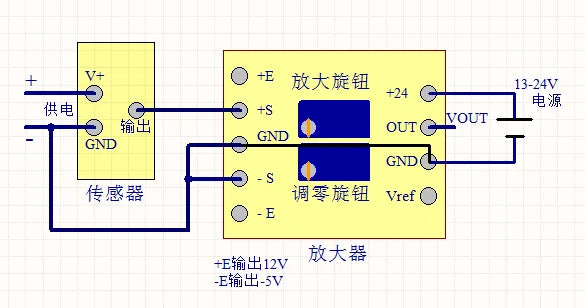

3: Single ended input wiring diagram This wiring diagram is applicable to

A single ended output signal, sensor.

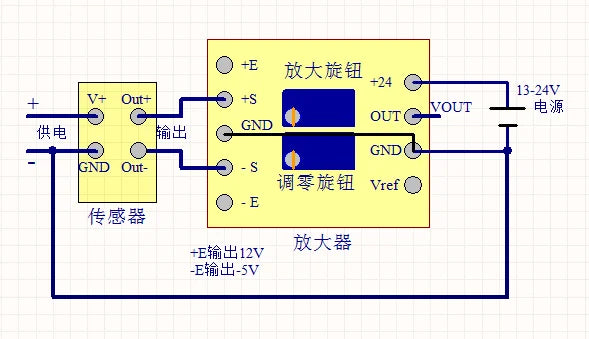

4: Differential input wiring diagram This wiring diagram is applicable to

Differential output pressure sensors, bridges, and other sensors.
