ADF4351 PLL Frequency Synthesizer RF Signal Generator Module, STM32 Controlled, 35M-4.4GHz, Low Noise, Frequency Sweep Scanner

ADF4351 PLL Frequency Synthesizer RF Signal Generator Module, STM32 Controlled, 35M-4.4GHz, Low Noise, Frequency Sweep Scanner

$204.36

$204.36 $0.00

Description

SPECIFICATIONS

Brand Name: ElecDemo

High-concerned chemical: none

Origin: Mainland China

Type: Other PLC Peripheral Modules

Highlights:

In view of ADF4351ADF4350 integrated phase-locked loop, we have introduced this phase-locked loop module with OLED display screen, host computer USB & serial port, integrated key operation, wide range voltage supply, good man-machine interface and other characteristics. The module can achieve 35MHz-4.4 GHz frequency output, point frequency, sweep frequency, frequency hopping and other basic work.

ADF4351-OLED module shipping list

Module + gifts (USB-MINI cable*1, red and black DC cable*1, BNC male to SMA male high-frequency wire*1) + PDF schematic diagram + routine source code + after-sale technical support + electrostatic bag packaging + shockproof foam

Tips:

(1) The module interface of our shop is clear and the performance is stable. Please perform functional verification under the corresponding experimental conditions in conjunction with the schematic diagram provided by our shop.

(2) The basic parameters of this module are in the details page, providing PDF information of the module information and source code of the routine; no engineering files are provided, please be clear to the buyer, if you have any operation problems, you can consult customer service.

(3) Buyers, before using the module, please read the details page of this module to understand the power supply and use restrictions, to avoid damage to the module due to improper operation.

(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules will be shipped after detection.

Please contact customer service after purchase, we will send the module information to your mailbox.

Module parameters

Module model: ADF4351-OLED

Module type: broadband PLL frequency source

Power supply voltage: DC-5V

Module current: 220mA (MAX)

Module communication protocol: SPI

Module provides routines: STM32F103CBT6; point frequency, frequency sweep

Routine platform: STM32F103X-M3; KEIL5 version source code

Module reference frequency: 100MHz; clock can be input externally

Reference frequency signal amplitude: 700mVpp(MIN)

Frequency stability: greater than 25PPM

Phase noise: different frequency phase noise

Module output frequency range: 35MHz-4.4GHz

Frequency control step: 0.1MHz

Frequency sweep step time: 1mS(MIN)

Module output power: 7dBm (MAX); different frequency output power is different

Module output interface: SMA; 24-hour salt spray anti-oxidation

Module output signal: sine wave or square wave

Module output channel: 2 differential channels

Module output impedance: 50 ohm matching

Signal characteristics of the module: 35MHZ--2.2GHz square wave (fundamental frequency division) 2.2GHZ--4.4GHz sine wave (fundamental wave)

Module features: phase-locked loop module with OLED display, USB communication port of the host computer, integrated key operation, wide-range voltage power supply, good human-computer interaction interface, etc. The module can achieve 35MHz-4.4GHz frequency output, point Basic functions such as frequency, frequency sweep, frequency hopping, etc.

Module application: RF signal frequency generator, sensor excitation source, line loss attenuation detection, scanning clock signal generator

Module specifications: 88*67*7mm; length*width*height-PCB size

Module weight: 35g

Module working temperature: 0-75℃; civil grade

Module description

The ADF4351-OLED is used in combination with an external loop filter and external reference frequency to implement an integer-N frequency-locked loop (PLL) frequency synthesizer.

The ADF4351 has an integrated voltage controlled oscillator (VCO) with a fundamental output frequency range of 2200 MHz to 4400 MHz. In addition, with 1/2/4/8/16/32/64 crossover circuits, users can generate RF output frequencies as low as 35 MHz. For applications requiring isolation, the RF output stage can be muted. The mute function can be controlled by pins or software. At the same time provide auxiliary RF output, and can be turned off when not in use.

Precautions for using the module

(1) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply.

(2) Correct power supply, reverse connection is prohibited, and the voltage should not exceed 6V.

(3) It is recommended to use a good patch cord to connect the spectrum analyzer or oscilloscope to observe the output signal. Poor contact or poor quality wires may cause signal attenuation or excessive noise.

(4) When the PLL module is properly powered, the frequency signal can be generated, and the key operation can realize the functions of point frequency and frequency sweep.

(5) The distributed code does not include the USB port program, does not provide a microcontroller tutorial, and additional functions such as communication with the host computer need to be developed by themselves.

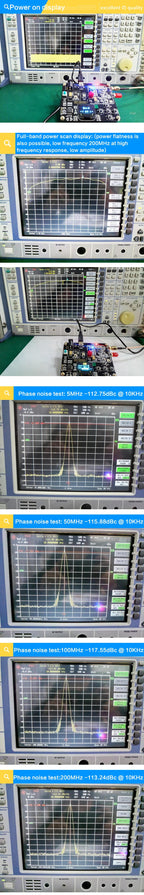

(6) The phase noise, harmonics, power output and other corresponding indicators of the phase-locked loop module. The typical test parameters are included in the details.

Frequently asked questions

Q: The output waveform of ADF4351-OLED is not a sine wave, and the harmonics are very large?

A: ADF4351-OLED is a digital phase-locked loop. The frequency output below 2.2G is divided frequency output, the output waveform is similar to square wave, if you need a sine wave, you need an external filter.

Q: Can the fastest sweep speed of ADF4351 be only 1mS? Can the minimum step be only 0.1MHz?

A: The current loop bandwidth design and software design on the board, in order to support 35M-4.4G frequency can be output normally, so the minimum step and the fastest sweep time are fixed, and it is necessary to pursue smaller steps and faster sweep Time will require buyers to make hardware and software adjustments.

Q: What are the two lights on the board for PLL module?

A: Red is the power indicator, blue is the lock indicator, and both lights are on for normal operation. If the lock light is not bright or slightly bright, you can reset the MCU until the lock light is always on, the module is normal output.
