AMPCOM RJ45 Connector, CAT8 STP Tool Free Shielded Modular Plugs CAT7 CAT6A Zinc Alloy Field Termination Plug 40Gbps 2000Mhz

AMPCOM RJ45 Connector, CAT8 STP Tool Free Shielded Modular Plugs CAT7 CAT6A Zinc Alloy Field Termination Plug 40Gbps 2000Mhz

$44.08

$44.08 $0.00

Description

SPECIFICATIONS

Assembly Required: Yes

Brand Name: AMPCOM

CAT6A Connector: 10Gbps 500Mhz

CAT7 Connector: 10Gbps 1000Mhz

CAT8 Connector: 40Gbps 2000Mhz

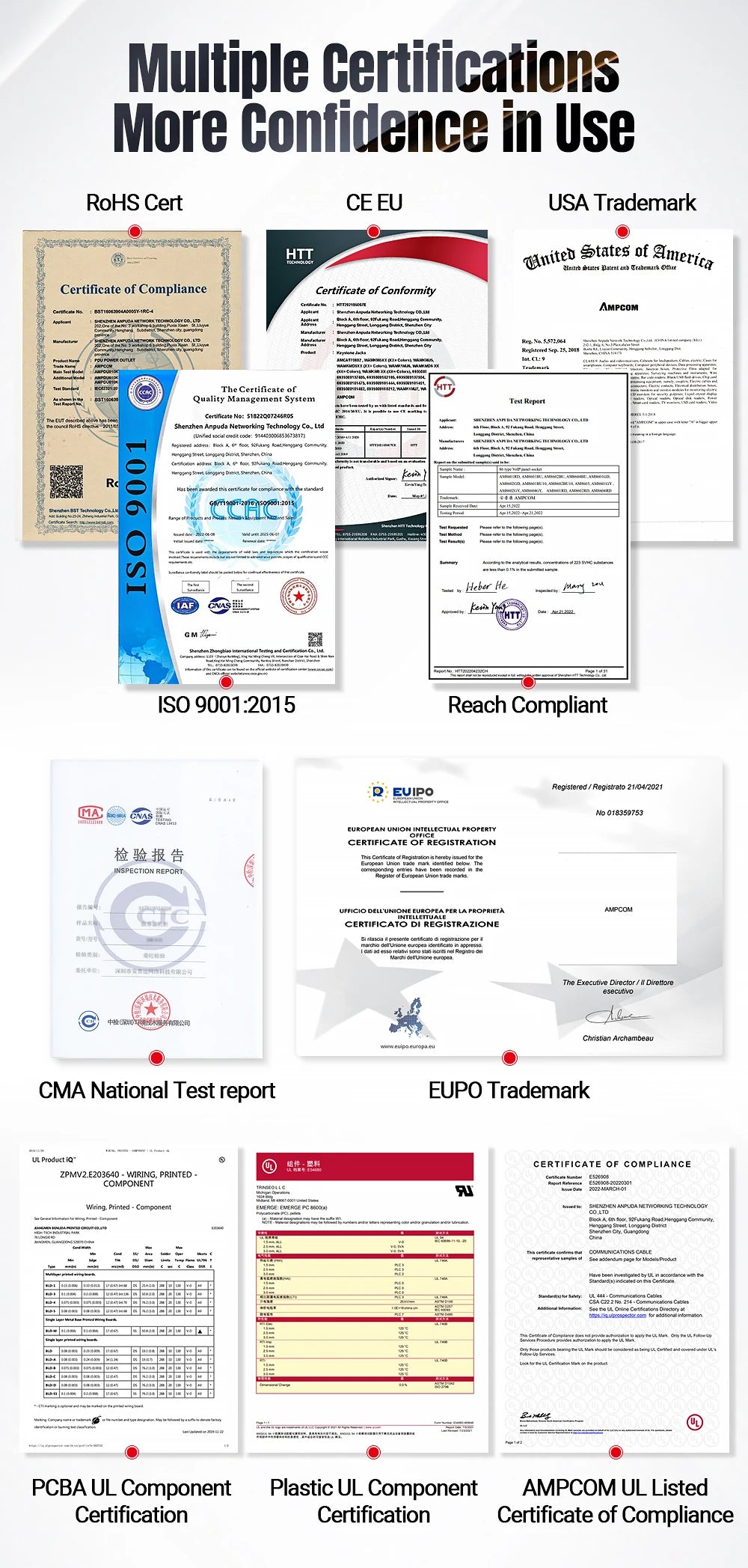

Certification: CE,RoHS,UL

Choice: yes

Feature 1: Cat8 RJ45 Modular Plug

Feature 2: Tool-free design

Feature 3: 24K Gold Plated

Feature 4: Supprot HiFi

Feature 5: Supprots POE POE+ POE++

Feature 6: Future 5th-Gen

Feature 7: Fluke DSX8000 Passed

Feature 8: Best RJ45 Connector

High-concerned chemical: none

Interface: RJ45

Model Number: AC84508

Origin: Taiwan (China)

Package: Yes

Type: Connectors

semi_Choice: yes

CAT8 & CAT7 & CAT6A

CAT8: 22-24AWG 40Gbps 2000Mhz

CAT7: 23-26AWG 10Gbps 1000Mhz

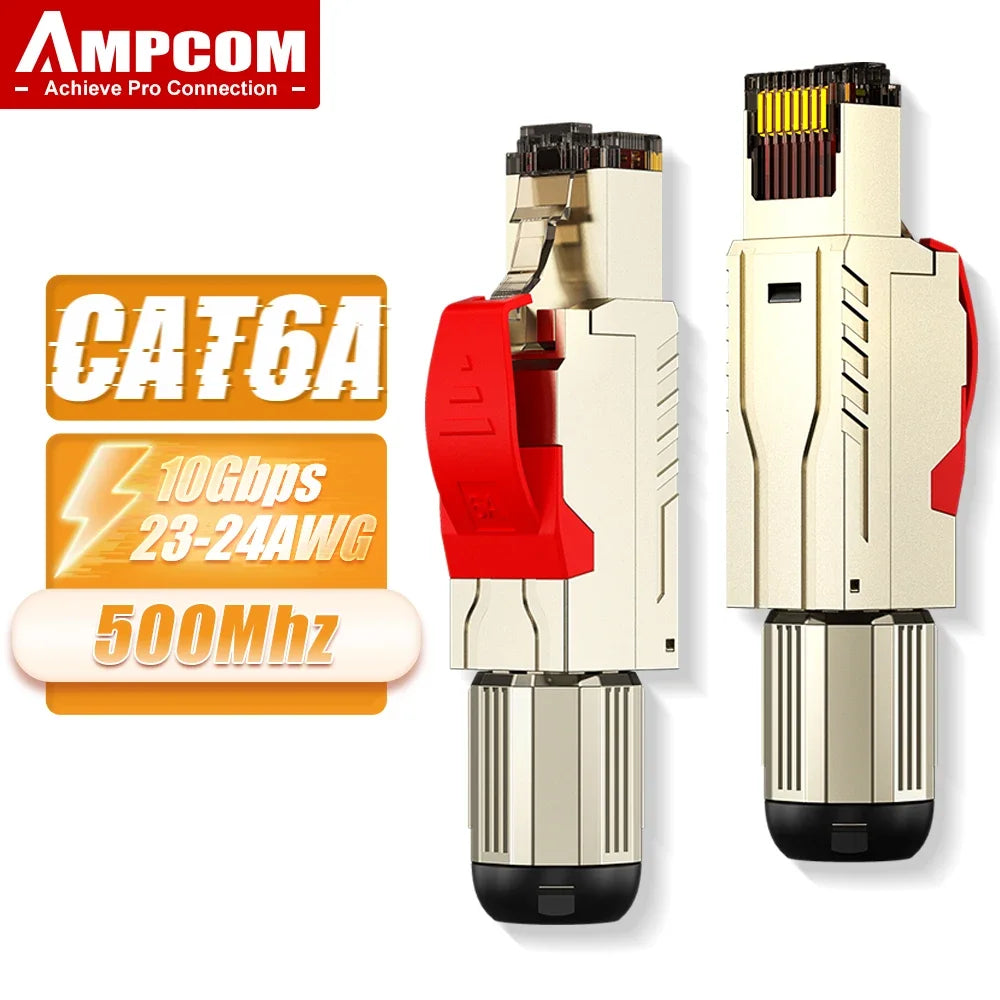

CAT6A: 23-26AWG 10Gbps 500Mhz

Product description

1. FULL METAL JACKET RJ45 field plug for Cat 8 channel network switch and server connections; Modular plugs with robust die-cast housing provides superior shielding and mitigates alien crosstalk on a Cat 8 Ethernet cable; Supports 22 AWG to 24 AWG shielded Cat8 wire with an outside diameter between 7.0 and 8.5mm; Backwards compatible as Cat 6A, or Cat 7 connector

2. CAT8 PERFORMANCE for a 10GBASE-T, 25GBASE-T or even a 40GBASE-T channel compliant network up to 30 meters; GHMT Cat 8 channel performance verified; Fully backwards compatible with Cat 6 (Cat6), Cat 6A (Cat6A), Cat 7 (Cat7A) Ethernet networks

3. IMPACT TOOL FREE RJ45 CONNECTOR with an open hinged design simplifies placement and termination of bulky shielded cable; IDC modules can be wired for T568A or T568B wiring with a color-coded pass through termination cap

4. SUPERIOR CONSTRUCTION combines a one piece metal housing with an integrated silencing cylinder to suppress EMI, NEXT, and AXT electromagnetic noise and crosstalk; A screw-on metal strain-relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover protects the RJ45 contacts when transporting or storing a terminated cable

5. PoE PLUS COMPLIANT for IEEE 802.3at Power over Ethernet (PoE+) applications; Terminate a Cat8 Ethernet cable with support for Cat 8 auto-negotiation in a mixed network with variable data transfer speeds to a 1 GB switch, 10 GB switch or 40 GB switch

6. CAT8 Connector Supports 22-24AWG Cable, CAT7 and CAT6A Connector Supports 23-26AWG Cable

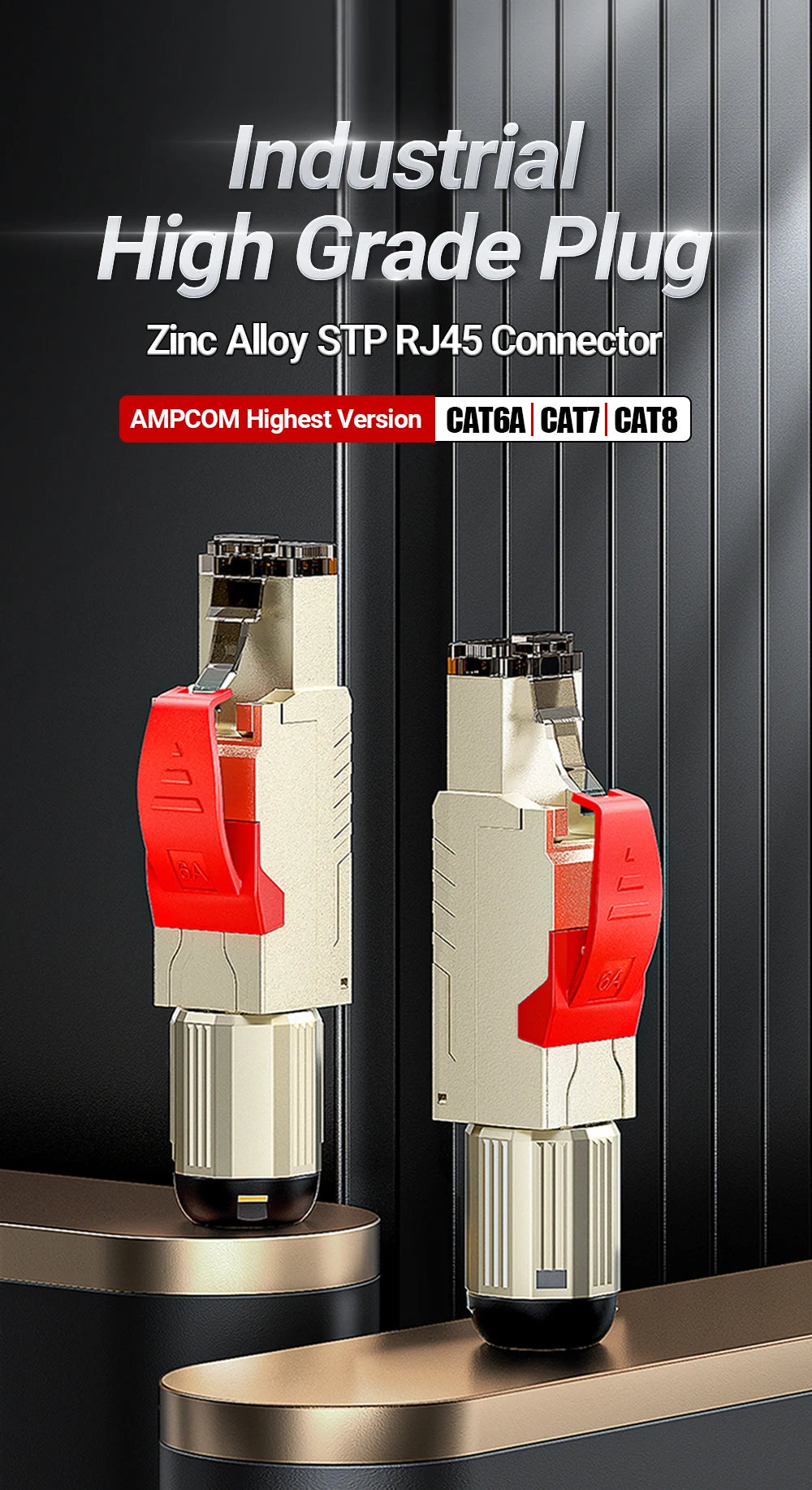

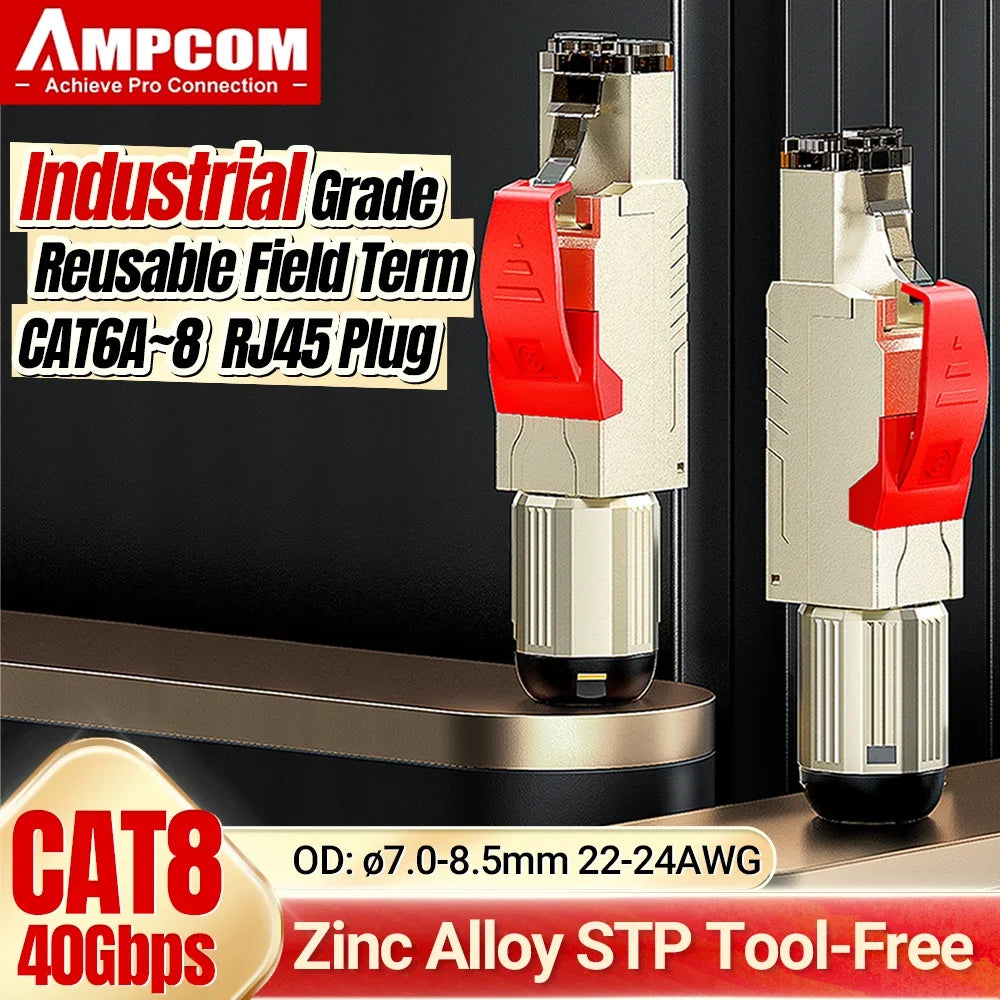

Industrial High Grade Plug

Zinc Alloy STP RJ45 Connector( AMPCOM Highest Version)

Bulletpoint(Products Keypoint)

Can be Reused/ Crimping Tool Free/ High-speed Transmission/ Zinc Alloy Shielded Case/ 50u Enhanced Gold-plating/ Authoritative Certification

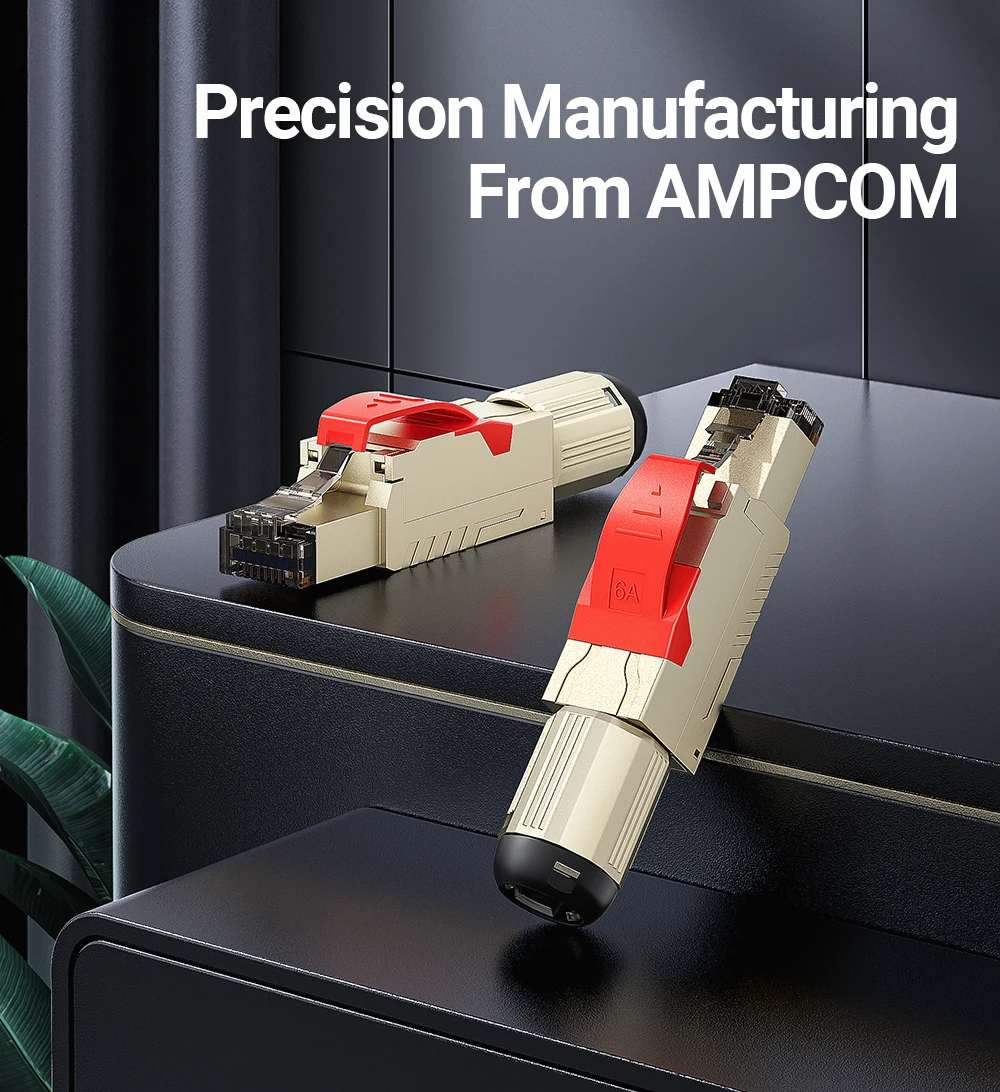

Precision Manufacturing From AMPCOM

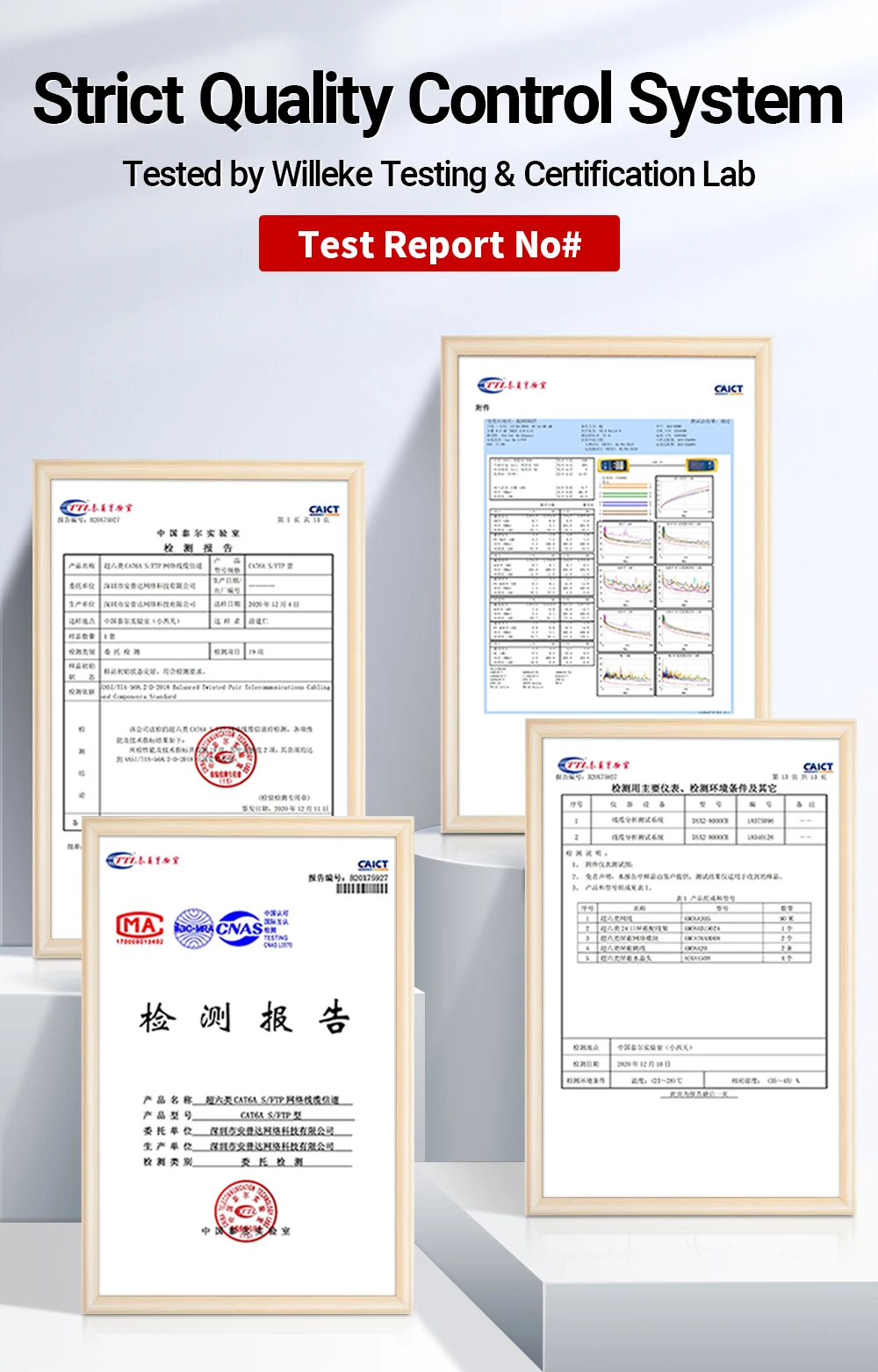

Strict Quality Control System

Tested by Willeke/ CTTL Lab Testing & Certification Lad

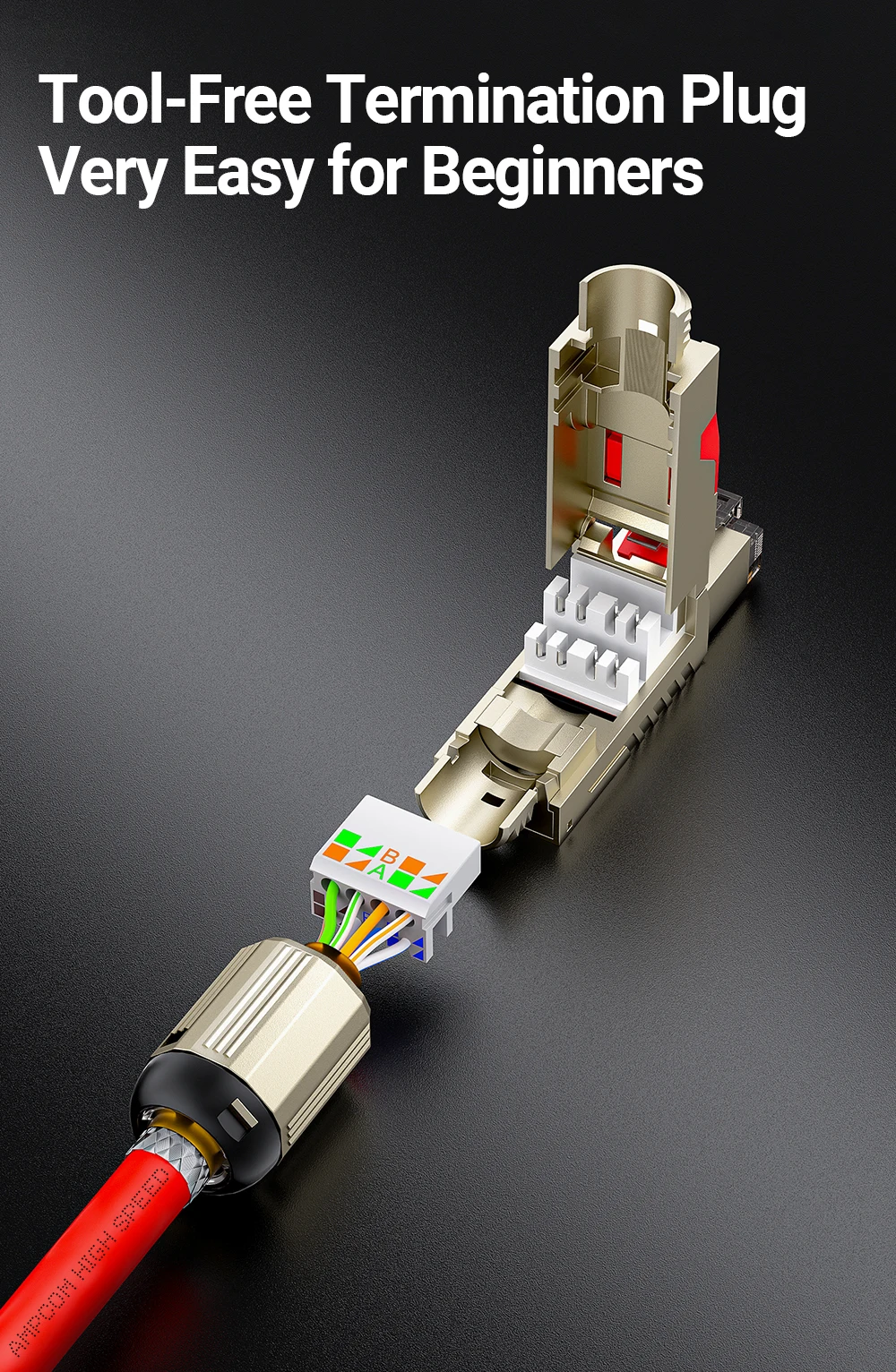

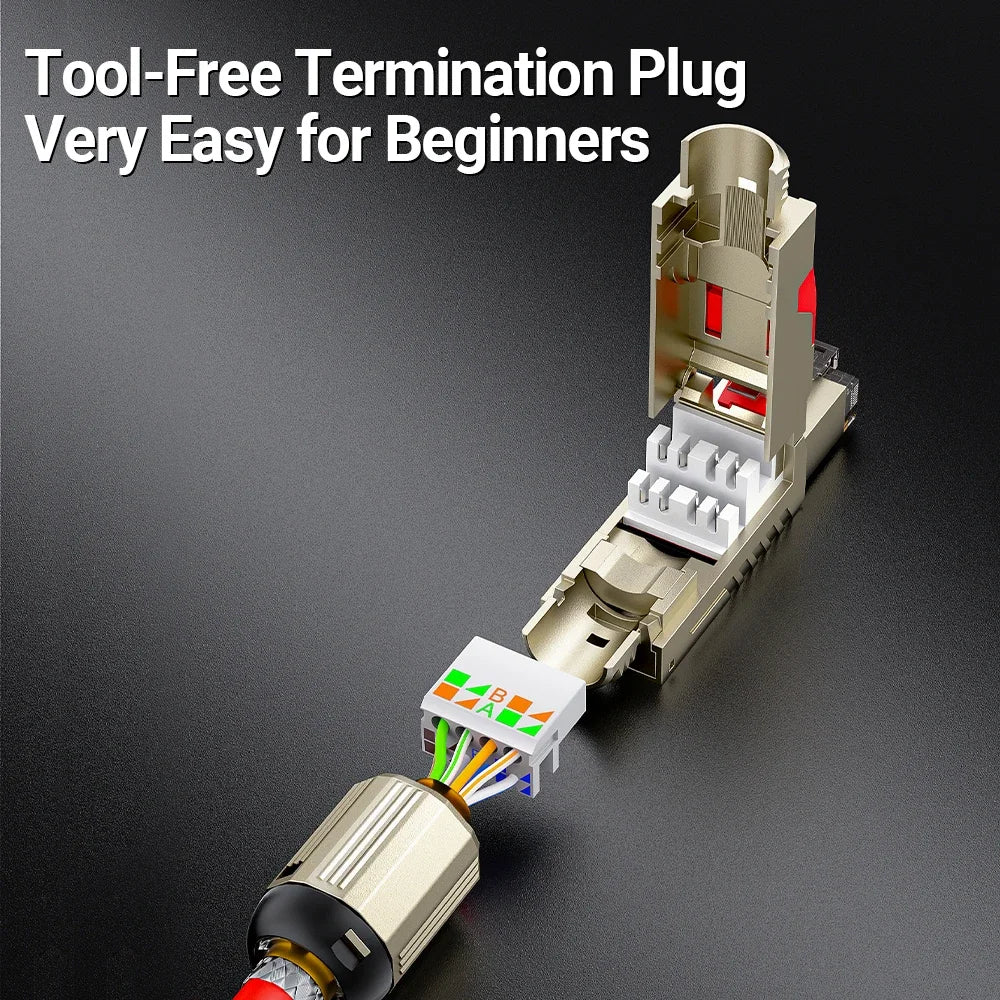

Too-Free Termination Plug Very Easy for Beginners

Ultra Fast and Stable Network Speed

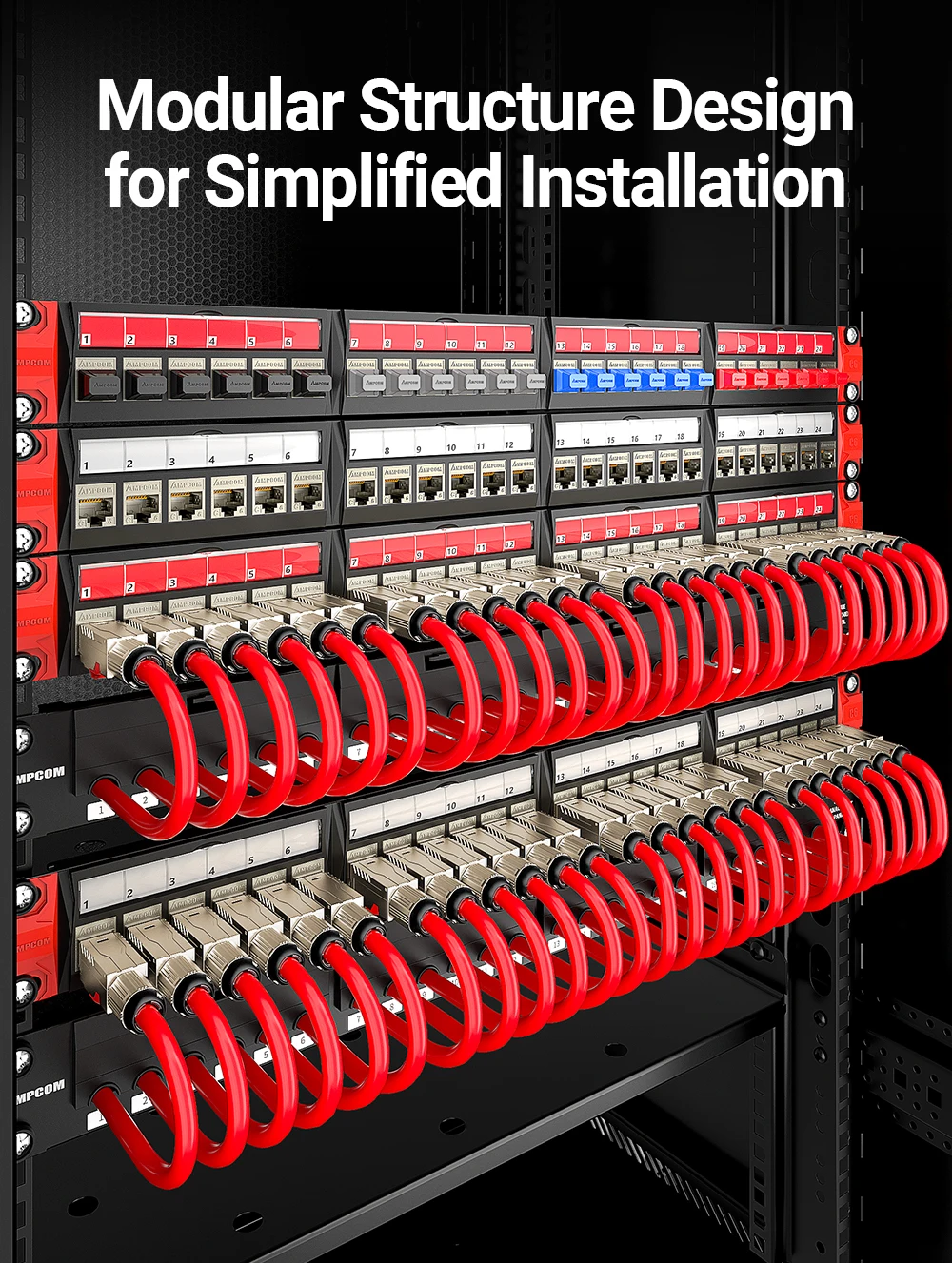

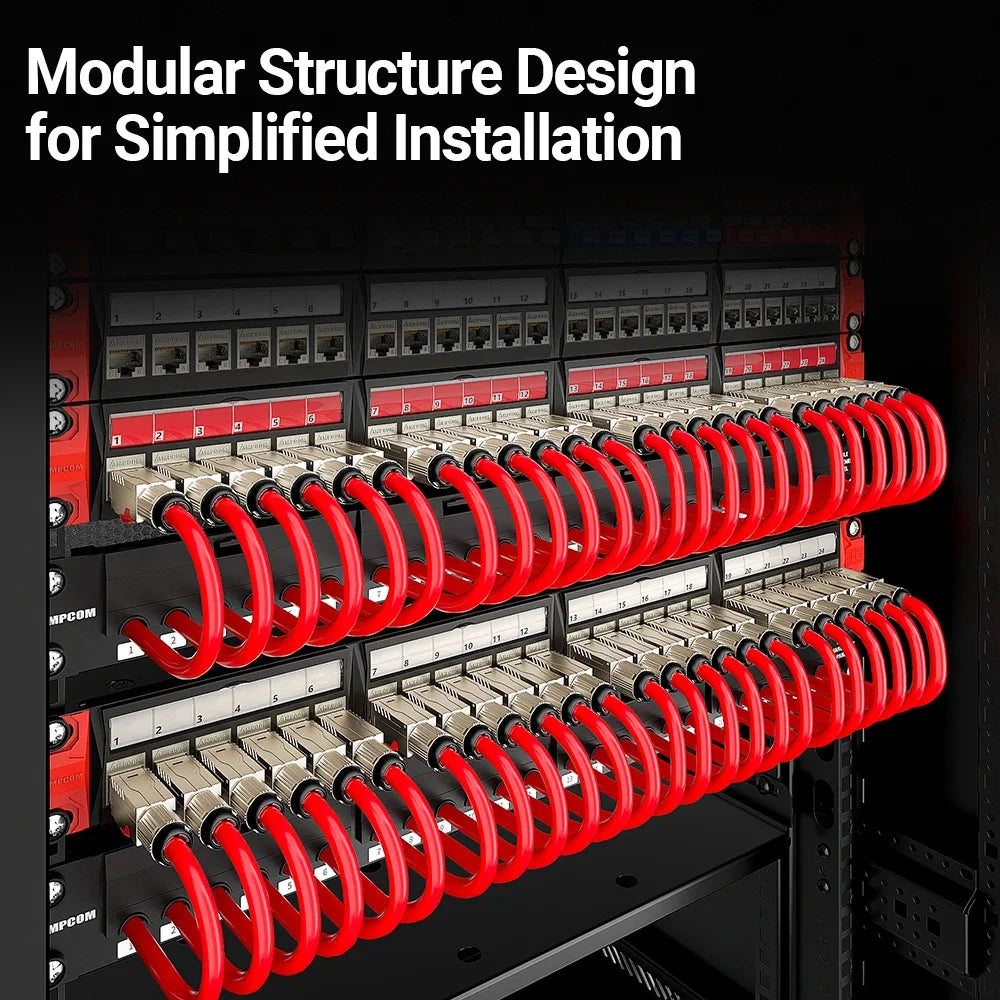

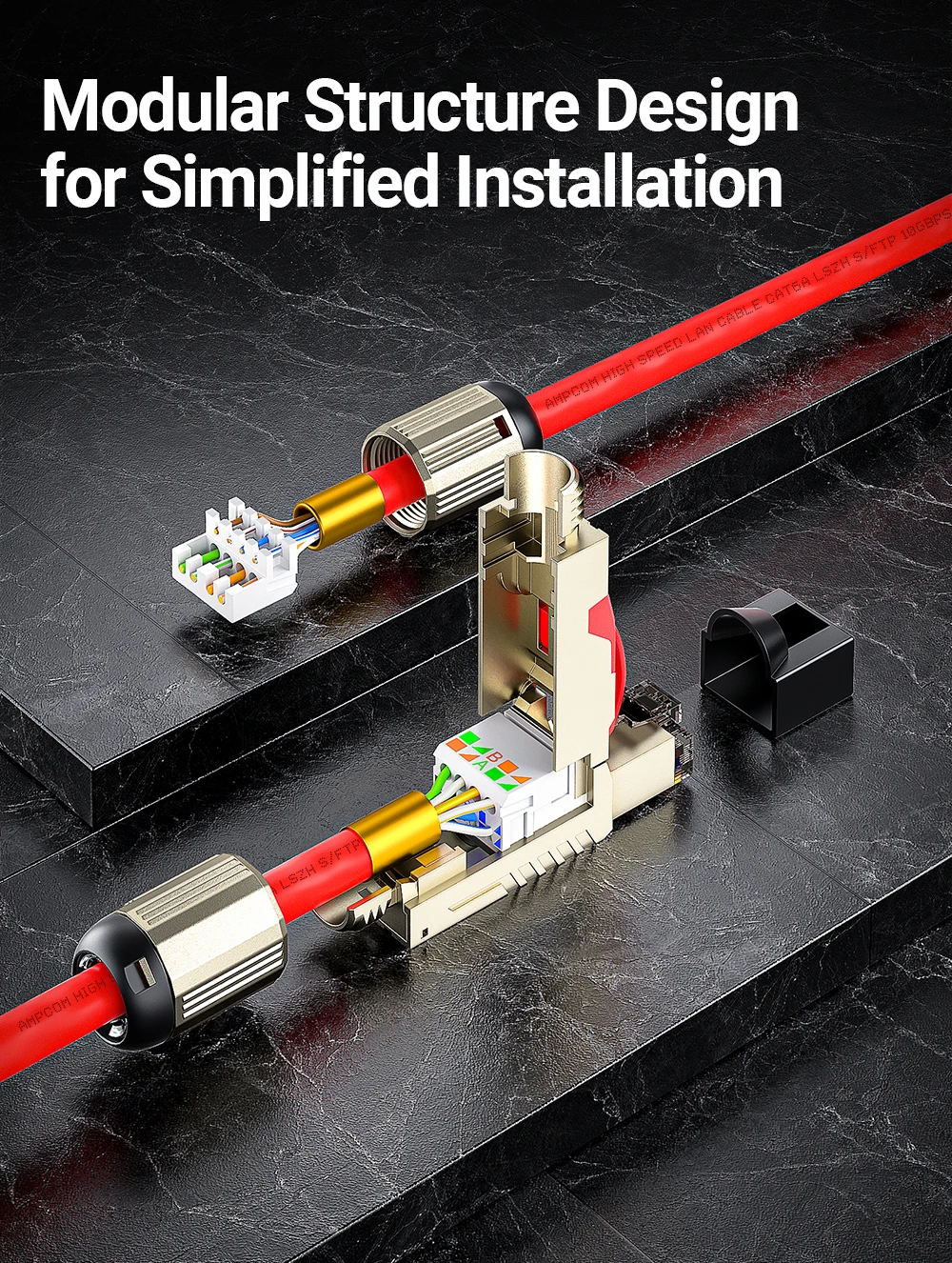

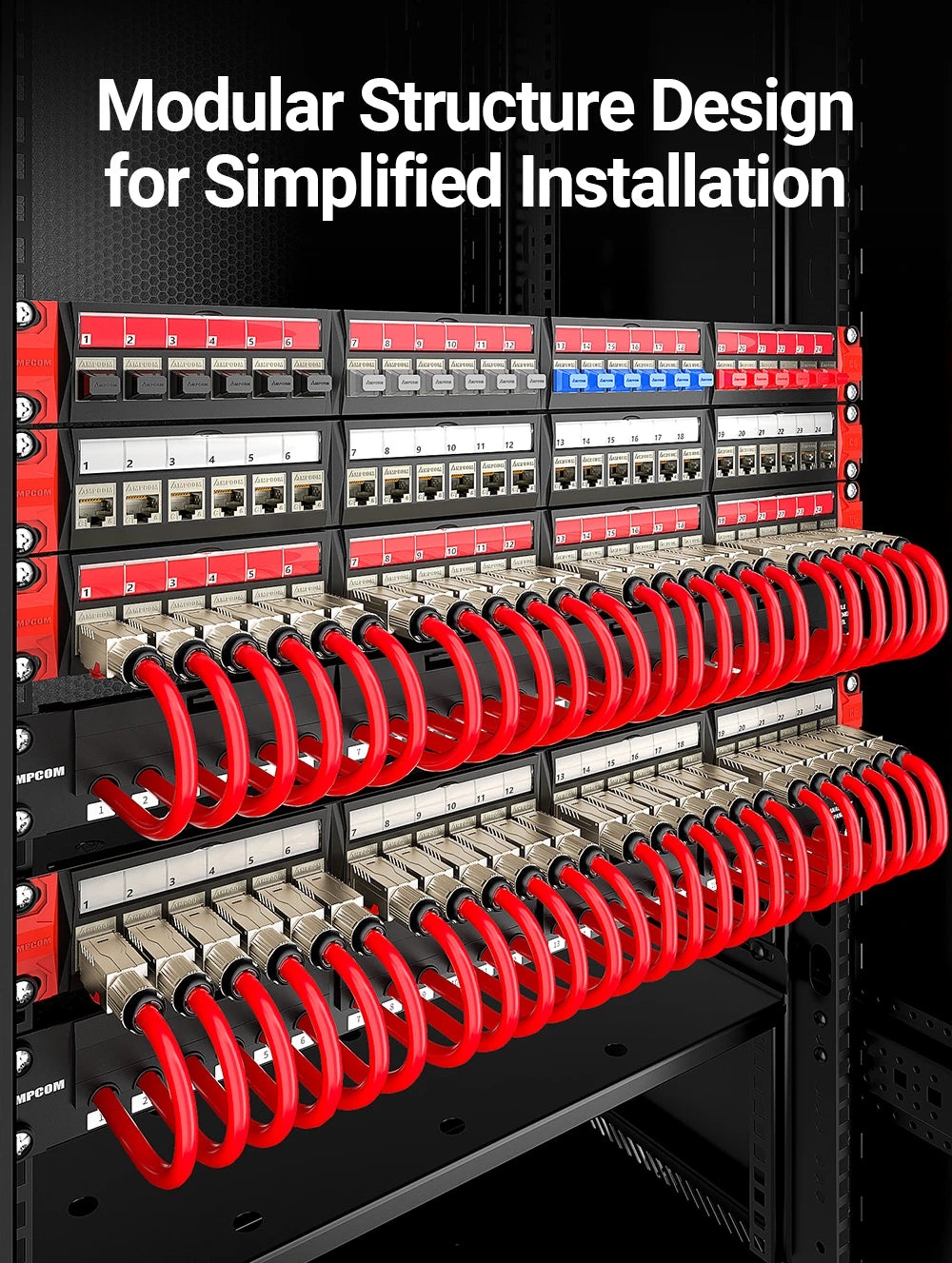

Modular Structure Design for Simplified Installation

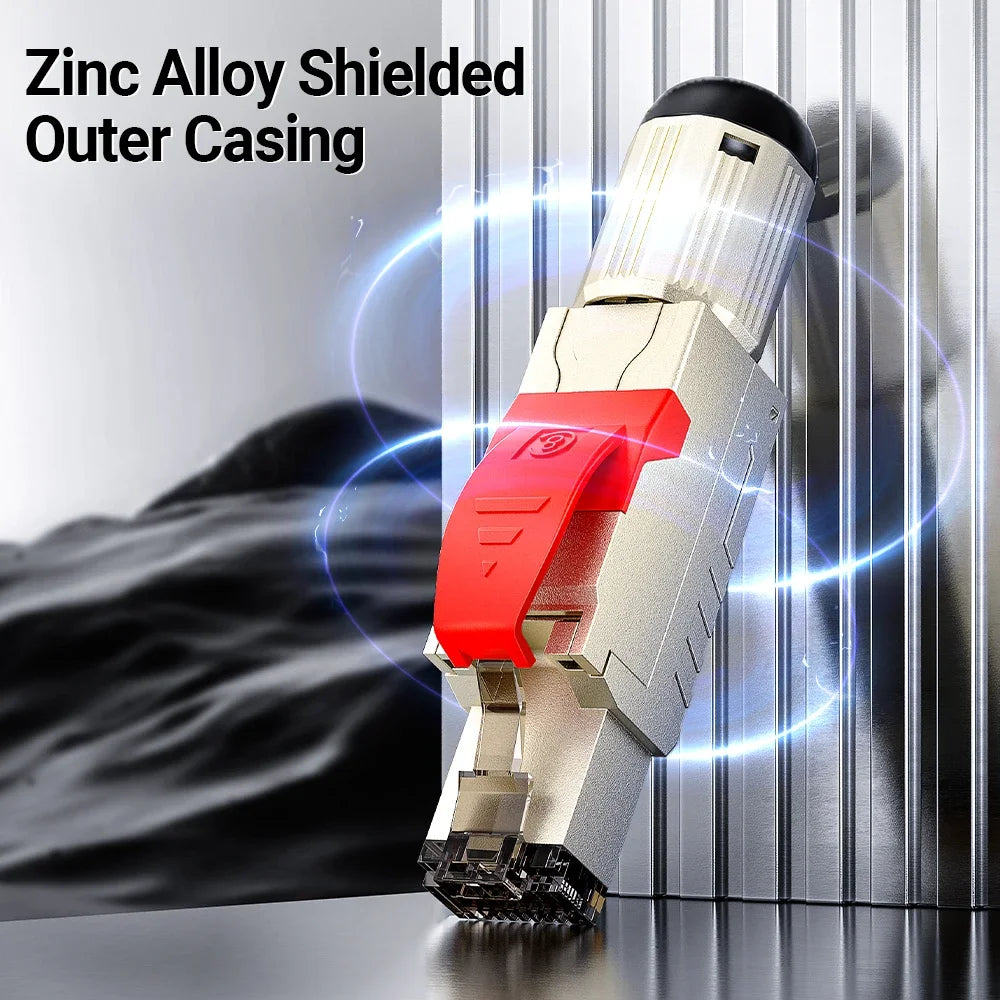

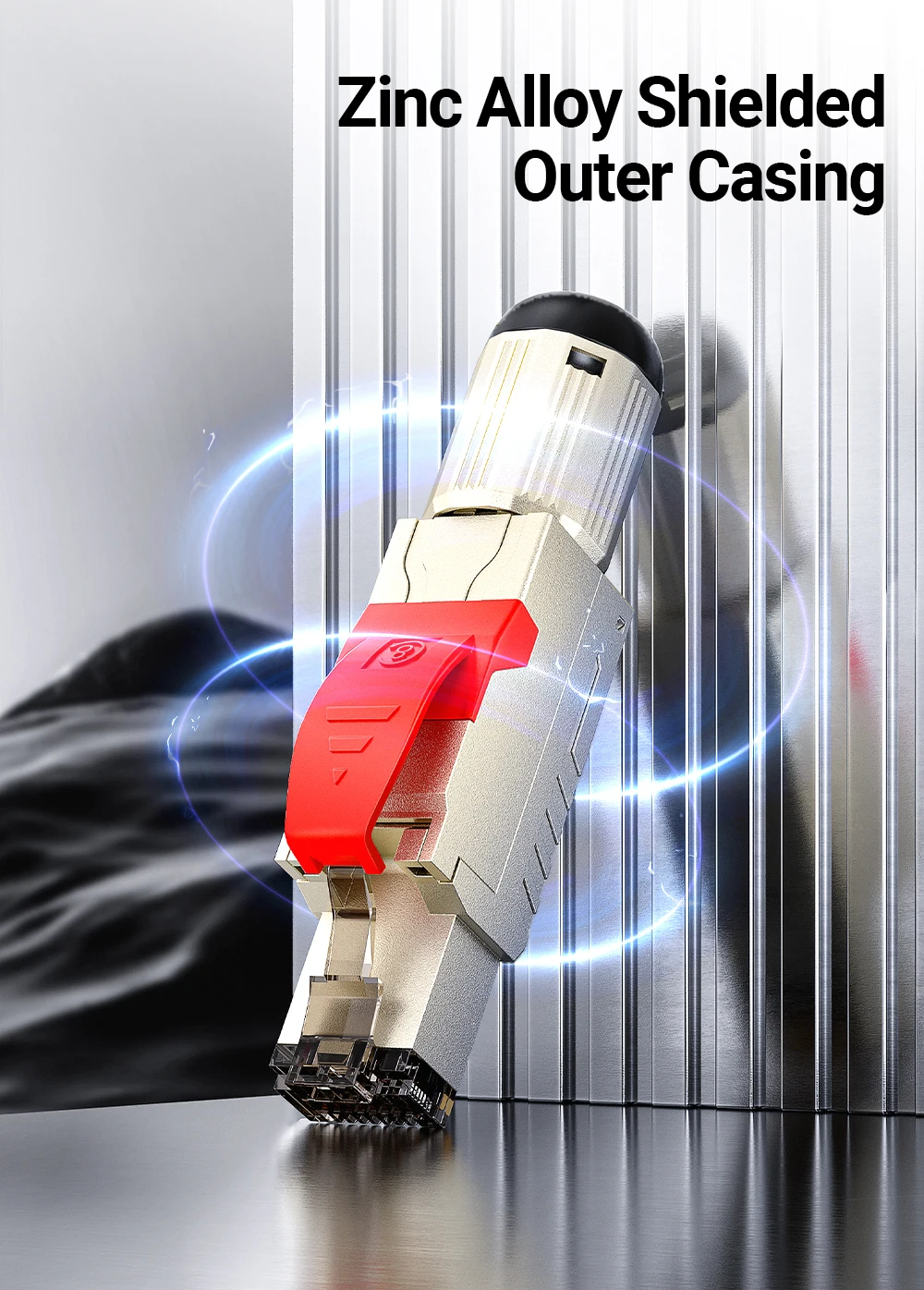

Zinc Alloy Shielded Outer Casing

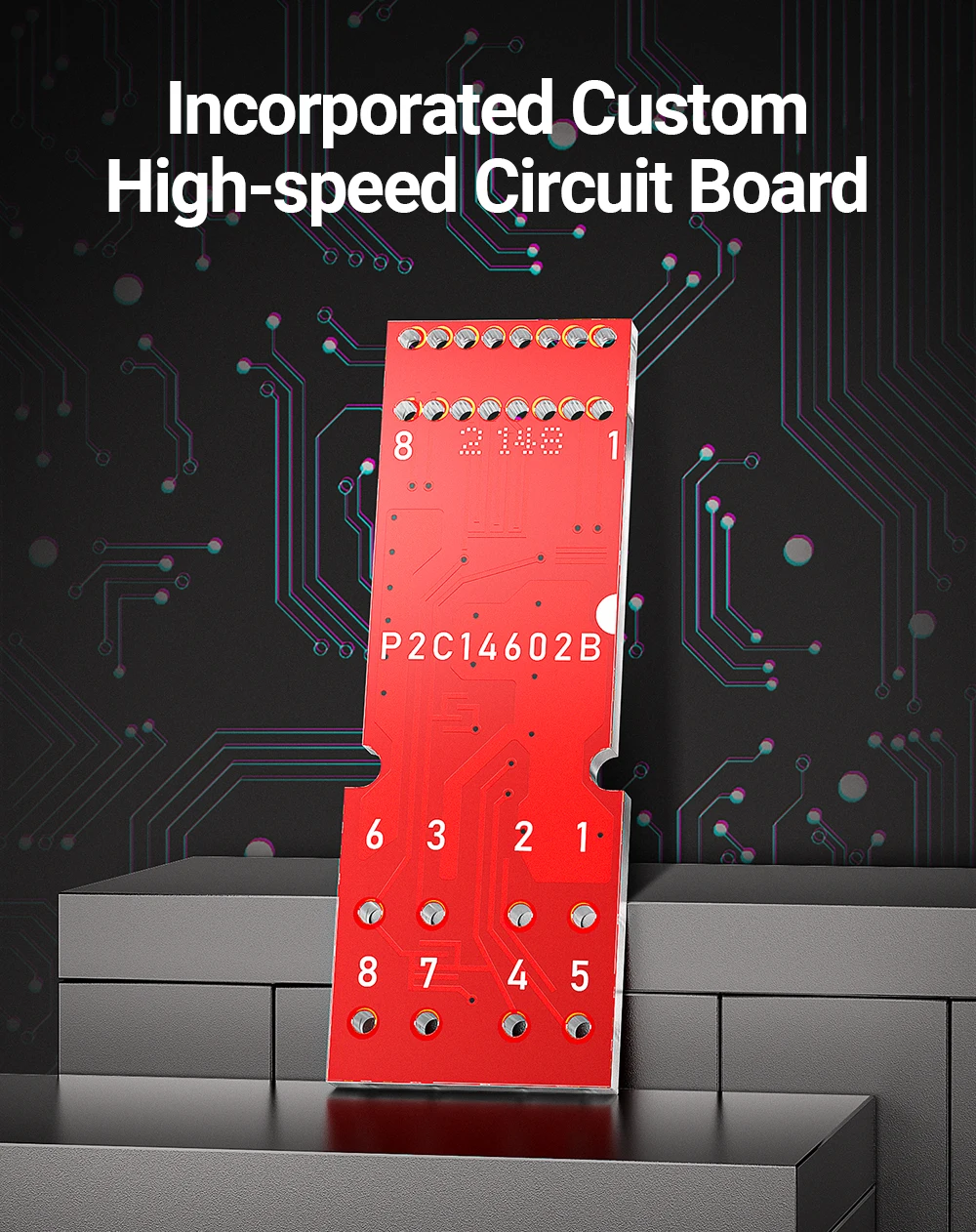

Incorporated Custom High-speed Circuit Board

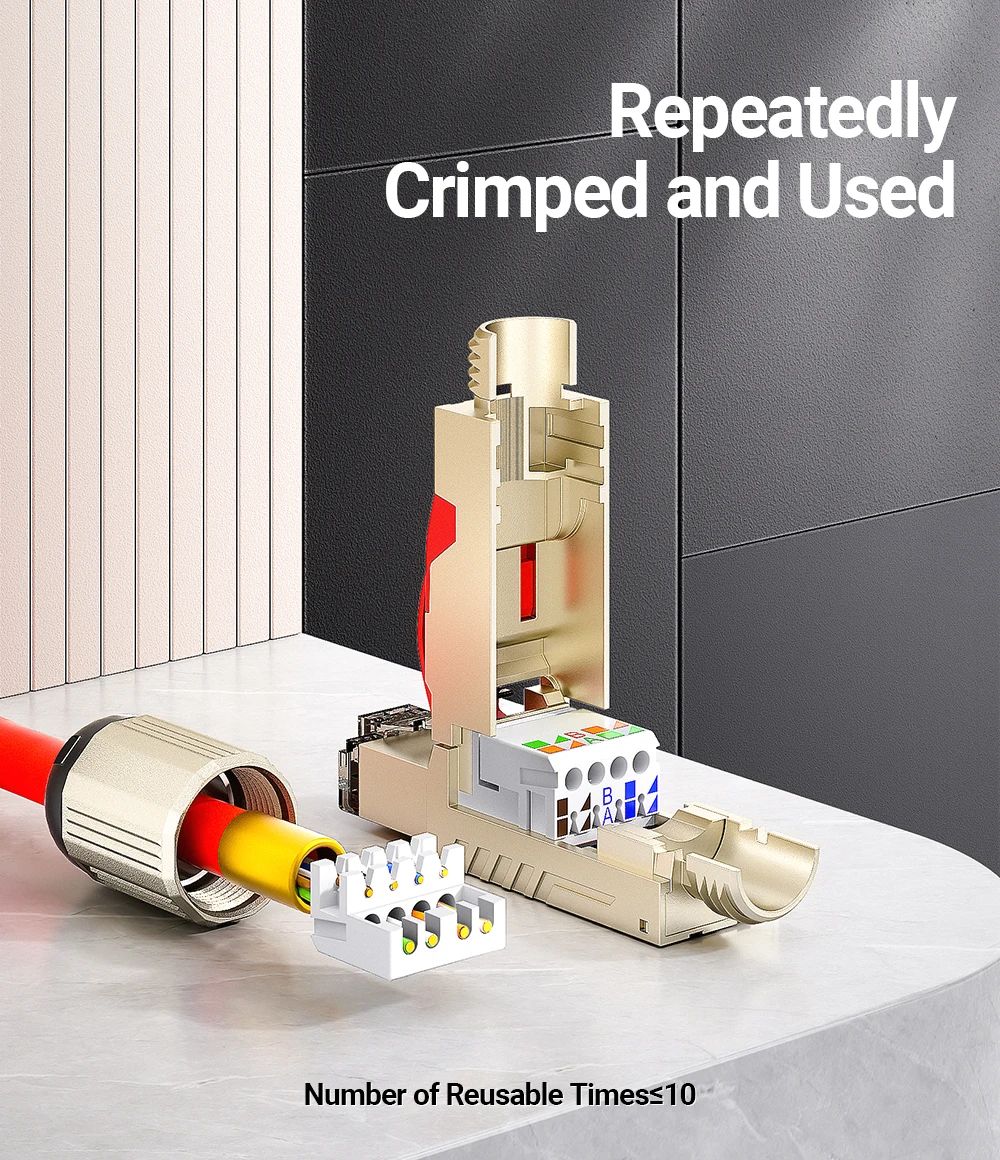

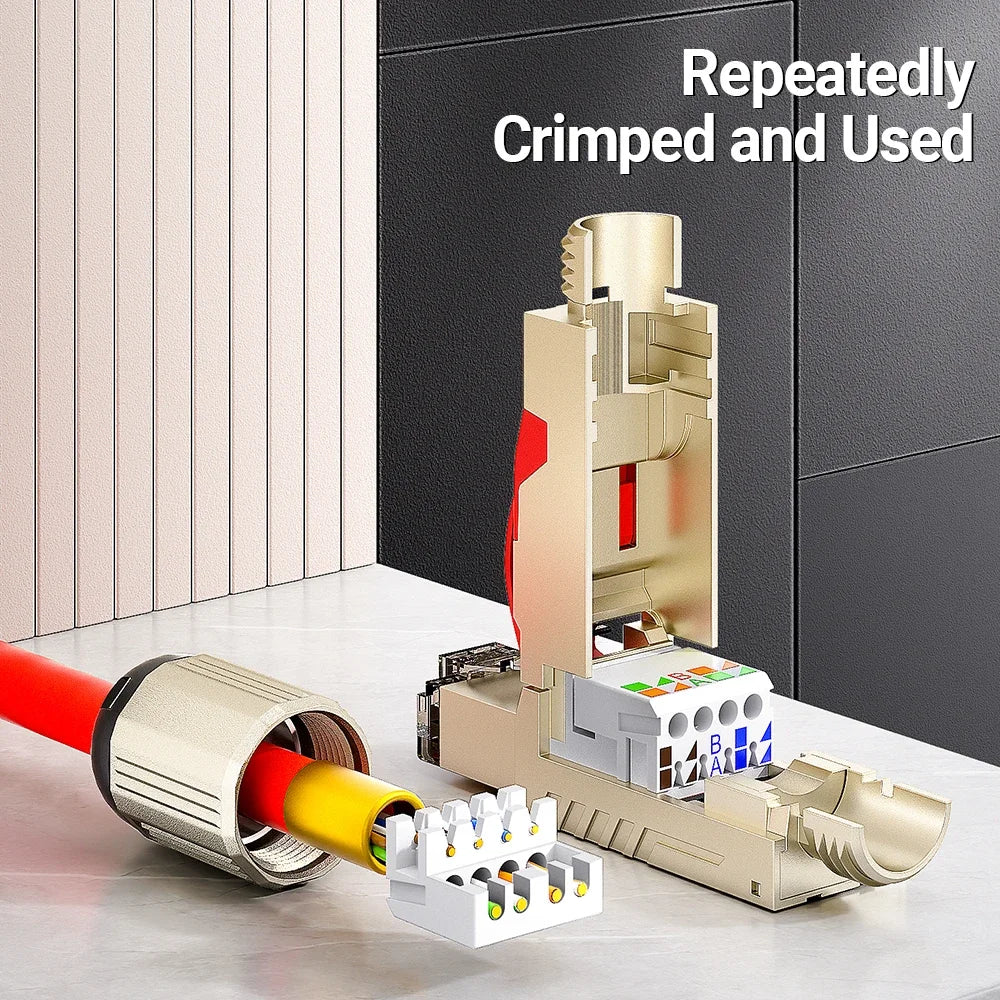

Repeatedly Crimped and Used

Number of Reusable Times≤10

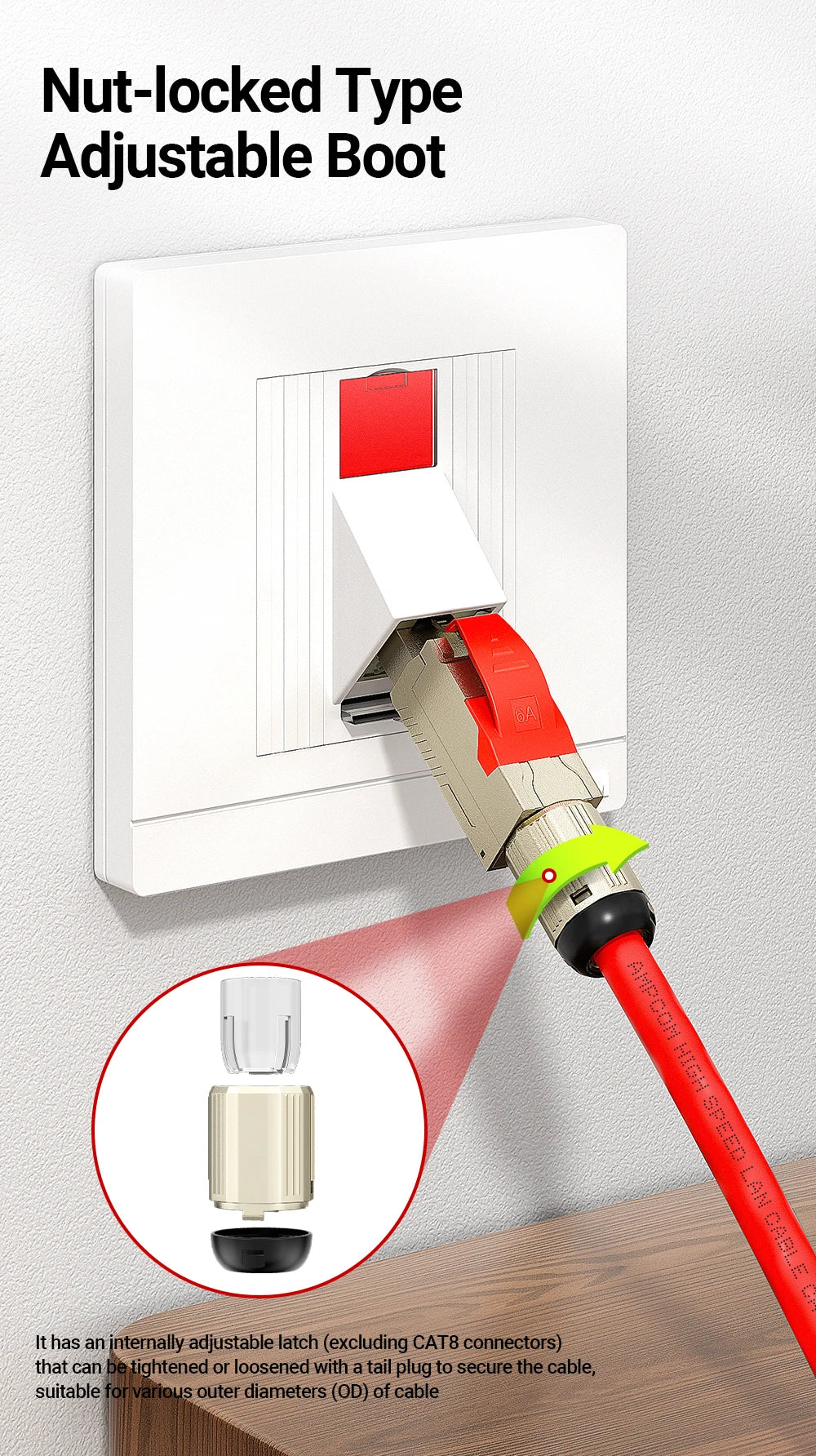

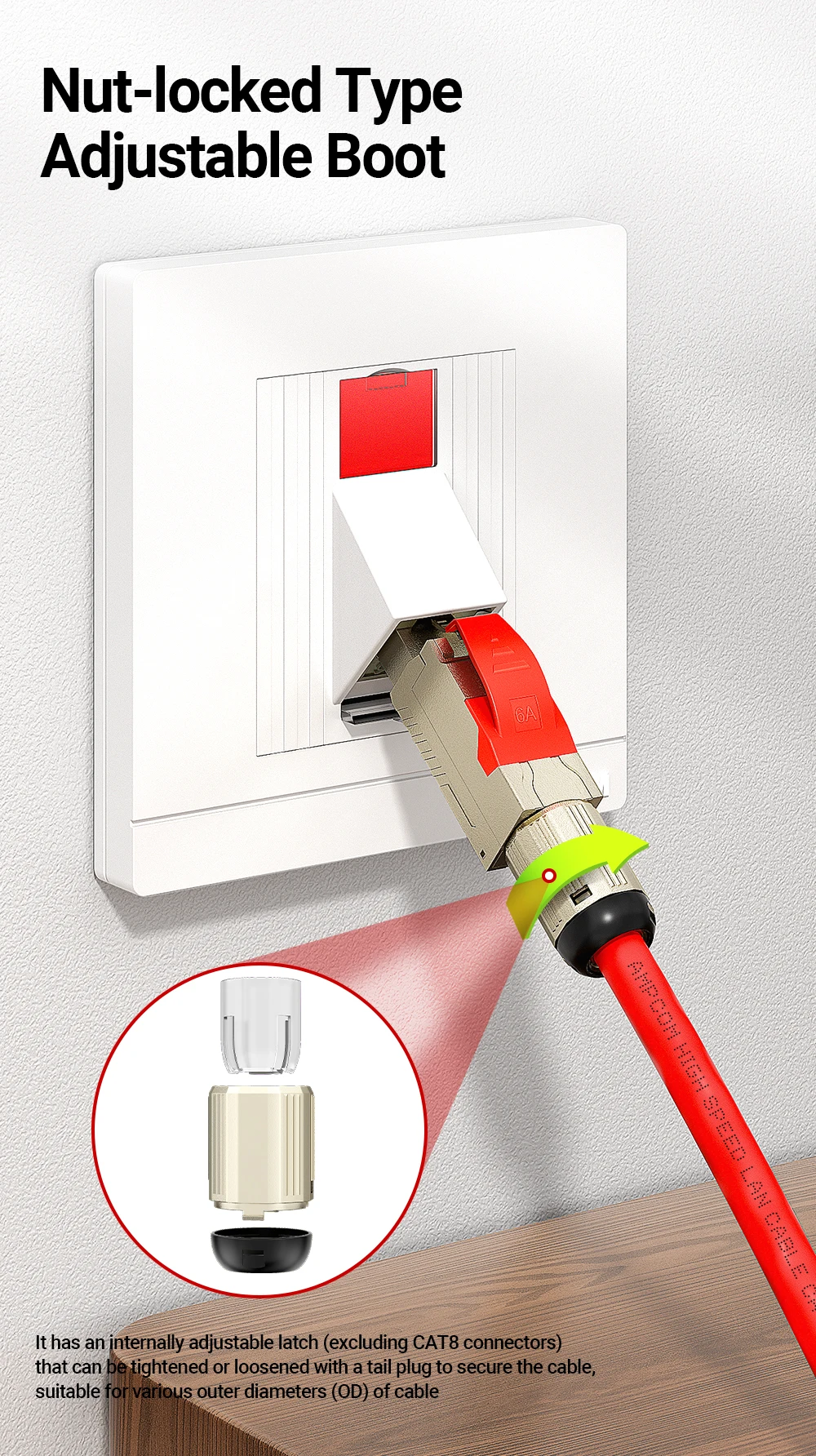

Nut-locked Type Adjustable Boot

It has an inernally adjustable latch ( excluding CAT8 connectors) that can be tightened or loosened with a tail plug to secure the cable, suitable for various outer diameters ( OD) of cable.

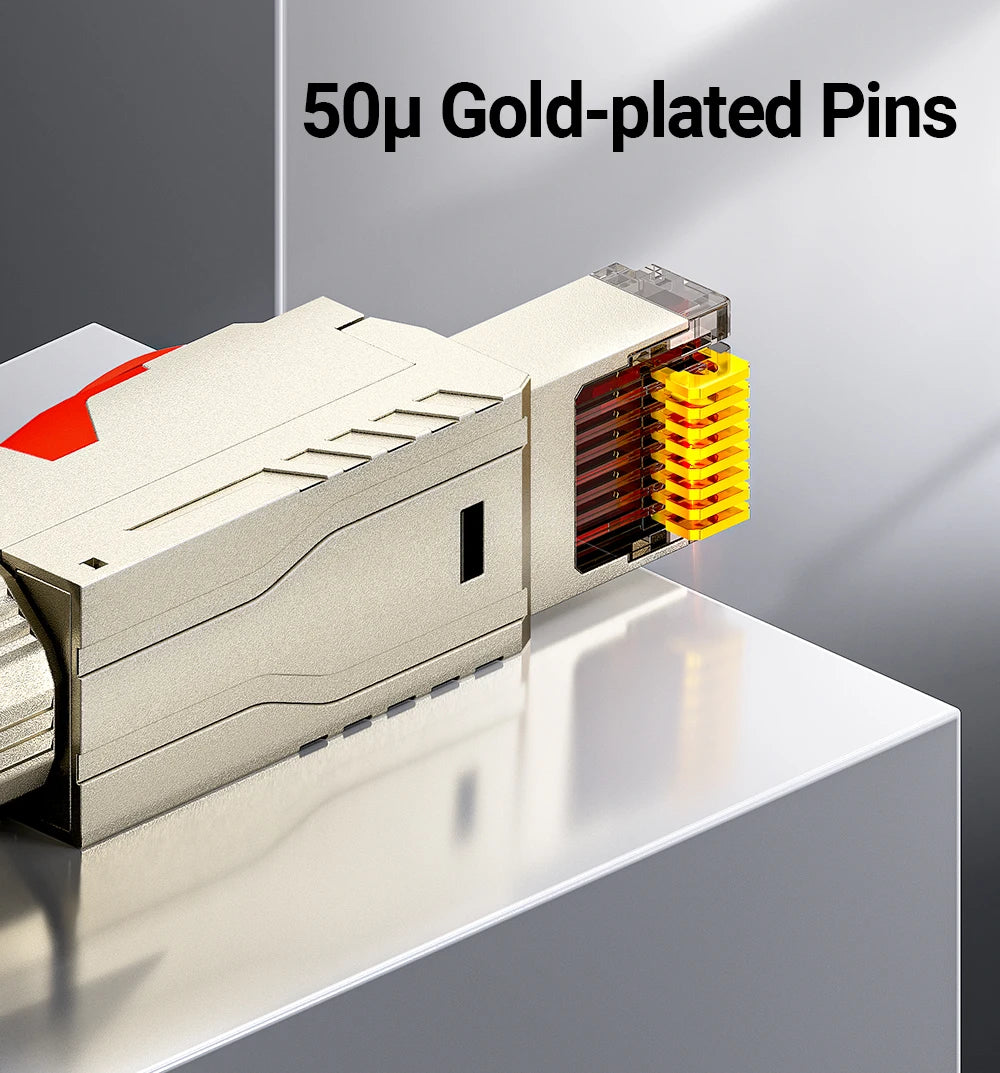

50U Gold Plated Pins

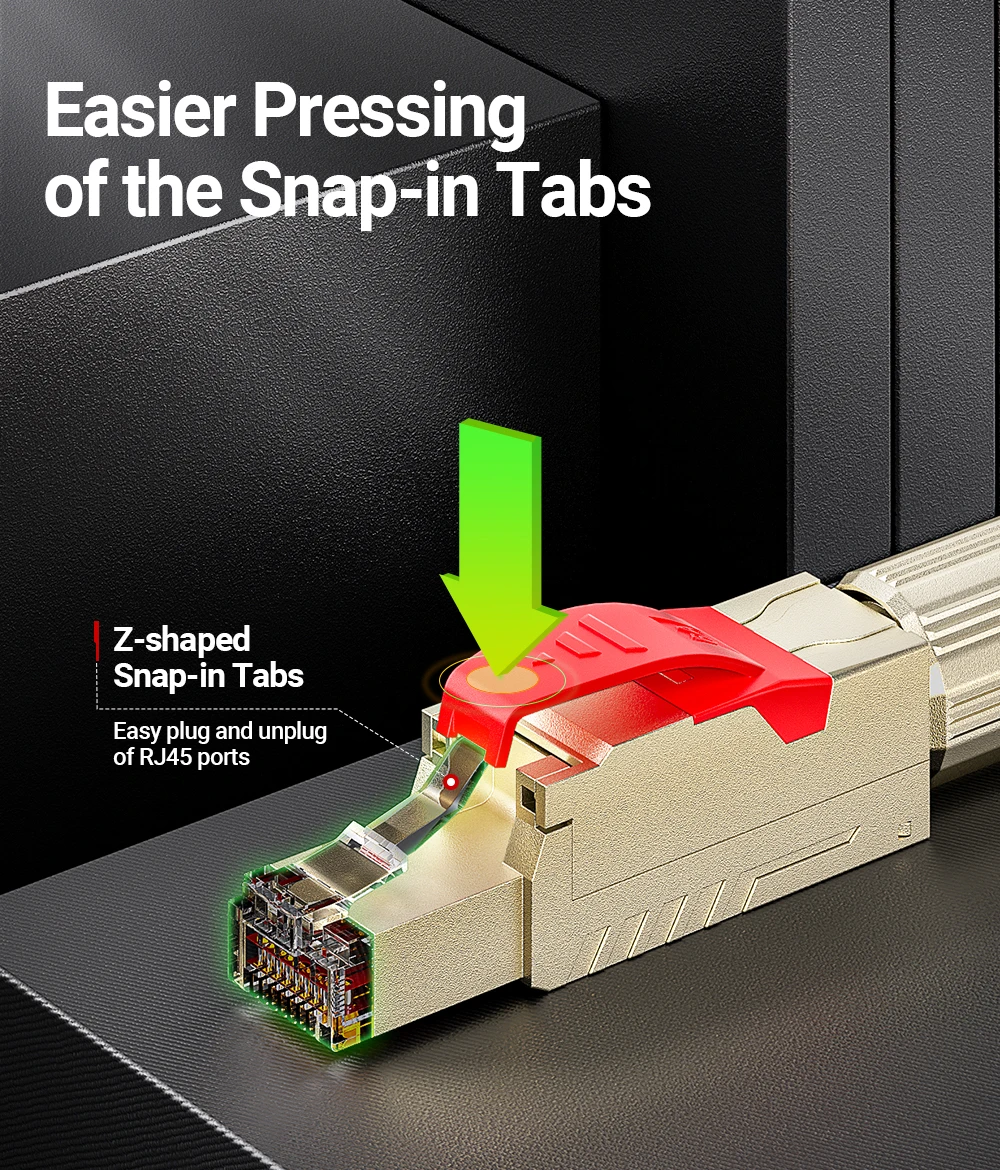

Easier Pressing of the Snap-in Tabs

Z-shaped Snap-in Tabs( Easy plug and unplug of RJ45 ports)

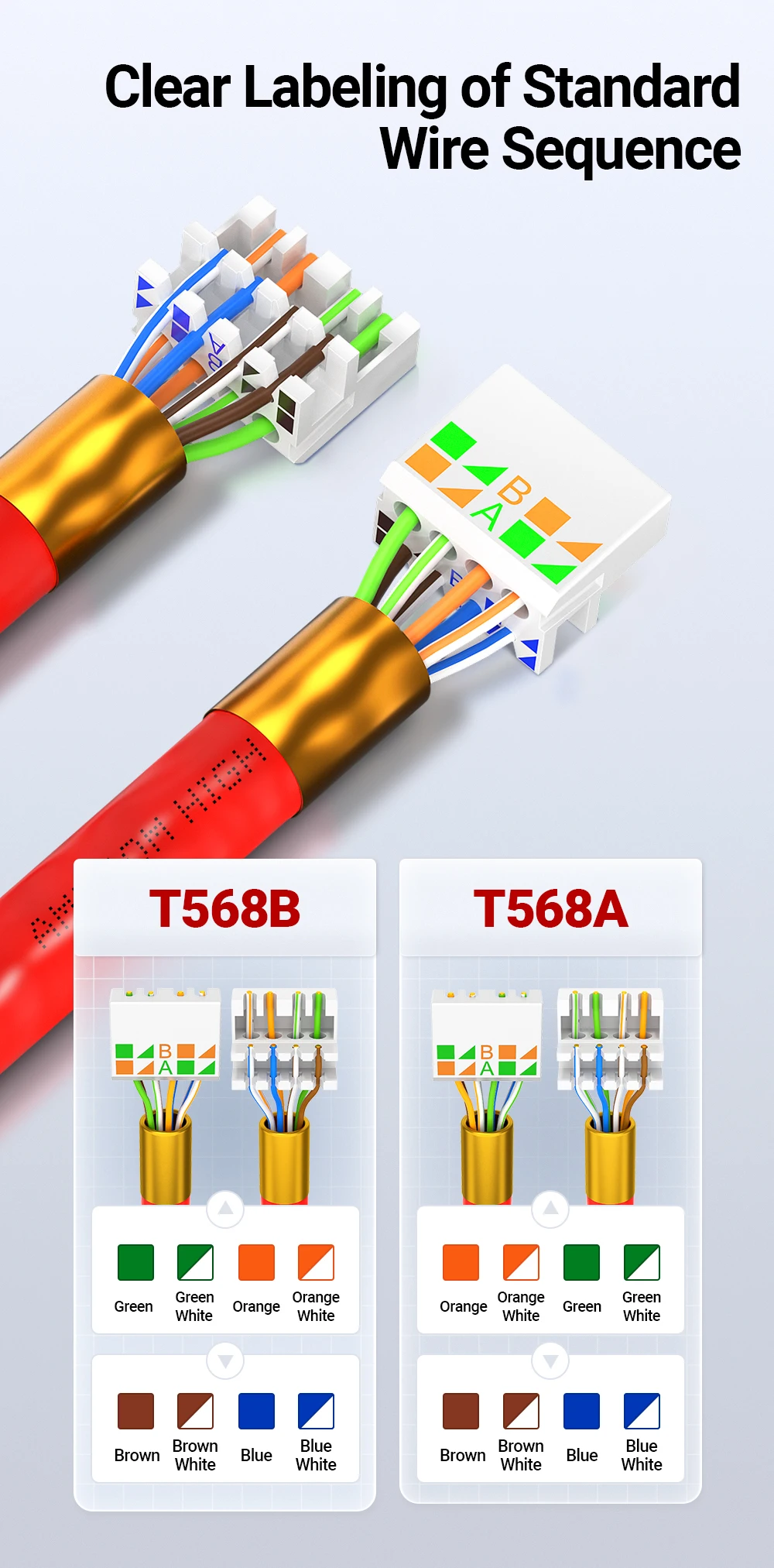

Clear Labeling of Standard Wire Sequence

Modular Structure Dsign for Simplified Installation

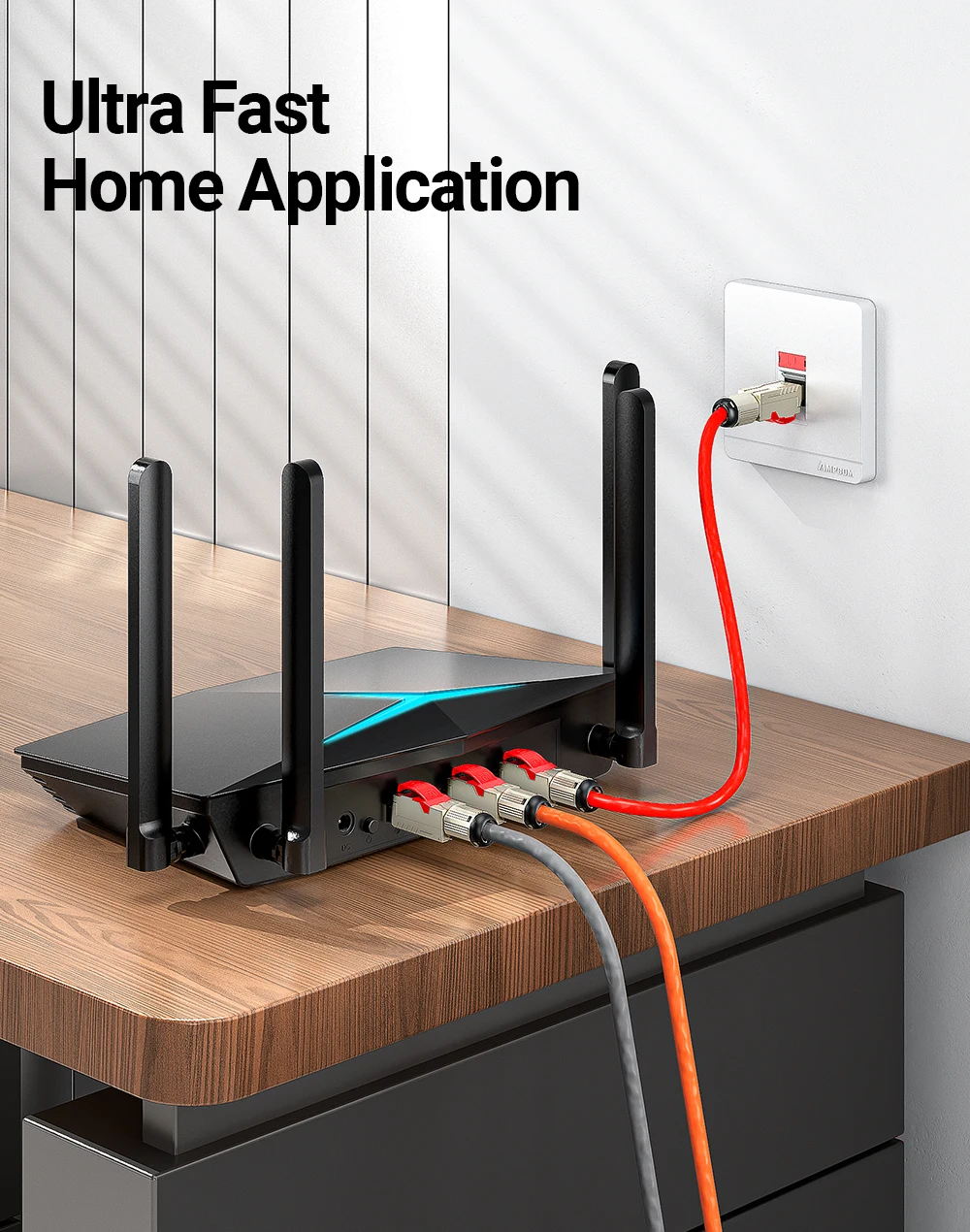

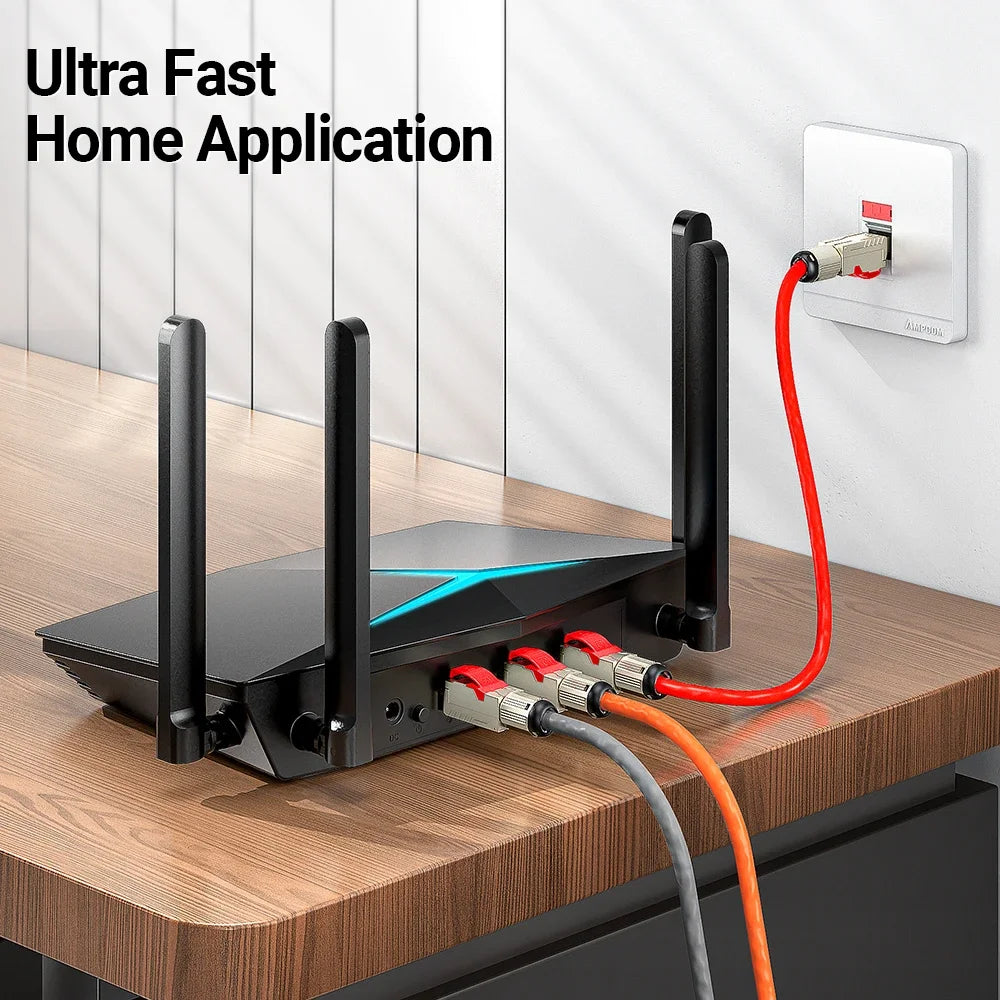

Ultra Fast Home Application

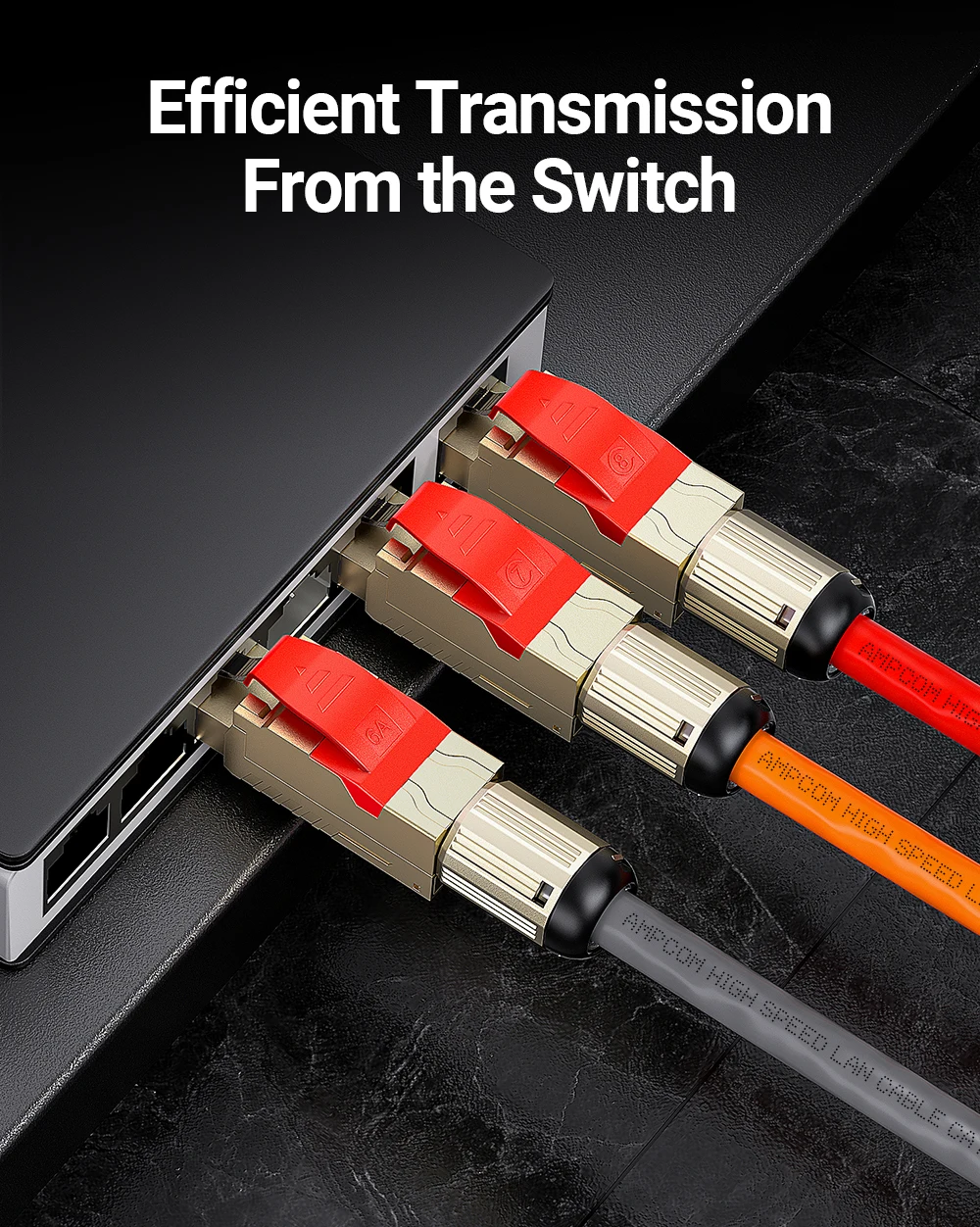

Efficient Transmission From the Switch

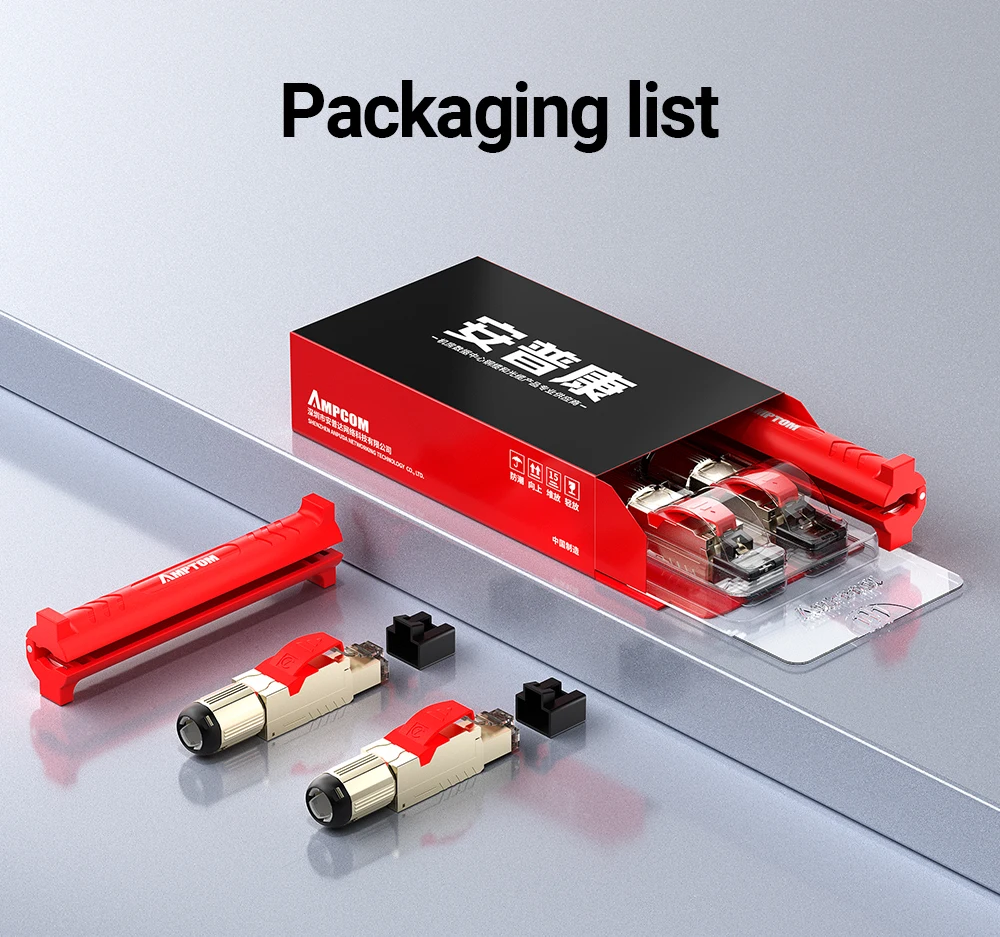

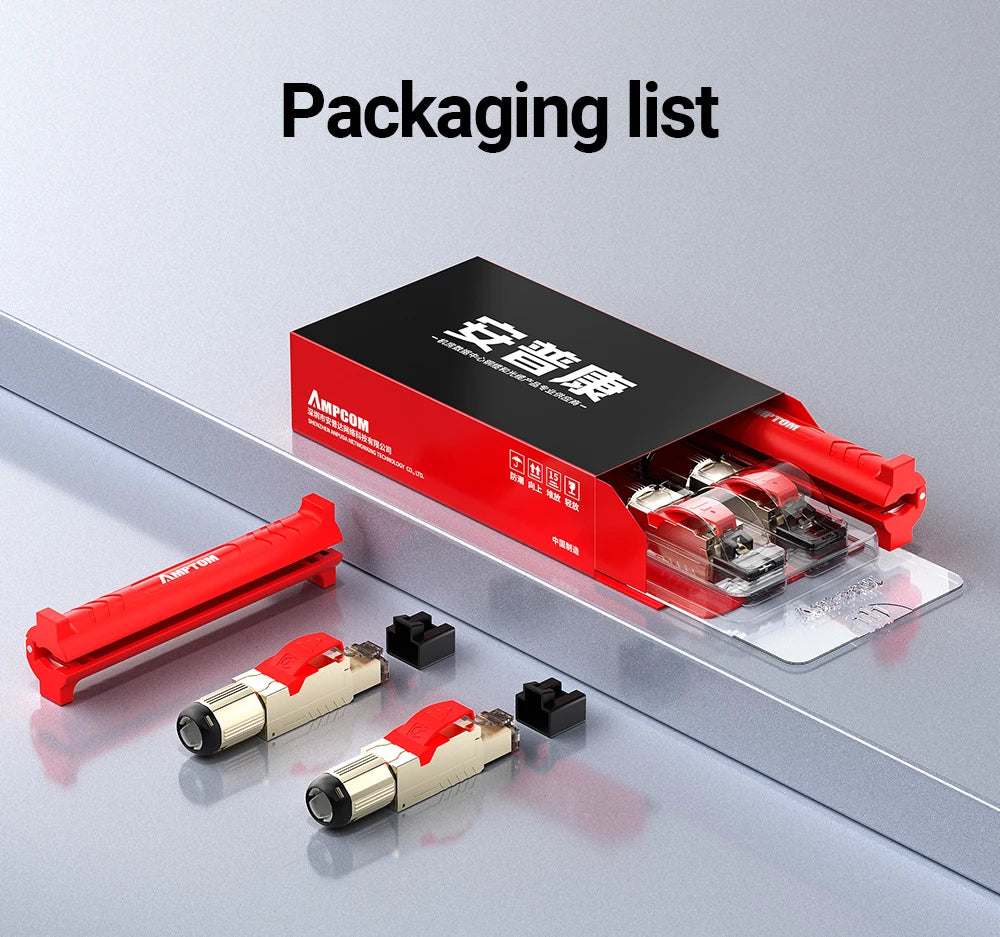

Packaging list

The Product packaging if for display purposes only and may be subject to periodic changes based ofn market feedback. Please refer to the actual item received.

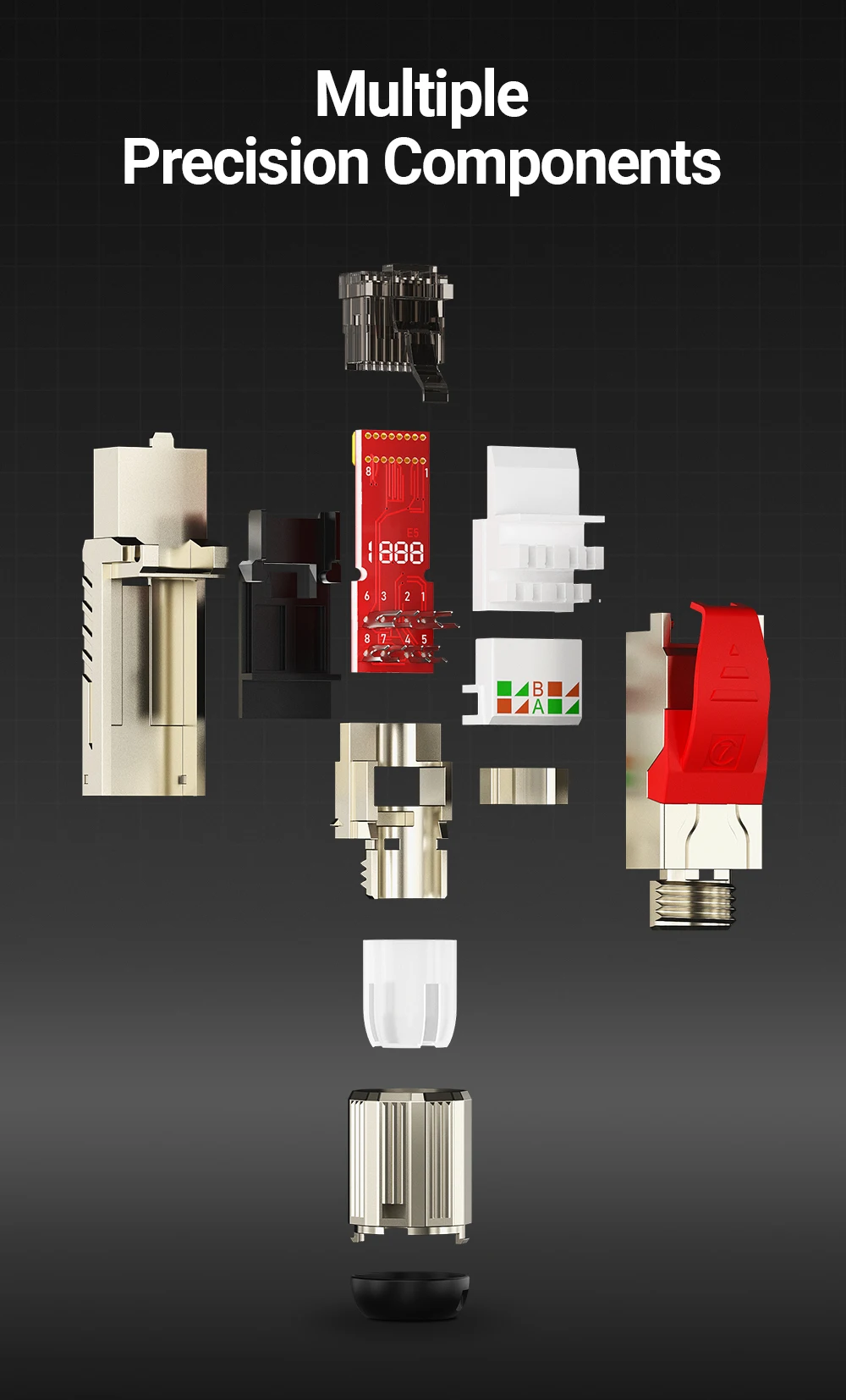

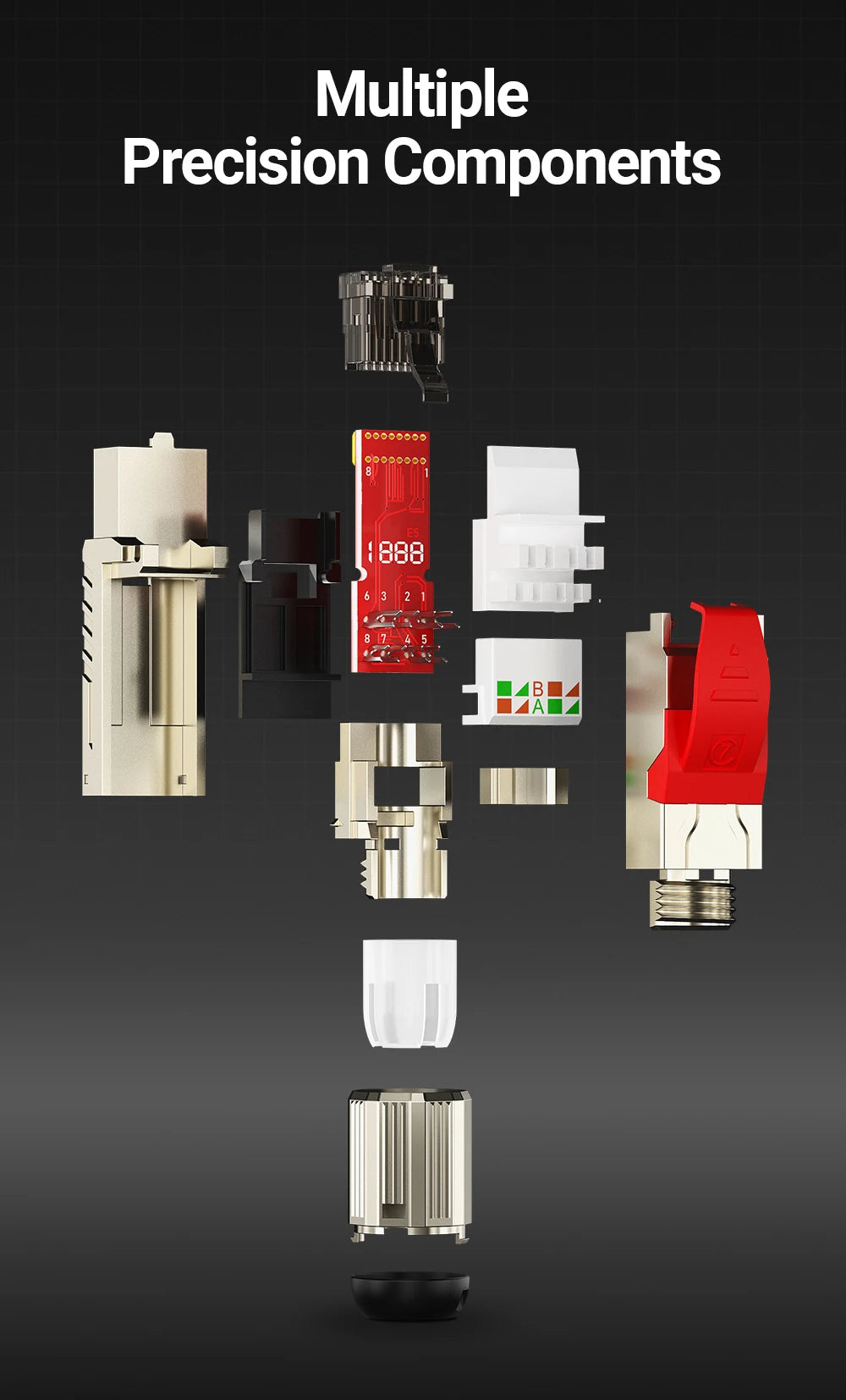

Multiple Precision Components

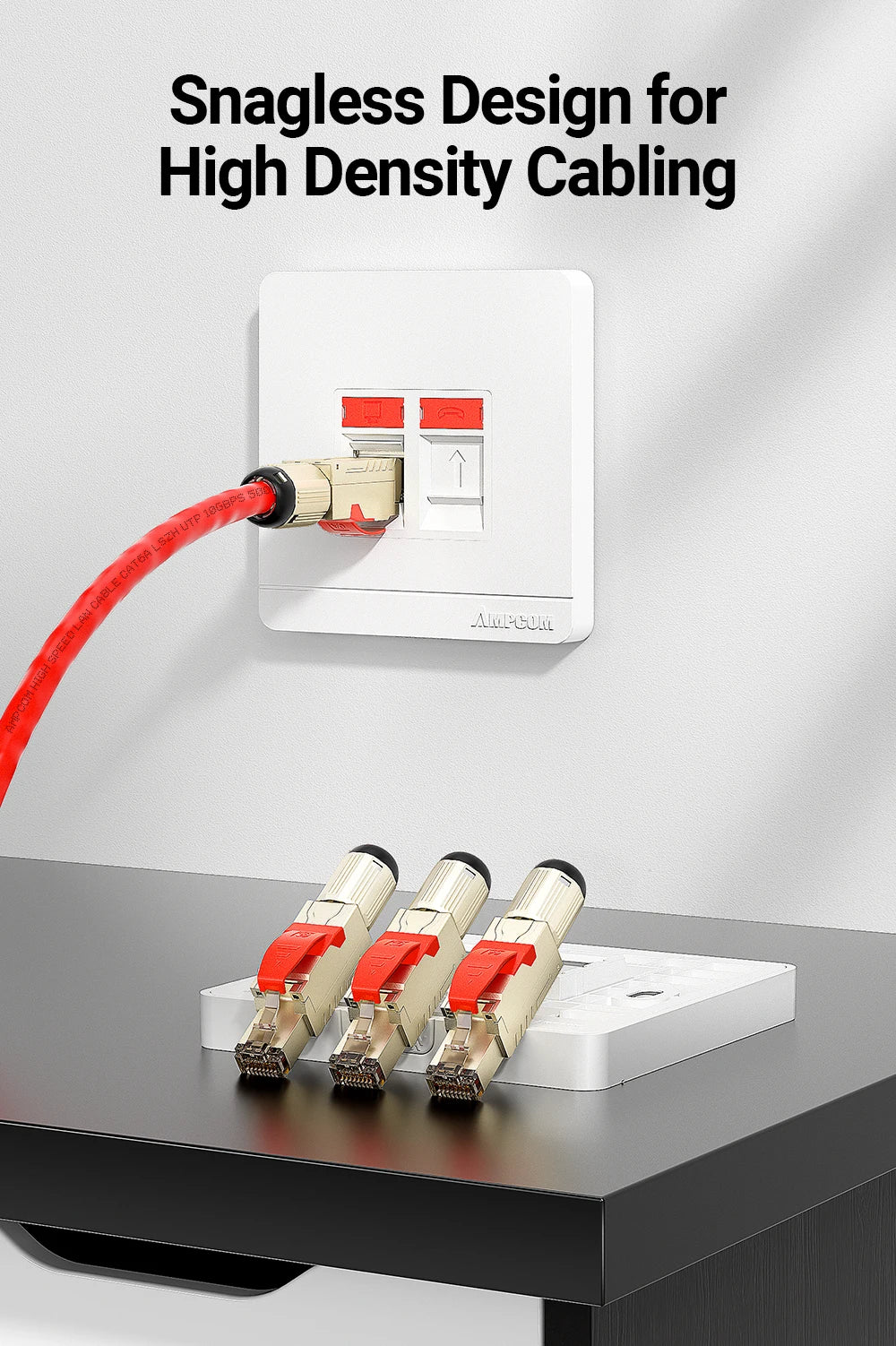

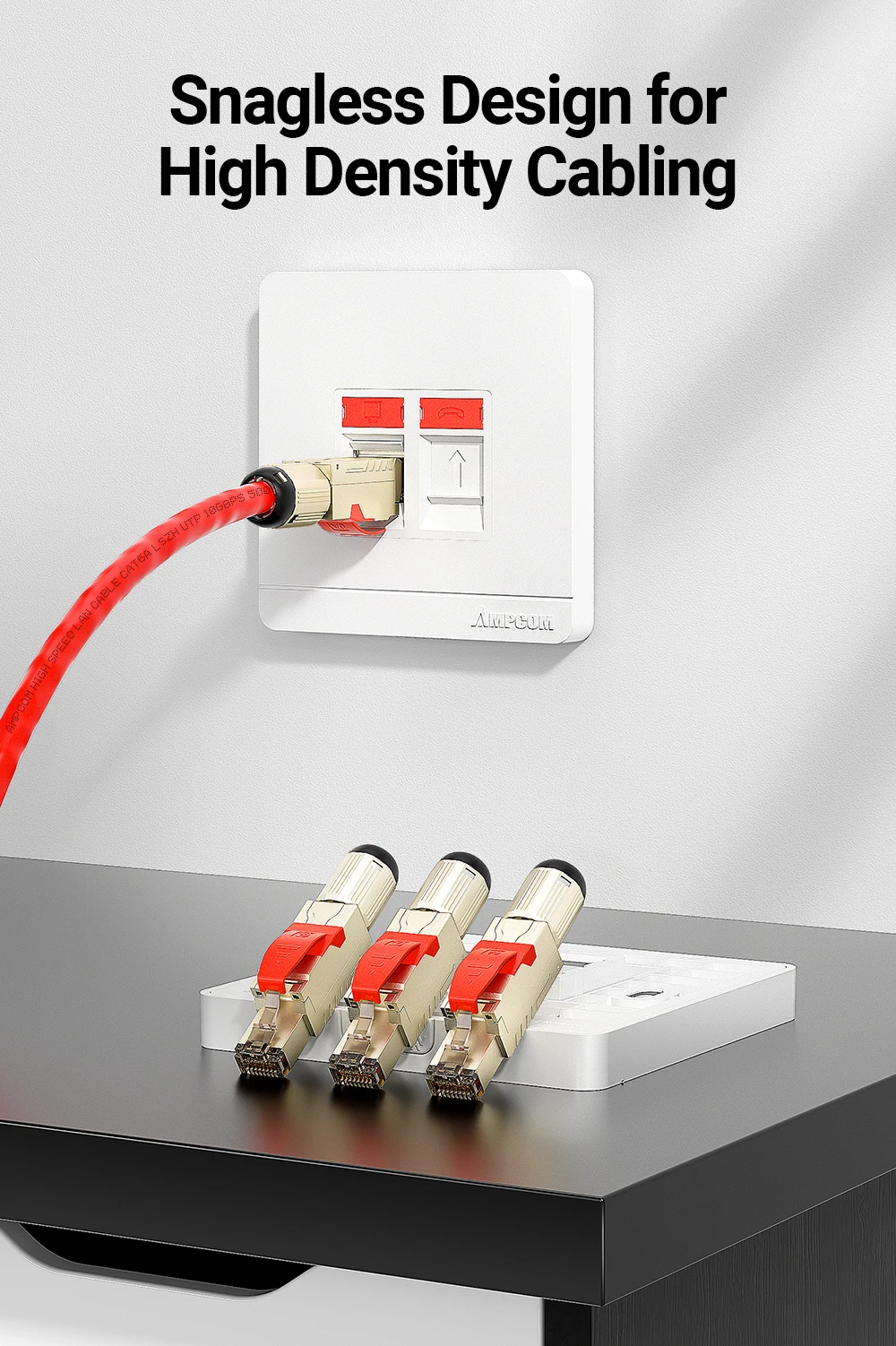

Snageless Design for High Density Cabling

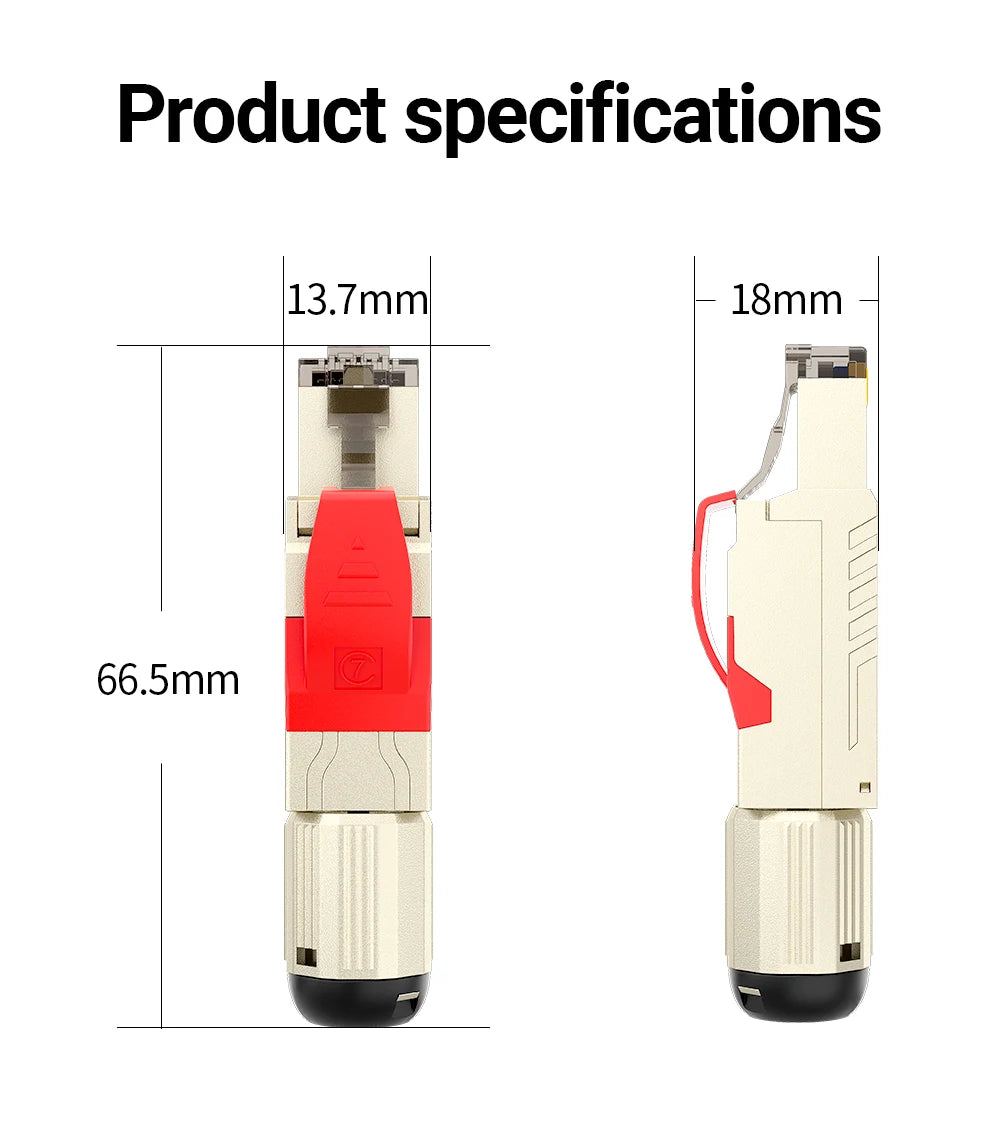

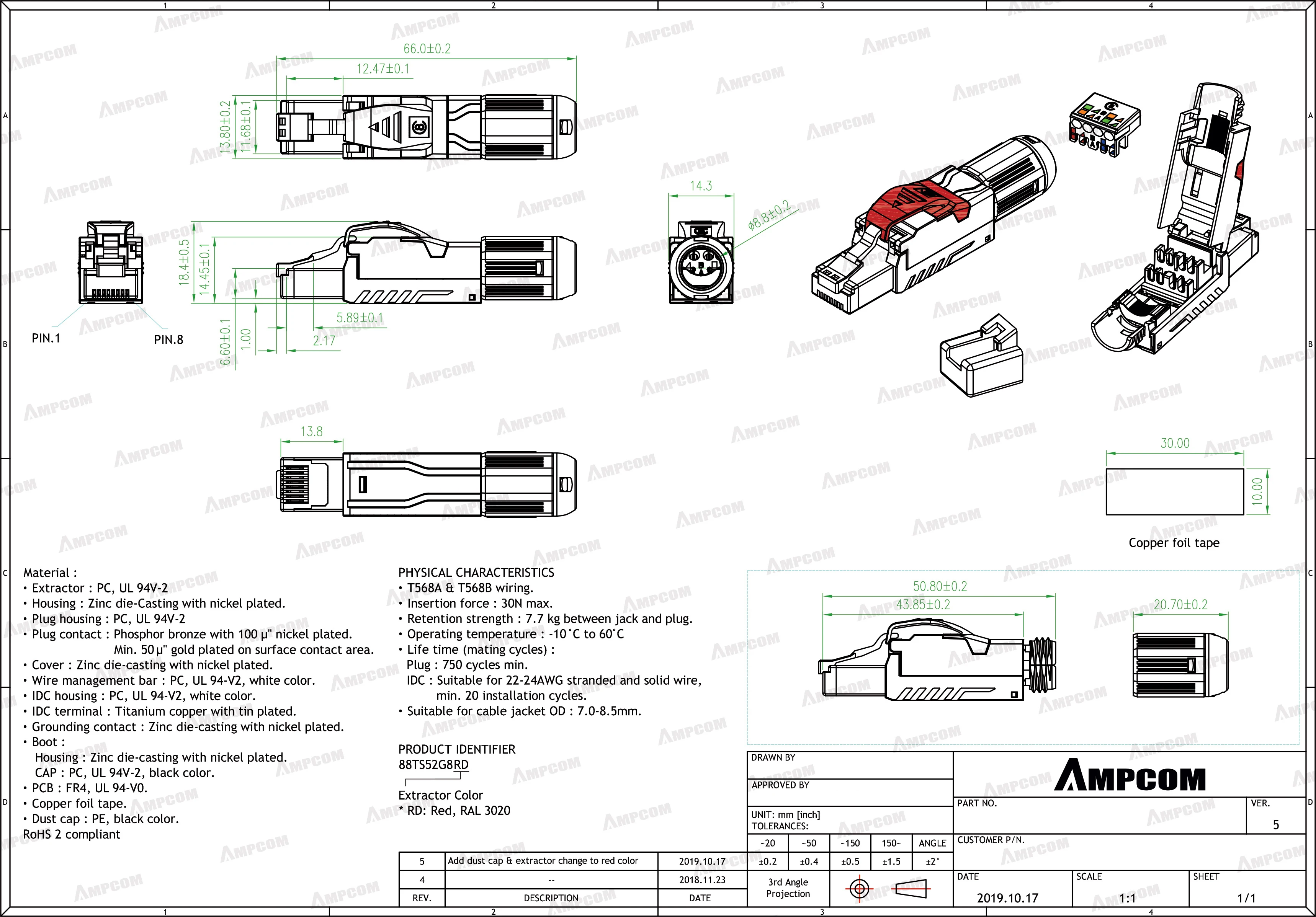

Product specifications

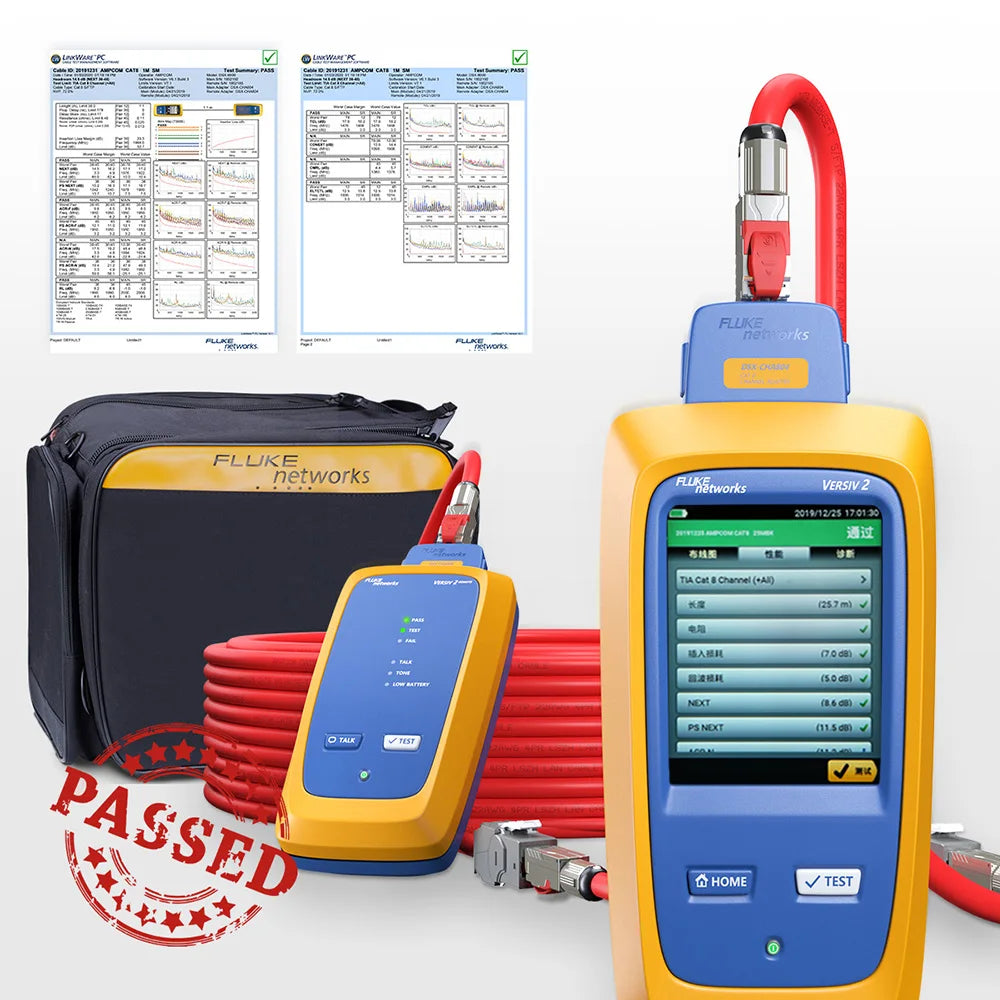

Fluke DSX-8000 to Work Flawlessly

High-performance Fluke Tested Cat8 Cable

Wide Application: Fully backwards compatible to Cat 7A, Cat 7, Cat 6A, and Cat 6, and Cat 5e cabling products

Material:

•Extractor: PC, UL 94V - 2
•Housing: Zinc die-casting with nickel plated.
•Plug housing: PC, UL 94V - 2
•Plug contact: Phosphor bronze with 100 μ'' nickel plated. Min.50 u " gold plated on surface contact area.
•Cover: Zinc die-casting with nickel plated.
•Wire management bar: PC, UL 94-V2, white color.
•IDC terminal: Titanium copper with nickel plated.
•Grounding contact: Zinc die-casing with nickel plated
•Boot:
Housing: Zinc die-casing with nickel plated.
CAP: PC, UL94V-2, black color.
•PCB: FR4, UL 94-V0.
•Copper foil tape.
•Dust cap: PE, black color.
RoHS 2 compliant

PHYSICAL CHARACTERISTICS

T568A & T568B wiring.
•Insertion: 30N max.
•Retention strength: 7.7 kg between jack and plug
•Operating temperature: - 10℃ to 60℃
Life time (mating cycles):
•Plug: 750 cycles min.
•IDC: Suitable for 22 - 24AWG stranded and solid wire, min. 20 installation cycles.
•Suitable for cable jacket OD: 7.0 - 8.5mm.

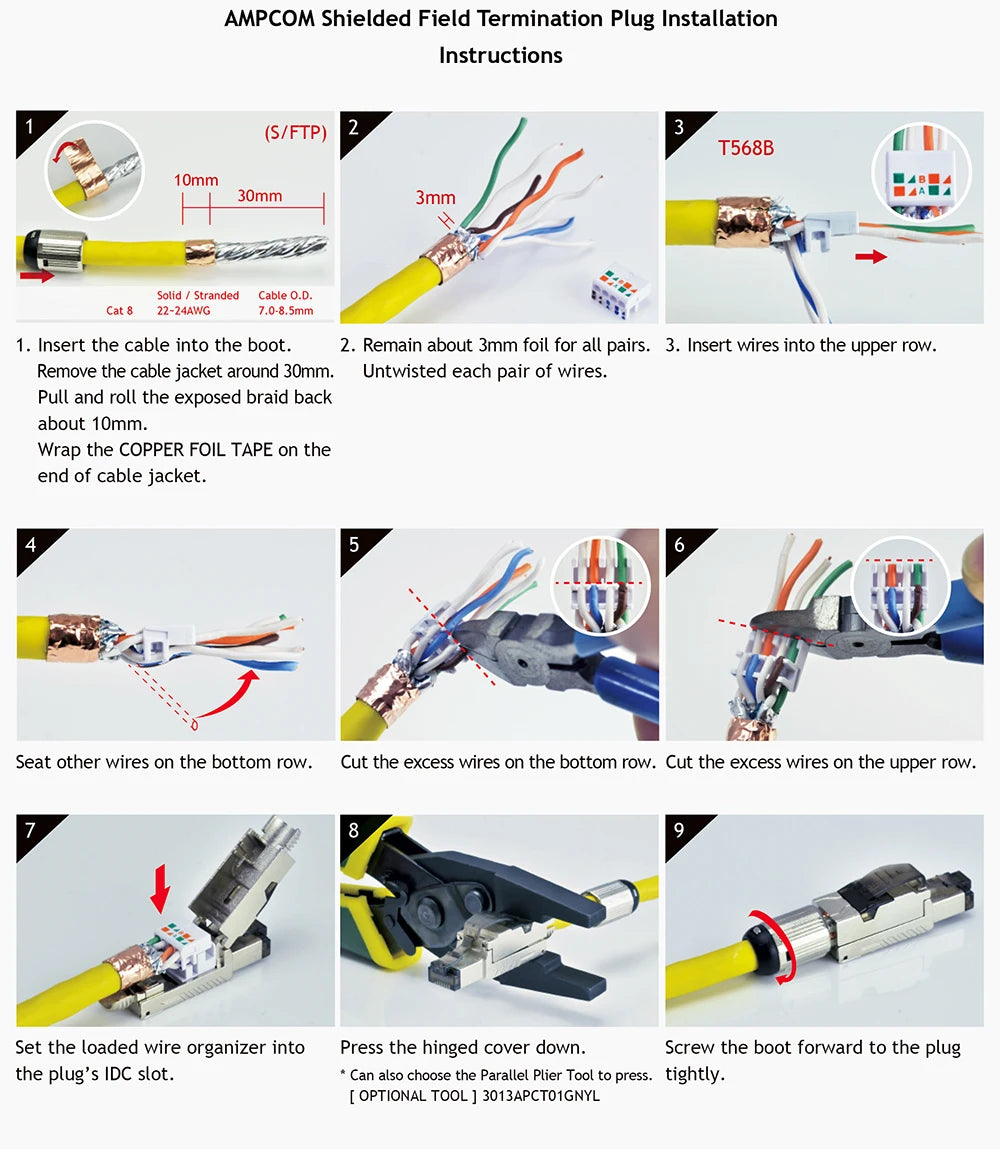

AMPCOM Shielded Field Termination Plug Installation Instrutions

1.Insert the cable into th boot.Remove the cable jacket around 30mm.Pull and roll the exposed braid back about 10mm.Wrap the Copper foil tape on the and of cable jacket.

2.Remanin about 3mm foil for alll pairs. Untwisted pair of wires.

3.Insert wires into the upper row.

4.Seat other wires on the bottom row.
5.Cut the excess wires on the bottom row.

6.Cut the excess wires on the upper row.
7.Set the loaded wire orangizer into the plug's IDC slot.
8.Press the higed cover down.
9.Screw the boot forward to the plug tightly.
