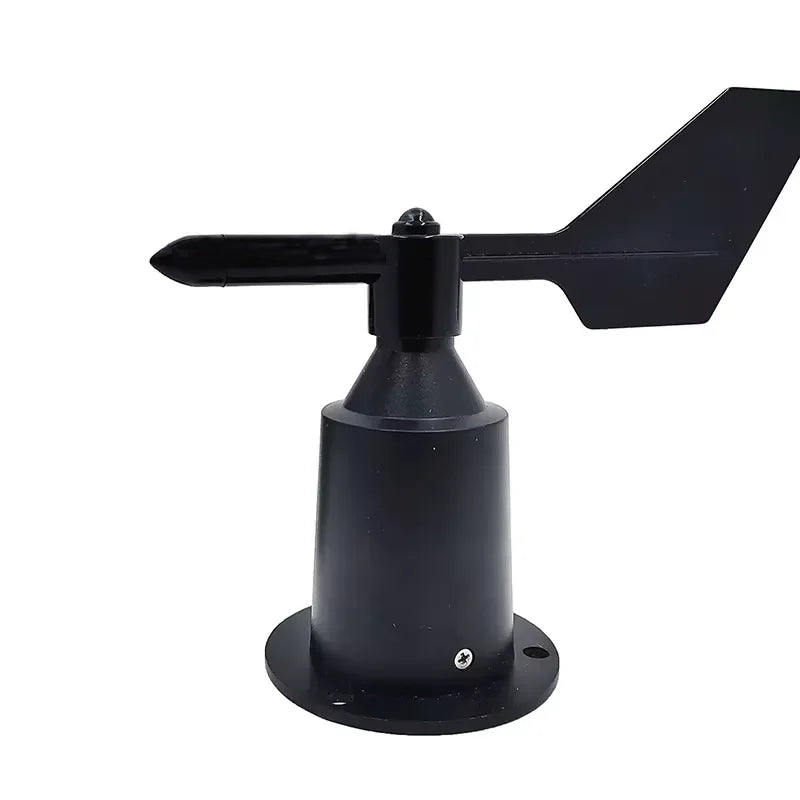

Analog Output 0-5V 4-20mA Hall Effect Wind Vane Wind Direction Sensor Outdoor Weather Station with 4g Wifi MQTT Cloud System

Analog Output 0-5V 4-20mA Hall Effect Wind Vane Wind Direction Sensor Outdoor Weather Station with 4g Wifi MQTT Cloud System

$14.90

$14.90 $0.00

Color Only install flange 0-10V RS485 0-5V 4-20mA

DimensionsHIGH

Description

SPECIFICATIONS

Brand Name: NONE

Origin: Mainland China

Dear Friend, Hope you have a nice day! There is a slight difference between the displayed product price and the actual transaction price. Kindly get in touch with us prior to placing your order. Should you require an immediate response, you may reach me via the following contact methods: ✅ WhatsApp: +86 19973741016 ✅ Email: 2371870488@qq.com Thank you for your interest and contacting our team! regards, Winnieoption description
1.RS485
2.HIGH
3.4-20mA
4.HIGH
5.0-5V
6.HIGH
7.0-10V
8.HIGH
9.Only install flange
10.HIGH
Dear Friend,

Hope you have a nice day!

There is a slight difference between the displayed product price and the actual transaction price. Kindly get in touch with us prior to placing your order.

Should you require an immediate response, you may reach me via the following contact methods:
✅ WhatsApp: +86 19973741016
✅ Email: 2371870488@qq.com

Thank you for your interest and contacting our team!

regards,
Winnie

Product Description

Measurement parameters
Parameters name	Wind direction sensor
Parameters	Measure range	Resolution	Accurancy
Wind direction	0~360º	0.1º	±4º
Technical parameter
Start speed	≤0.5m/s
Maximum turning radius	100mm
Response time	Less than 1 second
Stable time	Less than 1 second
Output	RS485, MODBUS communication protocol
		0~2V,0~5V,0~10V
		4~20mA
Power supply	12~24V(When the output is 0~5V,0~10V,4~20mA)
Working environment	Temperature -20 ～ 80 ℃, working humidity: 0-100%
Storage conditions	-40 ~ 60 ℃
Standard cable length	2 meters
The farthest lead length	RS485 1000 meters
Protection level	IP65
Wireless transmission
Wireless transmission	LORA / LORAWAN(868MHZ,915MHZ,434MHZ), GPRS, 4G,WIFI
Mounting Accessories
Stand pole	1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to burried in the ground
Cross arm for the install	Optional( in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
cameras	Optional
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket

Detailed Images

Feature 1

ASA shell, high mechanical strength, high hardness, does not change color, can be outdoors for a long time

Feature 2

Precision self-lubricating bearings low rotation resistance, accurate measurement

Features 3

N is fixed in the north

Features 4

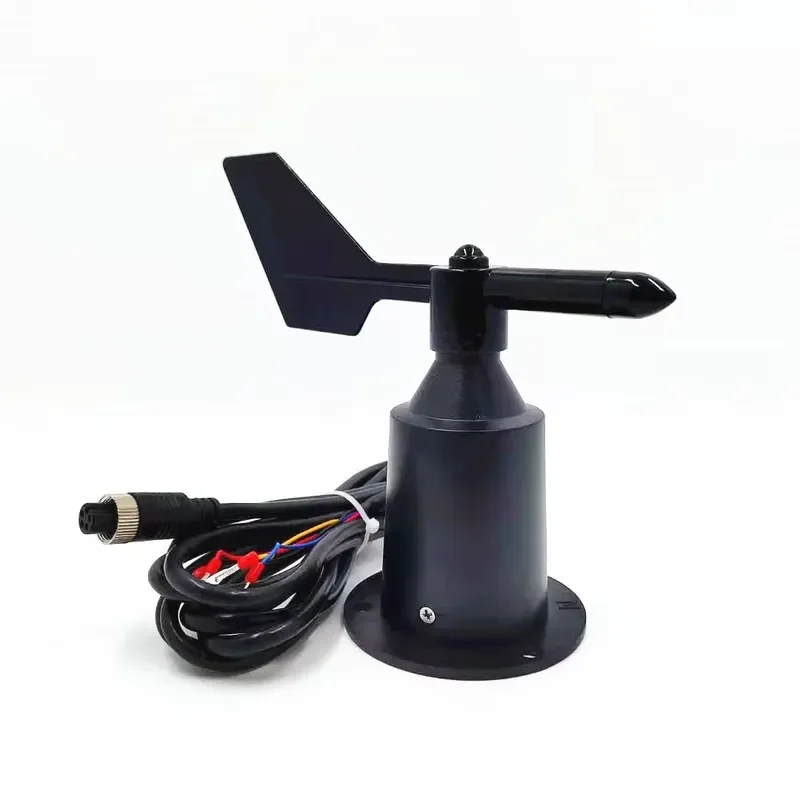

Aviation waterproof interface

Features 5

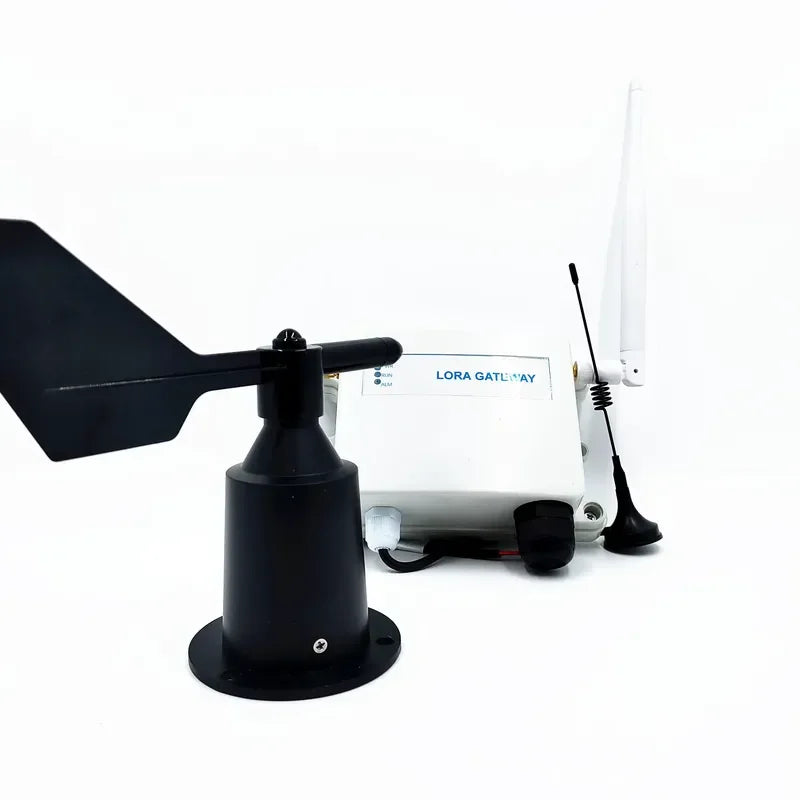

RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.

Features 6

The free cloud server and software can be send if using our wireless module to see the real time data in PC or Mobile and also can download the data in excel.

Good reviews

Related Products

Packing&Shipping

Company Introduction

Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.

FAQ

Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.

Q: What's the main characteristics of this sensor? A: It is ASA material which is anti-UV material and can be for 10 years outside. Q:Can we choose other desired sensors? A: Yes, we can supply the ODM and OEM service, the other required sensors can be intergrated in our present weather station. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q:Do you supply tripod and solar panels? A: Yes, we can supply the stand pole and the tripod and the other install accessaries, also the solar panels, it is optional. Q: What’s the common power supply and signal output? A: Common power supply is DC: 12-24V and signal output RS485 and a nalog voltage and current output.The other demand can be custom made. Q: How can I collect data? A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module.

Q: Can you supply the data logger?

A:Yes, we can supply the matched data logger and screen to show the realtime data and also store the data in excel format in the U disk.

Q: Can you supply the cloud server and the software?
A: Yes, if you buy our wireless modules, we can supply the free server and software for you, in the software, you can see the realtime data and also can download the history data in the excel format. Q: What’s the standard cable length? A: Its standard length is 2m. But it can be customized, MAX can be 1KM. Q: May I know your warranty? A: Yes, usually it’s 1 year. Q:What’s the delivery time? A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
