SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: geeekpi

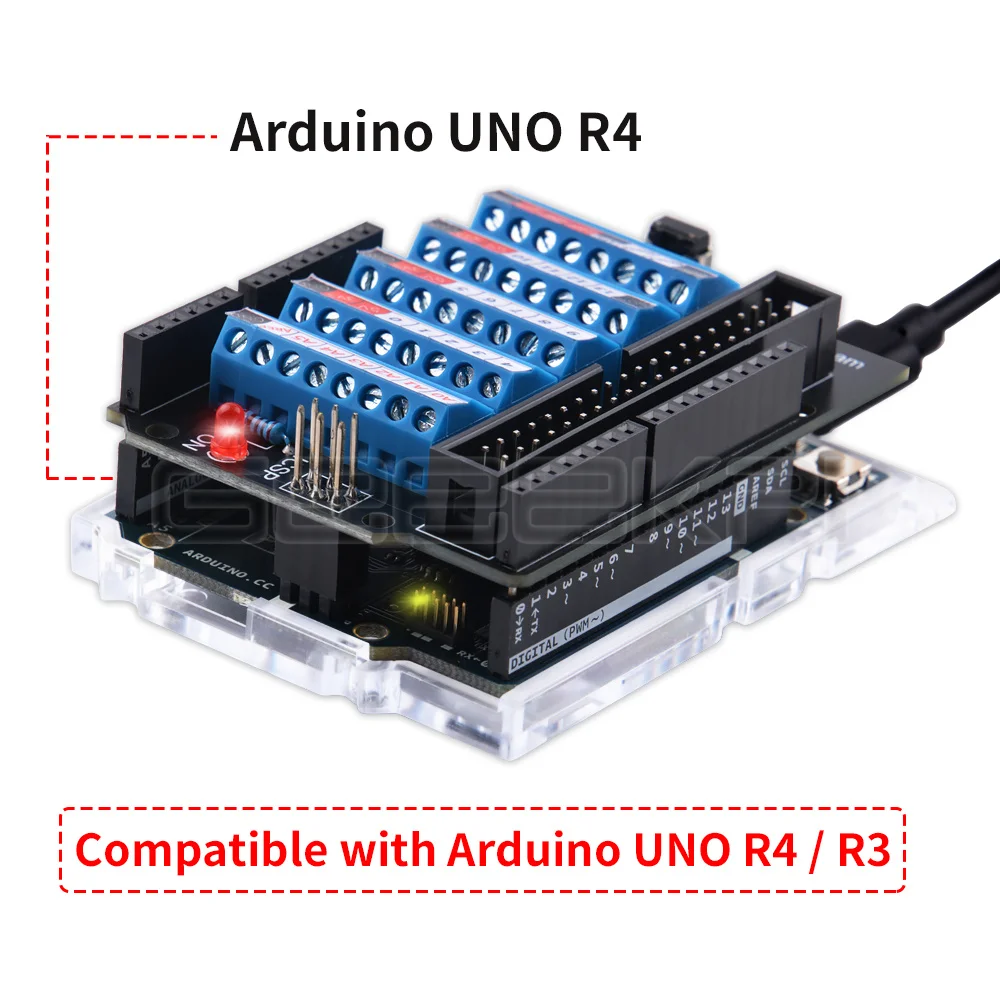

Compatible With: Arduino UNO

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

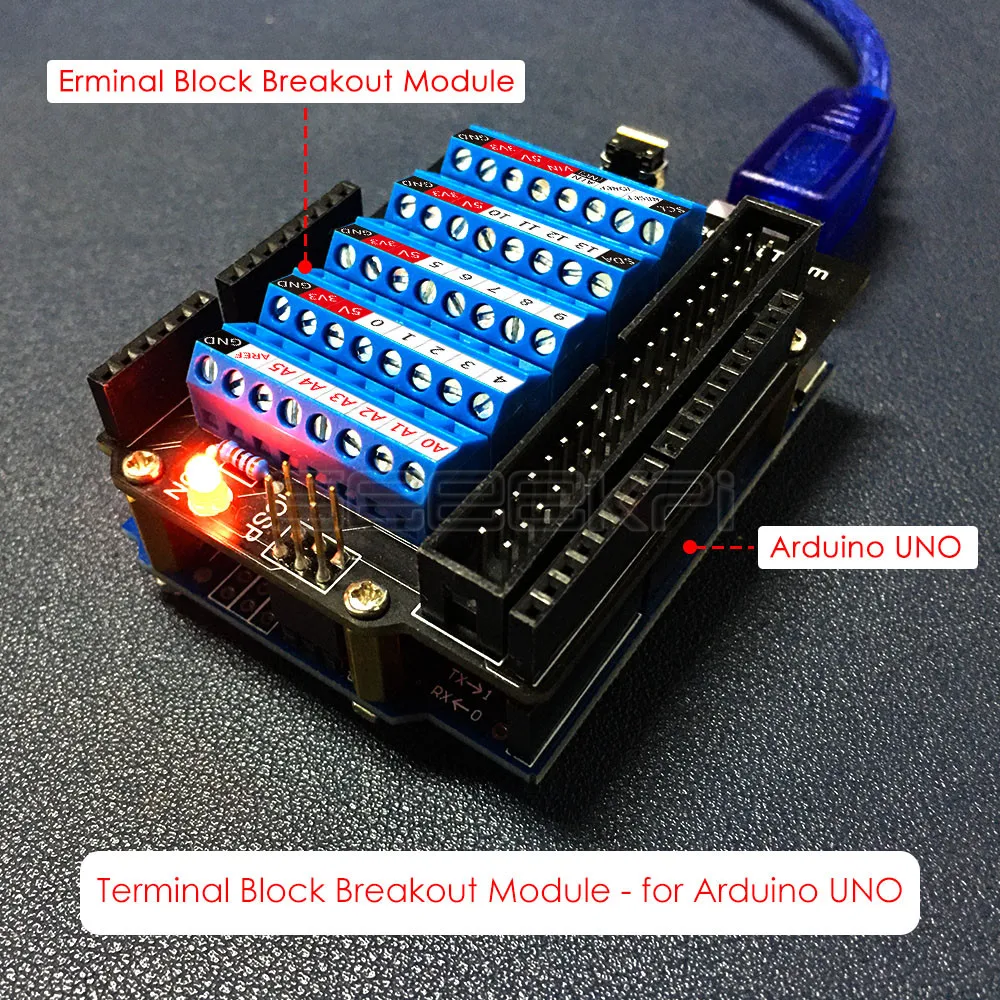

Arduino UNO Screw Terminal Hat

Product Description:

This is a screw terminal expansion board specially designed for Arduino UNO board expansion, through which you can quickly build your own circuit, and the pre-soldered ICSP interface makes it more convenient for you to burn Arduino firmware. The screw terminals are provided with good labels for easy identification. You can use a 40-pin FRC (Flat Ribbon Cable) connector cable to connect all Arduino Uno pins to peripherals. With power on LED indicating. Blue reset button on the side.

Features:

Easy to install
Fit for Arduino UNO ONLY
Screw Terminal
Nice Label Marker

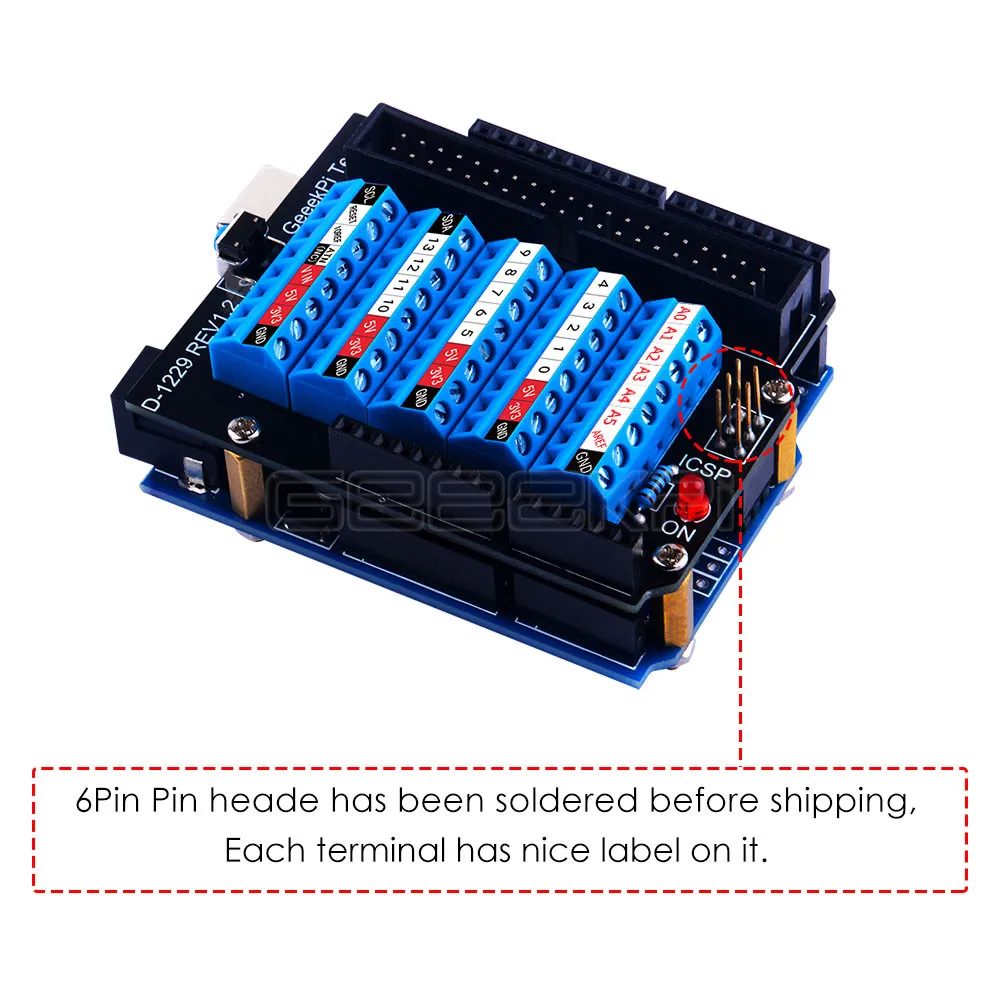

Pre-soldered ICSP Pin Header
40Pin 2x20 2.54mm Horn Socket Connector onboard

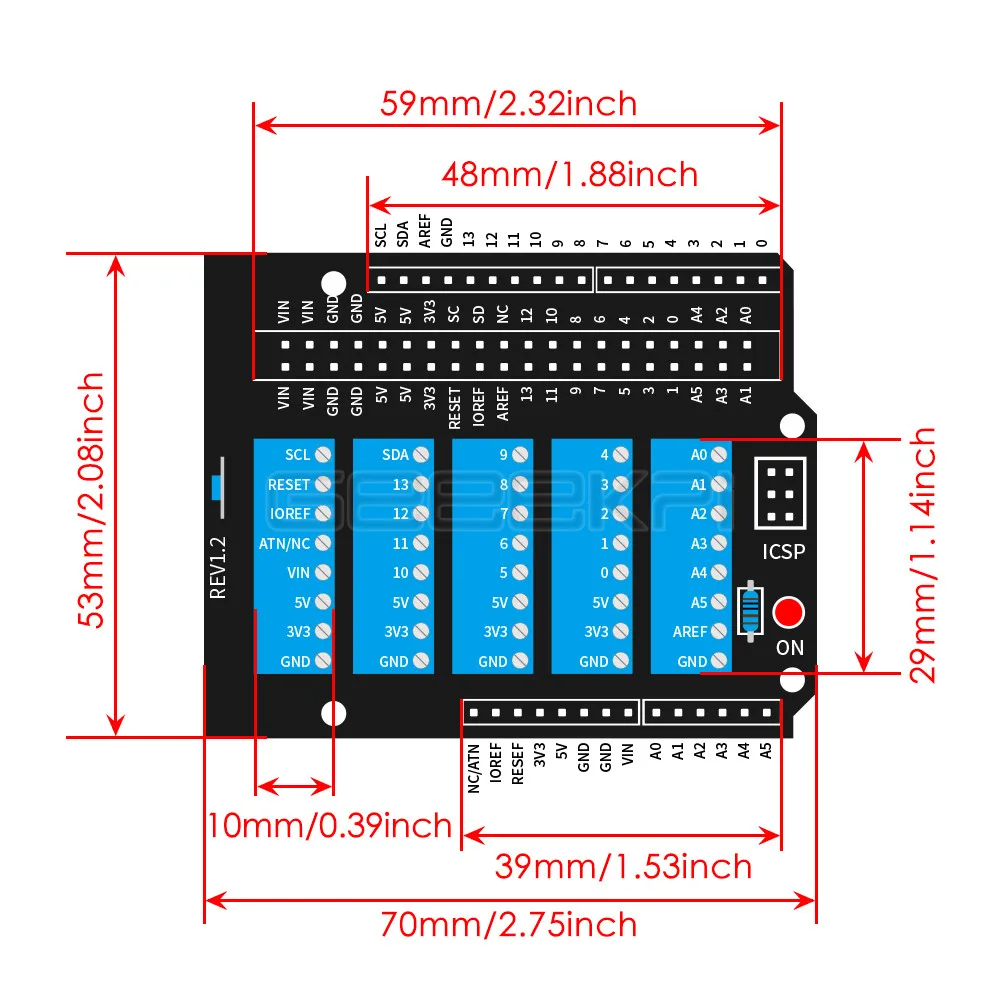

Product Specifications:

Terminal block pitch 3.5mm/0.138"
Wire size range 26AWG to 16AWG, strip length 5mm
Screw M2 steel
Pin header and cage copper.
Standard IDC40 pitch 0.1" header, you can use 40pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.

Package Includes：

1 x Screw Terminal Hat for Arduino UNO
4 x M2.5 Copper Pillar
4 x M2.5x6 Screw
4 x M2.5 nut

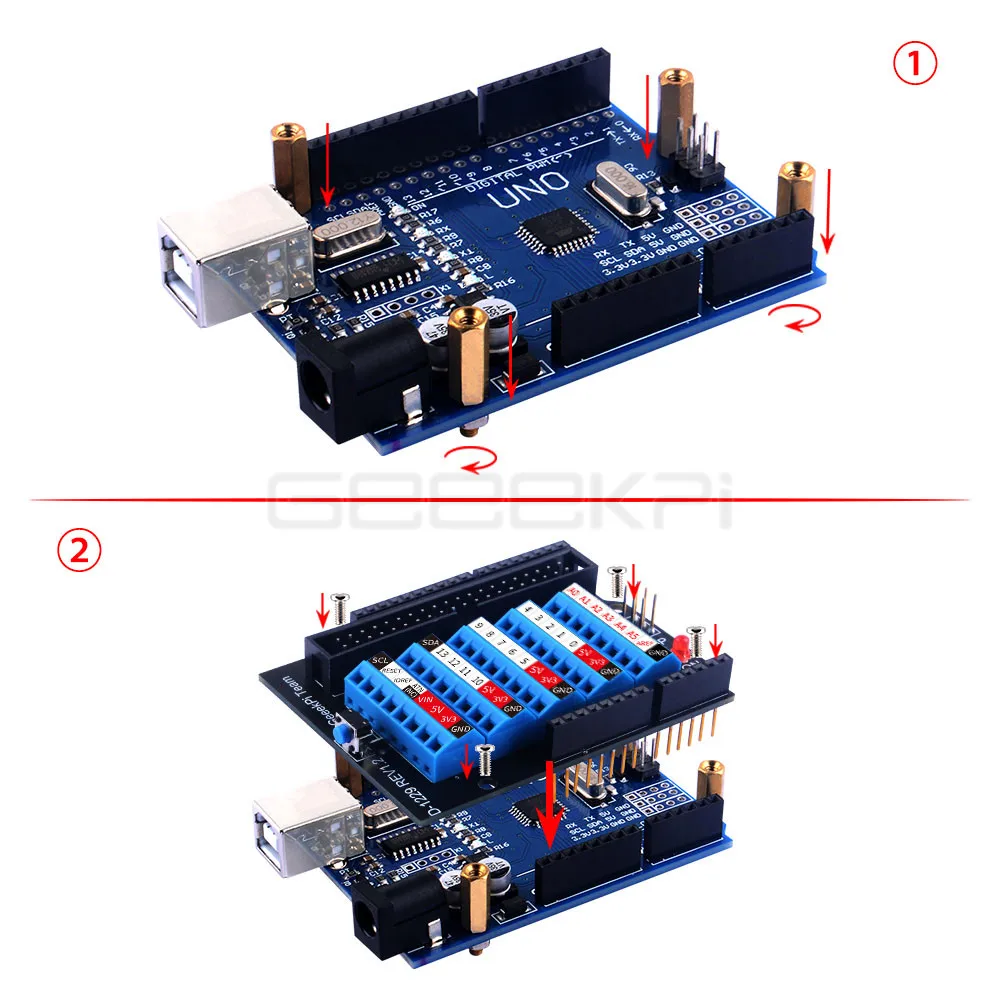

How to Assemble it:

Fix Copper Pillar with M2.5 nuts.
Mount shield on Arduino UNO Board (Not include in the package)and fix it with M2.5 screws.
Build Circuit just release the screws on the terminal and insert the wire and fix it.
