SPECIFICATIONS

Brand Name: Aideepen

Certification: CE

Choice: yes

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

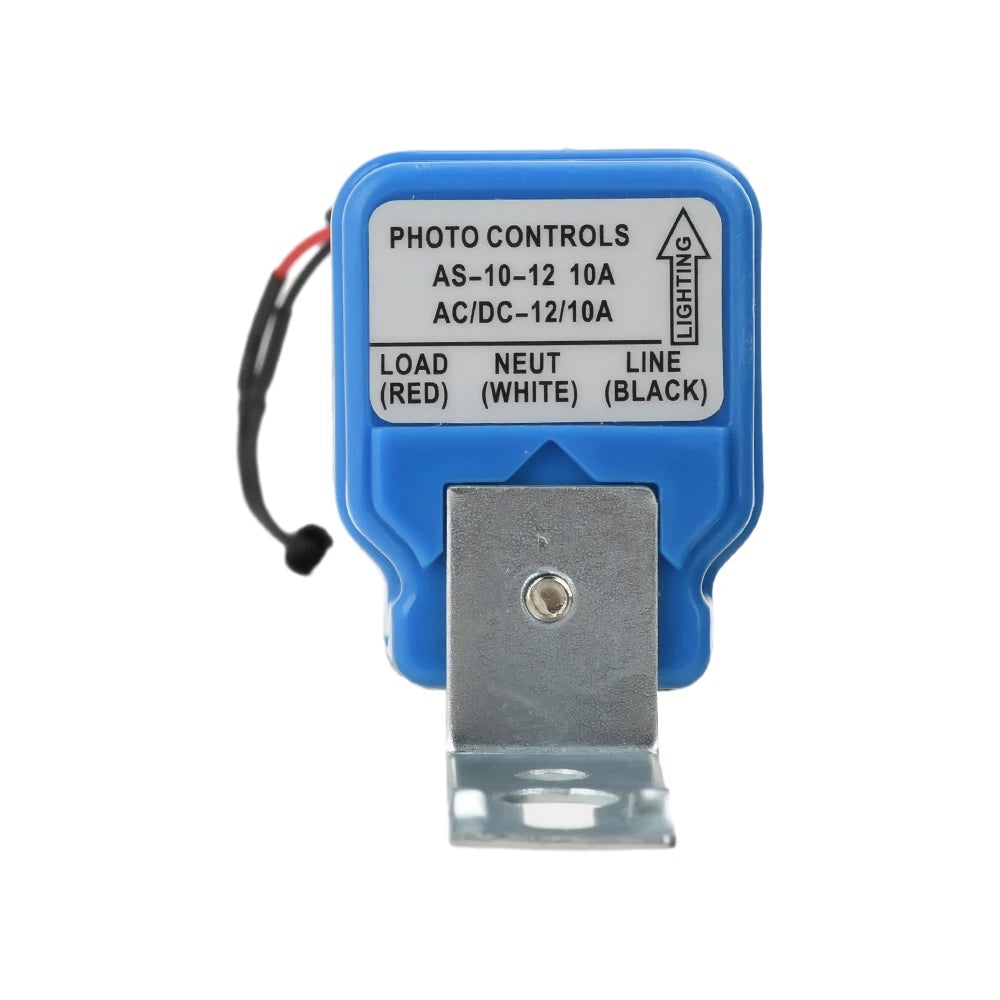

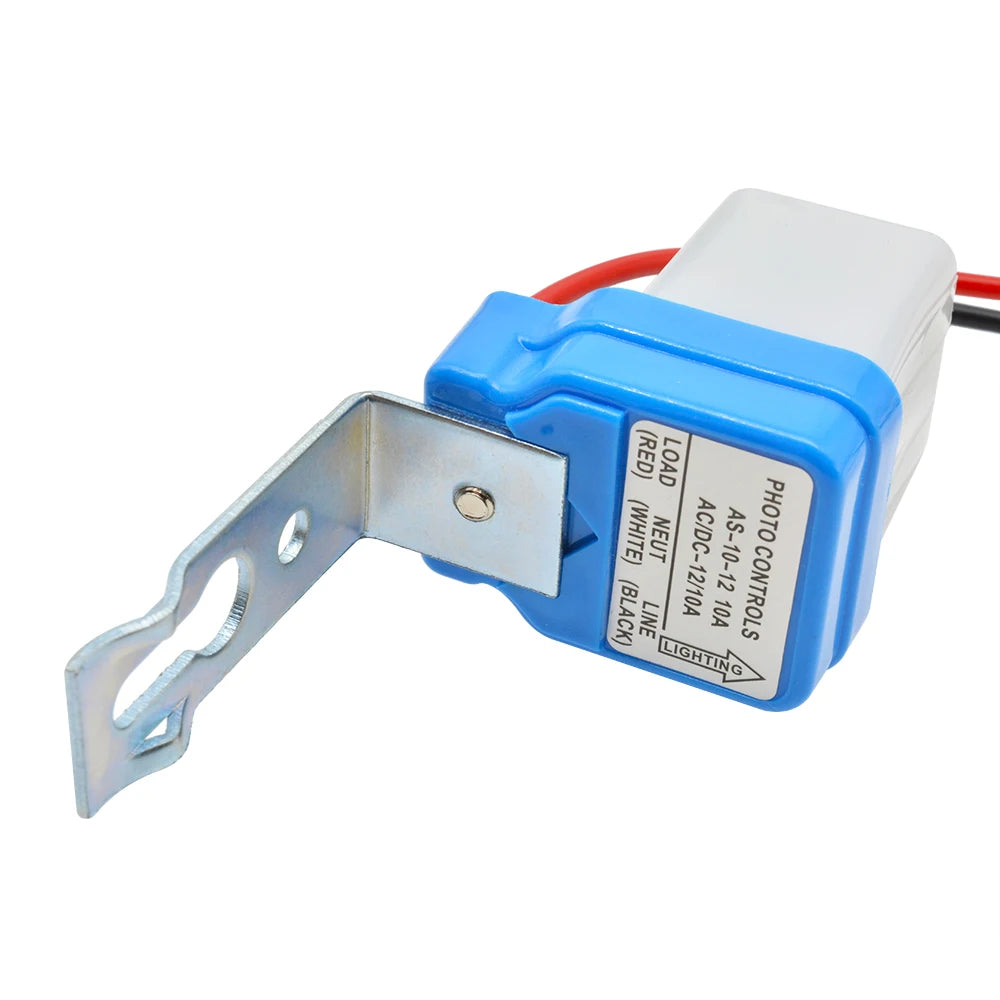

Features: AS-10 Street Lamp Automatic Switch

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Alloy

Model Number: Street Light Switch

Origin: Mainland China

Smart home platform: Other

Switch Type: Photoelectric Switch

Warranty: Street Light Switch

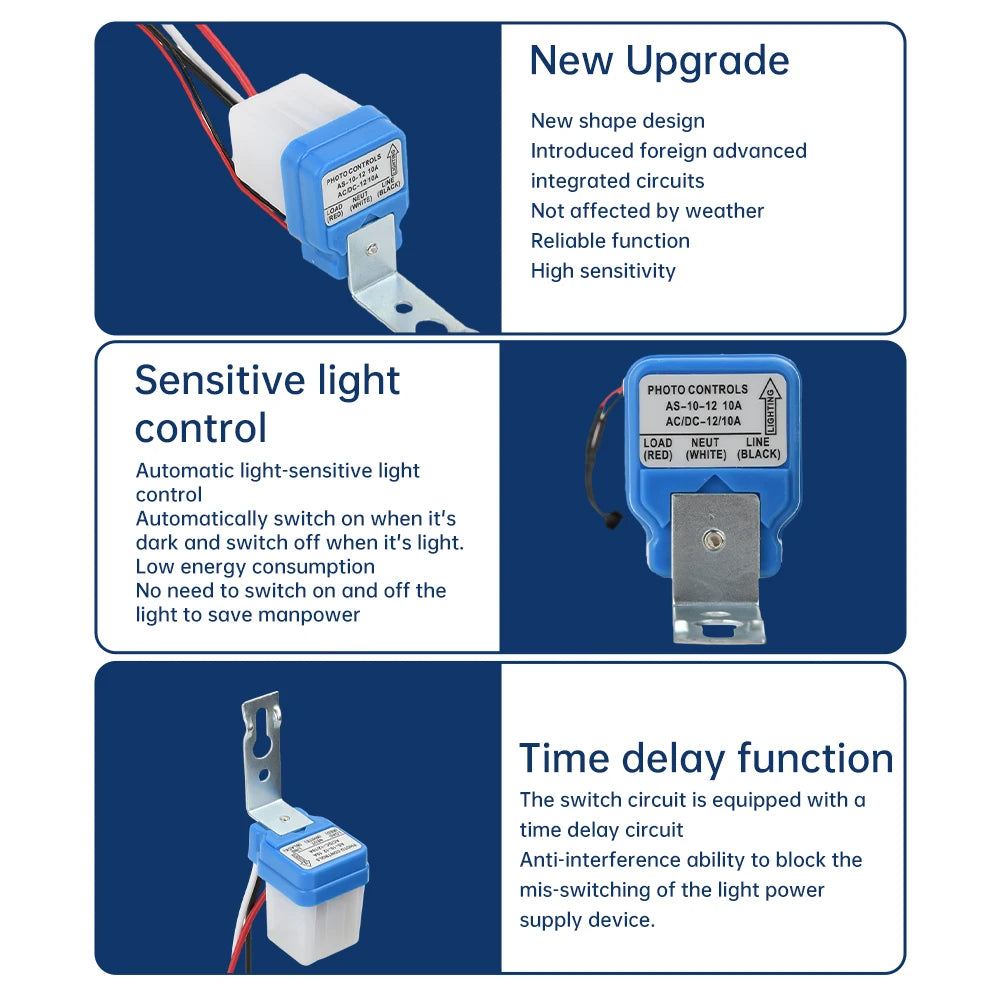

Product Features:

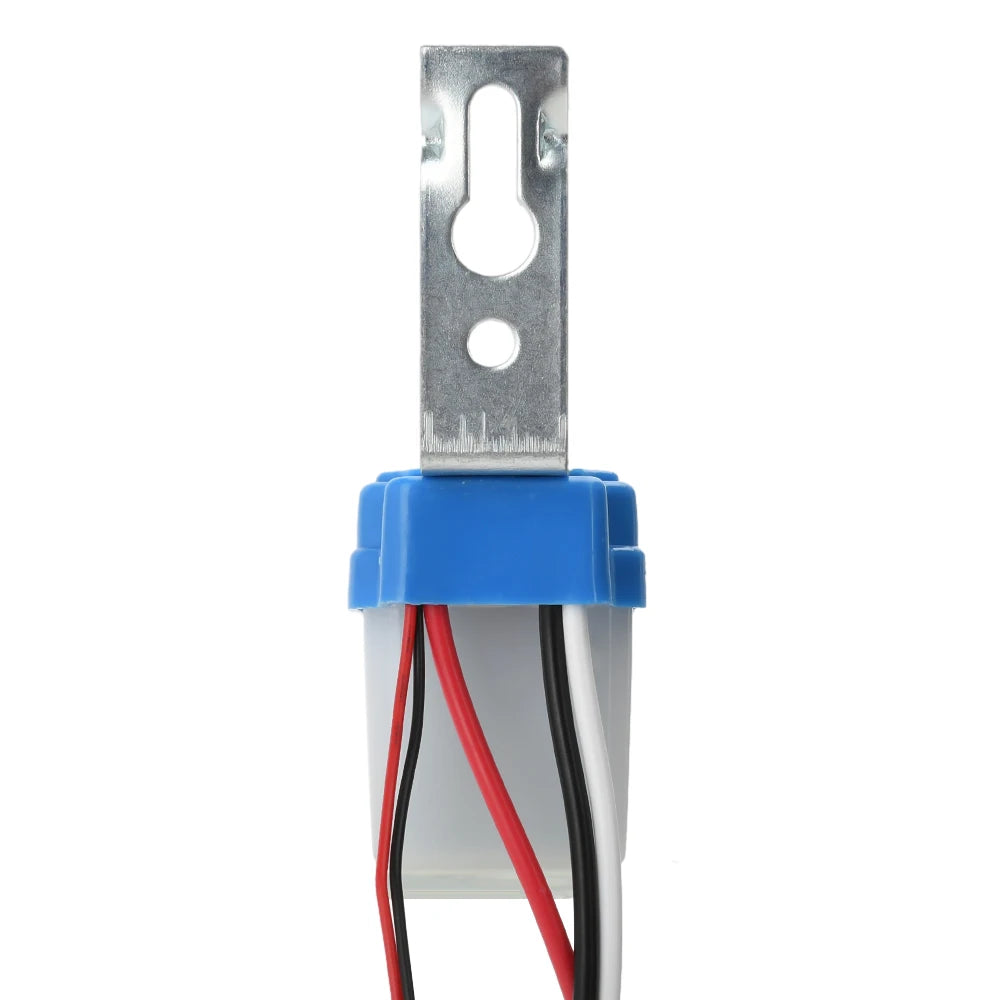

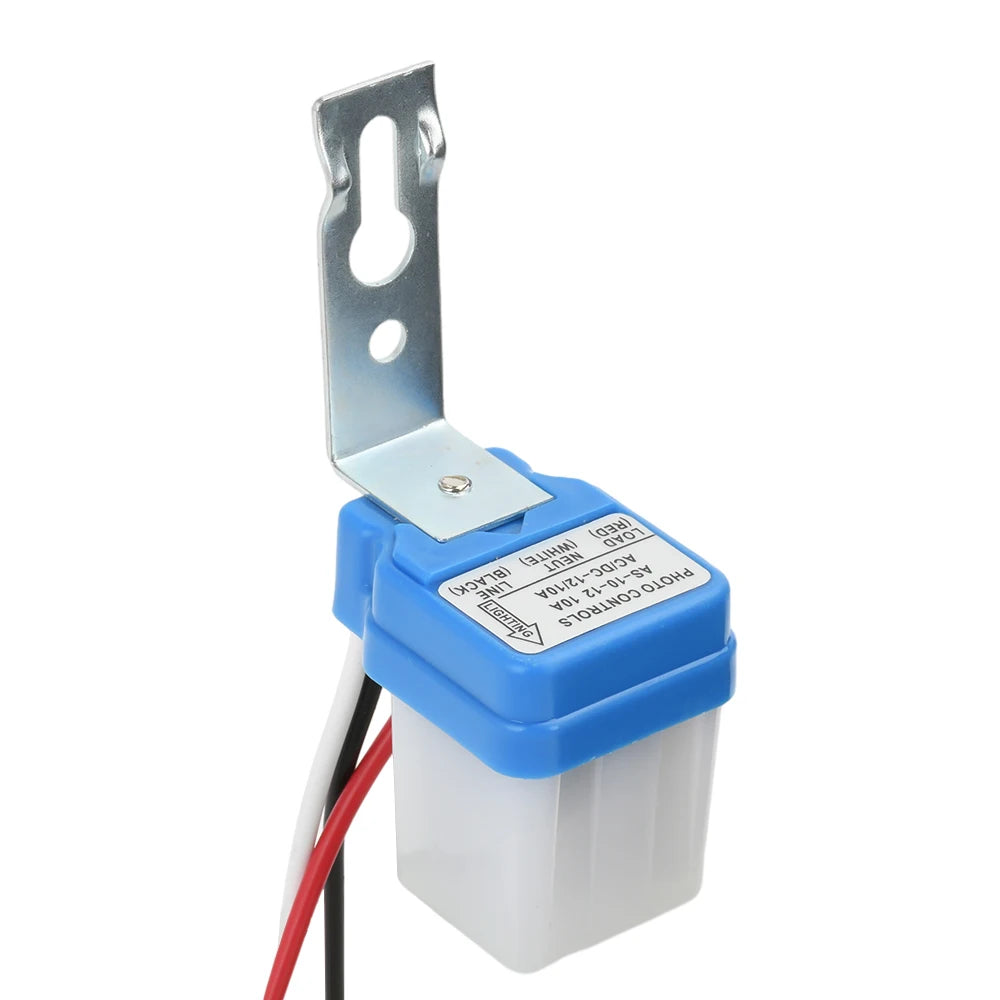

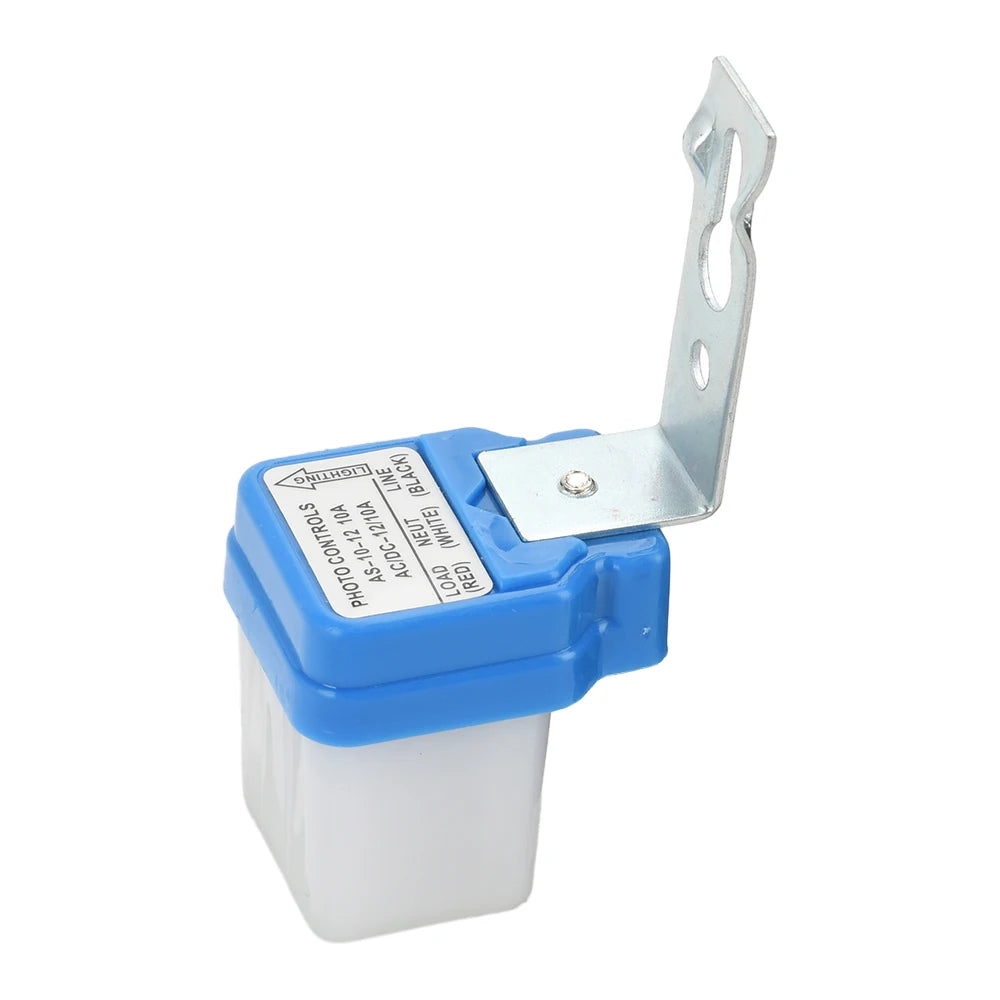

It is small in size, easy to install, and adopts metal wall-mounted installation, which is firm and reliable

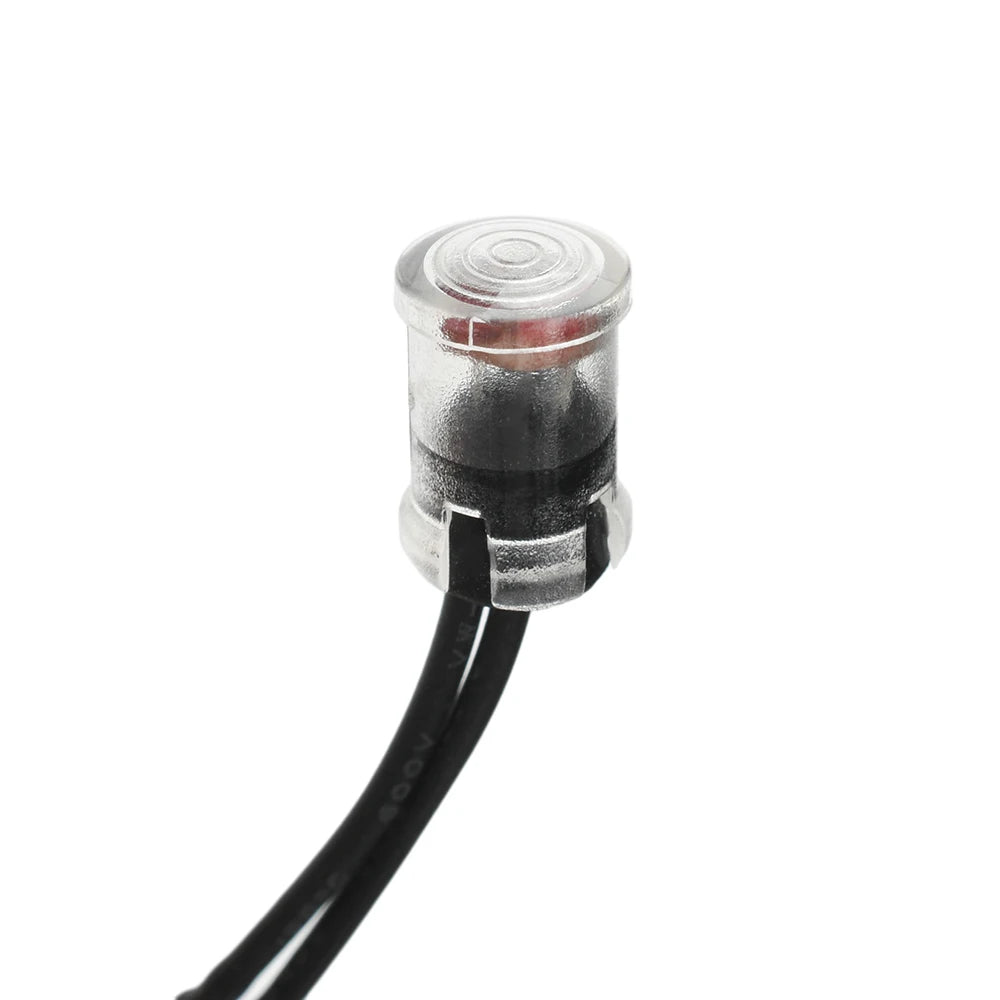

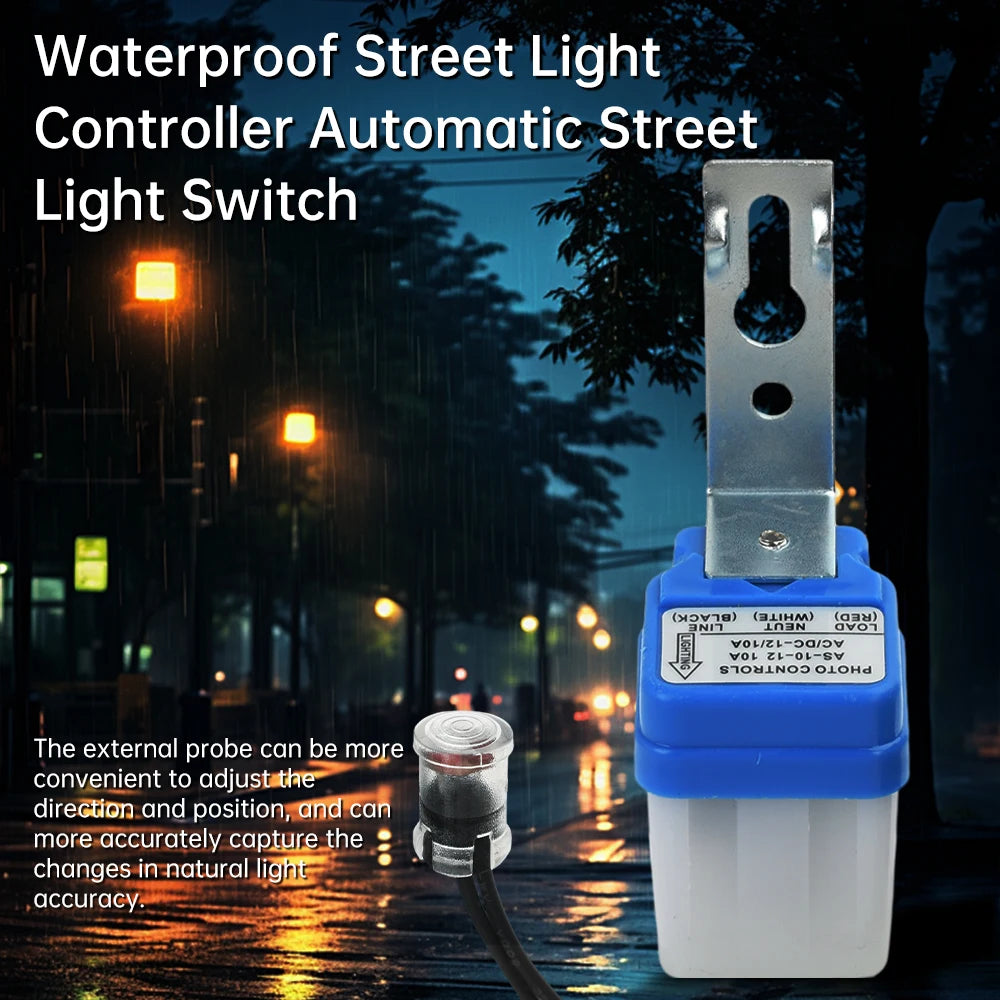

2. The external probe can be adjusted in direction and position more conveniently, and can capture the changes of natural light more accurately with higher precision.

3. The lights turn on automatically when it gets dark and turn off automatically when it gets light. There's no need to think the lights are on.

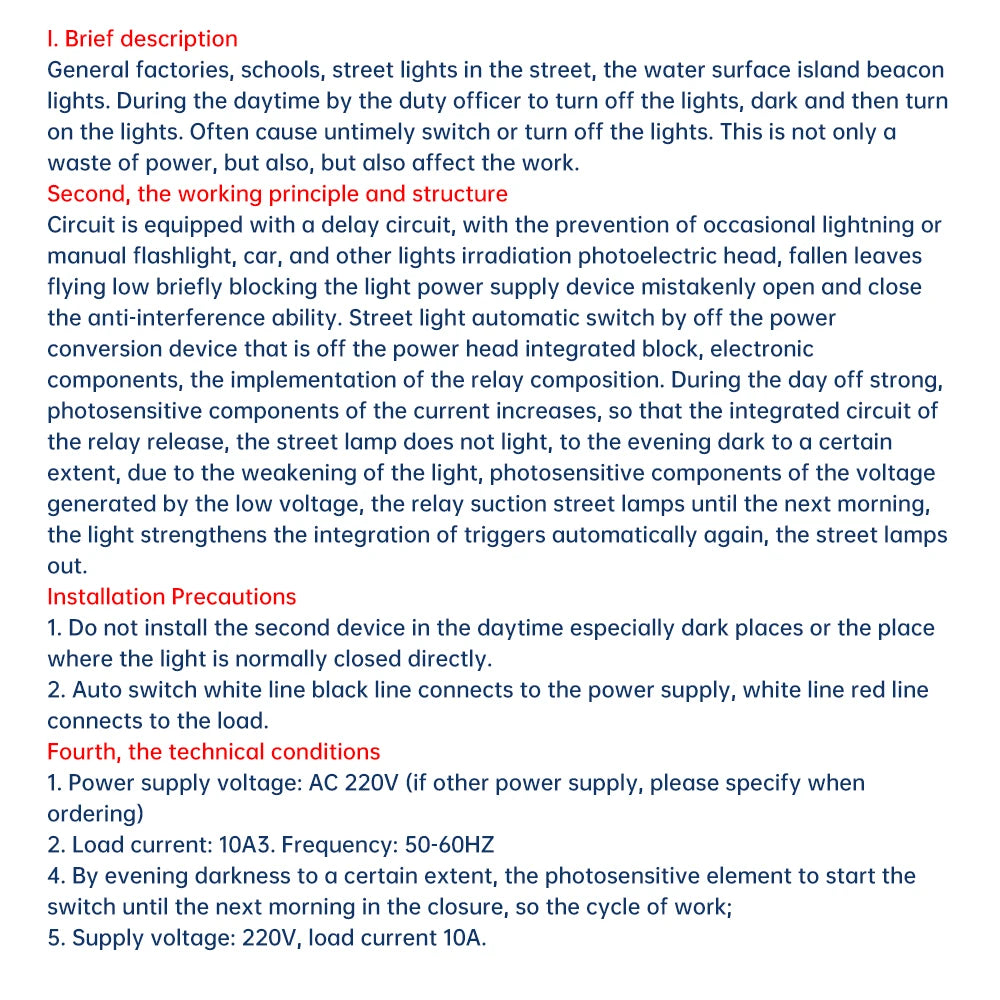

4. It is equipped with an internal delay circuit and has the anti-interference ability to block the false switching of the light power supply.

5. The internal relay control is compatible with various loads, including LED lights, festival lights, fluorescent lamps, incandescent lamps, etc.

6. Suitable for various places: Applicable to household lamps, street lamps, garden lamps, advertising light boxes, neon lights, etc.

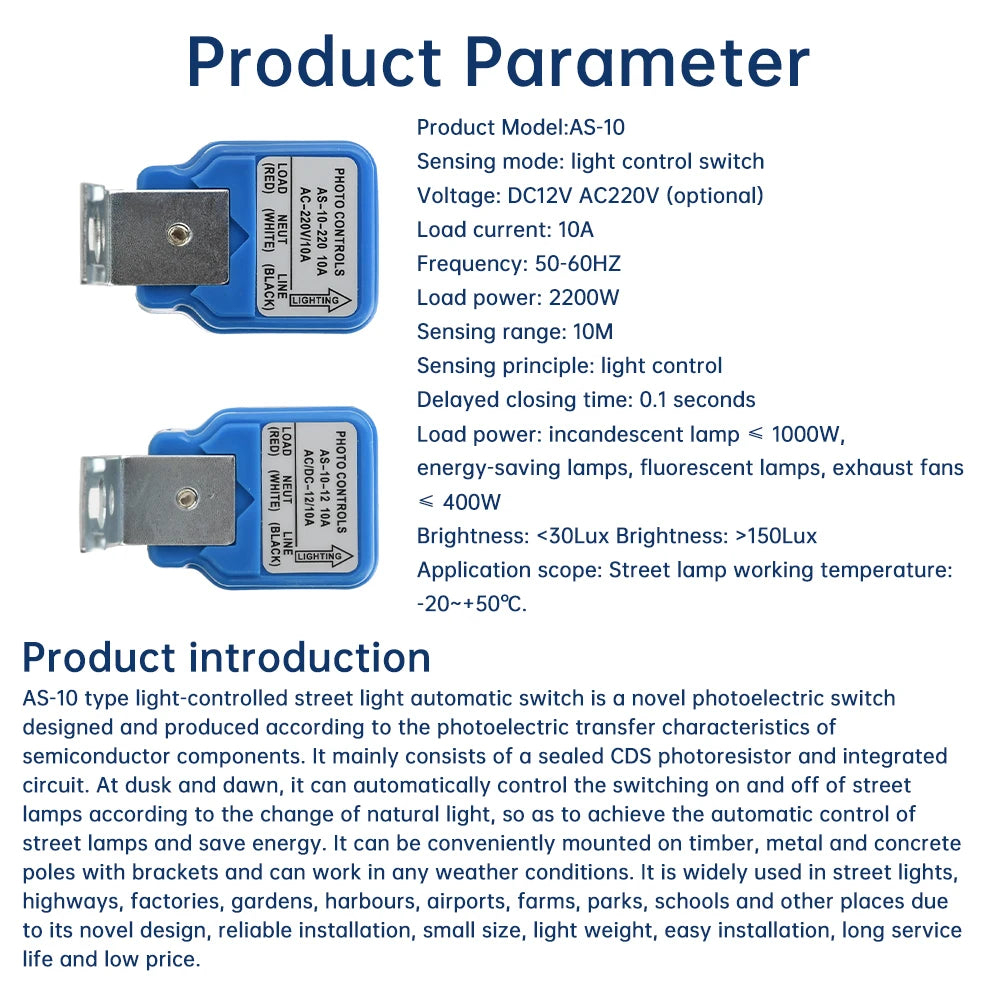

Product parameters:

Product model: AS-10

Sensing method: Light control switch

Voltage: DC 12V, AC 220V (optional)

Style: Old/New (External probe)

Load current: 10A

Frequency: 50-60HZ

Load power: 2200W

Sensing range: 10M

Induction principle: Light control

Delayed closing time: 0.1 seconds

Load power: Incandescent lamp ≤1000W, energy-saving lamp, fluorescent lamp and exhaust fan ≤400W

The brightness of the turned light: < 30Lux

Brightness when the lights are off: > 150Lux

Application scope: Street lamps

Operating temperature: -20 to +50℃

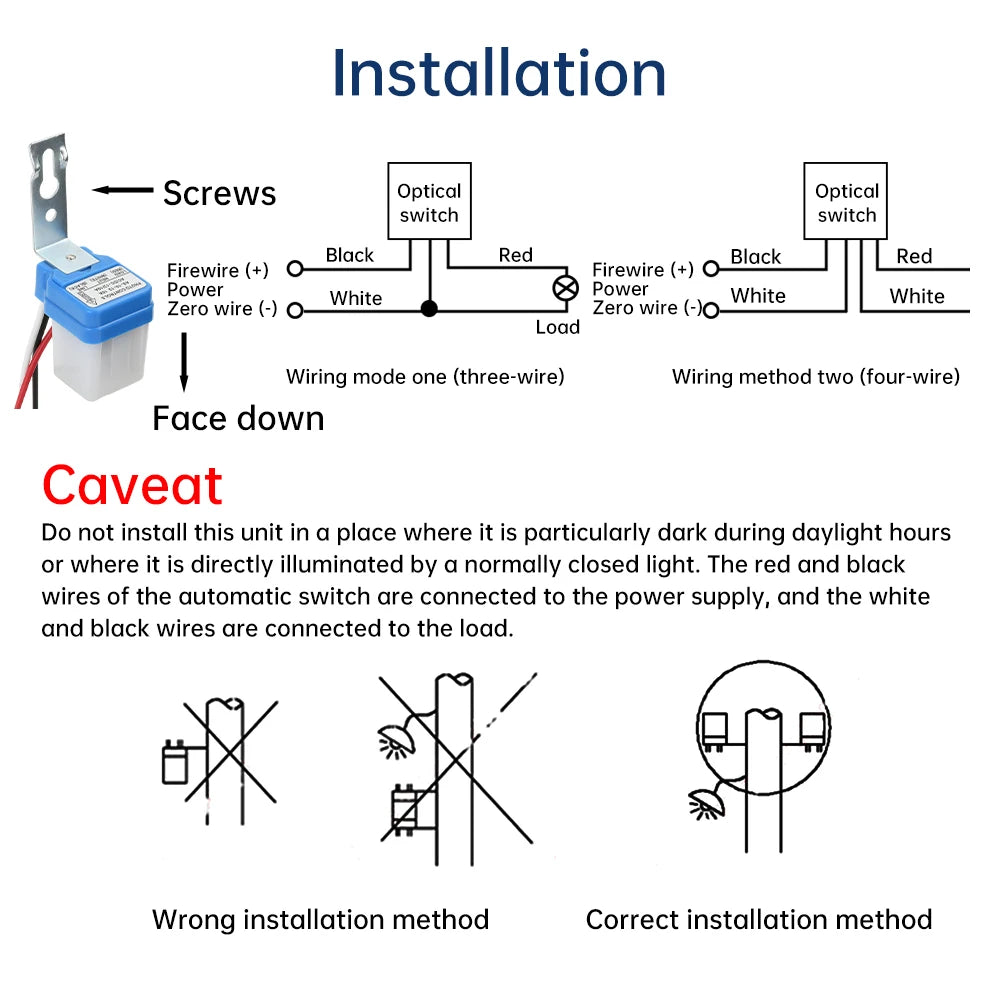

Installation precautions:

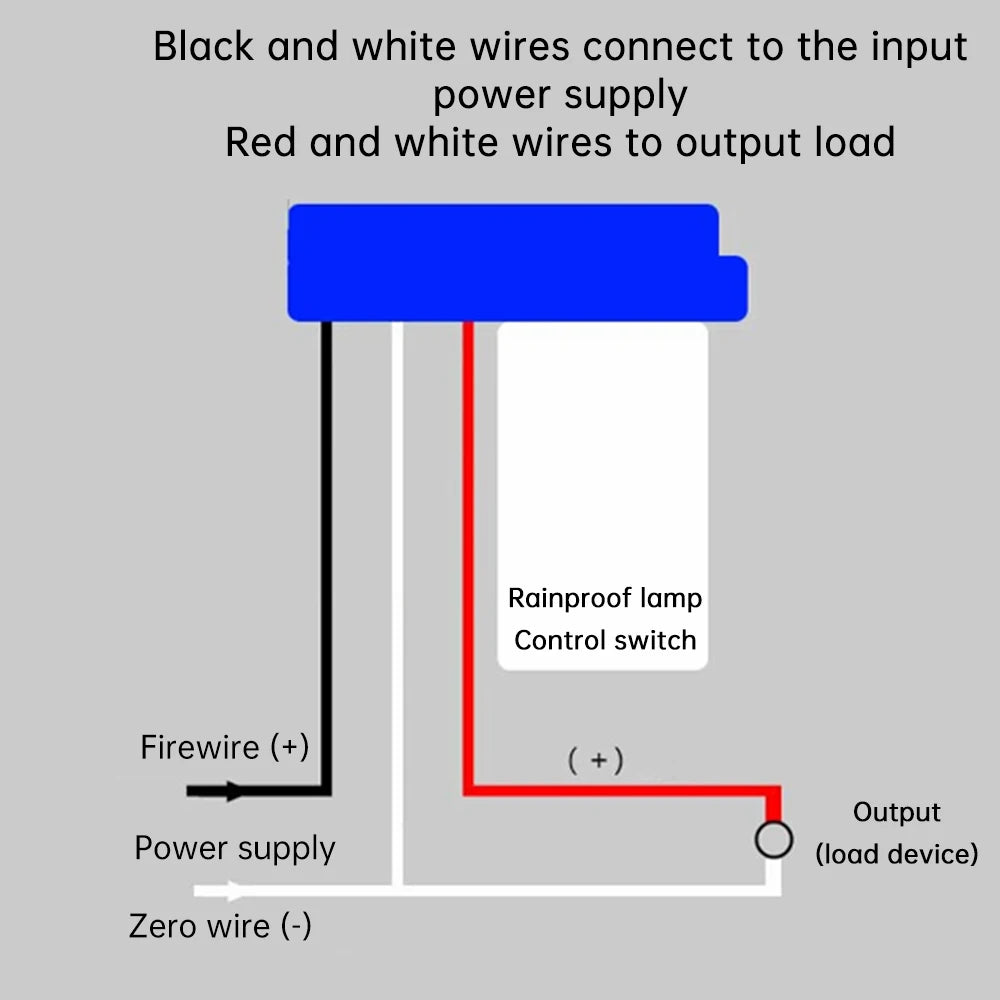

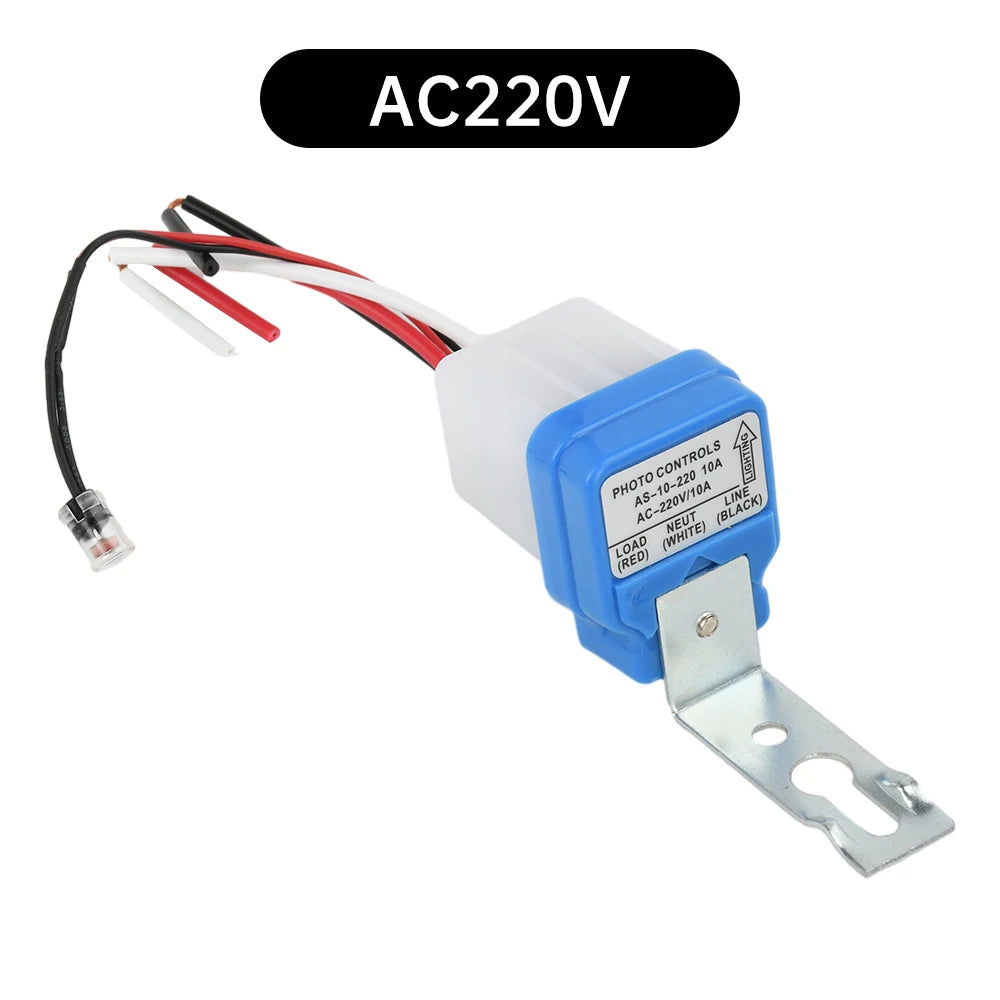

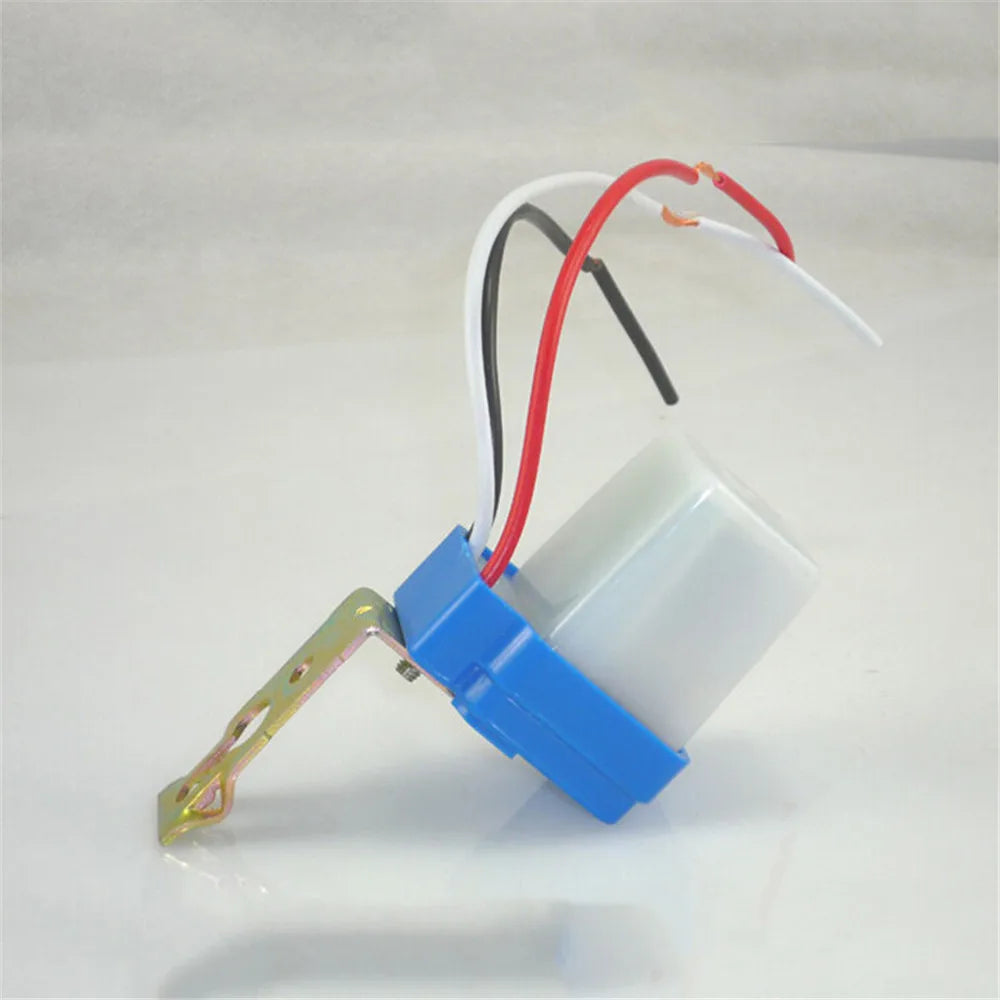

Do not install this device in a particularly dark place during the day or in a place directly illuminated by a normally off light. Connect the red and black wires of the automatic switch to the power supply and the white and black wires to the load

Shipping list: Street lamp light control switch *1
