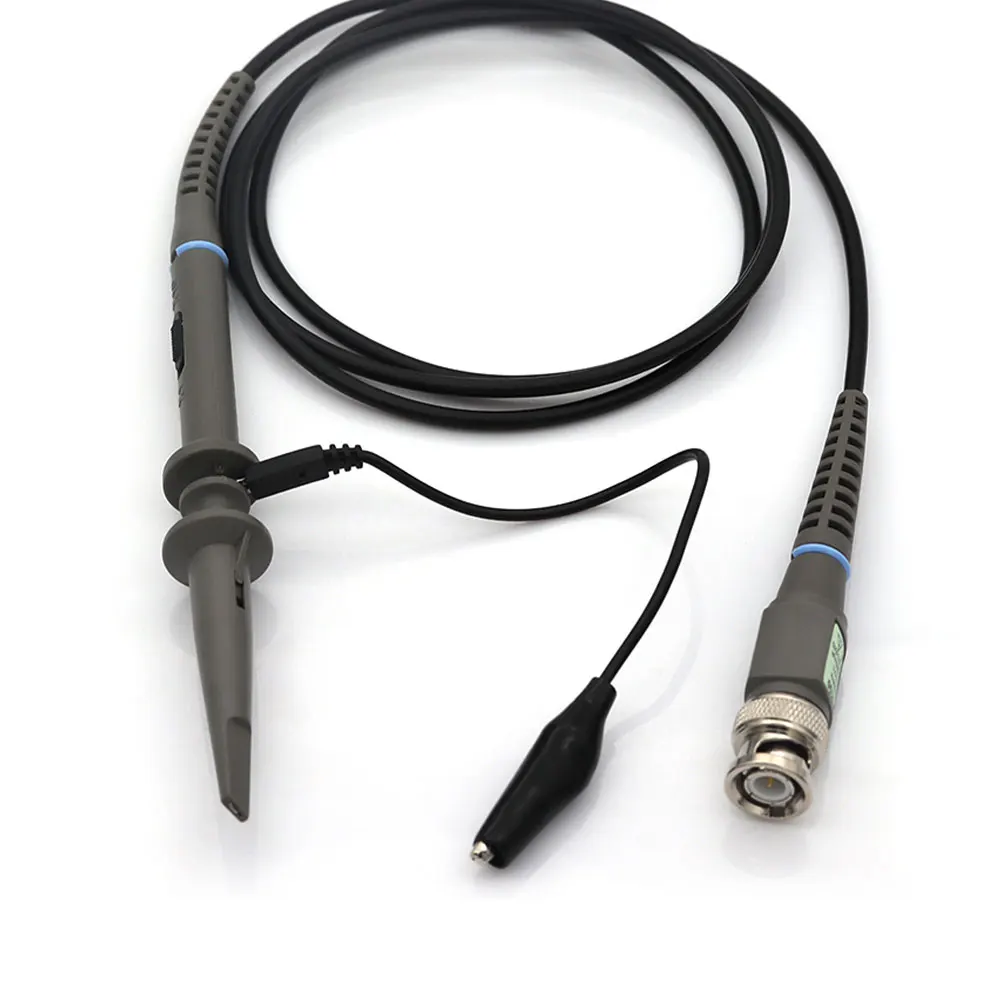

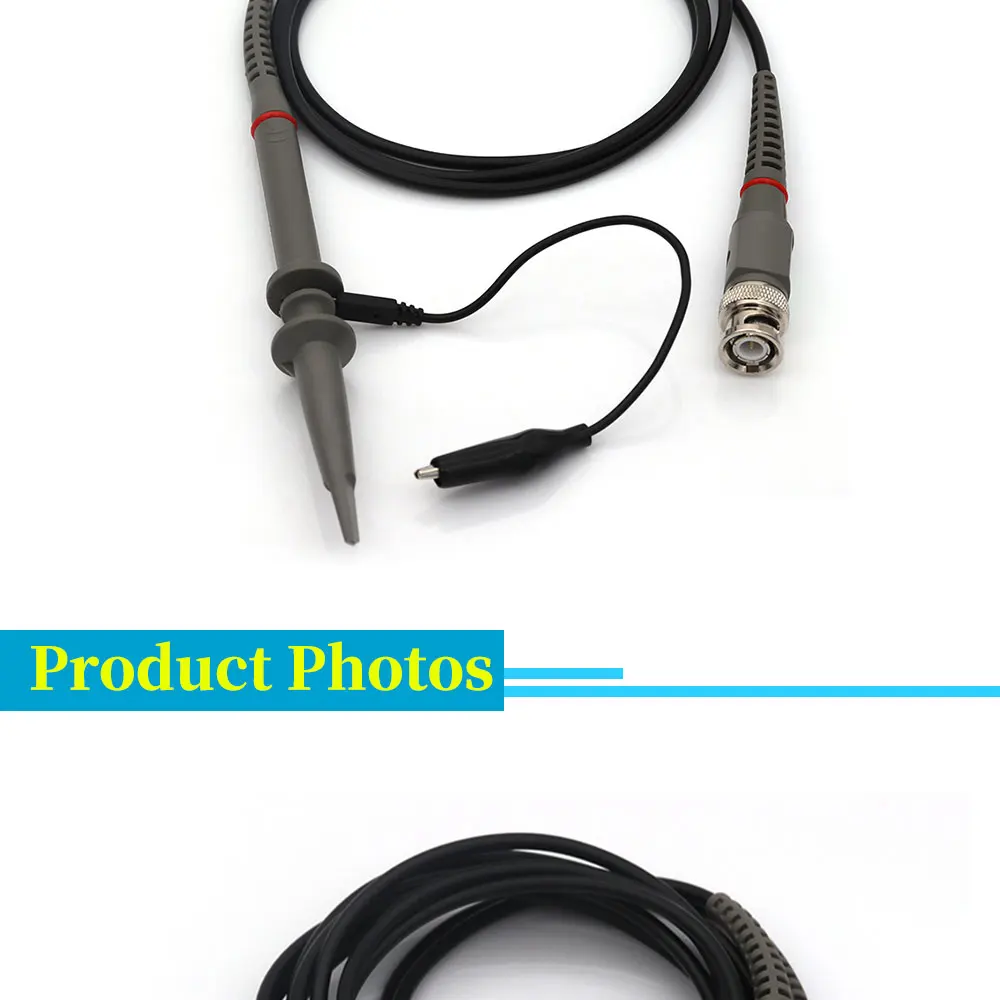

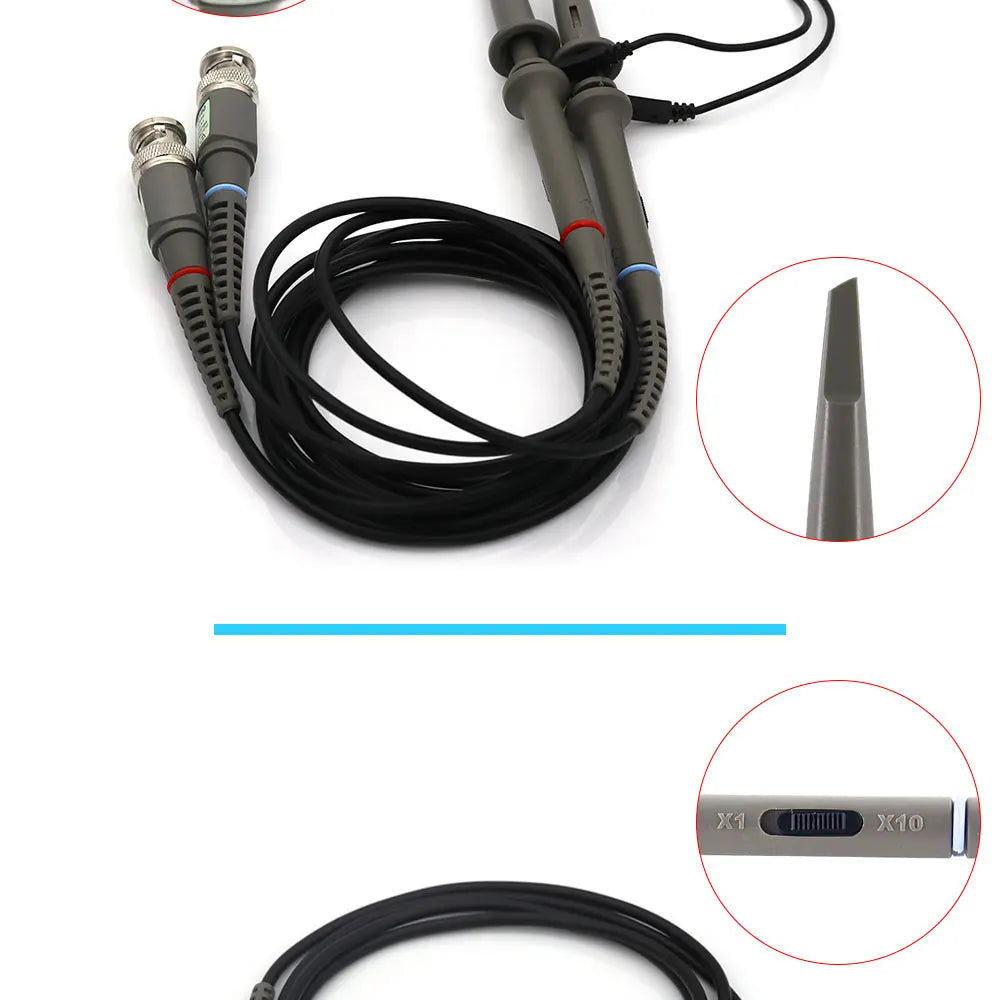

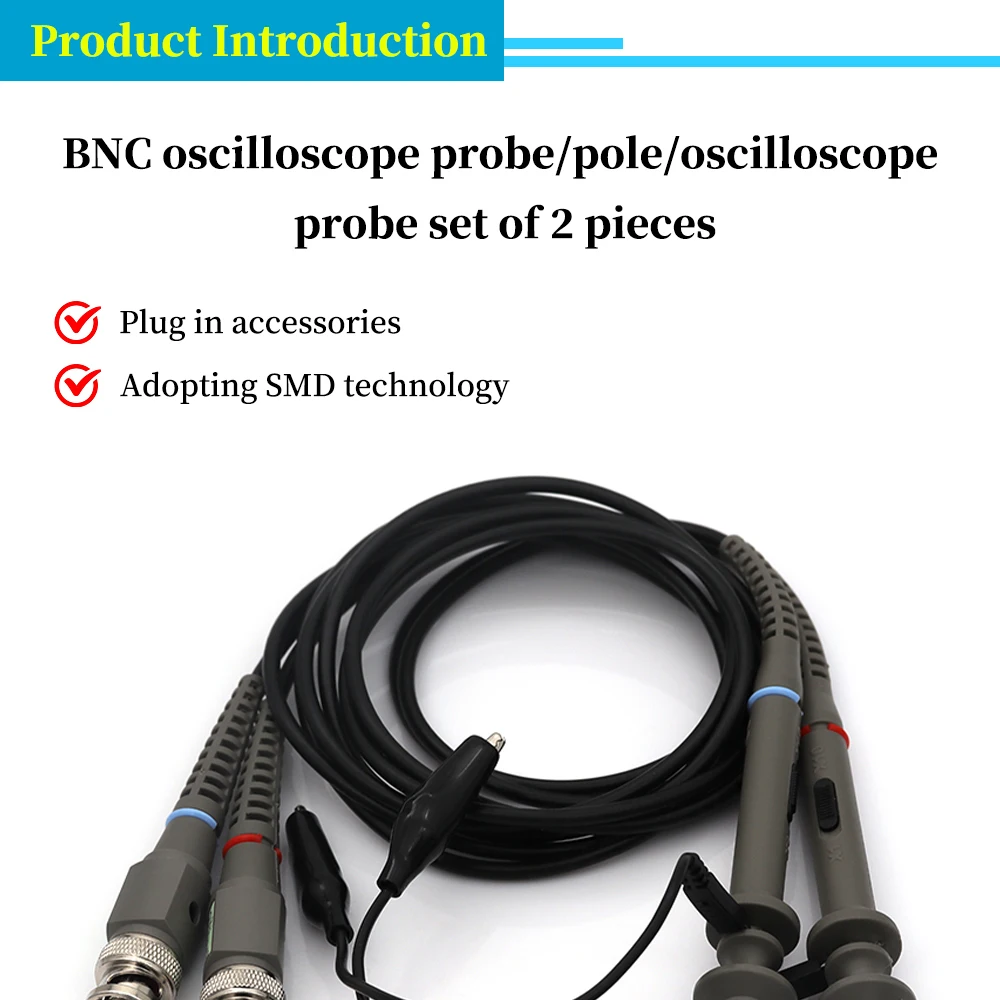

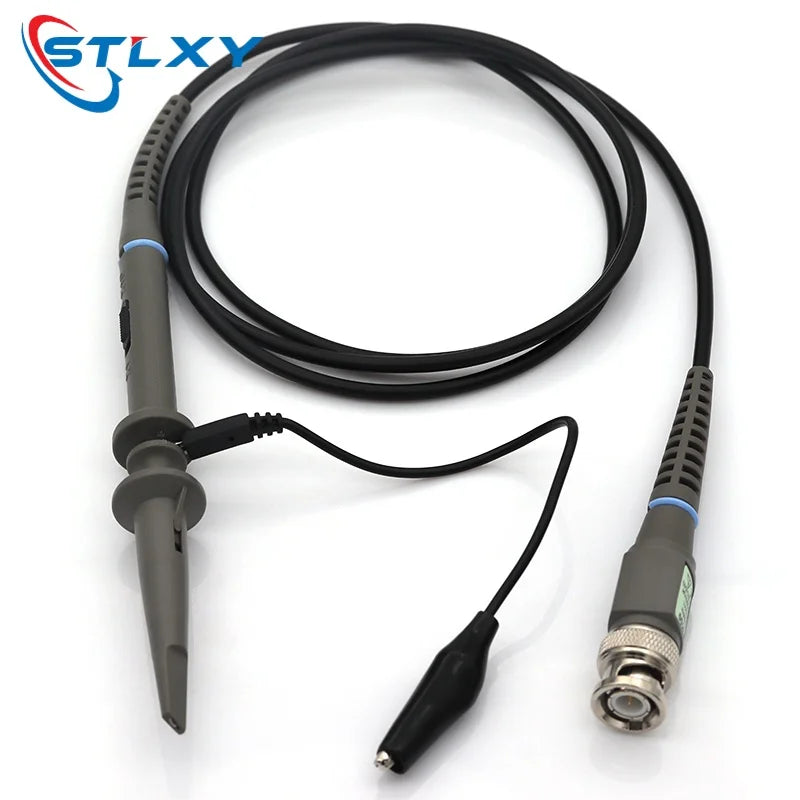

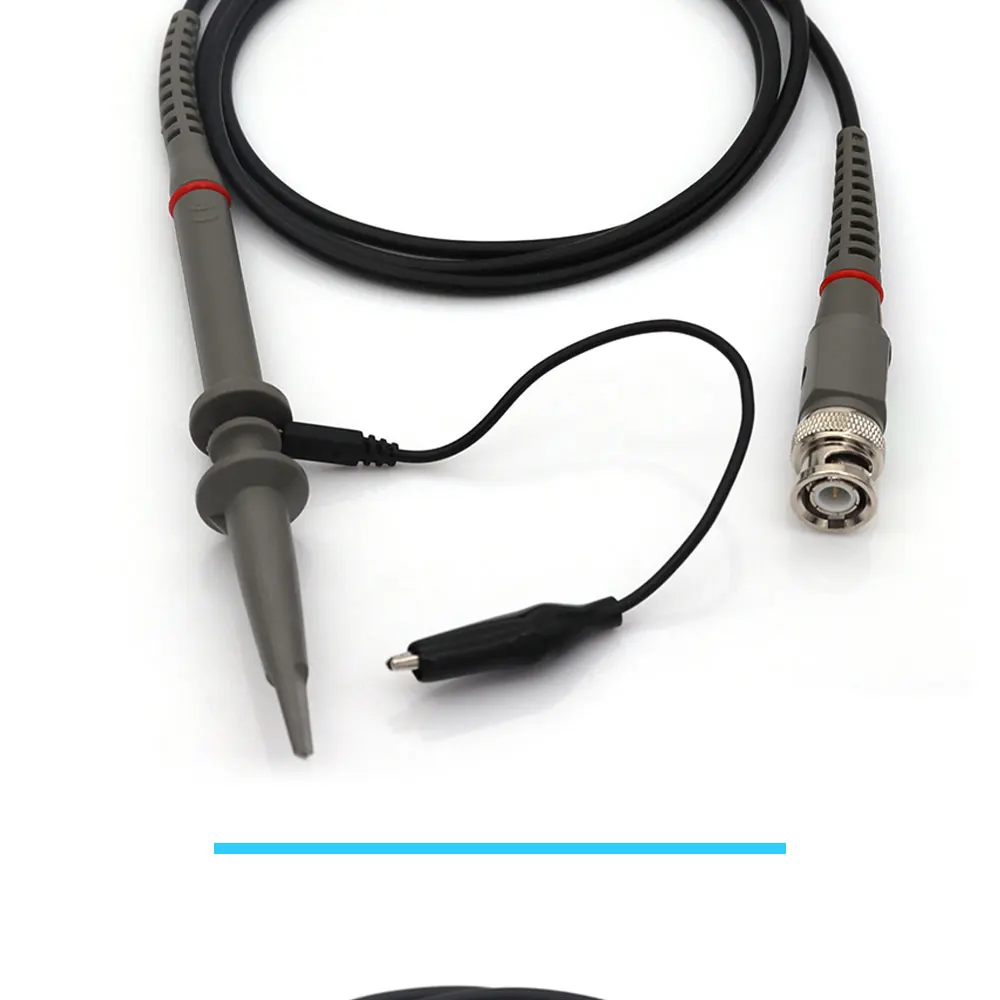

BNC Oscilloscope Probe P6100 100MHz Oscilloscope Probe Oscilloscope Probe 2-piece set
$31.28
Sale price
$31.28
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: Stlxy
DIY Supplies: Electrical
High-concerned chemical: none
Origin: Mainland China
Semi-finishedproduct: No

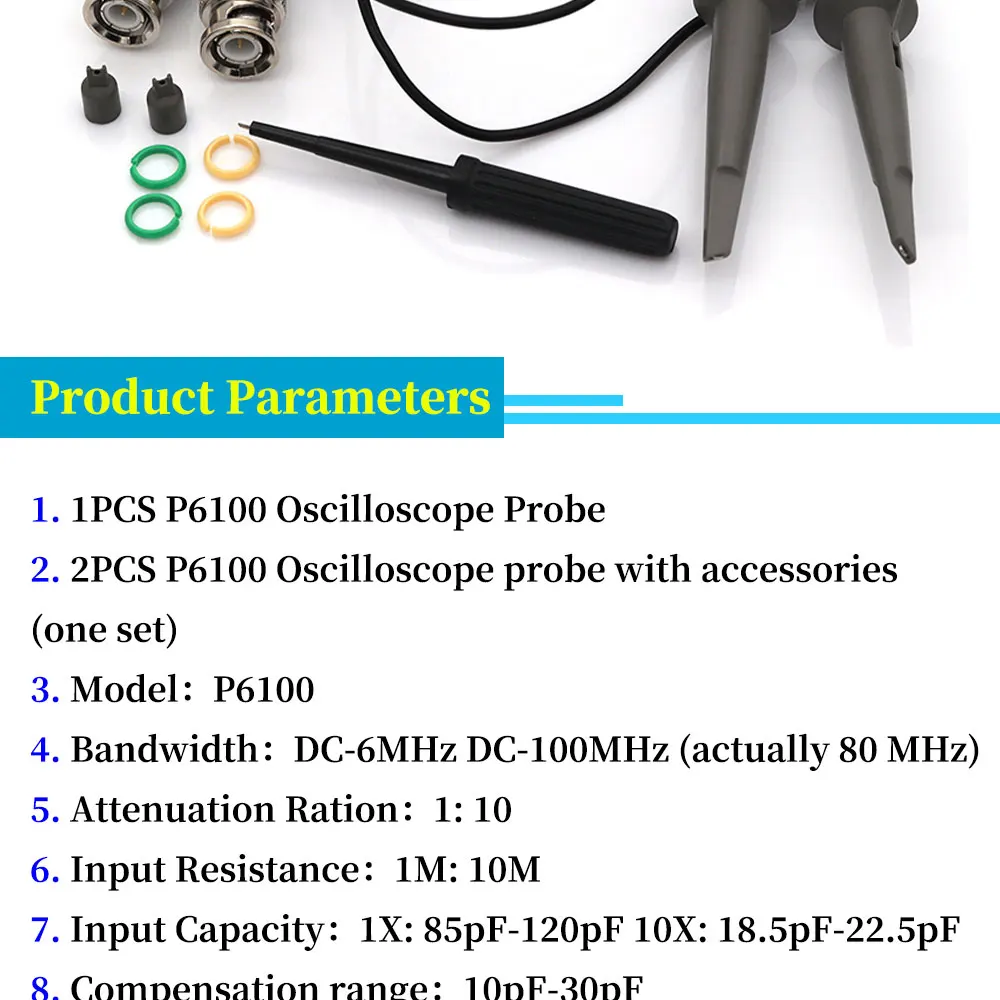

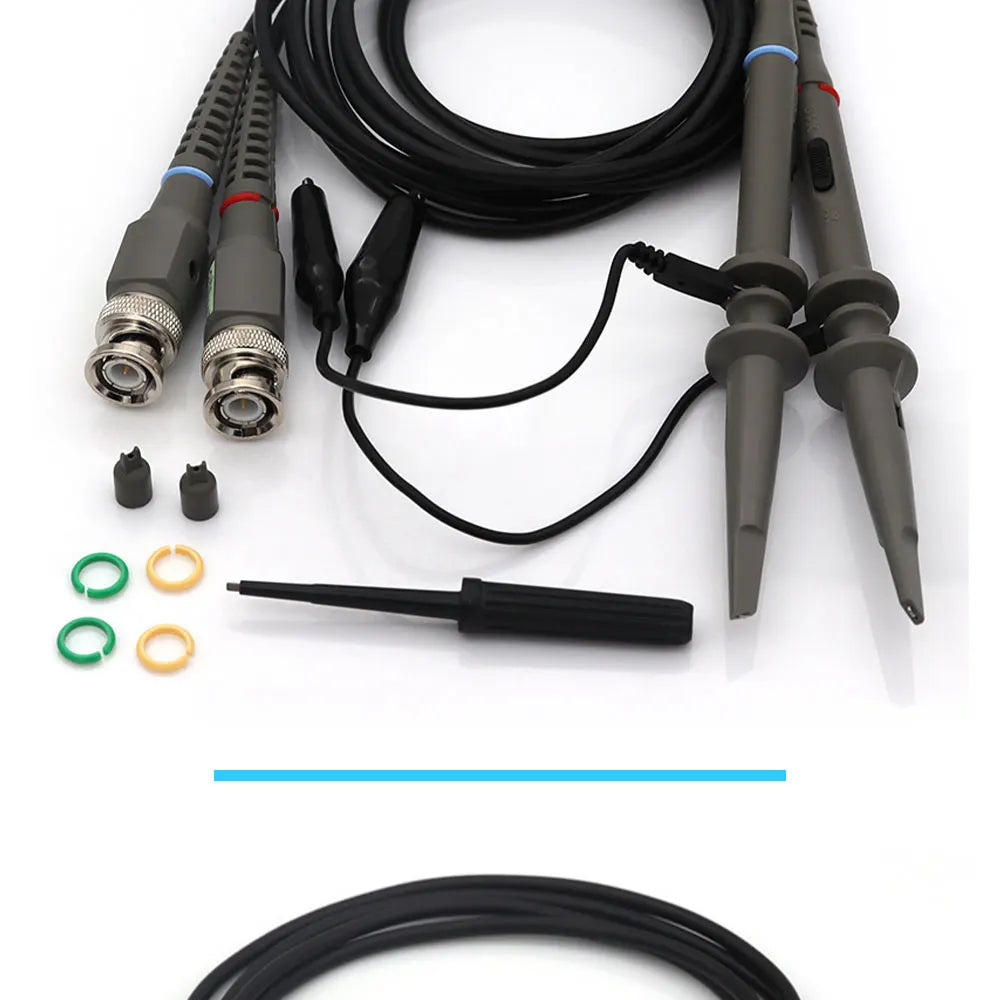

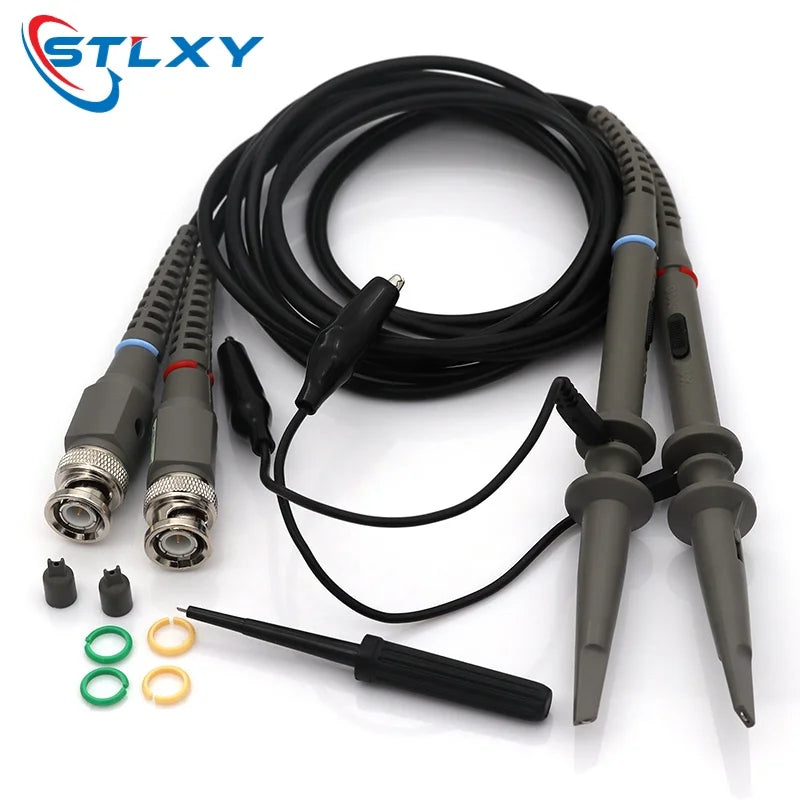

2PCS P6100 Oscilloscope probe with accessories （ one set ）
Model: P6100
Bandwidth: DC-6MHz DC-100MHz (actually 80 MHz)
Attenuation Ration: 1: 10
Input Resistance: 1 M: 10 M
Input Capacity: 1X: 85pF-120pF 10X: 18.5pF-22.5pF
Compensation range: 10pF-30pF

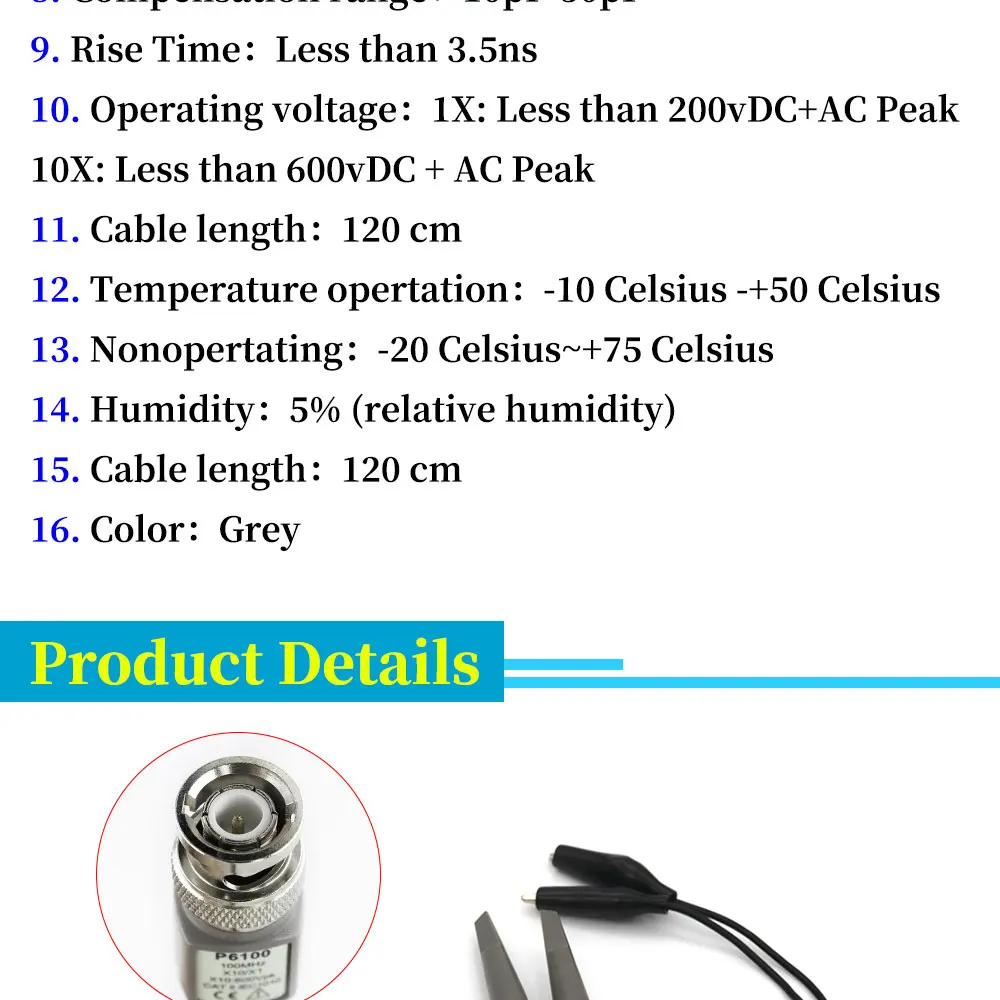

Rise Time: Less than 3.5ns
Operating voltage: 1X: Less than 200vDC + AC Peak 10X: Less than 600vDC + AC Peak
Cable length: 120 cm
Temperature opertation: -10 Celsius ~ + 50 Celsius
Nonopertating: -20 Celsius ~ + 75 Celsius
Humidity:5% (relative humidity)
Cable length: 120 cm
Color: Grey
Notes:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
