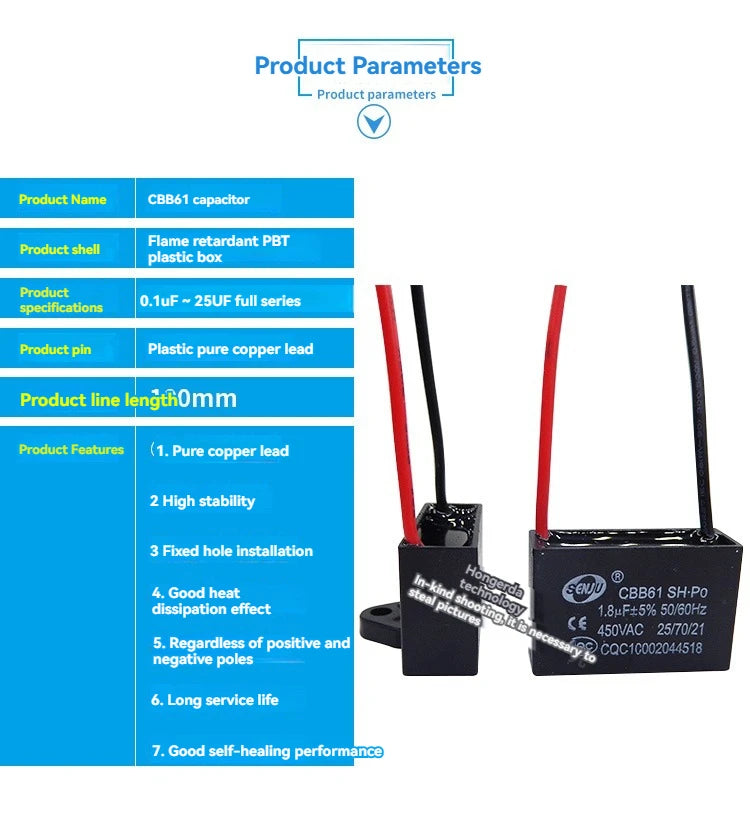

SPECIFICATIONS

Description

Report Item

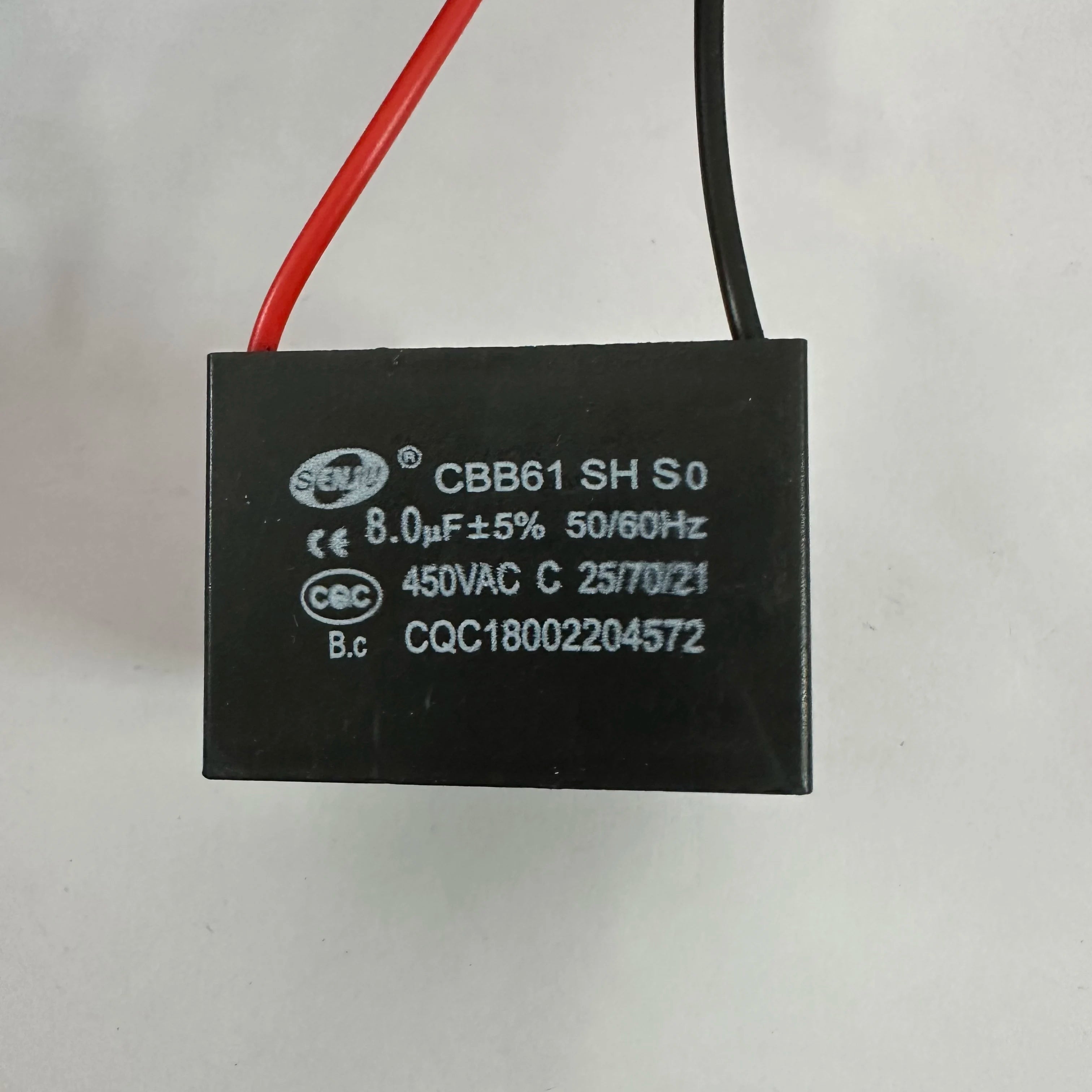

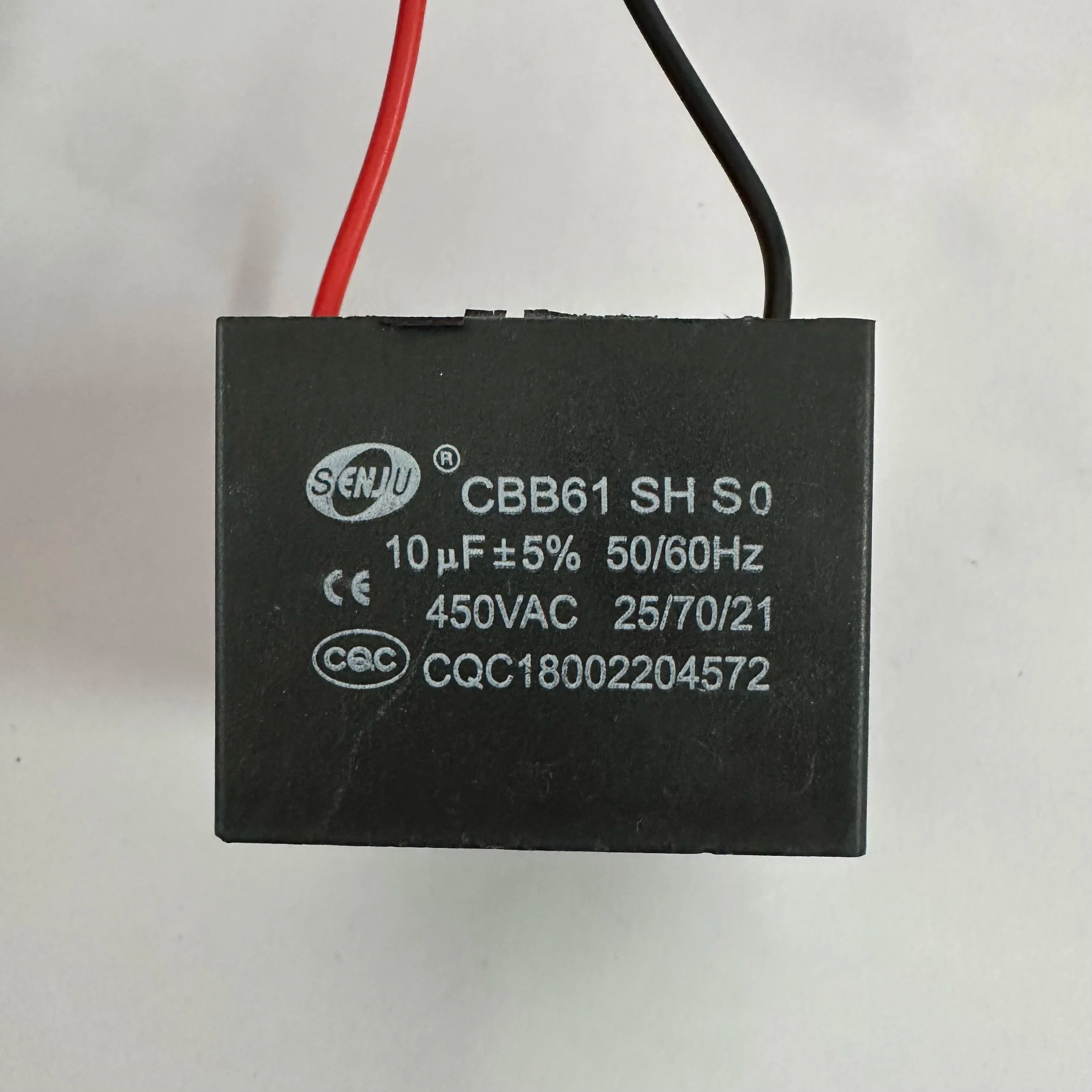

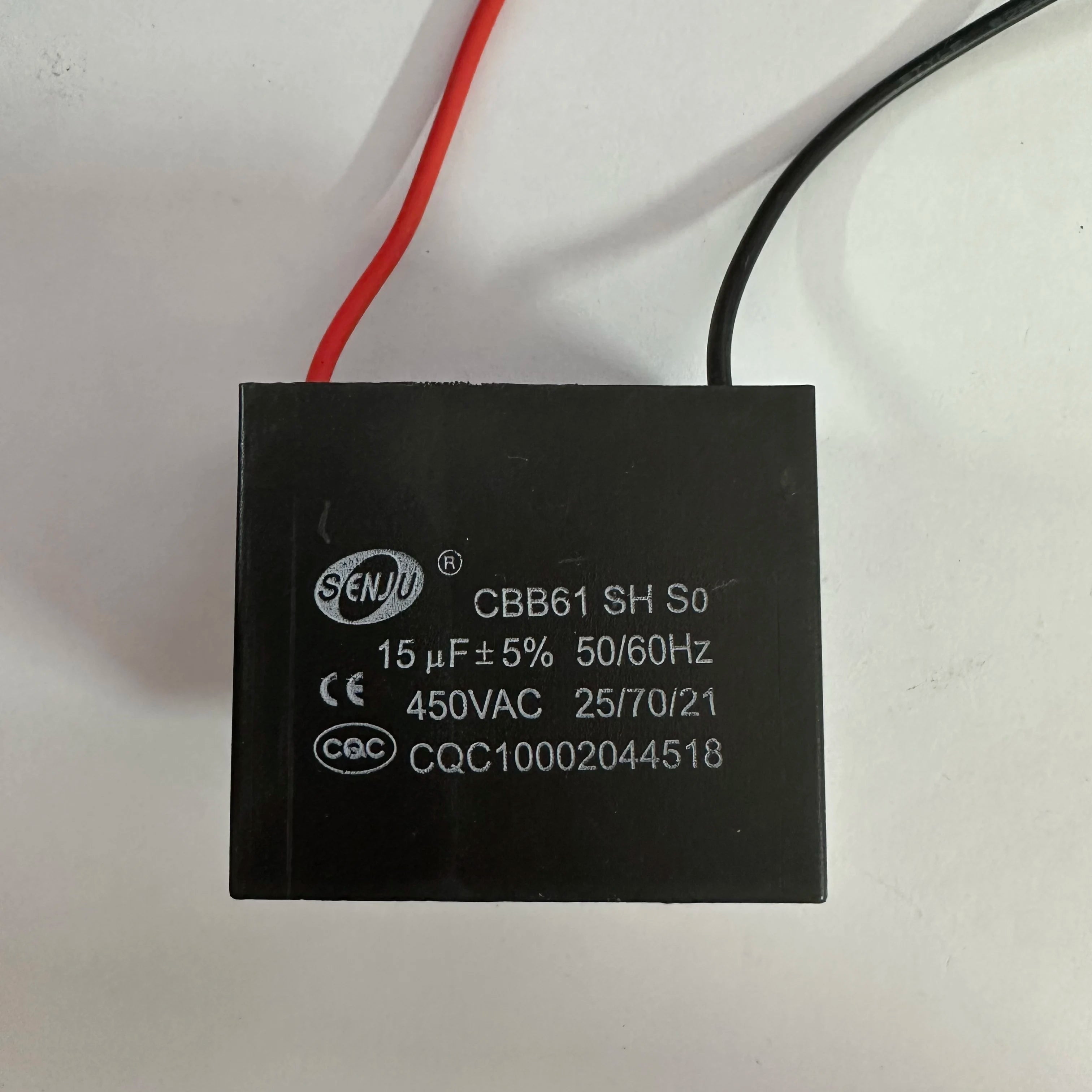

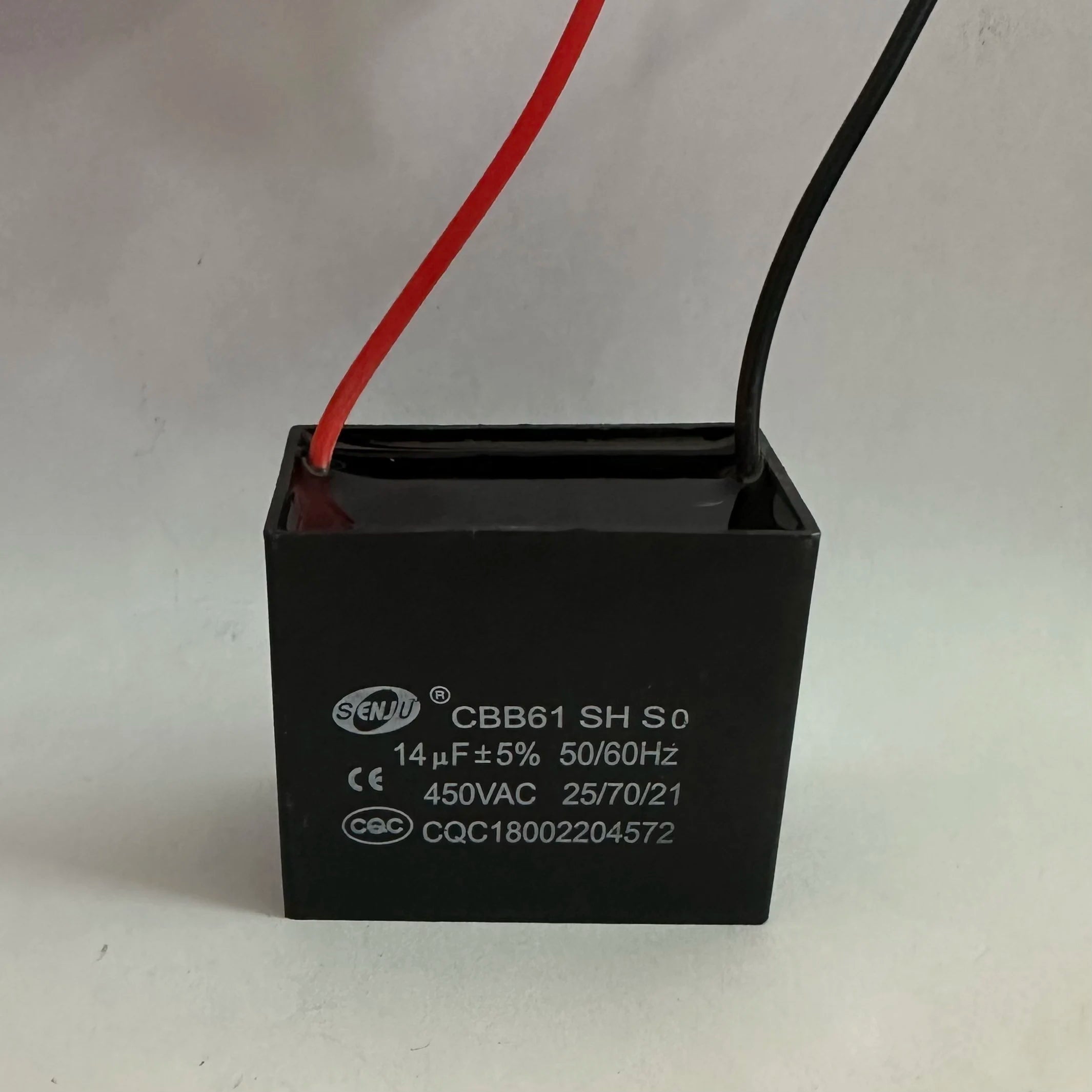

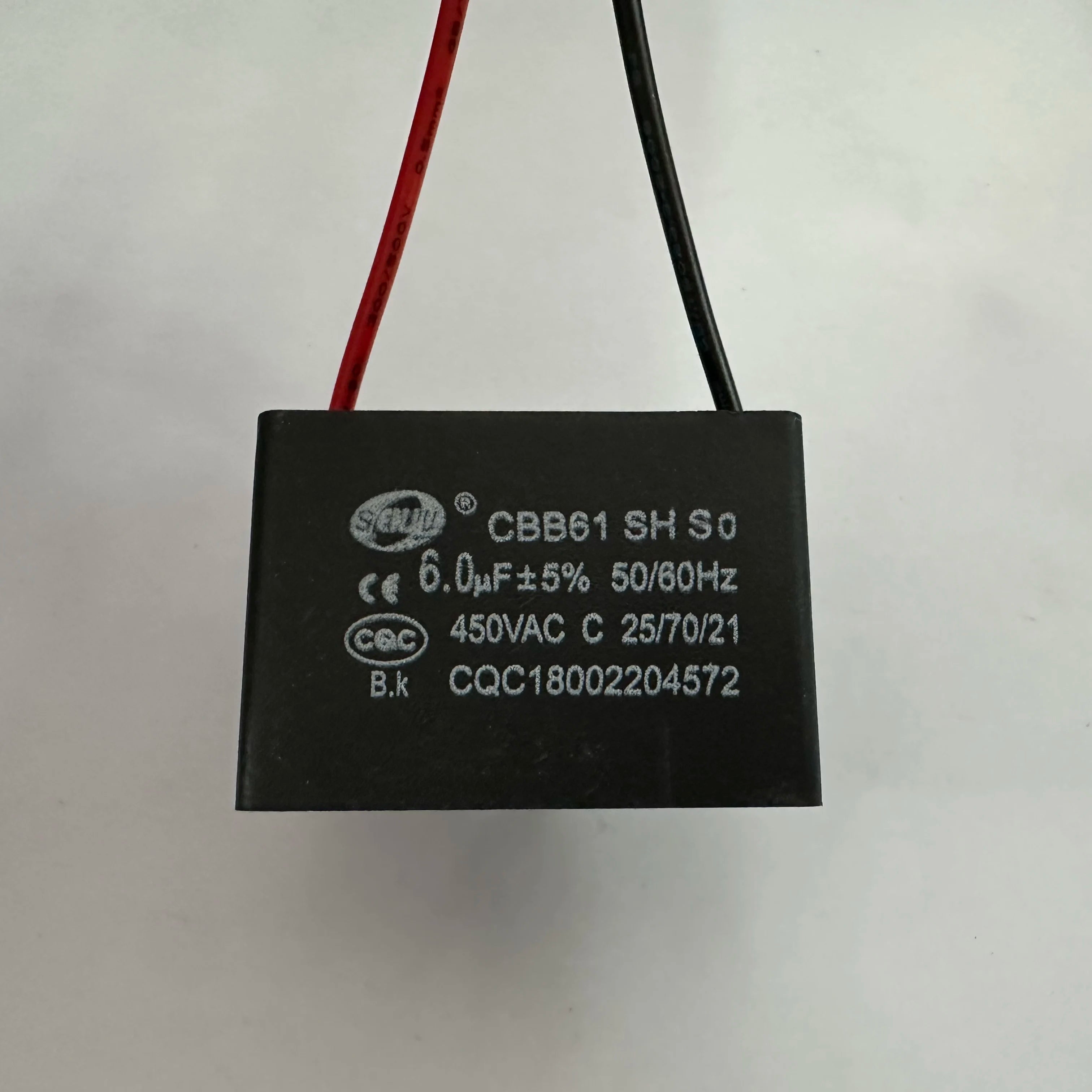

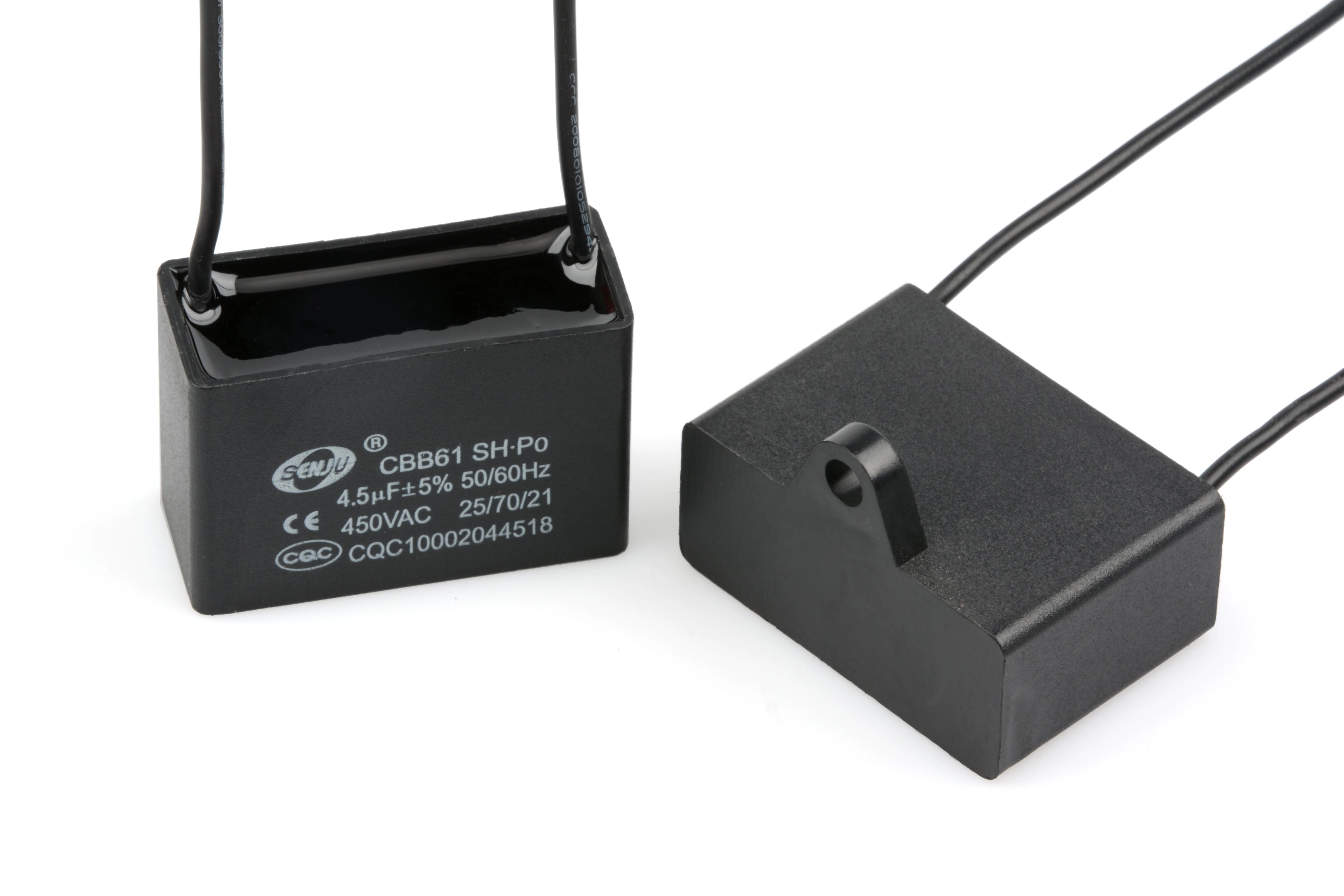

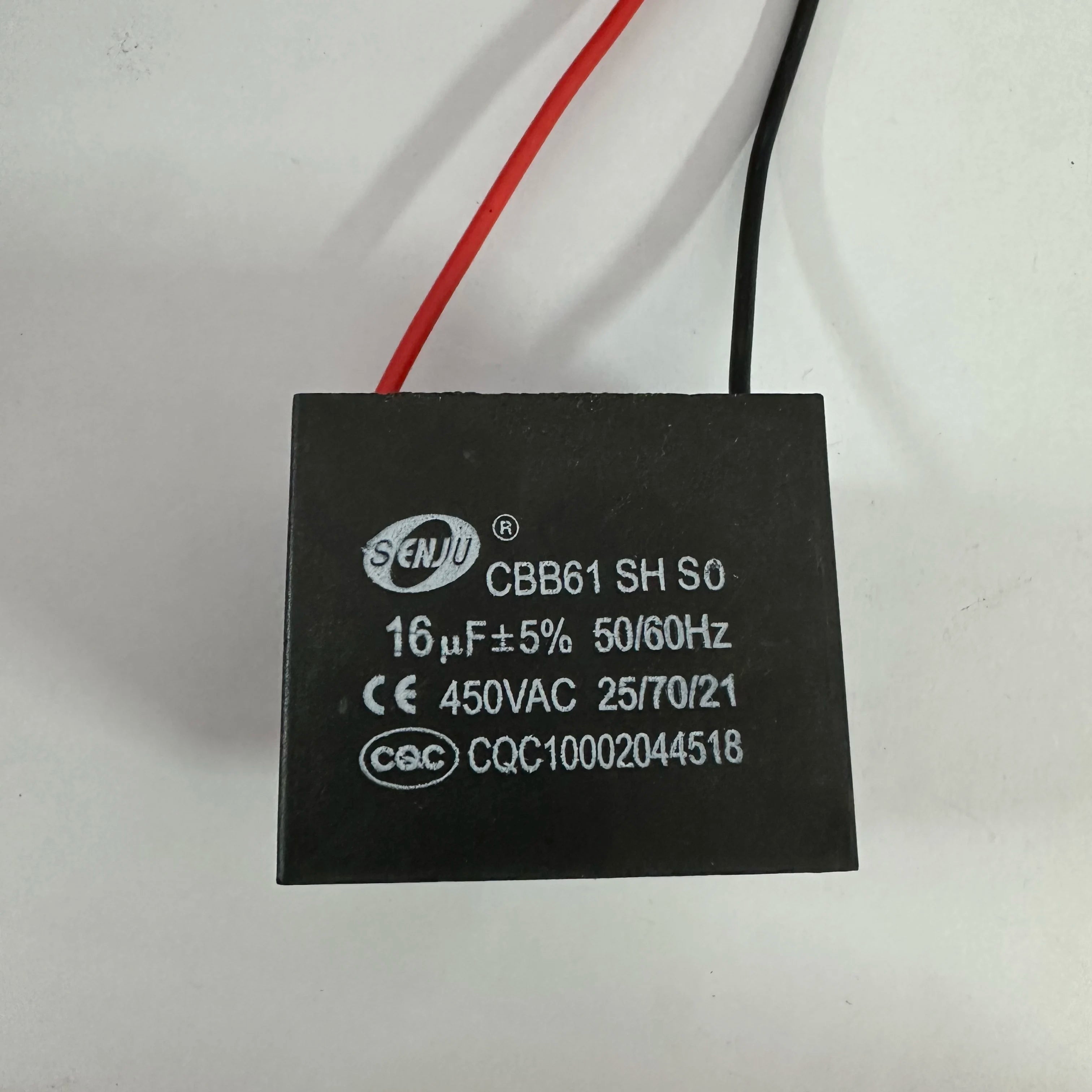

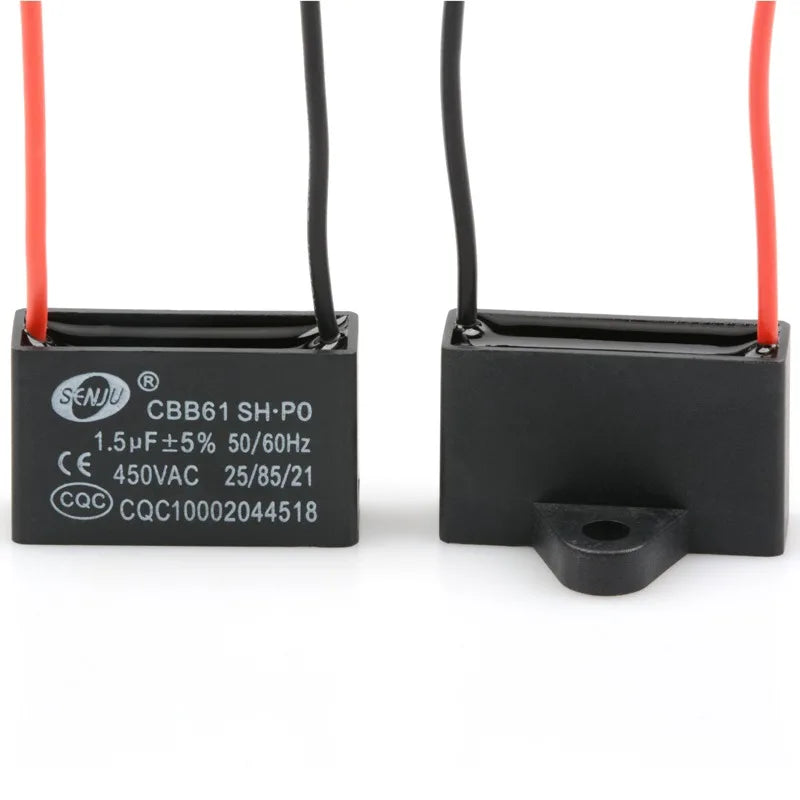

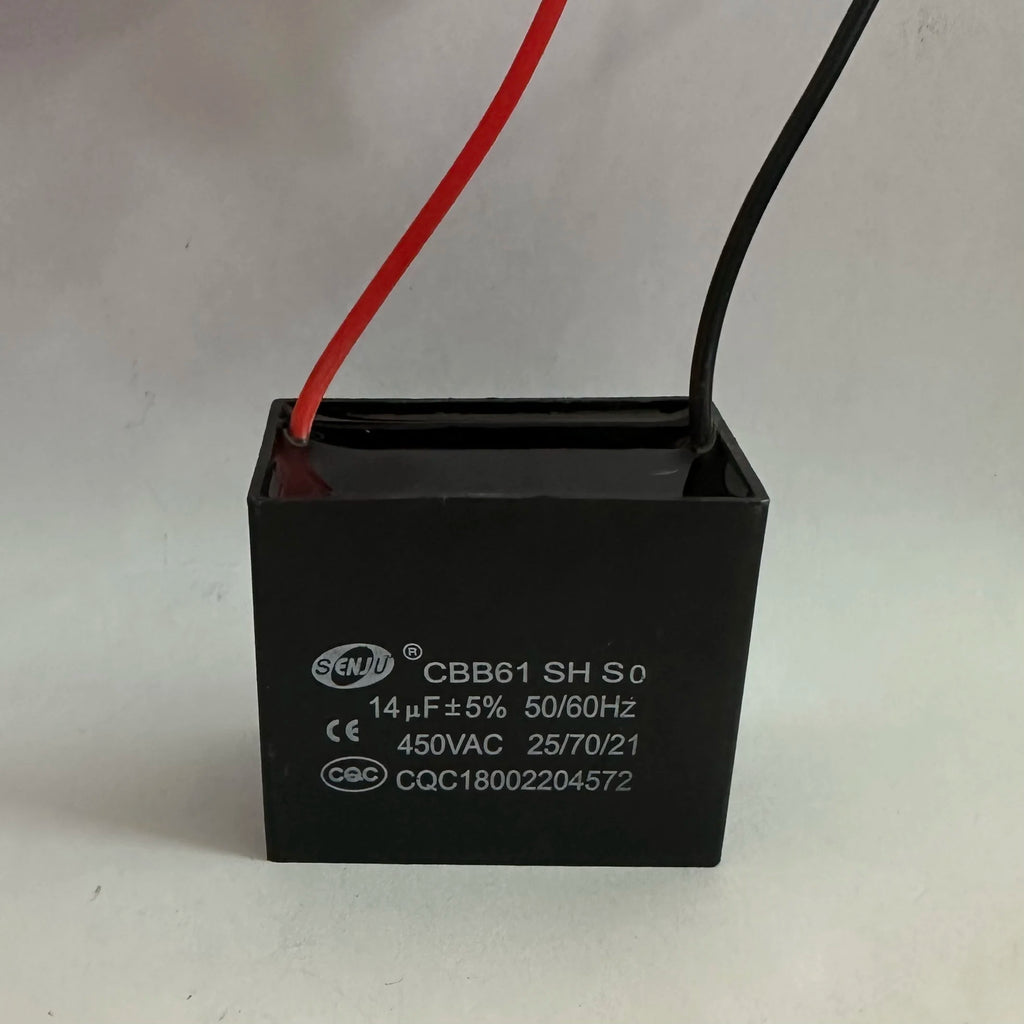

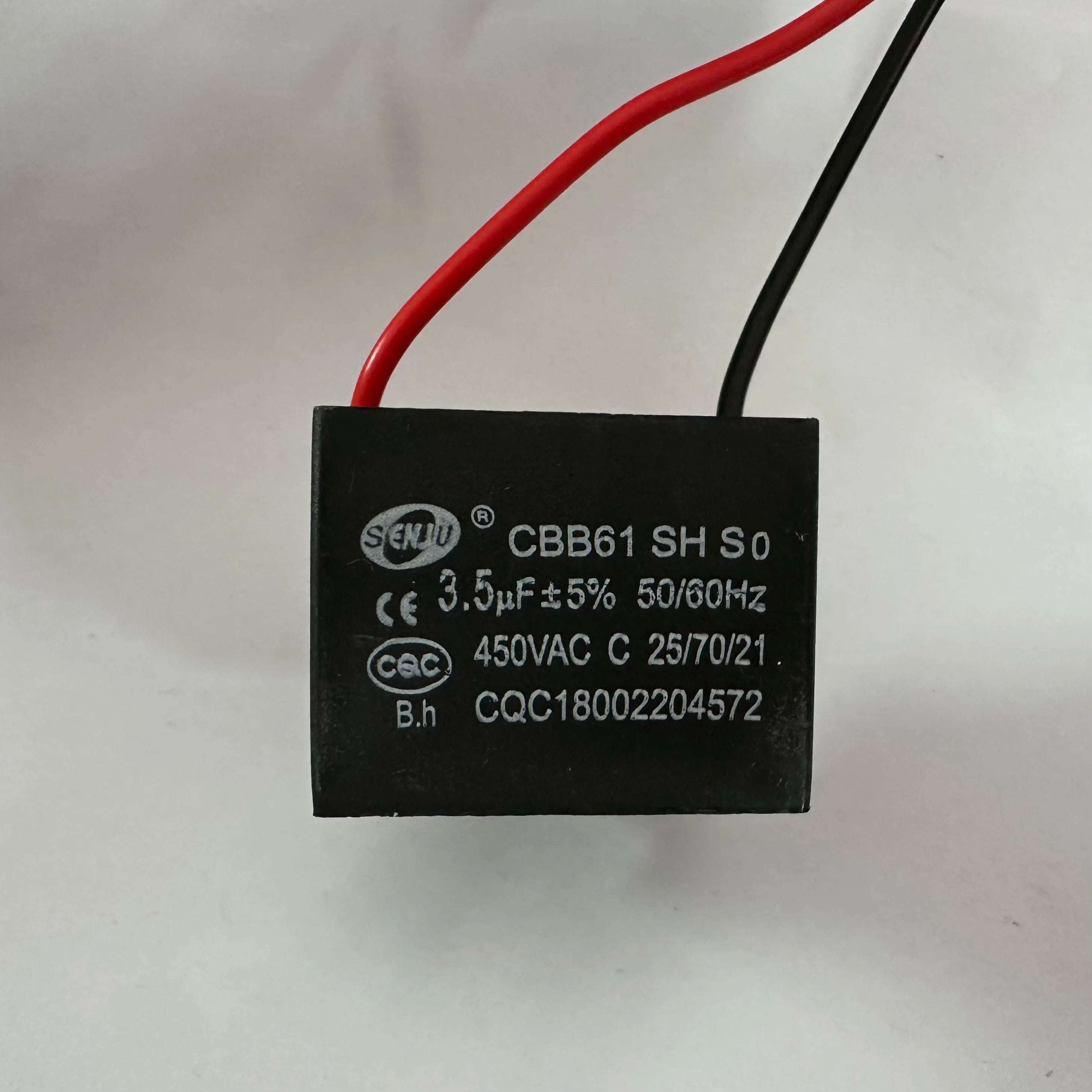

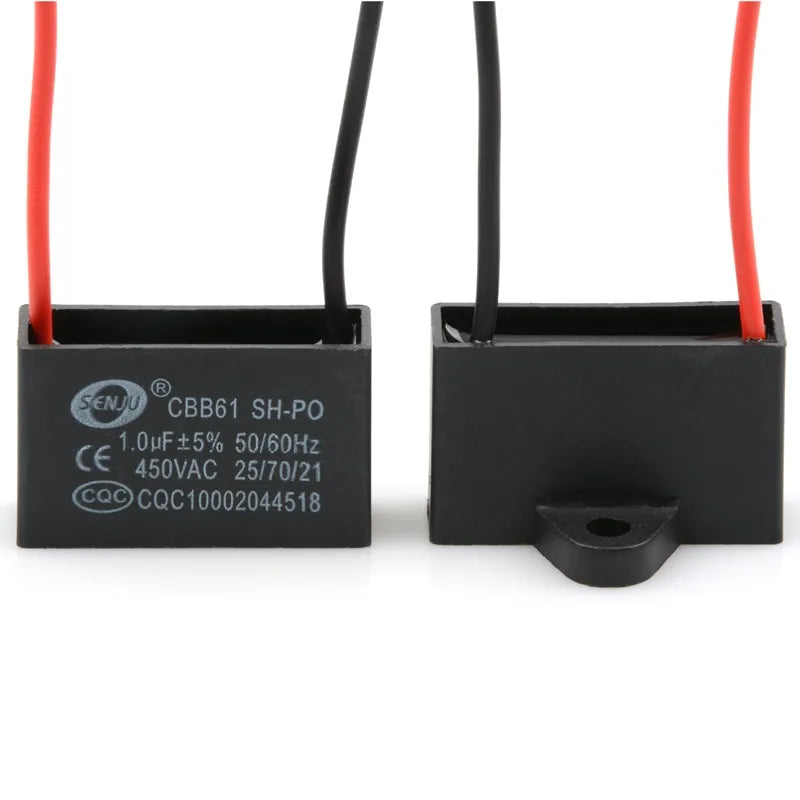

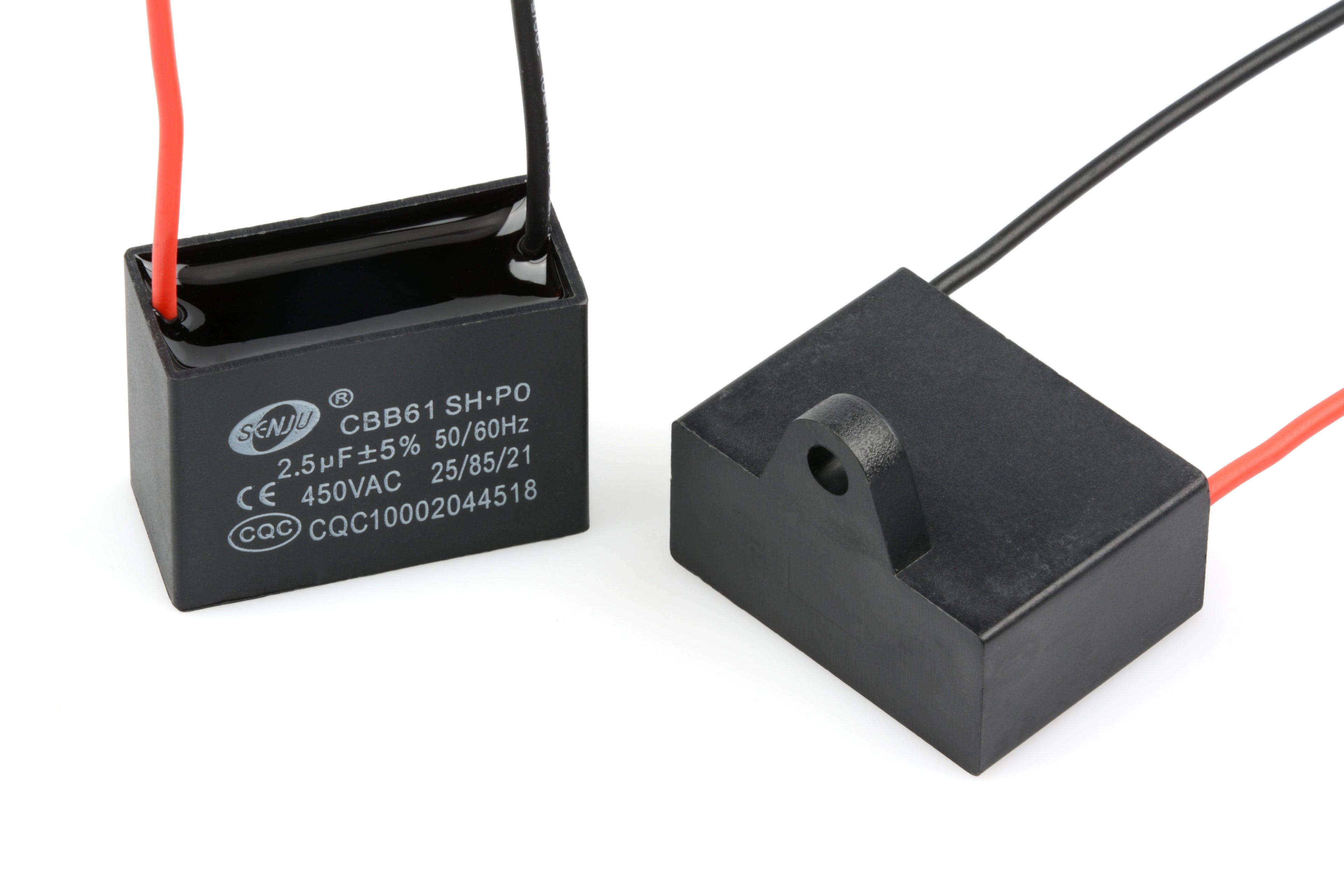

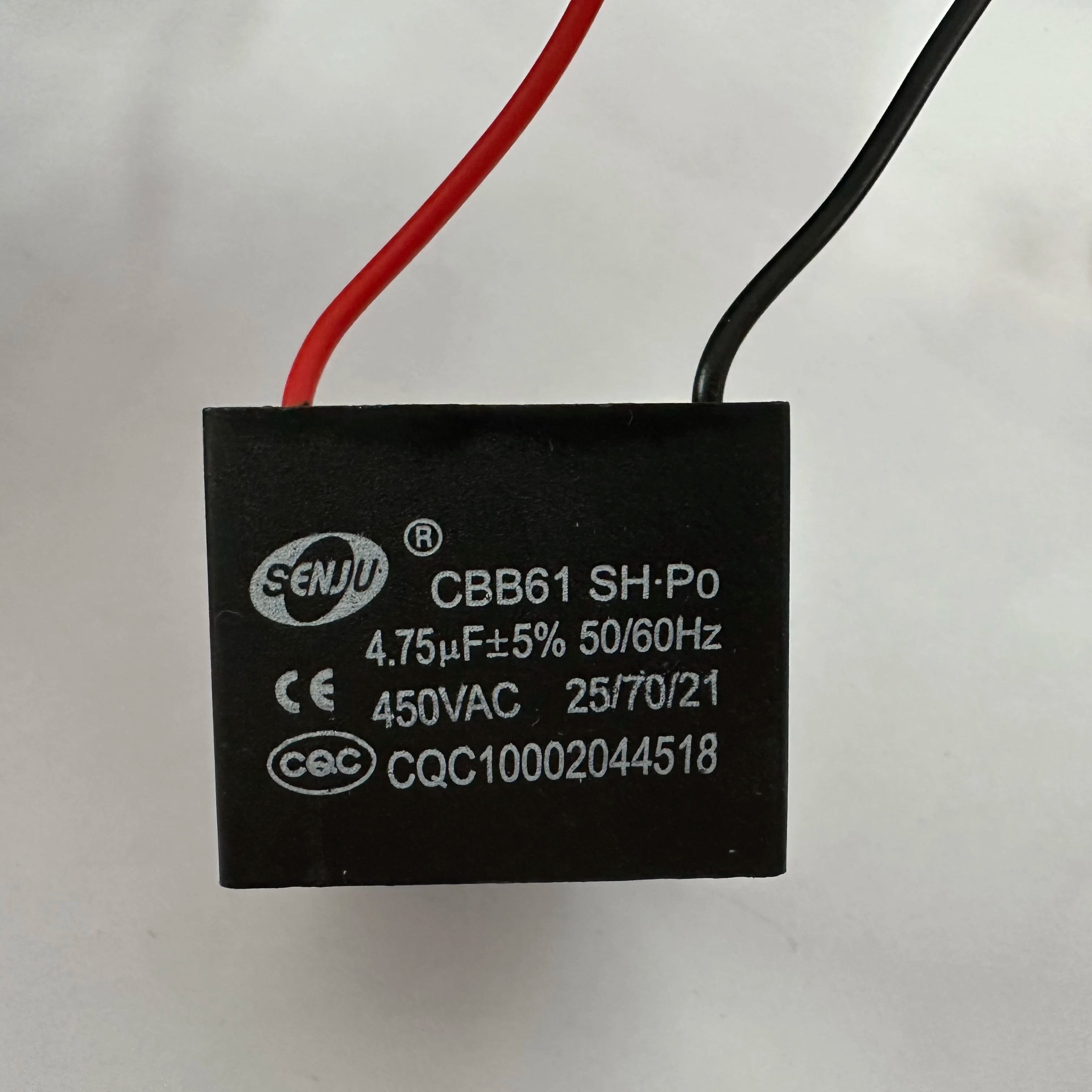

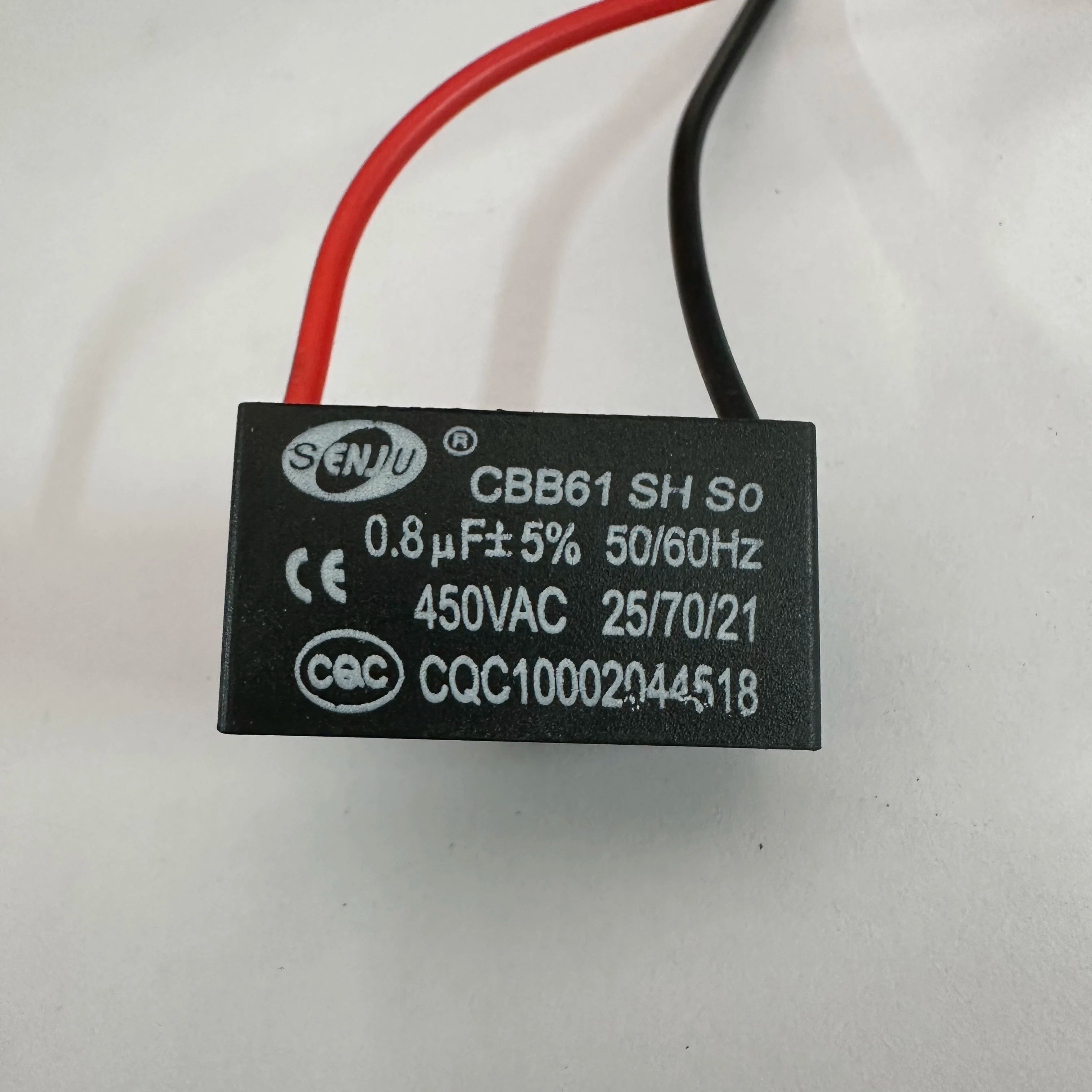

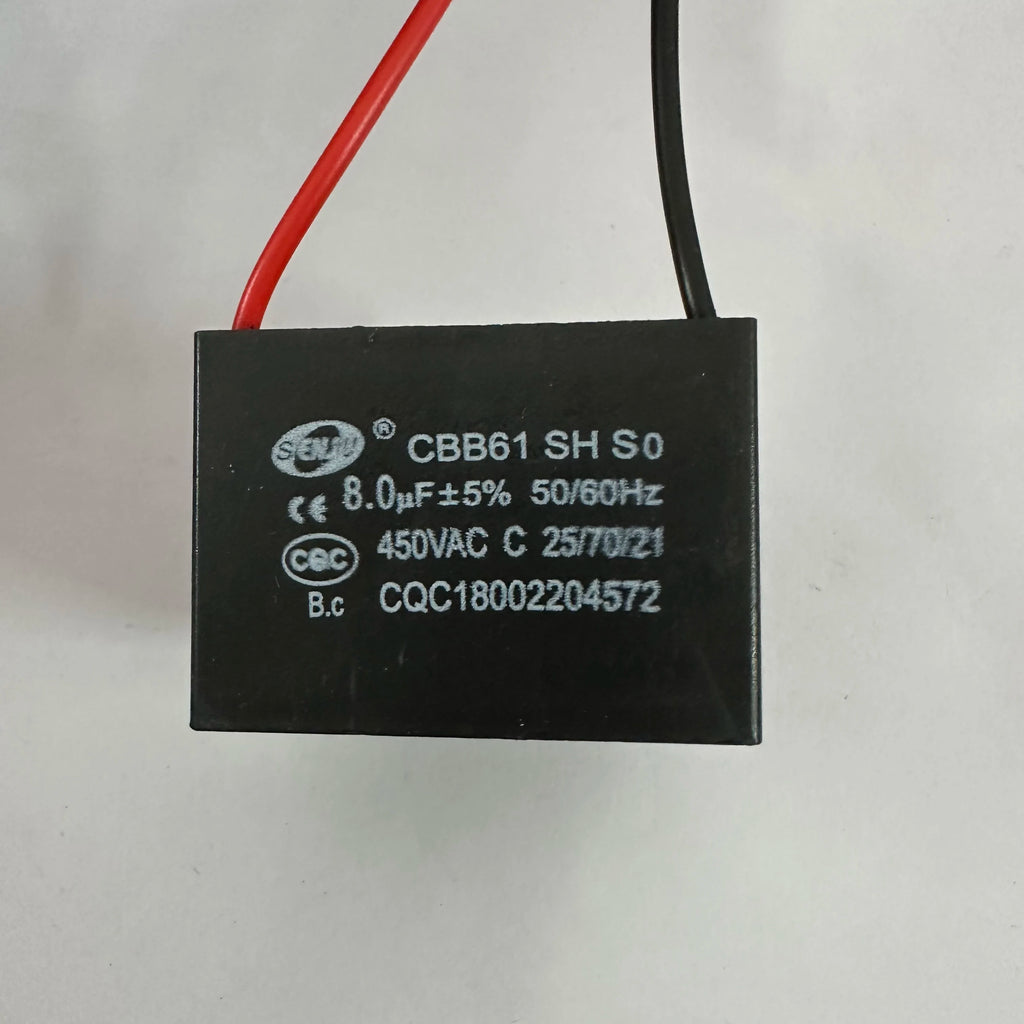

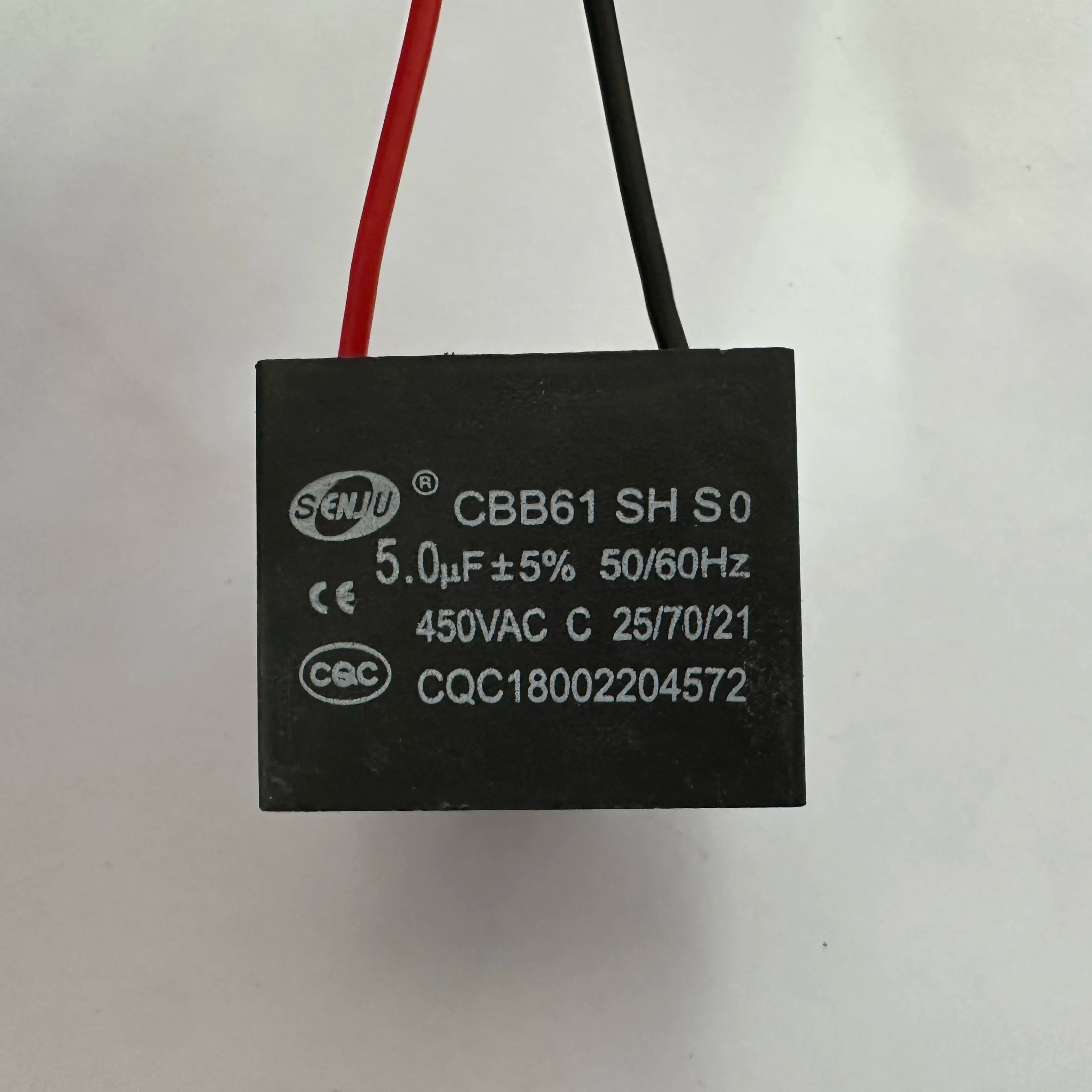

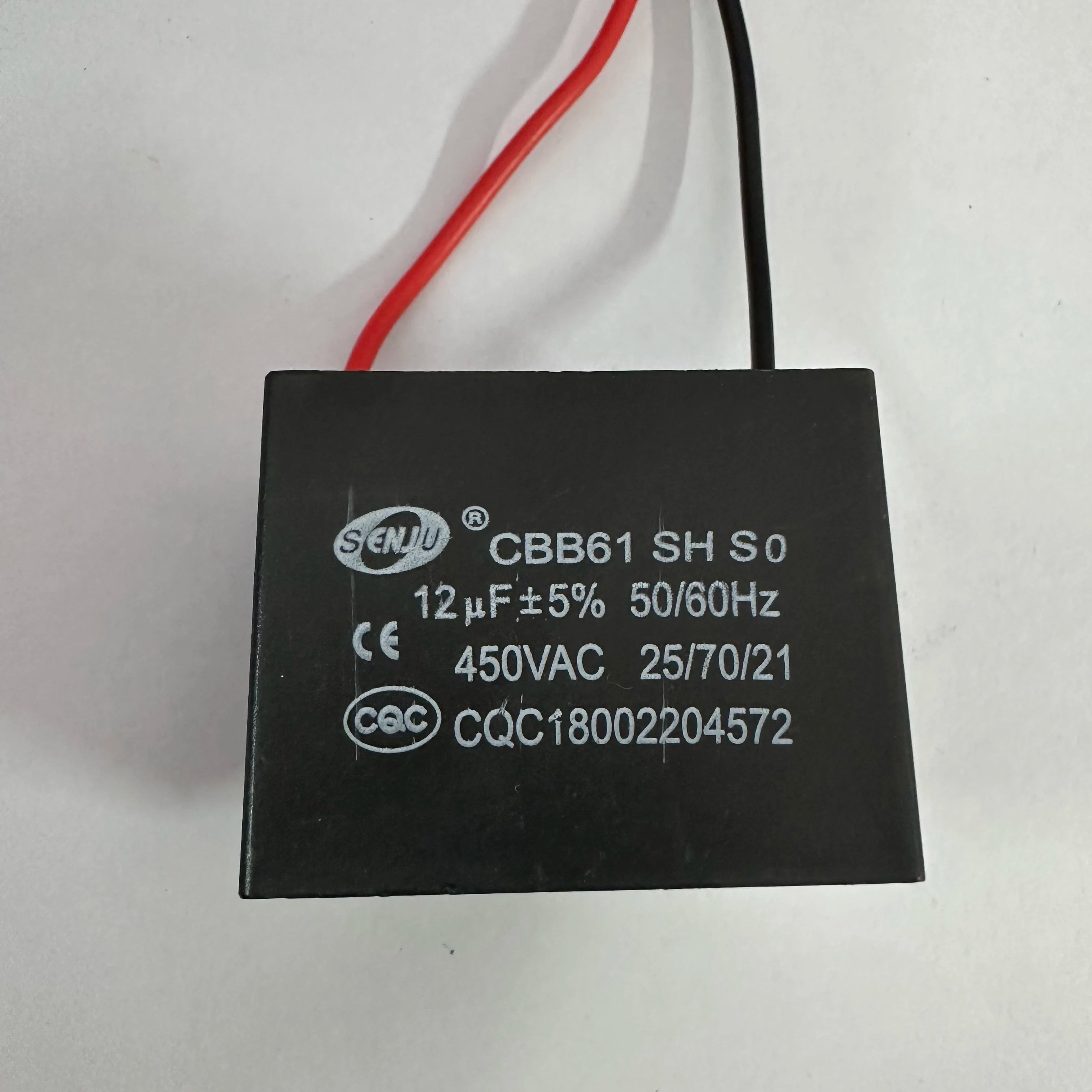

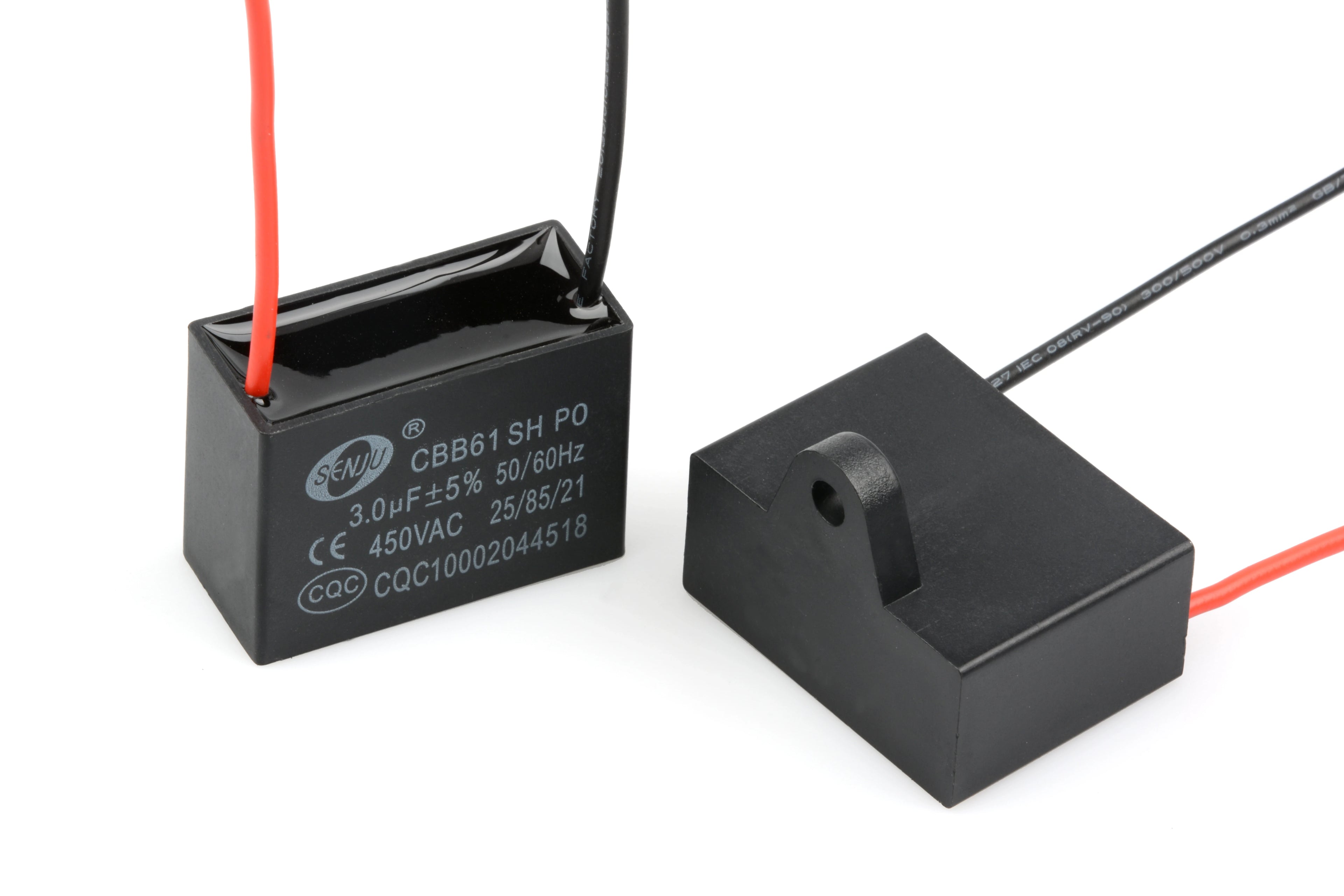

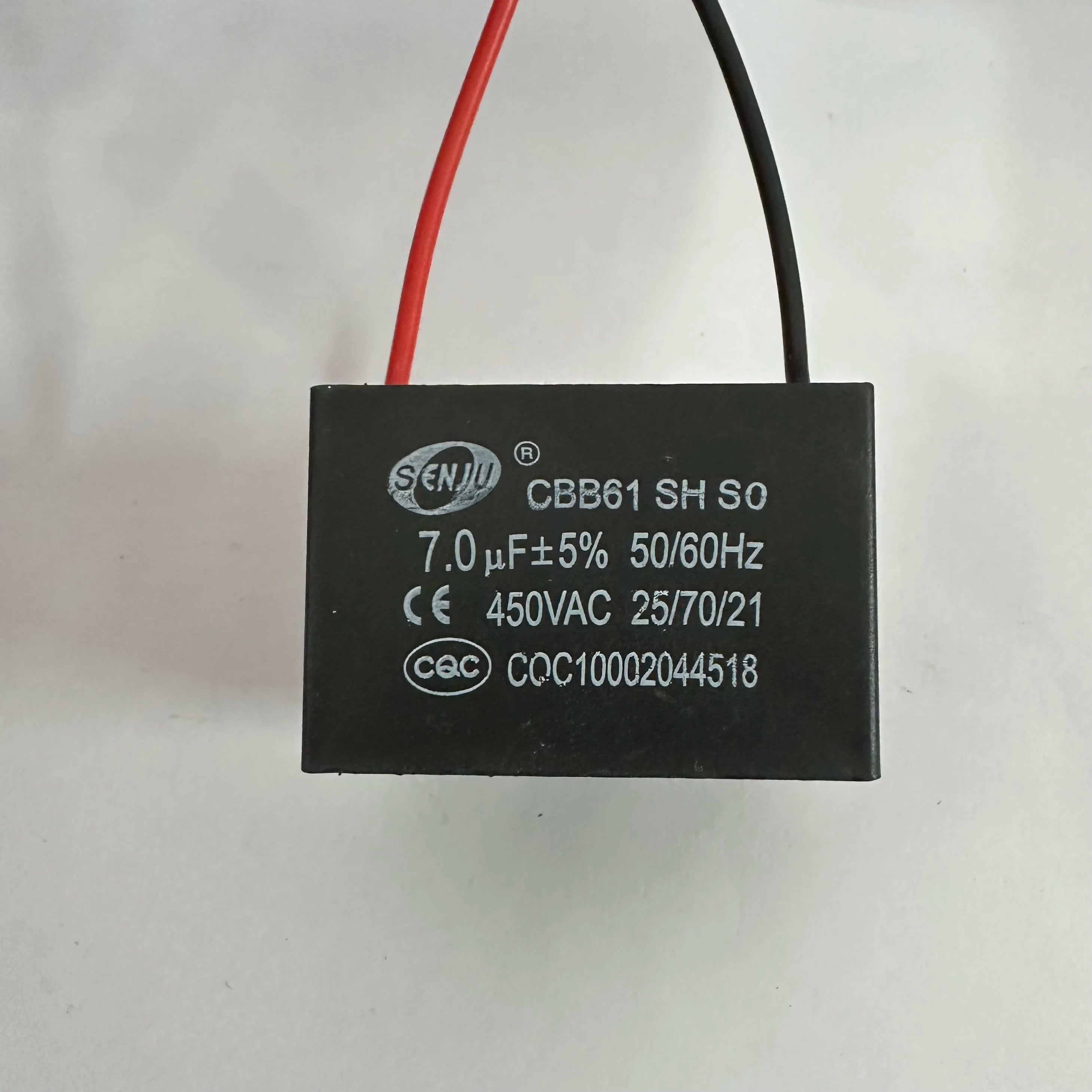

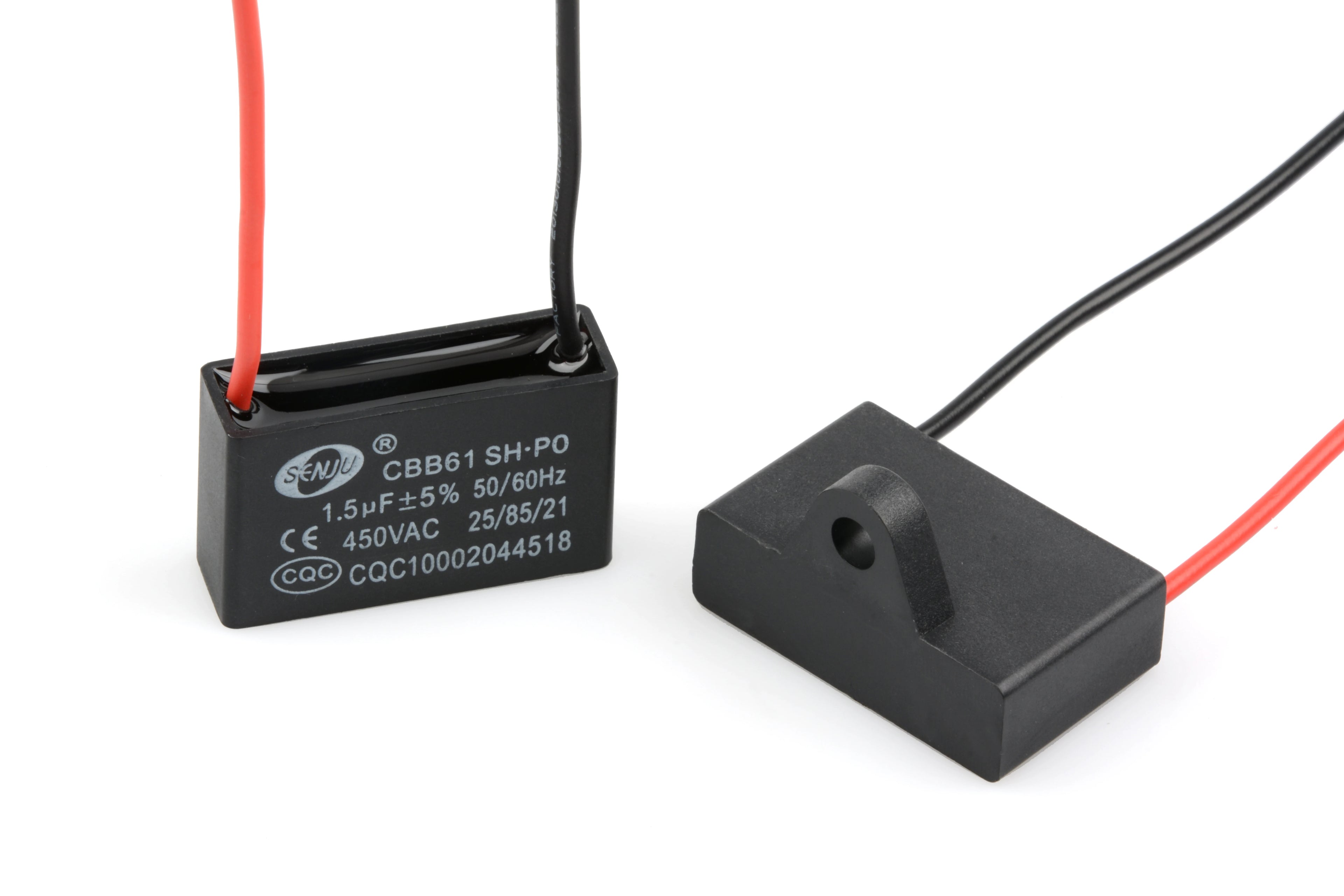

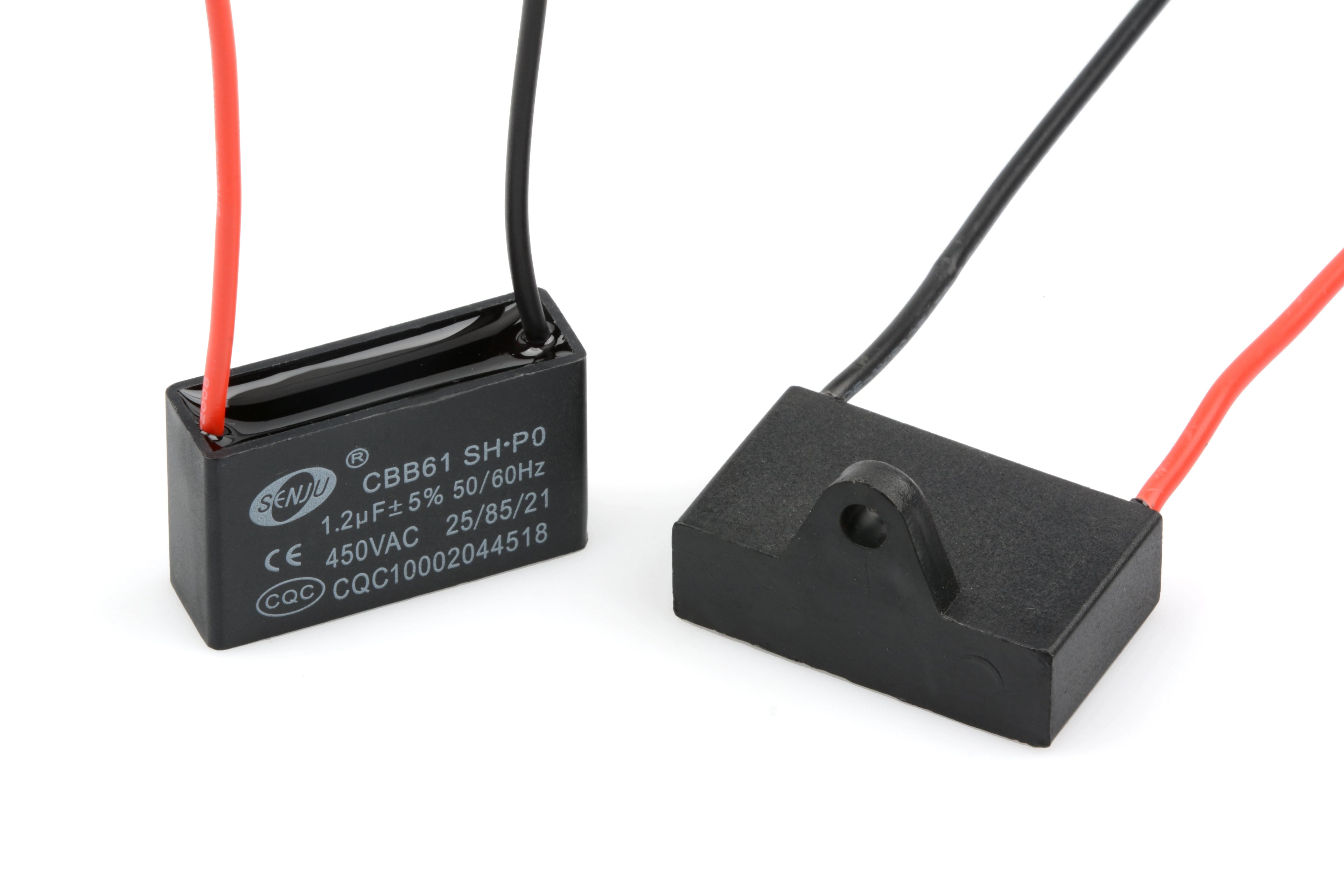

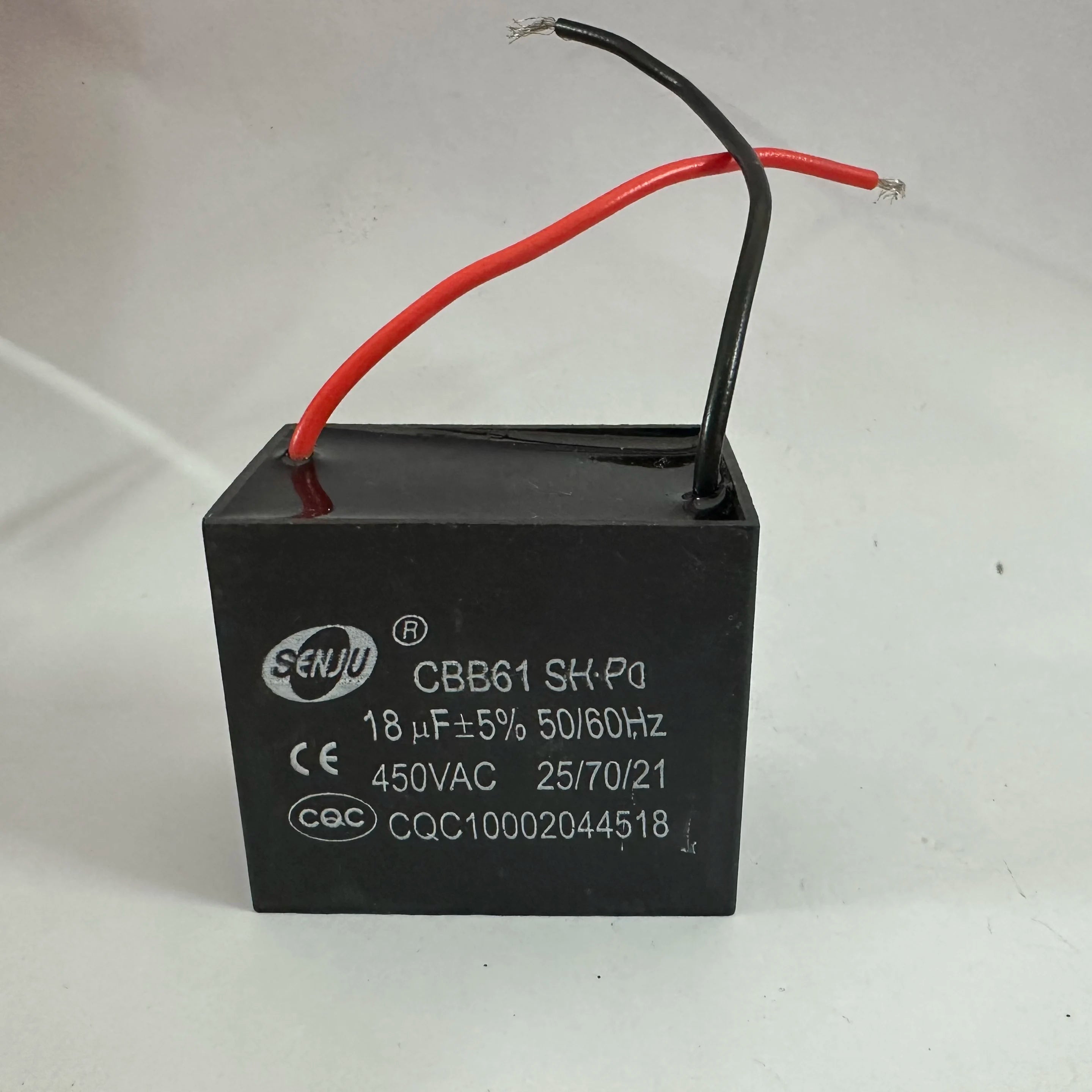

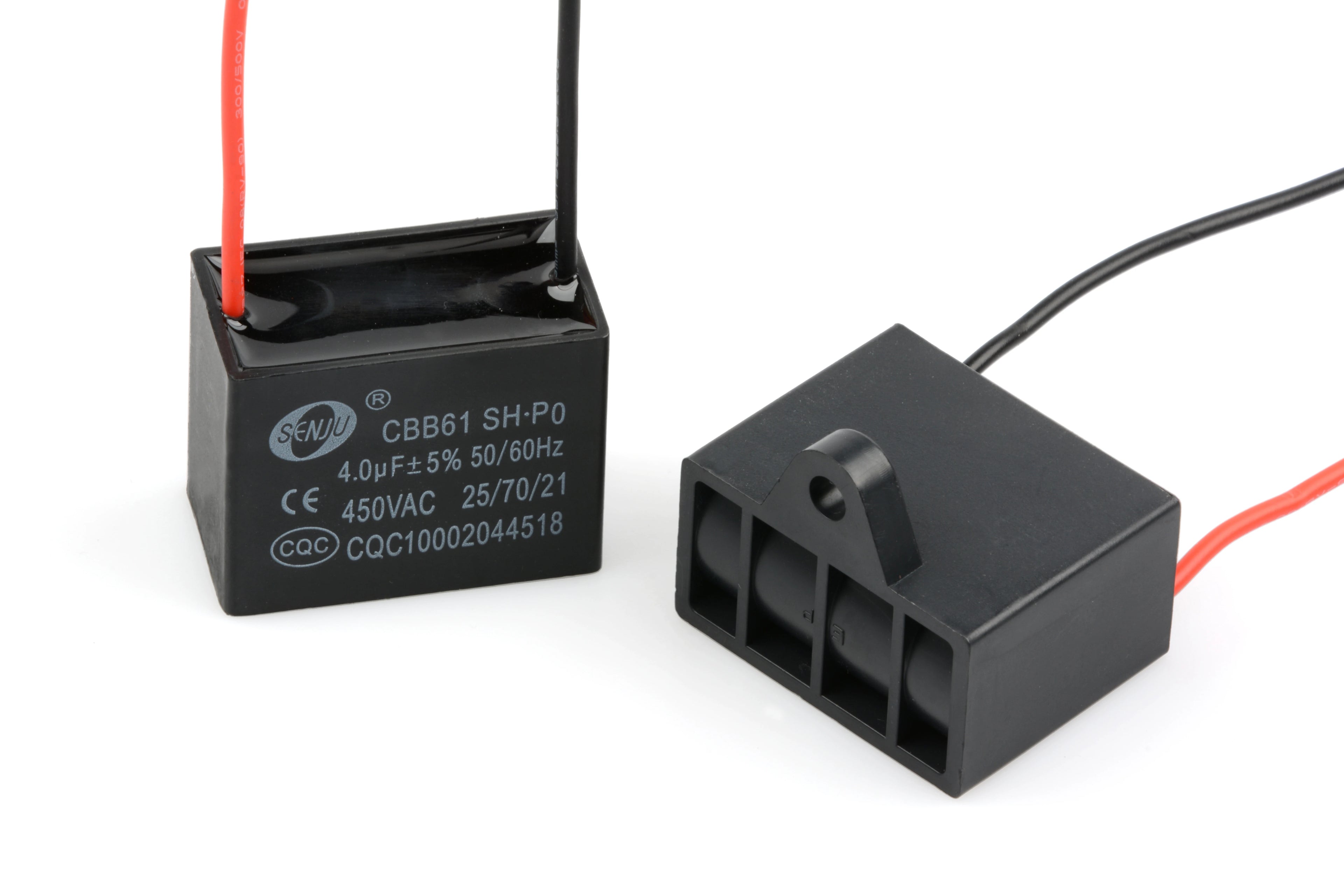

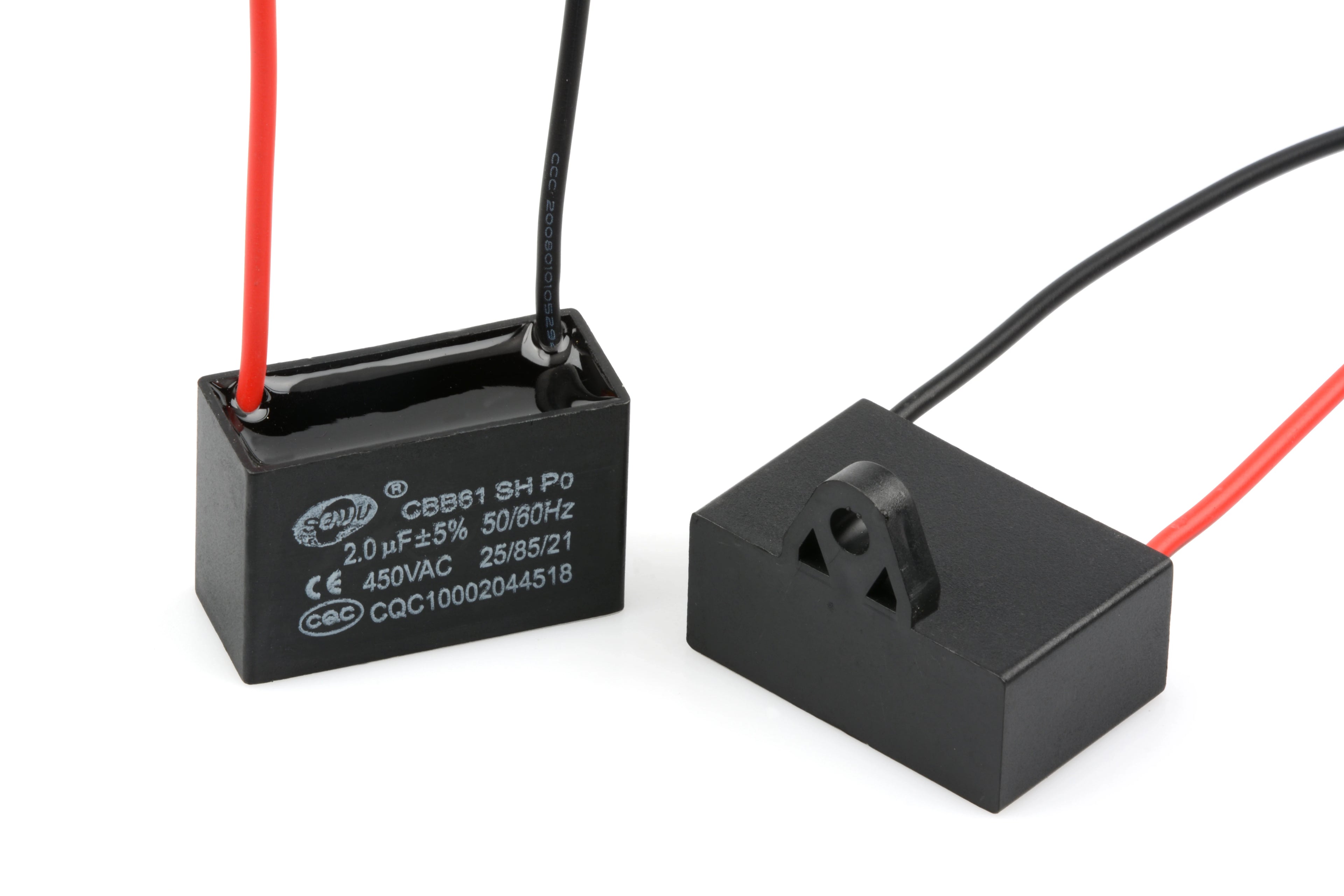

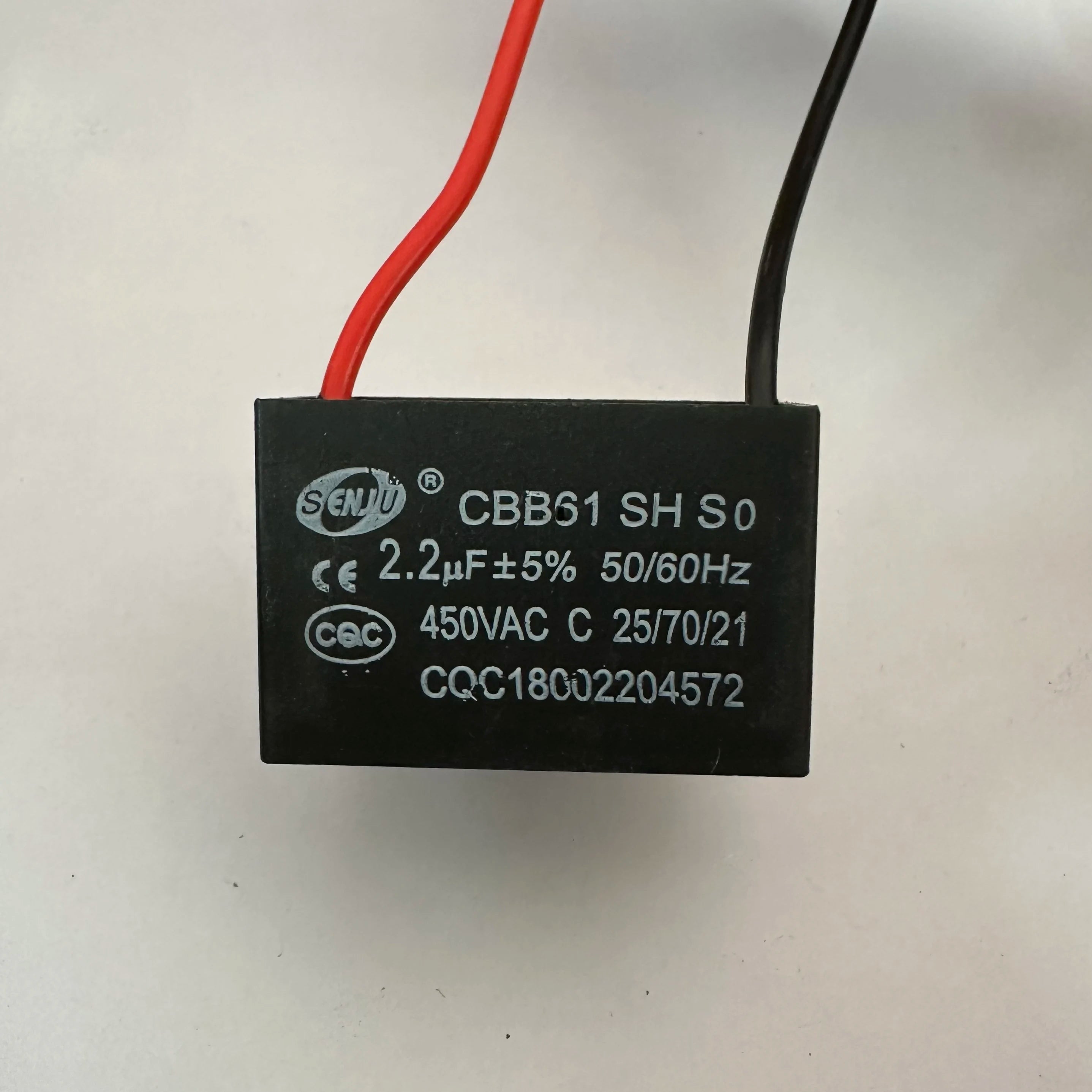

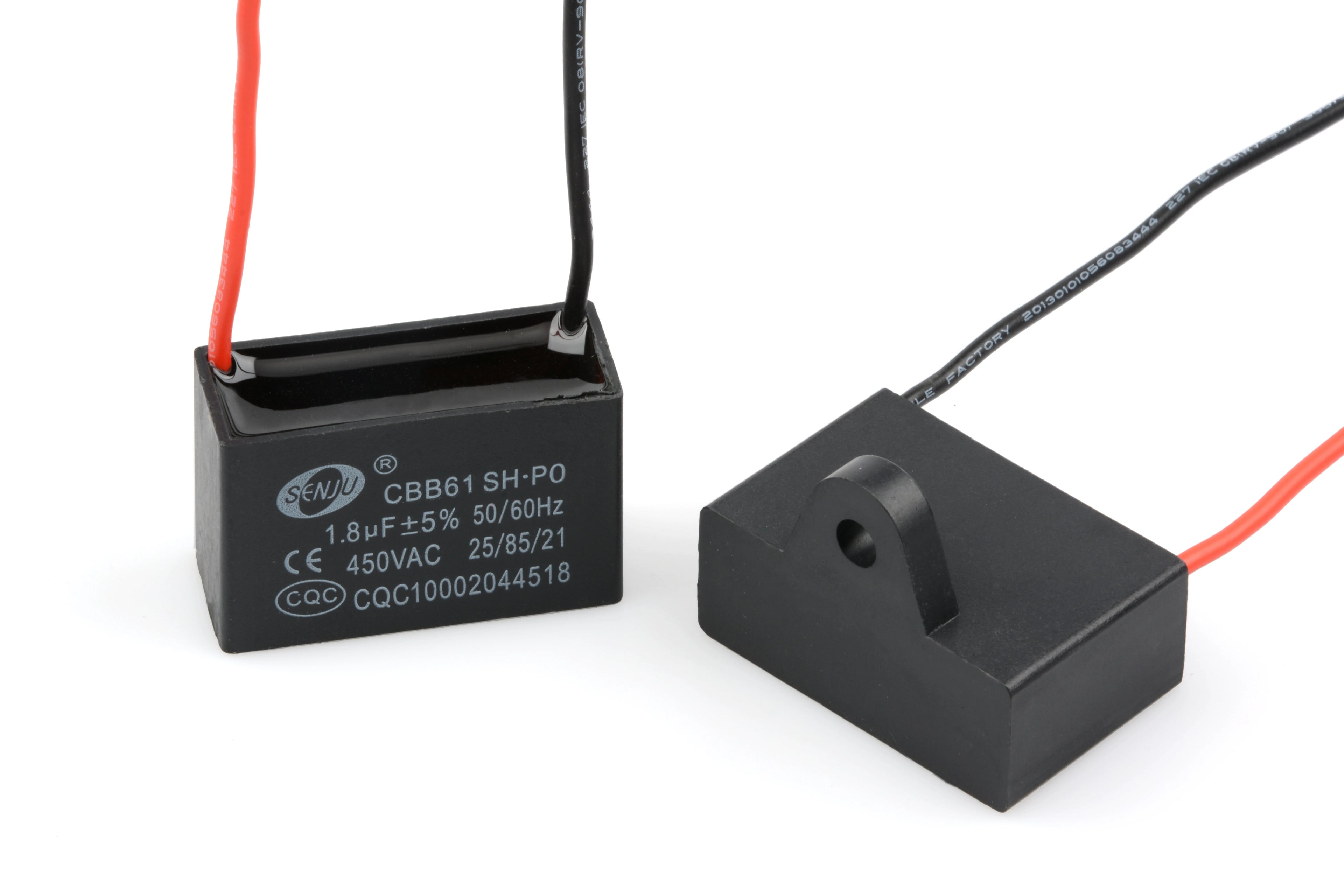

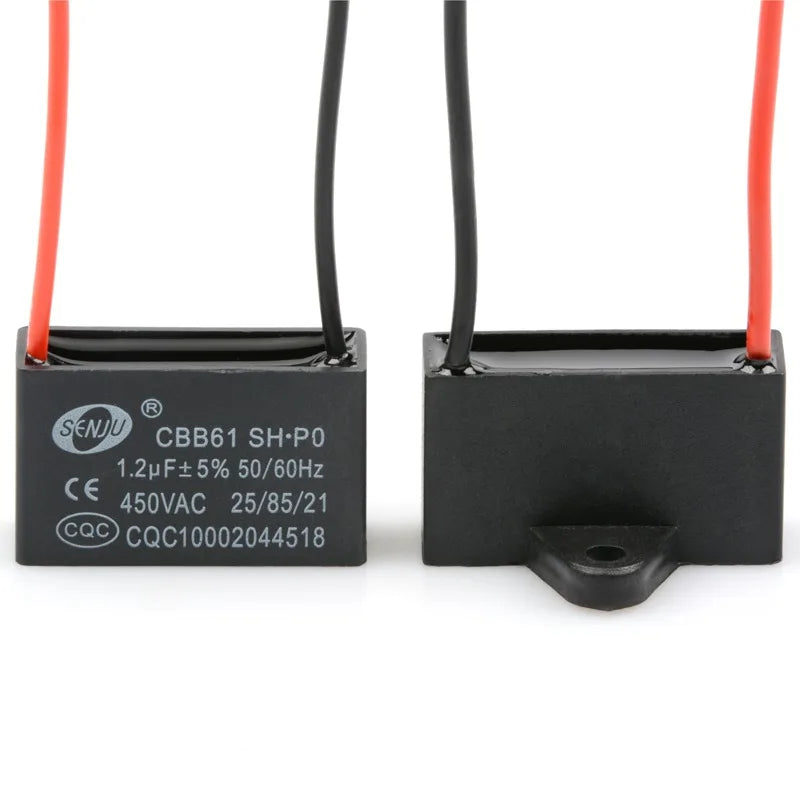

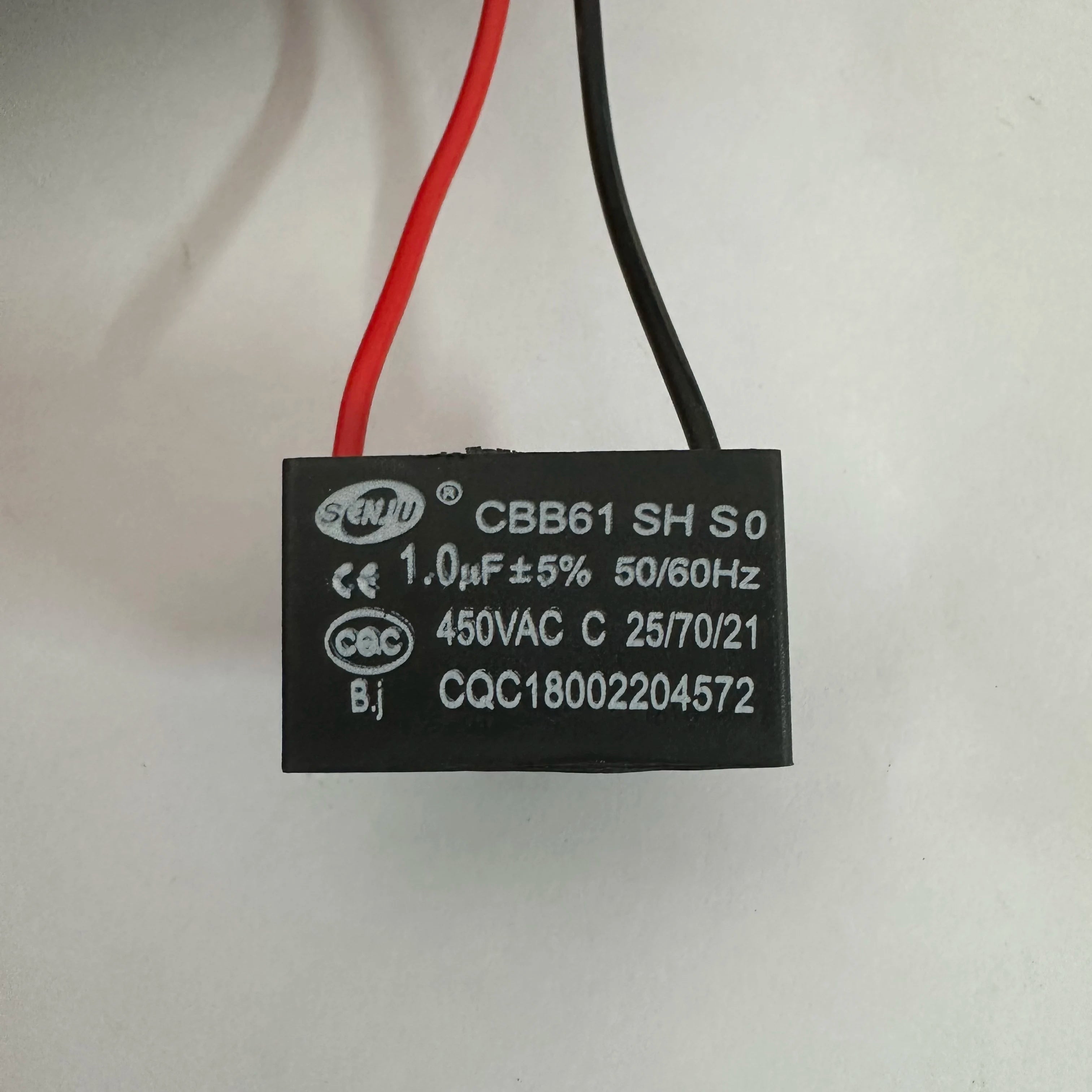

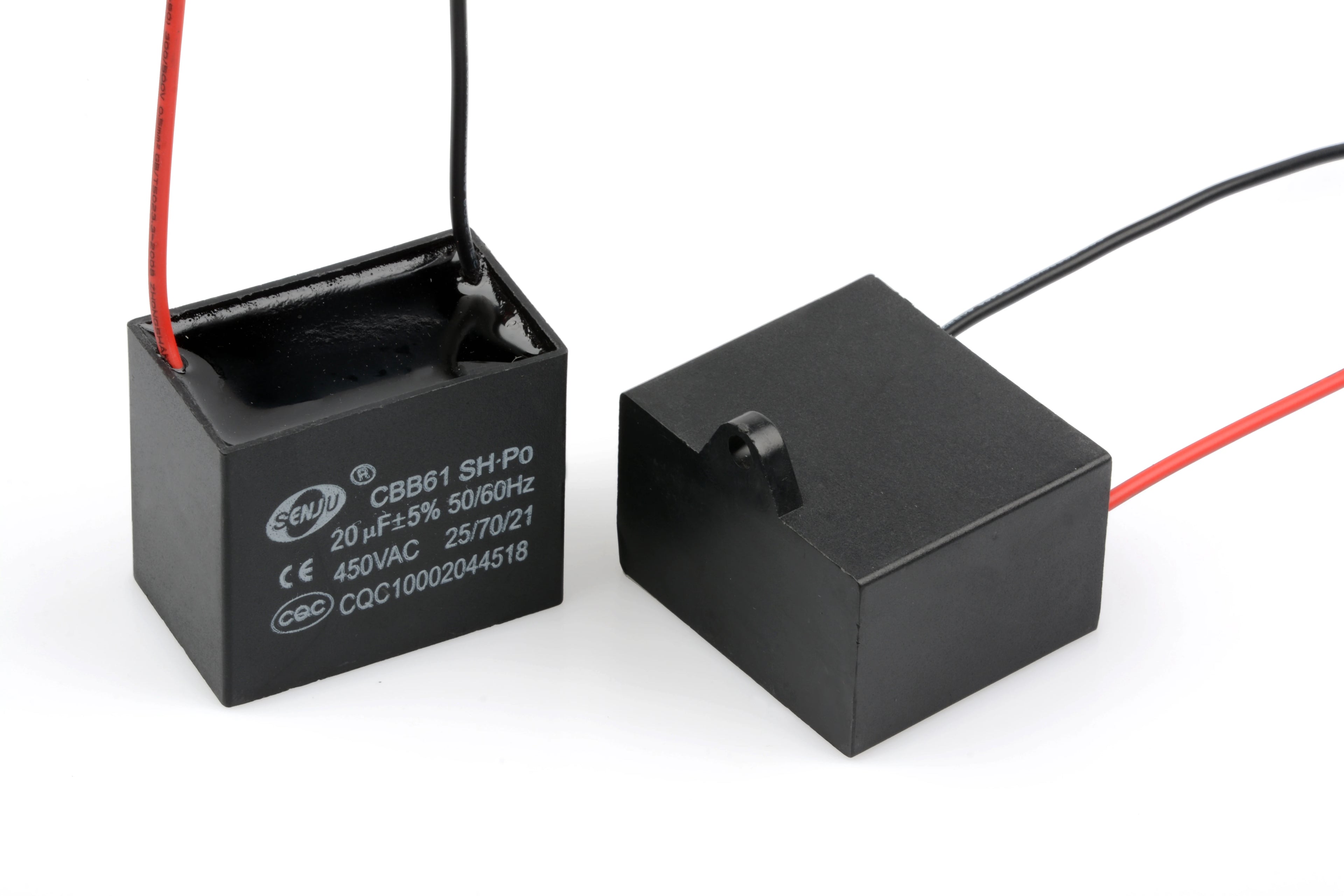

Product Name:         CBB61 Starting Capacitor

Product Shell:            Flame retardant PBT plastic shell

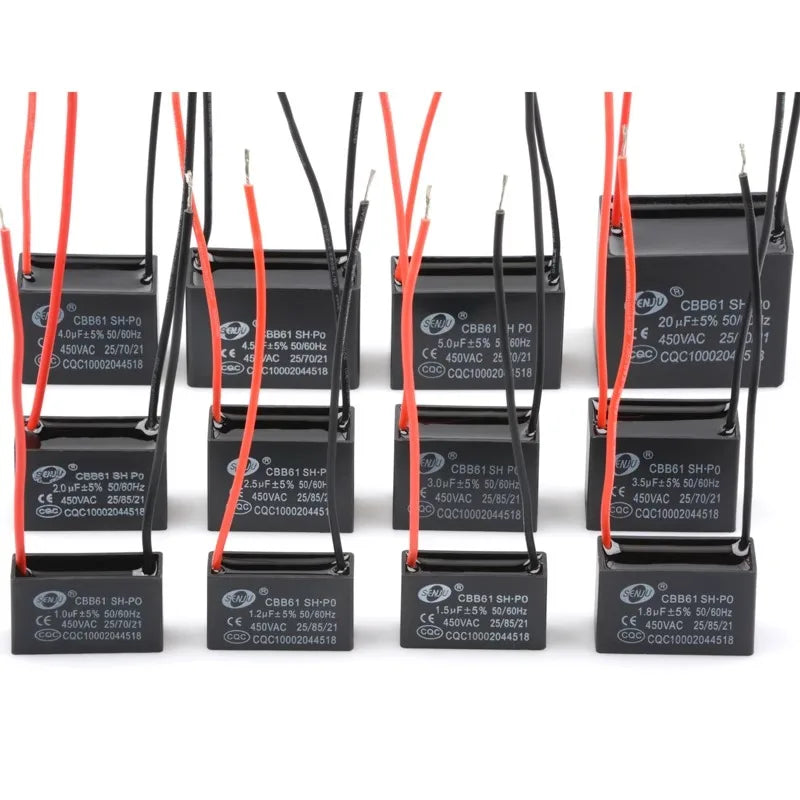

Product Capacity:        0.8uF~25uF full series

Working Voltage:         400V/450V/500V universal

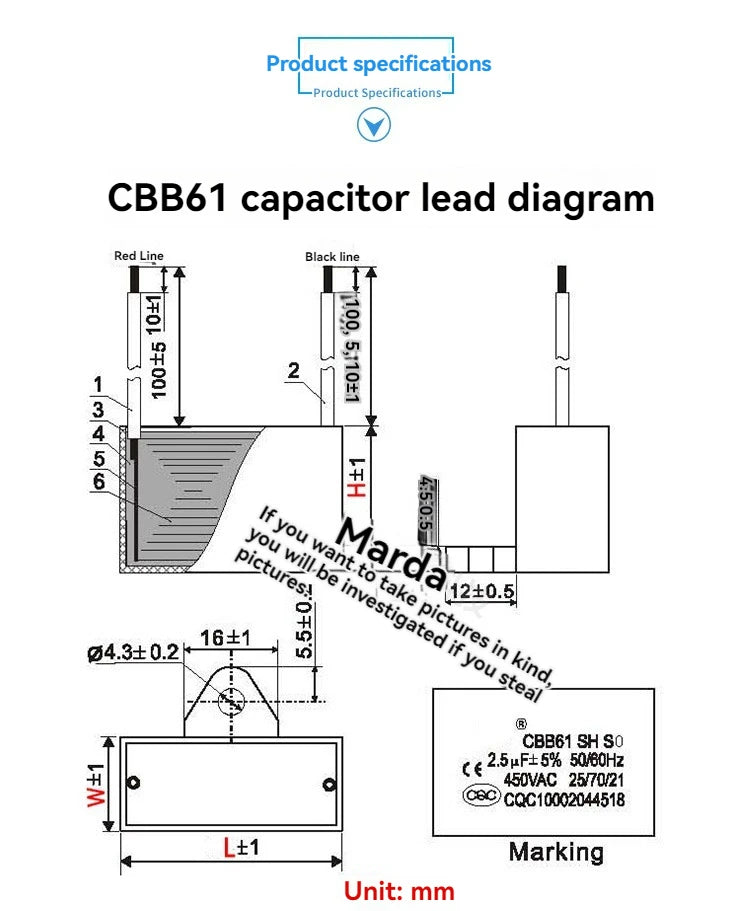

Product Installation:     with cable leadout

General experience without knowing the size of the capacitor (not necessarily accurate):

21-inch fan: 1.5uF

15.8~18.4 inch fan: 1.2uF

10.5~13.1 inch fan: 1uF

Ceiling fan: 2.2uF~3uF

Range hood: 4uF

Small table fan, wall fan: 1.5uF

The capacitor capacity is large, and the fan speed will be a little faster.

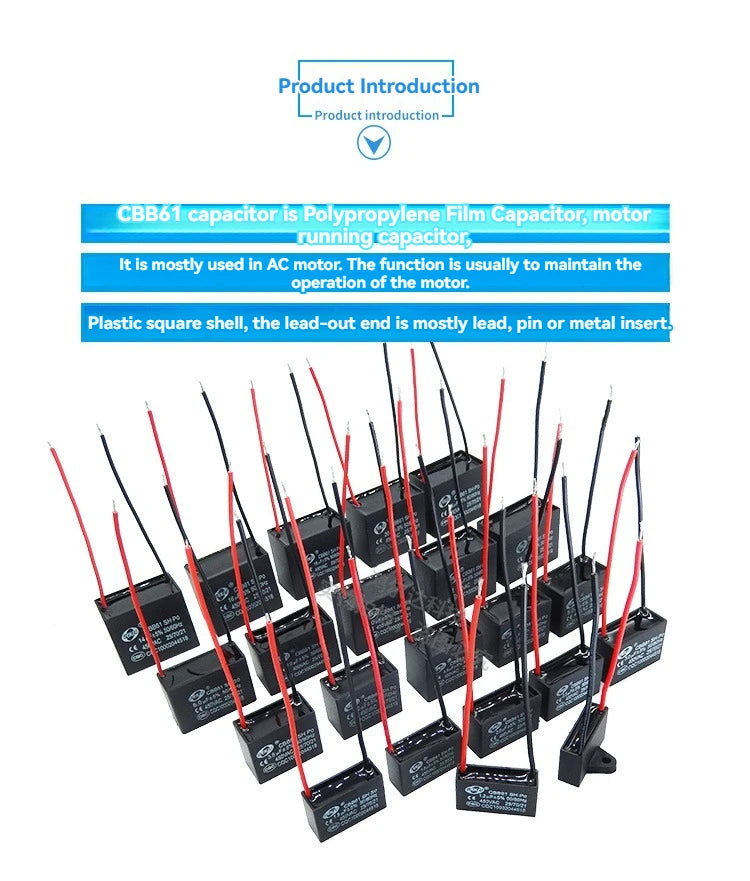

CBB61 capacitor is suitable for: fans, ceiling fans, range hoods, heaters and other electrical appliances

Regardless of positive and negative poles, it can be wired at will

The technology of this product is very mature, and it is safe and reliable to use

Under high temperature use, the capacitor has better heat dissipation effect and more stable performance

Suitable for major brands of electrical appliances, such as:

Gree, Midea, Haier, Daikin, Chigo, Hisense, Mitsubishi, Panasonic, Galanz, Sharp, Toshiba, Hitachi, Siemens, LG, TCL and other brands

Wiring method of CBB capacitor:

1. Use a multimeter to measure the resistance of any 2 of the 3 conductors to find the maximum resistance standard AC

2. Connect the capacitor to alternating current

3. Find the two lines with the lowest resistance (AB or BC) and connect them to the power supply.
