SPECIFICATIONS

Brand Name: CLEQEE

Certification: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Length: 120cm

Model Number: P1008A

Origin: Mainland China

Output Voltage: 1:1

Semi-finishedproduct: No

Features

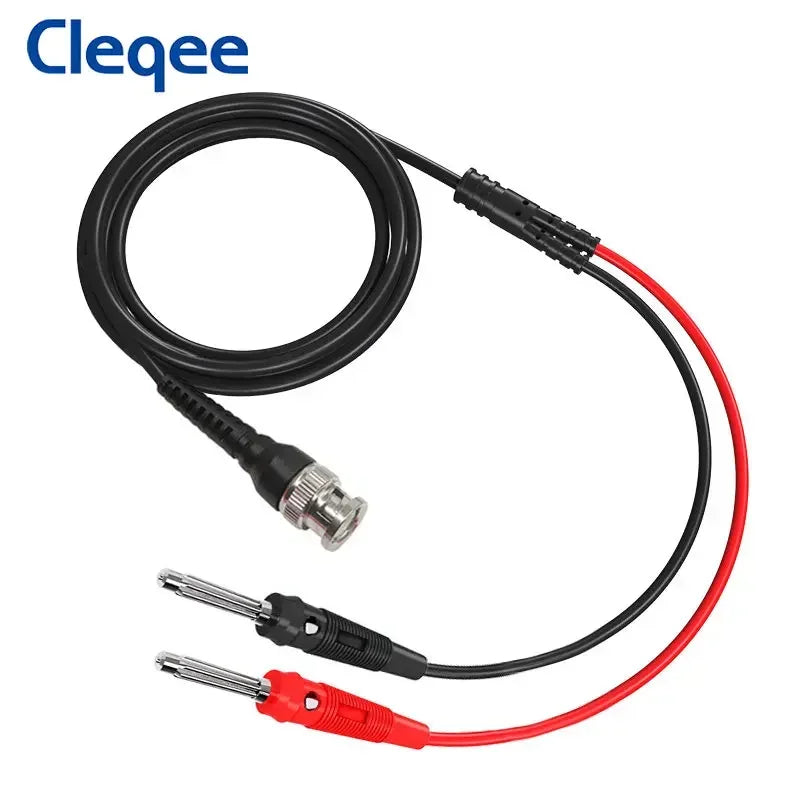

·Applies to standard BNC interfaces (Such as Oscilloscopes, signal generators, video surveillance, etc.), ideal for electrical or laboratory electric testing work.This is a necessary purchase if you have a function generator because the signal must be introduced into any type of connection.

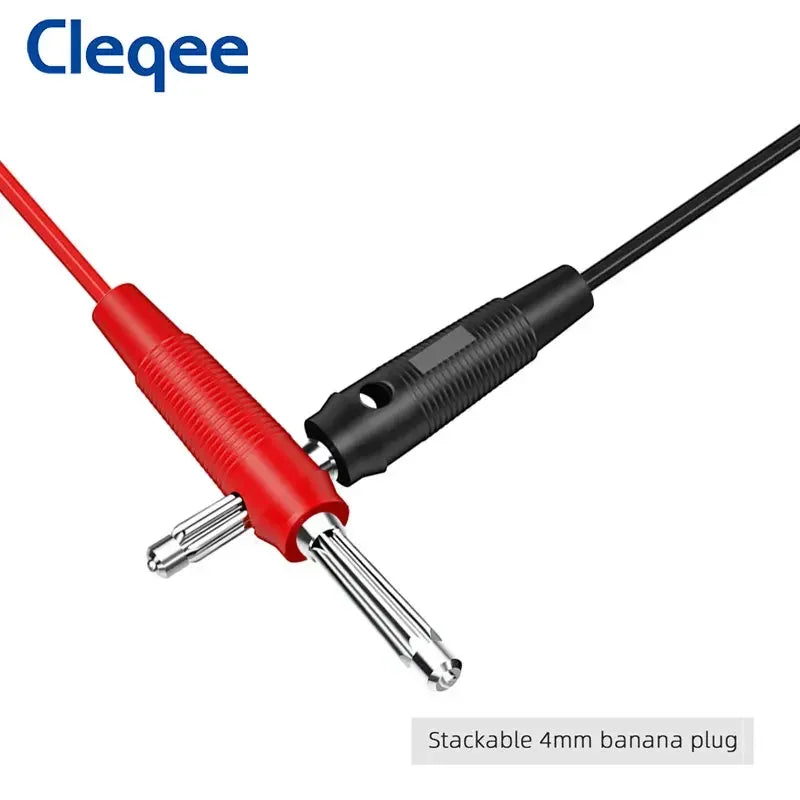

·The Stackable 4 mm banana plugs are pass through so you can plug another set of leads in and have two active pairs at the same time.That would allow you to quickly use another style lead without having to plug and re-plug leads in.

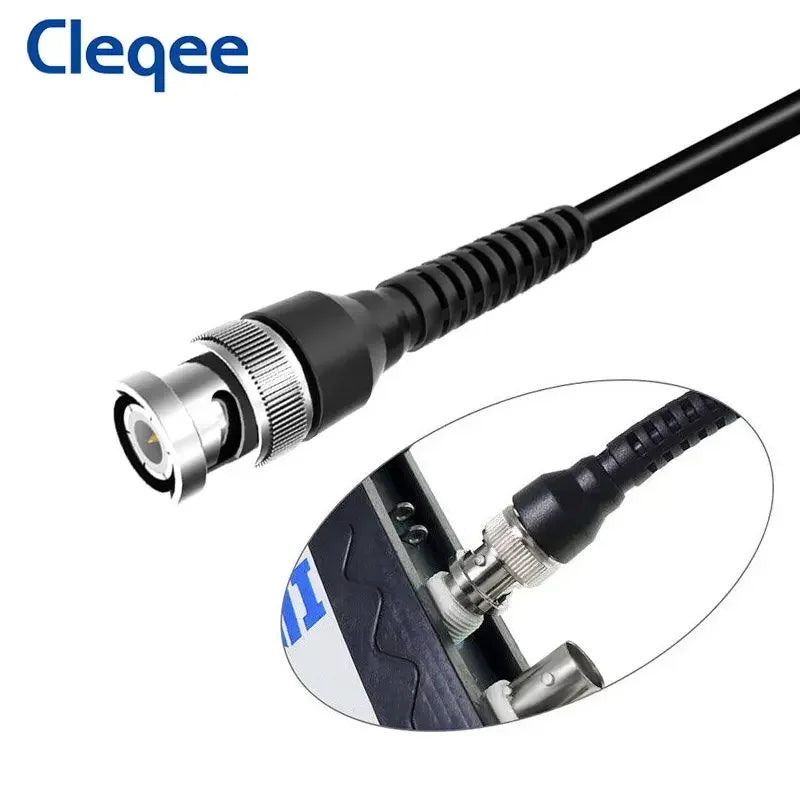

·BNC head material: nickel-plated copper.The wire is made of flexible PVC, which is aging resistant, corrosion and cracking resistant and so on.These are a must-have for anyone working with small components and breadboarding.

·The impedance of this BNC cable is 50Ohm, Voltage is 500 V; It is awfully handy when the voltage you are testing exceeds the capacity of your scope. If you are a electronic hobbyist and amateur radio operator and this cable will get lots of use in your lab.

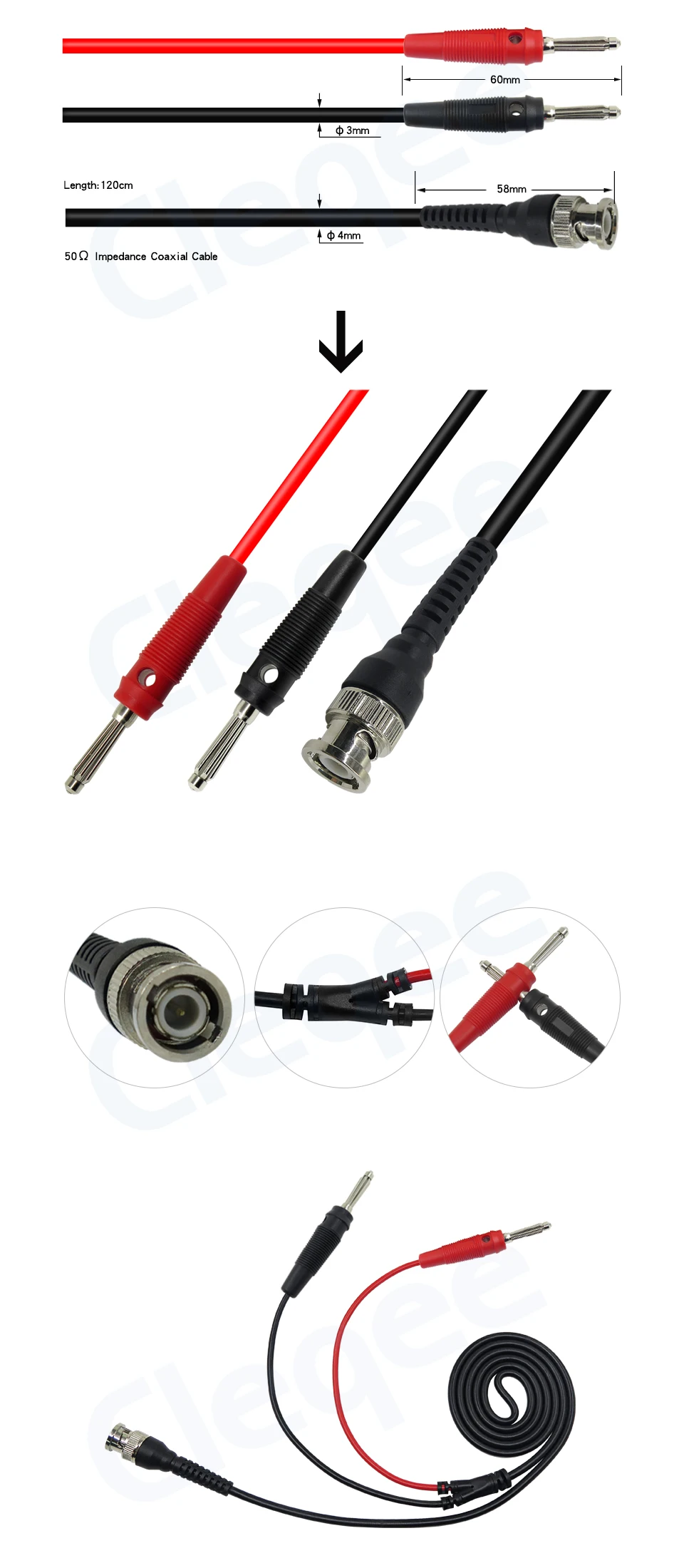

Parameters

·Cable outside Diameter: Φ4.0mm
·Conductor outside Diameter: Φ3.0mm
·Max. Input Voltage: 500V
·Maximum input current: 2.5A
·Cable Impedance: 50Ω
·Cable Length: About 100cm
·Conductor Length: 20cm
