SPECIFICATIONS

Brand Name: CLEQEE

Certification: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Model Number: P1197B

Origin: Mainland China

Semi-finishedproduct: No

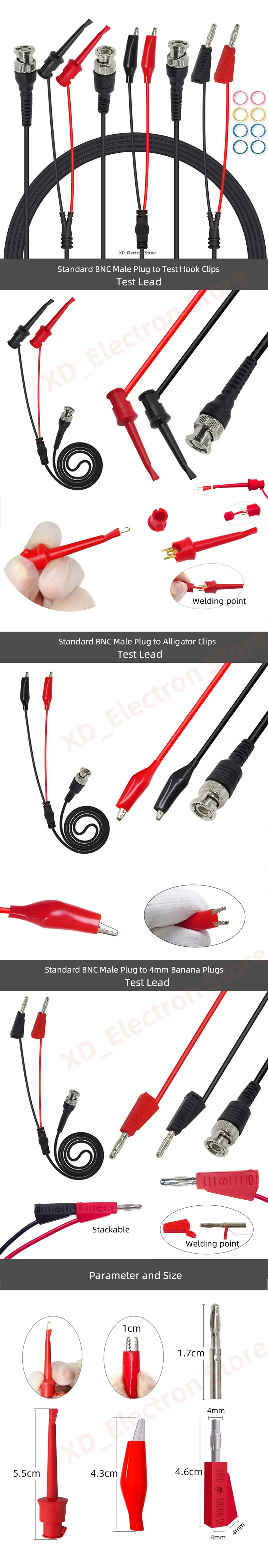

BNC-Dual Alligator Clips Test Leads:

Brand new BNC to dual alligator clip oscilloscope probe.
With standard BNC ends can be used for all oscilloscope.
Apply with 35mm middle size alligator clip.
With international standard BNC plug, good-looking appearance, sturdy and durable.

Specification:

BNC Material: Pure Copper
Cable outside Diameter: Φ4.0mm
Conductor outside Diameter: Φ3.0mm
Cable Impedance: 50Ω
Rated cuttent: 5A
Maximum input voltage: 500Vpck
Test Leads Interface: BNC
Cable Length: About 100cm
Conductor Length: 10cm
Tatal Length: About 110cm
Color: Black + Red

BNC-Dual Test Hook Clips Test Leads:

·Compatible with all NBC interfaces devices , such as the signal source or oscilloscope.
· High quality Red copper + PA test hook clips ensure excellent conductivity.
·Exclusive design of wire tail jacket is effectived protection of cable.
· Each of red and black bifurcation wires have reinforced with a stronger sheath
· Widely applied for vehicle maintenance, test electrical or industrial test

Specifications

· Coaxial Cable Impedance and Material : 50Ω, PVC & Copper
· Max voltage and current : 500V 5A
· Whole Length : 120cm
· Main Cable diameter : 4mm
· Sub Cable dismeter : 3mm

BNC-Dual 4mm Stackable Banana Plug Test Leads:

Full integration of injection molding, safe, durable and delicate
Injection molding round connector between cable and conductor makes fastness
High Quality stackable banana plug, good compatibility and delicate BNC connector, soft elastomeric conductor
Applies to all BNC interfaces (such as Oscilloscopes, Signal generators, Video surveillance, etc.) is fixedly connected with the test signal, easy to monitor changes in the signal.

Specification:
