SPECIFICATIONS

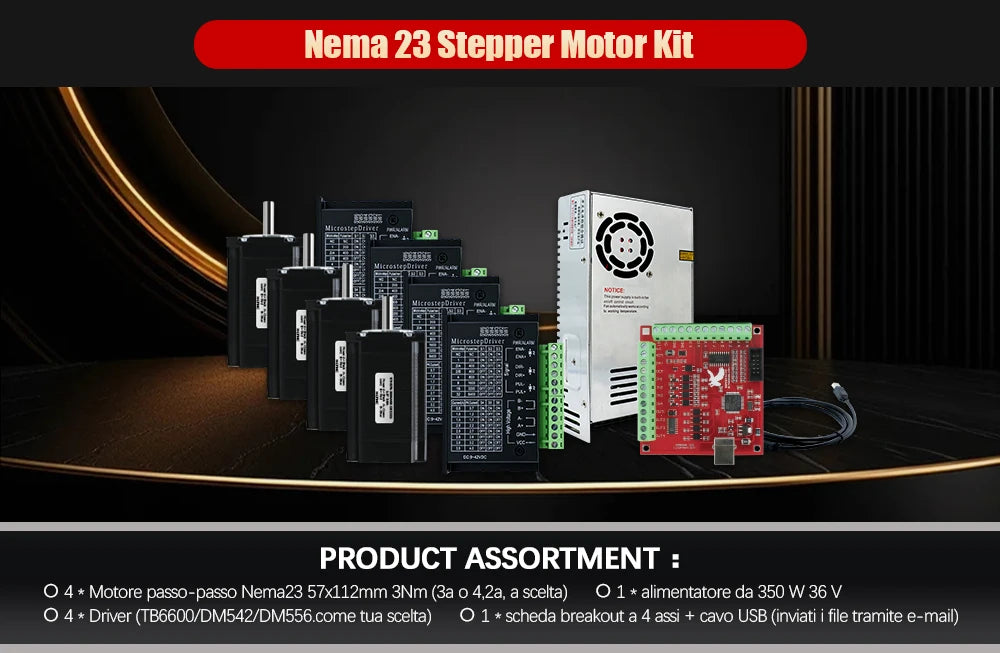

	4 Axis Kit
		4* Nema23 57x112mm 3Nm Stepper Motor (3a or 4.2a, as your choice)
		4* Driver (TB6600/DM542/DM556 . as your choice)
		1* 350W 36V Power Supply
		1* 4 Axis Breakout Board +USB Cable (Sent the Files Through Email)

✅ Nema23 Stepper Motor (3N·m, 3A/4.2A)

Built with standard NEMA 23 dimensions (56.4mm x 56.4mm), this stepper motor offers exceptional positioning accuracy with a standard 1.8° step angle (200 steps per full rotation) – ideal for precise cutting, engraving, and milling tasks. With 3N·m high torque, it easily handles tough materials like wood, acrylic, PVC, and even soft metals (aluminum, copper). The 3A/4.2A current options ensure powerful performance while maintaining energy efficiency, making it suitable for both hobby projects and small-scale production.

✅ Multi-Choice Stepper Motor Driver (TB6600 / DM542 / DM556)

Choose the driver that fits your needs – all options feature built-in thermal protection, overcurrent protection, and high-speed optical isolation to ensure safe and stable operation.

- TB6600: 9-42V DC input, up to 4.0A output current, 32 microsteps, perfect for basic to mid-range applications.

- DM542: 20-50V DC input, 4.2A output current, 128 microsteps, ideal for high-precision tasks requiring smooth movement.

- DM556: 20-50V DC input, up to 5.6A output current, 128 microsteps, designed for heavy-duty operations with larger loads.

All drivers support bipolar constant current drive, ensuring quiet operation and long service life.

✅ USB Mach3 Controller

Say goodbye to outdated parallel ports – this USB Mach3 controller connects directly to any Windows PC (Windows XP/7/10, 32-bit/64-bit) via USB, making setup quick and easy. It supports 4-axis linkage control (the 4th axis can be set as a slave axis) with 100K output pulses for high processing accuracy. The controller is fully compatible with Mach3 software, supporting automatic homing, limit switch access, spindle control (PWM/relay mode), and automatic tool setting – even beginners can master it with our detailed setup guide and configuration files.

✅ 350W 36V Power Supply

A stable power supply is the foundation of reliable CNC operation – our 350W 36V power supply delivers consistent voltage to all components, protecting the motor and driver from damage caused by voltage fluctuations. It features overload protection and energy-saving design, ensuring long-term stable operation even during extended working hours.

Hybrid Stepper Motor Type 57HS112
Specifications				Diagram
Step Angle	1.8°± 5%	Current	3.0A
Phase No.	2	Resistance	1.3±10% Ω
Insulation Resistance	100Mohm(500V DC)	Inductance	6.5±20% mH
Insulation Class	B	Holding Torque	30kg.cm (3Nm)

Microstep Driver TB6600
Specifications
Name	TB6600 Stepper Motor Driver
Voltage	9-42VDC
Current	0.5-3.5A
Mricostep	1-32



350W 36V Power Supply
Type	S-350-36
Voltage DC	36V
Rated Current	9.7A
Current Range	0-9.7A
Rated Power	349.2W
Ripple and Noise	240mVp-p
Voltage Adjustment Range	32-40V
Voltage Accuracy	± 1.0%
Linear Adjustment Rate	± 0.5%
Load Adjustment Rate	± 0.5%
Start-up and Rise Time	200ms 50ms
Retention Time	20ms

Microstep Driver DM542
Specifications
Name	DM542 Stepper Motor Driver
Voltage	24-50VDC
Current	1.0-4.2A
Mricostep	256

Microstep Driver DM542
Description		Min	Suggest	Max
Supply Voltage VDC (3A)		24	36	50
Out Current (Peak Value) A		1	/	4.2
Logic Control Input Current(mA)		8	10	20
Stepping Impulse Response Frequency(khz)		0	/	200
Cooling		Natural Cooling
Use of the enviroment	Enviroment	Avoid Dust, Oil, Corrosive Gases
	Humidity	40-90%RH
	Temperature	0-50℃
	Termor	5.9m/s*s Max

👨💻 Beginner-Friendly & Professional Support

No prior CNC experience? No problem! We provide a step-by-step English manual, video tutorials, and Mach3 configuration files to help you set up and operate the kit in minutes. Our technical team is available 24/7 to answer your questions – whether you need help with wiring, software setup, or troubleshooting. We also offer an active community support network for tips and project inspiration.

🛡️ Quality Assurance & After-Sales Service

All components are strictly tested before shipping to ensure they meet high-quality standards. We offer a 12-month warranty for all parts – if you encounter any quality issues, we provide free replacement or full refund. We ship worldwide via DHL/FedEx/Aliexpress Standard Shipping, with fast delivery and real-time tracking. For bulk orders, contact us for exclusive discounts and customized services.

💡 Tips for Optimal Performance

1. Install the Mach3 software and USB driver as per the manual for seamless communication.

2. Adjust the motor tuning parameters (steps per unit, velocity, acceleration) in Mach3 for precise movement – the recommended max speed to acceleration ratio is 20:1.

3. Use the appropriate cutting tools for different materials to achieve the best results.

4. Ensure all connections are secure to avoid signal interference or component damage.

🔥 Don’t Miss Out – Build Your Dream CNC Router Today! Add to Cart Now and Start Your Creative Journey with Our High-Quality 4 Axis CNC Router Kit. If you have any questions, feel free to contact us – we’re here to help you succeed!
