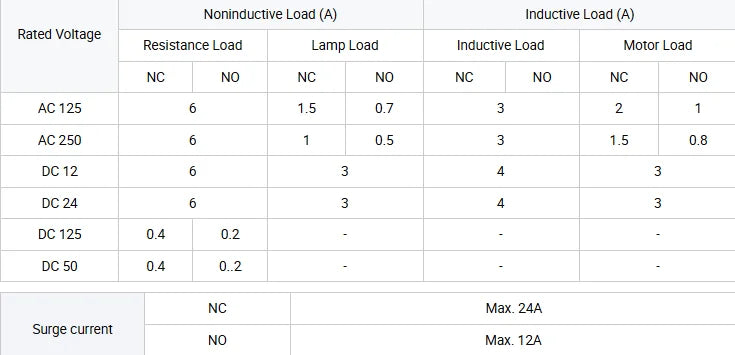

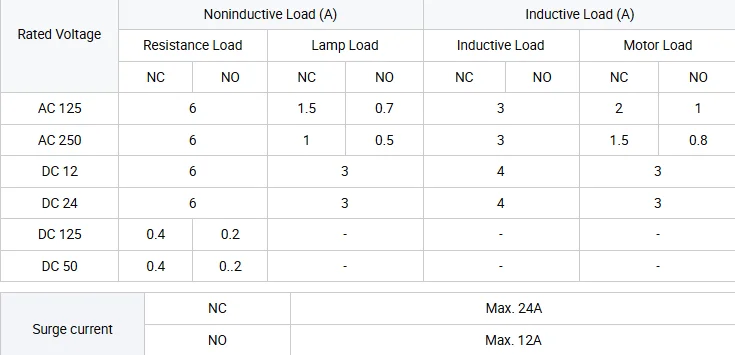

SPECIFICATIONS

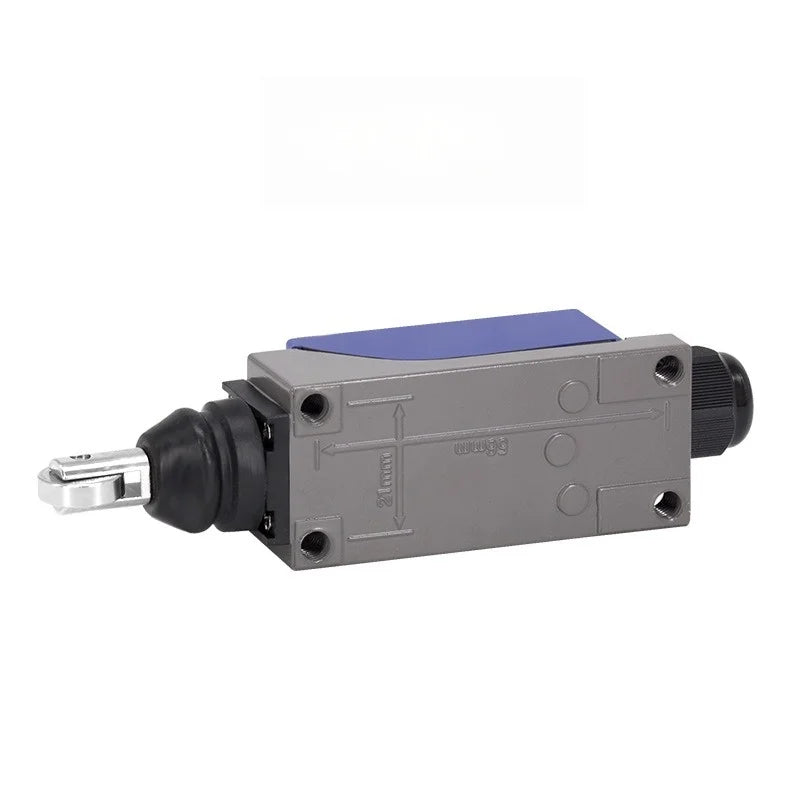

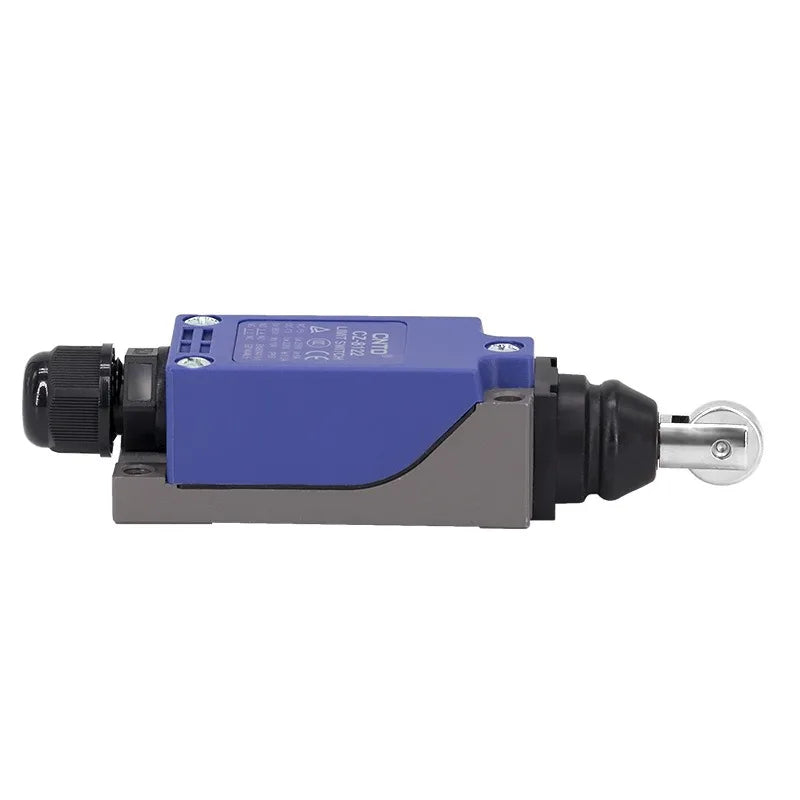

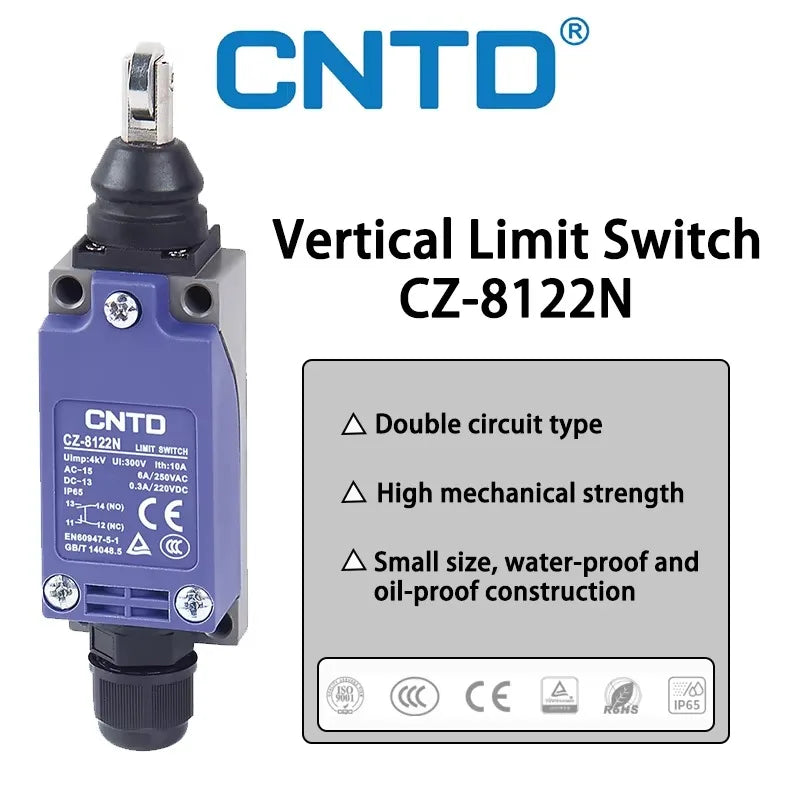

The CNTD CZ-8122N is a high-precision long roller lever type limit switch of the CZ series industrial position control switches. Adopting a flexible long roller swing lever structure, this switch supports multi-angle and multi-directional stroke triggering with a larger effective actuation range, adapting to complex mechanical motion and long-distance position detection scenarios. Built with high-strength zinc alloy die-cast housing and fully sealed structure, it owns IP65 dustproof, waterproof and oil-proof performance. Equipped with a built-in double-spring microswitch mechanism, it delivers stable signal output, excellent vibration resistance and ultra-long service life. It is widely used in industrial automation lines, CNC machine tools, lifting machinery, conveyor equipment, packaging machinery and other mechanical stroke limit and overtravel protection systems.

- Long Roller Lever Structure: Optimized long swing roller lever design with large triggering range and flexible multi-directional actuation, perfectly adapted to long-stroke limit and complex mechanical motion detection scenarios.

- Heavy-Duty Industrial Housing: High-strength zinc alloy die-cast shell with anti-collision, anti-wear and anti-deformation performance, stable for long-term operation in harsh industrial environments.

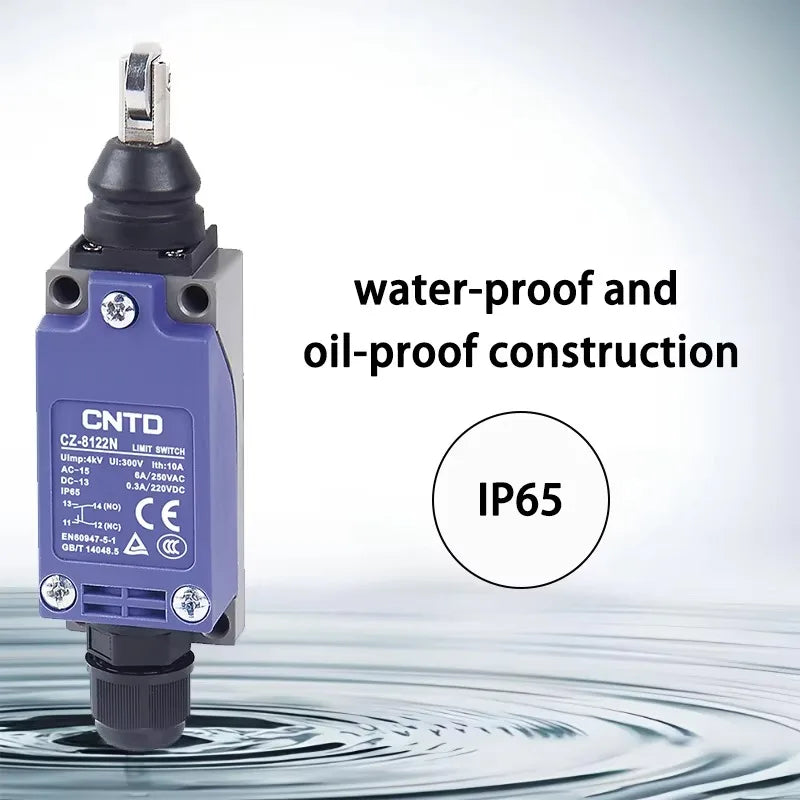

- IP65 Full Protection: Integrated sealing structure effectively resists industrial dust, water splash, lubricating oil and humid air, ensuring stable operation in oily and dusty workshops.

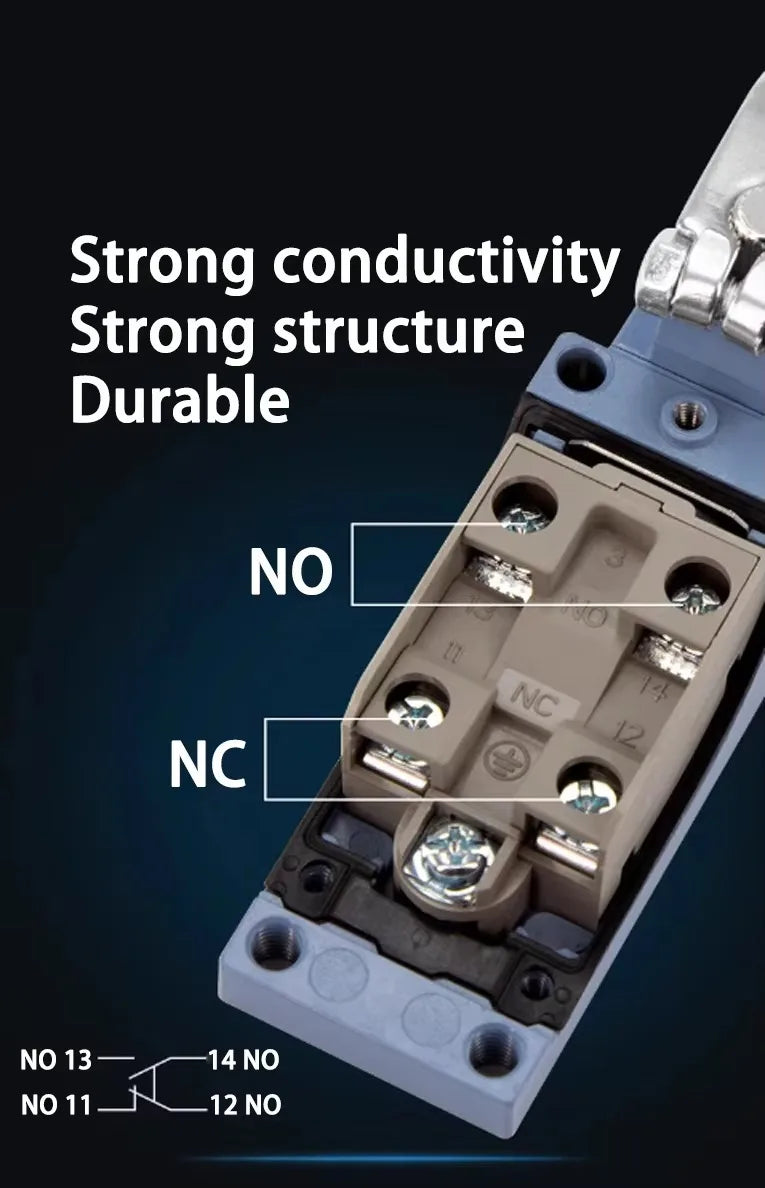

- Stable Contact Performance: High-precision double-spring reset mechanism ensures instant switching of NO/NC contacts, no delay or virtual connection during high-frequency cyclic operation.

- Ultra-Long Service Life: Optimized mechanical transmission structure, mechanical life up to 10 million times and electrical life over 500,000 times.

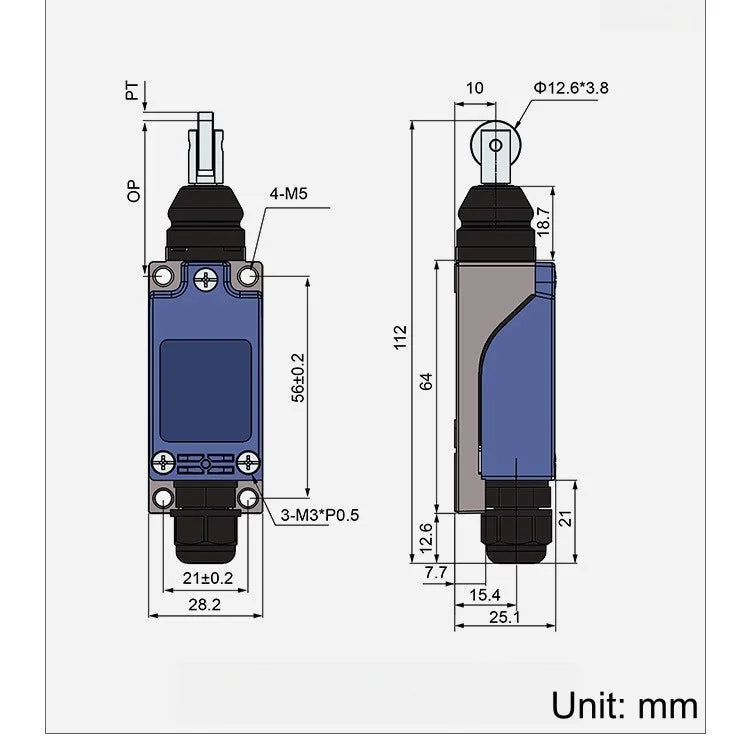

- Universal Standard Installation: Consistent mounting hole size and spacing with CZ/TZ series, compatible with most industrial equipment brackets, easy installation and wiring.

- Strong Environmental Adaptability: Excellent anti-vibration and anti-impact capability, maintaining stable triggering accuracy under dynamic working conditions.

1*CNTD CZ-8122N Limit Switch
