Customized professional 0.3mp VGA infrared cmos camera module ov7670 sensor raspberry pi esp32 0v7670

Customized professional 0.3mp VGA infrared cmos camera module ov7670 sensor raspberry pi esp32 0v7670

$253.56

$253.56 $0.00

Description

SPECIFICATIONS

Brand Name: NONE,Sincere First

Features: DVP Camera Module

Focus: Fixed Focus

Keyword: ov7670 camera module arduino

Lens Size: 1/6"

Maximum ImageTransfer Rate: 30 fps for VGA

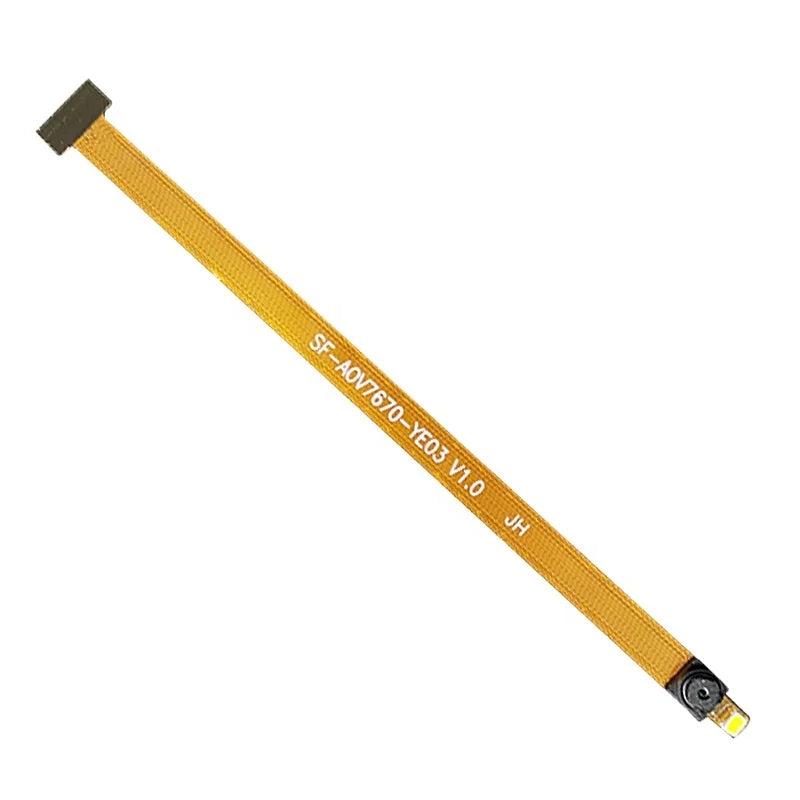

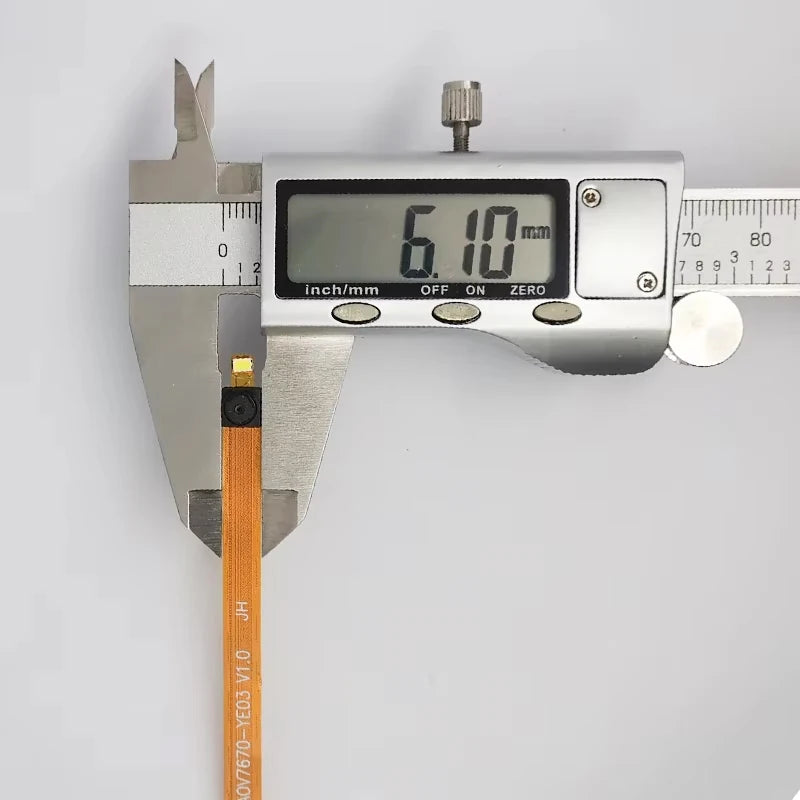

Model Number: SF-AOV7670-YE03

Mounting Type: DVP

Origin: Mainland China

Pixel: 0.3mp

Place of Origin: Guangdong, China

Product Name: ov7670 camera module

Scan Mode: Progressive

Sensor: ov7670

Series: Camera Module

Style: Mini Camera

View angle: 60°

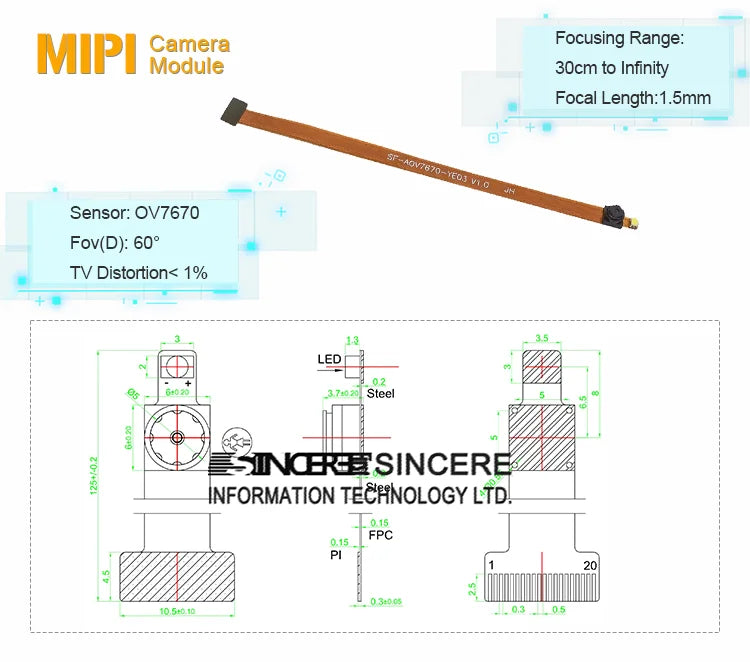

Products Description

Sensor:	OV7670	Pixels:	0.3MP
Focus Range:	30cm~Infinity	Focal Length:	1.55mm
F.NO:	2.8	View Angle:	60°
TV Distortion:	＜1%	Focus:	Fixed Focus
SF-AOV7670-YE03 OV7670 Description: The OV7670 CAMERACHIP TM image sensor is a low voltage cMos devce that provdes the fullfunctionality ofa single-chip VGA camera and image processor in a small footprint package.The Ov7670 provides full-frame subsamped or windowed 8bitmades in a wide range of formats, controlled through the Serial Camera Control Bus(SCCB)interface. This product has an image aracapable of operating atur to 30 frames per second (fps)in VGA with complete user control over image qualityformating and output date transfer.All reguired image processing functionsincludinc exposure contolgamma. white balancecolor saturation hue contol and more, are also programmable through the SCCB interface. In additionOmnivision sensors use propretary sensor technology to improve image qualityby reducing or eliminating common lighting/electica sources of image contamination such as fixedpattern noise(FPN smearing,blooming,etcto produce a cleanfullystable color image. SF-AOV7670-YE03 OV7670 Features: ◆High sensitivity for low-light operation ◆Low operating voltage for embedded portable apps ◆Standard SCCB interface compatible with I2C interface ◆Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats ◆Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40x30 ◆VarioPixel® method for sub-sampling ◆Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC) ◆Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming ◆ISP includes noise reduction and defect correction ◆Supports LED and flash strobe mode ◆Supports scaling ◆Lens shading correction ◆Flicker (50/60 Hz) auto detection ◆Saturation level auto adjust (UV adjust) ◆Edge enhancement level auto adjust ◆De-noise level auto adjust MIPI Camera Module, MIPI Camera Board, Camera Sensor Module, Phone Camera Module As our manufacturing facilities provide optics and camera modules design service and manufacturing of electro-optical subsystem, optical lens, camera module, image processing and laser sensing. We dispose of an unsurpassed design and development capacity, comprising an in-house optics & photonics division, an hardware division and an software integration division making us the ideal choice for clients who wish to outsource crucial designs and manufacturing to a highly qualified and trusted partner. As the camera module structure, we divide into 3 main sections: 1. Image Sensor 2. Camera Lens Module + Optical Filter 3. Sensor Driver and Interface FPC Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS 1 year Replacement!! 10 Years Warranty!!

Customized Service

Recommend Products

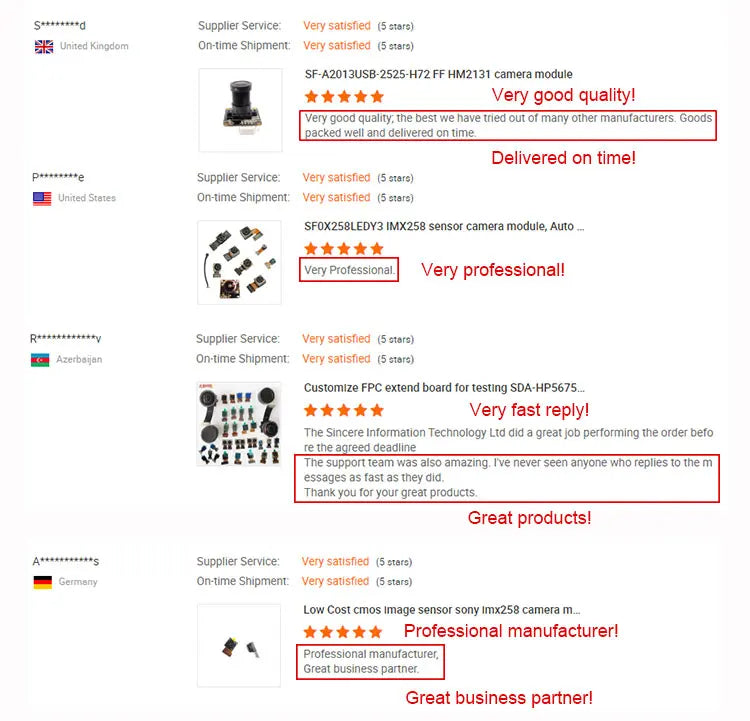

Buyer Reviews

Company Profile

FAQ

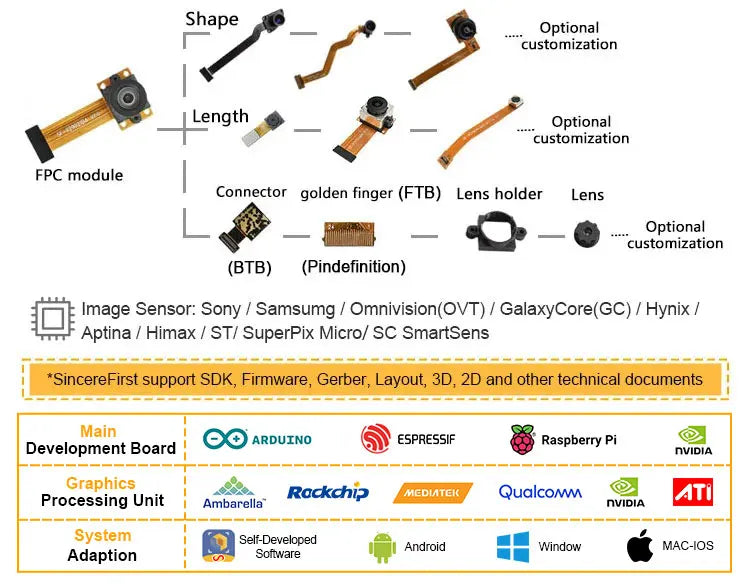

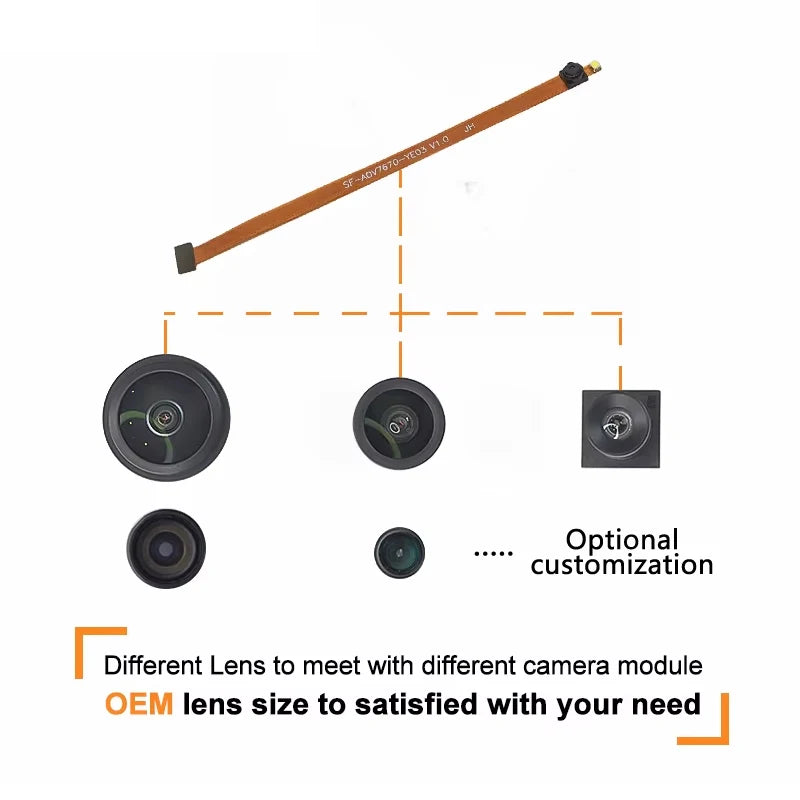

Q1: Are you factory or trade company? A1: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers. Q2: What can you customize with our camera module? A2: FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, Firmware and so on. Q3: What is your camera module custom requirements flow? A3: Camera module / Board camera customized process insight With hundreds of camera module application, the standard camera modules can't meet each specific requirement, so customization process comes with necessity and popularity, the hardware and firmware modification, including module dimension, lens view angle, auto/fixed focus type and lens filter, to empower the innovation. Non-recurring engineering completely covers the research, development, design for producing a new product. For saving the developing time and cost, SINCERE FIRST provides the custom camera module service based on our standard camera module solution. · Customized requirements flow 1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff. 2.Communication or Meeting 3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you according to your needs. 4.Sample Development 5.Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress. 6. Sample Testing 7. Test and age on your application, feedback test results, no need to modify, mass production. Q4: What operating system does your camera module support? A4: Our camera module can support Windows, Mac-IOS, Android and Self-developed Software. Q5: Which software / development platform do your camera modules support? A5: Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, RK(Rockchip), MTK(MediaTek Inc.), Qualcomm, ATI Q6: How long does it take to develop a new camera module? A6: Typically around 7–10 days from start date.
