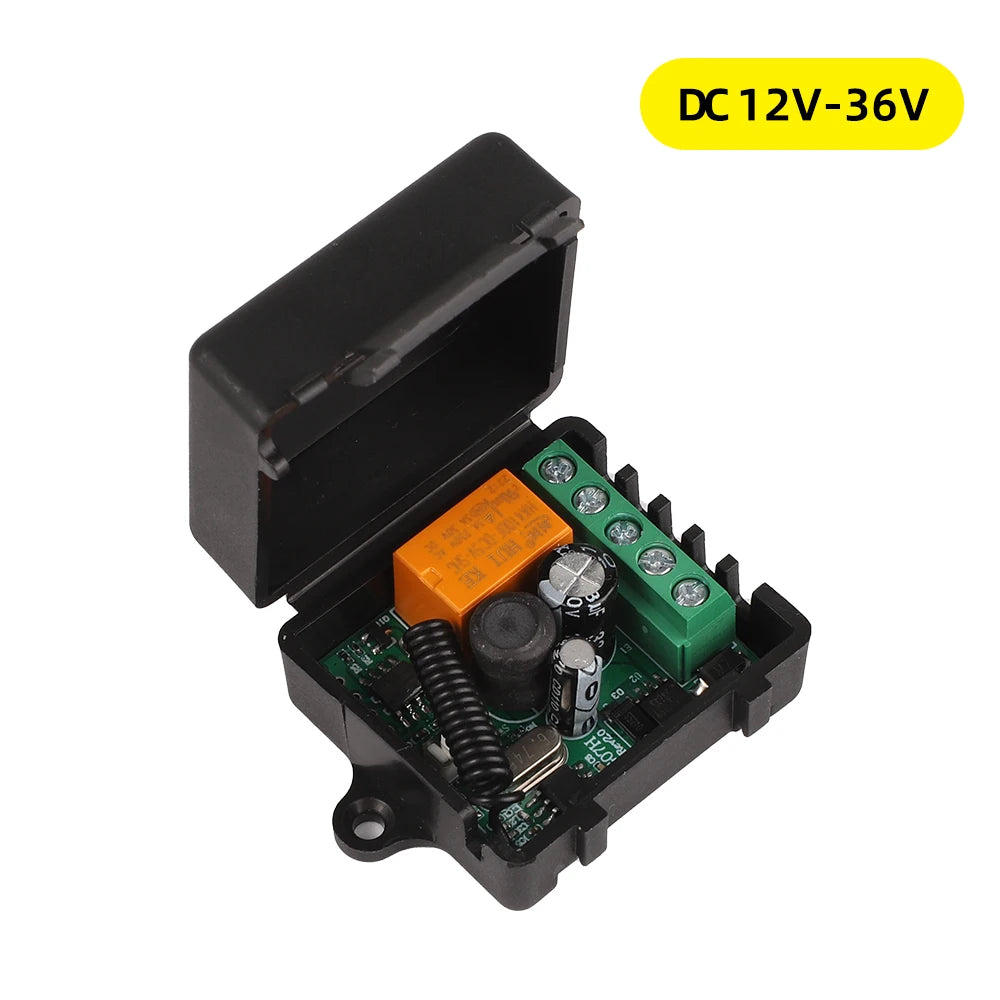

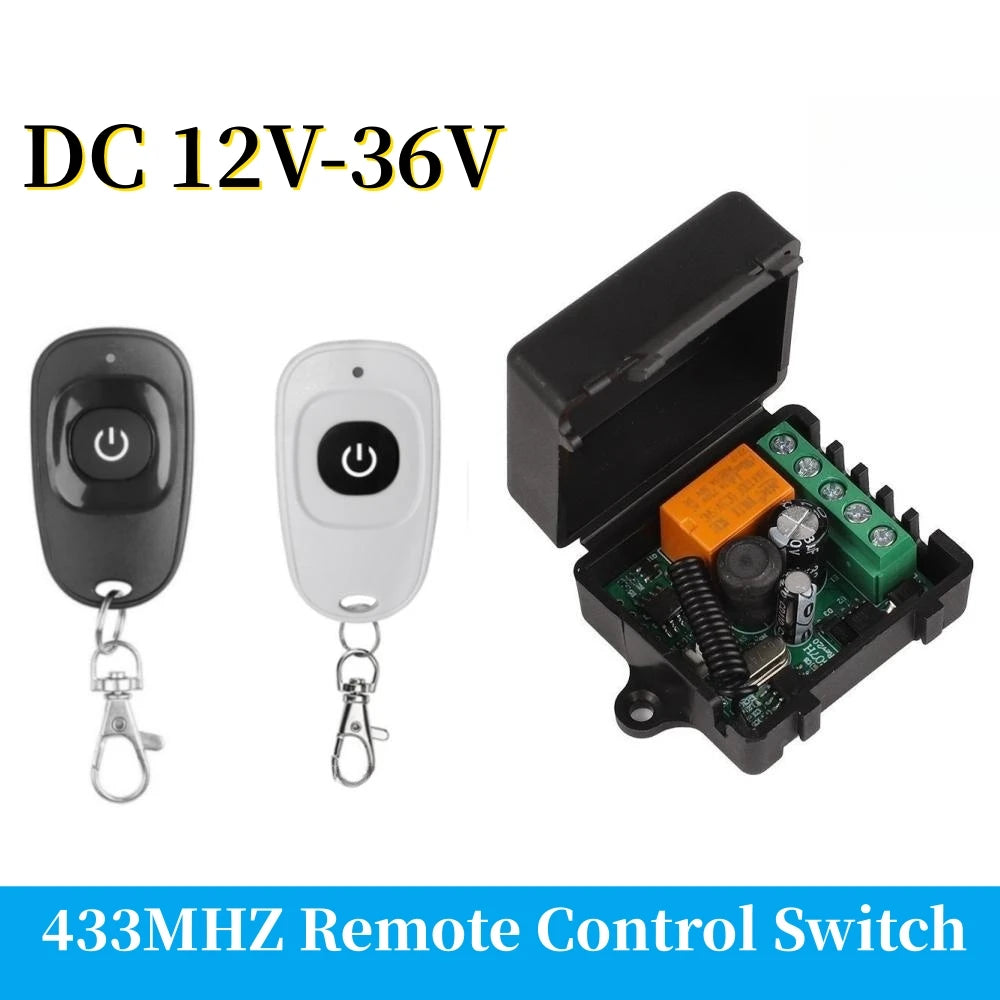

DC 12V 24V 36V 433 MHz Remote Control Wireless Switch 1 CH RF Relay Receiver and 1CH Transmitter for Door Electromagnetic Lock
Only 1 Receiver
$16.68
Sale price
$16.68
Regular price
$0.00
Skip to product information
Package including
DC 12V 24V 36V 433 MHz Remote Control Wireless Switch 1 CH RF Relay Receiver and 1CH Transmitter for Door Electromagnetic Lock
$16.68
Sale price
$16.68
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: kebidumei
Certification: CE
Channel: 1
Choice: yes
Form-factor: Others
Frequency: 433 MHz
High-concerned chemical: none
Model Number: RF Transmitter 433 Mhz Remote Control Switch
Origin: Mainland China
Package: No
Support APP: No
Use: Universal,Lighting,Electric Door,Automated curtains,Switch
Wireless Communication: RF
Remote programming
Working mode:
1. Inching mode: press the remote control the relay will connect, and then release the remote control to disconnect the relay;
2. Self-locking mode: press the remote control the relay will connect, and then press the remote control again to disconnect the relay;
3. Interlock mode: press the remote control key A to connect the relay, and press the remote control key B to disconnect relay.
4. Delay mode: press the remote control the relay will connect, release the remote control and start timing. After 5S, 10S and 15S (3 gears), the relay will be automatically closed.
Learning Methods:
1. Inching learning method:
Press the code pairing button on the control panel once, and the LED indicator will flash once. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
2. Self-locking learning method:
Press the code pairing button on the control panel twice, and the LED indicator will flash twice. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
3. Mutual lock learning method:
Press the code pairing button on the control panel three times, and the LED indicator will flash three times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
4. 5S delay learning method:
Press the code pairing button on the control panel four times, and the LED indicator will flash four times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
5. 10S delay learning method:
Press the code pairing button on the control panel five times, and the LED indicator will flash five times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
6. 15S delay learning method:
Press the code pairing button on the control panel six times, and the LED indicator will flash six times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
-Clearing the code :
Push the learning button on the receiver 8 times , the codes will be reset.
After clearing the code, remotes will be need to be recalibrated
Input Voltage: 12 V-36V , RF working mode: Superheterodyne
• Receiver sensitivity: > 97 dbm
• Transmitting distance:> 100 m ( open space)
• Decoding mode: MCU software decoding
• Remote storage: 250
• Support remote type: EV1527 learning code
• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

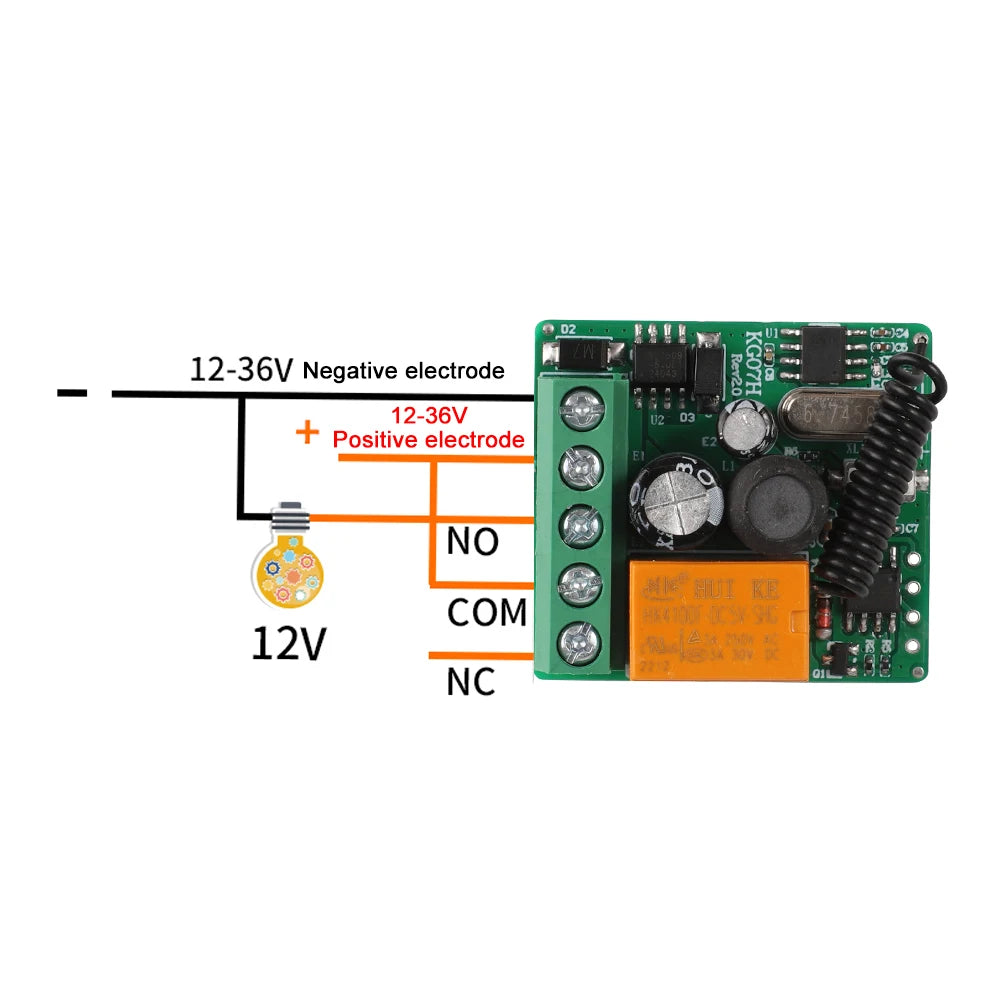

• Output terminal: NO , NC , COM

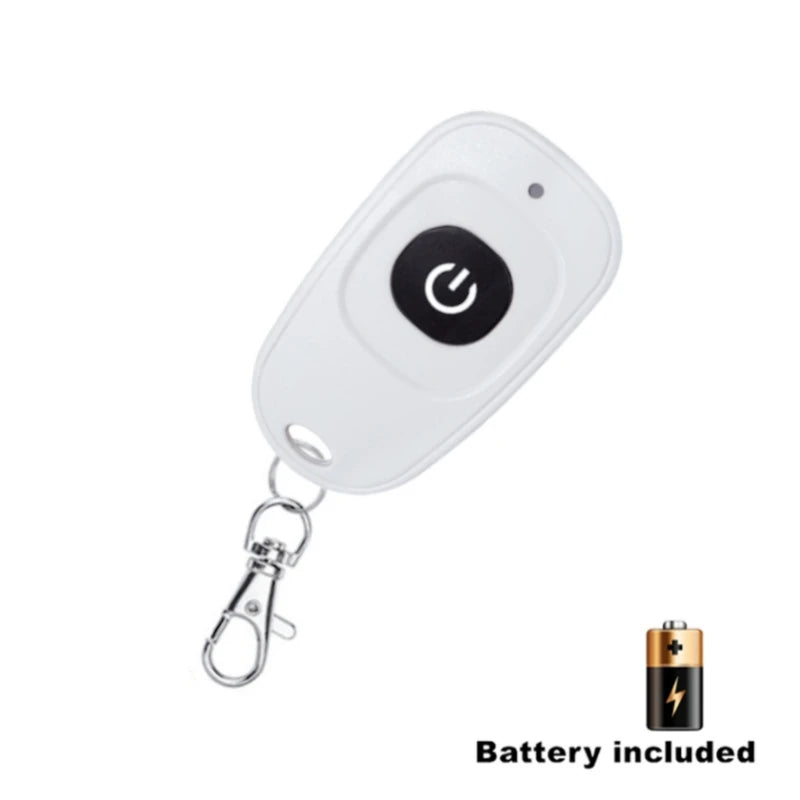

• Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V

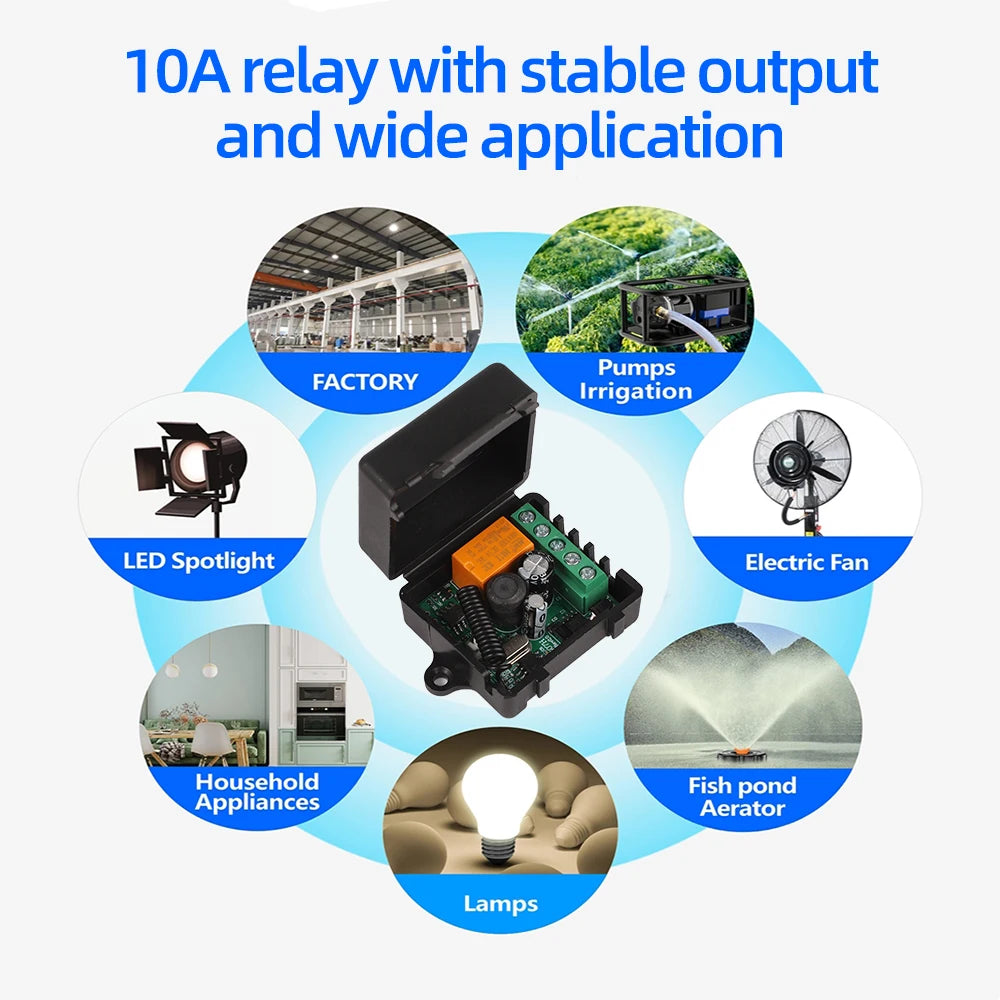

10A relay with stable output and wide application
for Water Pump Motor LED/Electric Appliance
for Family, Farm, Factory, Office, Supermarket
for Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor
Smart Home, Feel free to use it together

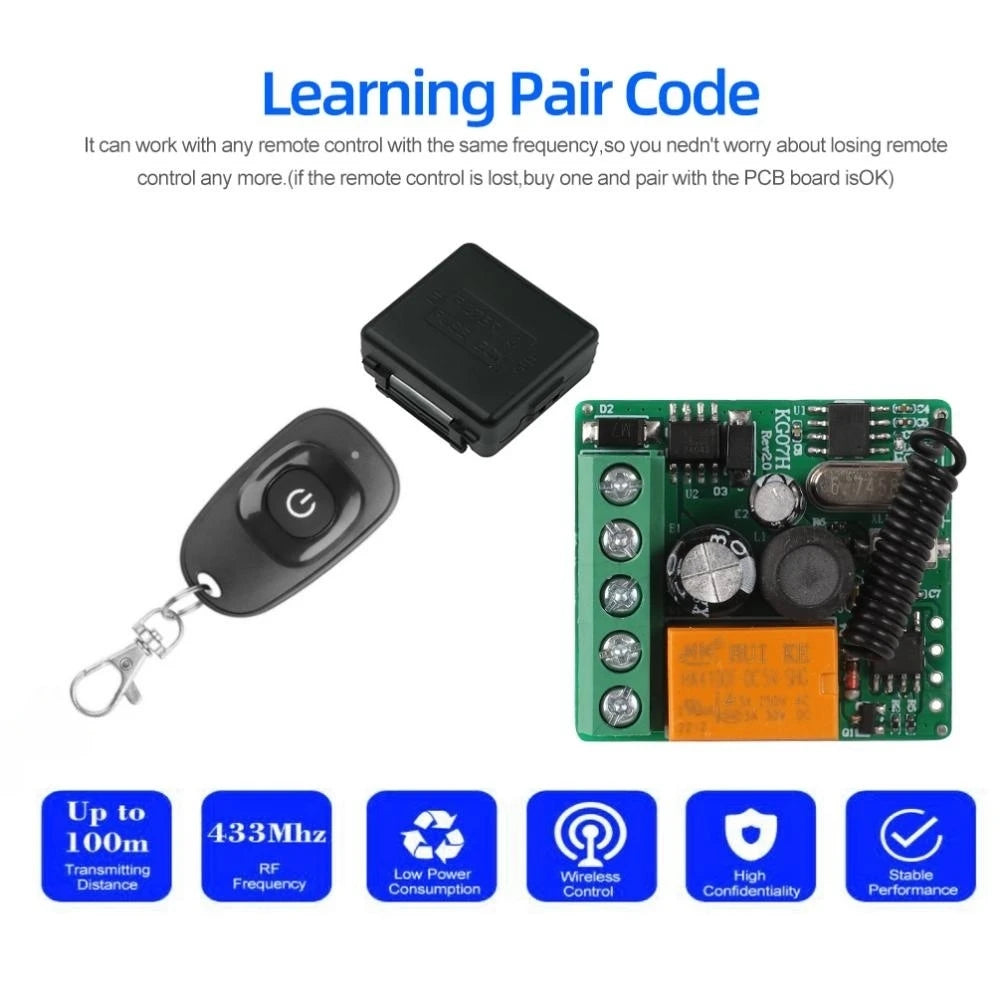

Learning Pair Code

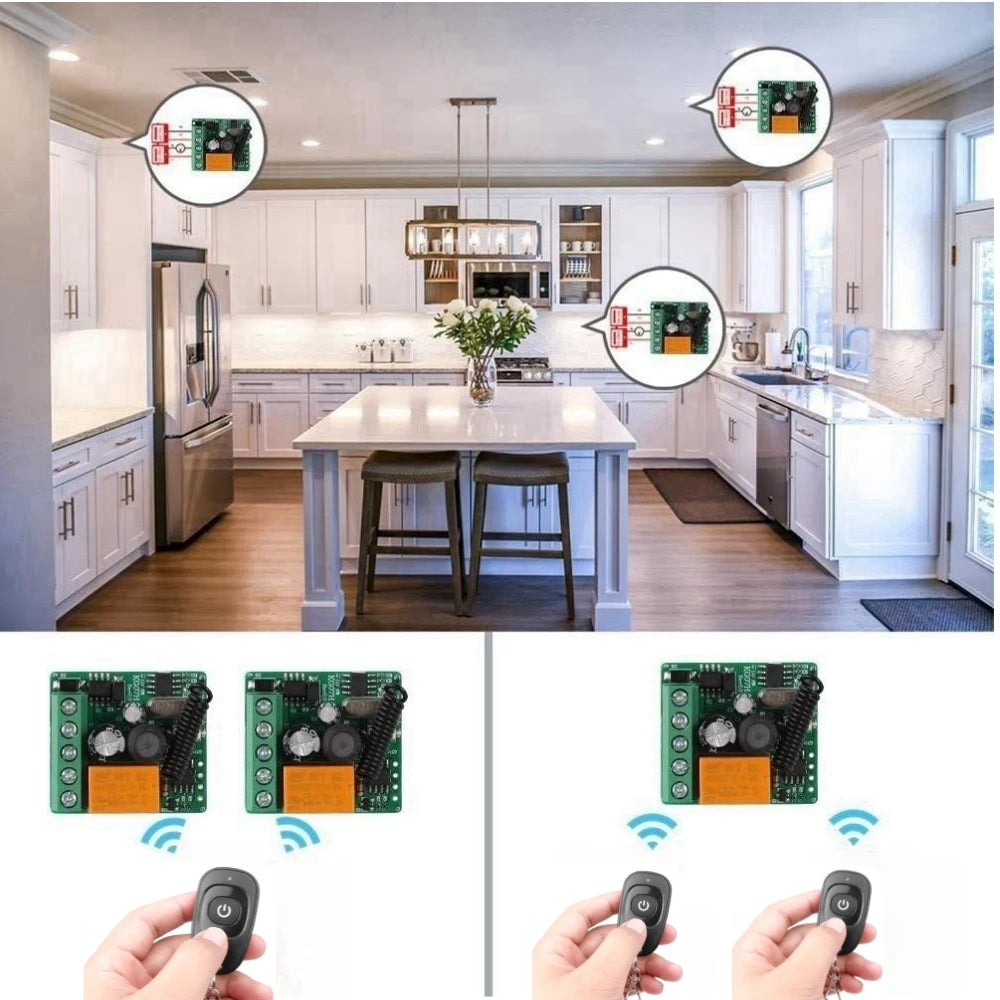

it can work with any remote control with the same frequency, so you needn't worry about losing remote
control any more.(if the remote control is lost, buy one and pair with the PCB board is Ok )

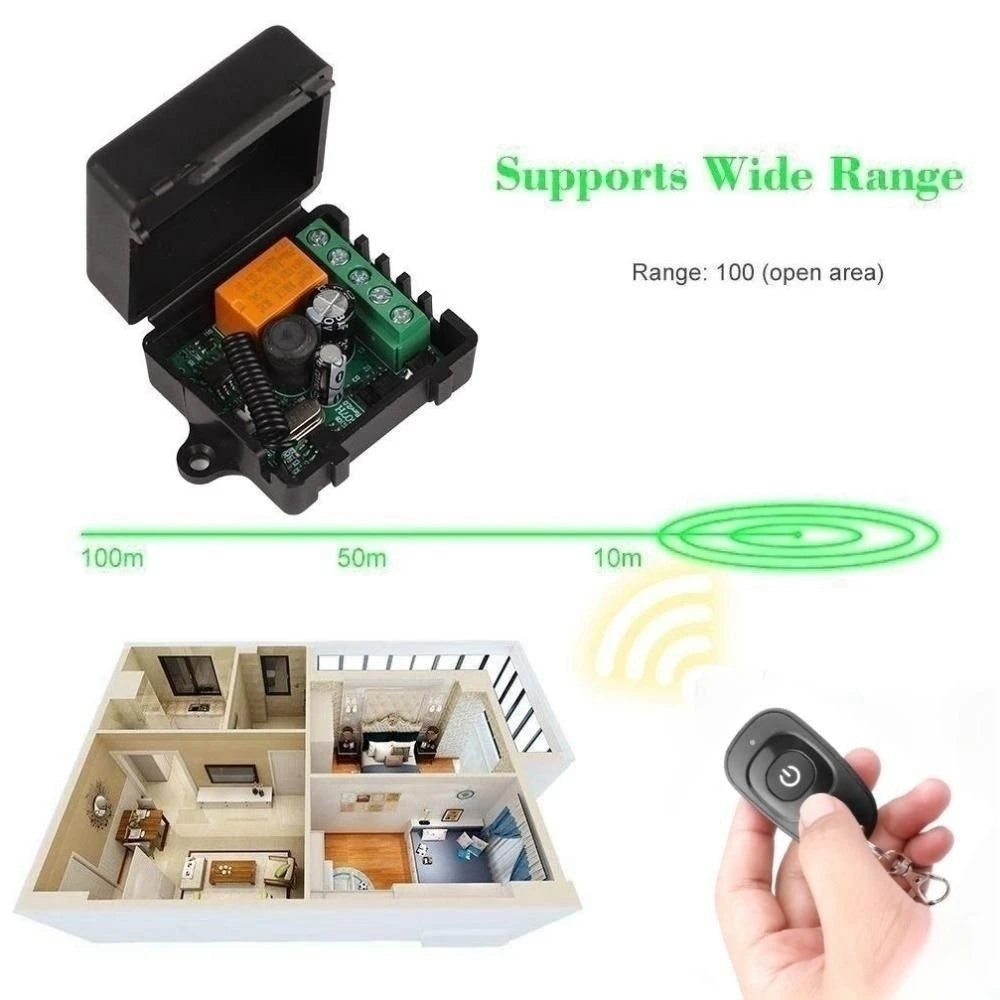

100m receiving distance
Powerful chip, the receiving distance can reach 100 meters

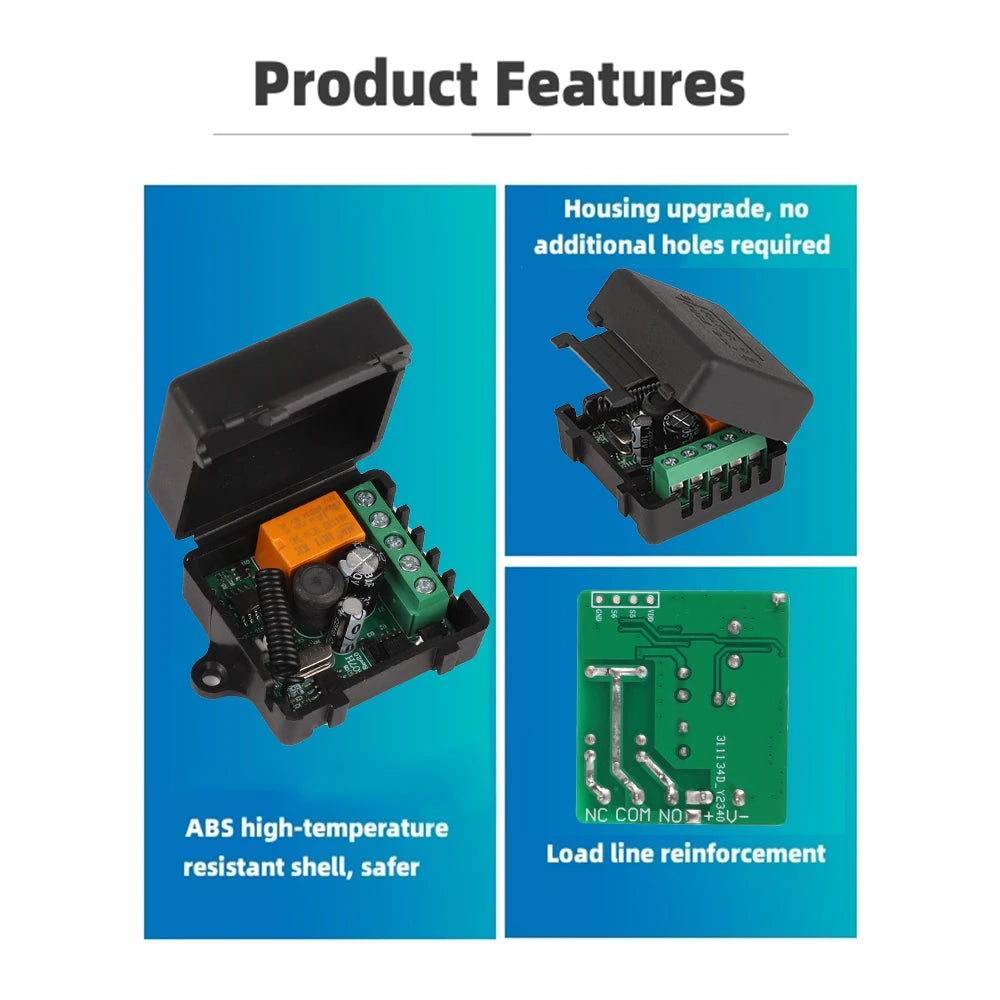

ABS high-temperature resistant shell, safer
Package including

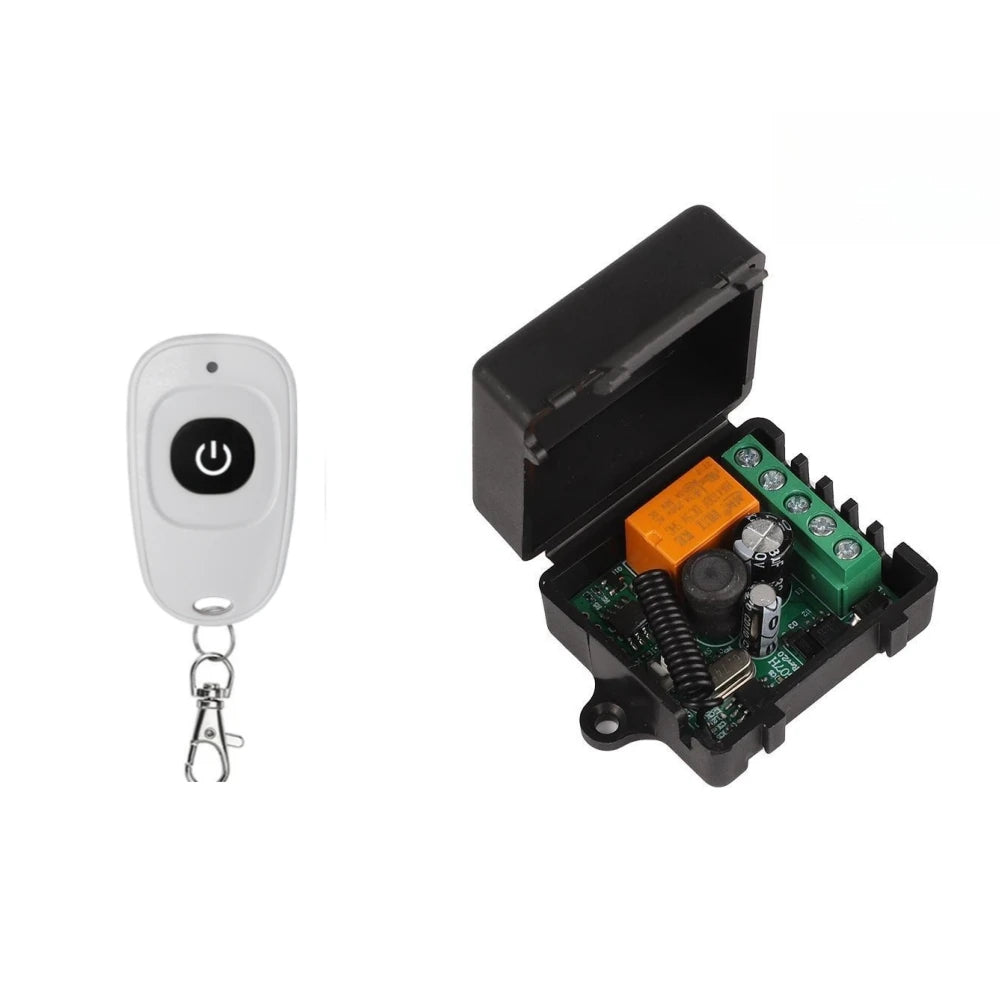

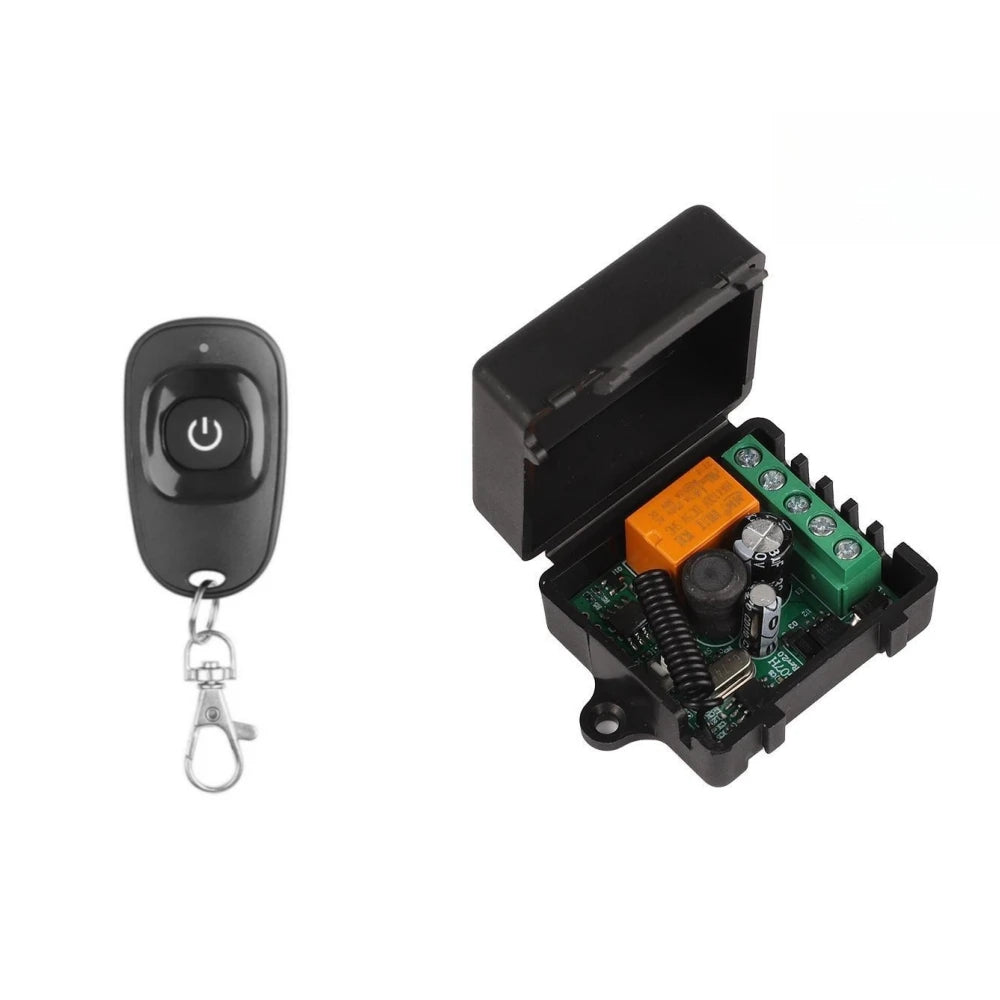

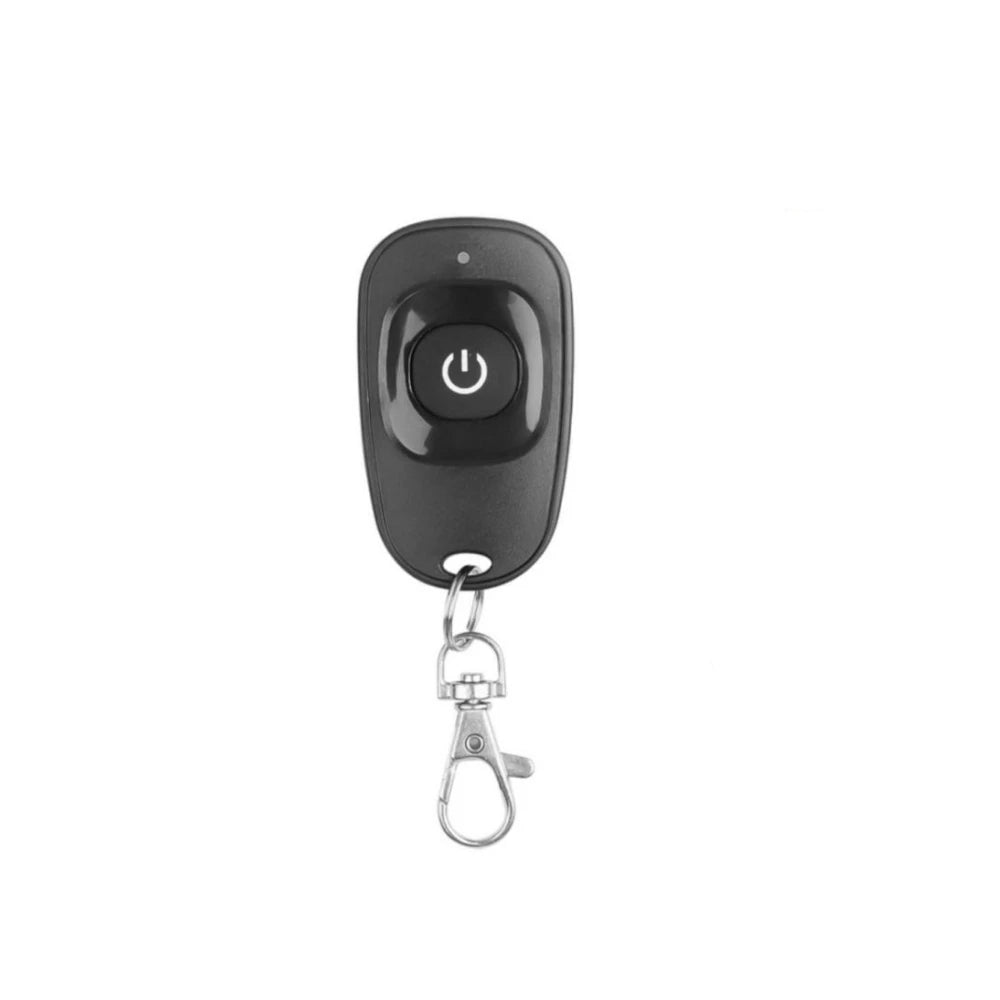

1*Remote Control+1*Receiver / Only 1*Receiver / Only 1*Remote Control
(It depends on the model you choose)
