DC 5V 12V 24V RS485 RS232 TTL Modbus Rtu NTC Thermistor Temperature Sensor Remote acquisition monitor Module B3950 10K 1%

DC 5V 12V 24V RS485 RS232 TTL Modbus Rtu NTC Thermistor Temperature Sensor Remote acquisition monitor Module B3950 10K 1%

$18.05

$18.05 $0.00

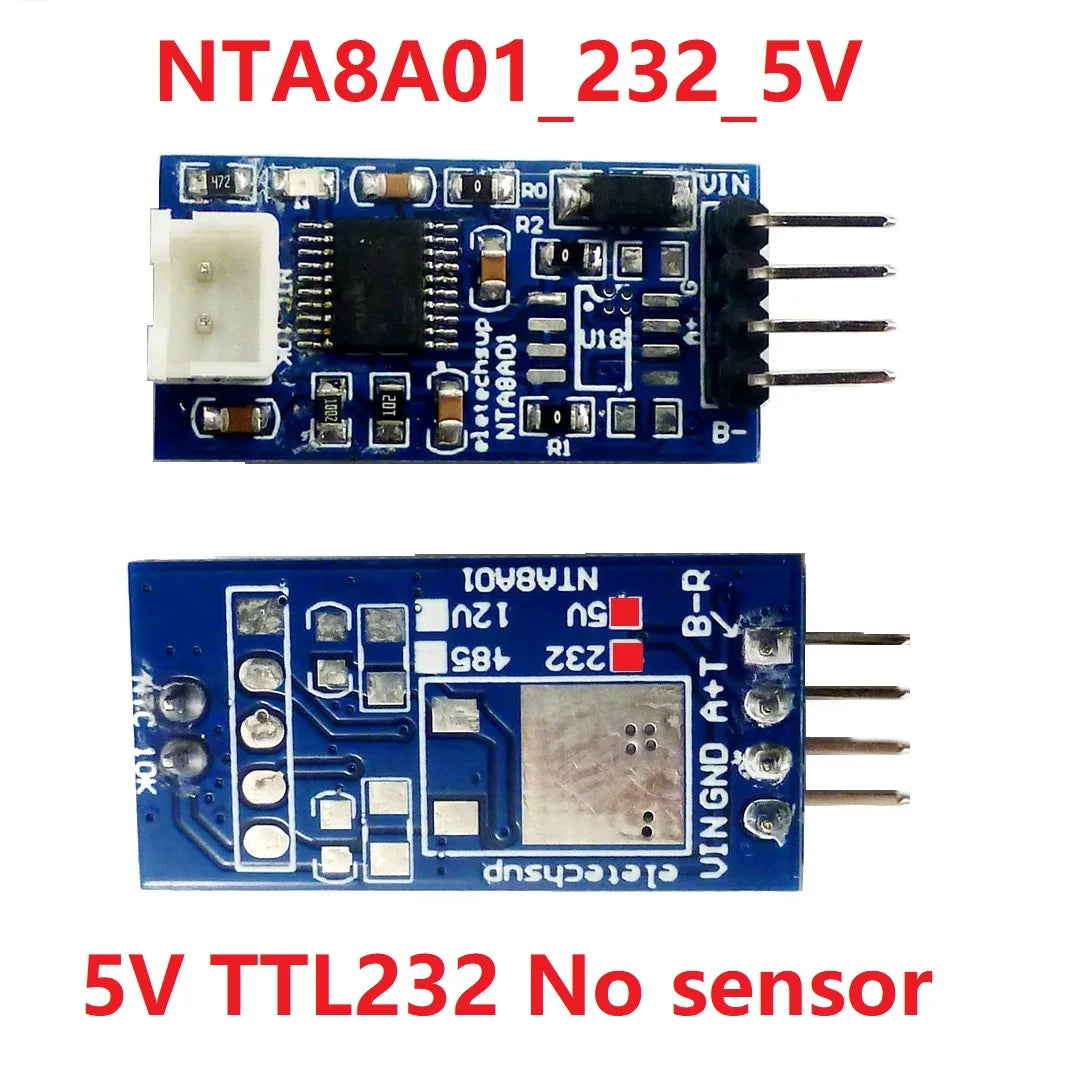

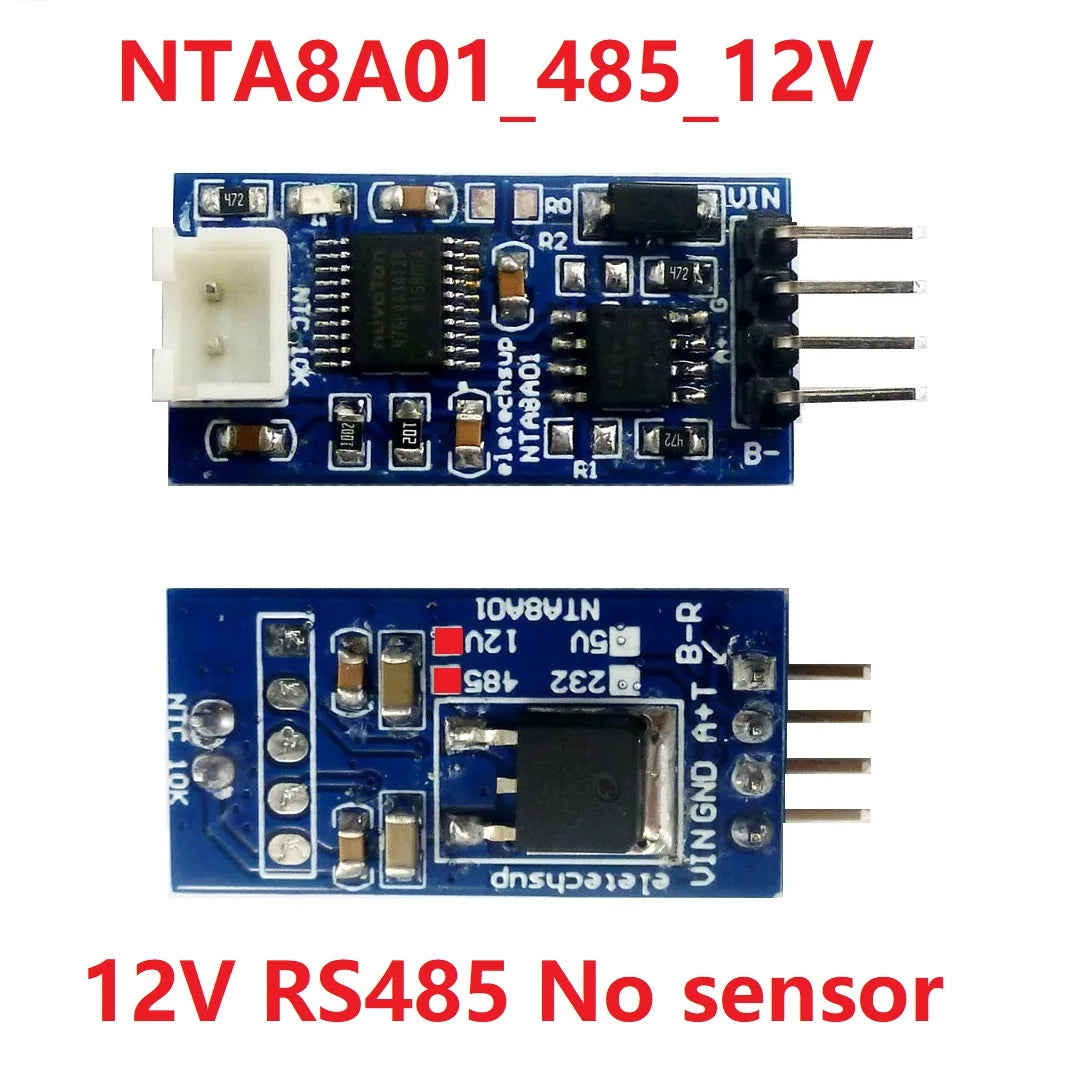

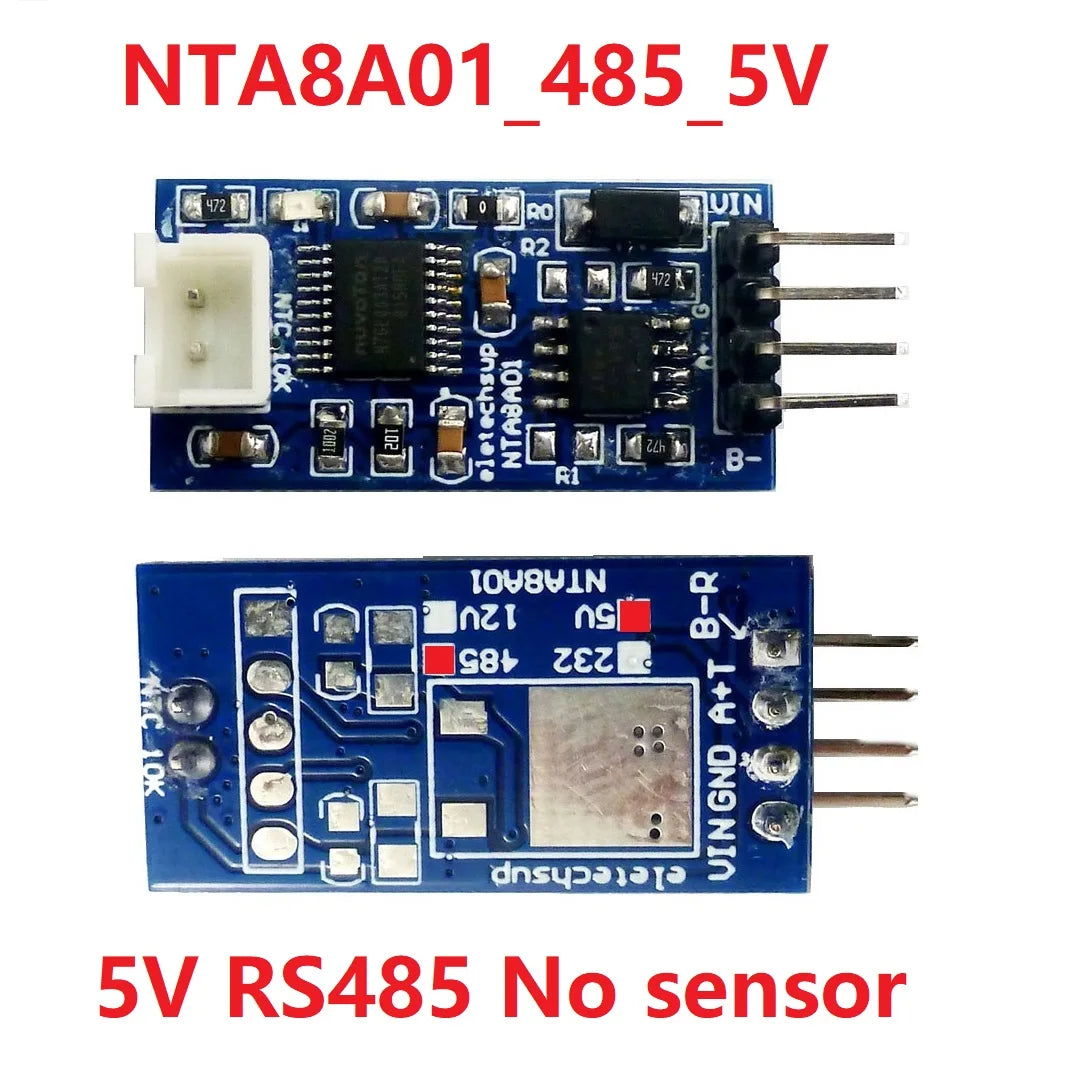

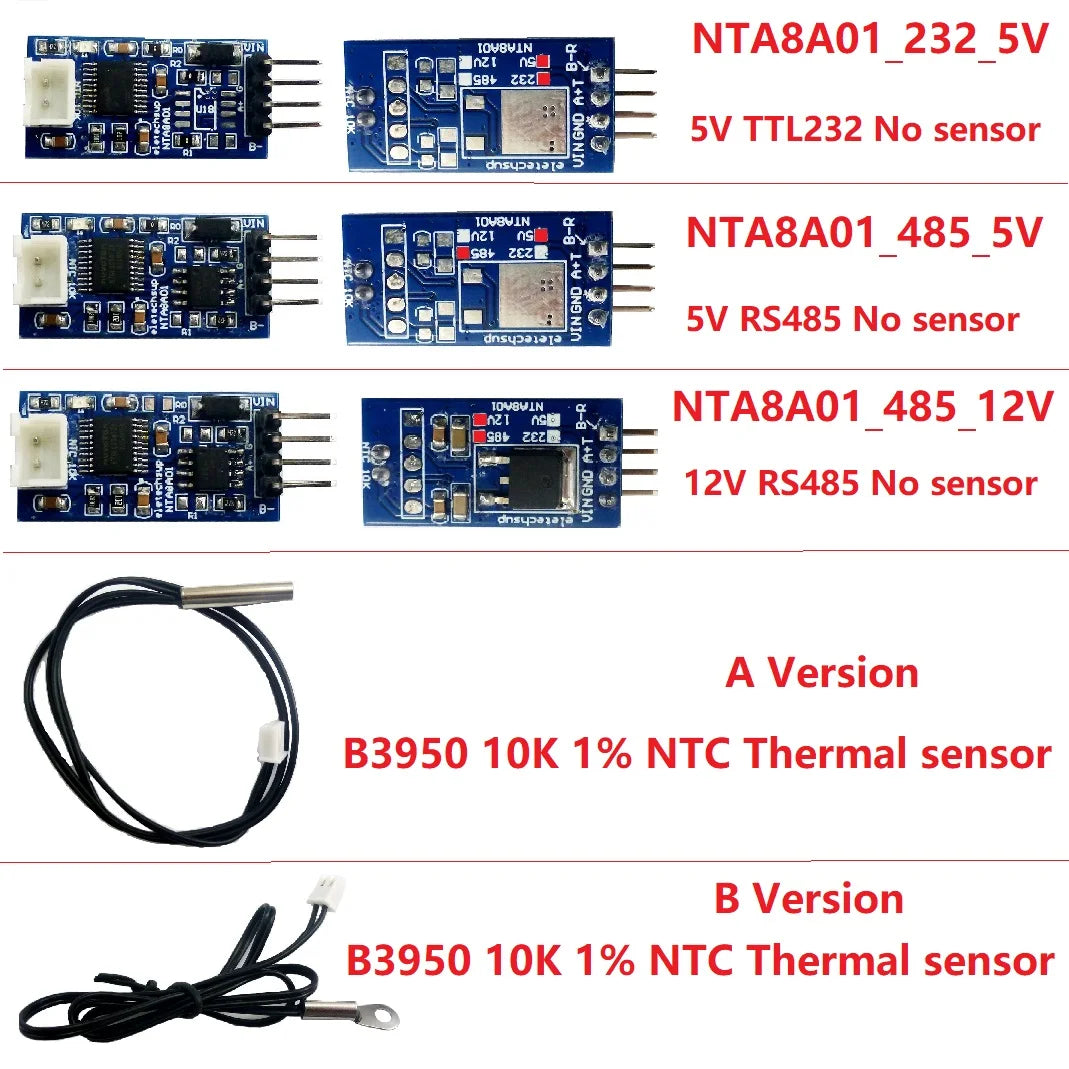

Color 12V RS485 NTC A version 5V TTL232 5V RS485 NTC B version

Description

SPECIFICATIONS

Brand Name: eletechsup

Certification: NONE

Choice: yes

High-concerned chemical: none

Model Number: NTA8A01

Origin: Mainland China

Output Current: 7-13MA

Output Frequency: 9600BPS

Output Power: 1 - 50W

Output Type: SINGLE

Size: 30 X 15 X 6MM

Type: Other

Weight: 5V version 2g, 12V version 2.5g

is_customized: Yes

semi_Choice: yes

Product Name: DC 5V 12V 24V RS485 RS232 TTL Modbus Rtu NTC Thermistor Temperature Sensor Remote acquisition monitor Module B3950 10K 1%

Packing list:

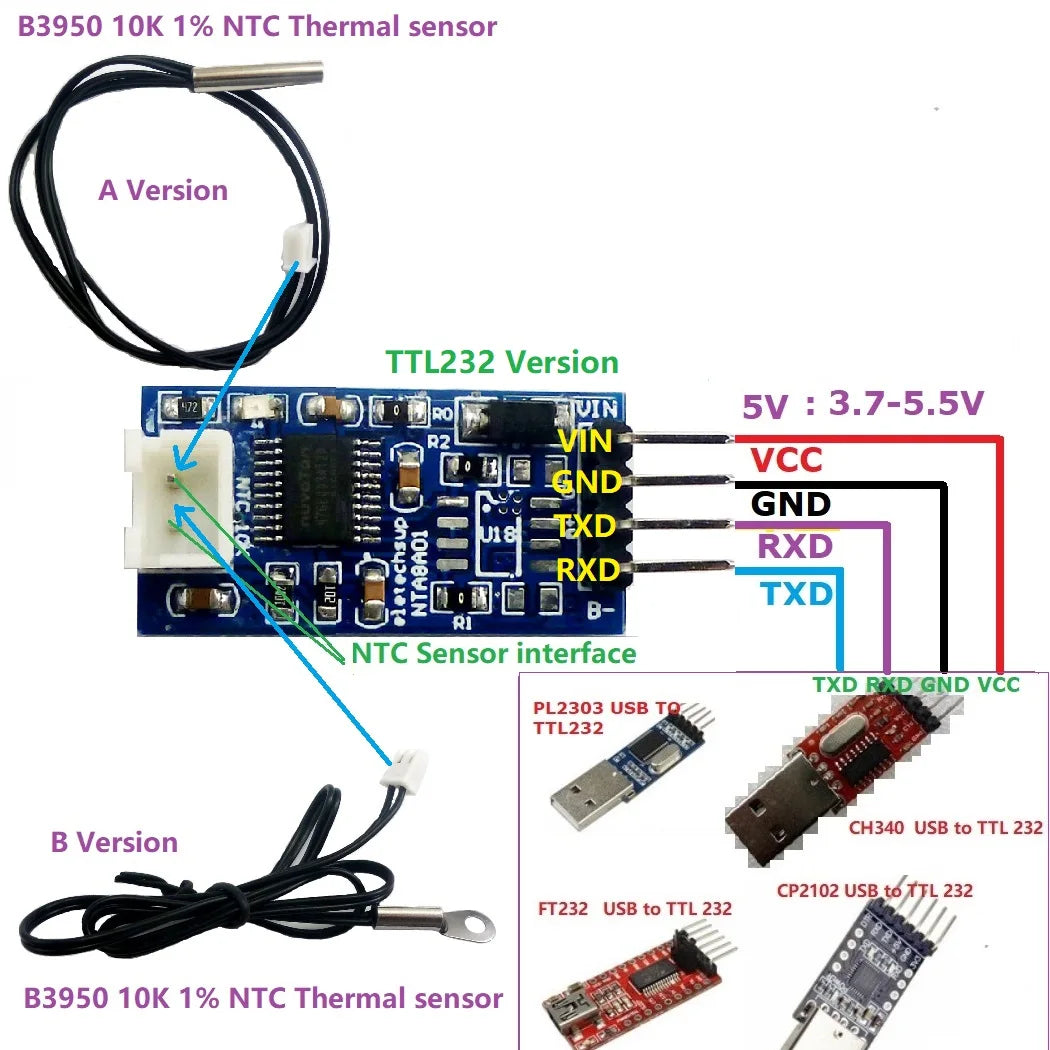

1 pcs NTA8A01 RS485/TTL232 NTC Temperature converter(Please choose the version you need)

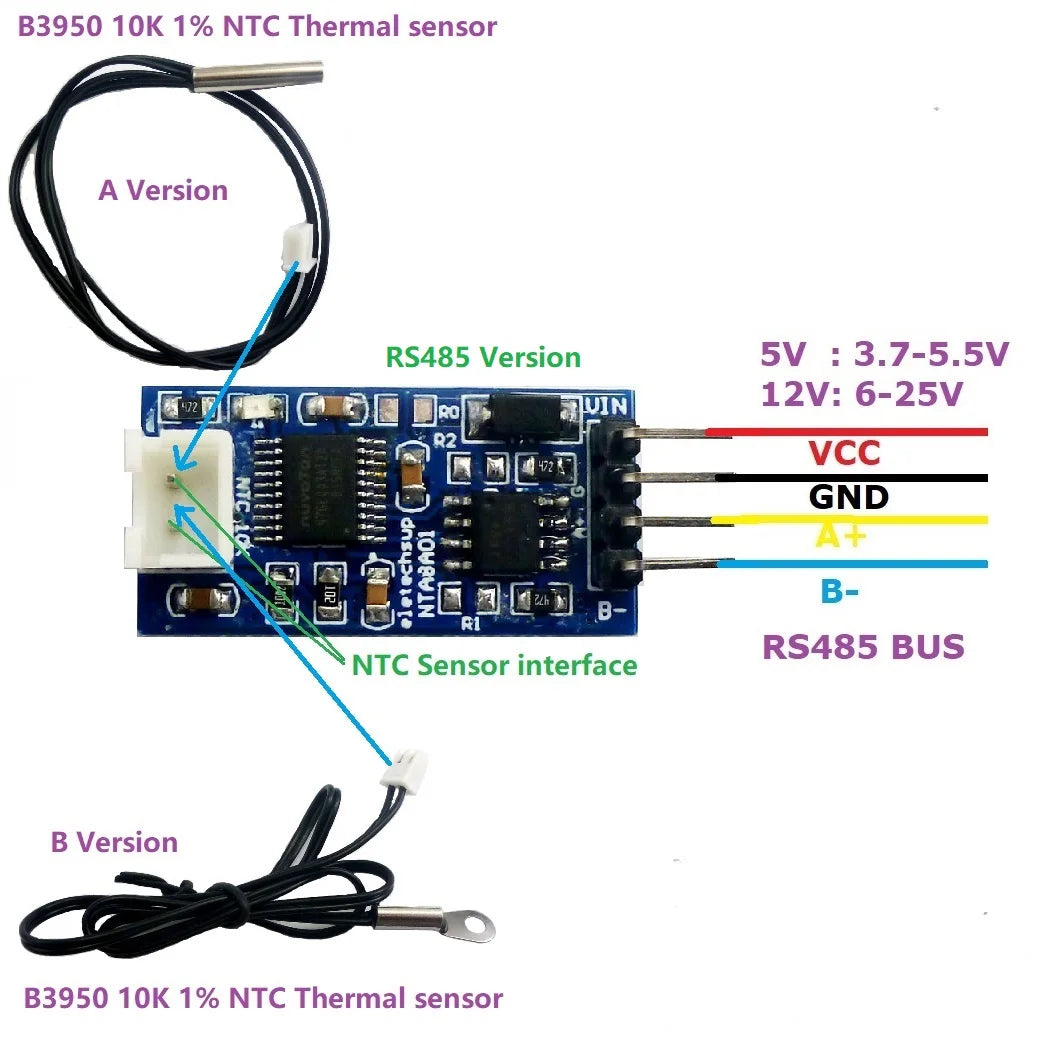

NTA8A01 Module Description:

Working voltage: 5V version: DC 3.7-5.5V; 12V version: 6-25V
Working current: 7-13MA
MODBUS RTU protocol, 03 read command, 06 write command.
Serial port baud rate: 9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)
Adapted sensor: B3950 10K 1% NTC thermistor
Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.
Temperature measurement accuracy (using our NTC sensor): 1%.
Size: 30 X 15 X 6MM
Weight: 5V version 2g, 12V version 2.5g

For more information, please contact us!!!

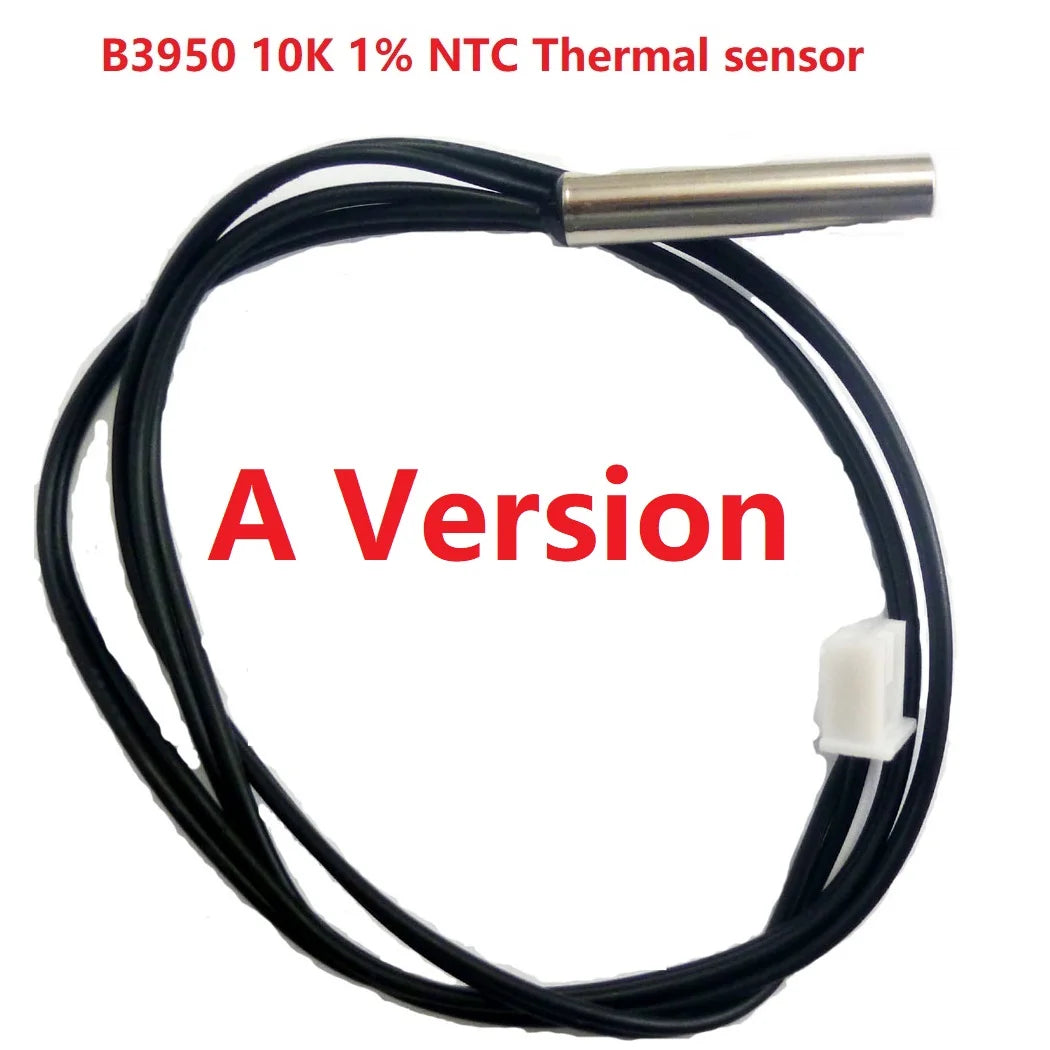

NTC sensor specifications:

Product Name: 5*25mmNTC Waterproof Probe
Total length : 50CM
Resistance value: 10K
Resistance accuracy: ±1%
Resistance B value: 3950 ± 1%
Temperature range: -20 ° C -125 ° C
Wire size: 2651 26# parallel line temperature 105 °C
Plug model: XH2.54-2P

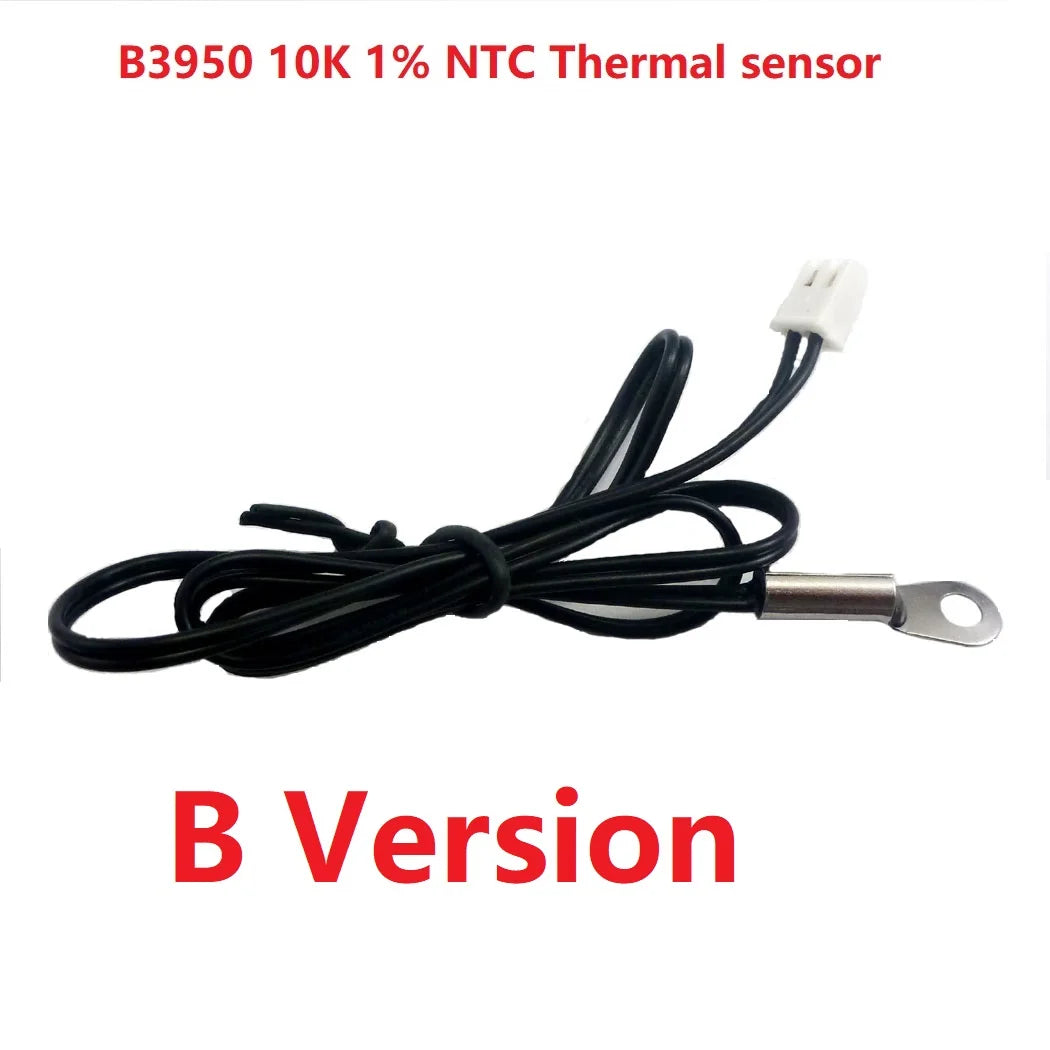

NTC Probe: A version without mounting holes, B version with mounting holes (4MM/M4)

Note:
1 This module does not have an NTC sensor. The NTC sensor needs to be purchased separately (B3950 10K 1%);The module's measured resistance value is 1%, and the theoretical temperature range is -273-200°C. The final temperature measurement accuracy and temperature range are determined by NTC thermistor.
2 Be sure to use the correct sensor (B3950 10K 1% NTC), otherwise the temperature will not be accurate

Typical application:

PLC control system

Thermostatic Controls
Industrial Systems
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
