DC signal converter 4-20mA 0-10V 2000V 20mA 75mV Signal transmitter Current Voltage Transducer

1 in 1 out / 4-20mA output / DC24V|China Mainland|Input 0-20mA

$91.80

Sale price $91.80 Regular price $0.00

Skip to product information

DC signal converter 4-20mA 0-10V 2000V 20mA 75mV Signal transmitter Current Voltage Transducer

DC signal converter 4-20mA 0-10V 2000V 20mA 75mV Signal transmitter Current Voltage Transducer

$91.80

Sale price $91.80 Regular price $0.00

Color1 in 1 out

Size 4-20mA output 0-10V output -5 to 5V output 0-75mV output 1-5V output -10 to 10V output 0-20mA output 0-10mA output

Description

SPECIFICATIONS

Accuracy Class: DC;0.1%F.S.

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Channels: 1 in 1 out

DIY Supplies: Electrical

Display Type: Analog Only

High-concerned chemical: none

Input signal: 4-20mA, 1-5V,0-10V etc

Installation: 35mm DIN rail

Model Number: GLT-B

Operating Temperature: -20~+55 Celsius

Origin: Mainland China

Output signal: 4-20mA, 1-5V,0-10V etc

Response time: 10ms

Semi-finishedproduct: No

Supply Voltage: DC24V

Introduction:

<1>. This multi-functional transmitter,input voltage rangesis -2000V~2000V, input current range is-10A~10A.

If you need other special parameters,please contact us.We can modify the option for you.

<2>. It can be used for standard signals,such as 4-20mA,0-10V,0-5V,-10V~10V,etc, and can also be used for non-standard signals, such as 20-4mA,10-0V,-10V~10V,etc.
<3>. Standard 35mm DIN rail independent mounting.High precision,High linearity,Low temperature drift.Full channel configuration,Parameter customizable.

<4>. The input,output and power are isolated from each other,isolating the industrial DC voltage signal and converting it into standard current or voltage signal.

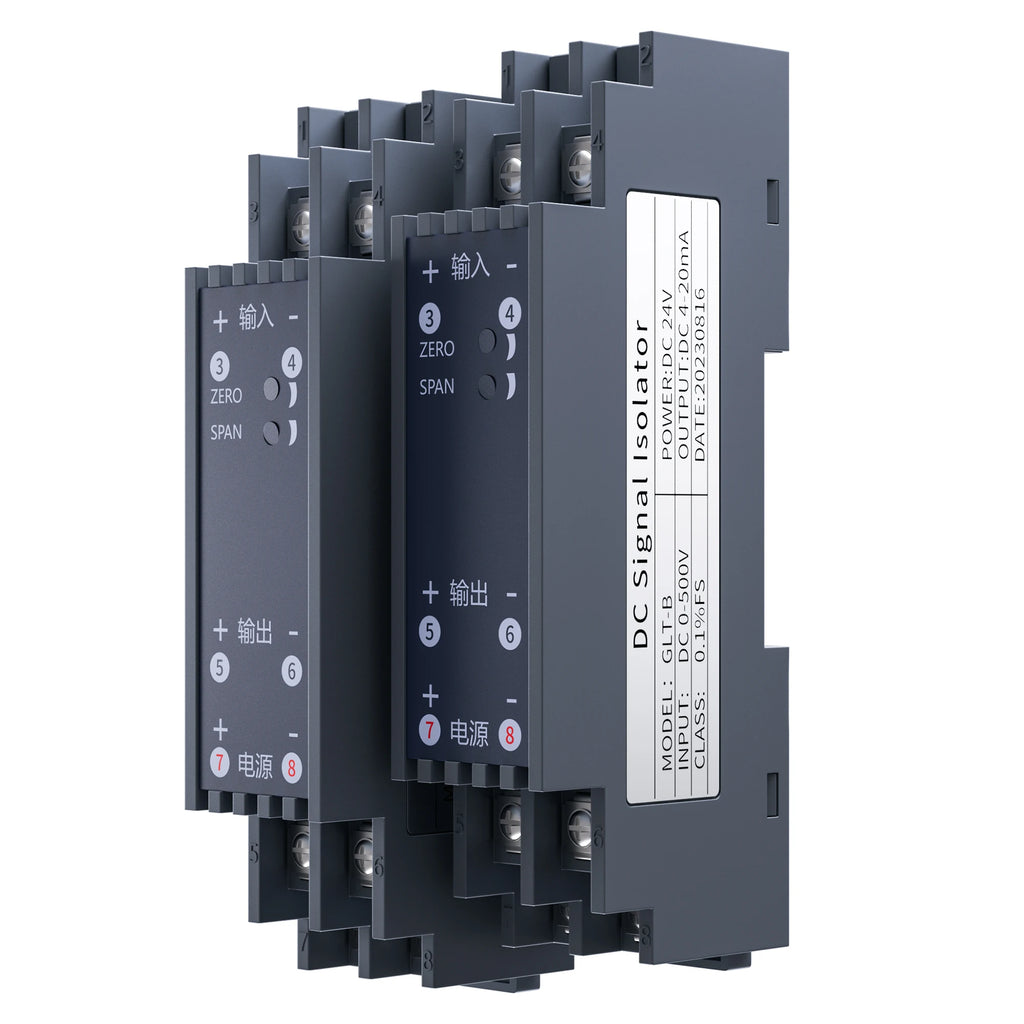

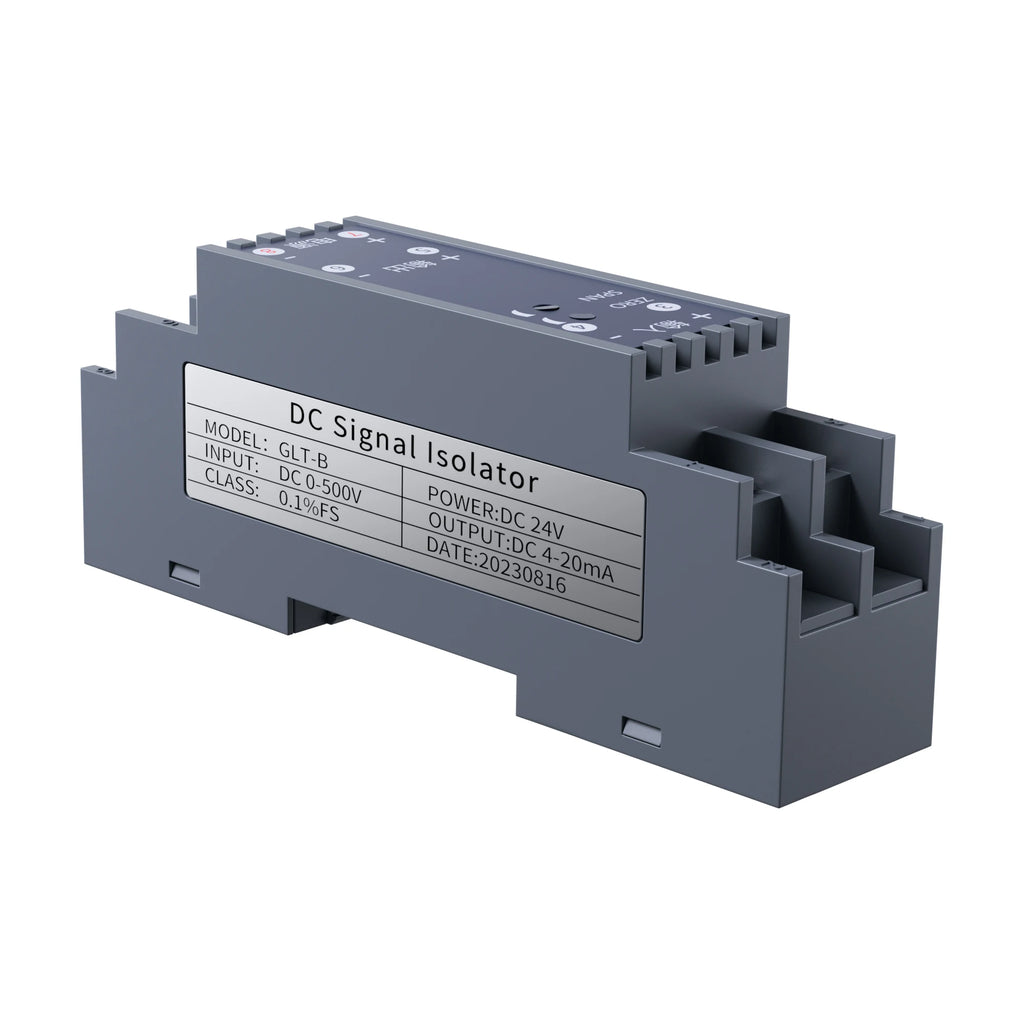

GLT-B DC signal isolation transmitter input 0~75mV/4~20mA/0~10V output 0~5V/-0~10V/20~4mA Multiple signal customization

Note: The input signal, output signal can be customizable.

Please contact us your special parameters.

Introduction

<1>. This multi-functional transmitter, input voltage ranges is -2000V~2000V, input current range is -10A~10A.

<2>. It can be used for standard signals, such as 4~20mA, 0~10V, 0~5V,-10V~10V,etc.

BUT, it also can be used for non-standard signals, such as 20~4mA, 10~0V, -10V~10V,etc.
<3>. Standard 35mm DIN rail independent mounting. High precision, high linearity, low temperature drift. Full channel configuration, parameter customized.

<4>. The input, output and power are isolated from each other, isolating the industrial DC voltage signal and converting it into standard current or voltage signal.

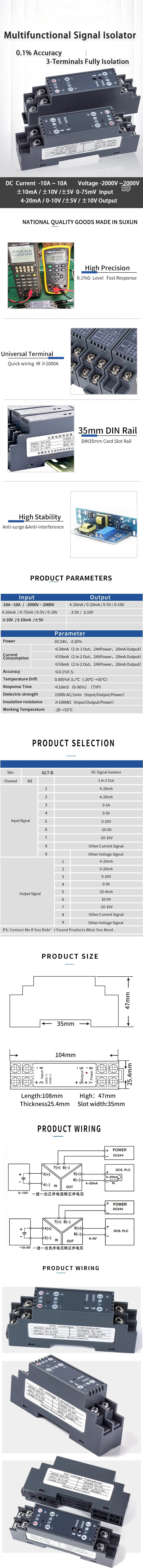

Technical Parameters

Input
Input Signal	±10A; ±2000V; 0~75mV
Input Resistance	≥300Ω
Output
Output Signal	4-20mA; 20-4mA; ±10V
Output Load Resistance	RL≤500Ω(output current signal) RL≥10KΩ(output voltage signal)
Other Parameters
Power Supply	DC24V,±10%
Current consumption	≤30mA(1 in 1 out,24V power supply output 20mA);
	≤50mA(1 in 2 out,24V power supply output 20mA);
	≤50mA(2 in 2 out,24V power supply output 20mA);
Accuracy	0.1% F.S.
Respond Time	≤10mS(0-90%) (TYP)
Temperature Drift	0.005%F.S./℃ (-20℃~+55℃)
Isolation Intensity	1500V AC/1min(between input-ouput-power)
Insulation Resistance	≥100MΩ(between input-ouput-power)
EMC	Complies with GB/T 18268(IEC61326-1)
Applicable Equipment	Voltage siganl output devices
Working Temperature & Humidity	-20℃~+55℃/<80%humidity(non condensing state)
