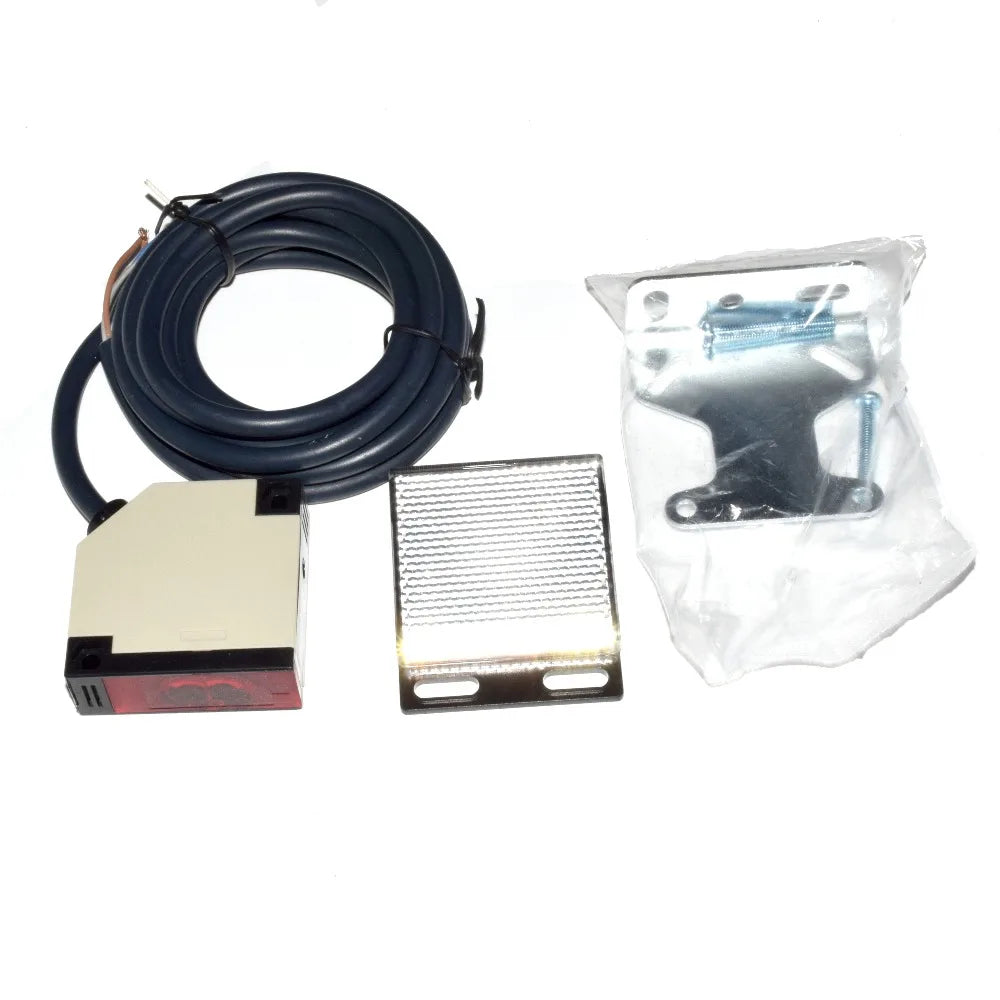

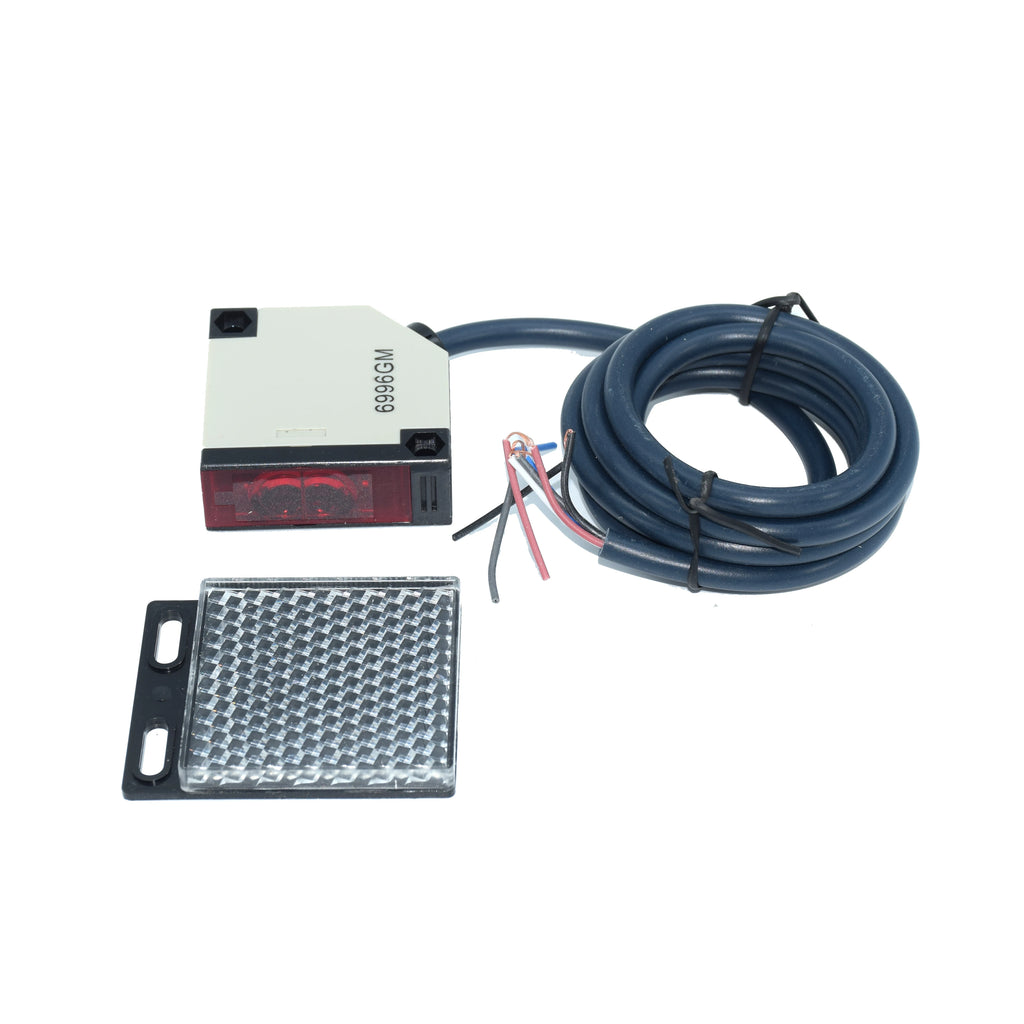

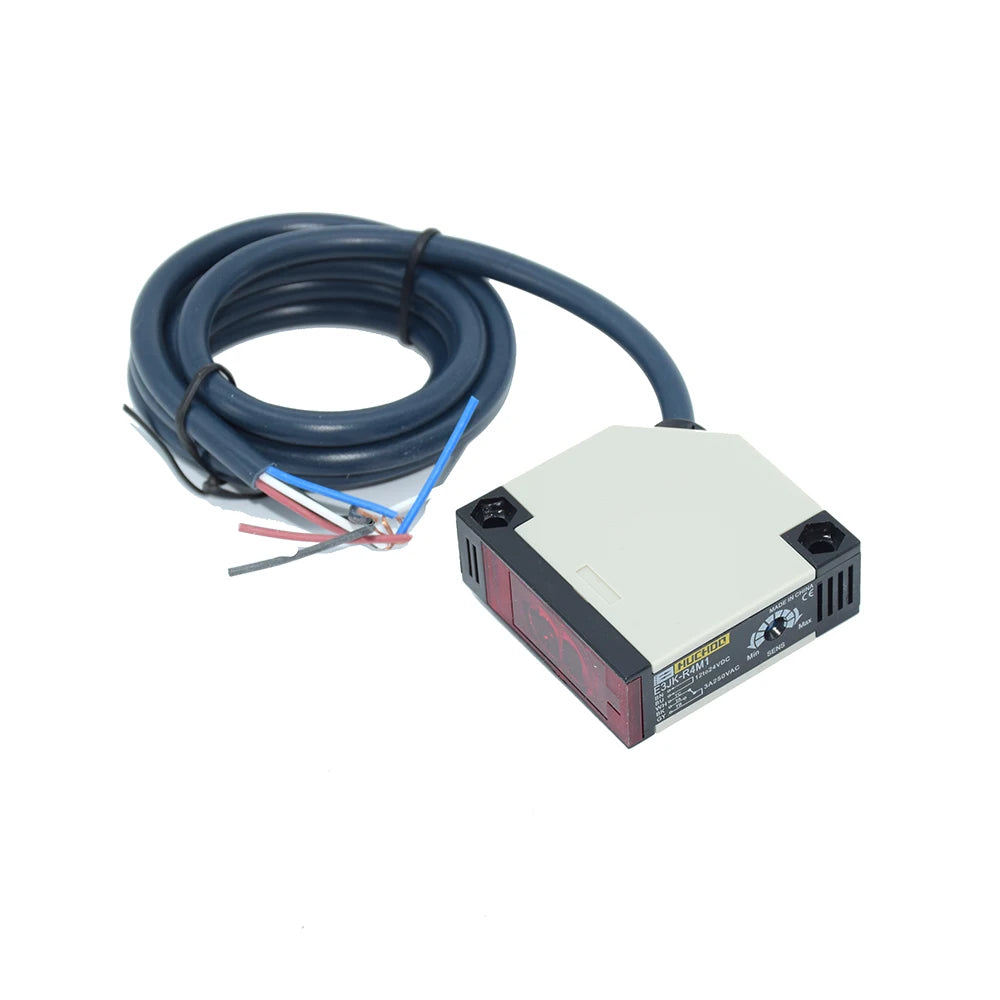

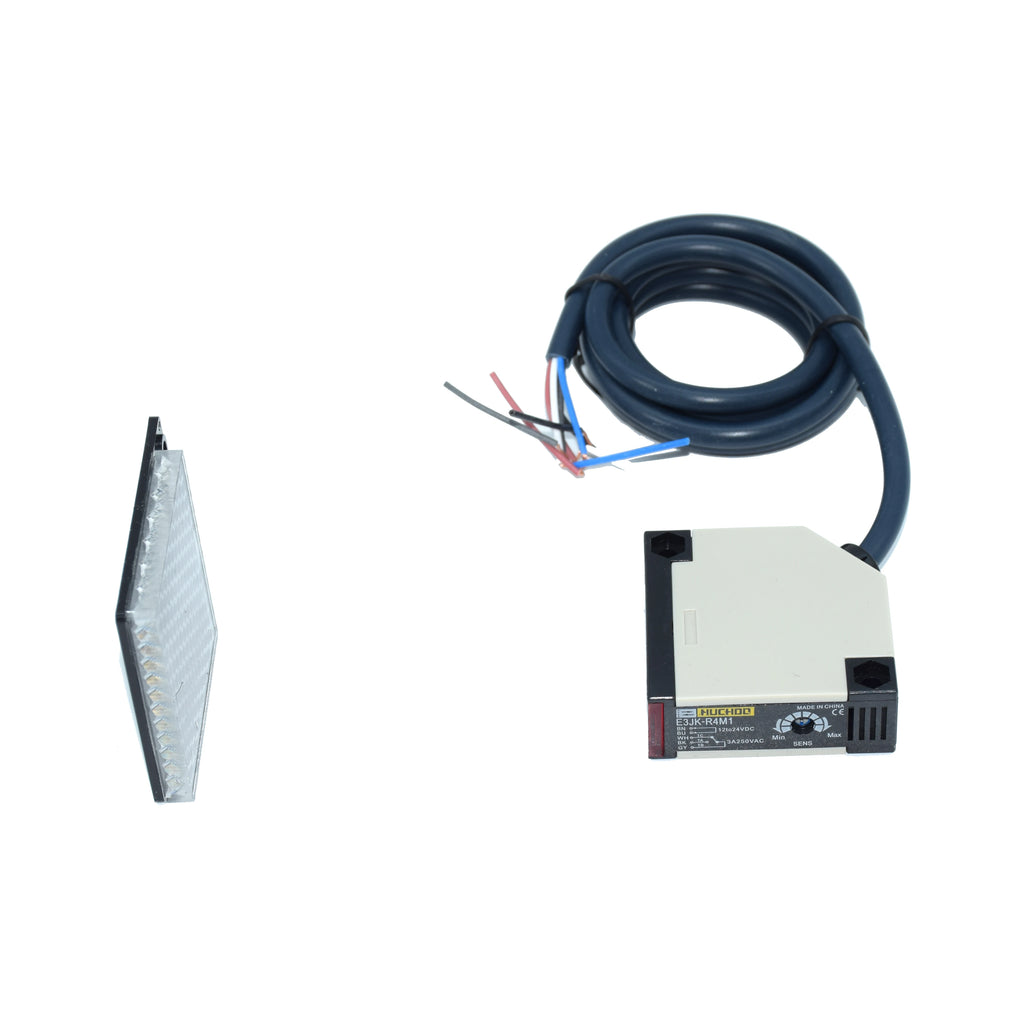

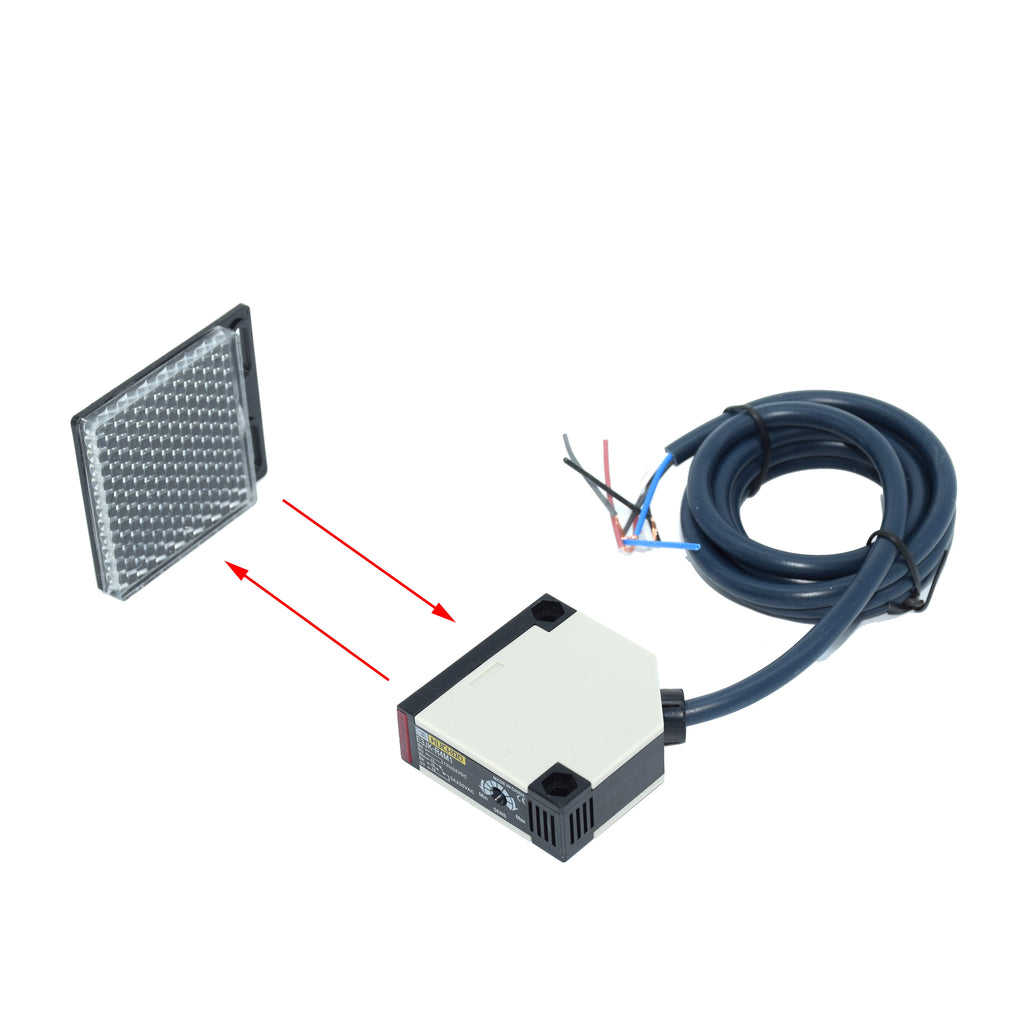

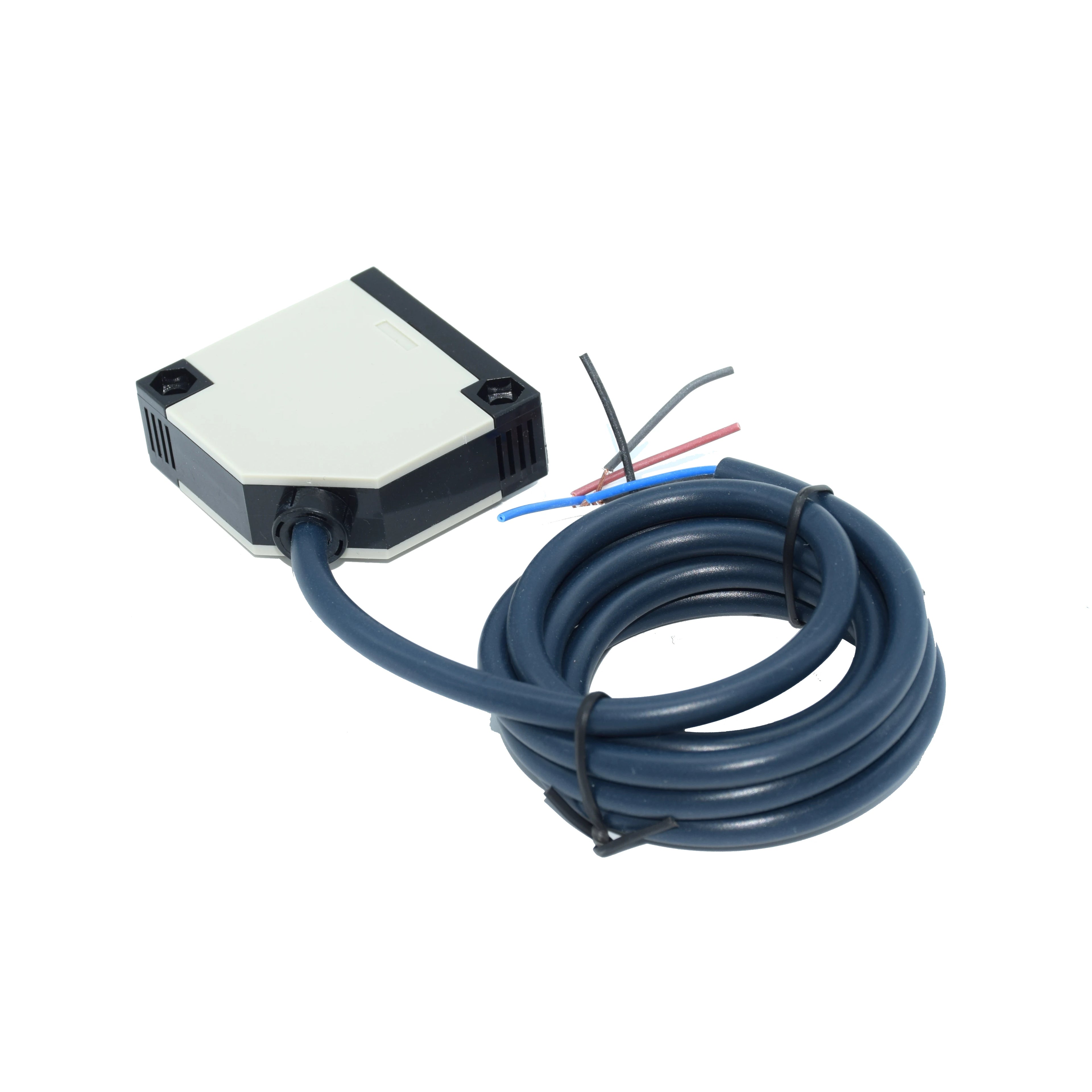

DC12-24V Reflective Photoelectric Switch Photocell E3JK-R4M1 Infrared Beam Detector Square Reflex Light Barrier Sensor
DC12-24V
$29.57
Sale price
$29.57
Regular price
$0.00
Skip to product information
DC12-24V Reflective Photoelectric Switch Photocell E3JK-R4M1 Infrared Beam Detector Square Reflex Light Barrier Sensor
$29.57
Sale price
$29.57
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
High-concerned chemical: none
Model Number: E3JK-R4M1
Origin: Mainland China
semi_Choice: yes
Detection method |
Feedback reflex |
|||
Model |
Relay output |
Direct light |
E3JK-R4M1 |
|
Exchange bright |
E3JK-R4M1 |
|||
Detection range |
4m±10% |
|||
Detection target |
Opaque object |
|||
Adjustment of detection range |
Sensitivity regulator |
|||
response time |
30ms |
|||
supply voltage |
DC type: DC12-24V (6-36V) pulsation (P-P) 10% below |
|||
Withstand voltage |
AC1000V 50/60Hz 1min charging part and enclosure |
|||
Influence of voltage |
Rated power supply voltage range is less than 15%, rated power supply voltage is within 10% |
|||
Consumption of current |
less 3mA |
|||
Control output |
Less 2A |
|||
Loop protection |
B≤30g,T≤11ms,F≤55Hz,A≤1mm |
|||
Ambient temperature and humidity |
Action time and save time: -30 - +65 C |
|||
Influence of temperature |
The temperature range is -30 - +65 C, +23 C, or + 15% within the detection distance.
The temperature range is -25 - +60 C, +23 C, or + 10% within the detection distance.
|
|||
Insulation impedance |
50MΩ above (DC500 Mega meter) charge part and shell |
|||
Material shell |
Aluminum die cast ABS inspection surface (lens): PMMA |
|||
Protection structure |
IP65 |
|||
