DC12V 24V New Lead-free Sensing Module 8A Pir Motion/ IR Hand Wave/Touch Sensor Module for LED Cabinet Light

DC12V 24V New Lead-free Sensing Module 8A Pir Motion/ IR Hand Wave/Touch Sensor Module for LED Cabinet Light

$23.49

$23.49 $0.00

Color TD02-A3 VD02F-A3 PD02-A1 10PCS TD02-A3 10PCS VD02F-A3 10PCS PD02-A1

Ships FromChina Mainland

Voltage12V-24V

Description

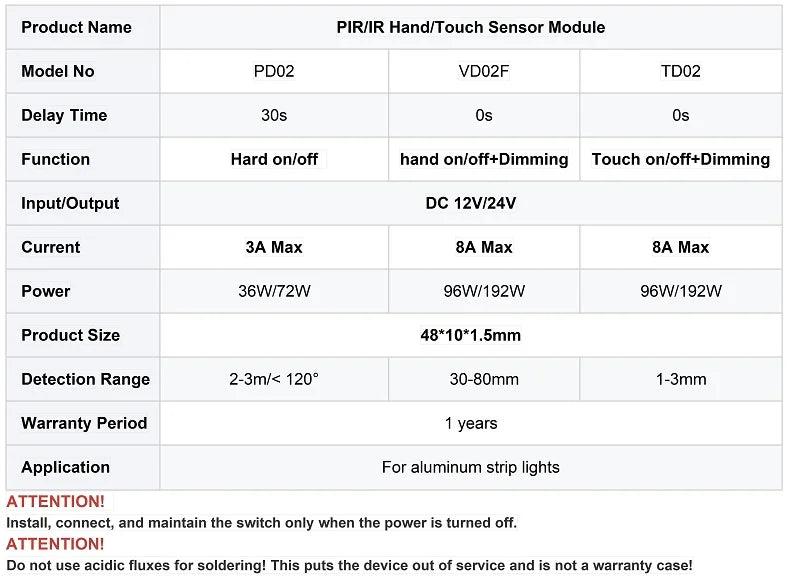

SPECIFICATIONS

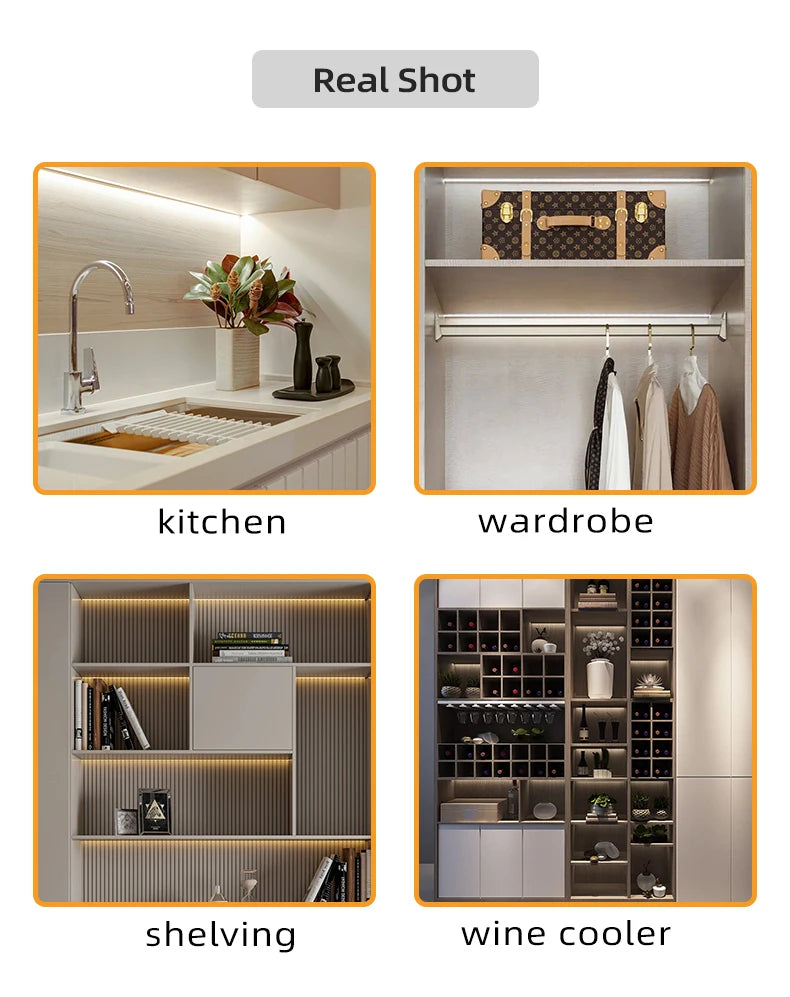

Application: For wardrobe cabinet lighting

Brand Name: GEDLUZI

Certification: ce

Current: 8A,3A/8A/8A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Motion Sensor Module

Function: on/off; on/off+dimming

High-concerned chemical: none

IR hand/Touch sensor Detection Range: 30-80mm/1-3mm

Item Type: SWITCHES

Material: Copper

Max load: 72W/192W/192W

Model Number: PD02/VD02F/TD02

Model.no: PD02/VD02F/TD02

Origin: Mainland China

PIR Sensor Angle & Range: <120° / 2-3meter

Product name: IR Hand/Touch/PIR Motion Sensor

Switch Type: Sensor Switch

Warranty: 1 year

Working voltage: DC 12V/24V

product size: 48*10*1.5mm

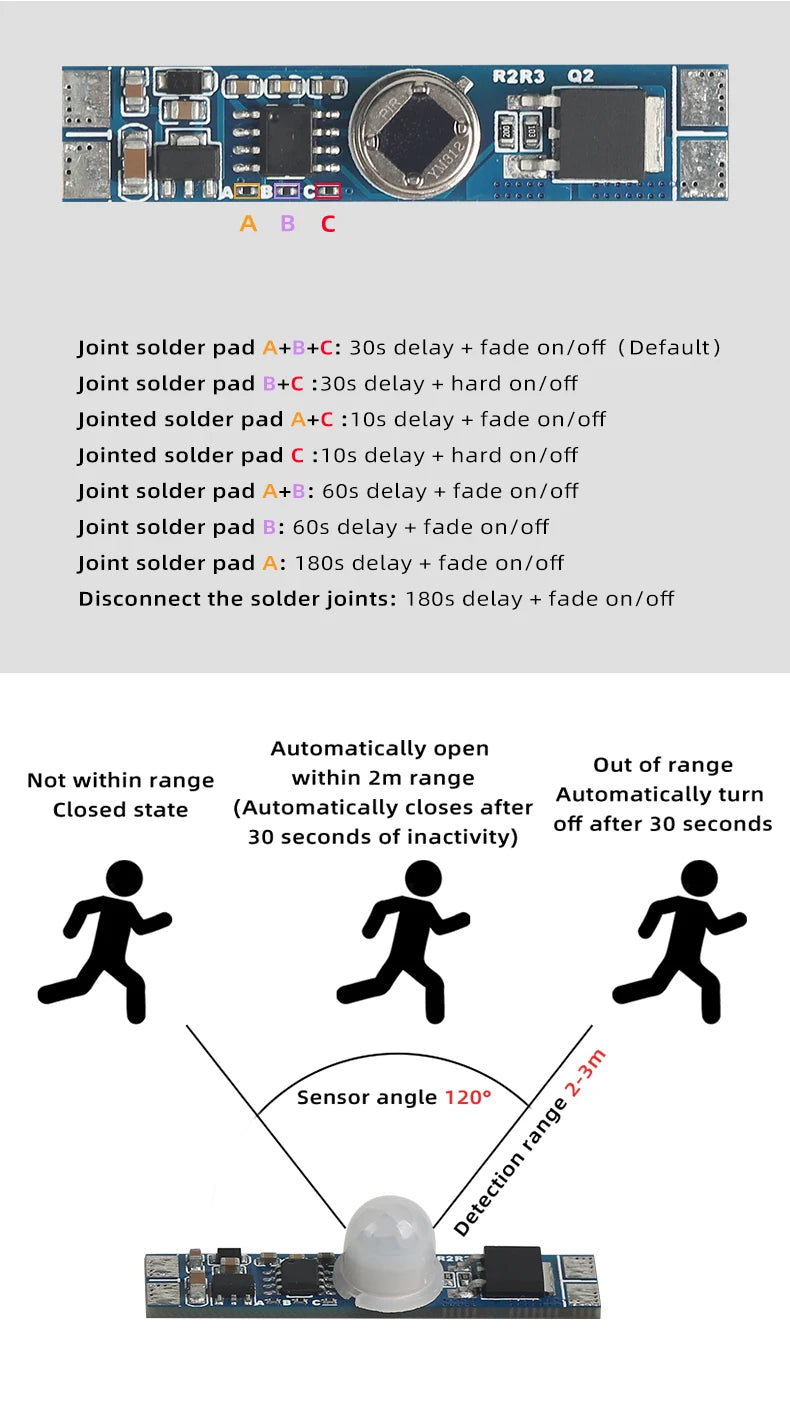

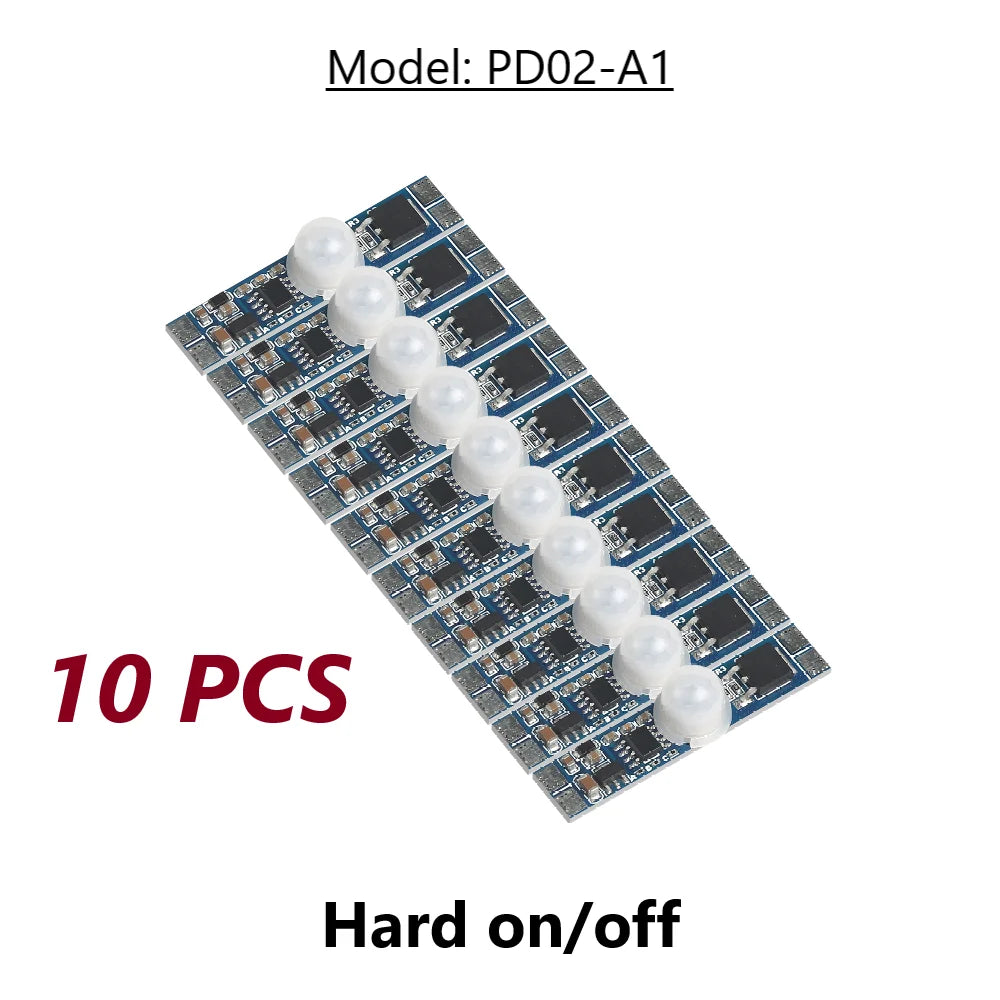

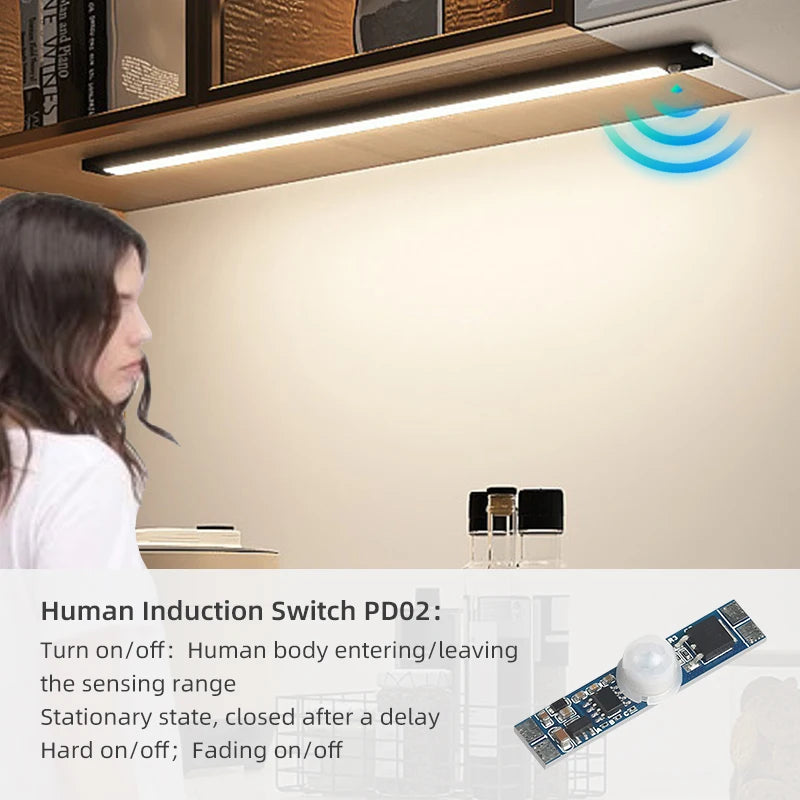

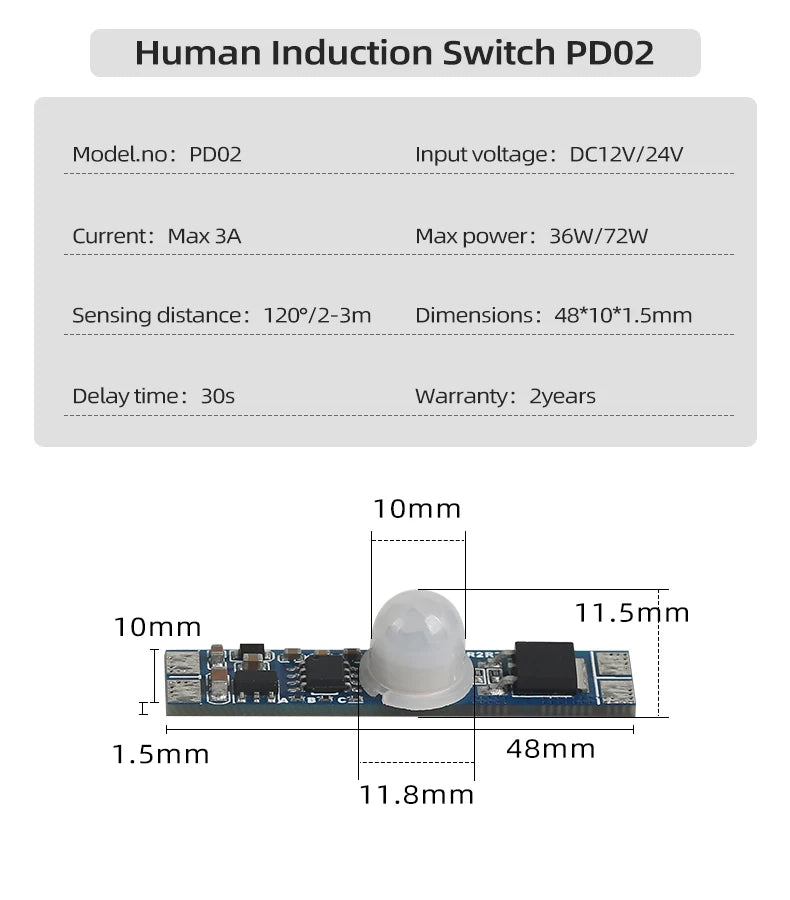

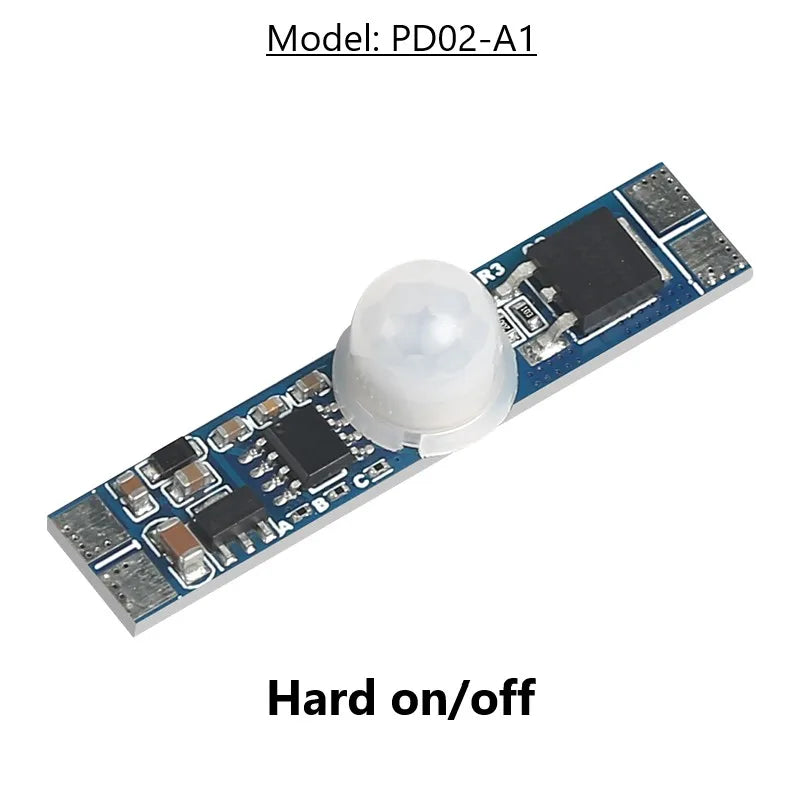

*The PD02 series switch is designed to remotely turn on/off 12V/24V LED strips mounted in aluminum profiles.
When motion is detected in the area where the switch is triggered, the light will illuminate. If no movement is detected within 30 seconds, the lights turn off automatically. Lead-free products, safer and more environmentally friendly.

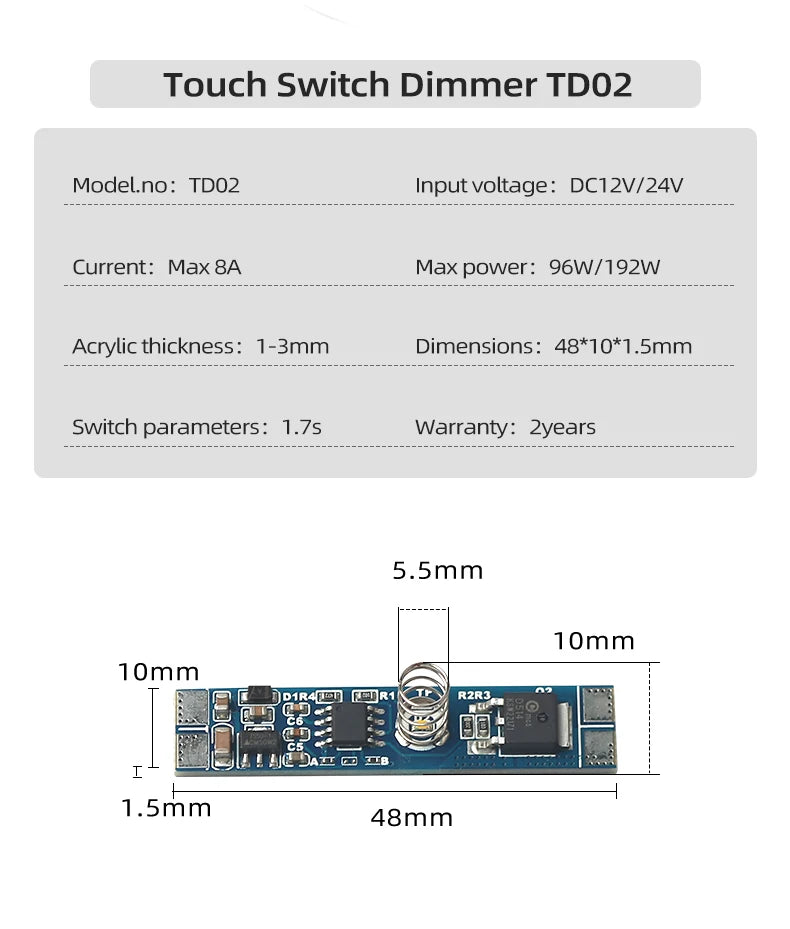

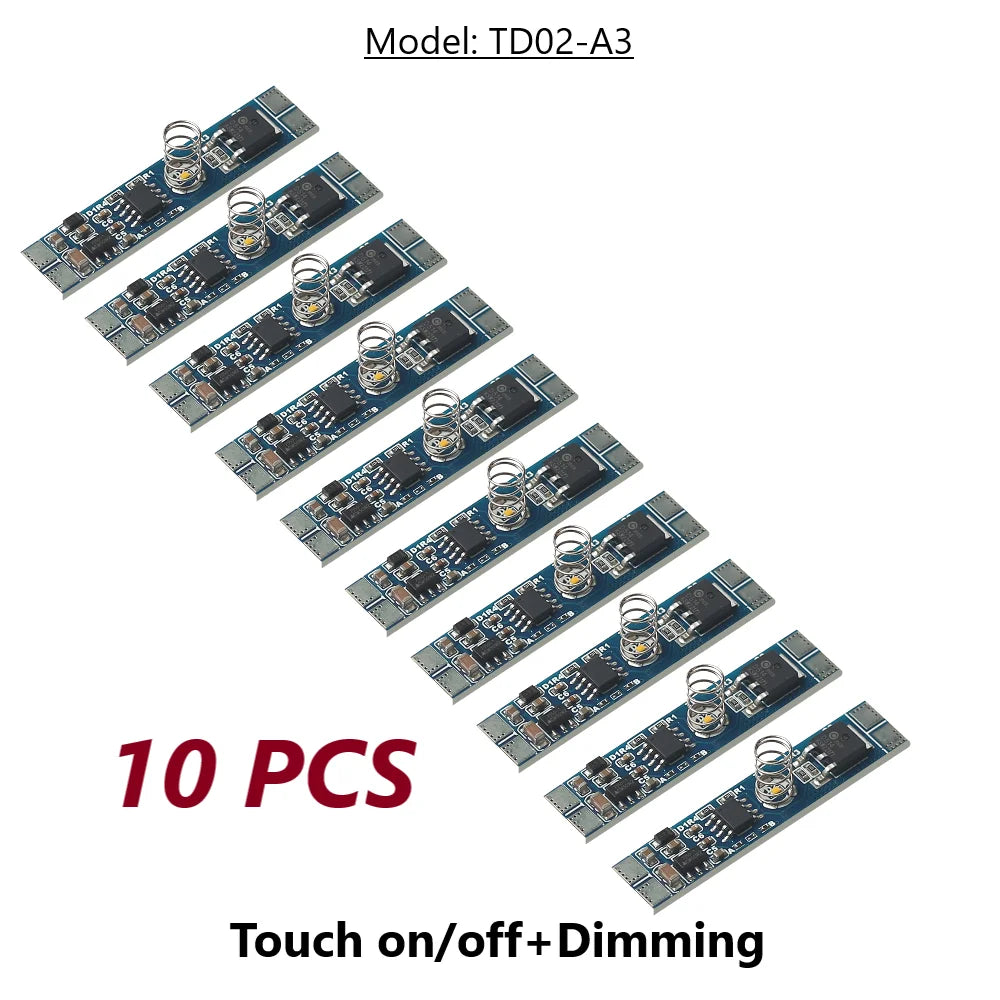

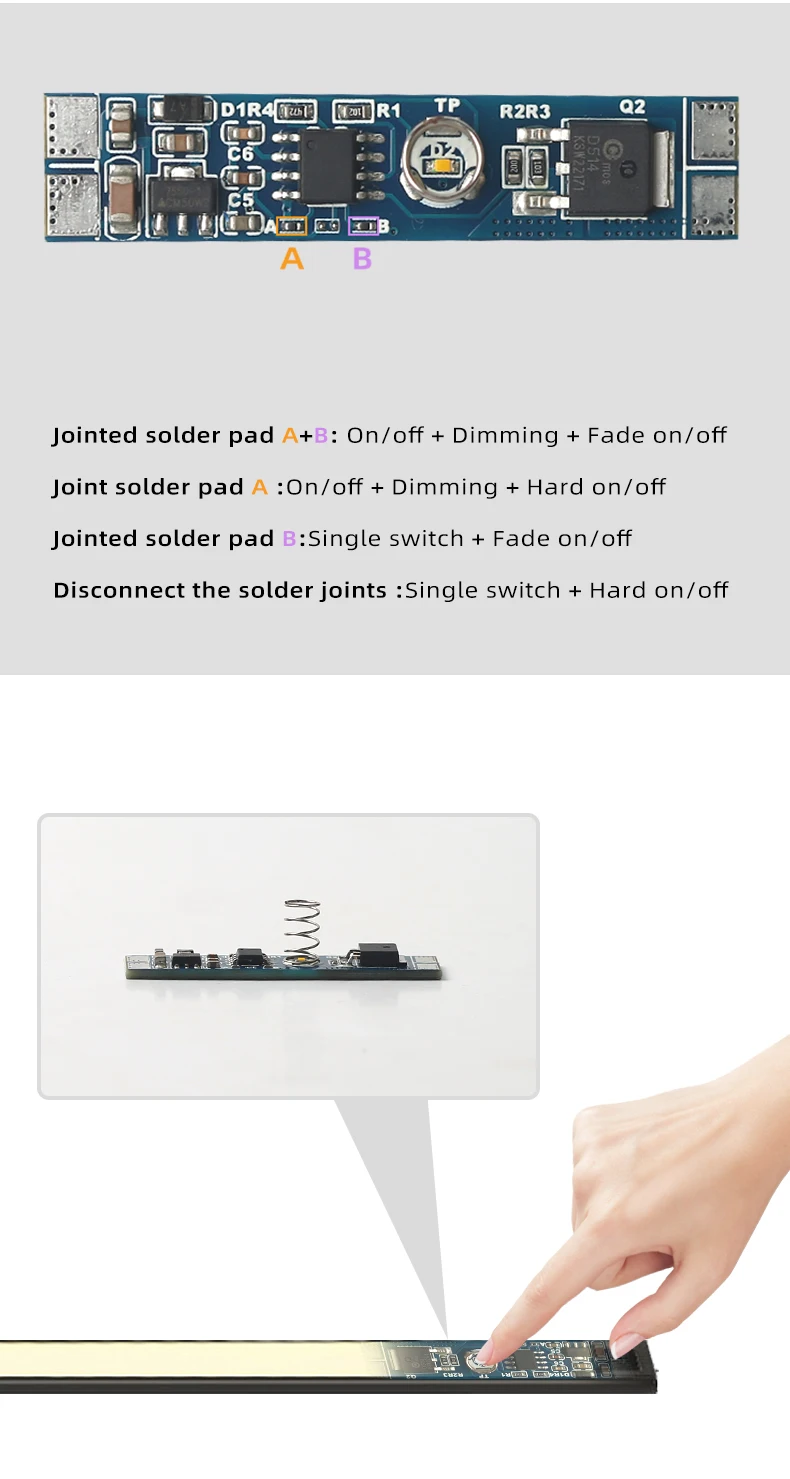

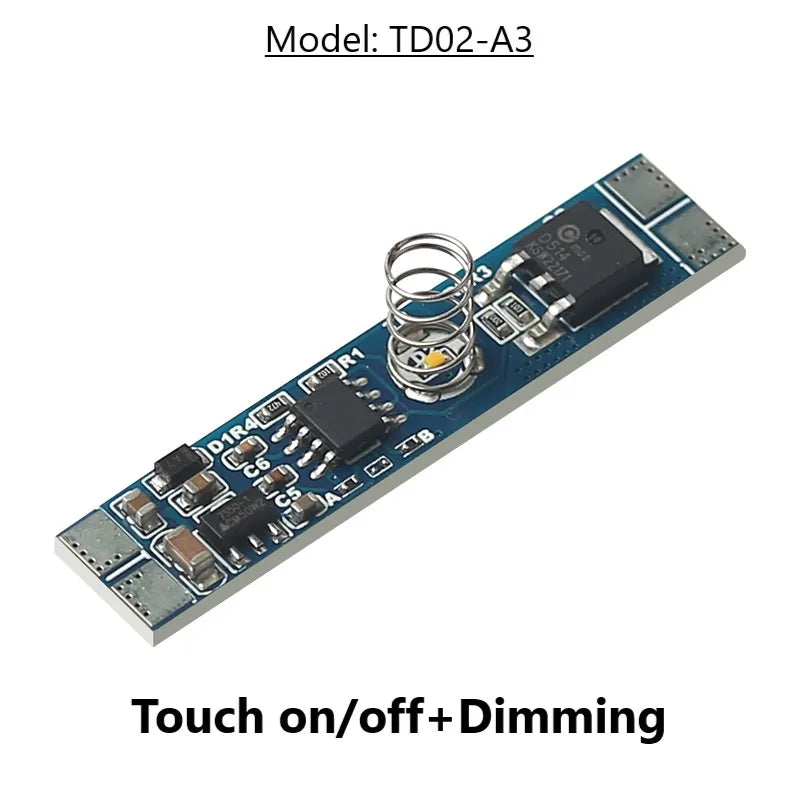

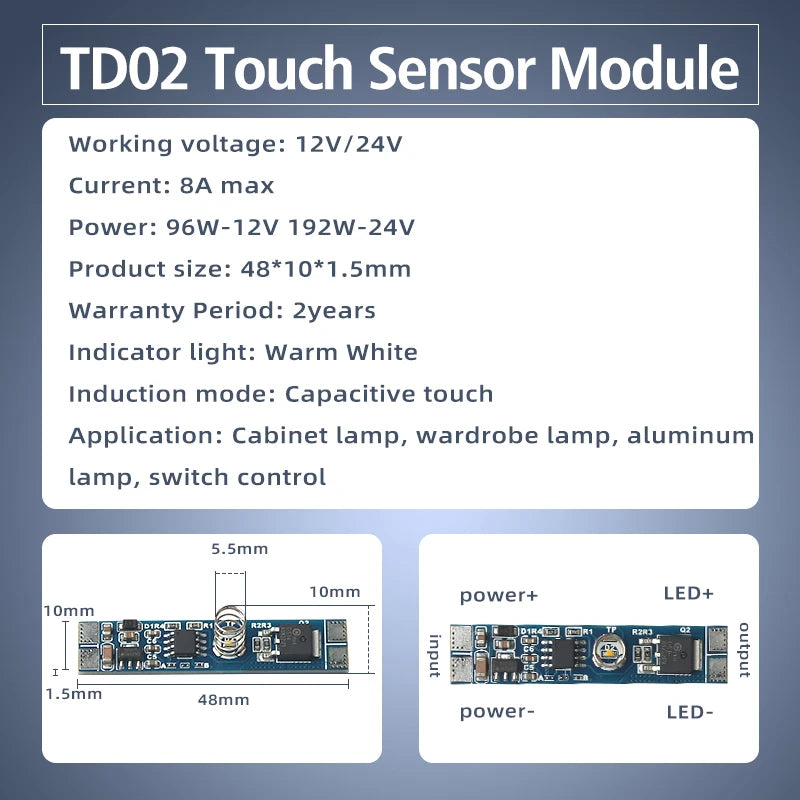

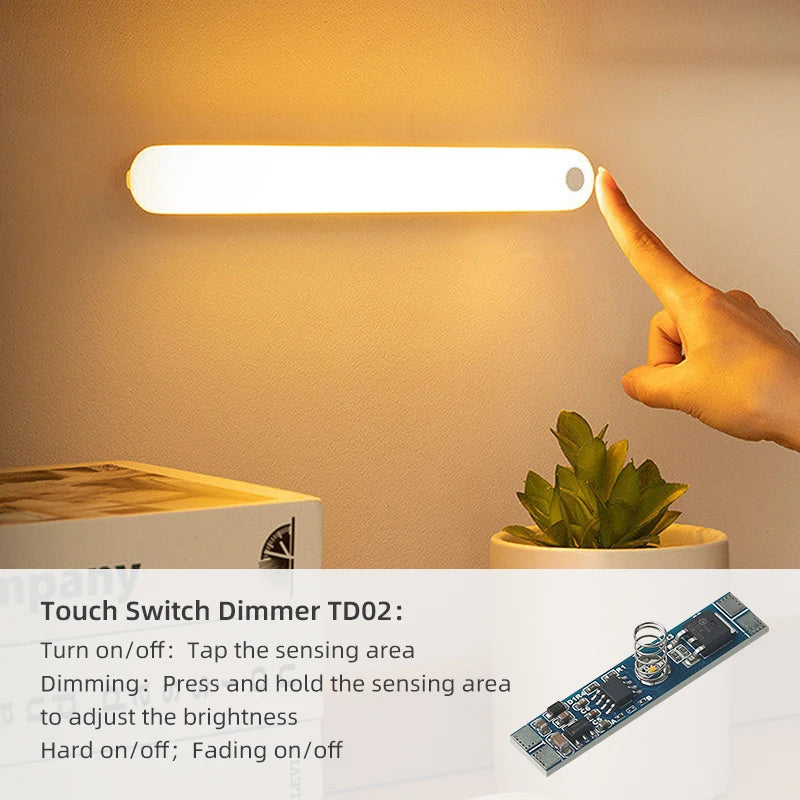

*TD02 built-in touch switch for 12/24V LED strip switching and dimming function and last state memory function, with 10 mm spring on a 48x10 mm board.
The touch switch TD02 controls the on/off of the light source by pressing (< 0.5 seconds) the spring area with a short press and a long touch (> 0.5 seconds) with the spring area. The area glows with a warm white glow in spring. Lead-free products, safer and more environmentally friendly.

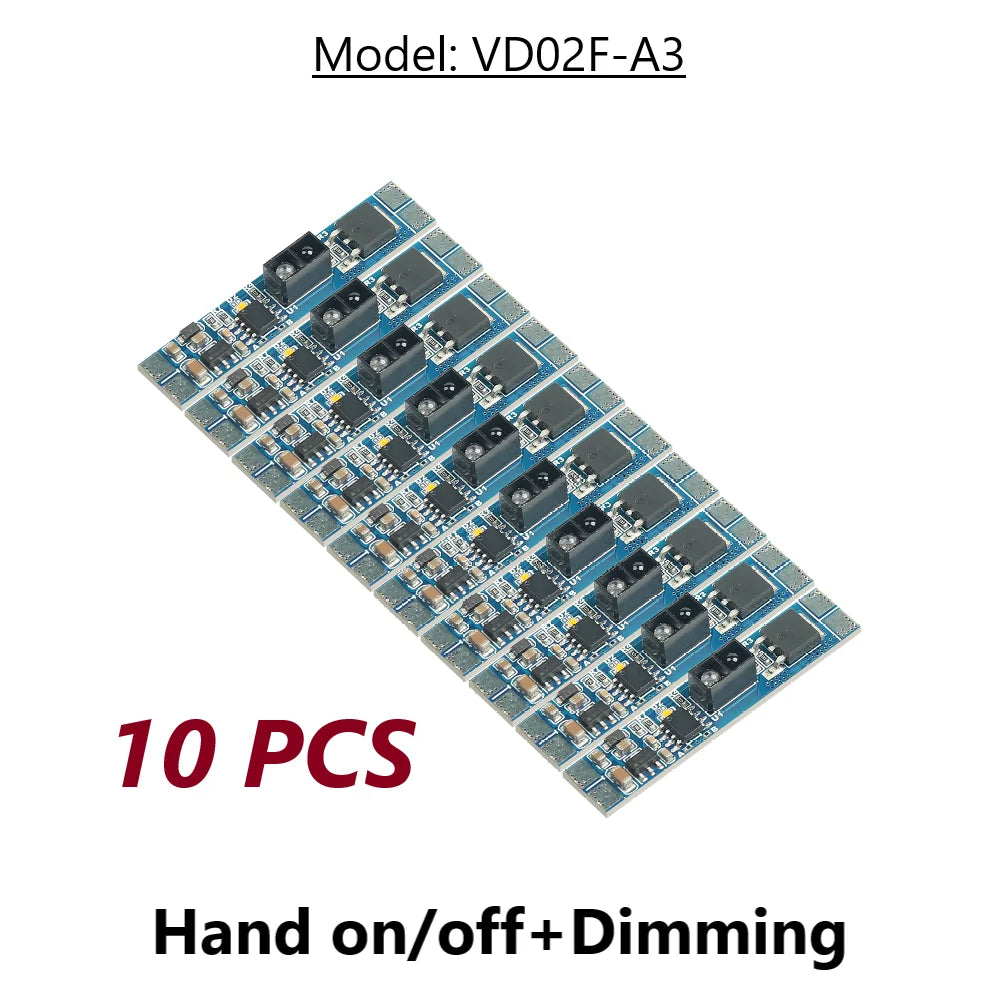

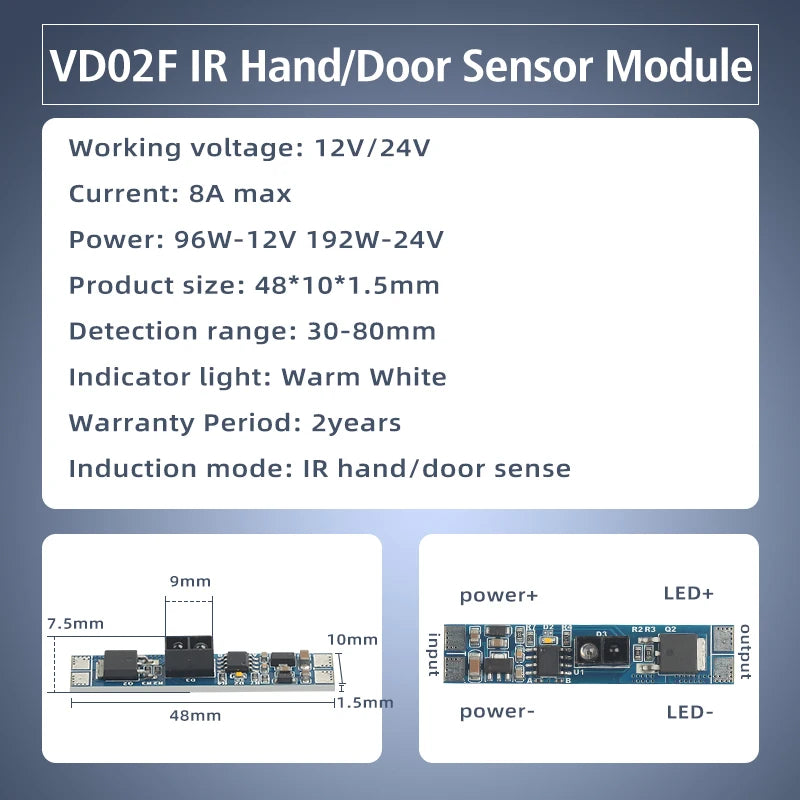

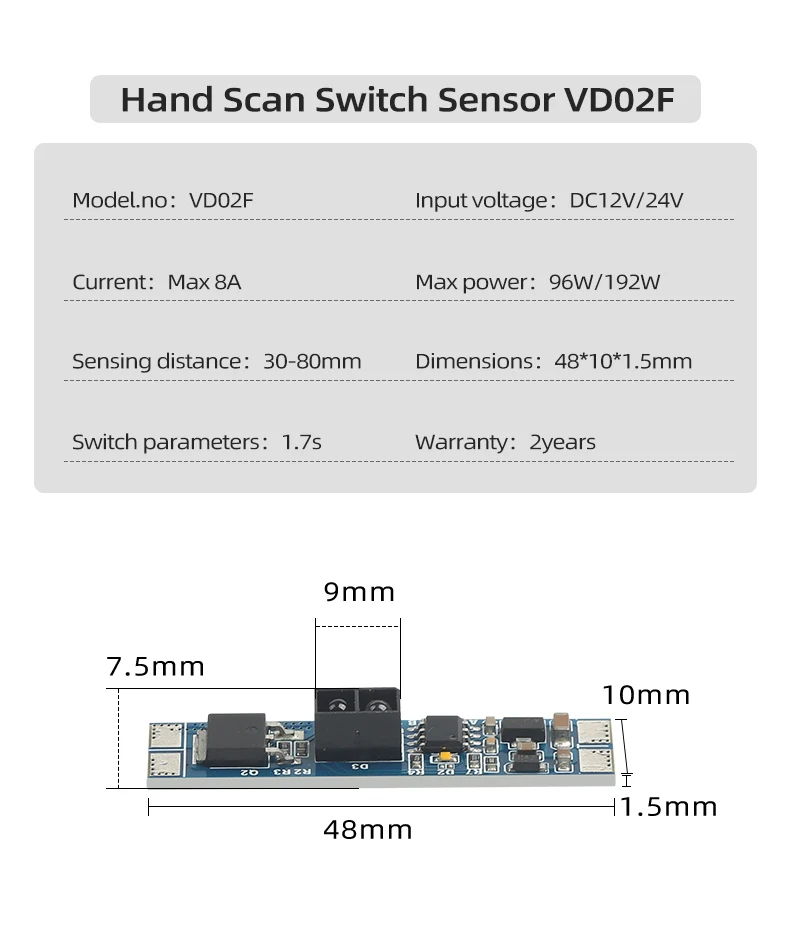

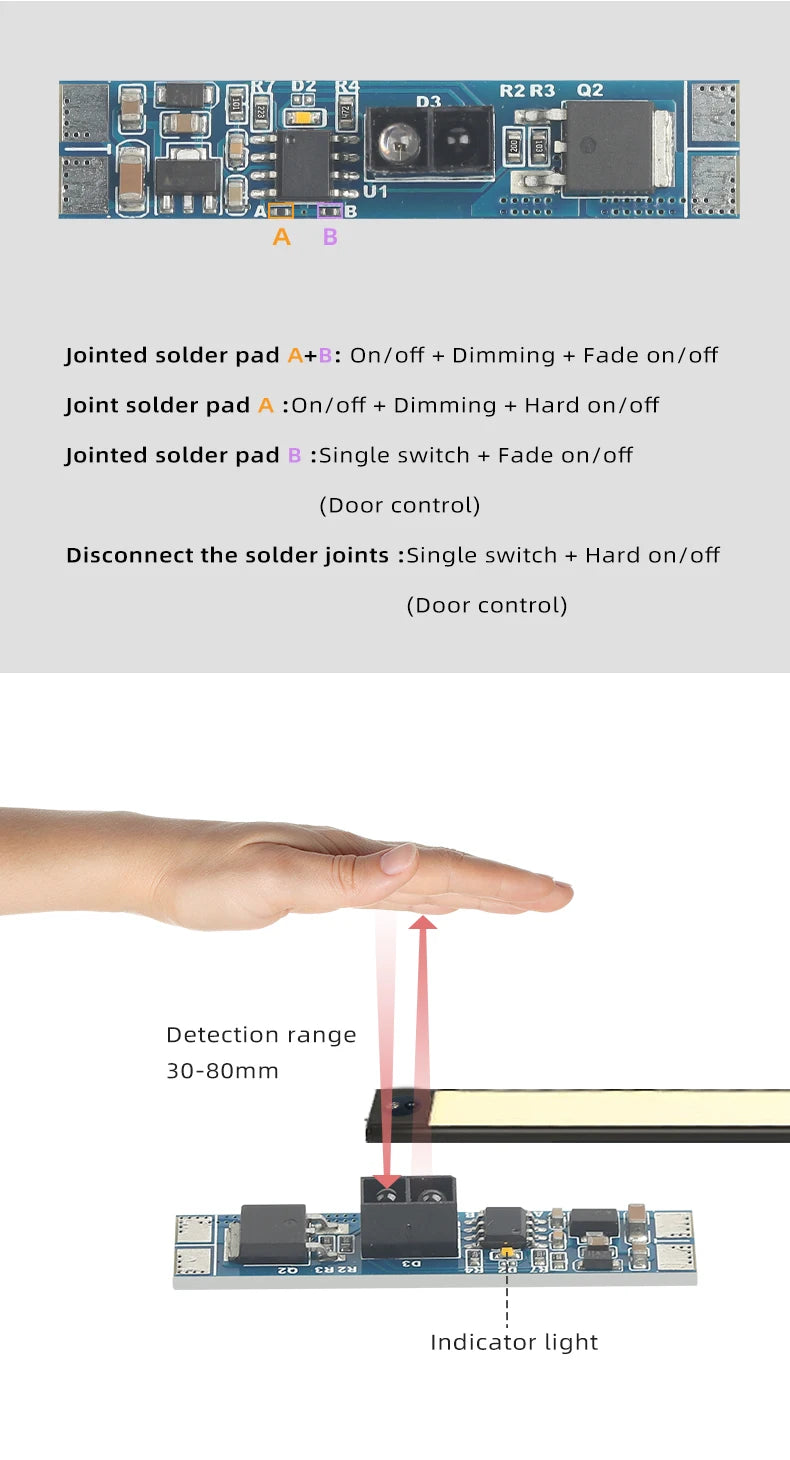

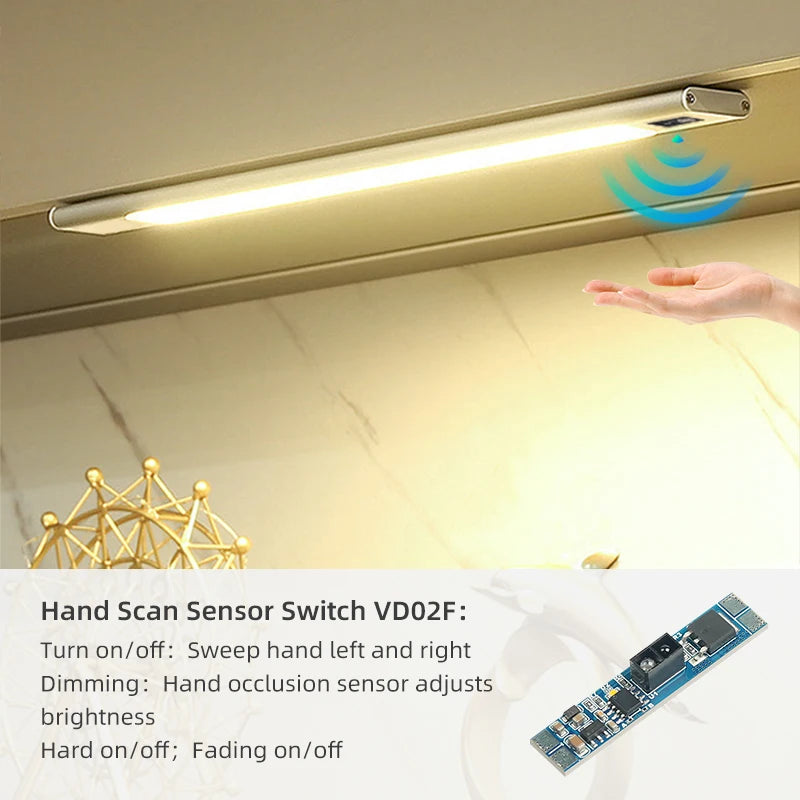

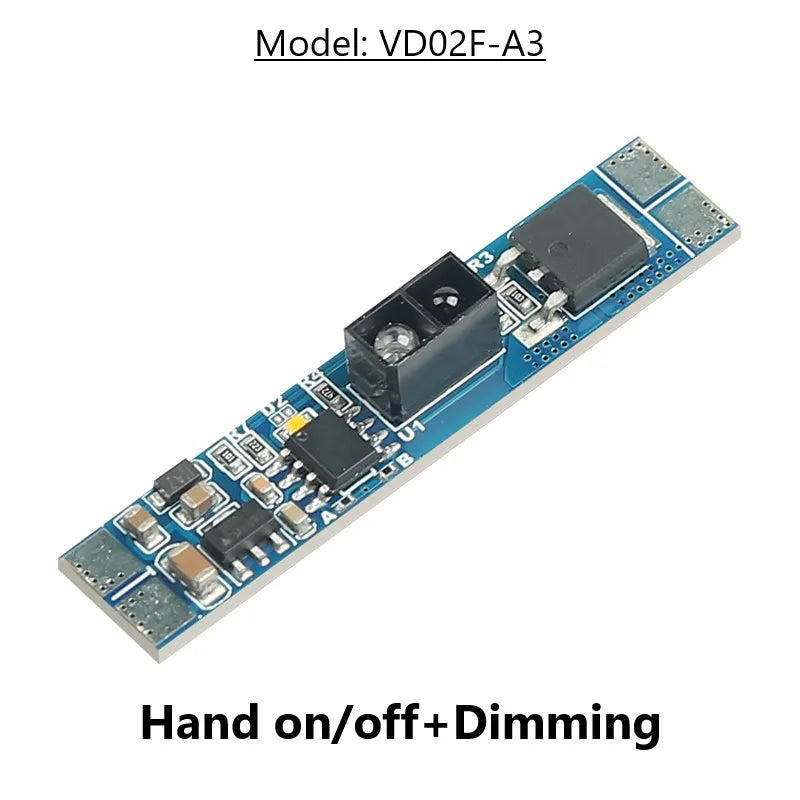

*The VD02 series hand sweep non-contact sensor is designed for switching and dimming of 12/24V LED strips mounted on aluminum profiles. The device can be controlled without direct physical contact through palm movements. When off, an LED with a color temperature of 3000K is used for display. Lead-free products, safer and more environmentally friendly.
