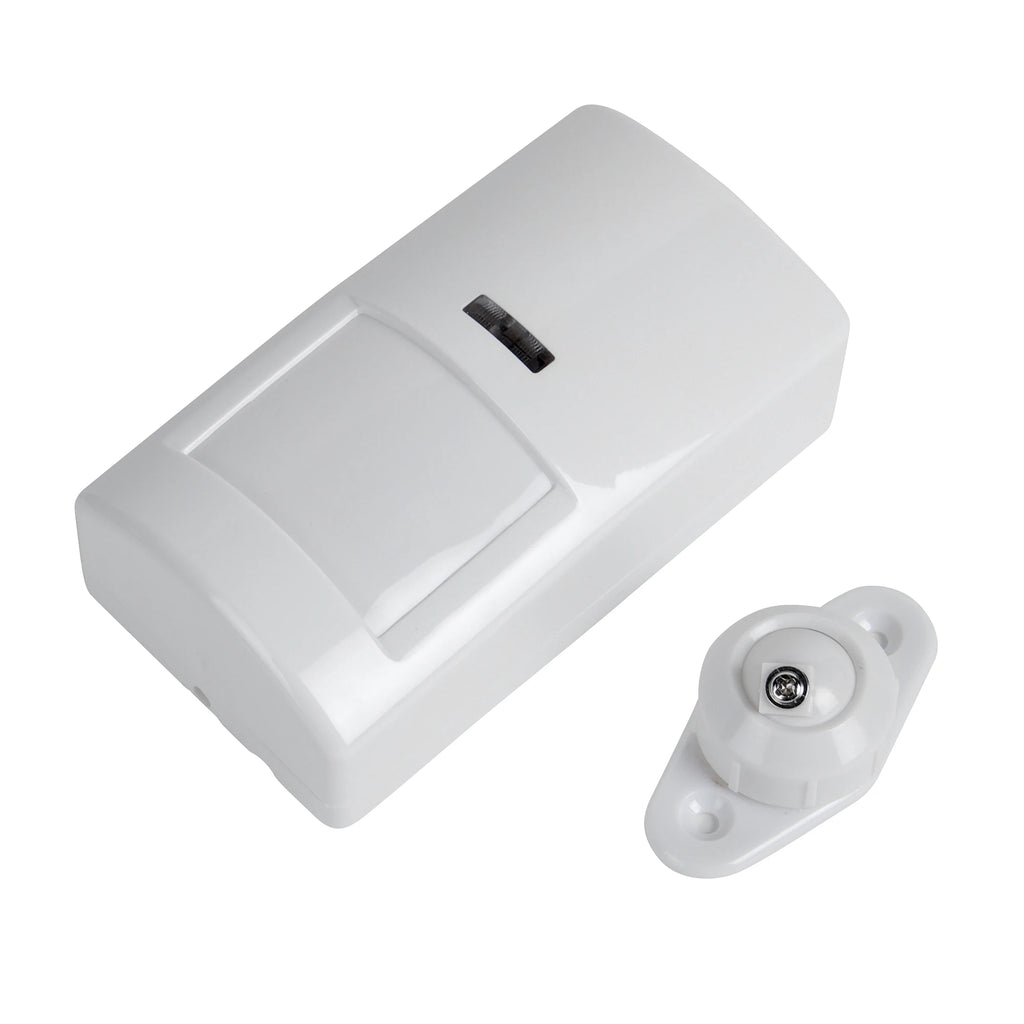

DC12V Dual-tech MW+PIR Wired Motion Sensor Microwave Sensor Infrared Detector Anti-tamper Pet Immune Wide Angle Detection Range
1pc / China Mainland
$126.45
Sale price
$126.45
Regular price
$0.00
Skip to product information
1pc Pet Immune Wired microwave PIR motion sensor ( bracket, screws, English manual included).
DC12V Dual-tech MW+PIR Wired Motion Sensor Microwave Sensor Infrared Detector Anti-tamper Pet Immune Wide Angle Detection Range
$126.45
Sale price
$126.45
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
High-concerned chemical: none
Model Number: MDT-400D
Origin: Mainland China
Smart home platform: Other
anti-pet weight: 25 KG
detection angle: 100 degrees
detection distance: 12-meter x 12-meter
feature 1: with tamper swith
feature 2: Anti White Light >10000LUX
product name: Wired Microwave and pir motion sensor
DC12V Dual-tech MW+PIR Wired Motion Sensor Microwave Sensor Infrared Detector Anti-tamper Pet Immune Wide Angle Detection Range
Introduction:

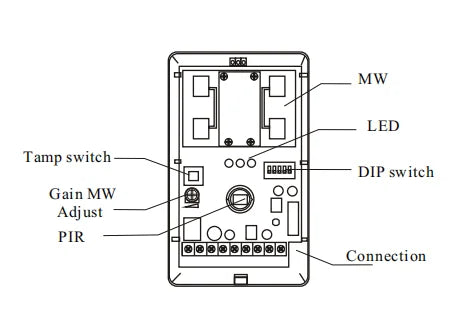

lt is a dual-tech motion detector, it is organized by 2 sensors:dual element PIR & Transportation style Microwave. 2 sensors are controlled by a 8 bit microprocessor，microprocessor offers a optimization process to the sensors by intelligent signal processing soft ware technology.The advantages of it are:can offer 3 kinds of detection modes on 2 sensitive grades in order to select the more perfect and wider detection way for the special needs of protection site; it gets the best rate between the best detection and minimum false alarm.Including the normal“AND”“OR”modes, this is also with“5P” mode in order to avoid the damage caused by spray dope on its lens.On the side, this is with other functions such as automatic setting on anti masking，This product can be used in warehouses, offices, factories,hotels, banks and other places.
Feature:
- Automatic setting of anti-masking

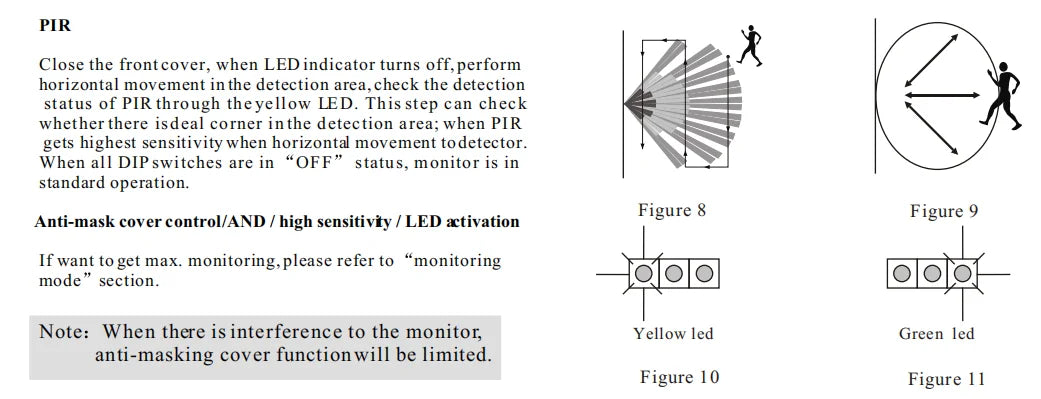

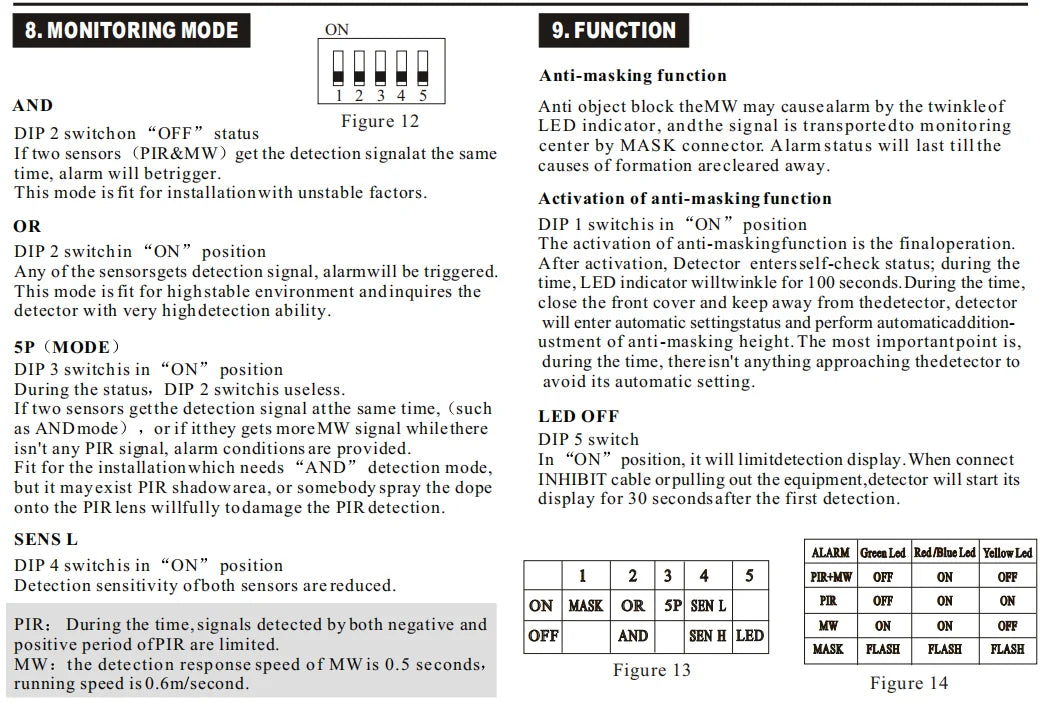

- Detection mode: 5P-OR-AND
- Micro-strip MW with pulse transmission
- Micro-strip MW with pulse transmission
- Selectable detection sensitivity
- Alarm type memory
- Alternative Led OFF
- Alarm type memory
- Alternative Led OFF
- Anti white light
- Anti-pet ≥25kg
- Anti-pet ≥25kg
-18 beams Fresnel lens with down
- view window on its 4 planes
- Vertical adjustment
- Air-proof optical parts
- Air-proof optical parts
-Wall inlay
-Total view:90°,Monitoring scale: 15m
- Corner and wall installation.Universal connector
-Total view:90°,Monitoring scale: 15m
- Corner and wall installation.Universal connector
- Universal connector for option
Parameter:
Power supply : 12-24VDC
Current: 30mA
Install high: 1.5m-2.4m

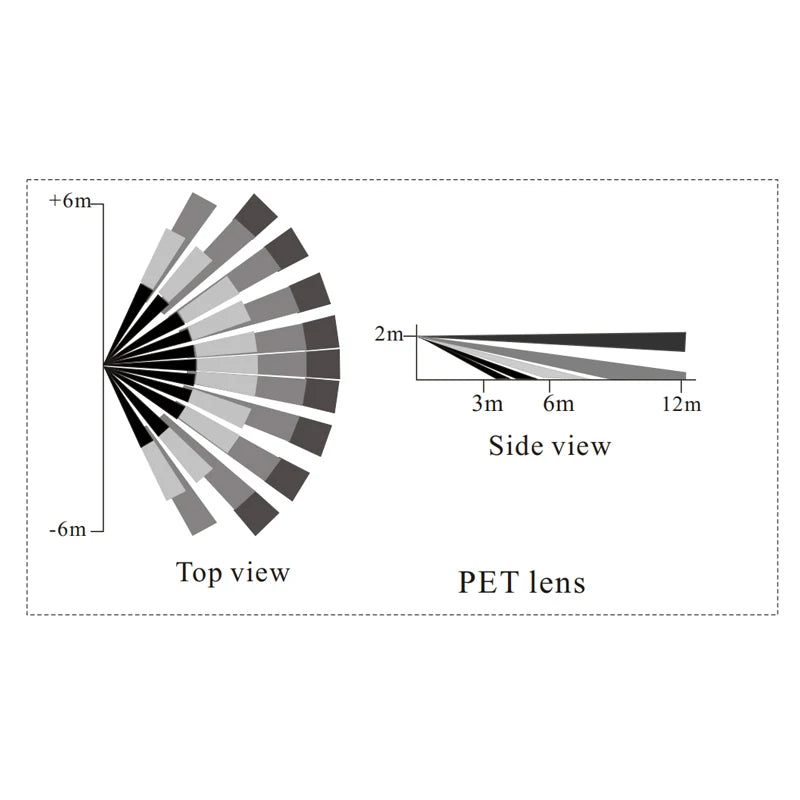

Coverage: 12m×12m100°
Install high: 1.5m-2.4m
Coverage: 12m×12m100°
MW frequency : 10.525GHz
Alarm time: 3s
Anti RFI/EMI: 0.1-500MHz/3 V/m
Anti RFI/EMI: 0.1-500MHz/3 V/m
Anti-white light: >10000LUX

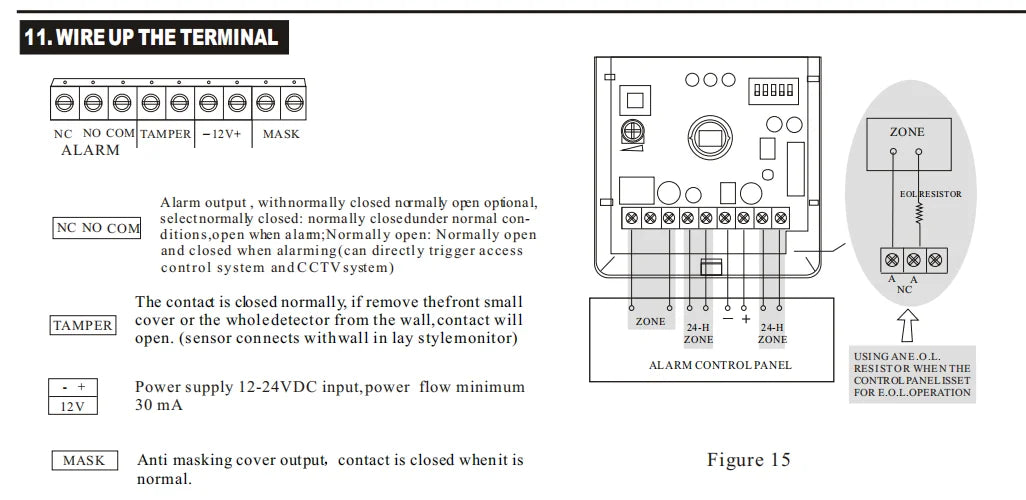

Alarm output : 200mA/125V
Mask output: 200mA/125V
Temperature: -10°C/+55℃
Humidity(RH): 95%
Sensitivity : H / L Select
Detect speed: 0.2m/s to 3.5m/s
Dimensions (H×W×D): 116mm×65mm×48mm
Sensitivity : H / L Select
Detect speed: 0.2m/s to 3.5m/s
Dimensions (H×W×D): 116mm×65mm×48mm

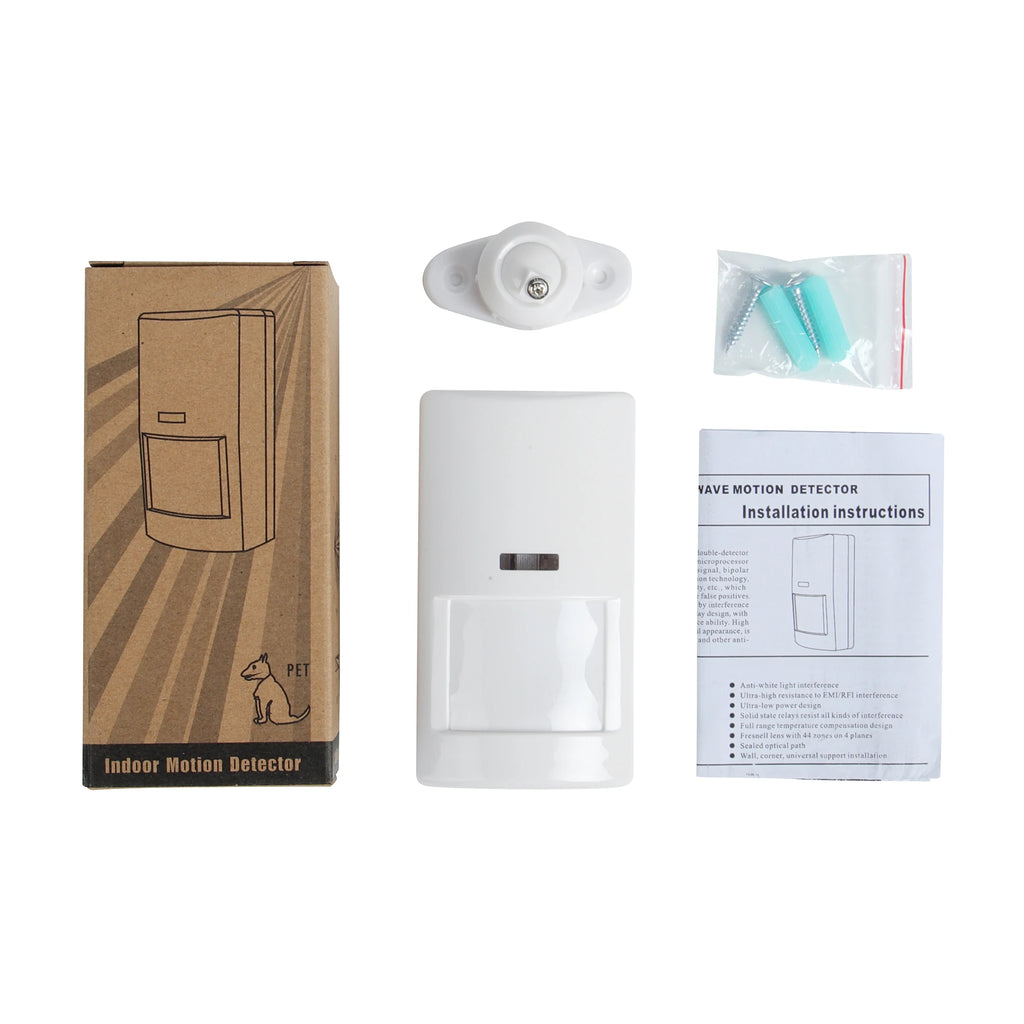

Package Content:
1pc Pet Immune Wired microwave PIR motion sensor ( bracket, screws, English manual included).
Note:
This wired microwave pir motion sensor can not work alone, it works with all home alarm host which has wired port.
