SPECIFICATIONS

Brand Name: NONE

Certification: CE

High-concerned chemical: none

Model Number: OUT-400-C

Origin: Mainland China

Smart home platform: Other

anti-pet weight: 25KG

color: white

detecting coverage: 12mx12m 100 degrees

product name: outdoor wired microwave pir motion sensor

votage: DC12V to DC24V

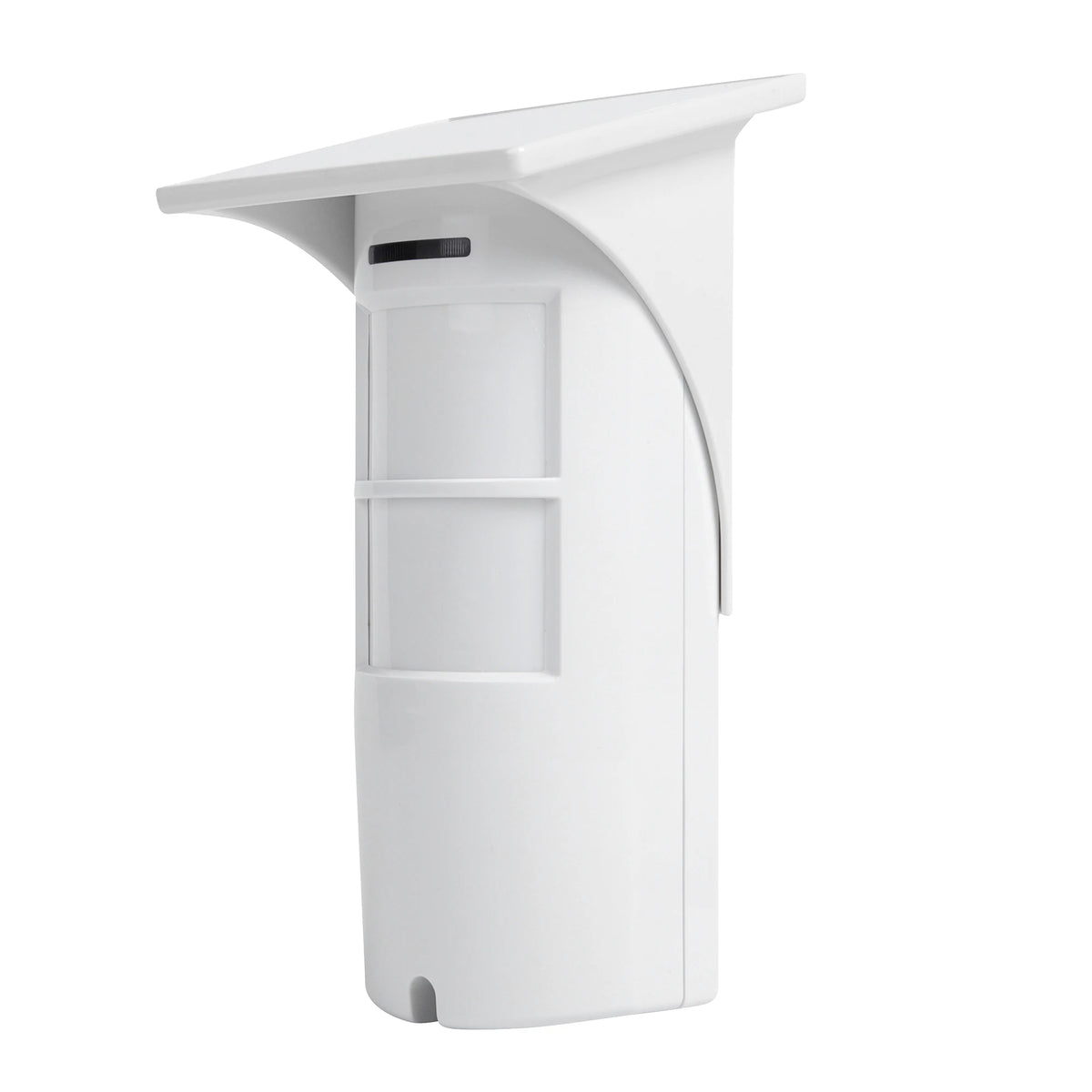

DC12V Outdoor Wired Microwave PIR Motion Sensor Alarm with Rain Cover 12M 100 Degrees Wide Angle Detection Anti-pet Anti-mask

Introduction:

The detector is a special three-tech(PIR+PIR+MW) complex detector for outdoor intrusion.Signals of 3 sensors are with super stability and depend ability by its advanced multi-grades digital signal processing technology.And they can offer 3 different detection modes on 2 sensitive grades in order to choose the best the detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate.With normal "AND"and“OR”modes，The detector is also with“5P" mode to avoid the damage of dopes spraying on the lens.Its unique waterproof design is totally fit for outdoor installation. At the same time, the detector also provides the installation user with NO/NC output selection mode, which can be directly used to activate THE CCTV system and access control system.

Feature:

-Two PIR and MW detection tech

-Automatic setting of anti-masking

-Microwave synchronization

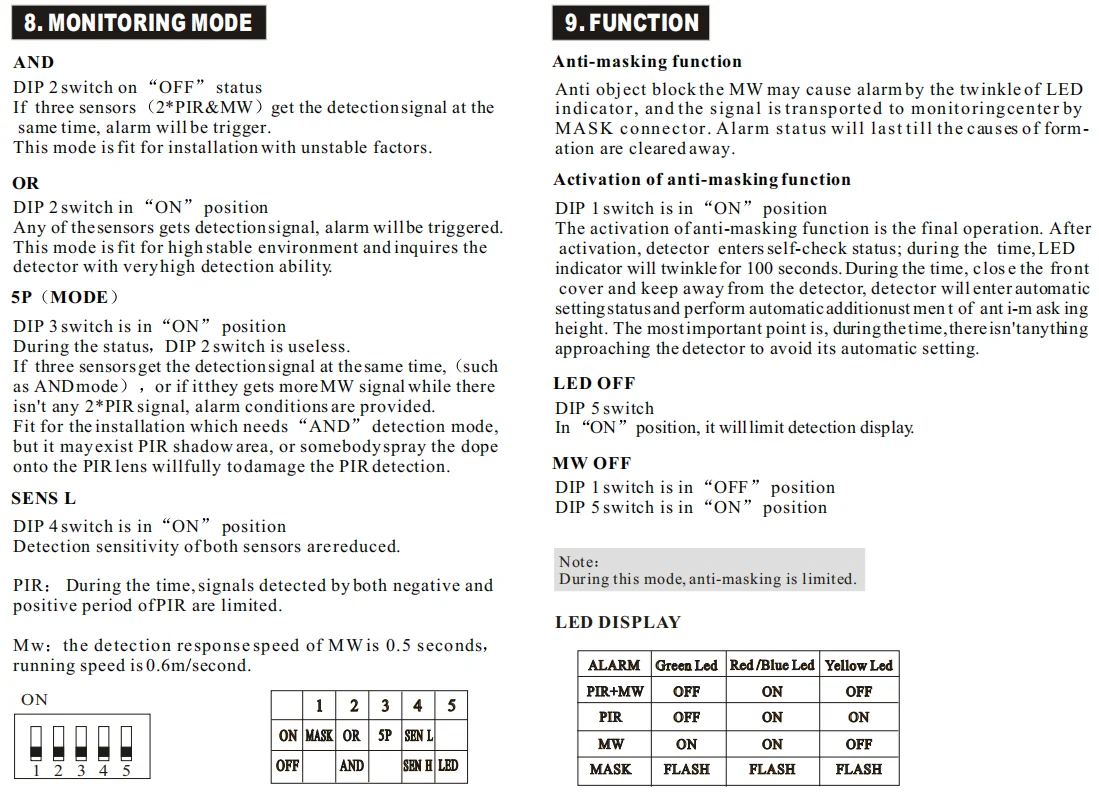

-Detection mode: MW 5P-OR-AND

-Selectable detection sensitivity

-Alarm output NO/NC Select

-Anti white light

-Anti-pet ≥25 kg

-Alternative Led OFF

-Micro-strip MW with pulse transmission

-62 beams Fresnel lens with down-view window on its 6 planes

-Vertical adjustment

-Air-proof optical parts

-Wall inlay

-Total view: 100, Monitoring scale: 15 m

-Corner and wall installation. Universal connector

- Universal connector for option,

-90 " horizontal adjustment 30 °vertical adjustment

Parameter:

Power supply: 12-24VDC

Current: 30mA

Install high: 1.5m.-2.4m

MW frequency : 10.525GHz

MW power(EIRP): 13dBm

PIR sensor: 2×Dual elements

Alarm time:3s

Anti RFI: 0.1-1000MHz/30V/m

Anti-white light: >10000LUX

Anti EMI: 50000v

Anti pet weight: 25KG

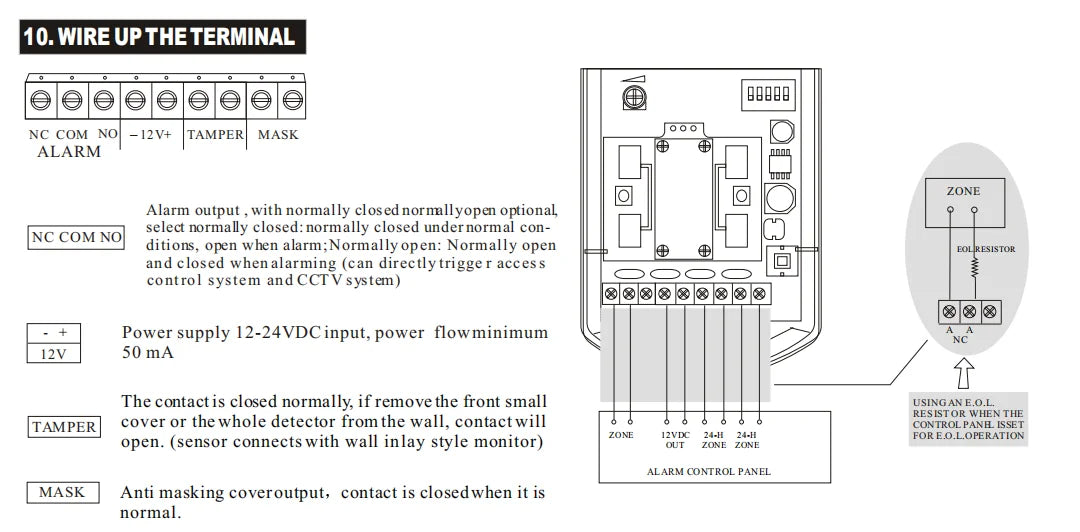

Alarm output: NC/NO@2A/24VDC

Mask output: 100mA/24V

Temperature:-25℃/+55℃

Storage temp: -40℃/+65℃

Humidity(RH):95% Sensitivity:H/L Select

Detect speed: 0.2m/s to 3.5m/s

shell material: ABS Resin

Dimensions(H×WXD): 180mm×76mm×60mm

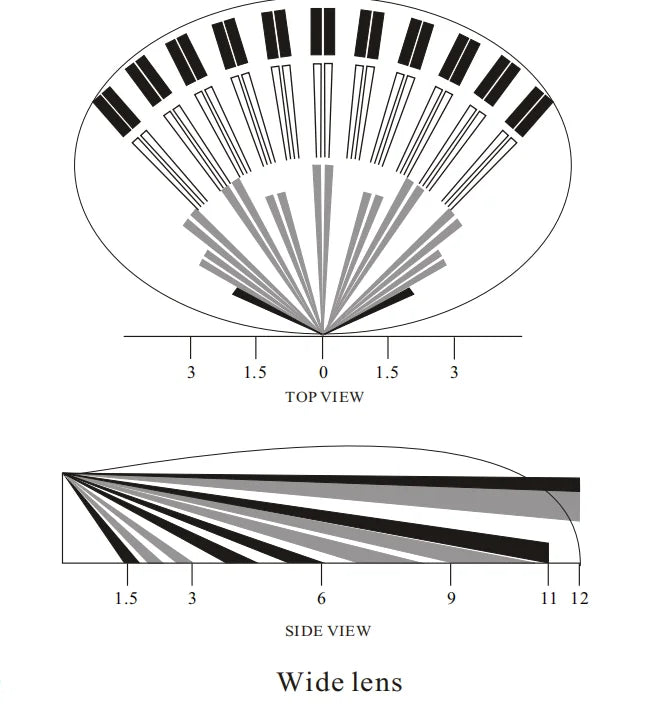

Coverage: 12m×12m 100° (wide lens)

package Content:

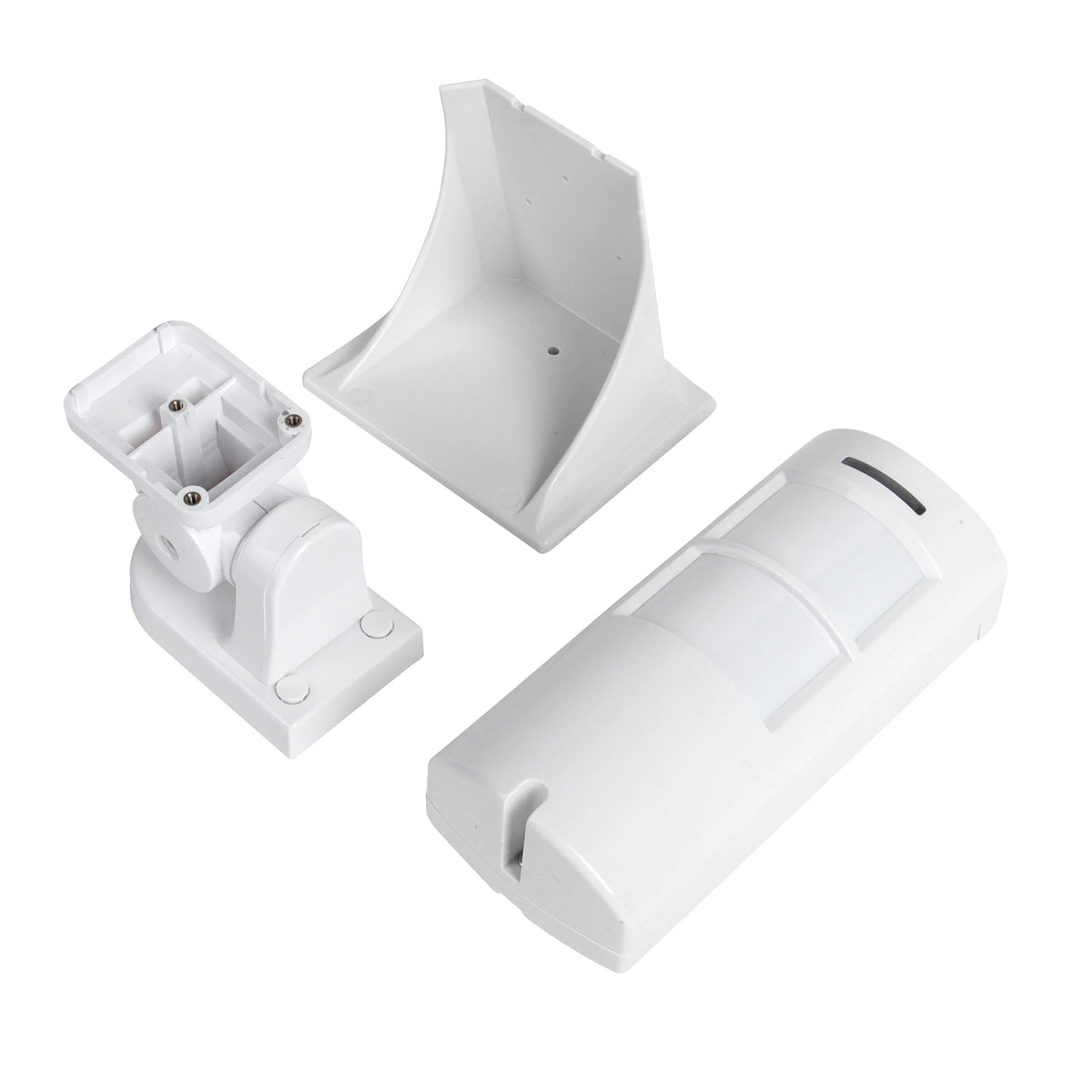

1pc Outdoor Wired PIR & Microwave Motion Sensor pet friendly sensor ( included bracket and screws).

Kindly Reminder:

This wired motion sensor can't work alone, it can work with all alarm panels which support wired zones.

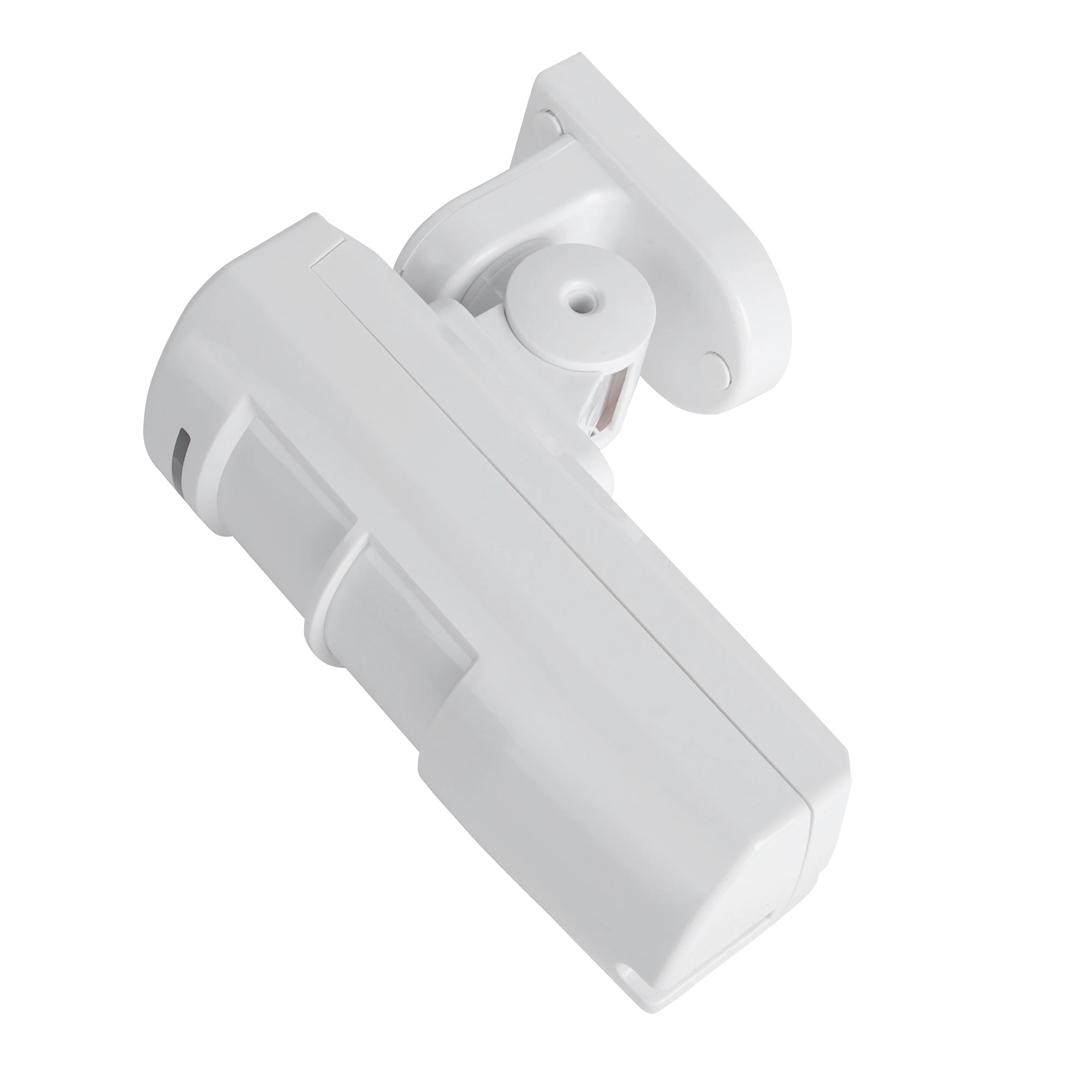

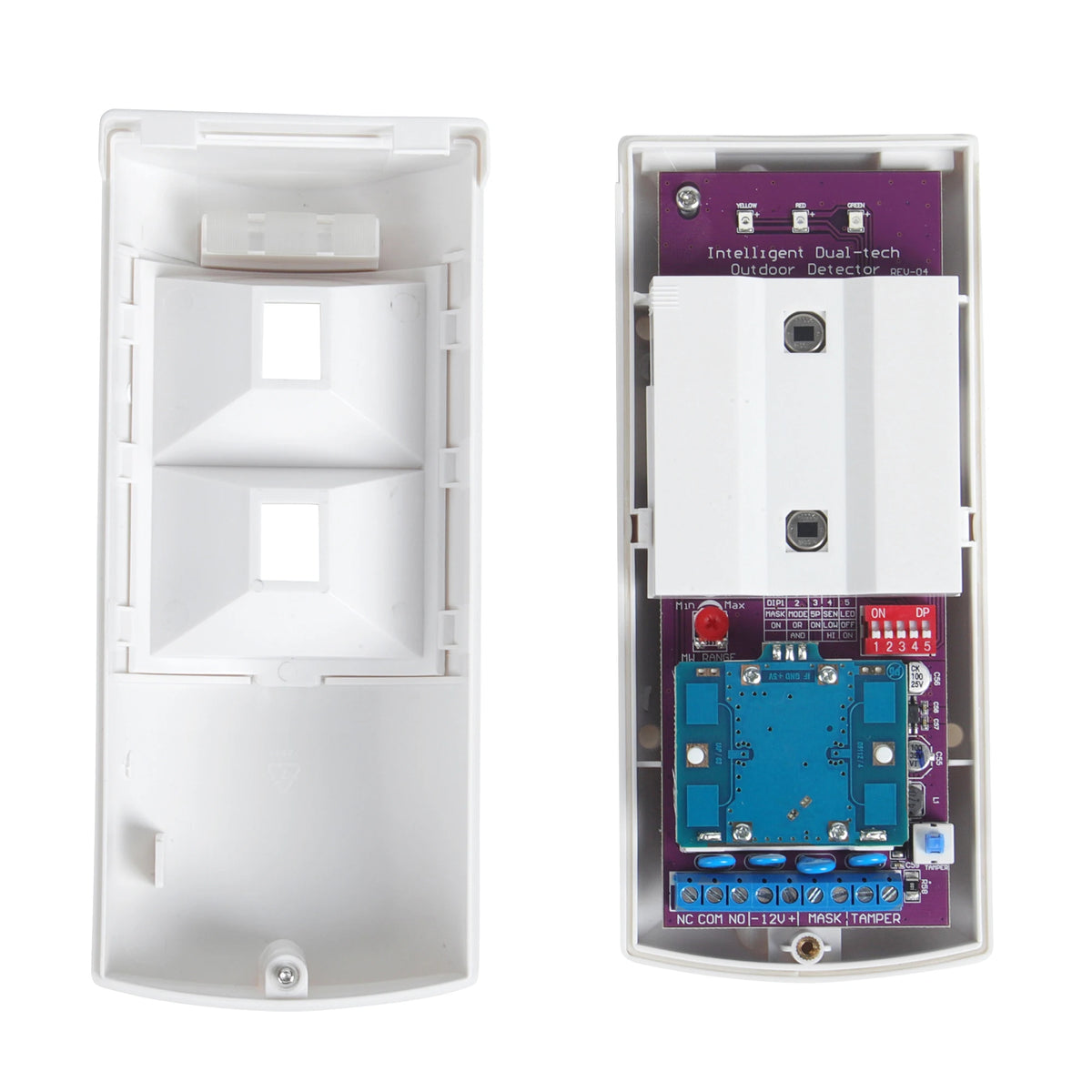

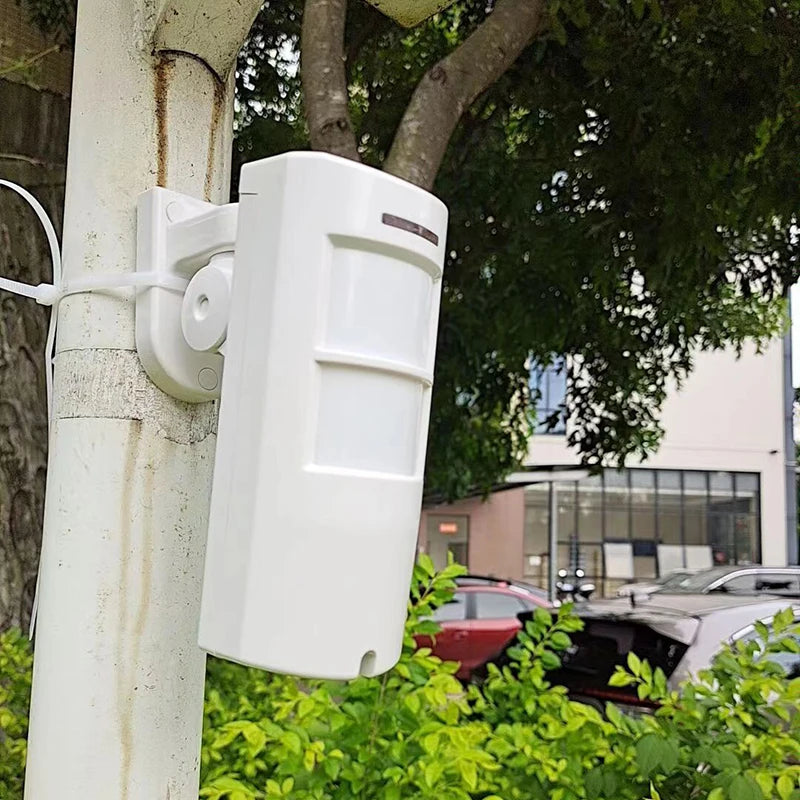

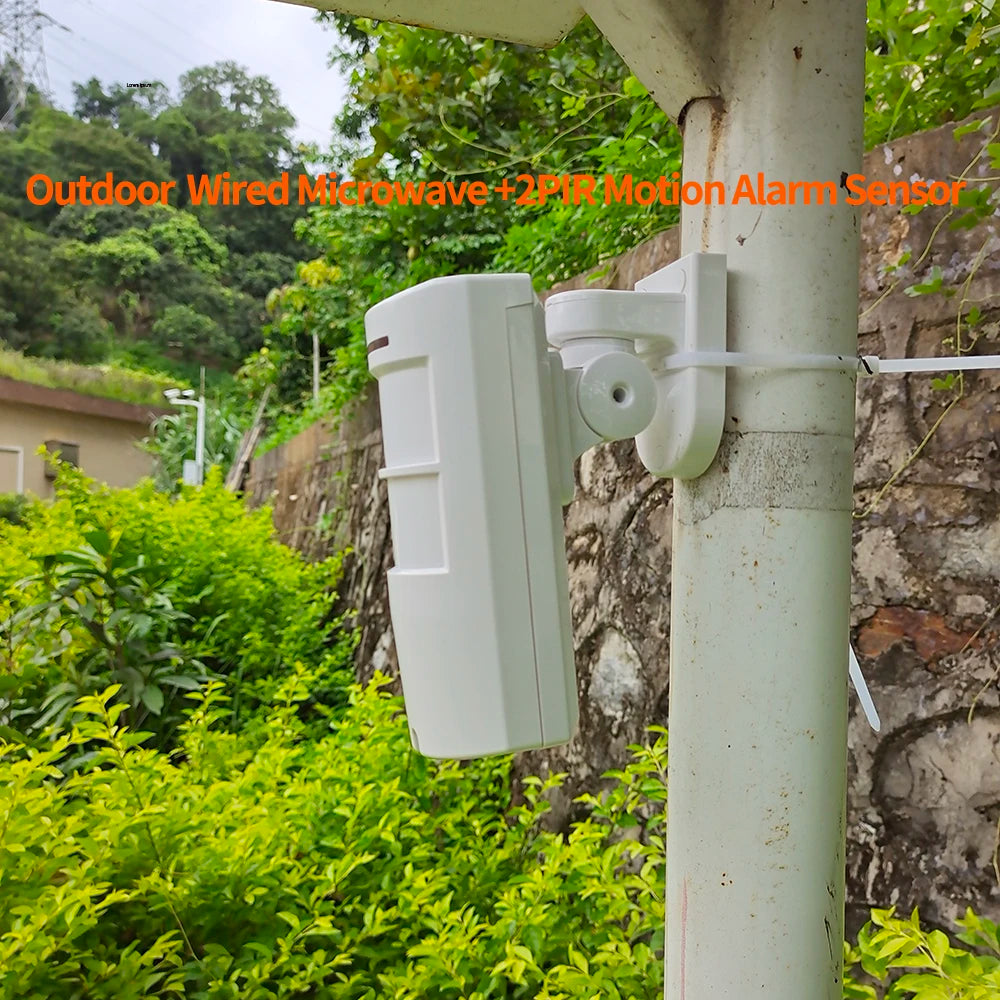

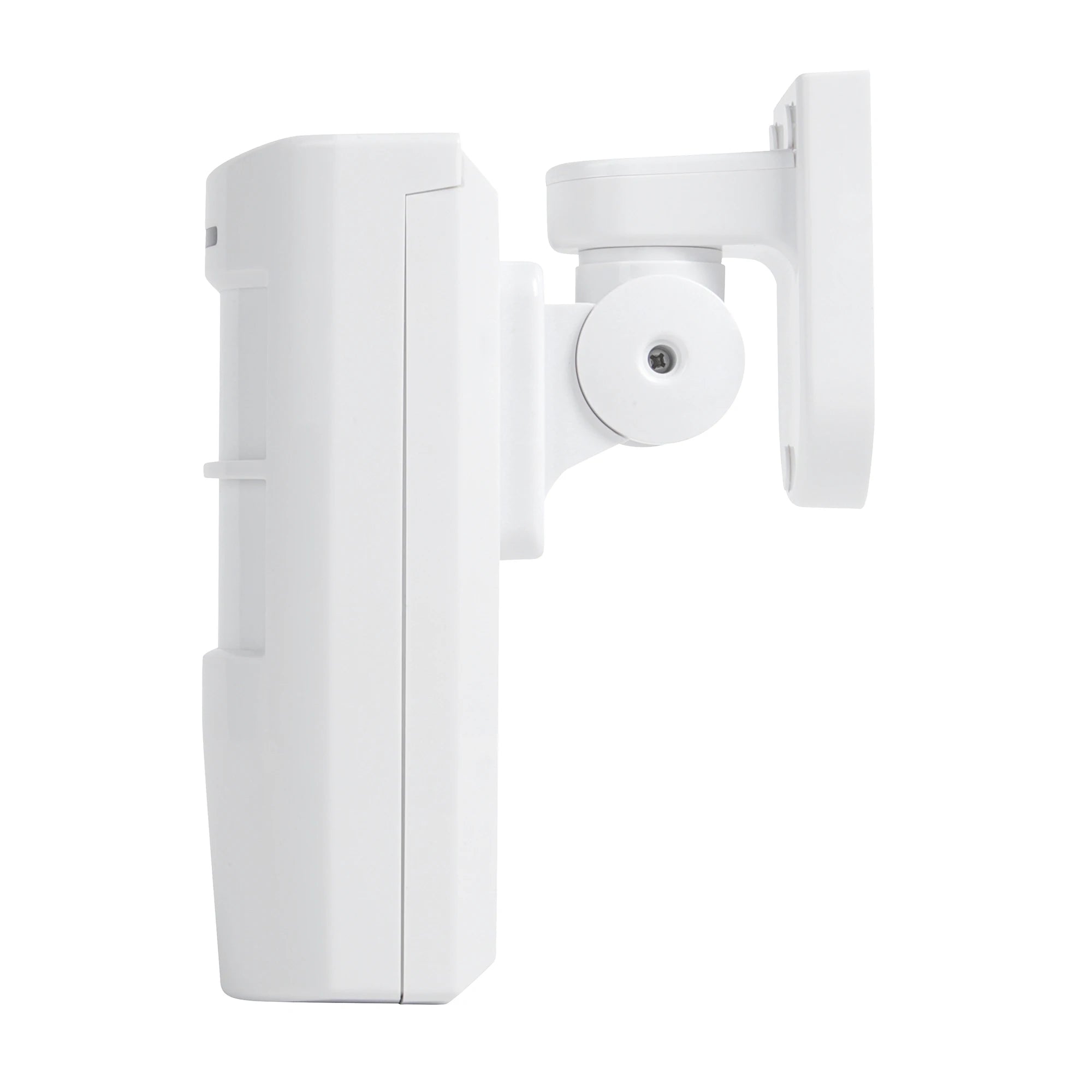

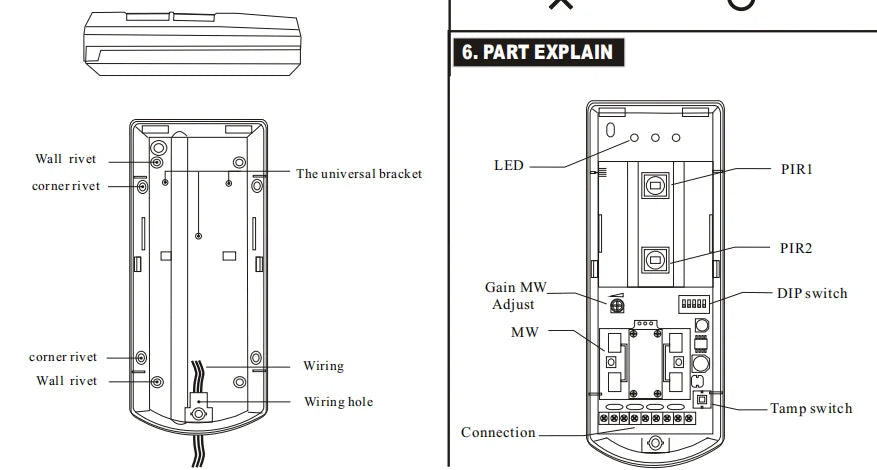

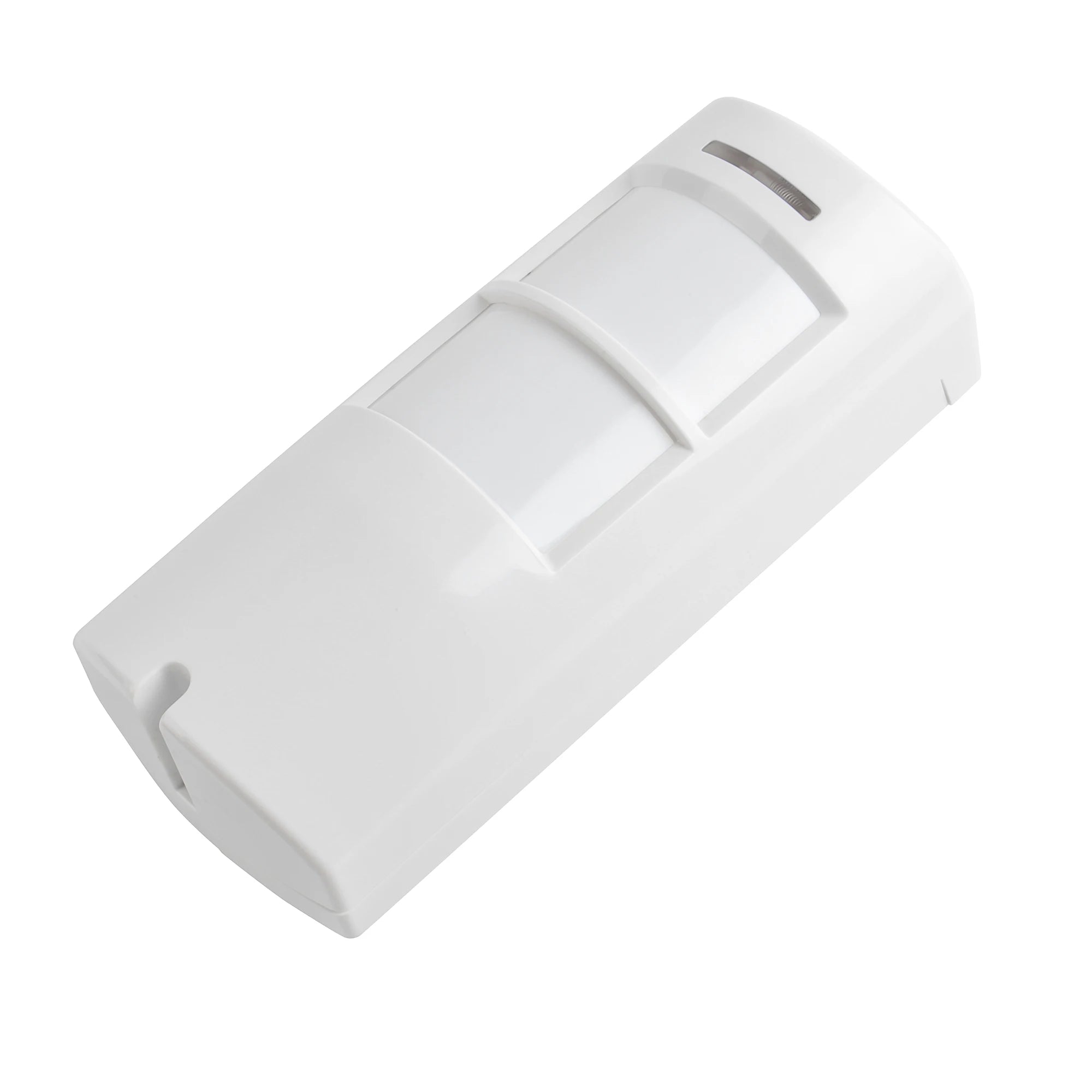

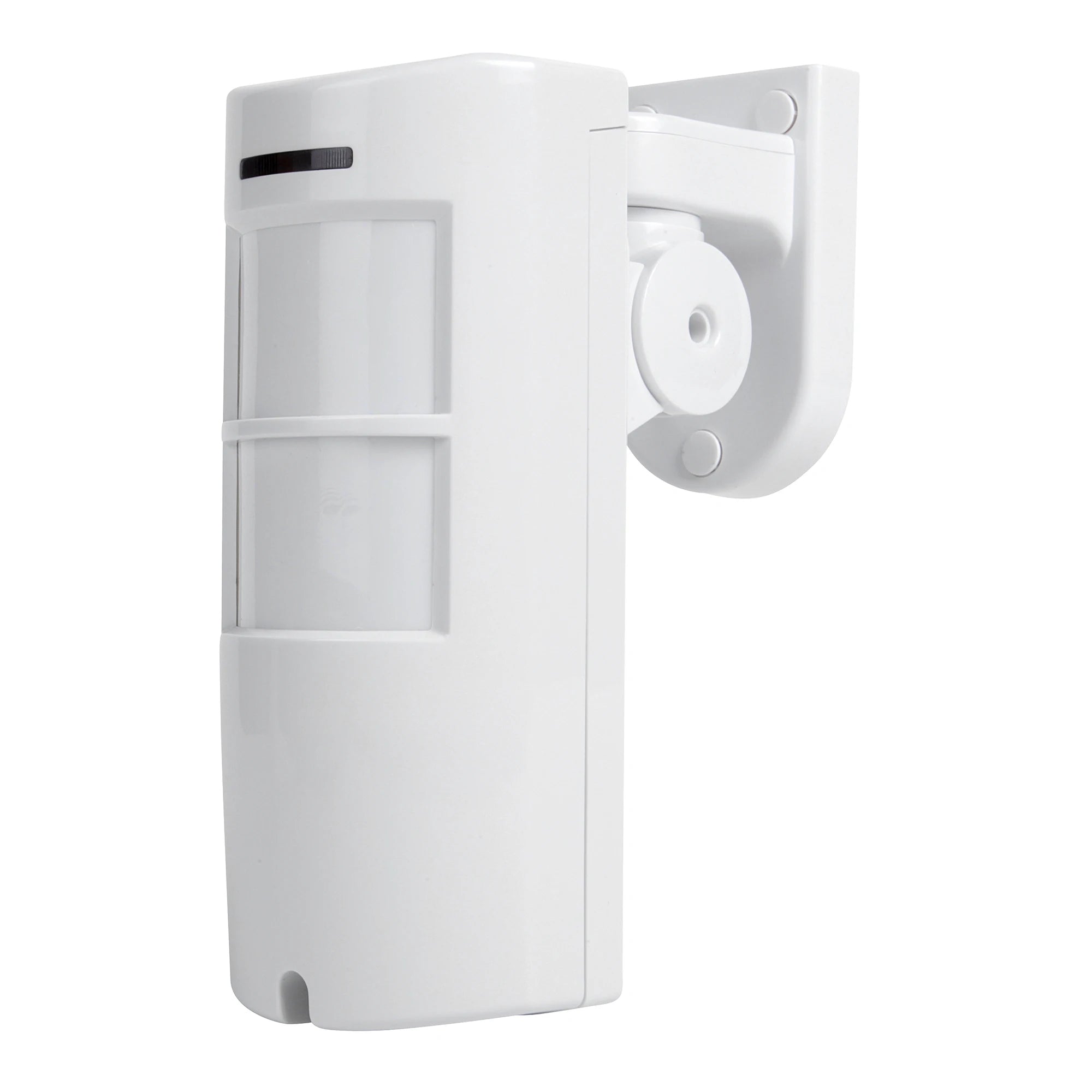

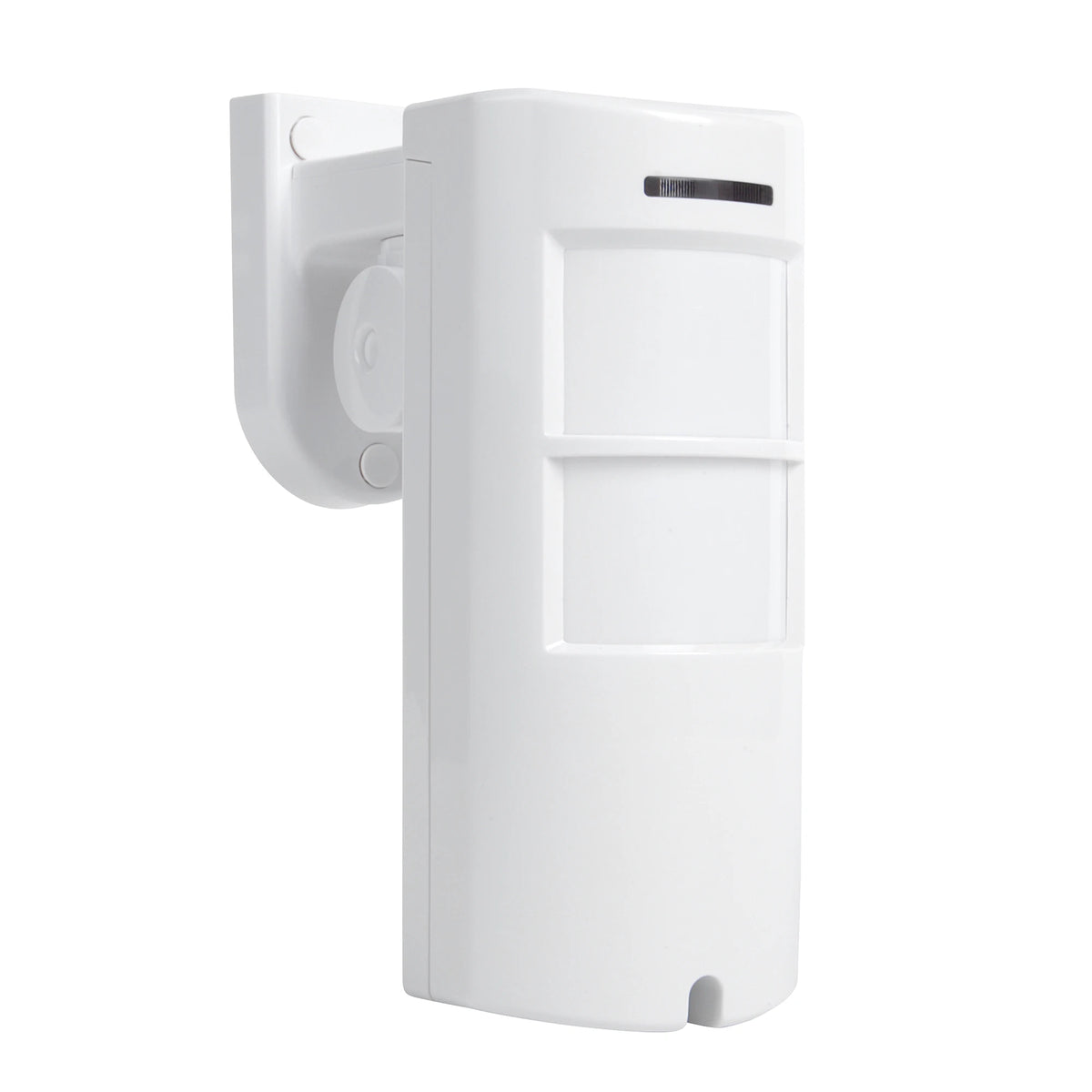

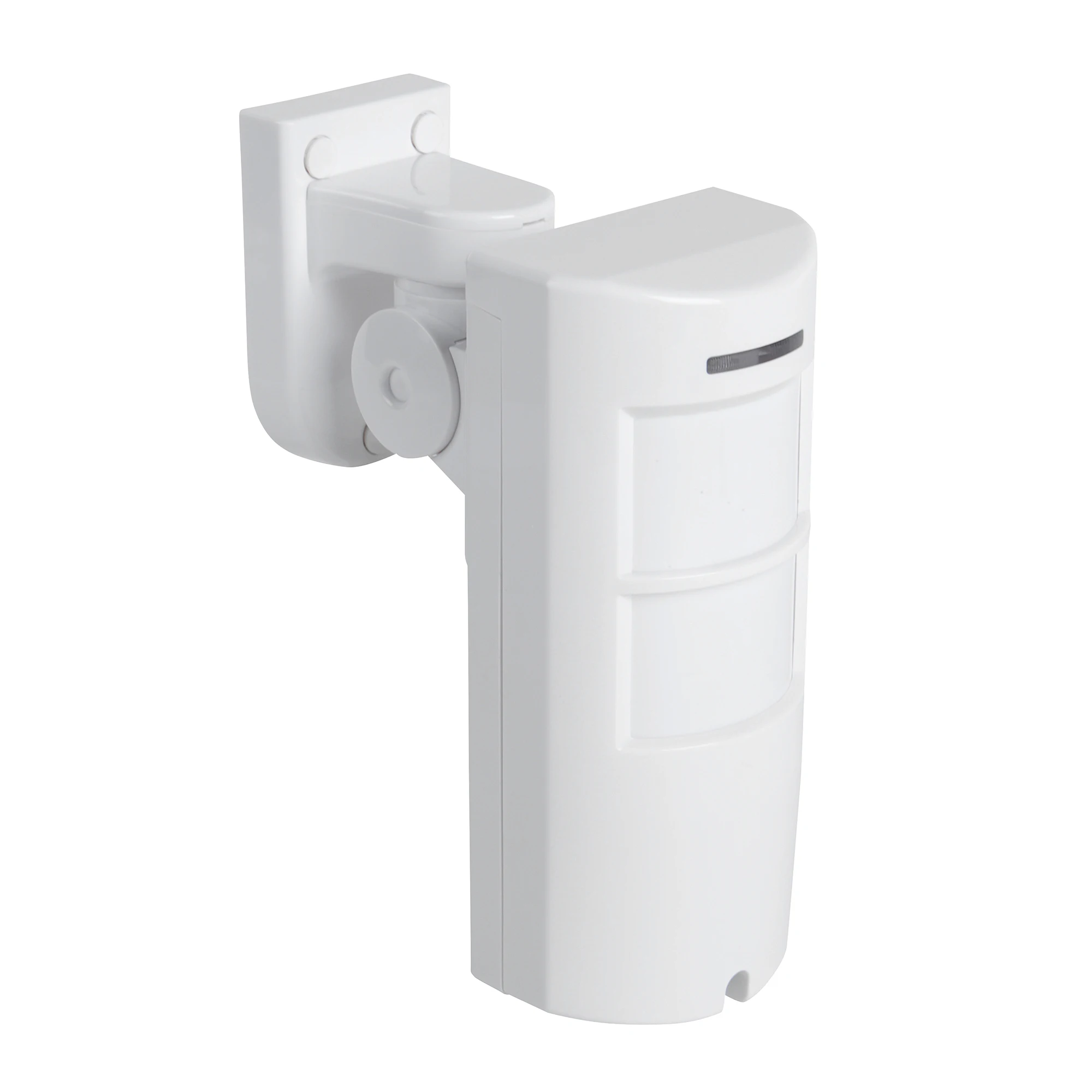

Product Show:
