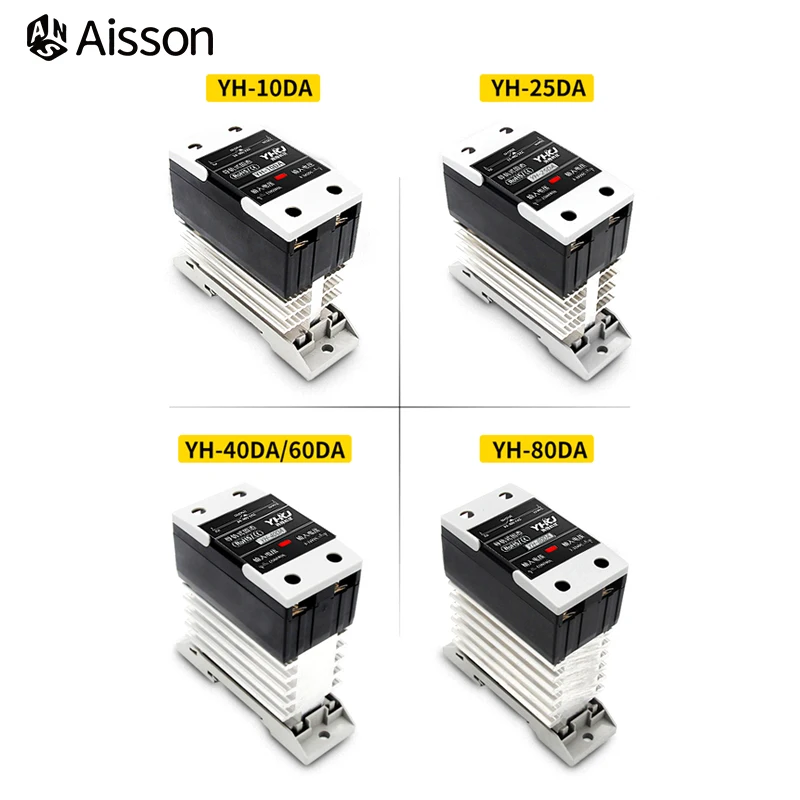

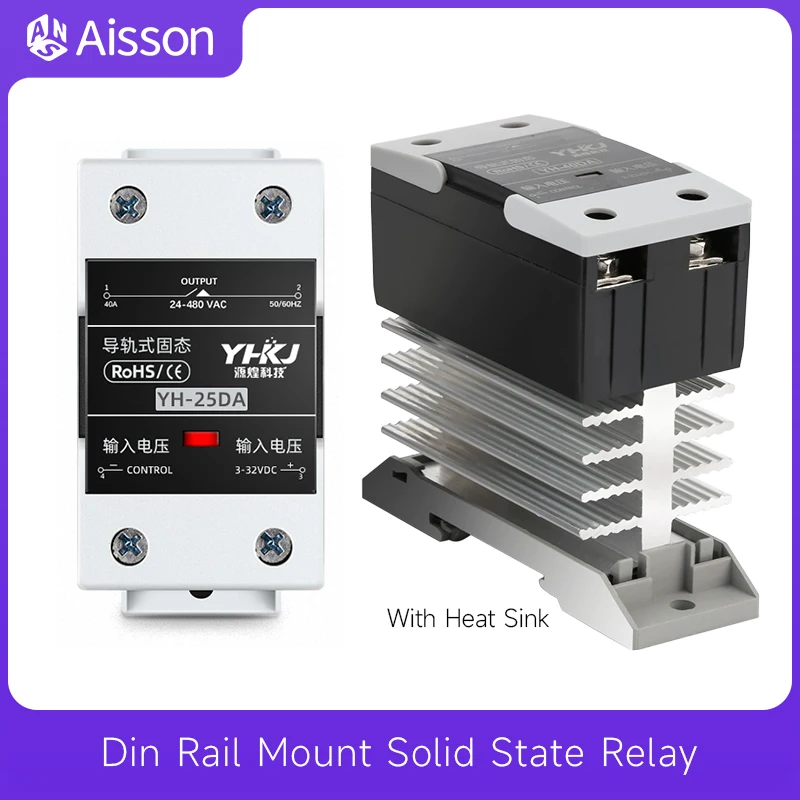

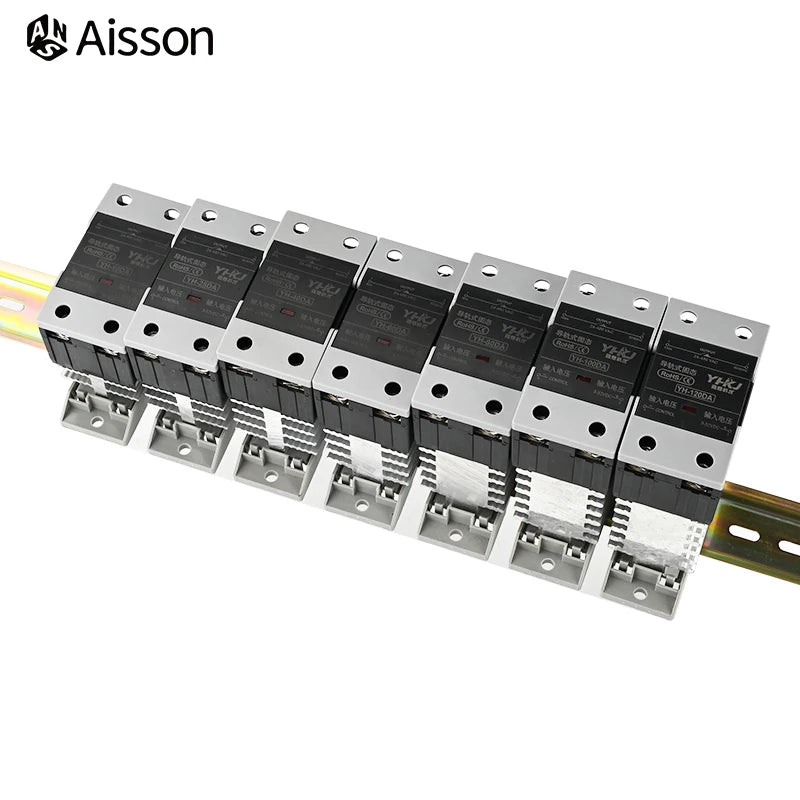

Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A

Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A

25A / AC-AC
$50.40
$50.40 $0.00
Skip to product information
Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
  • Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
  • Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
  • Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
  • Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
  • Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
  • Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
Din Rail Mount Solid State Relay SSR Single Phase DC Control AC AC Control AC With Heat Sink 10A 25A 40A 60A 80A 100A 120A
$50.40
$50.40 $0.00
Size
Current Range
Description

SPECIFICATIONS

Brand Name: NONE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: YHSSR

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

is_customized: no

DC to AC

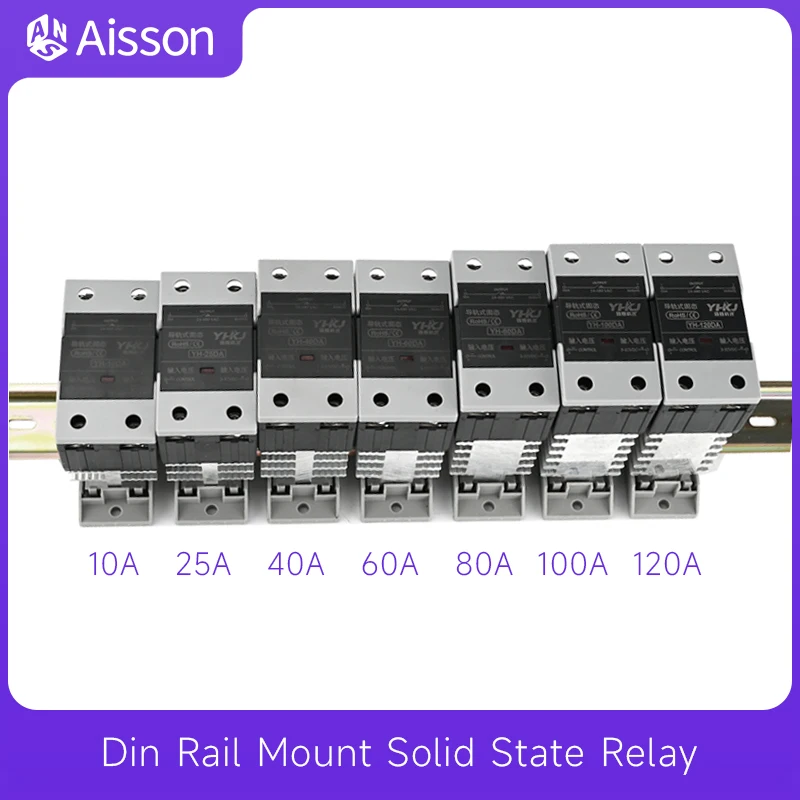

Load Current : 10A 25A 40A 60A 80A 100A 120A


Control Voltage: 3-32VDC


Load Voltage: 24-480VAC





AC to AC


Load Current : 10A 25A 40A 60A 80A 100A 120A


Control Voltage: 70-280VAC


Load Voltage: 24-480VAC


Features


1.Built-in TVS to protect triac.


2.With LED indicator.


3.Zero-cross Or Random turn-on.The default is zero cross SSR.


4.Random turn-on needs to be customized.


Precautions


1.When choosing a SSR,please notice the actual load current and working ambient temperature.


2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.


3.Tighten the ssr terminal screws properly.


4.Please do not use the relay beyond the descriptions in the data sheet.
