SPECIFICATIONS

Accuracy: 0.5

Brand Name: TAIYEDQ

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: DP58

Origin: Mainland China

Phase: SINGLE

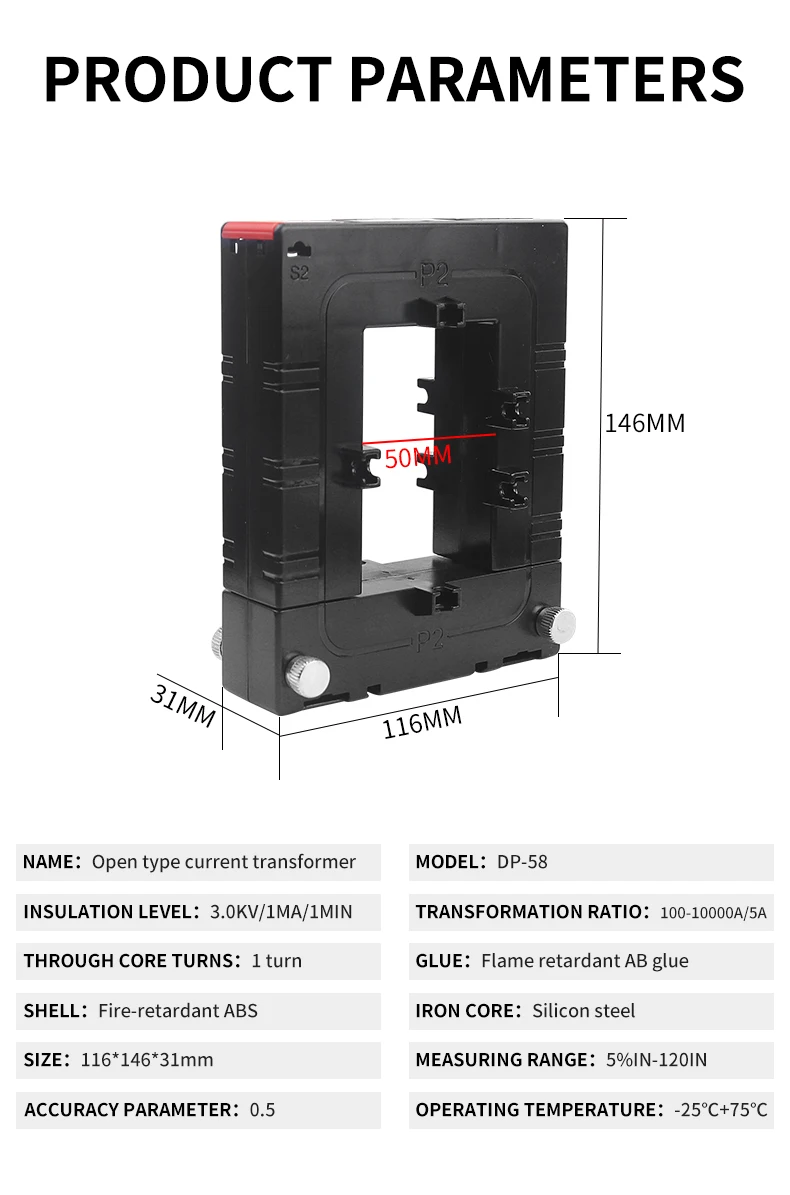

Size: 50*80mm

Use: Current

is_customized: Yes

>>Description

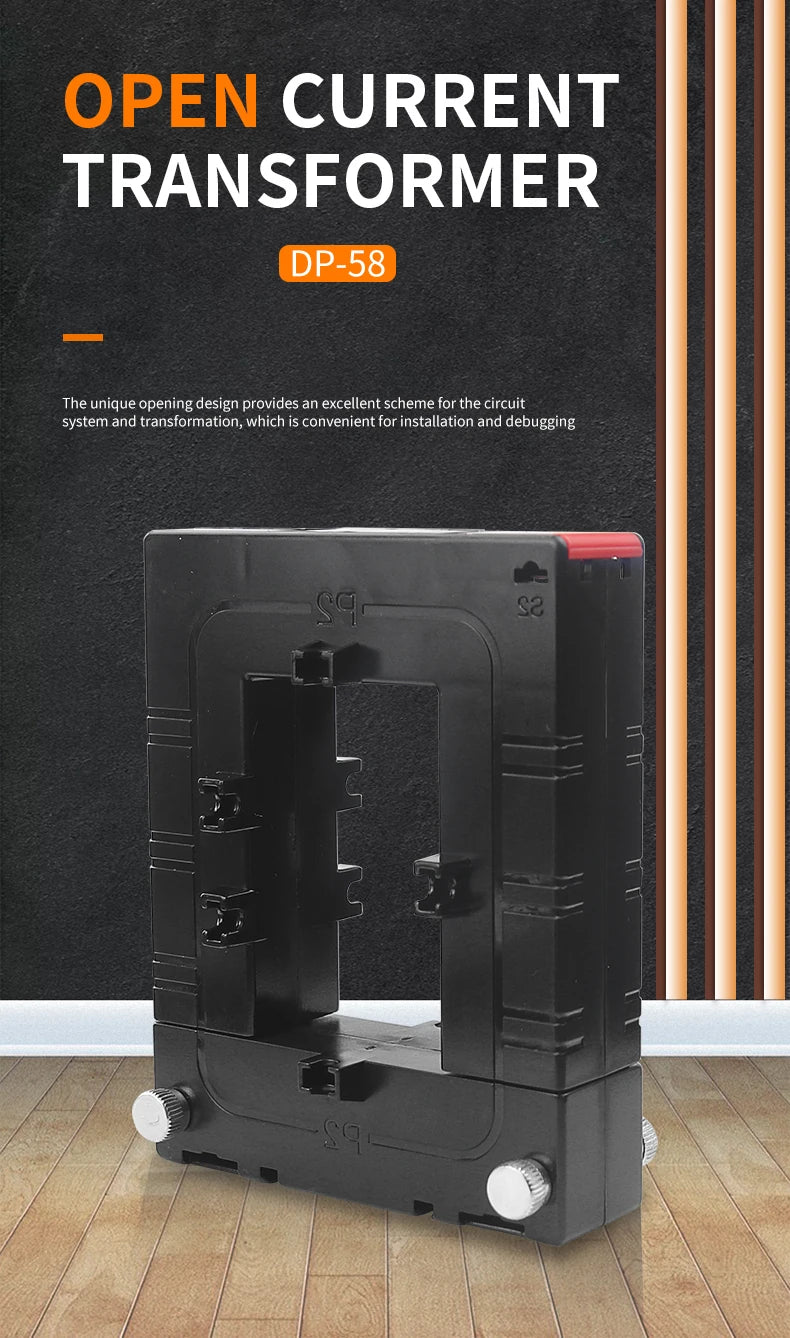

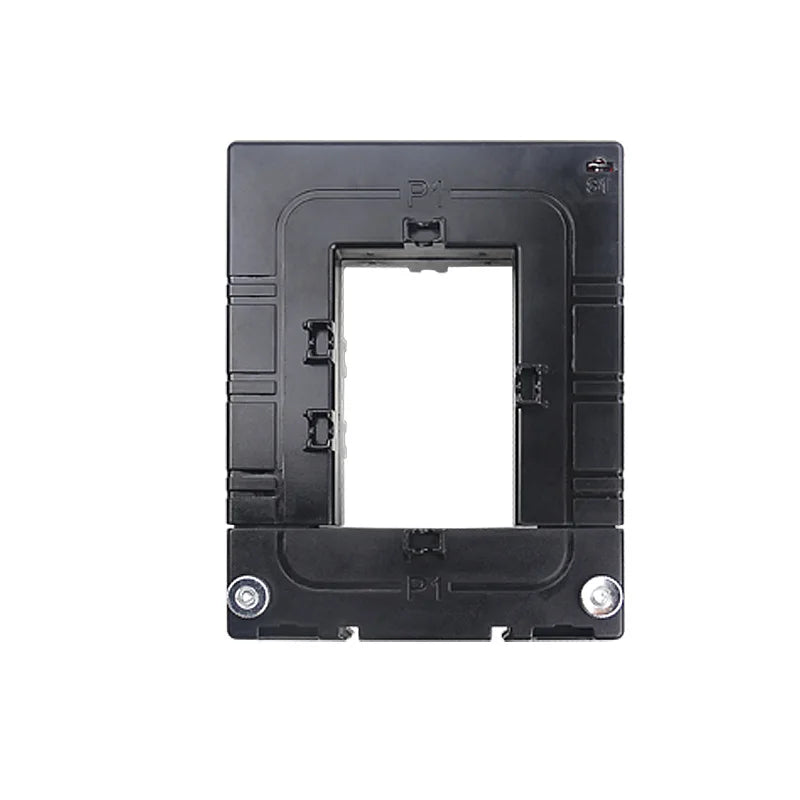

DP series open current transformers are generally used on busbars/double cables/multi-cables, and can be installed without dismantling the busbars/cables.

>>Specification

Frequency: 50/60Hz

Rated Input: 5A-10000A

Measuring Range: 5%In-120%In

Rated Output: 5A (1A can be customized)

Rated Voltage: 0.72KV (AC)

Dielectric Strength: 3.0KV/1mA/1min

Insulation Resistance: DC500V/100M Omin,

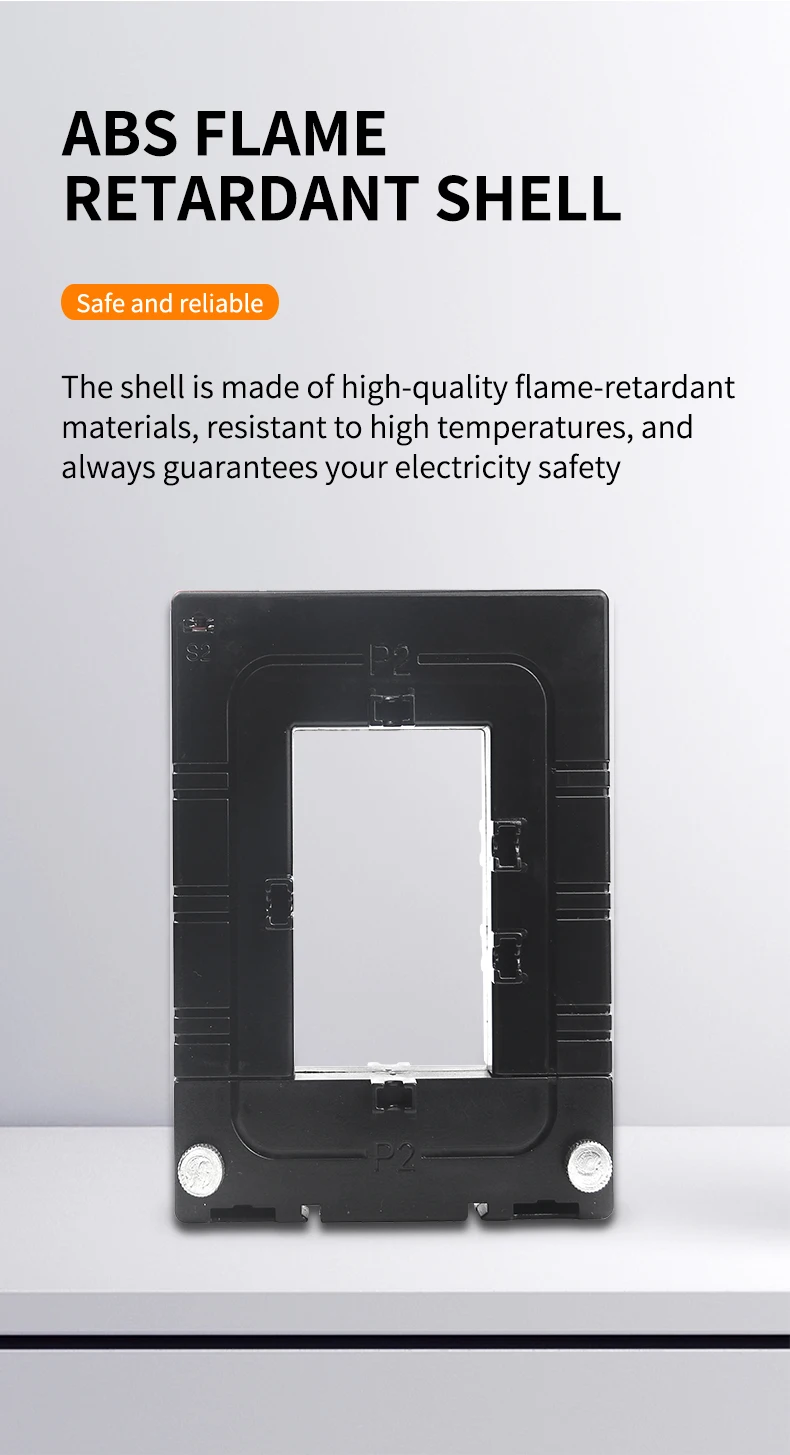

Housing: PC/UL94-V0

Copper Tube Material: PBT

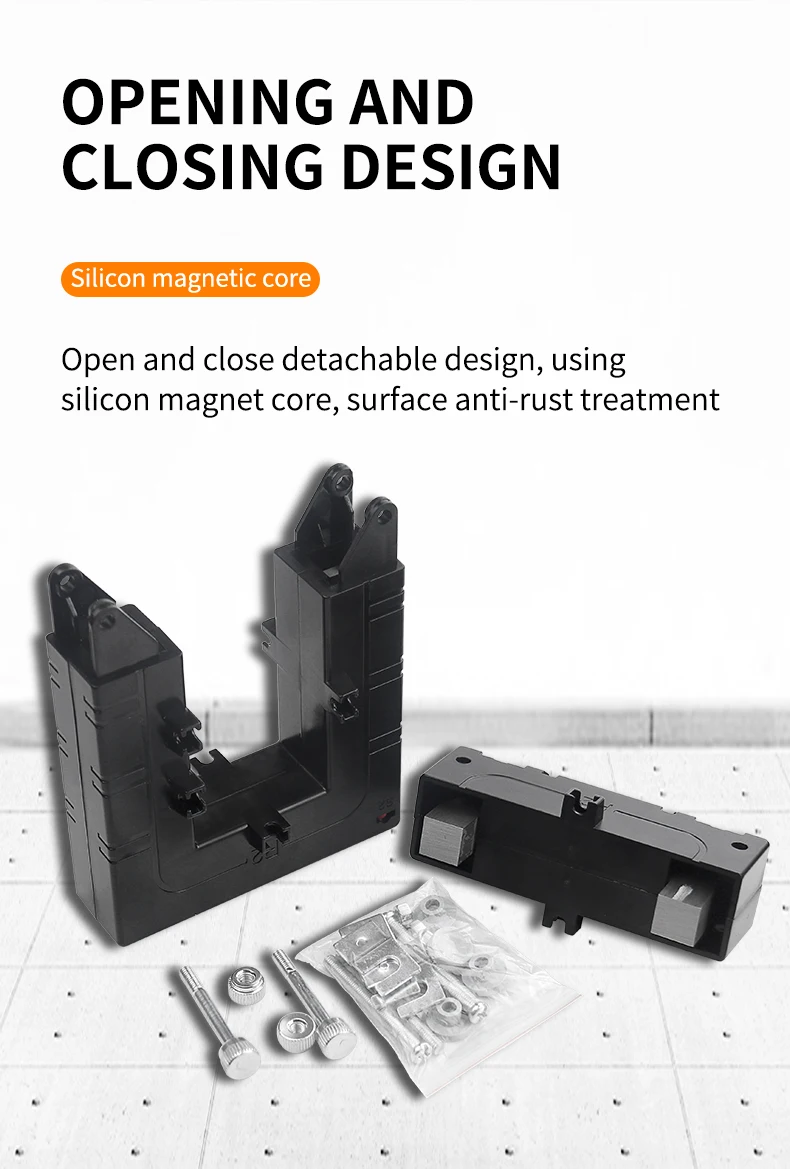

Iron Core: silicon steel

Internal Structure: epoxy resin

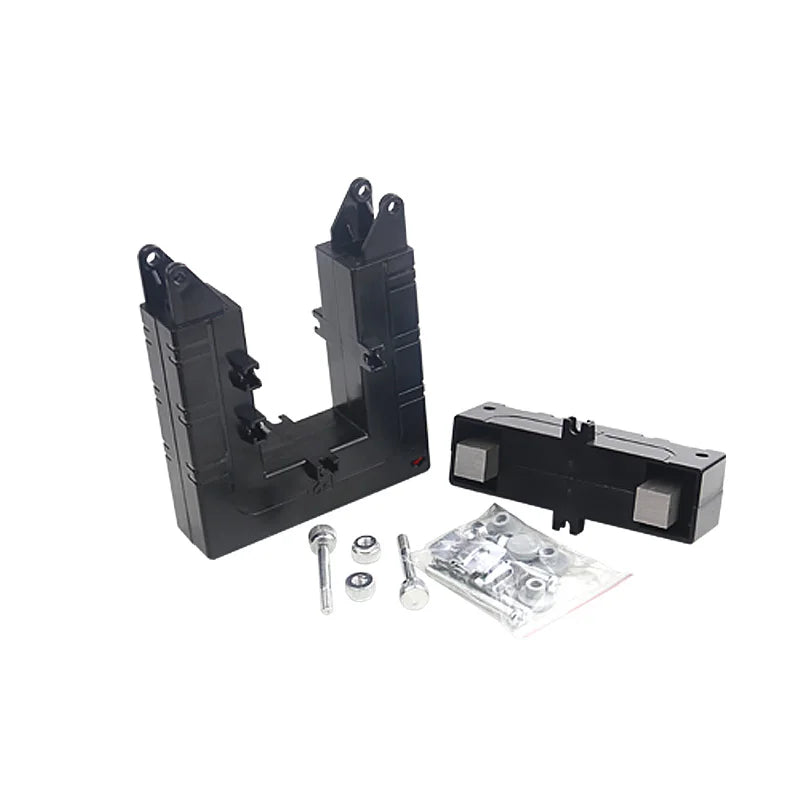

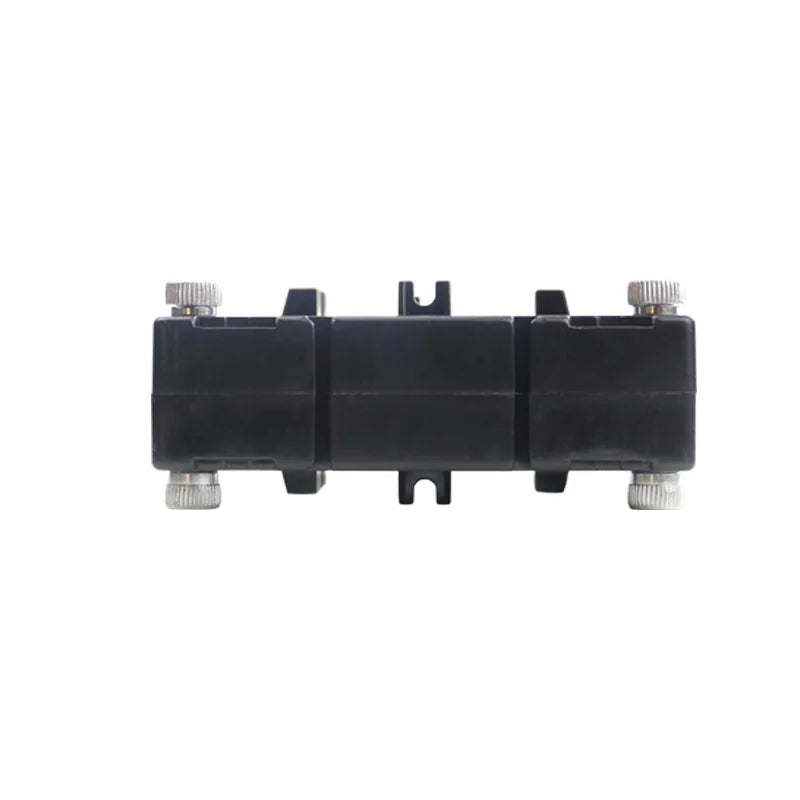

Installation Method: fixed base with movable screws/directly fixed on the busbar cable

Working Temperature: -25℃~+75℃

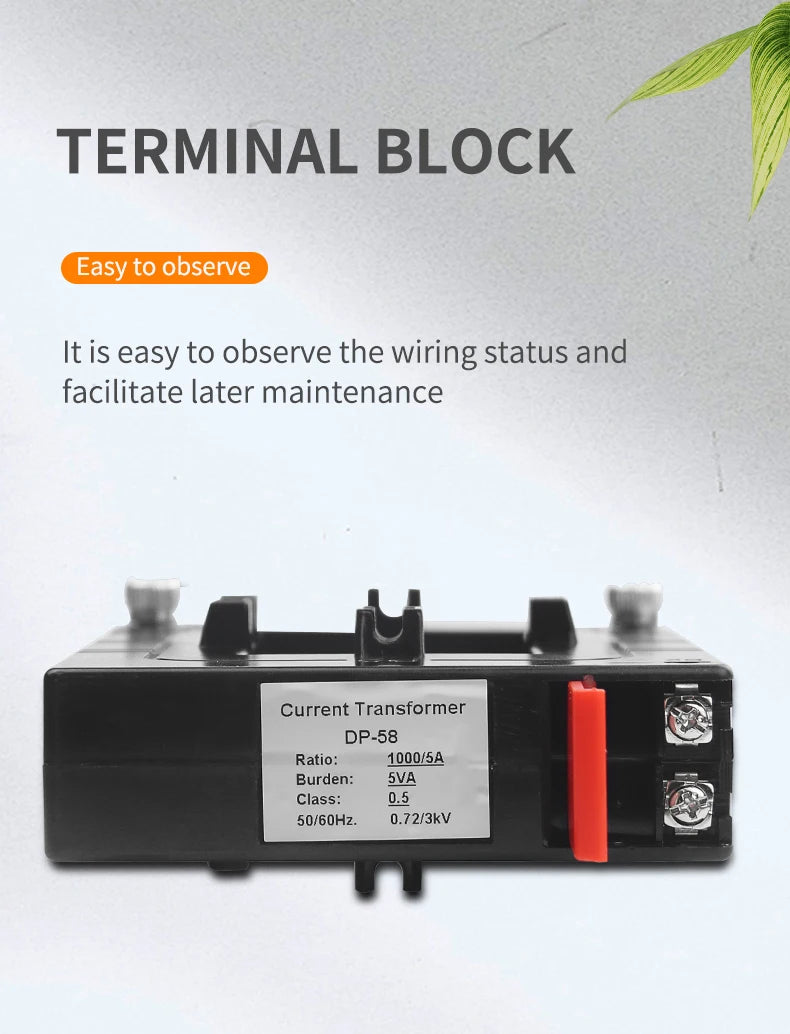

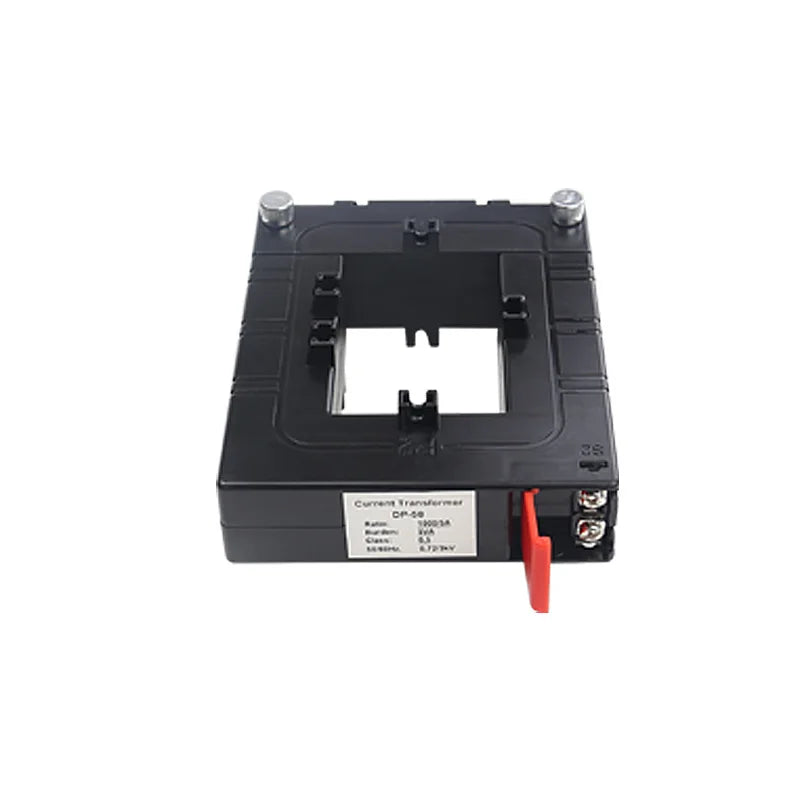

Output Connection: terminal type

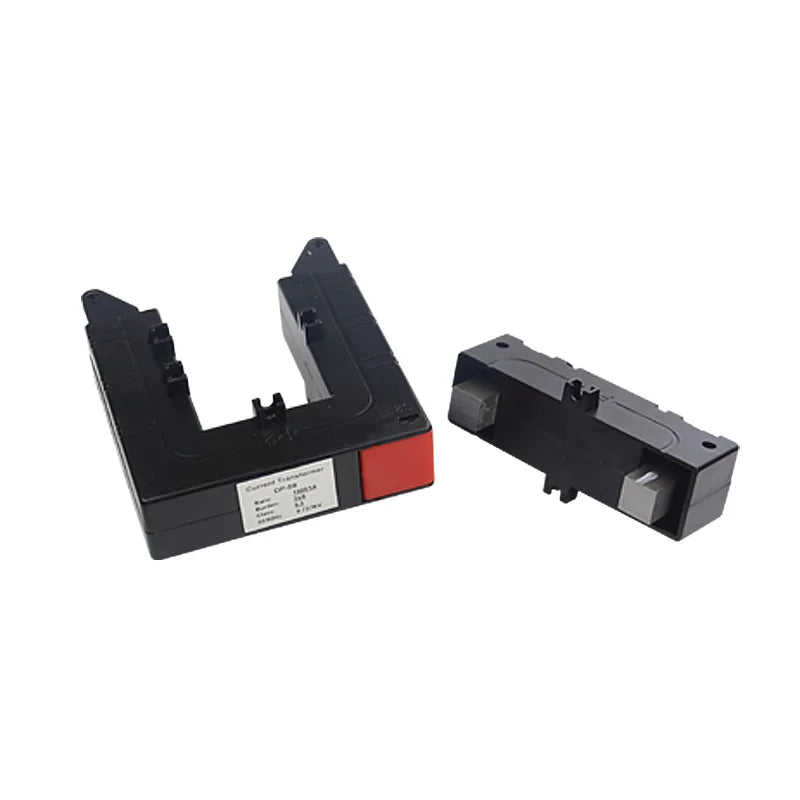

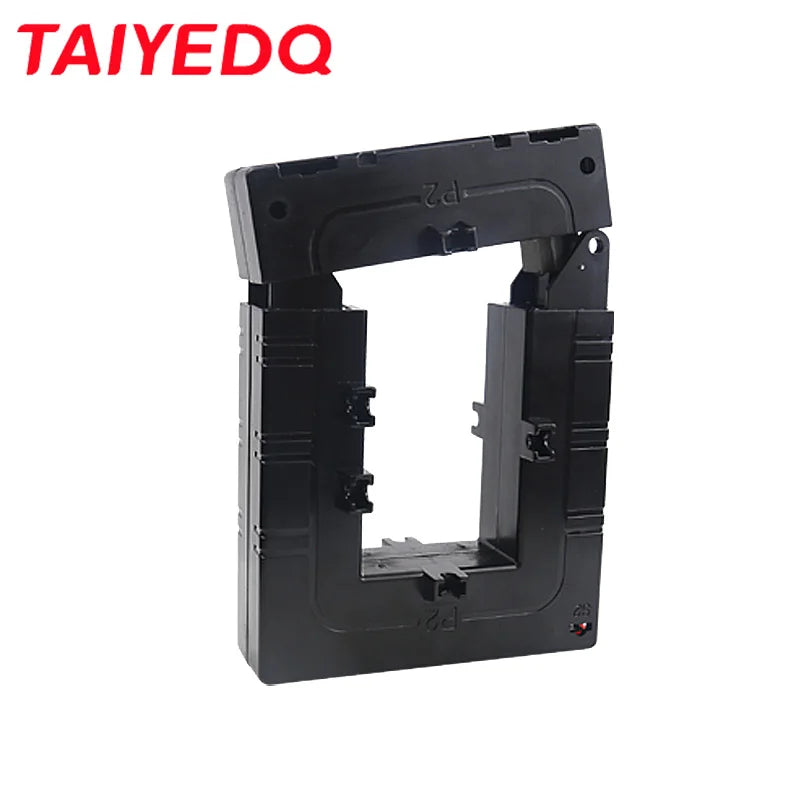

1.One button clamp-on design, safe, easy to install, portable

2. Two built in fixing methods: Base; Busbar mounting

3. Wide inner window, allowing clamping of big cables or bus-bars

4.Wide range of sizes to accommodate all the existing installations.

5.Primary current from 5A to 5000A

>>Package Included

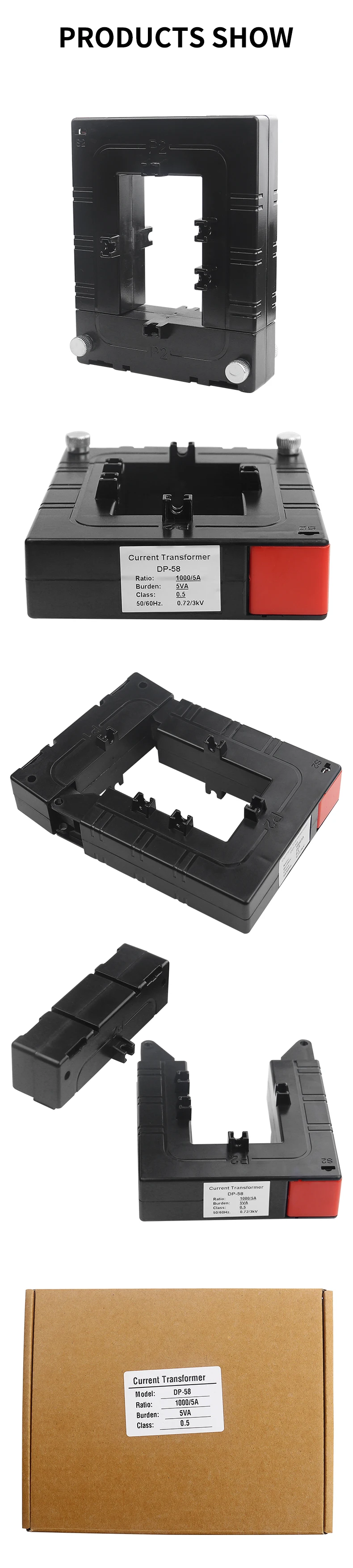

1 × DP58 CT
