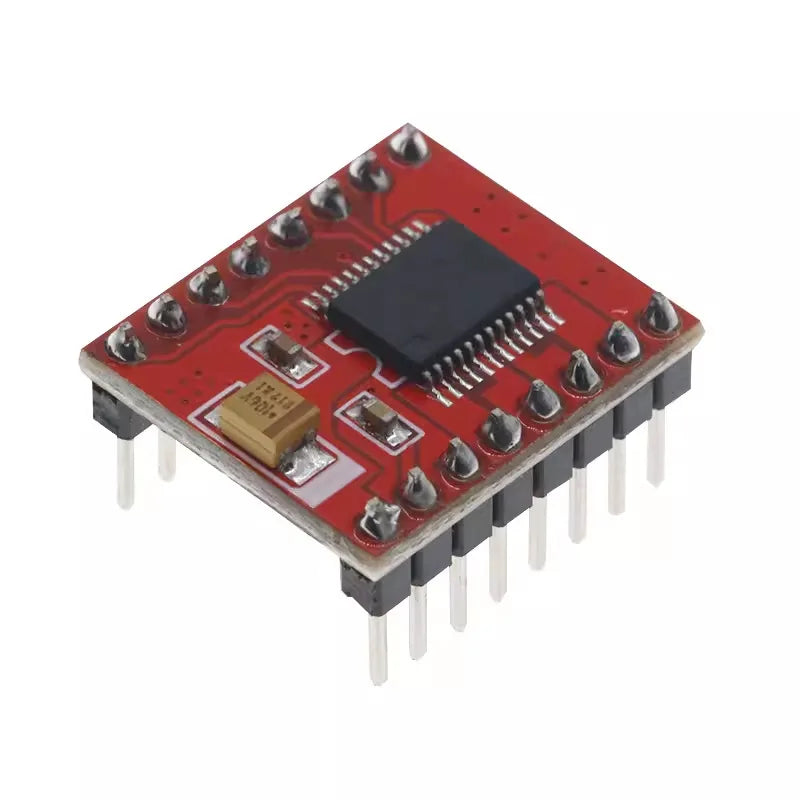

  • The DRV8833 motor driver module can directly replace the TB6612 driver module, and the pins are basically fully compatible.

    DRV8833The usage of:

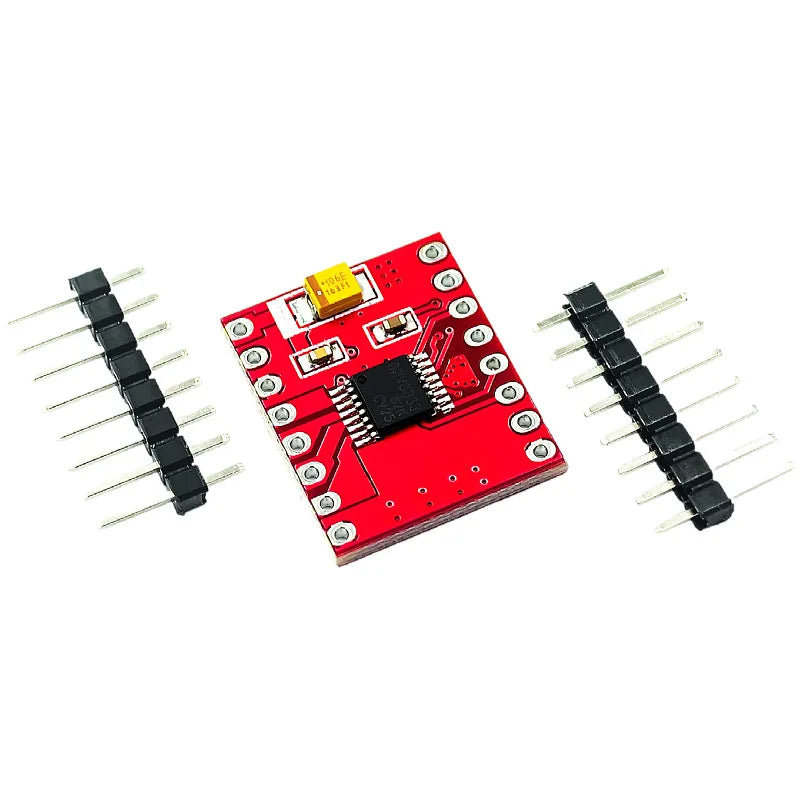

    Feature introduction:

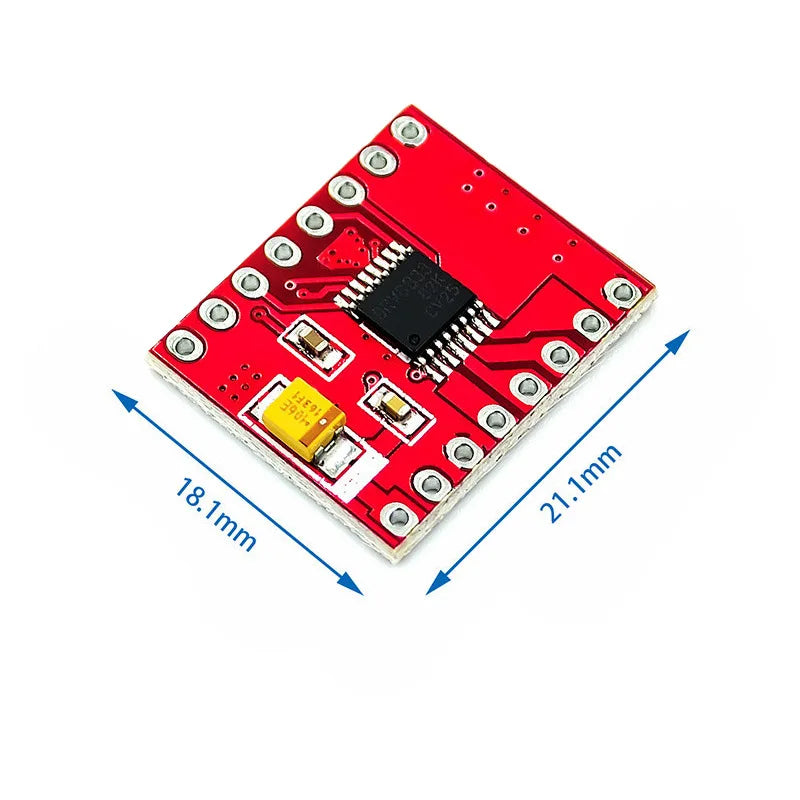

    Size:18* 21mm

    Input voltage:2.7 V – 10.8 V

    singleHBridge output current:1., can be driven2A DC geared motor.

    Built-in overcurrent protection, short circuit protection, undervoltage lock and overheating protection. With low power sleep mode.


    Purpose: Drivable1.The following DC motors and4Line stepping motor.

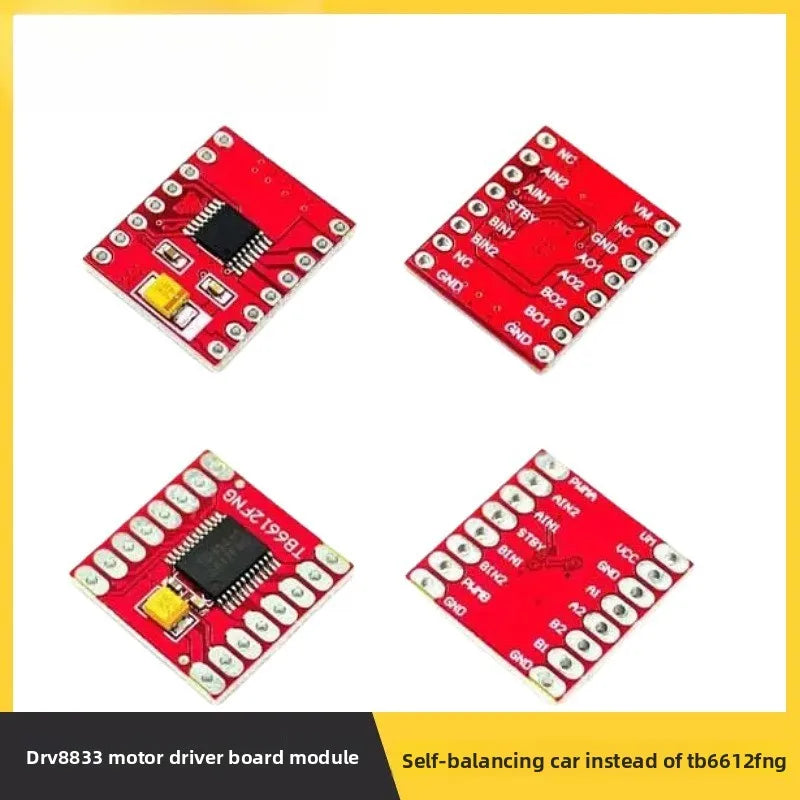

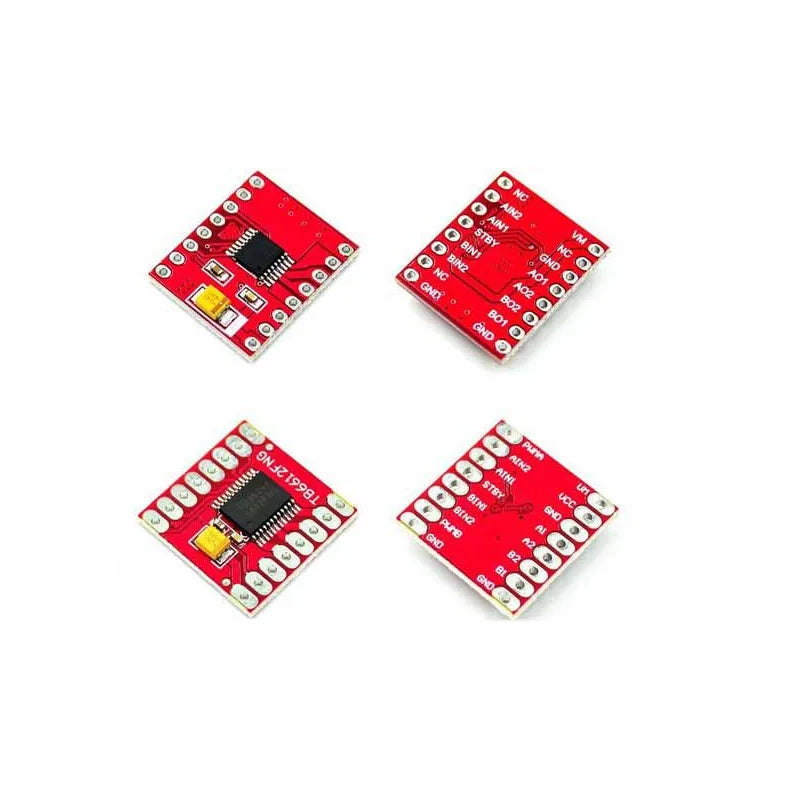

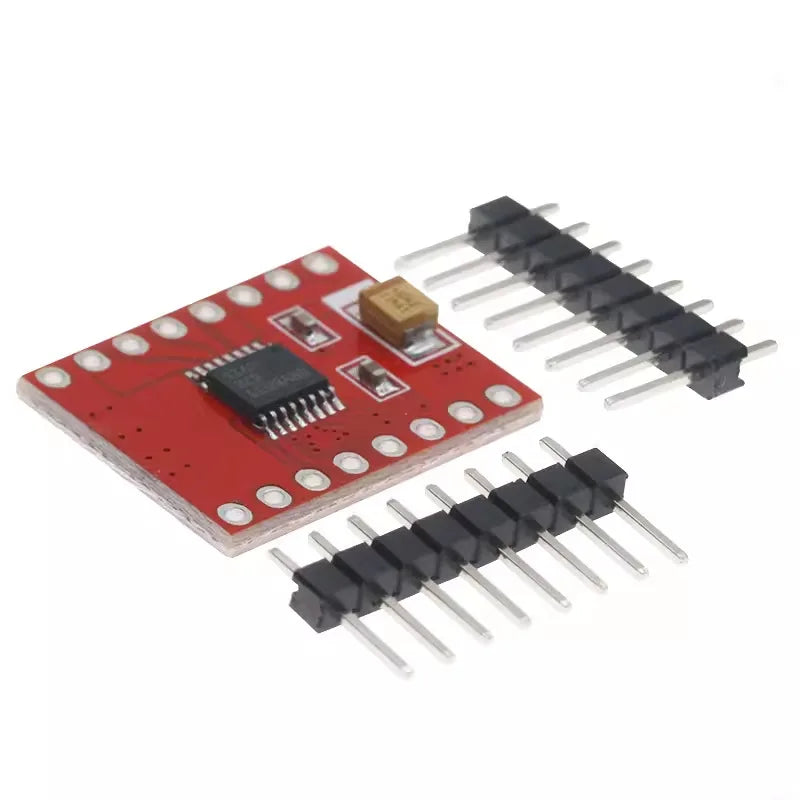

    Pin description:
    ANI1: AO1 logic input control port, level 0-5V.
    AIN2: AO2 logic input control port, level 0-5V.
    BNI1: BO1 logic input control port, level 0-5V.
    BIN2: BO2 logic input control port, level 0-5V.
    AO1 and AO2 are 1-way H-bridge output ports, connected to two pins of a DC motor.
    BO1 and BO2 are two H-bridge output ports, which are connected to two pins of another external direct motor.
    GND: Grounded.

    VMChip and motor power supply pins, voltage range2.7 V – 10.8 V.

    STBY: Ground or dangling chip not working, no output, connected5Vwork; level0-5V.

    NC:empty foot


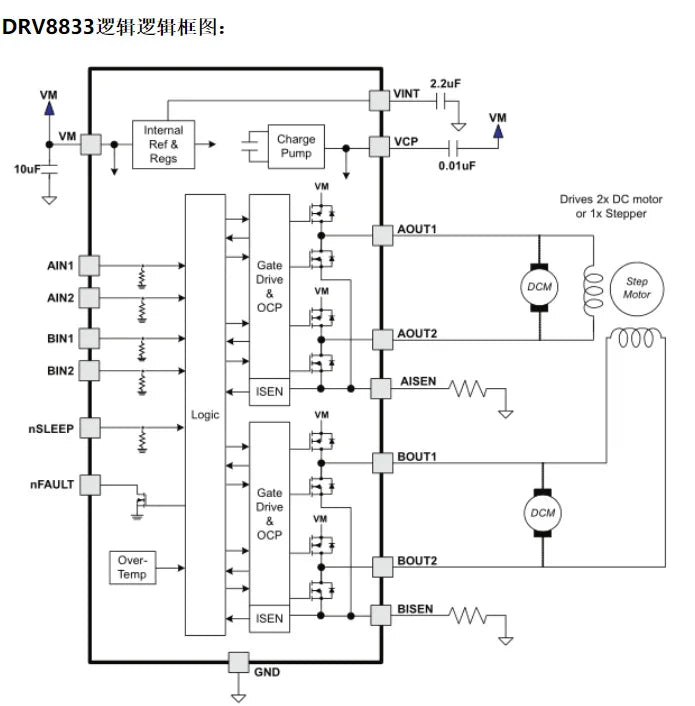

    Usage of DRV8833:
    DRV8833 is dual drive, that is, it can drive two motors.
    The following are the IO ports that control the two motors.
    The IO port of the STBY port connected to the microcontroller is cleared, and the motor is all stopped. Set 1 to control the forward and reverse rotation through AIN1 AIN2, BIN1, BIN2.
    VM is connected to a power supply within 12V
    Not much else to say about GND.
    Drive 1 way

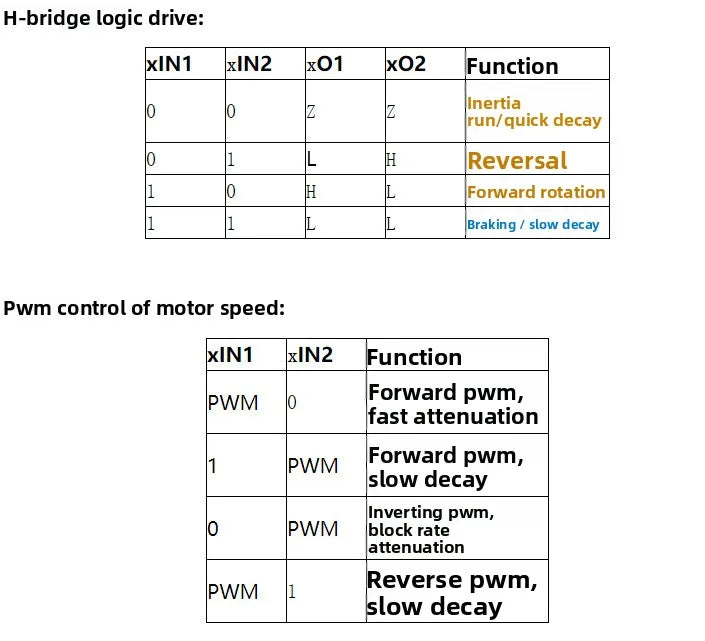

    Truth Table:
    AIN1 0 0 1
    AIN2 0 1 0
    Stop, Reverse, Formal
    A01
    AO2 connects to the two pins of motor 1
    Drive 2 way
    PWMB connected to the PWM port of the microcontroller
    Truth Table:
    BIN1 0 0 1
    BIN2 0 1 0
    Stop, Reverse, Formal
    B01
    BO2 is connected to the two feet of motor 2.


    Usage of TB6612:
    TB6612 is dual drive, that is, it can drive two motors.
    The following are the IO ports that control the two motors.
    The IO port of the STBY port connected to the microcontroller is cleared, and the motor is all stopped. Set 1 to control the forward and reverse rotation through AIN1 AIN2, BIN1, BIN2.
    VM is connected to a power supply within 12V
    VCC connected to 5V power supply
    Not much else to say about GND.
    Drive 1 way
    PWMA connected to the PWM port of the microcontroller

    Truth Table:
    AIN1 0 0 1
    AIN2 0 1 0
    Stop, Fall, Reverse

    A01
    AO2 connects to the two pins of motor 1

    Drive 2 way
    PWMB connected to the PWM port of the microcontroller
    Truth Table:
    BIN1 0 0 1
    BIN2 0 1 0
    Stop, Fall, Reverse
    B01
    BO2 is connected to the two feet of motor 2.

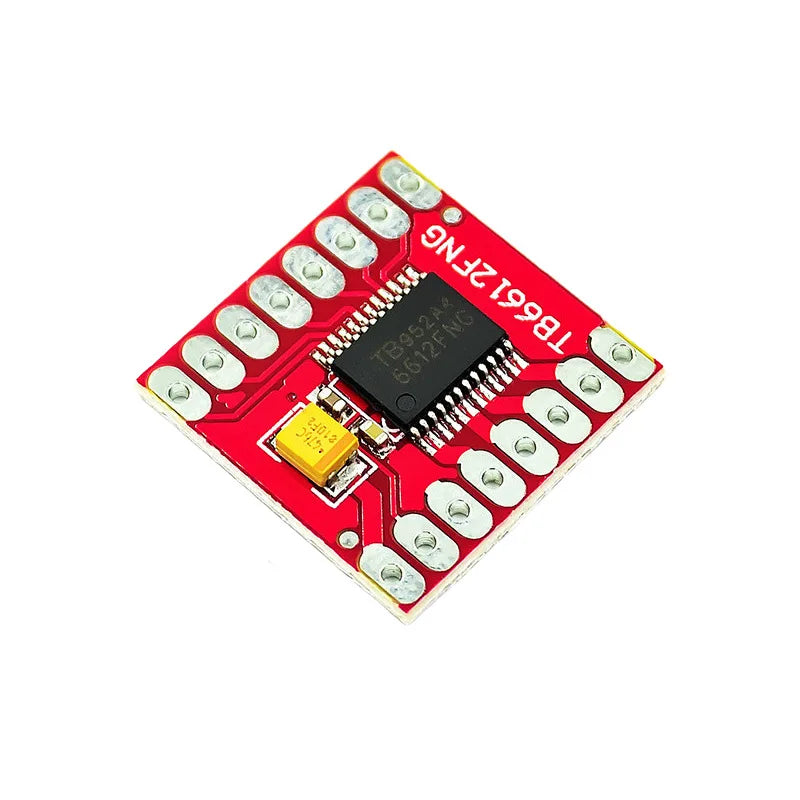

    Description:The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.CJMCU.

    Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

    Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1" pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

    Features:

    • Power supply voltage: VM=15V max, VCC=2.7-5.5V

    • Output current: Iout=1.2A(average) / 3.2A (peak)

    • Standby control to save power

    • CW/CCW/short brake/stop motor control modes

    • Built-in thermal shutdown circuit and low voltage detecting circuit

    • All pins of the TB6612FNG broken out to 0.1" spaced pins

    • Filtering capacitors on both supply lines
