What’s Logic Analyzer ?

Have trouble on debugging digital circuits with oscilloscope?
For example: small depth, hard to trig, rough protocol decoders …

Logic analyzer is a dedicate debug tool for digital signals, which support long-time acquisition, no dead time, complex trig conditions and rich protocol decoders.

Oscilloscope is wonderful for analyzing periodic voltage and noise changes; Logic analyzer only record low/high status, and is much better at analyzing process of digital communications and complex protocols.

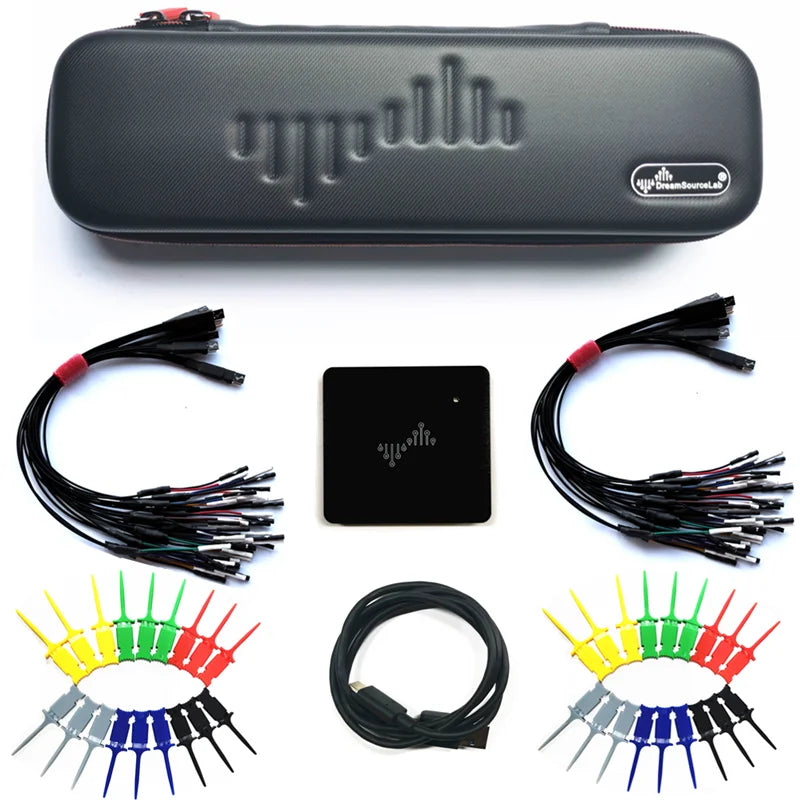

Why DSLogic ?

1. Continuous Improvement

5 years，1800 days and nights，300 improvements

Please click the image above to download the software

Software Open source, Hardware Patented & Certified

Multi-platform support
Driver with digital signature

2. Dual Mode Support

Main spec. of LA:

Sample duration and Sample rate

Buffer mode: High sample rate

Stream mode: Long sample duration

Why you need a high sample rate?

Sample rate is like screen resolution
The higher the better

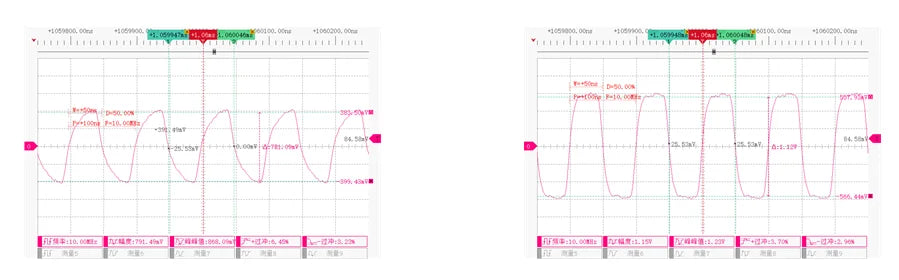

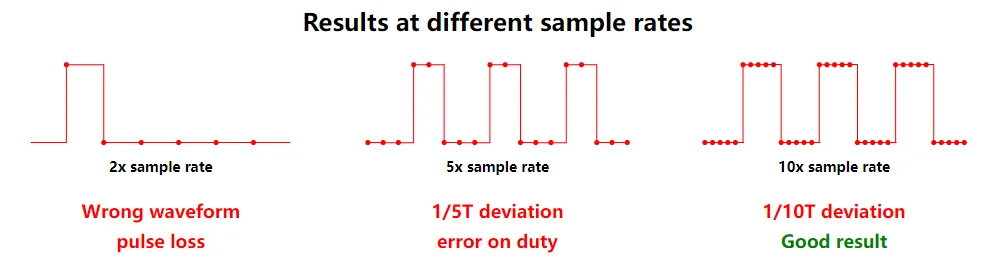

Results at different sample rates

The higher sample rate the better restored waveform
We recommend the sample rate should be 10x – 100x than frequency of under test signal

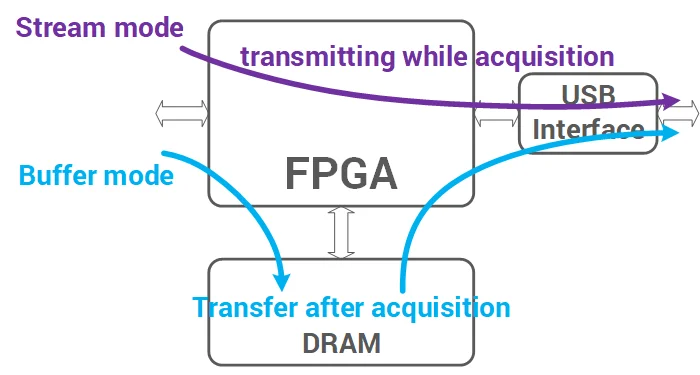

Stream mode
Data are transferred to computer in real-time through USB
Greatly increase the sample duration

Sample duration
Buffer mode vs Stream mode

Stream mode problem:
Real-time transmission is limited by USB bandwidth
Only 3 channels support under 100M sample rate

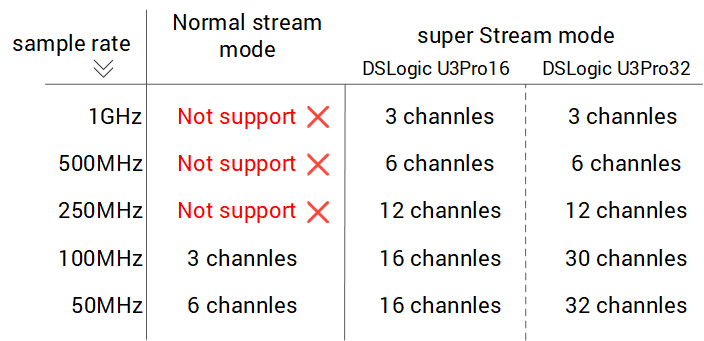

DSLogic U3Pro support super stream mode
Use USB 3.0, bandwidth up to 5Gbps
10 times than normal stream mode

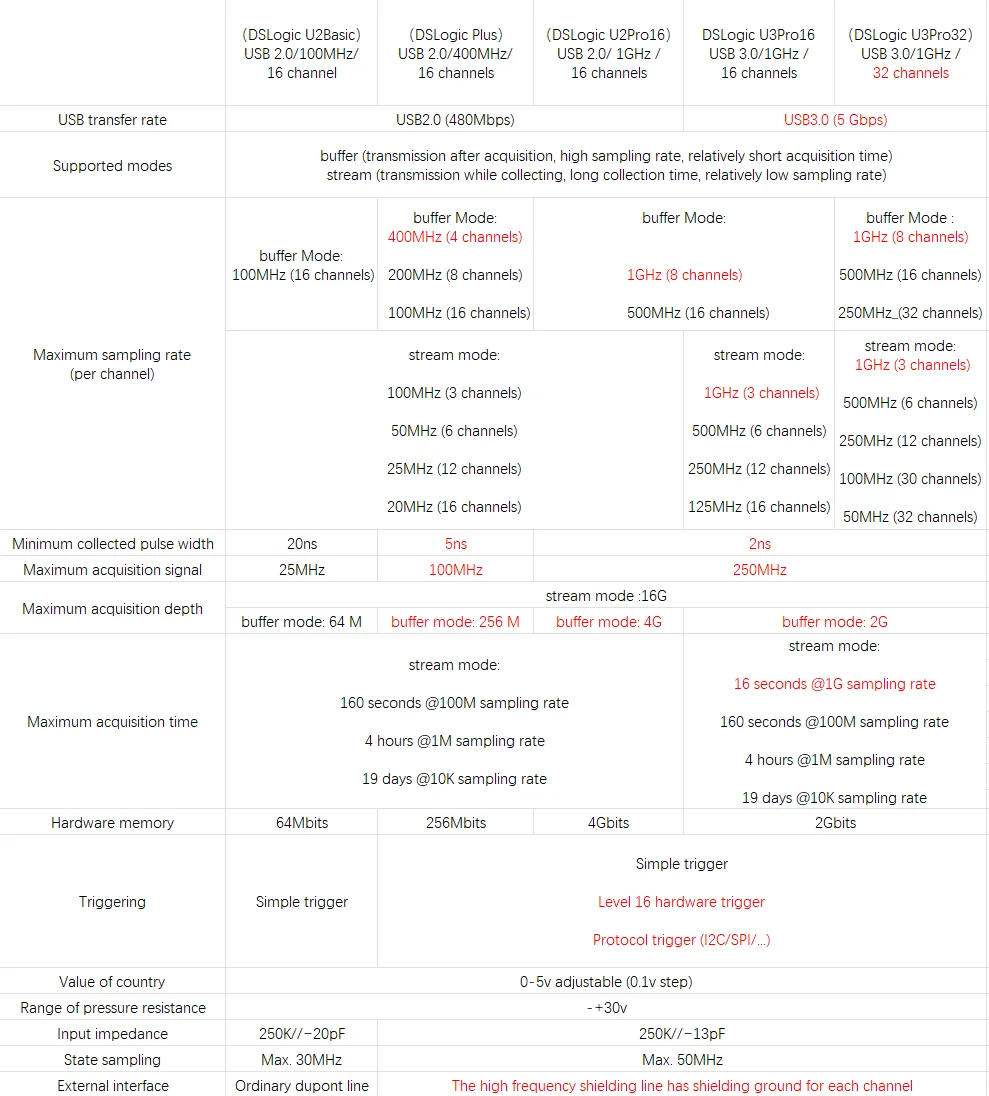

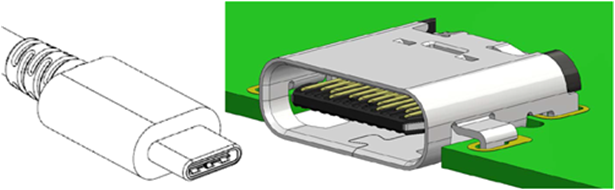

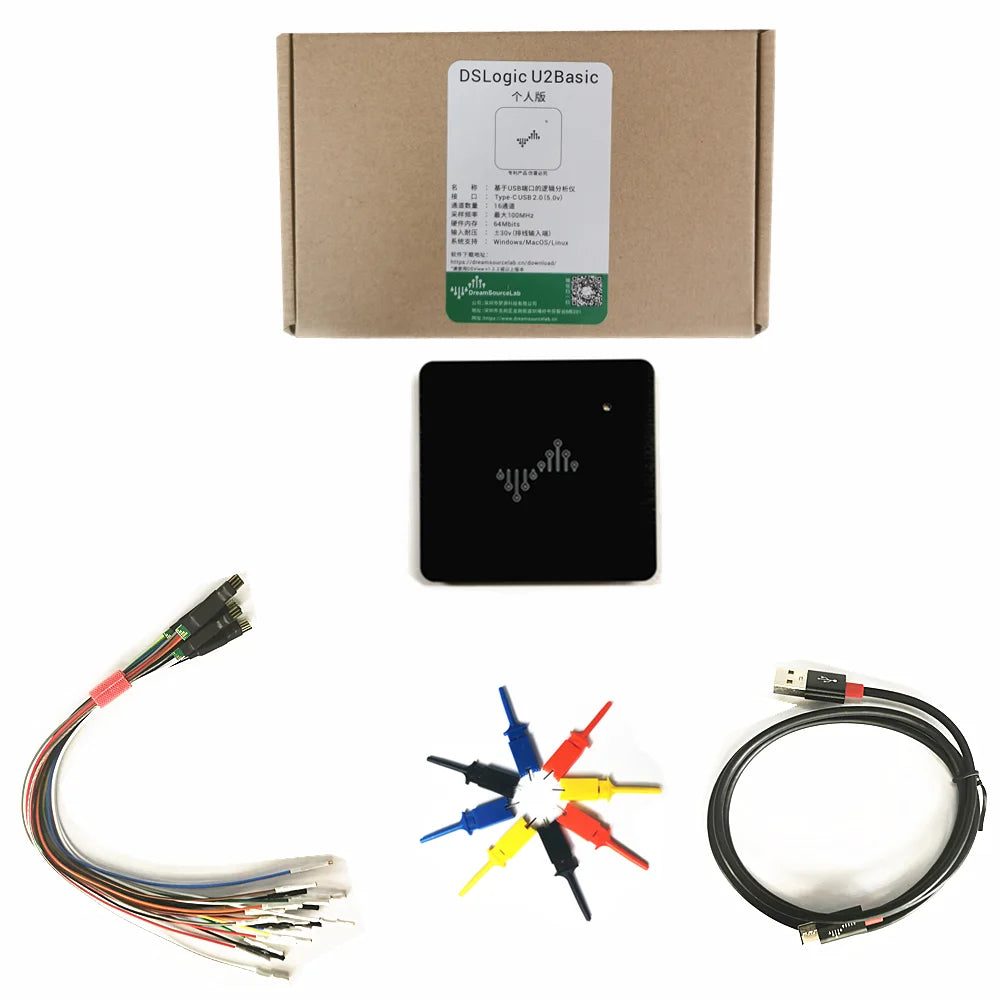

DSLogic vs DSLogic U3Pro

3. Signal Integrity

As a qualified LA, high sample rate is not enough. It is necessary to ensure that high-frequency signals can be transmitted without distortion on the entire path of signal acquisition.

DSLogic ensure the signal integrity with following designs

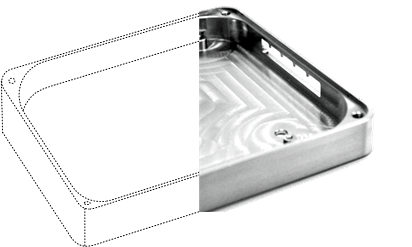

Metal case + shielded fly wire

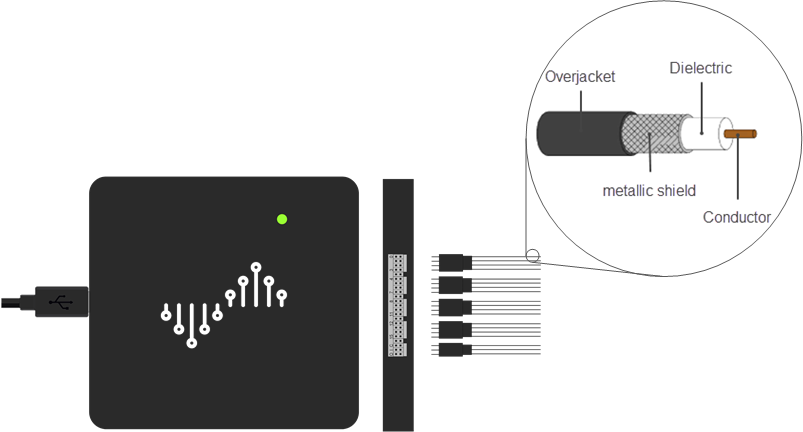

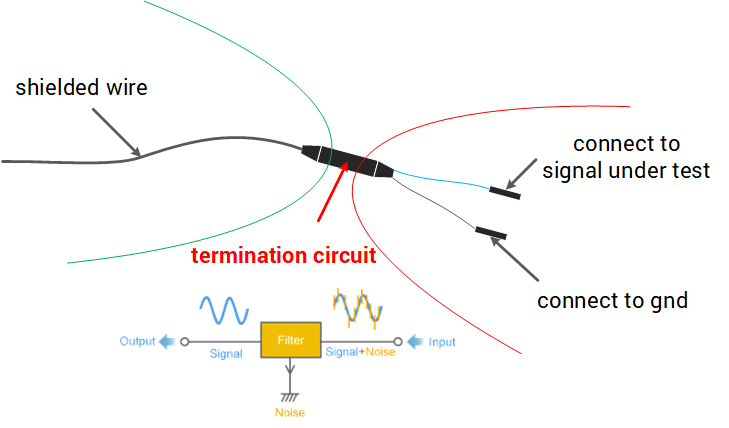

Structure of shielded fly wire

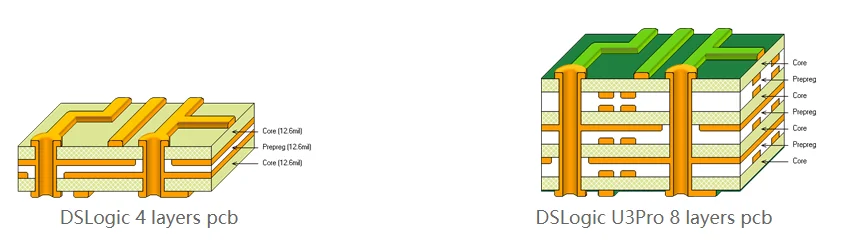

High-speed PCB design

Dupont fly wire vs Shielded fly wire

4. Rich Protocol Decoders

Support not only base decoders, but also stack decoders.
More intuitive results.

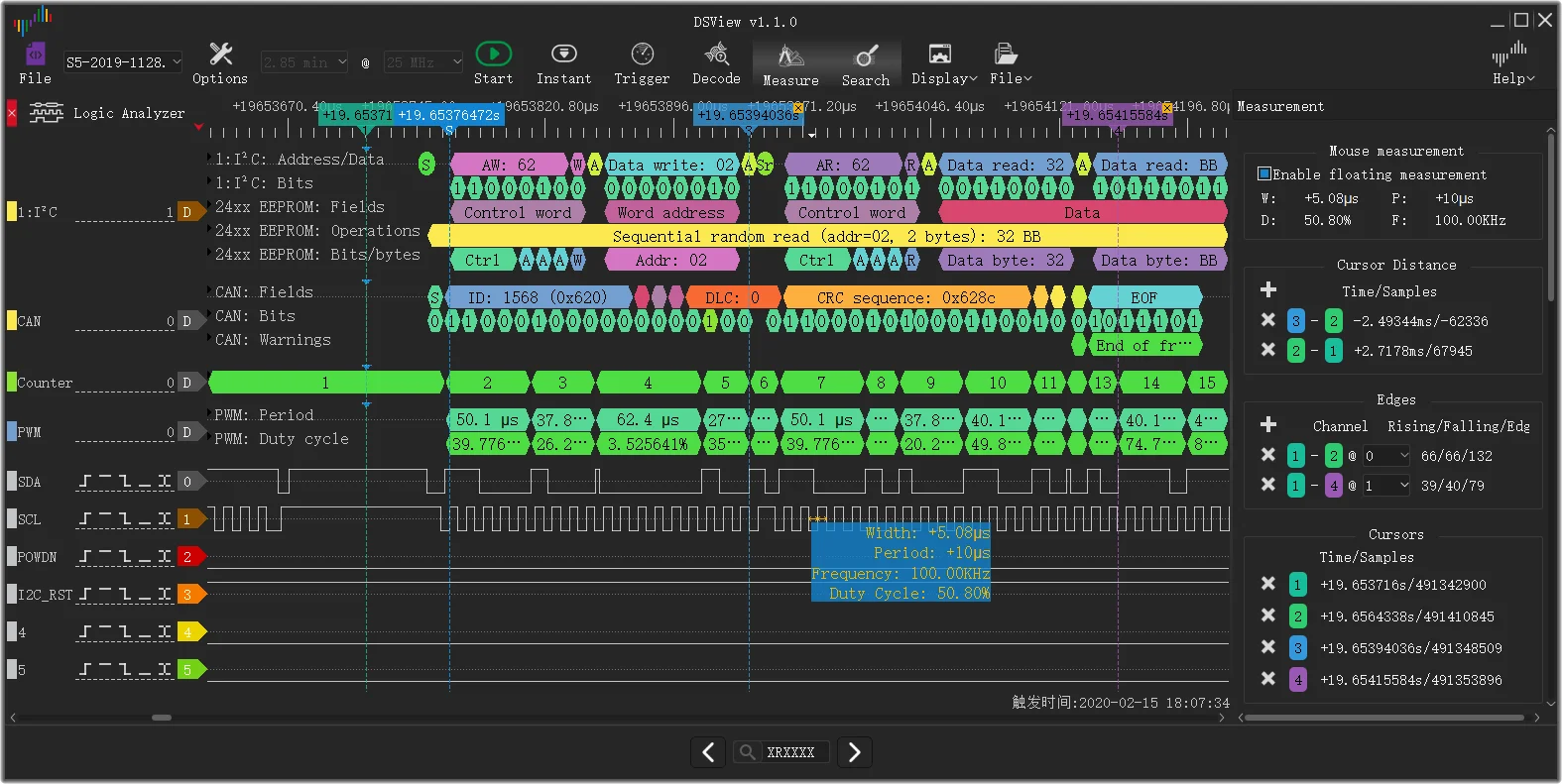

Show page operations of EEPROM

Support open-source decoder library.
More decoders are under development.

Support protocol-based trig
For example：trig by dedicate byte in I2C operations.

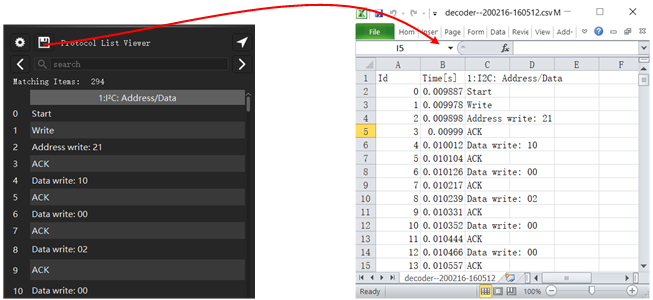

Support search & export of decoder results

Base decoders:

I²C, UART, SPI, CAN, I²S, JTAG, 1-Wire link layer, DMX512, PWM, Parallel, SWD, USB PD, USB signalling, SWIM, SD card (SD mode), PS/2, MDIO, Stepper motor, Timing, Z80, AC ’97, Counter, IR NEC, IR RC-5, AM230x, AUD, AVR PDI, CEC, DALI, DCF77, DSI, EM4100, EM4305, GPIB, Gray code, Guess bitrate, Jitter, LPC, Maple bus, MCS-48, Microwire, Miller, Morse, OOK, Qi, RC encode, RGB LED (WS281x), SDA2506, S/PDIF, ST7735, T55xx, TI TLC5620, Wiegand…

Stack decoders:

LIN, 24xx EEPROM, 93xx EEPROM, USB request, USB packet, 1-Wire network layer, AVR ISP, nRF24L01(+), RGB LED (SPI), SD card (SPI mode), SPI flash/EEPROM, Modbus, MIDI, I²C demux, I²C filter, ARM ETMv3, ARM ITM, ARM TPIU, ATSHA204A, DS1307, EDID, LM75, MLX90614, MXC6225XU, Nunchuk, RTC-8564, TI TCA6408A, XFP, JTAG / EJTAG, JTAG / STM32, CFP, DS243x, DS28EA00, Oregon, OOK visualisation, ADE77xx, ADF435x, ADNS-5020, MAX7219, MRF24J40, RFM12, SSI32, PAN1321…

List of supported decoders

5. Intuitive HMI

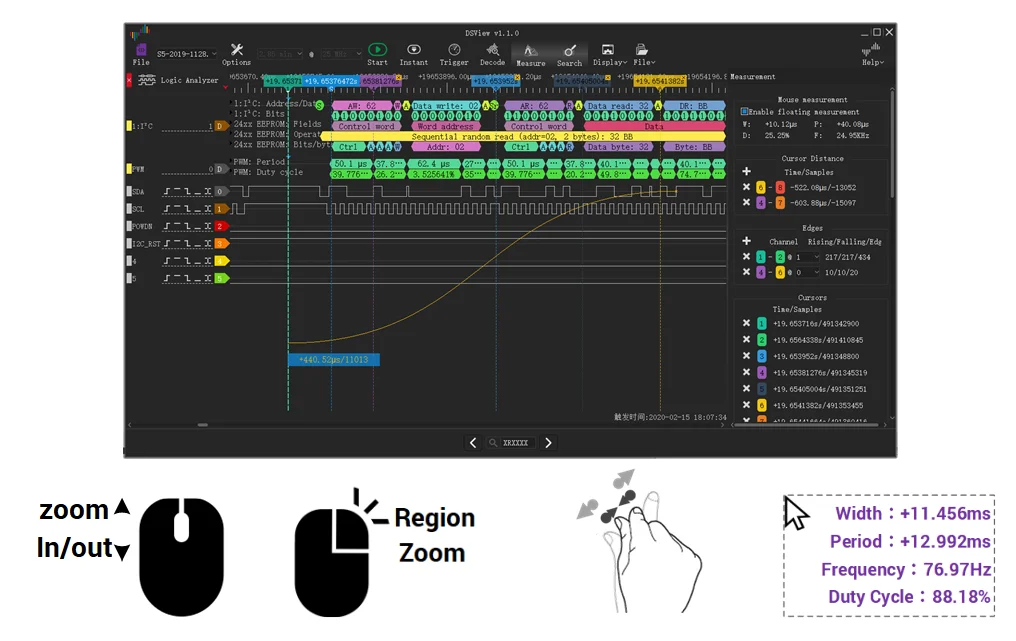

Support zoom by mouse wheel/right click/gesture

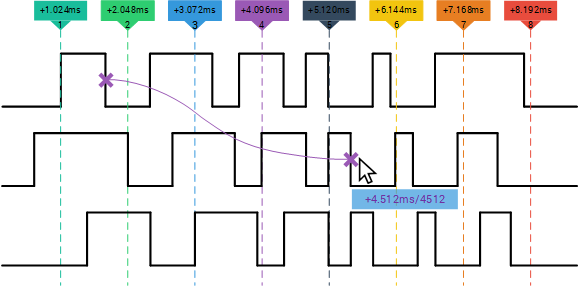

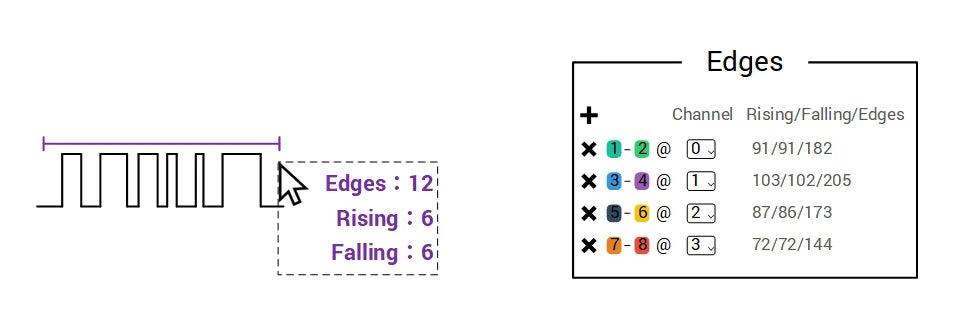

support mouse hover measurements
