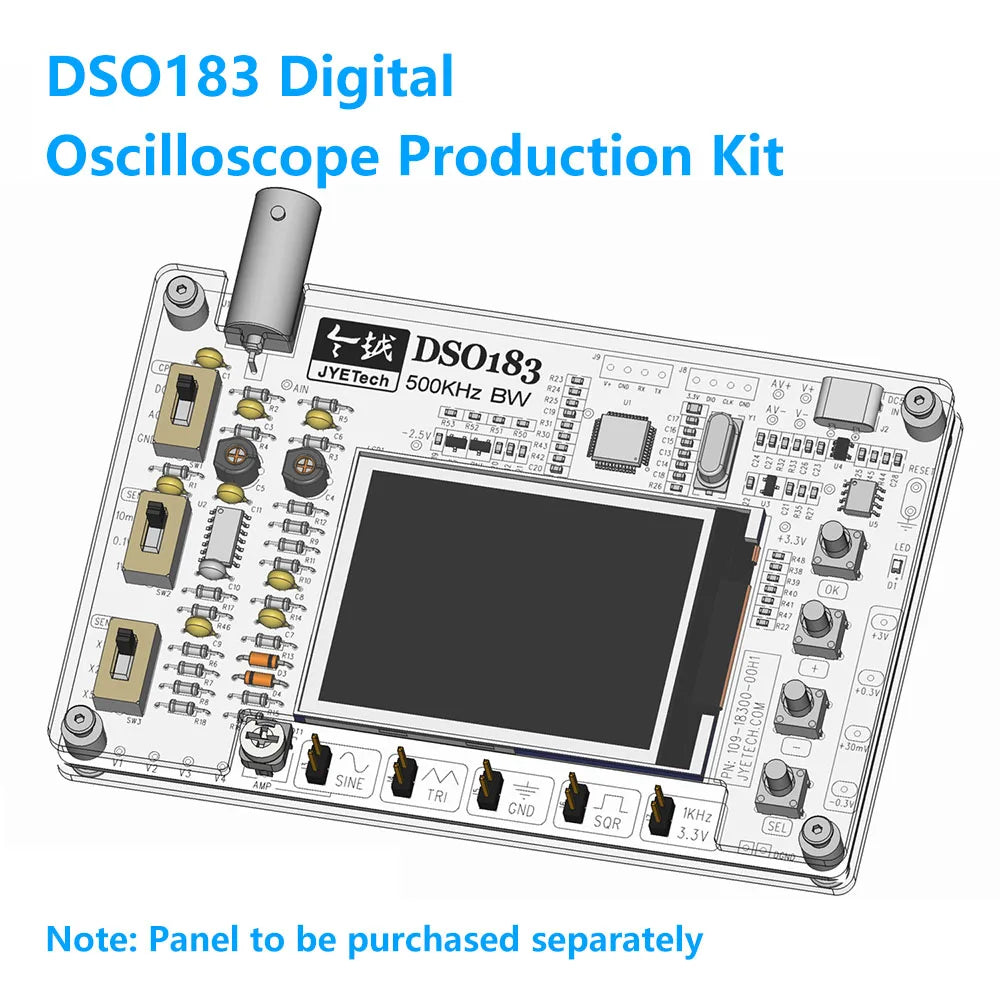

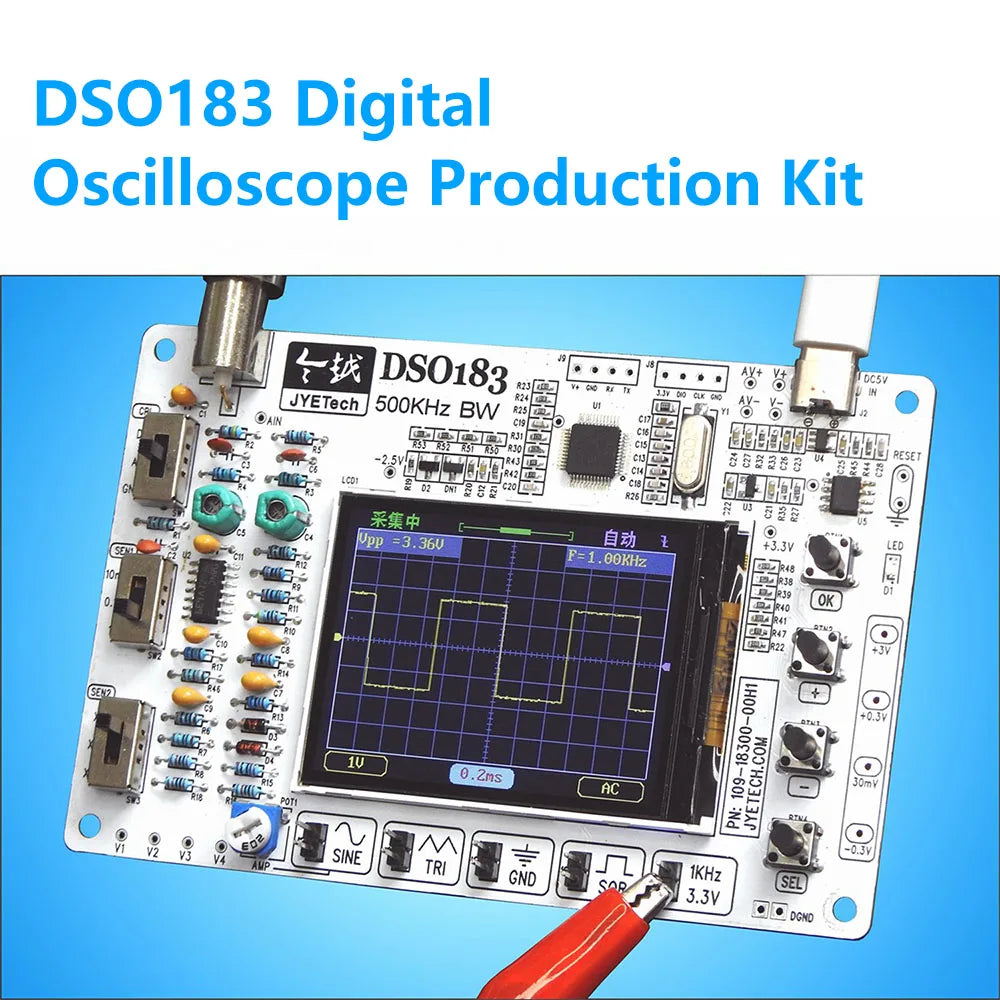

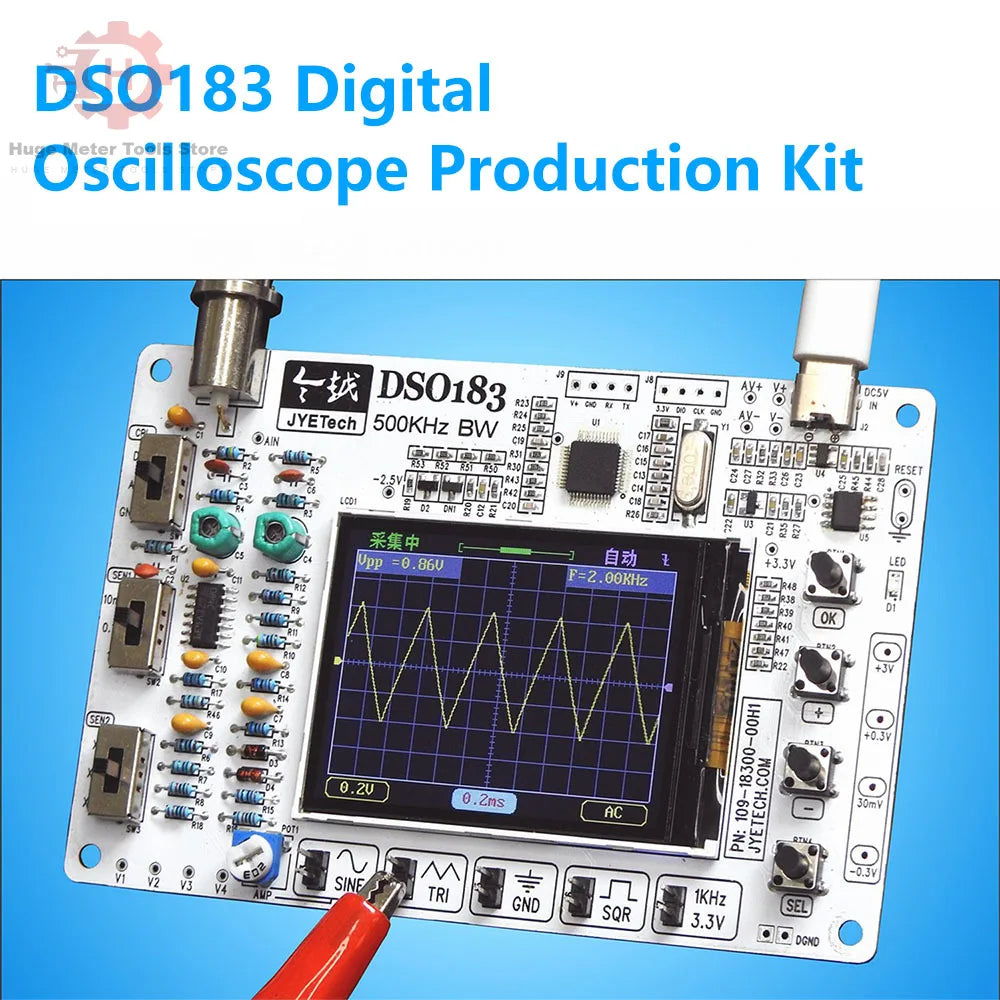

DSO183 Digital Oscilloscope Module DIY Loose Part Teaching Practical Training Electronic Production Kit DC 5V 0-500KHz Type C

DSO183 Digital Oscilloscope Module DIY Loose Part Teaching Practical Training Electronic Production Kit DC 5V 0-500KHz Type C

$53.36

$53.36 $0.00

Description

SPECIFICATIONS

ADC Accuracy: 12Bit

Band Width: 500-699MHz

Bandwidth: 500KHz

Battery Included: no

Brand Name: Aideepen

Certification: CE

Coupling Mode: DC, AC, GND

DIY Supplies: Electrical

Digital Channels: 1

Display Size: 3.0 - 4.9 Inches

High-concerned chemical: none

IS Battery Demountable: No

Input Impedance: 1MΩ

Maximum Input Voltage: 50Vpk

Model Number: DSO183 Digital Oscilloscope Kit

Origin: Mainland China

Power Supply: via USB Type C interface

Real-time Sampling Rate: 1.5Msps

Record Length: Type C Interface

Semi-finishedproduct: Yes

Trigger Mode: Auto, Conventional , Single

Vertical Sensitivity Range: 10mV/gram-5V/gram

Waveform Buffer Length: 1024 points

DSO183 Digital Oscilloscope Module DIY Loose Part Teaching Practical Training Electronic Production Kit DC 5V 0-500KHz Type C

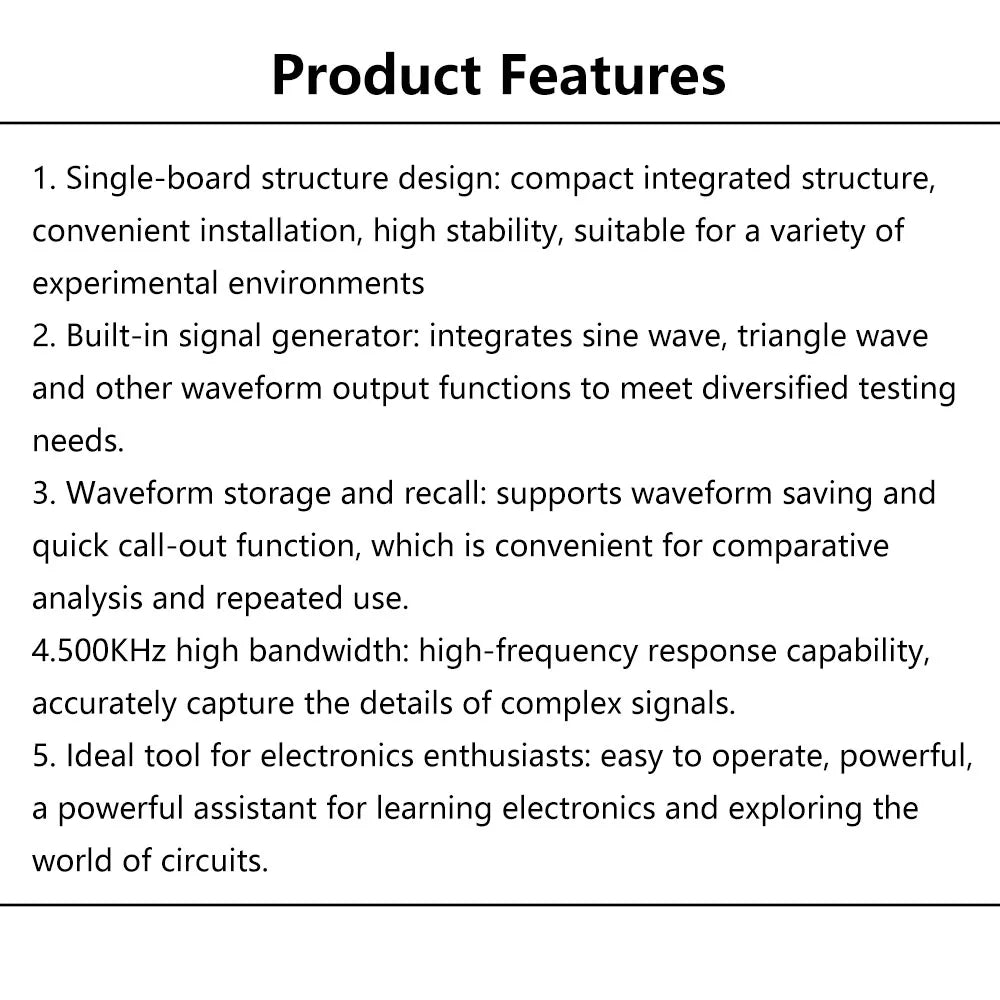

Features:

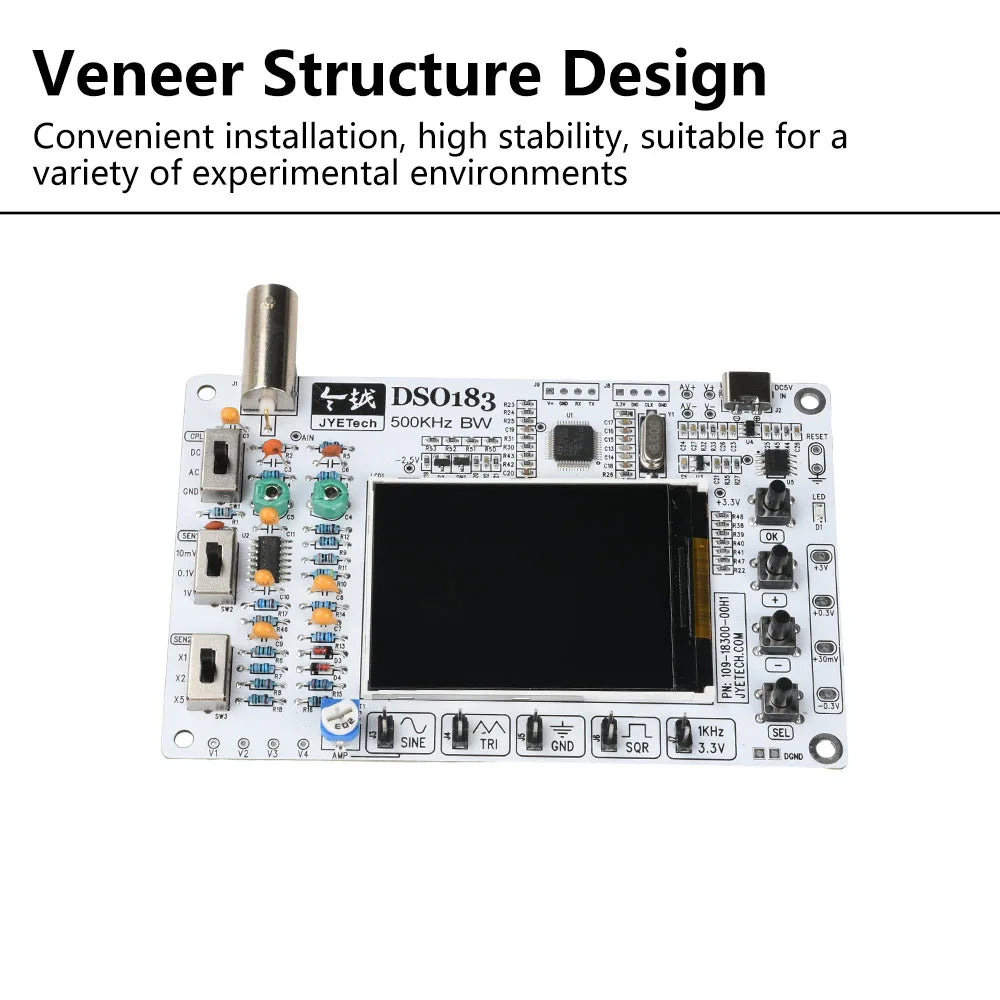

1. Single-board structure design: compact integrated structure, convenient installation, high stability, suitable for a variety of experimental environments

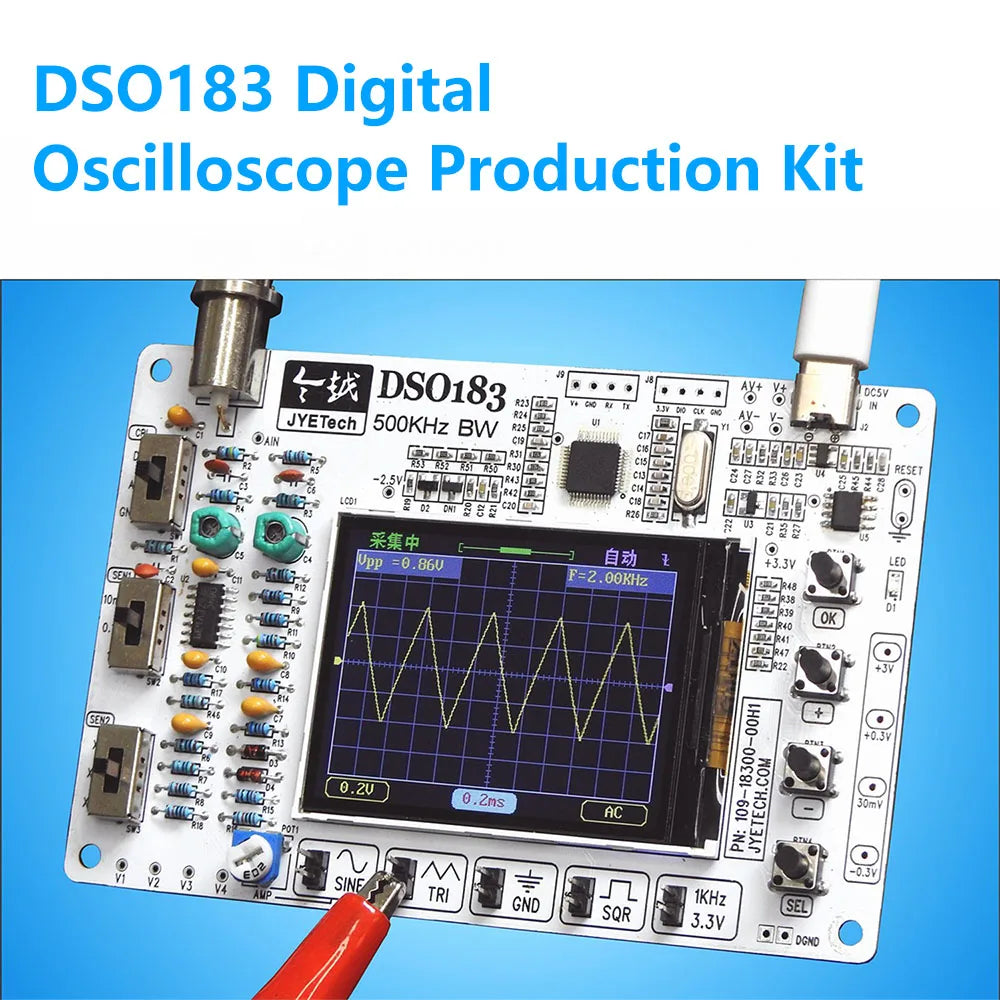

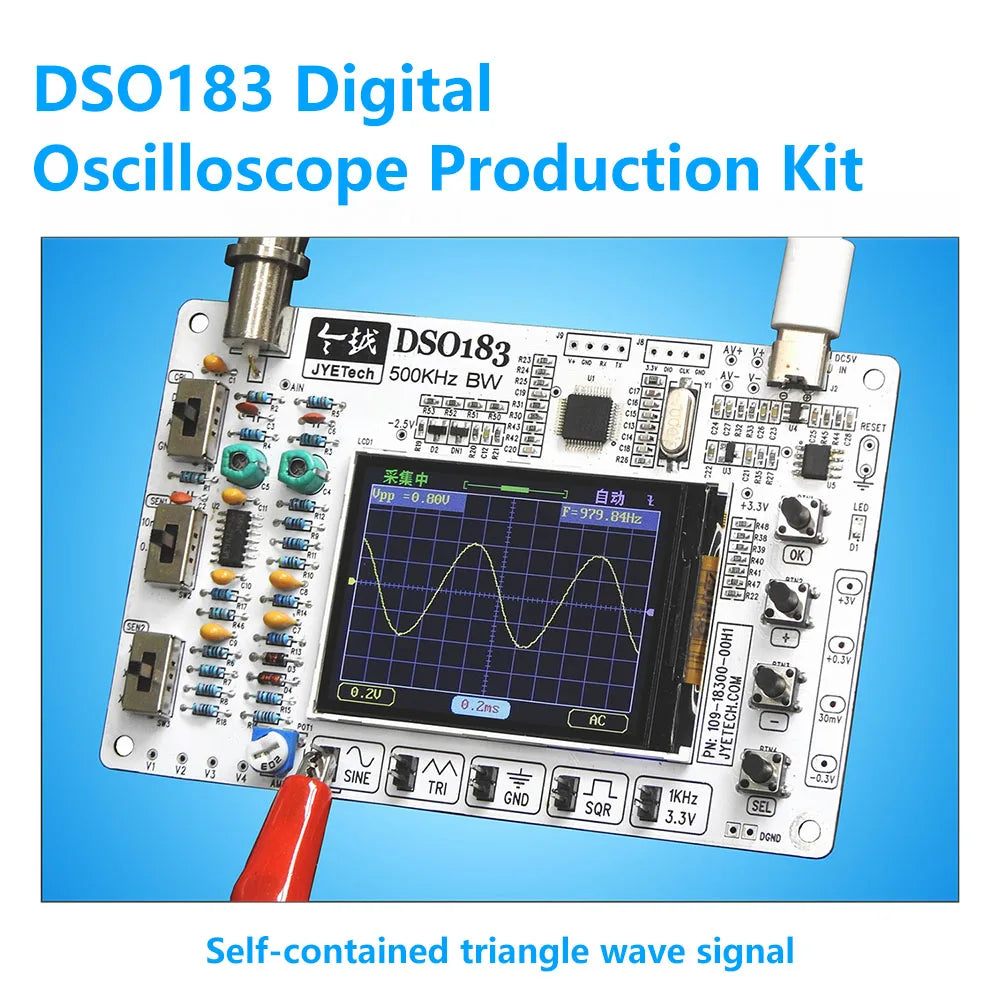

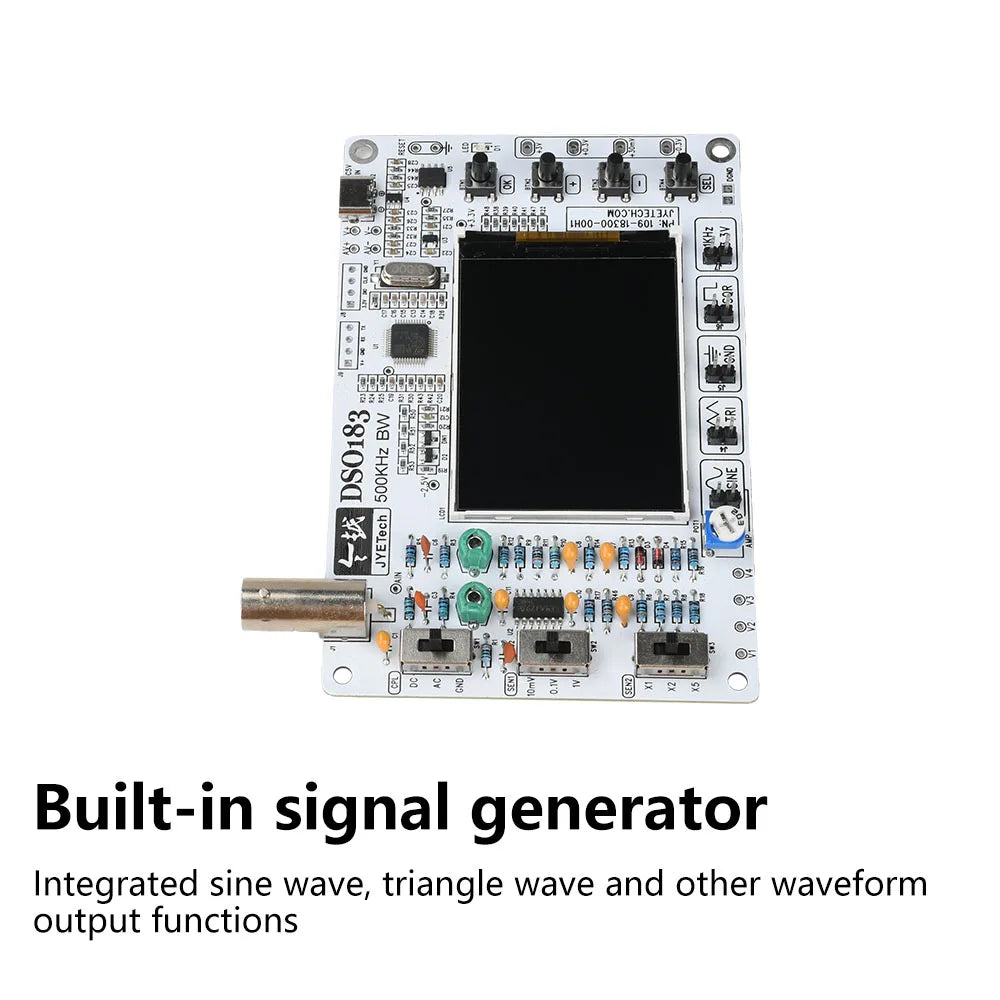

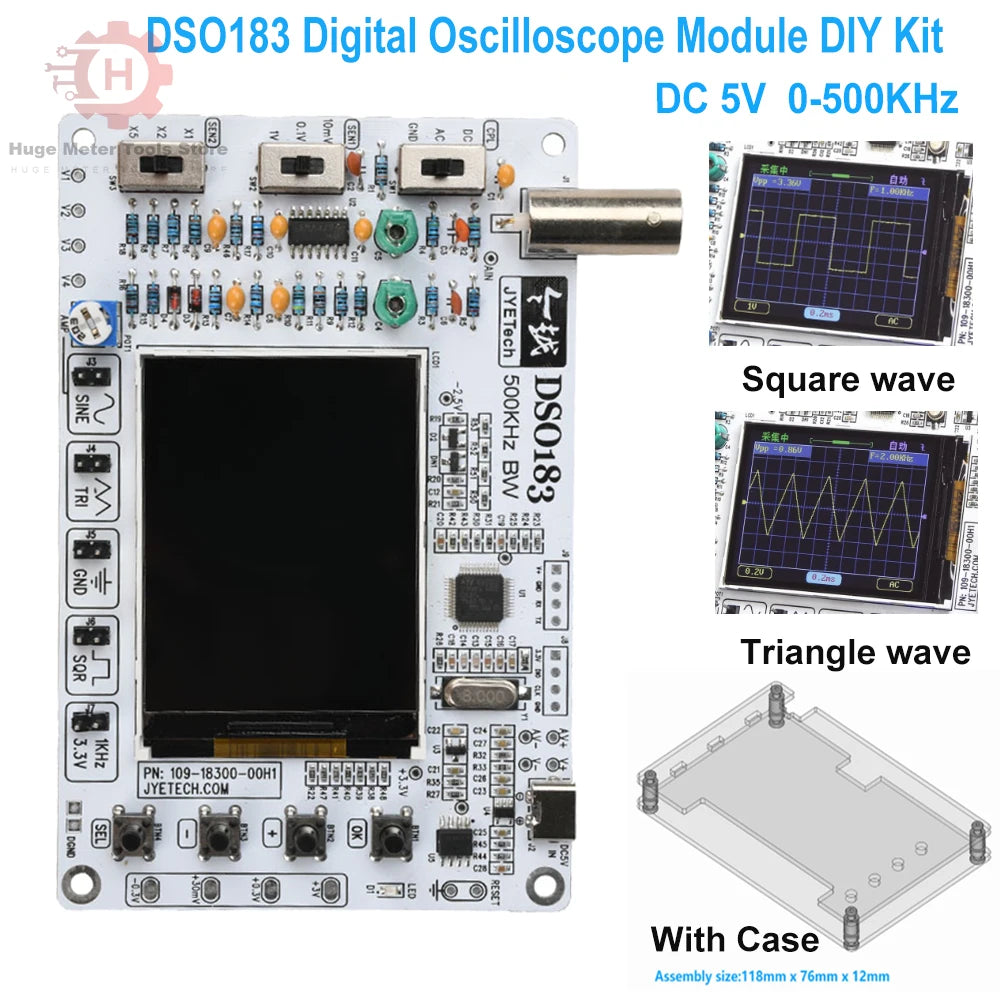

2. Built-in signal generator: integrates sine wave, triangle wave and other waveform output functions to meet diversified testing needs.

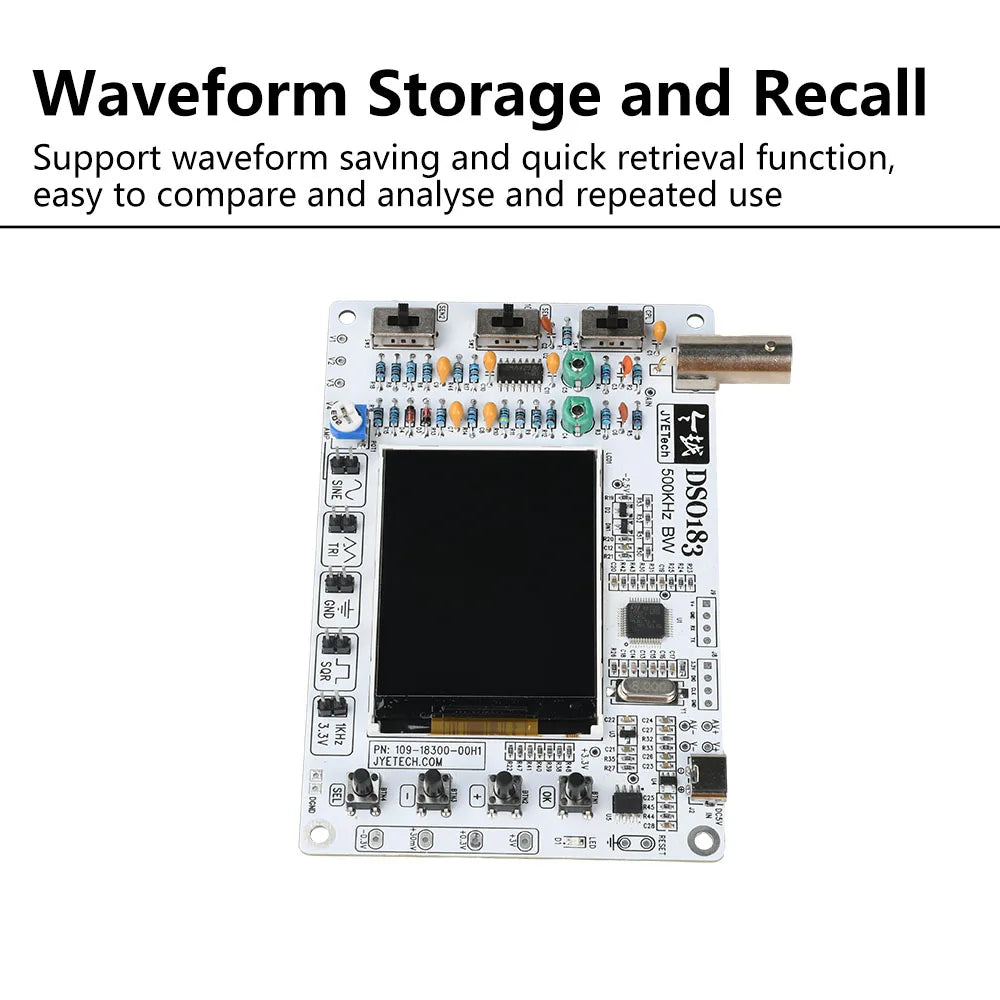

3. Waveform storage and recall: supports waveform saving and quick call-out function, which is convenient for comparative analysis and repeated use.

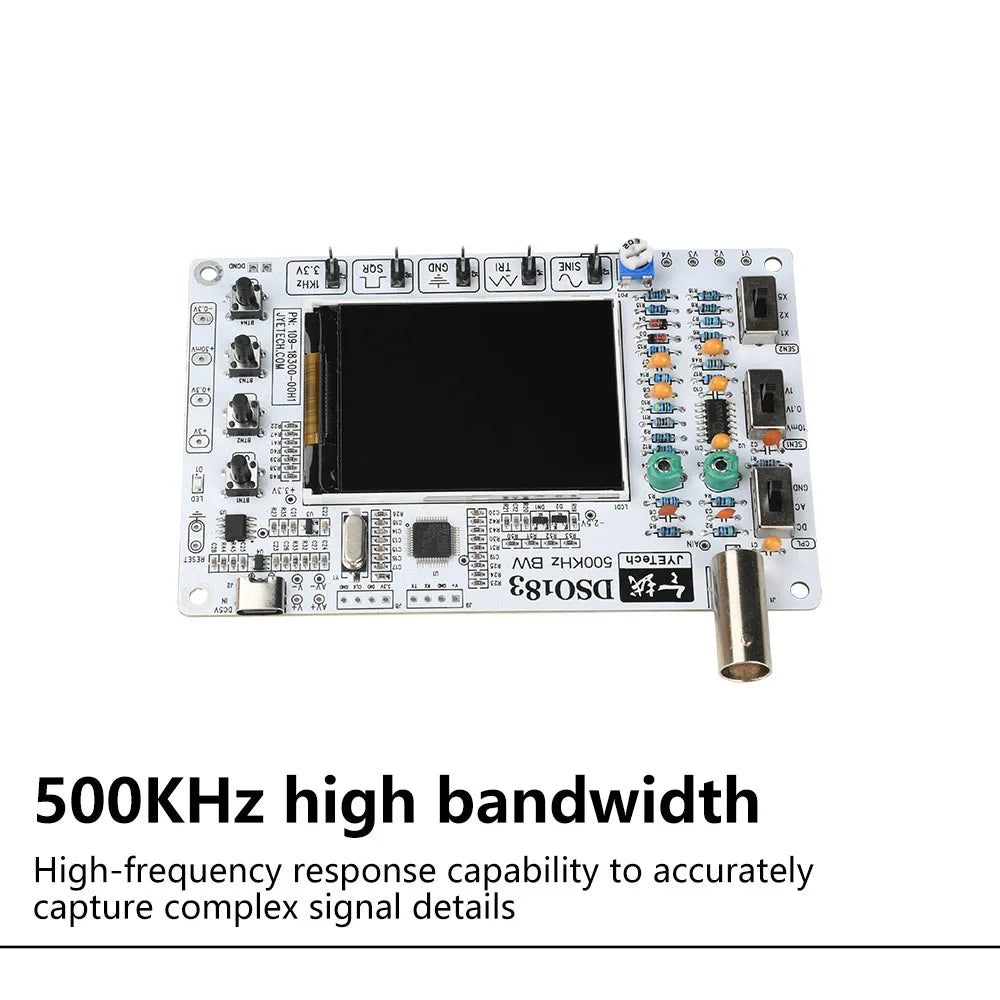

4.500KHz high bandwidth: high-frequency response capability, accurately capture the details of complex signals.

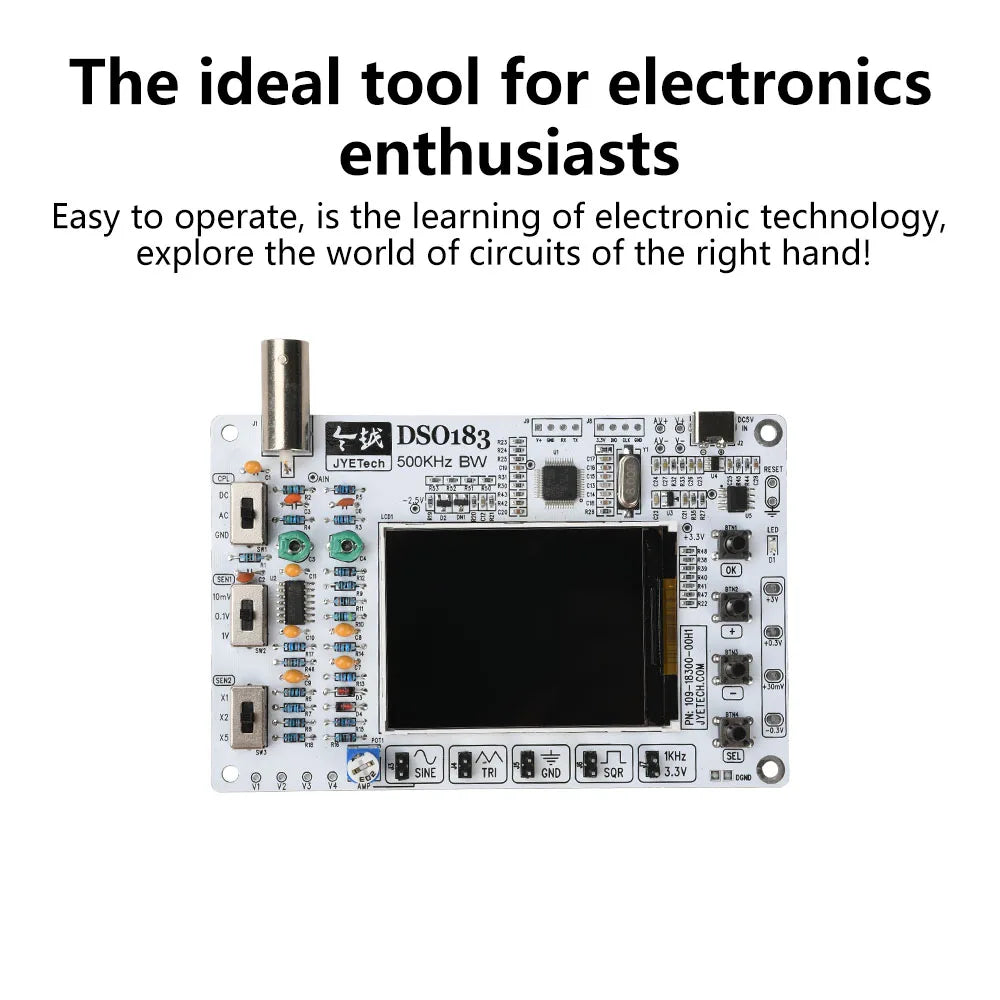

5. Ideal tool for electronic enthusiasts: easy to operate, powerful, a powerful assistant for learning electronic technology and exploring the world of circuits.

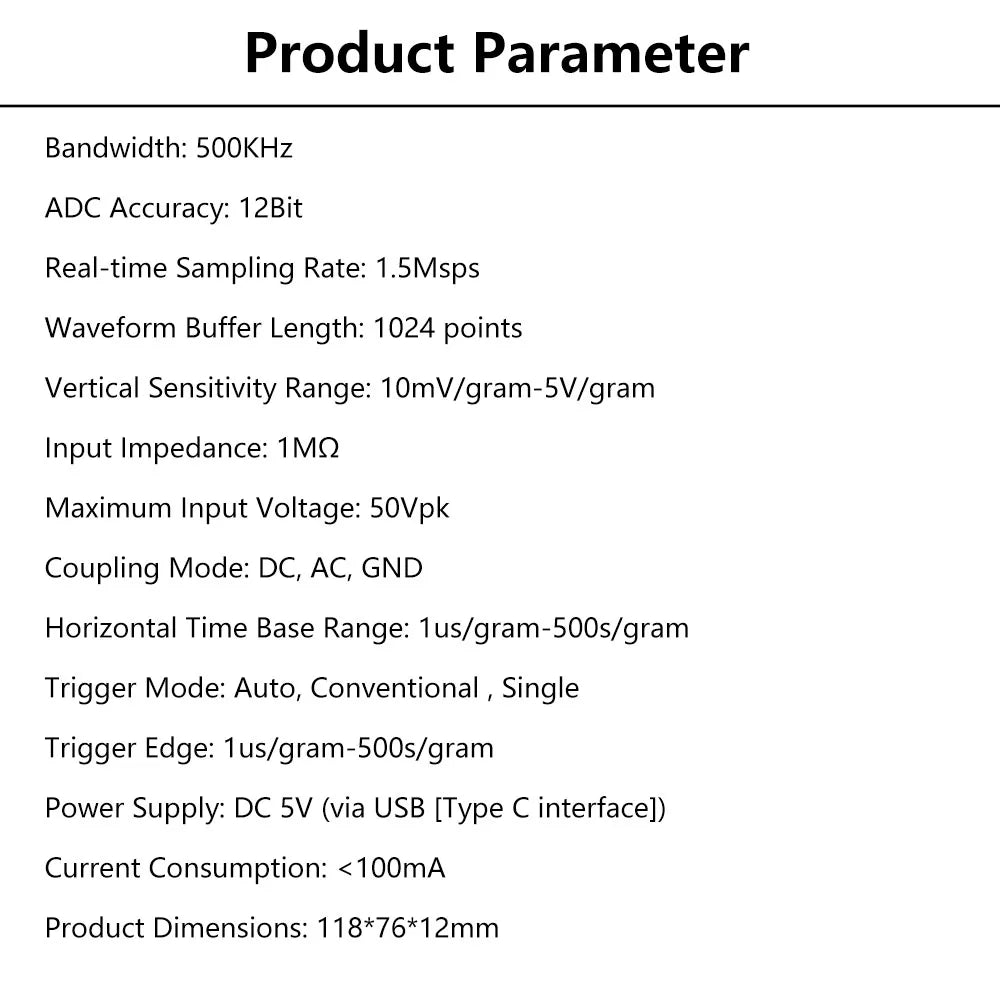

Parameter:
Bandwidth: 500KHz
ADC Accuracy: 12Bit
Real-time Sampling Rate: 1.5Msps
Waveform Buffer Length: 1024 points
Vertical Sensitivity Range: 10mV/gram-5V/gram
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpk
Coupling Mode: DC, AC, GND
Horizontal Time Base Range: 1us/gram-500s/gram
Trigger Mode: Auto, Conventional , Single
Trigger Edge: 1us/gram-500s/gram
Power Supply: DC 5V (via USB [Type C interface])
Current Consumption: <100mA

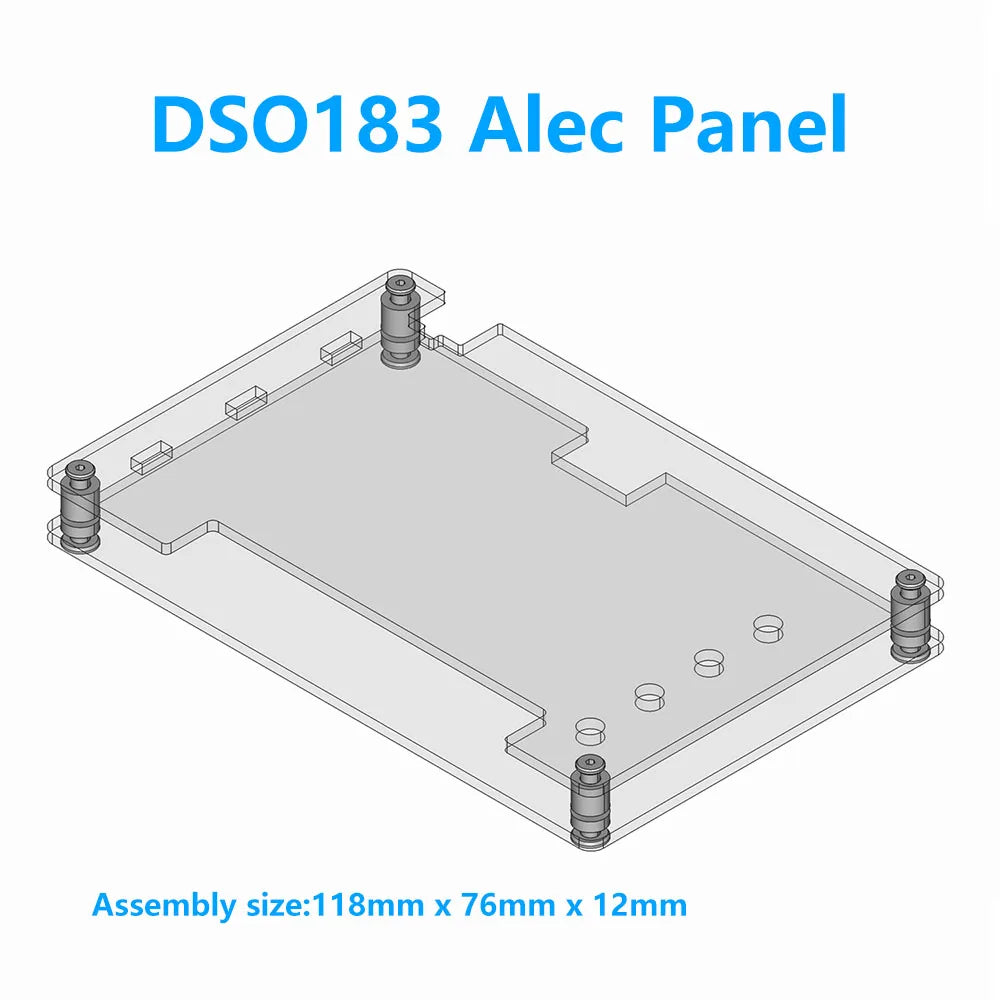

Product Dimensions: 118*76*12mm

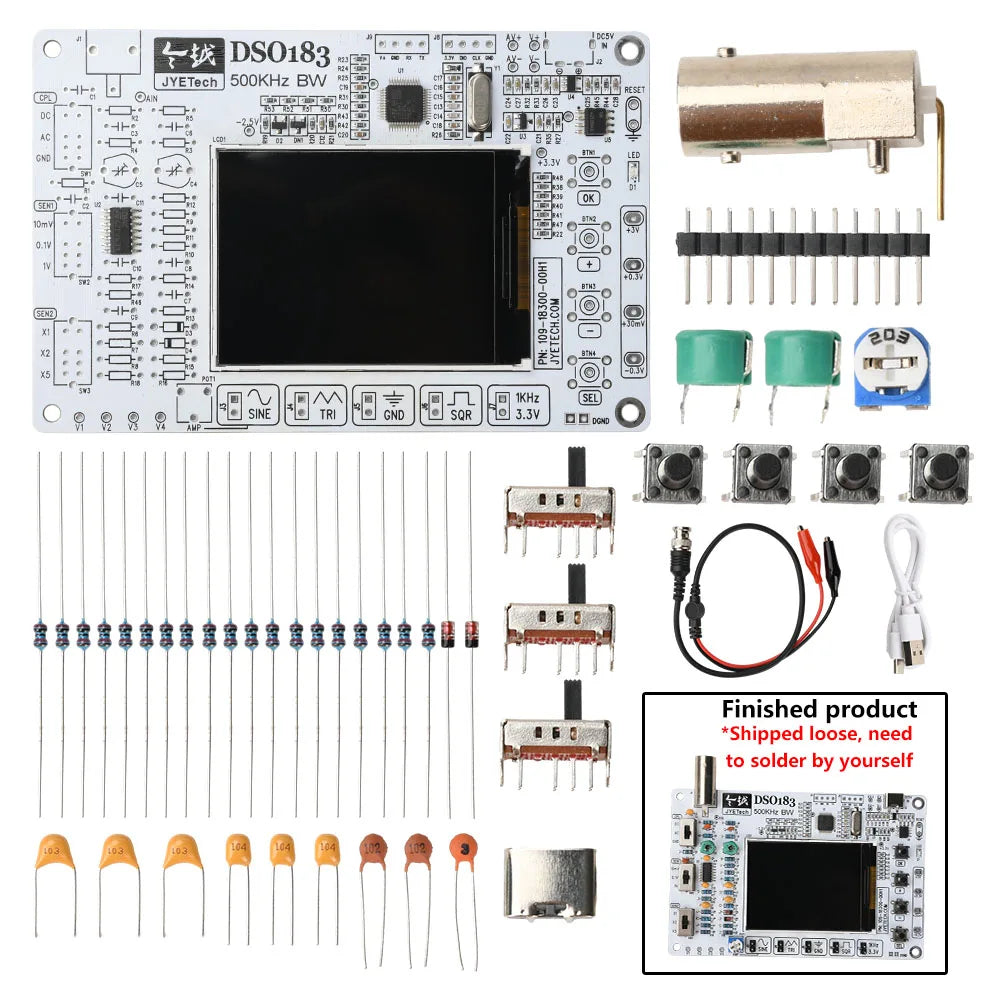

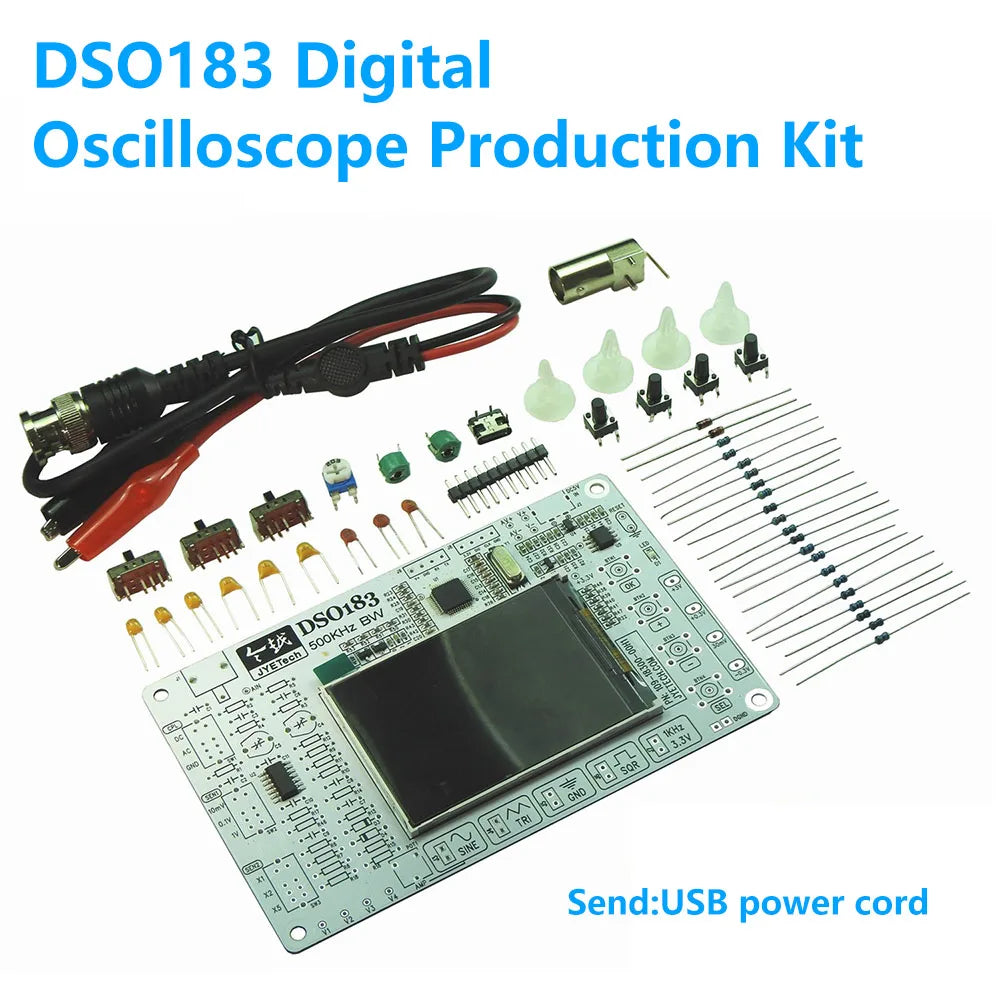

Package include:

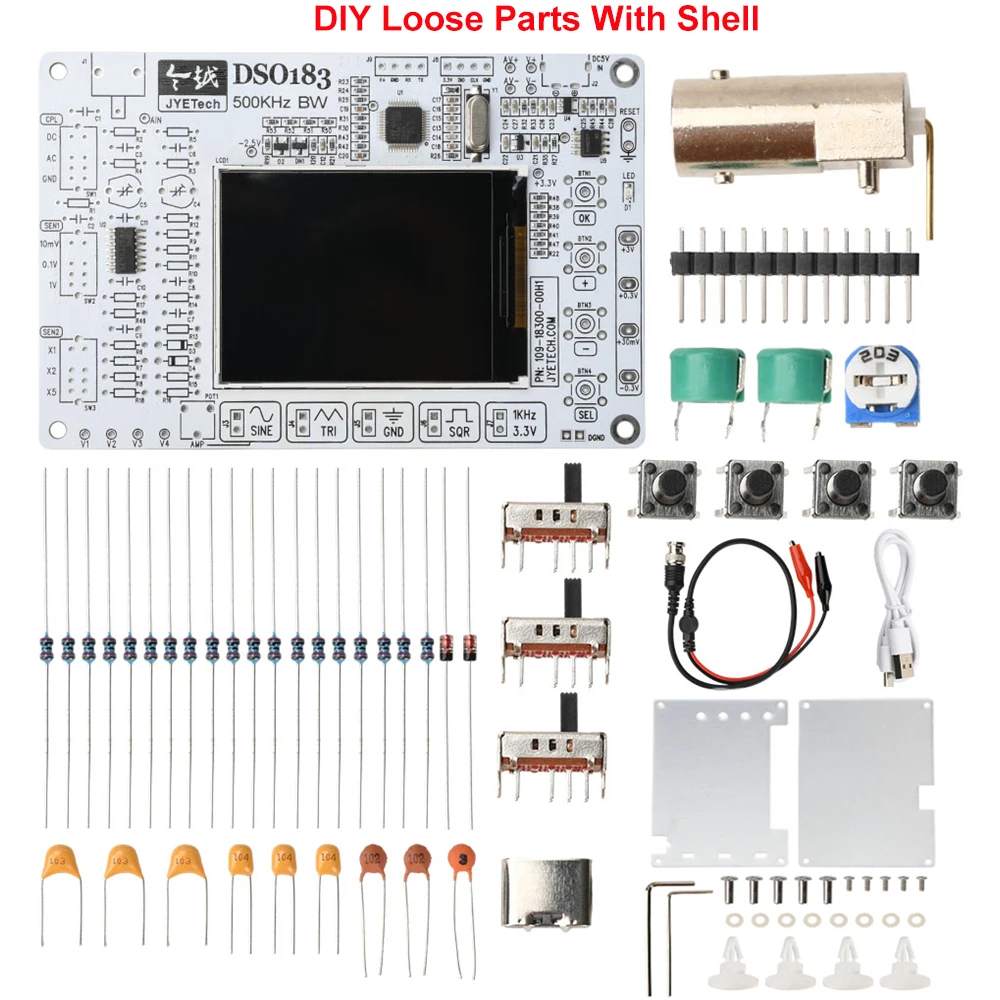

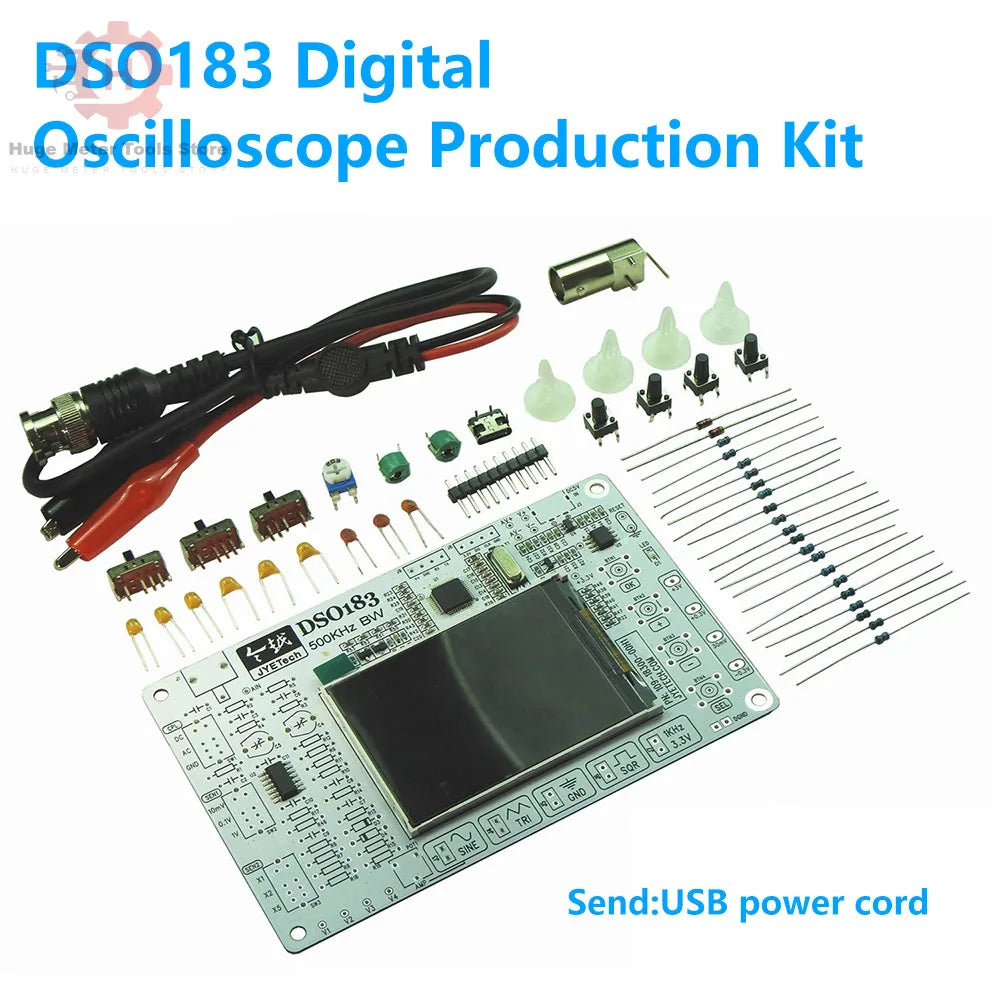

A:DIY loose parts*1

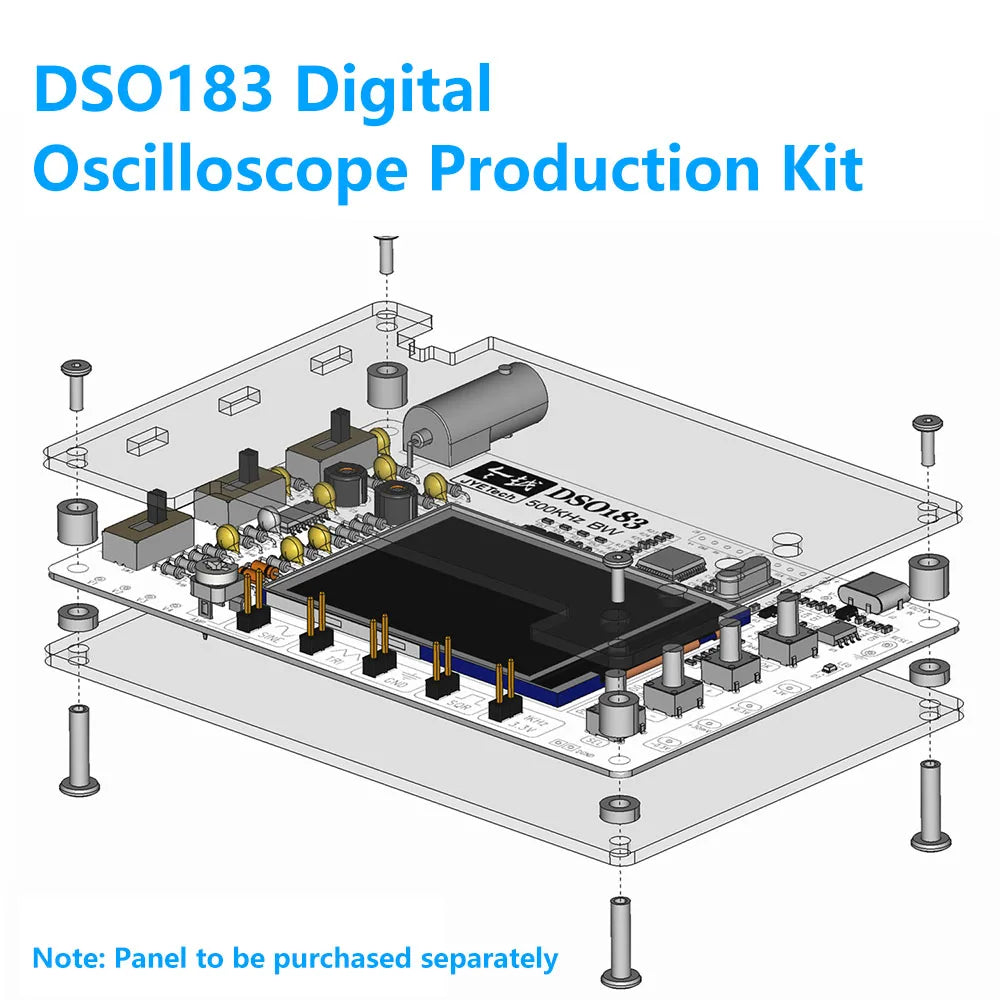

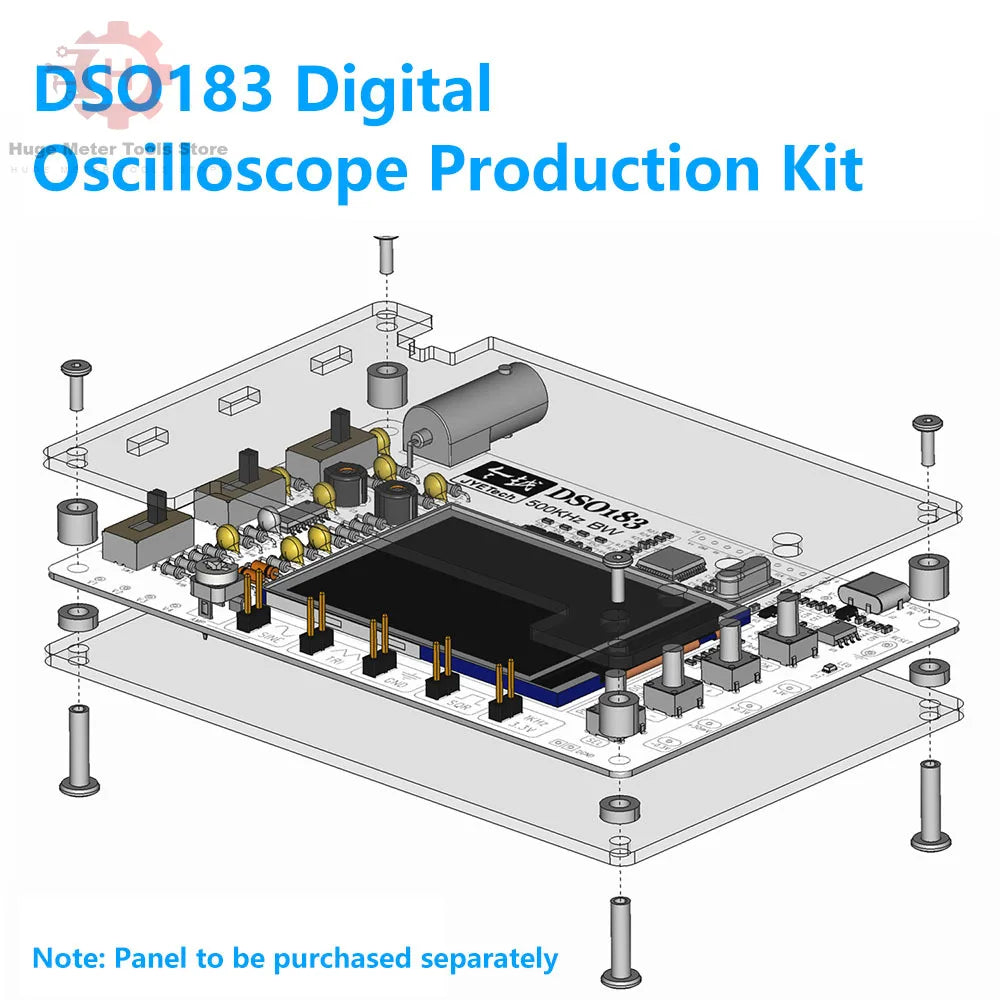

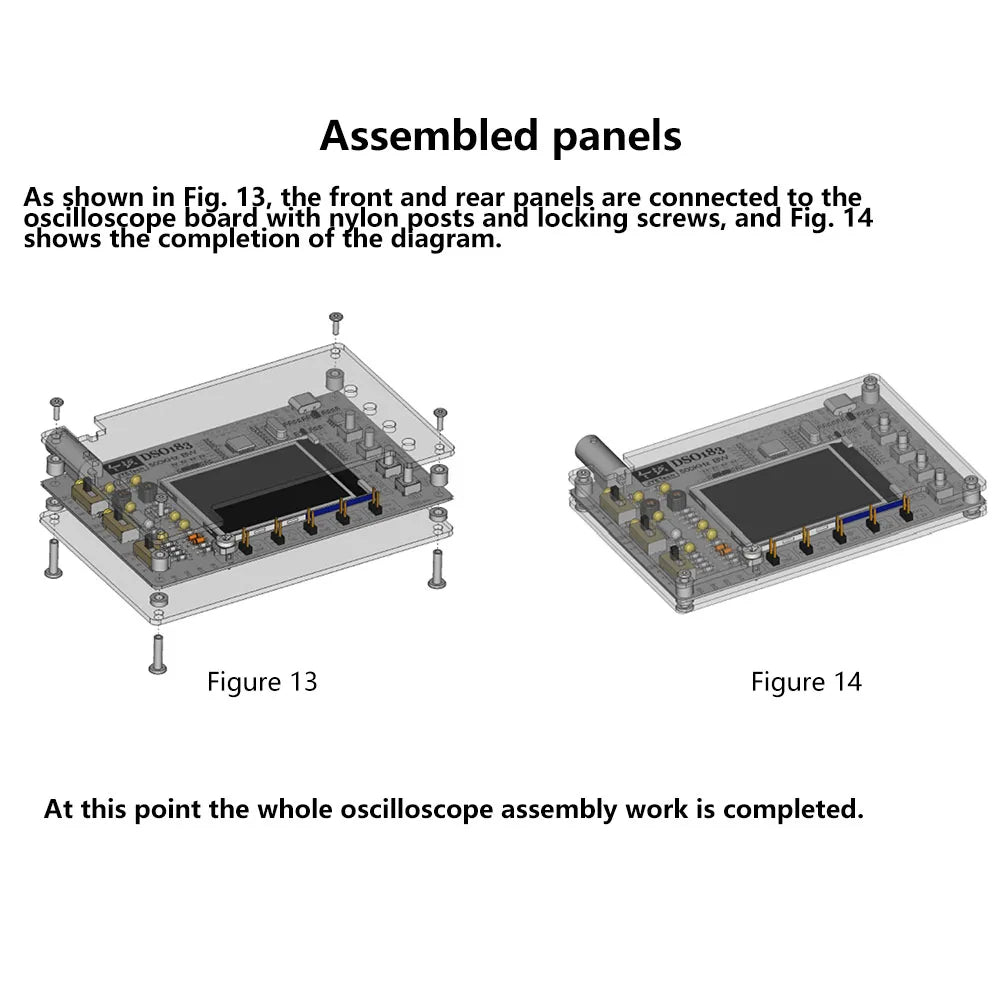

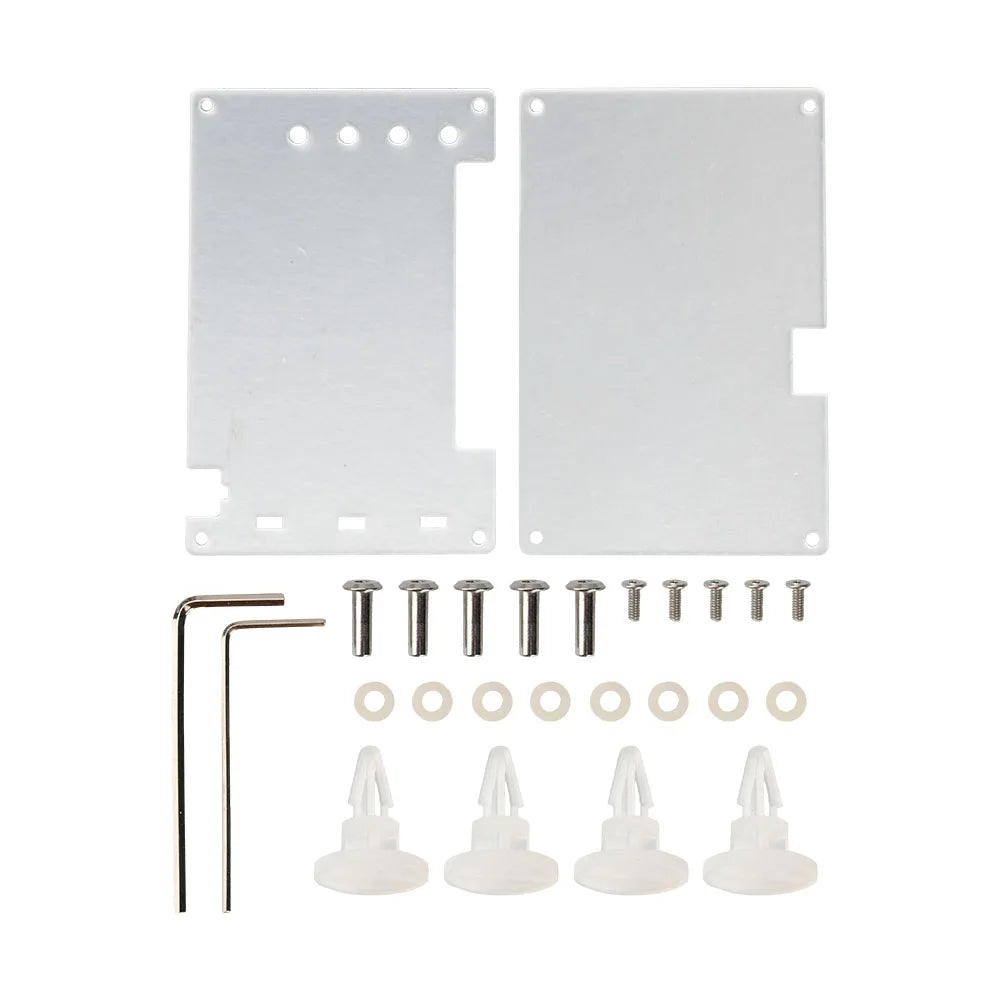

B:DIY loose parts*1+Shell*1
