SPECIFICATIONS

Audio Output Mode: none

Brand Name: NONE

Control Method: Others

Department: Unisex-adult

Form-factor: Others

High-concerned chemical: none

Item Type: Speaker Accessories Kits

Origin: Mainland China

Power Source: Others

Speaker maximum output power: /

Subwoofer connectivity technology: Wired

Surround sound channel configuration: Others

Water Resistance Level: Not water resistant

name: Audio decoder

product number: X094

Specifications:

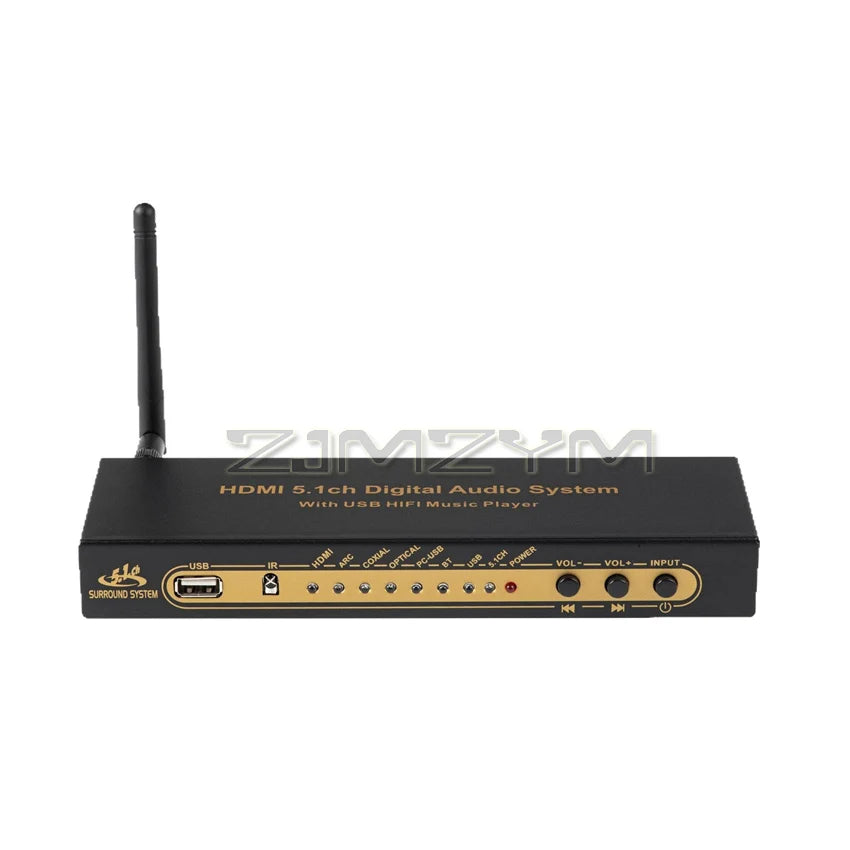

Name: Audio Decoder

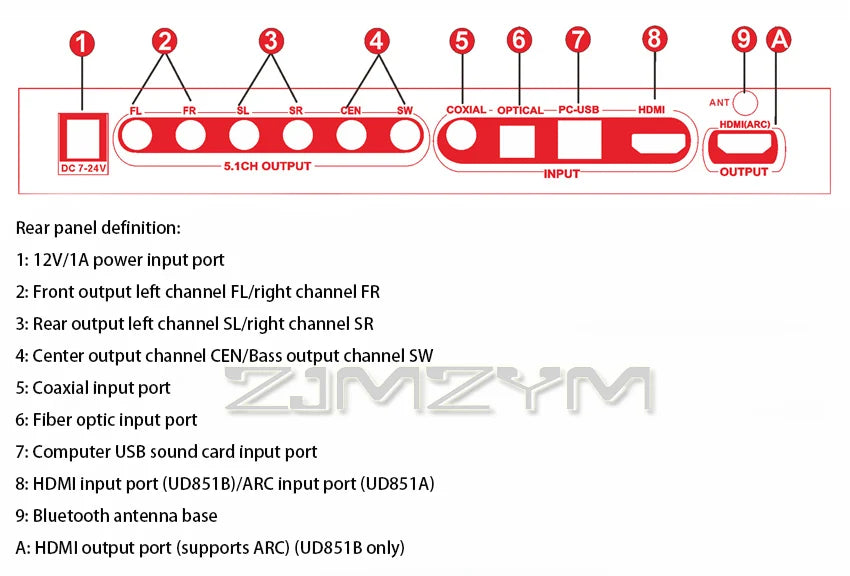

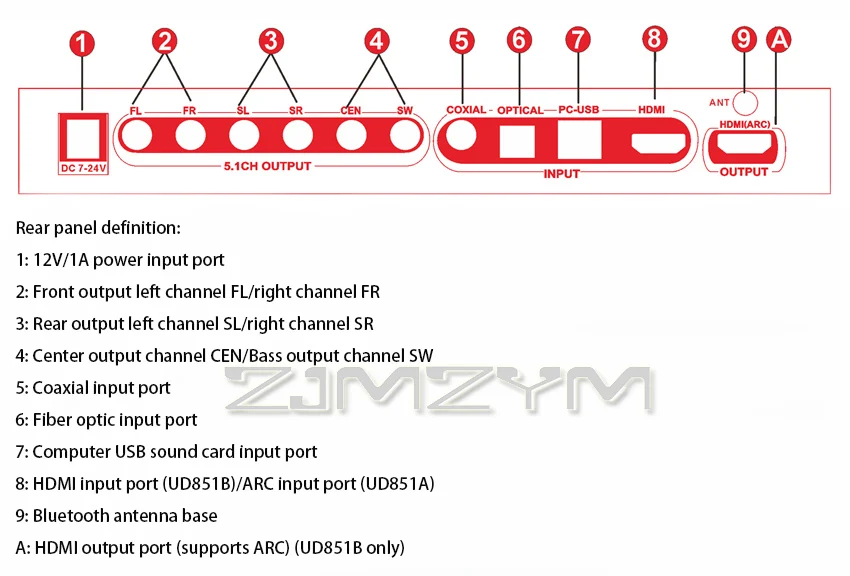

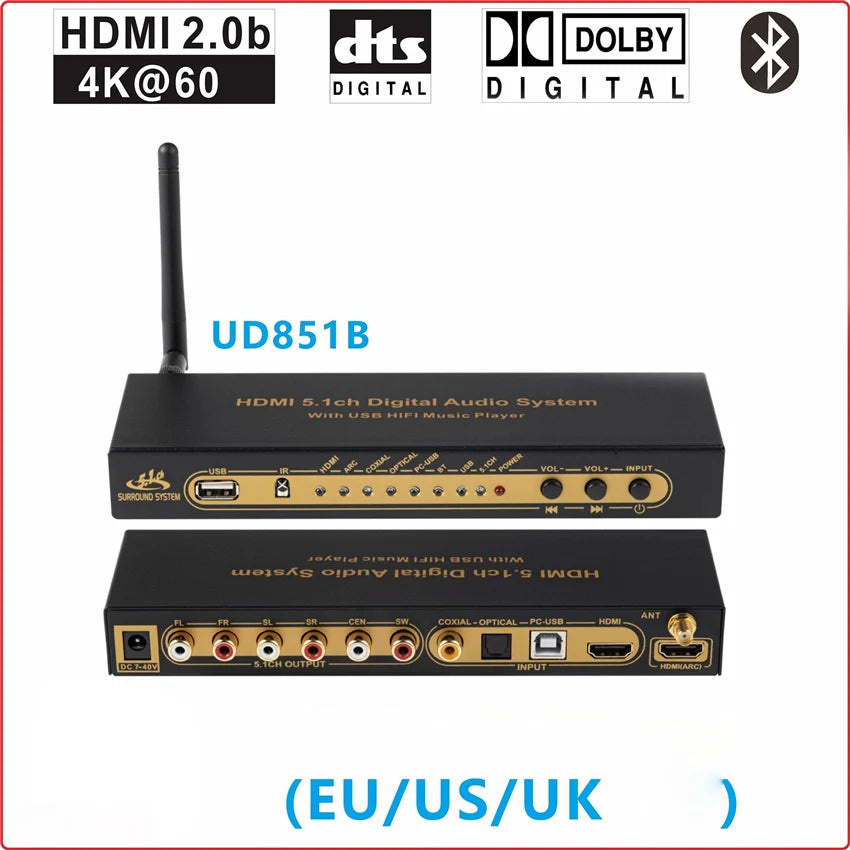

Input interface: HDMI (UD851B only)+ARC+coaxial+fiber optic+USB sound card+Bluetooth+USB flash drive, etc

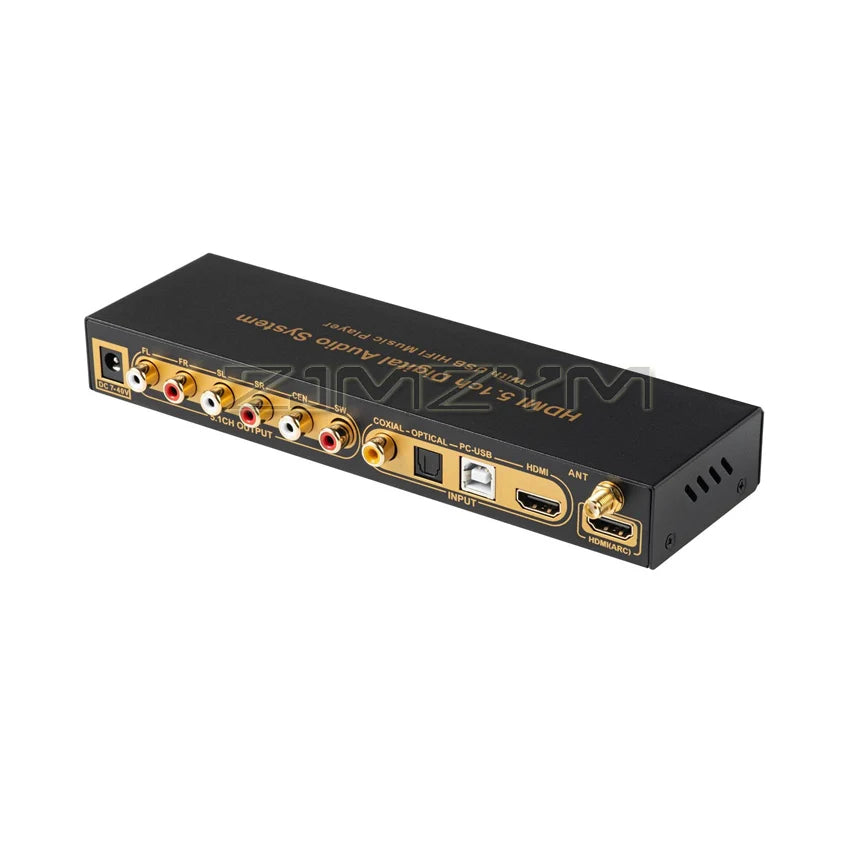

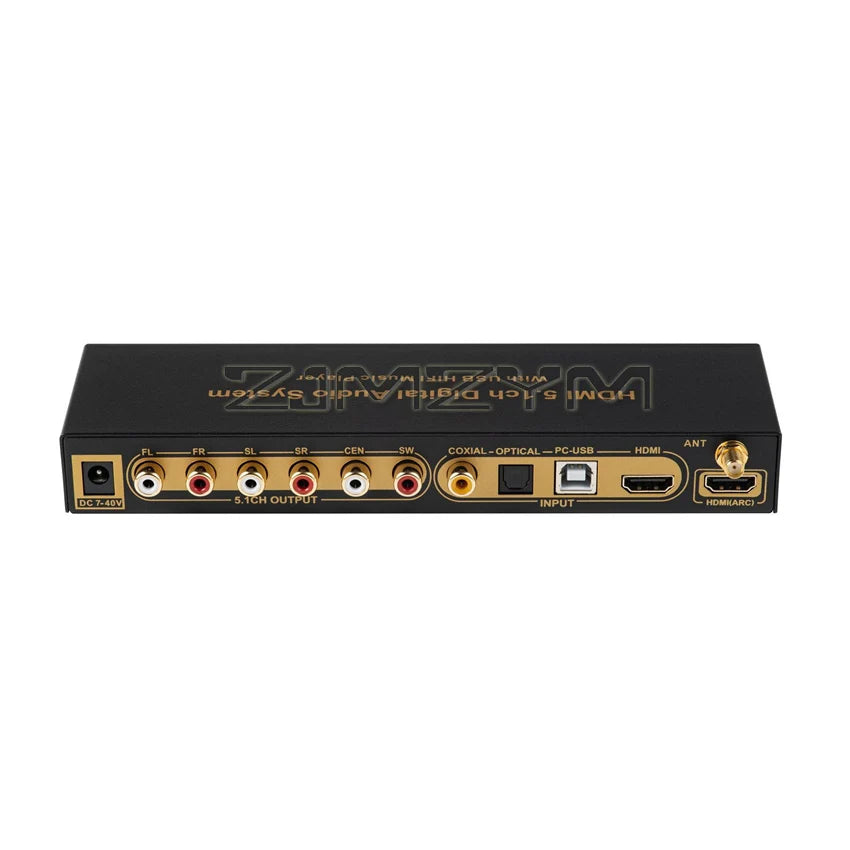

Output interface: HDMI+5.1CH

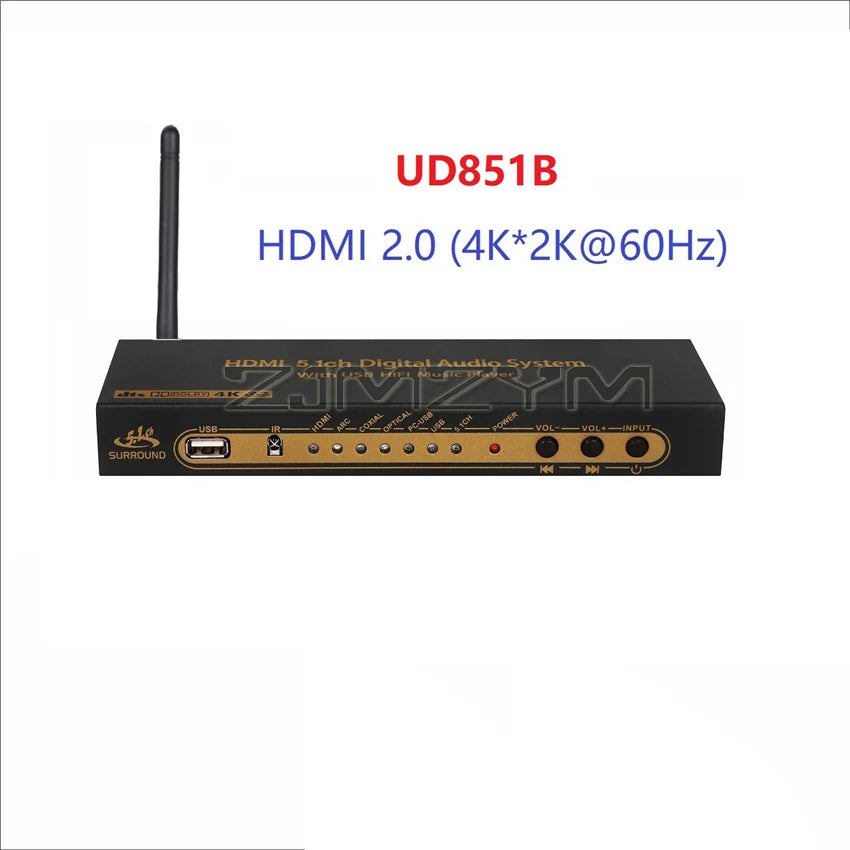

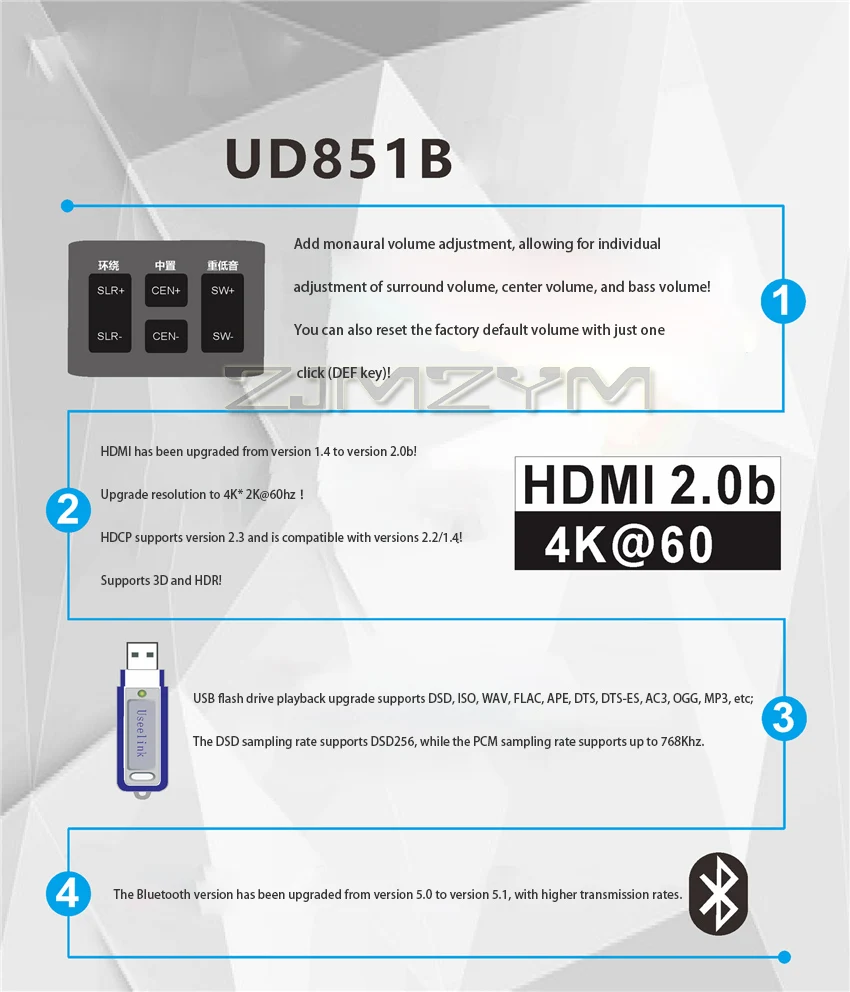

HDMI version: 2.0b, HDCP2.2， Resolution support 4K@60hz

USB playback format: iso/dsd/dts es/dts/ac3/flac/app/wav/hdcd/aac/m4a/mp3, etc

USB playback operation: supports previous/next track/single loop/folder loop/all loop/play/pause, etc

USB playback sampling rate/bit width: DSD supports DSD256/1-bit, PCM supports 768Khz/32-bit

Audio output amplitude: ≥ 2Vrms

SNR:+112dB

Bluetooth version: 5.1

Bluetooth protocol: SBC/AAC

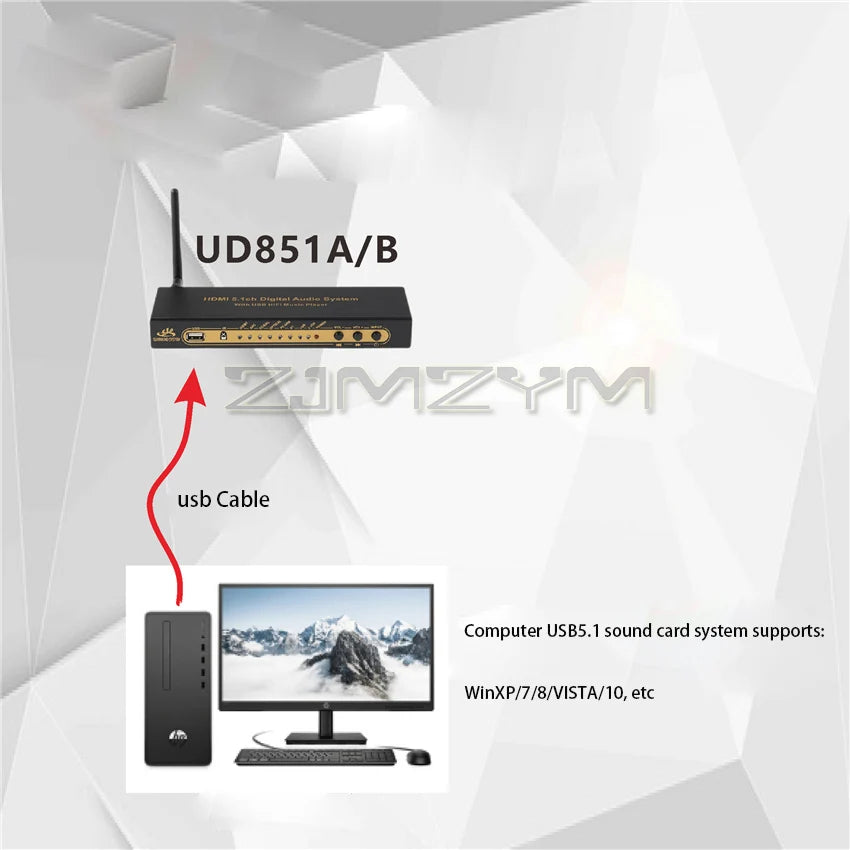

USB sound card support system: Supports system source code input such as WinxP/Win7/Win8/Win10/WIN11

Decoding output capability: Supports dts/dolby hard decoding (true 5.1) and PCM soft decoding (virtual 5.1)

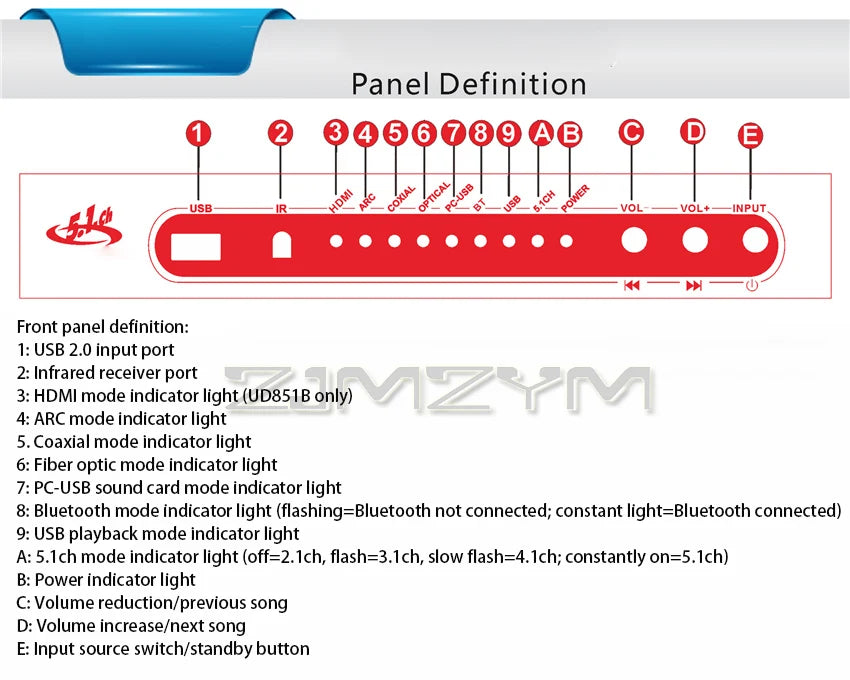

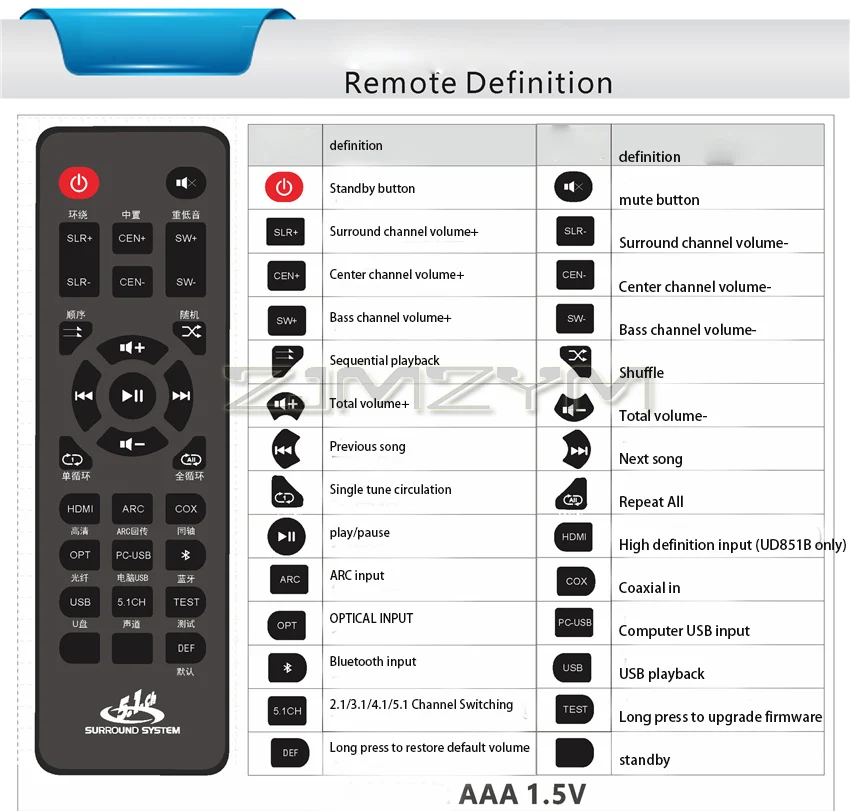

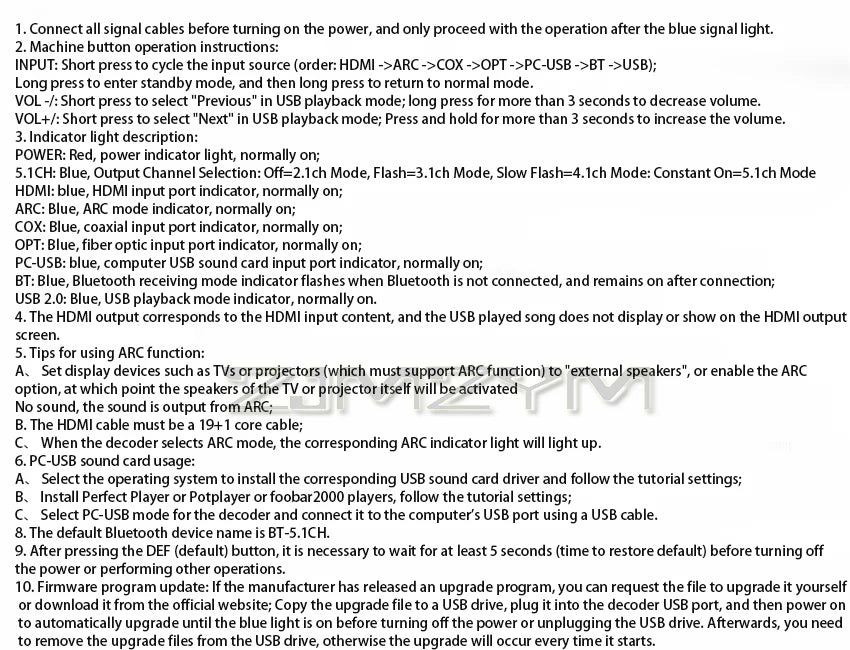

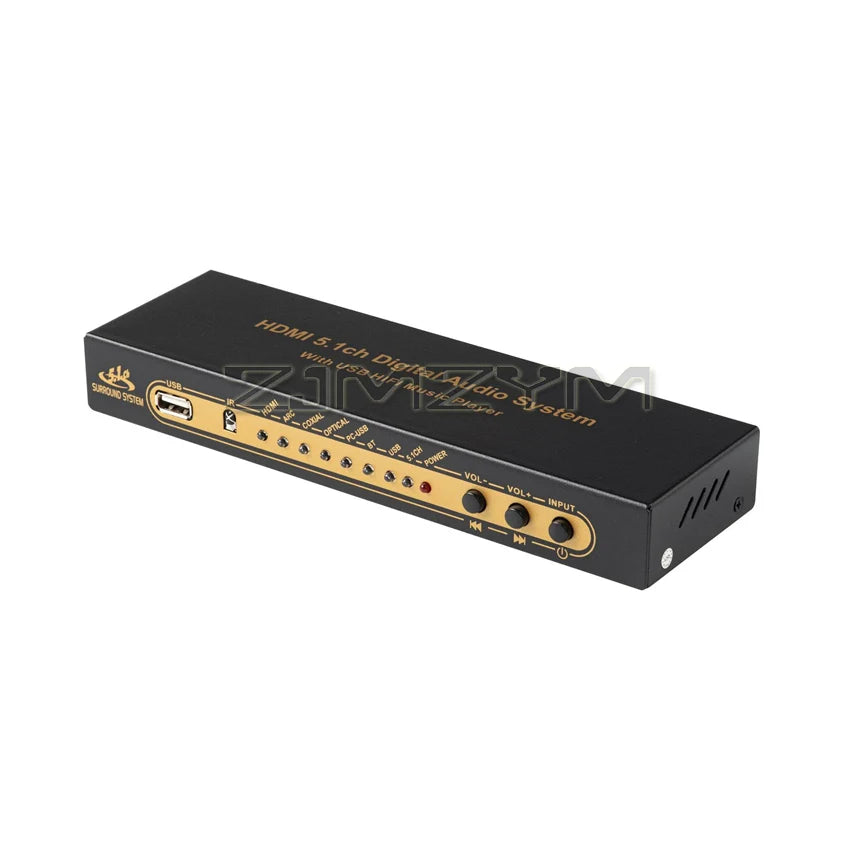

Operation control: supports button and remote control to switch input modes, volume adjustment, song selection, etc

Power off memory: supports input mode memory, volume memory, song selection memory, and setting memory

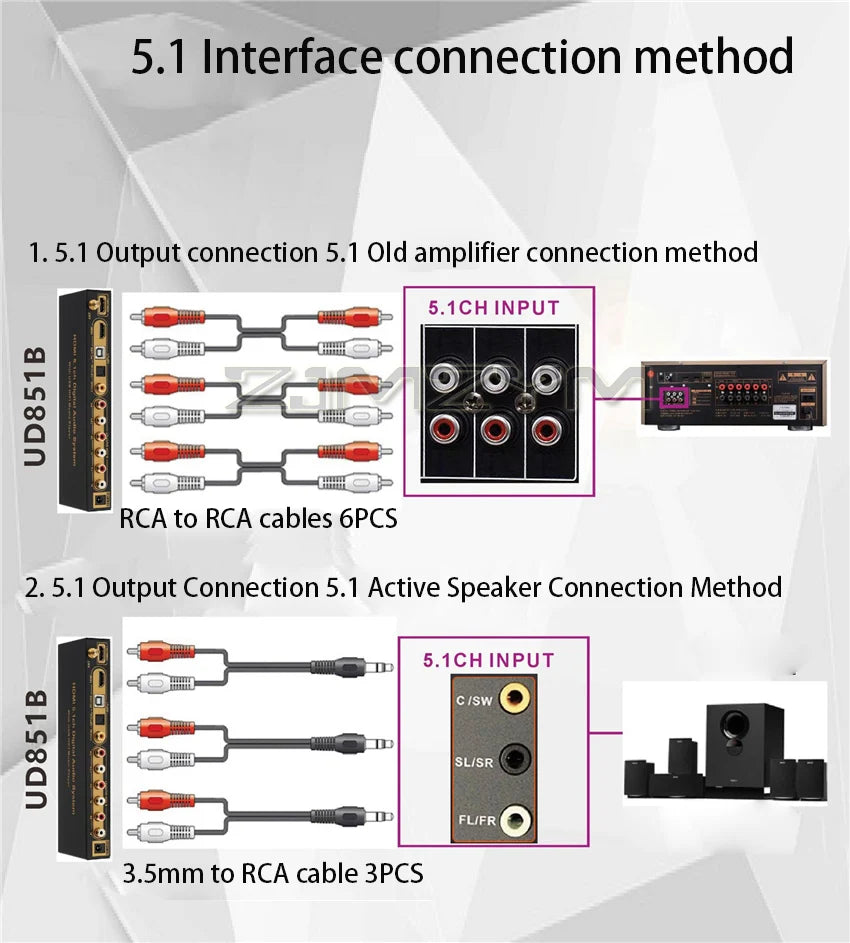

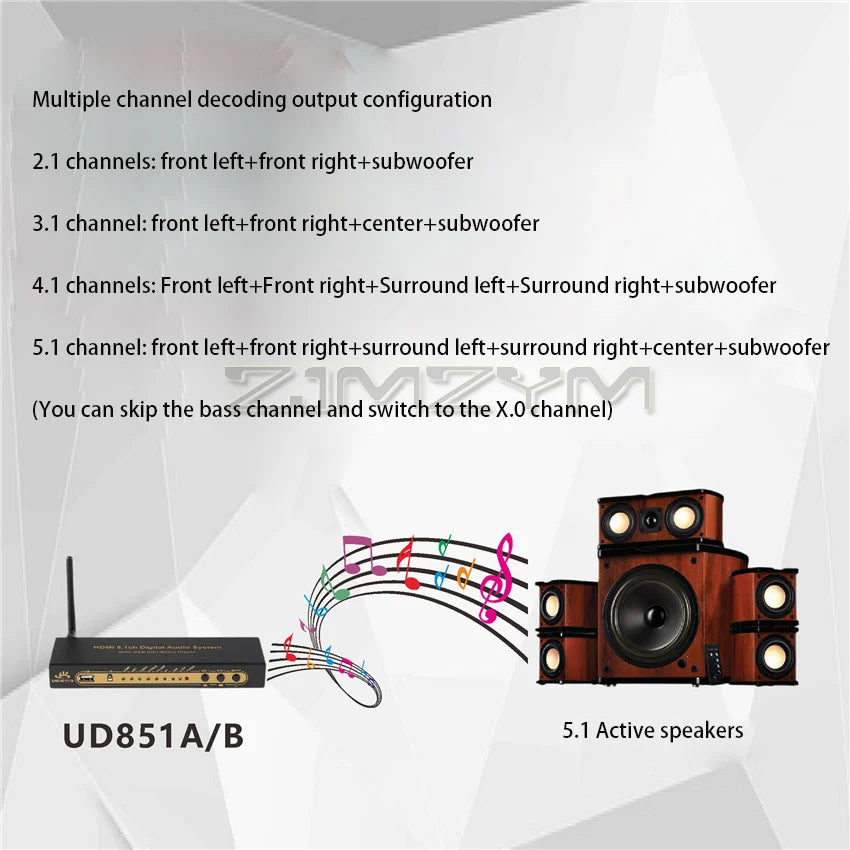

Output Channel Mode: Supports multiple channel output modes such as 2.1/3.1/4.1/5.1ch

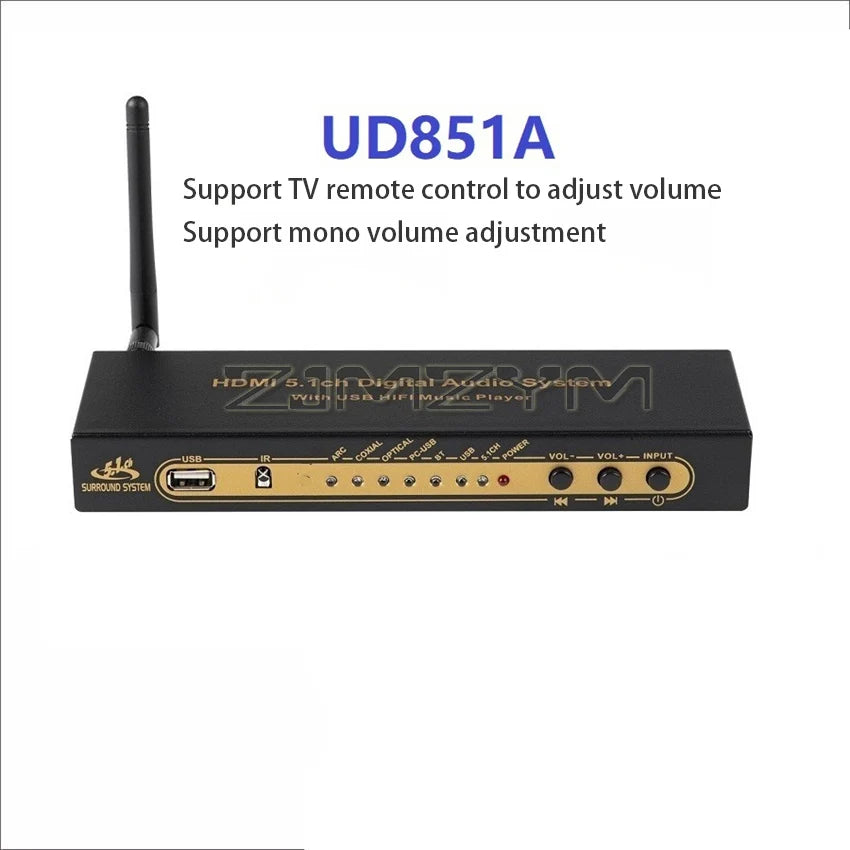

Volume adjustment: Supports overall volume adjustment and mono volume adjustment

Power supply: DC 12V/1A“

Note:

1.The power supply is universal for 110-220V, without voltage division, only divided into plugs

2.The decoder can only be connected to active speakers and cannot be connected to passive speakers. Passive speakers require an additional amplifier

Picture showing:
