SPECIFICATIONS

Application: Computer

Brand Name: YUVASYN

Condition: New

High-concerned chemical: none

Operating Temperature: -40+85

Origin: Mainland China

Package: SMD

Supply Voltage: standard

Type: Voltage Regulator

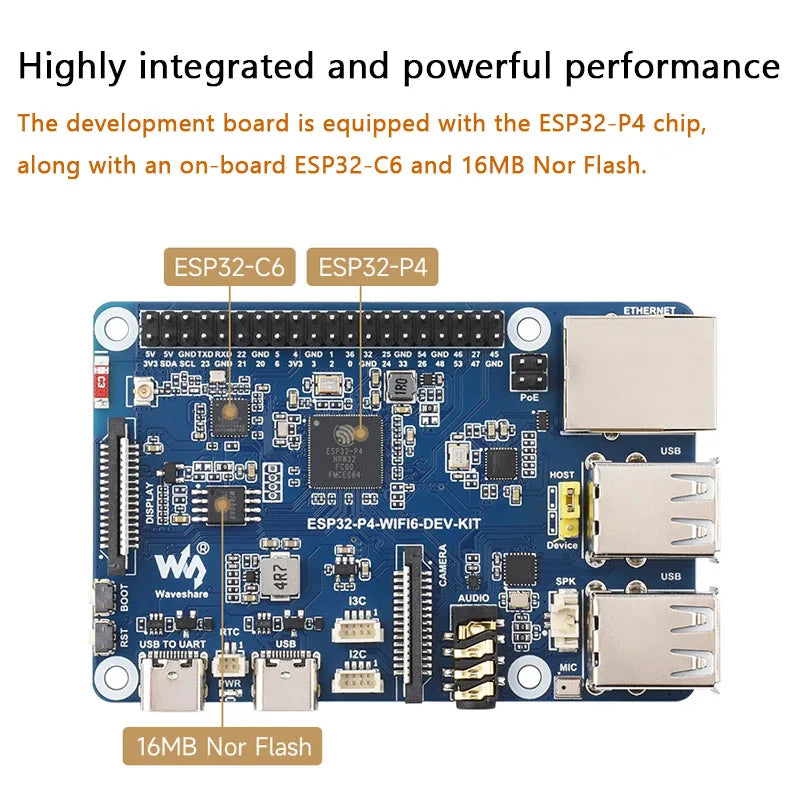

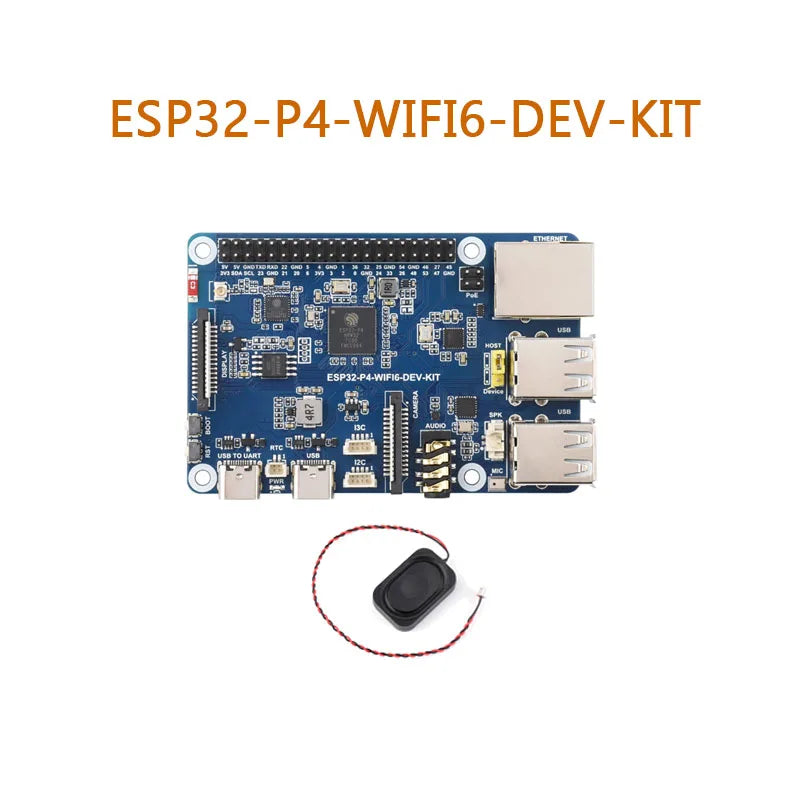

ESP32-P4-WIFI6-DEV-KIT ESP32-P4 Development Board Based On ESP32-P4 Chip Integrates ESP32-C6 And 16MB Nor Flash

The ESP32-P4 chip has been upgraded to REV3.X.

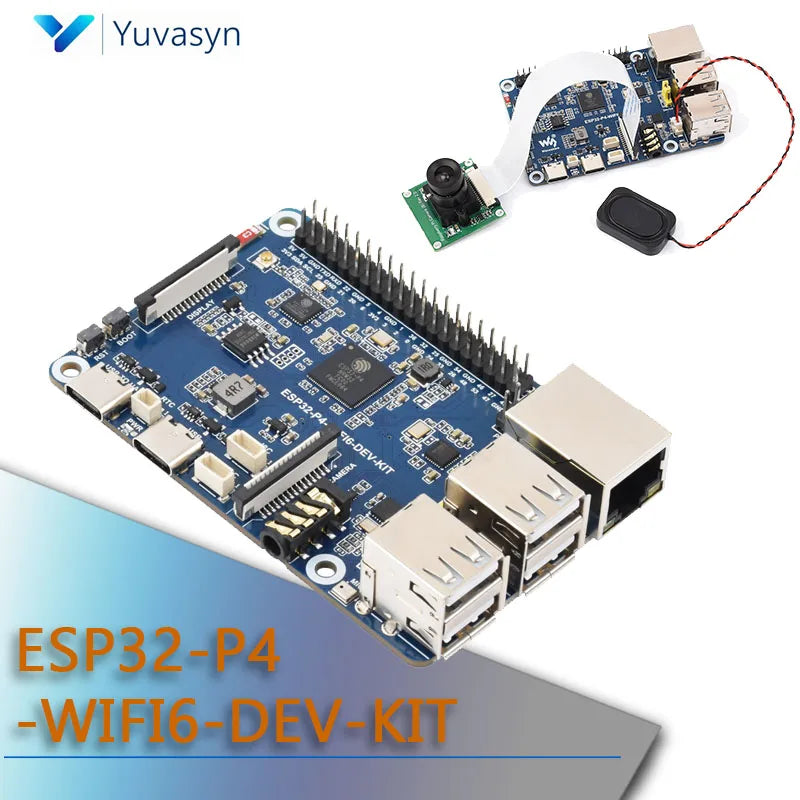

ESP32-P4-WIFI6-DEV-KIT Development Board

Based on ESP32-P4 and ESP32-C6 High-performance development board

Product Introduction

This product is a dual-core plus single-core RISC-V high-performance development board based on ESP32-P4. It supports a variety of human-computer interaction interfaces, including MIPI-CSI (integrated image signal processor ISP) and MIPI-DSI interfaces. Additionally, it supports SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI, among other common peripherals. It also supports USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0 to achieve high-speed connections. The ESP32-P4 chip integrates a digital signature peripheral and a dedicated key management unit to ensure the security of data and operations. The ESP32-P4-WIFI6-DEV-KIT is specifically designed for high-performance and high-security applications, fully meeting the higher requirements of embedded applications for human-computer interface support, edge computing capabilities, and IO connection characteristics.

Product features

• High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors

• 128KB high-performance ROM, 16KB low-power ROM, 768KB high-performance L2MEM, 32KB low-power SRAM, 8KB TCM

• Strong image and voice processing capabilities. Image and voice processing interfaces include JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder

• Chip packaging includes 32MB PSRAM stacked inside, module integrates 16MB Nor Flash

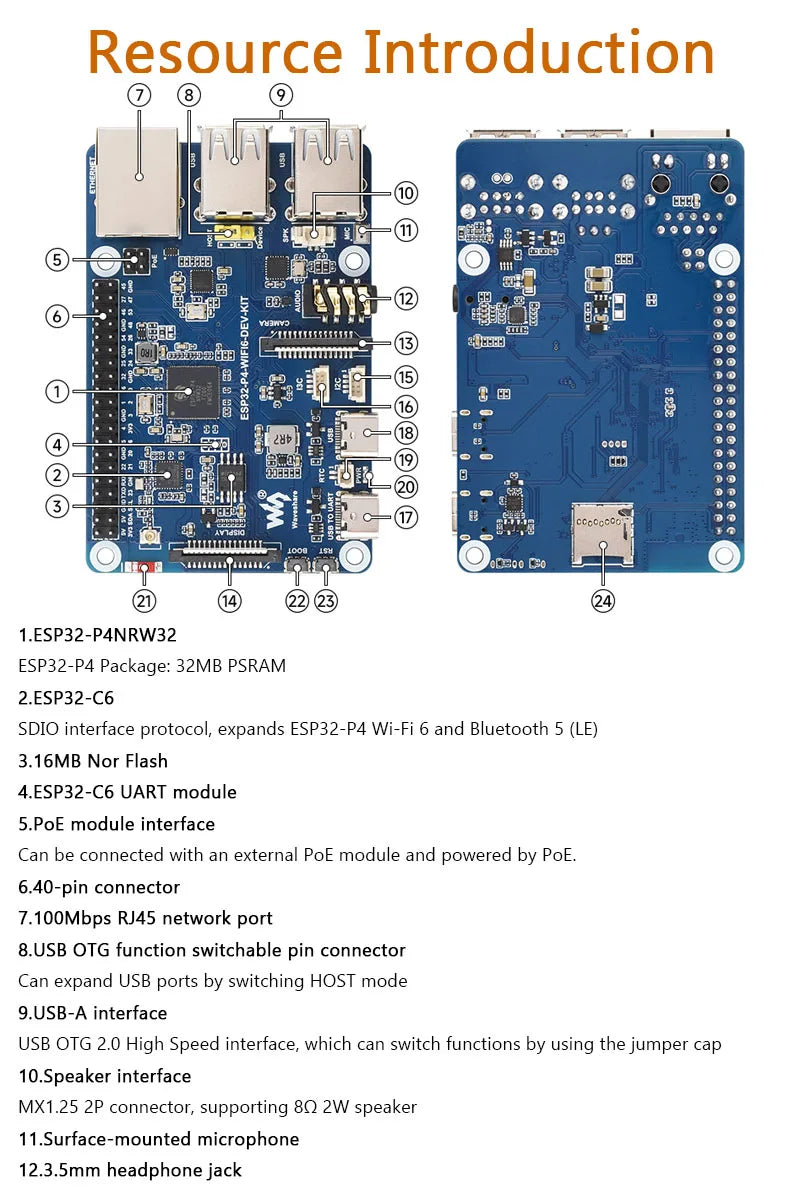

• Board provides common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, and RTC battery terminals

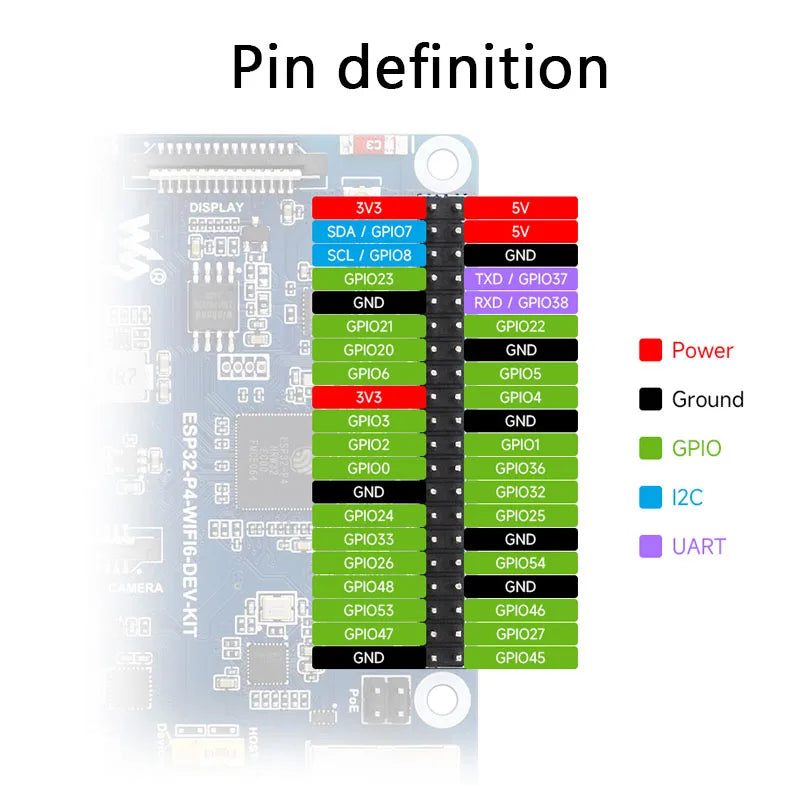

• Board provides 2 × 20 pins, with 28 remaining programmable GPIOs

• Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection, enabling access permission management (APM) and permission separation

Supports Wi-Fi6 and Bluetooth module

Onboard ESP32-C6 chip, expands 2.4GHz Wi-Fi6 and Bluetooth 5/BLE for ESP32-P4. Communicates using SDIO0 interface protocol, ensuring stable connection and efficient transmission.
