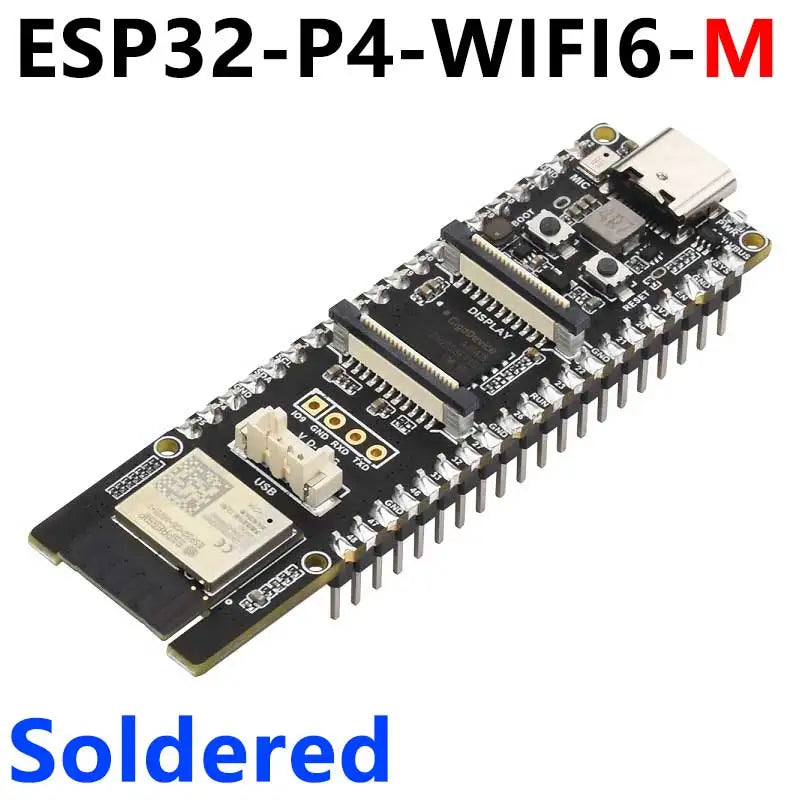

ESP32 P4 WIFI6 High-Performance Development Board Optional Kit On-board ESP32-C6 Supports Wi-Fi 6 And Bluetooth 5 AI Deepseek

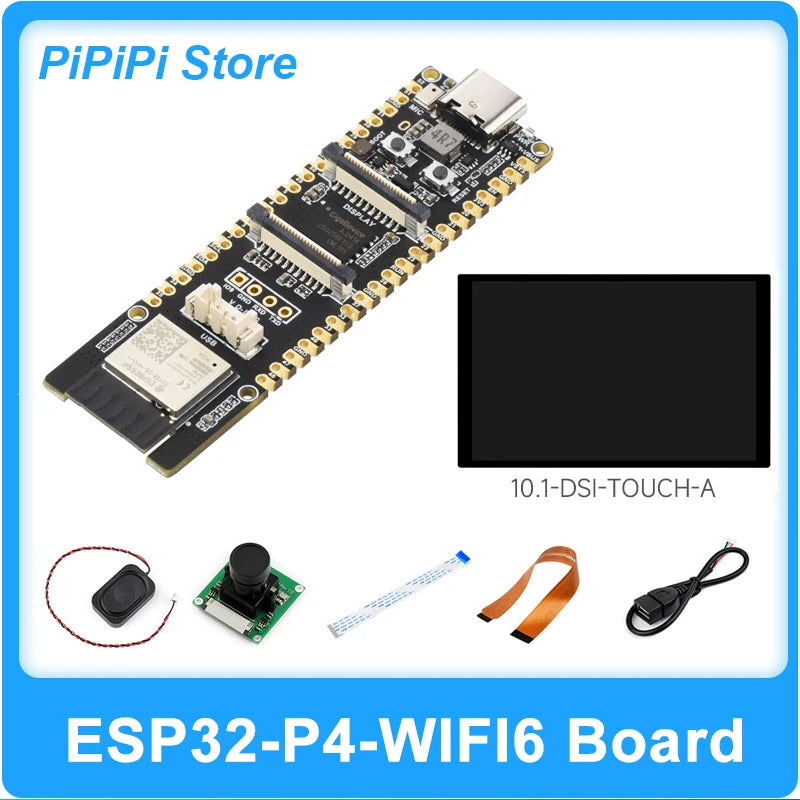

ESP32-P4-WIFI6-Kit A
$166.84
Sale price
$166.84
Regular price
$0.00
Skip to product information
Package selection
It adopts IPS full-laminated tempered glass panel and has a 178° wide viewing Angle
(Only Development Board Package B with a screen)
Raspberry PI Camera Type B
5 million pixels, manual focus
Highly integrated and powerful performance
The development board adopts the ESP32-P4 module and has built-in ESP32-C6 and 32MB Nor Flash
(Only Development board packages A/B with speakers)
(Only Development Board Package B with a screen)
Pin definition
ESP32 P4 WIFI6 High-Performance Development Board Optional Kit On-board ESP32-C6 Supports Wi-Fi 6 And Bluetooth 5 AI Deepseek
$166.84
Sale price
$166.84
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: spotpear
Choice: yes
High-concerned chemical: none
Model Number: ESP32-P4-WIFI6
Origin: Mainland China
Typical Application Fields: Internet of Things (IoT)
semi_Choice: yes

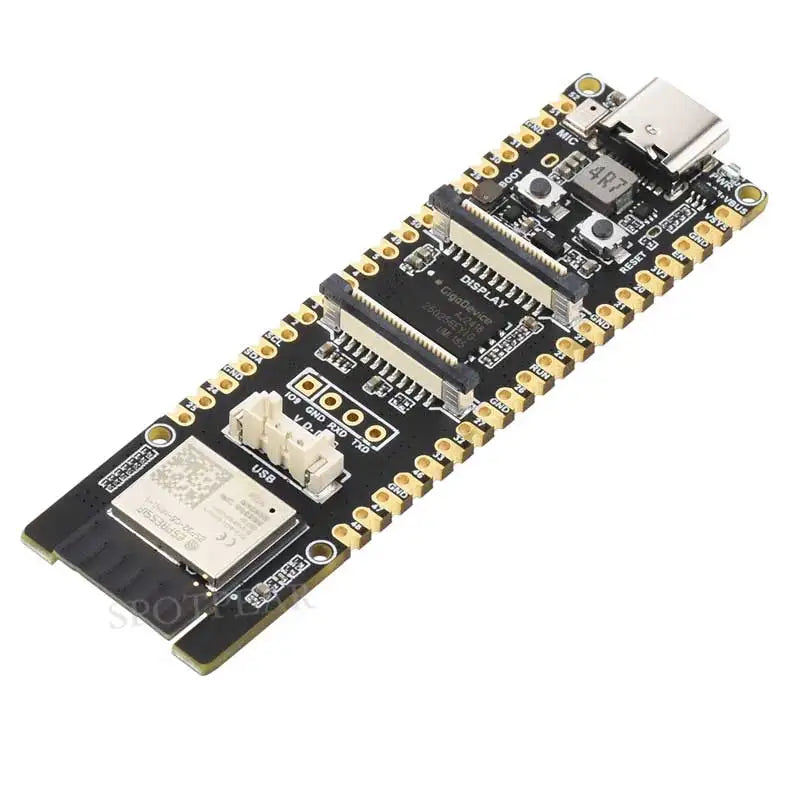

ESP32-P4 development board
High-performance development boards based on ESP32-P4 and ESP32-C6
Rich human-computer interaction interfaces

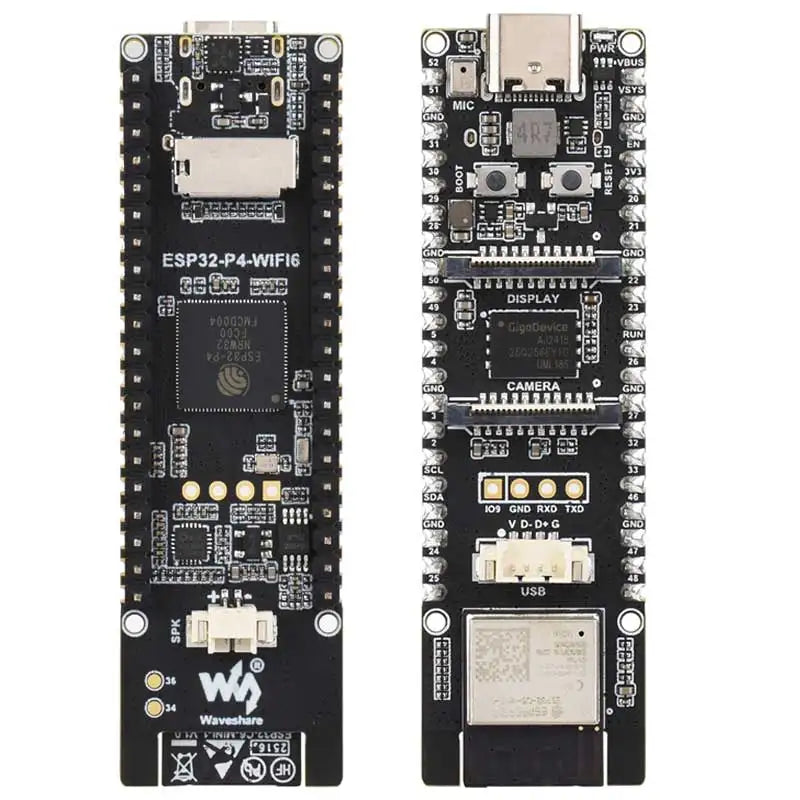

Board Introduction
This product is a multimedia development board based on ESP32-P4 and integrates ESP32-C6, supporting Wi-Fi 6 and BLE 5 wireless connections. It offers a rich array of human-machine interaction interfaces, including MIPI-CSI (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART and TWAI, etc. In addition, it supports USB OTG 2.0 HS and is equipped with a 40-pin GPIO expansion interface on board, which is compatible with some Raspberry PI Pico HAT expansion boards to achieve broader application adaptation. The ESP32-P4 adopts a 400MHz dual-core RISC-V processor, supports up to 32MB PSRAM, and is equipped with peripherals such as USB 2.0, MIPI-CSI/DSI and H.264 encoding, meeting the multimedia development requirements of low cost, high performance and low power consumption. In addition, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure the security of data and operations. ESP32-P4-WIFI6 is specifically designed for high-performance and high-security applications, meeting the requirements of embedded systems in human-computer interaction, edge computing, and IO expansion.
Main functional characteristics：
High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors
128KB HP ROM、16KB LP ROM、768KB HP L2MEM、32KB LP SRAM、8KB TCM
Powerful image and voice processing capabilities. The image and voice processing interfaces include JPEG codecs, pixel processing accelerators (PPA), image signal processors (ISP), and H264 video encoders
The chip package encapsulates 32MB PSRAM internally and integrates 32MB Nor Flash externally
Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone and speaker terminals are led out from the board
2 × 20 rows of pins are led out from the board, and 27 remaining programmable GPIOs are led out
Security mechanisms: Secure boot, Flash encryption, hardware encryption accelerator and hardware random number generator. It also supports hardware access protection and can achieve access permission management (APM) and permission separation
Package selection

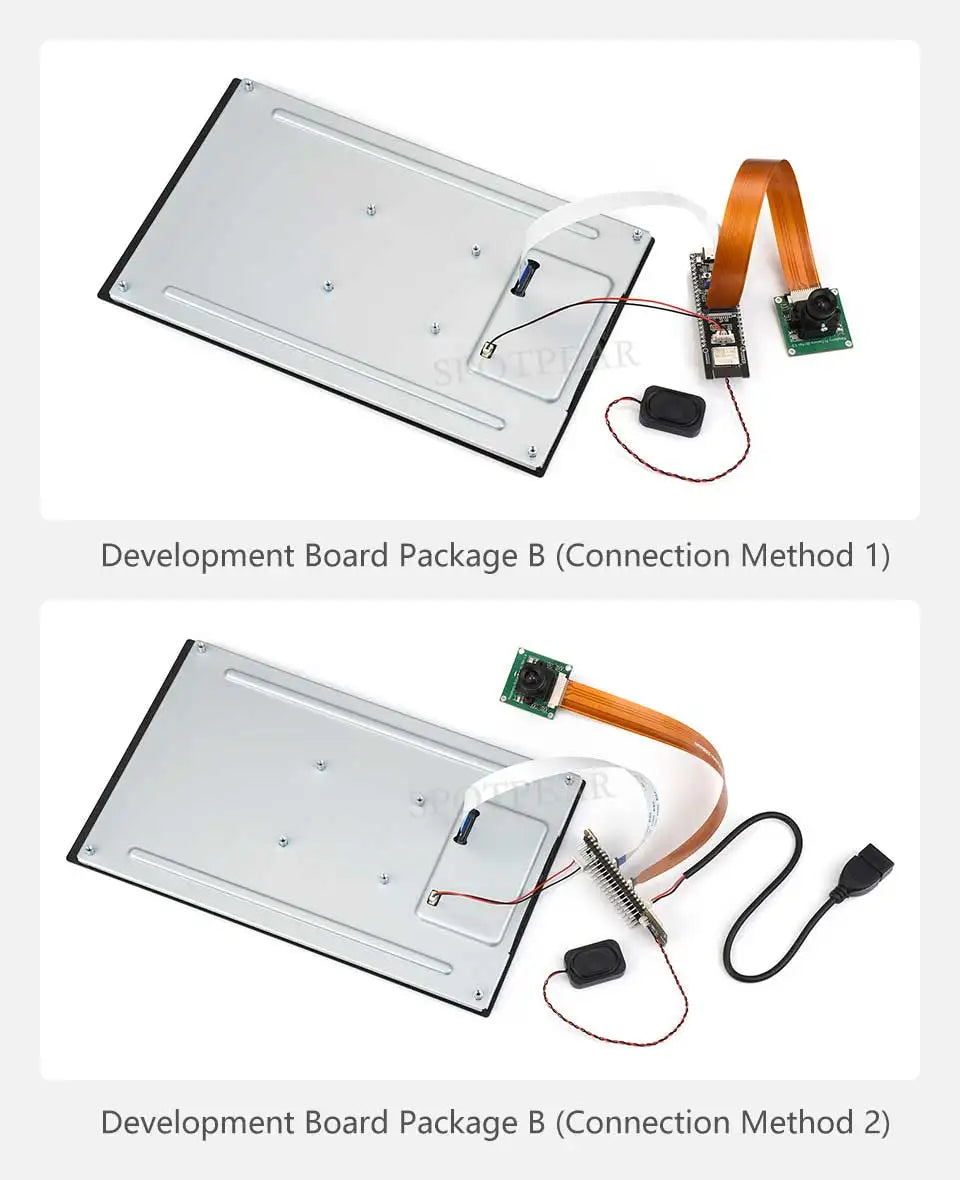

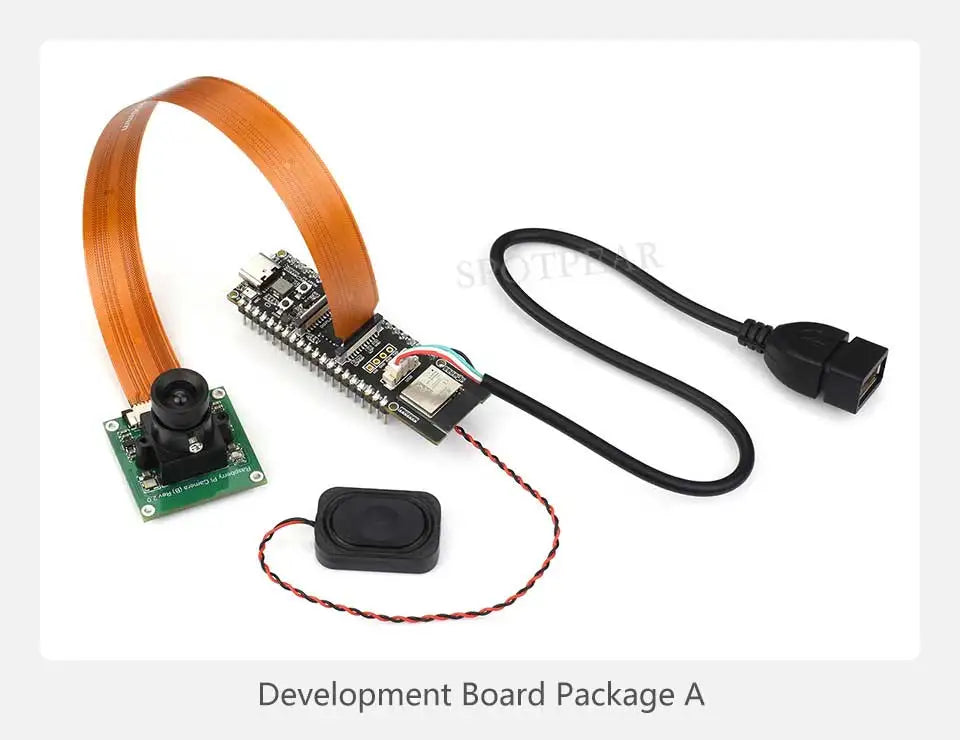

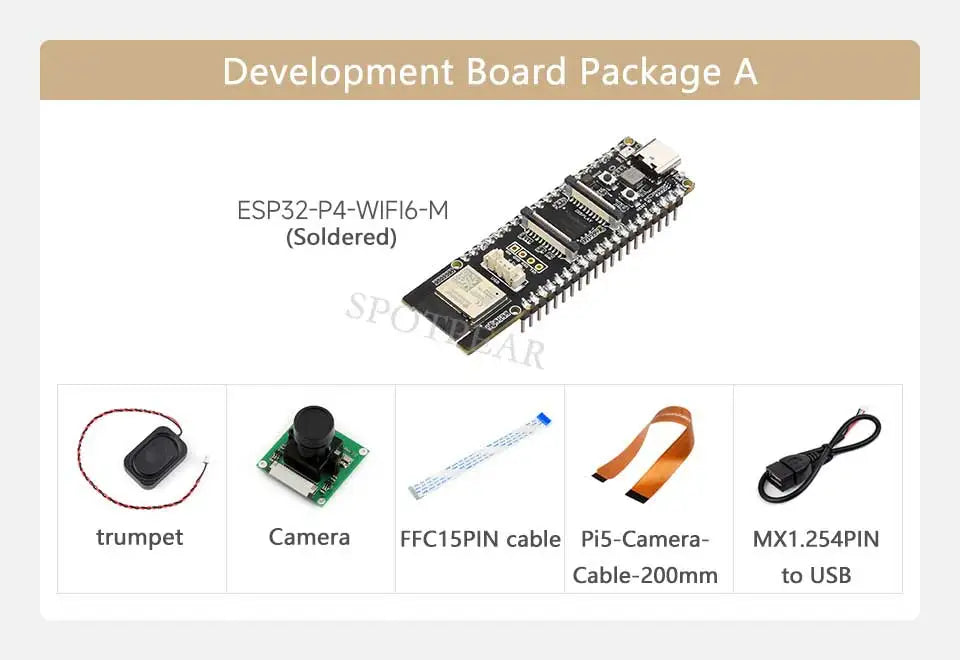

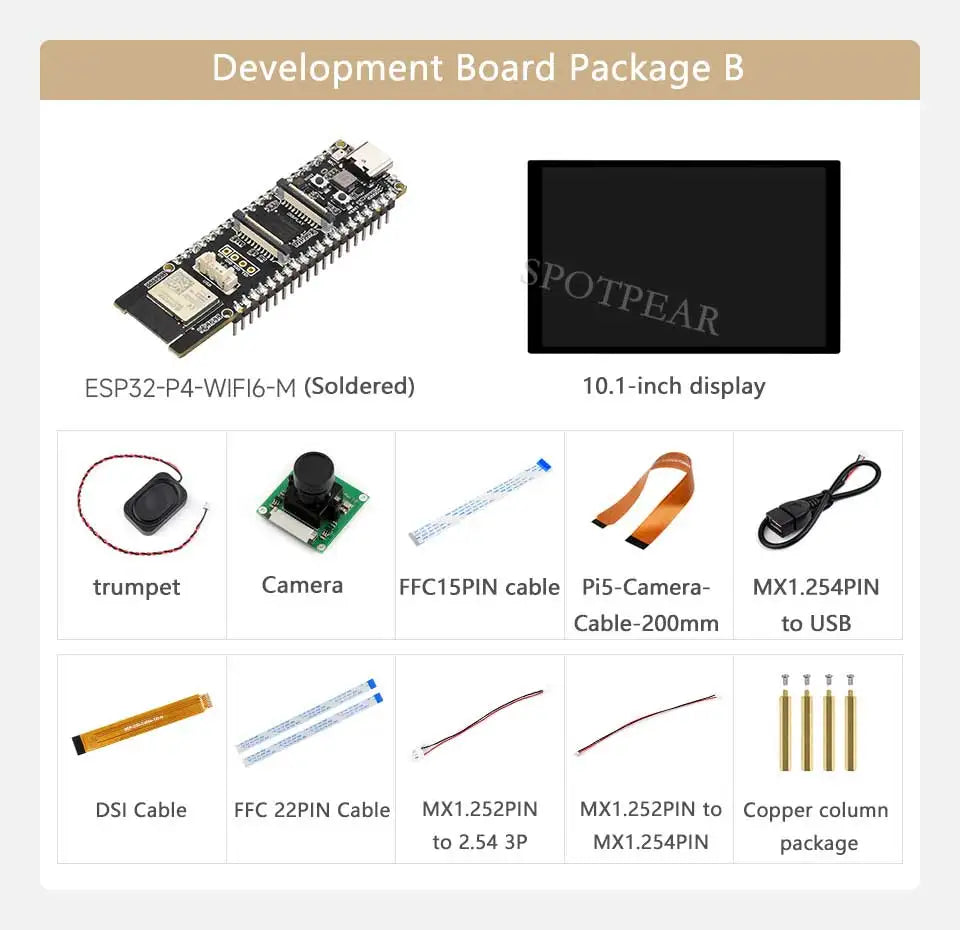

Example of package combination matching

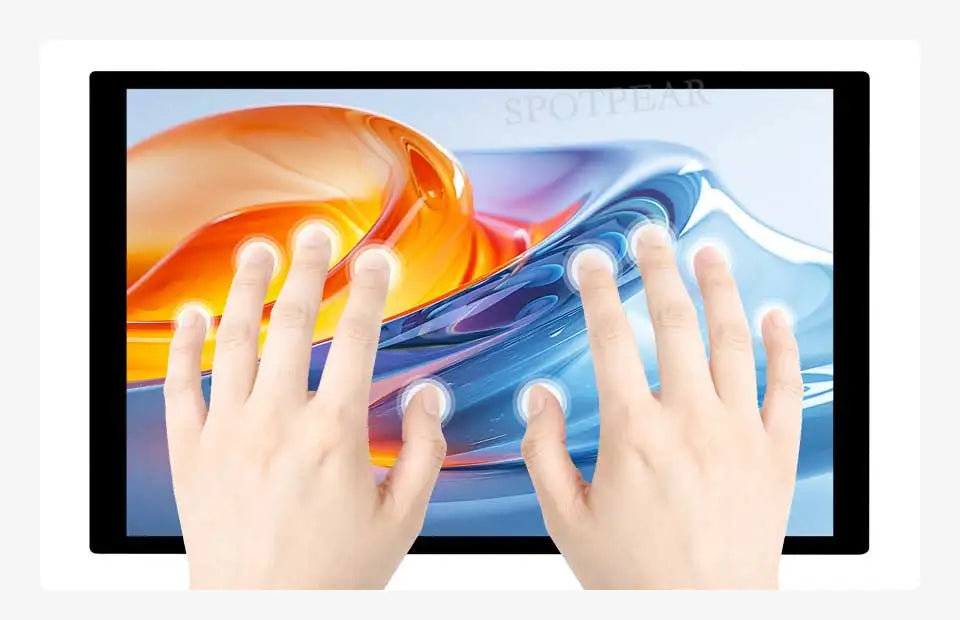

DSI capacitive touch screen
It adopts IPS full-laminated tempered glass panel and has a 178° wide viewing Angle
Supports ten-point touch, with clear pictures and excellent visual experience
Screen model |
10.1-DSI-TOUCH-A |
Resolution |
800 × 1280 (H × V) |
Communication interface |
MIPI-DSI (2-lane) |
Brightness |
400cd/m² (Customizable 1000cd/m² highlighted version supported) |
Touch chip |
GT9271 |
Overall dimensions |
147.0 × 239.0 (mm) |
Display size |
135.36 × 216.58 (mm) |
Pixel size |
0.1692 (H) × 0.1692 (V) (mm) |
Contrast |
800:1 |
Temperature |
0℃ ~ 60℃ |
(Only Development Board Package B with a screen)

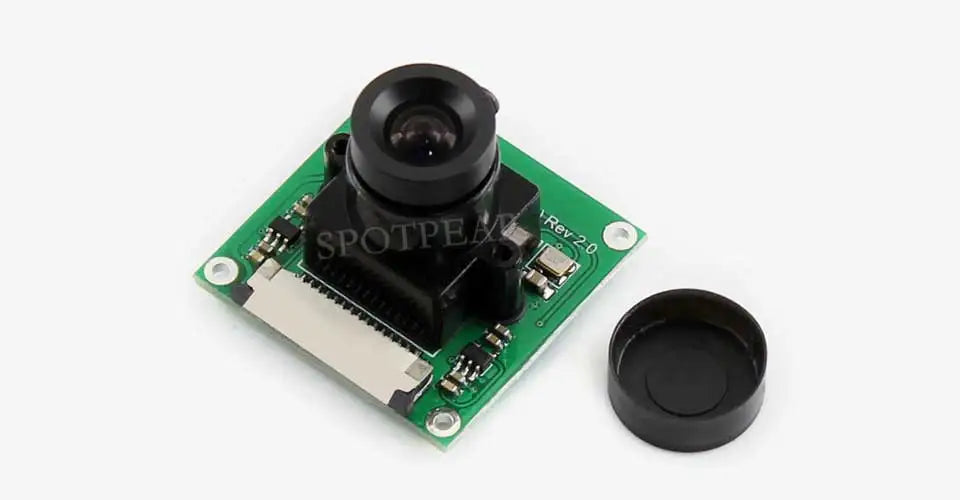

Raspberry PI Camera Type B
5 million pixels, manual focus
Compatible with Raspberry Pi series motherboards
Photosensitive chip |
OV5647 |
CMOS size |
1/4 inch |
Pixel |
Five million |
Aperture |
F2.0 |
Focal length |
6mm |
Diagonal field of view |
60.6° |
Infrared night vision |
Not supported |
Focusing mode |
Manual focus] |
The picture is for display only. The detailed configuration shall be subject to the configuration list

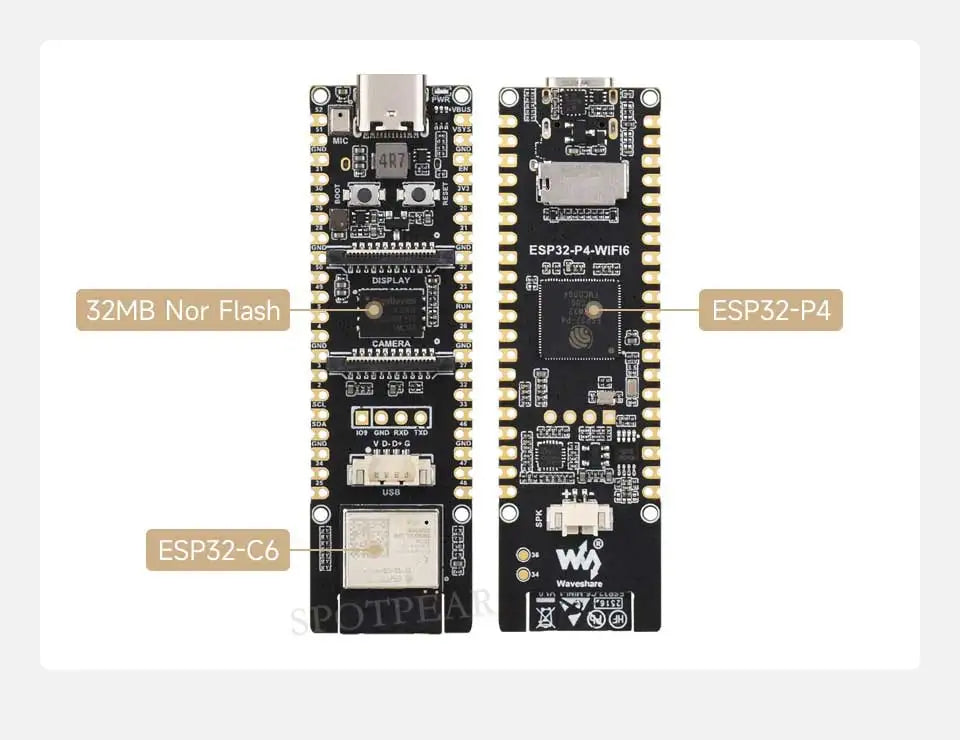

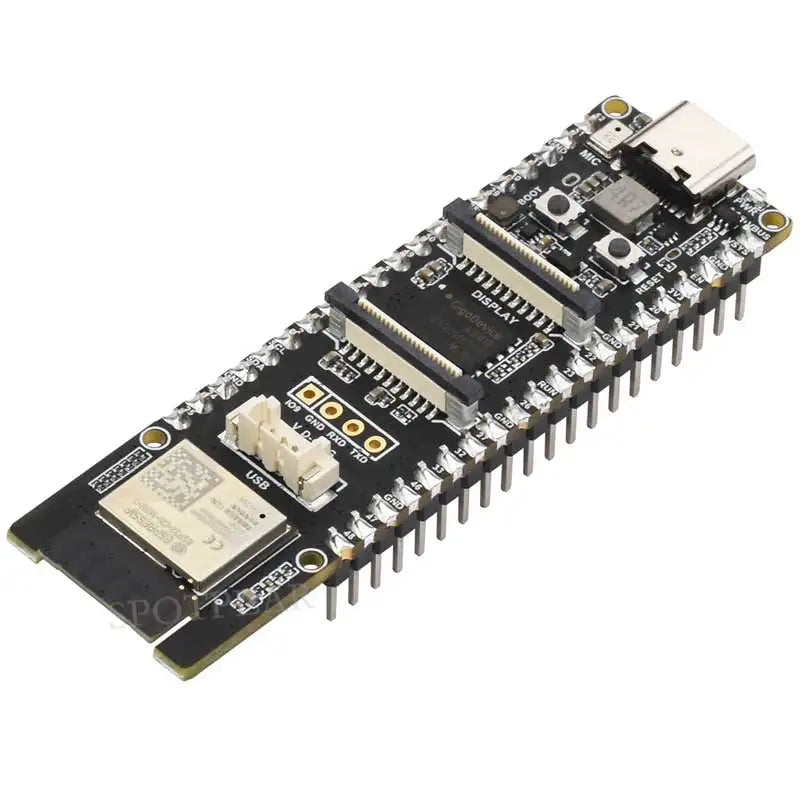

Highly integrated and powerful performance
The development board adopts the ESP32-P4 module and has built-in ESP32-C6 and 32MB Nor Flash

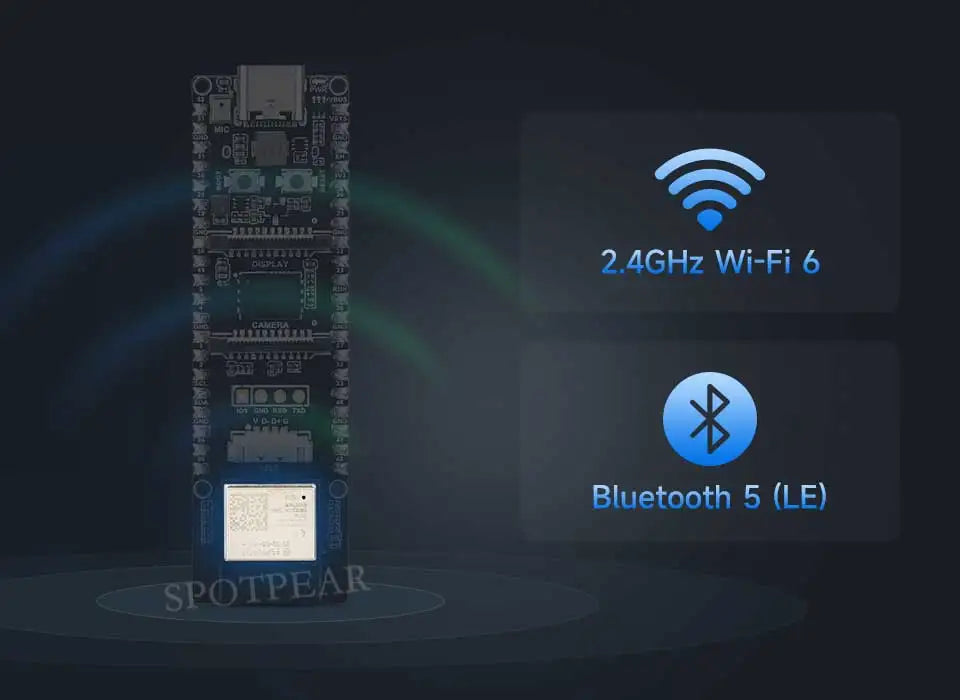

Supports Wi-Fi 6 and Bluetooth modules
The on-board ESP32-C6 chip extends 2.4GHz Wi-Fi 6 to the ESP32-P4
Bluetooth 5/BLE, communicating via the SDIO interface protocol, ensures stable connection and efficient transmission

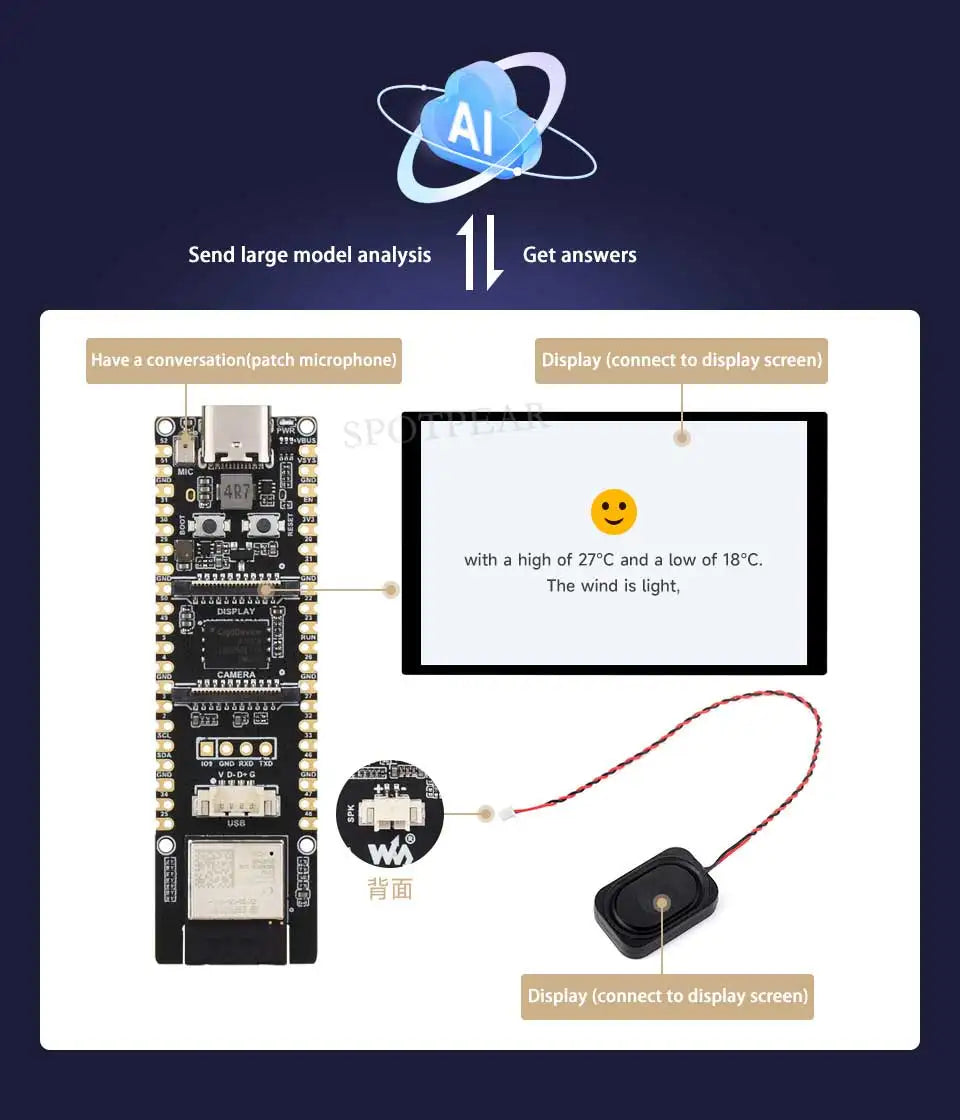

Support AI voice interaction
Supports mainstream AI platforms and can be connected to online large model platforms such as Doubao and DeepSeek
(Only Development board packages A/B with speakers)
(Only Development Board Package B with a screen)

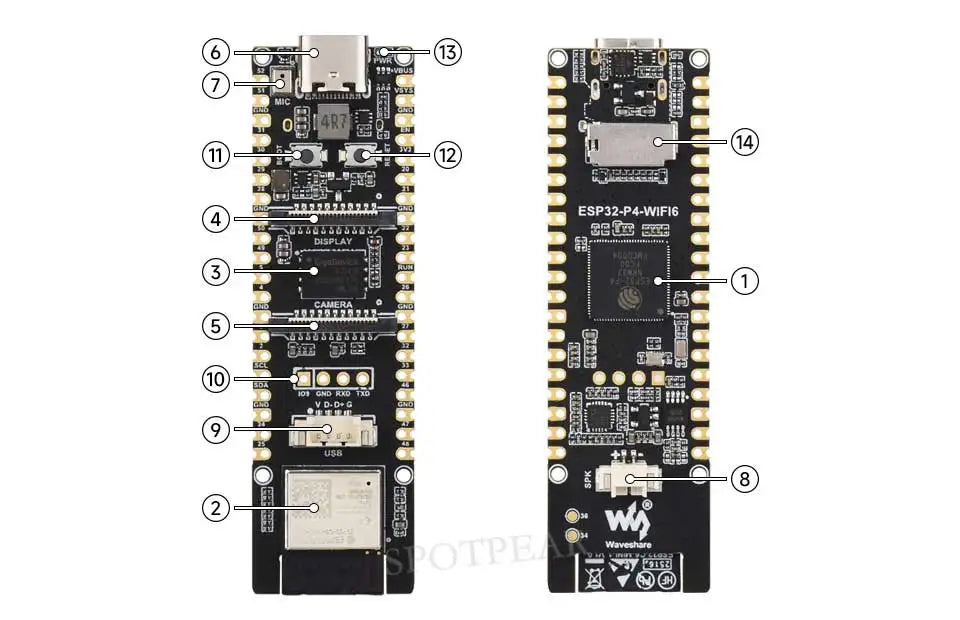

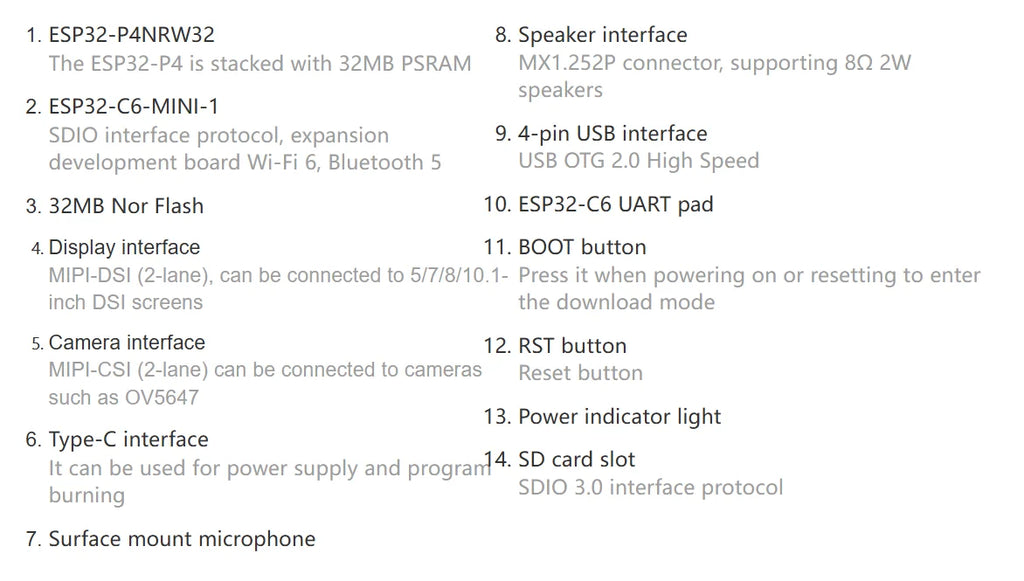

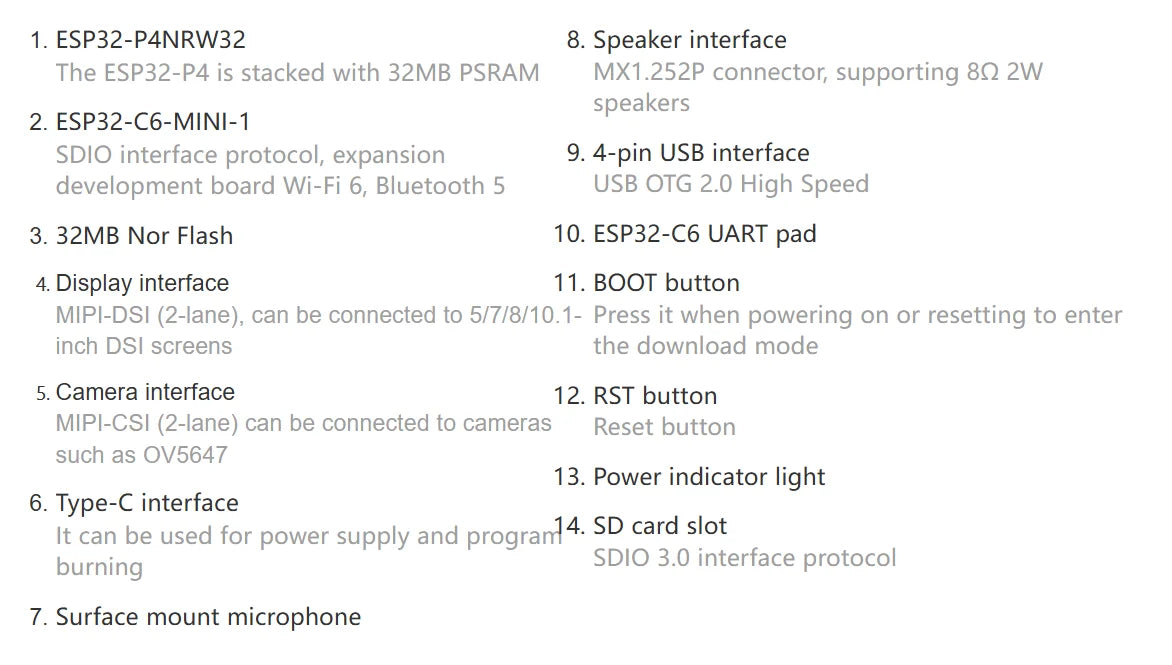

Resource Introduction

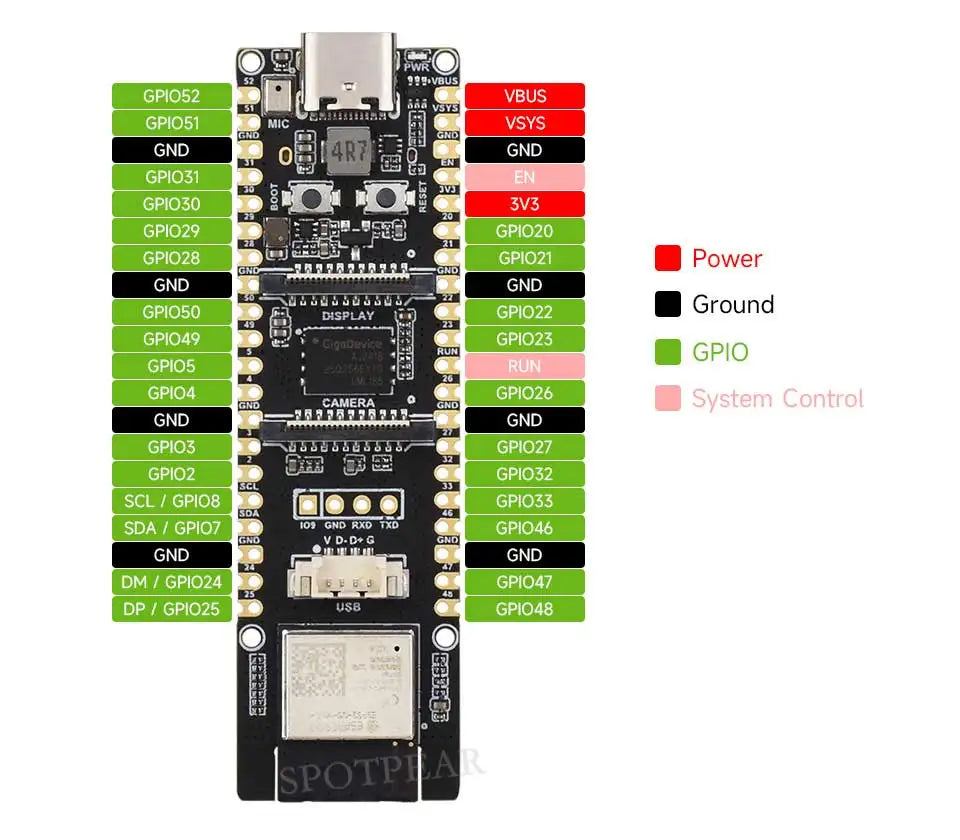

Pin definition

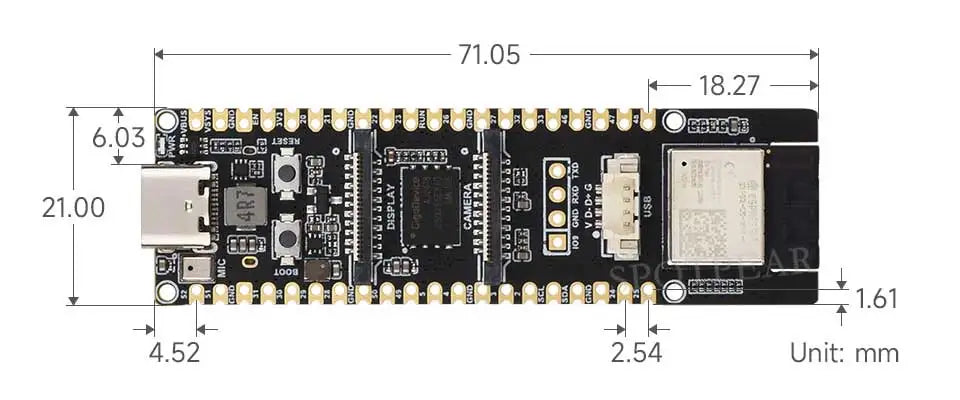

Product size
