Brand Name: Waveshare

High-concerned chemical: none

Model: ESP32-S3-ETH

Origin: Mainland China

Type: ESP Series

ESP32-S3-ETH (Eth BOARD only)

ESP32-S3-ETH x1
20PIN male pinheader(black) x2

ESP32-S3-ETH-CAM-KIT (eth board +camera)

ESP32-S3-ETH x1
OV5640 camera x1
20PIN male pinheader(black) x2

ESP32-S3-POE-ETH (ETH board+ POE )

ESP32-S3-ETH x1
PoE module x1
Screws pack x1
20PIN male pinheader(black) x2

ESP32-S3-POE-ETH-CAM-KIT(ETH board+ POE+Camera)

ESP32-S3-ETH x1
PoE module x1
OV5640 camera x1
Screws pack x1
20PIN male pinheader(black) x2

ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet port, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor, Onboard Type-C Port And TF Card Slot, Optional For PoE Module And Camera Module

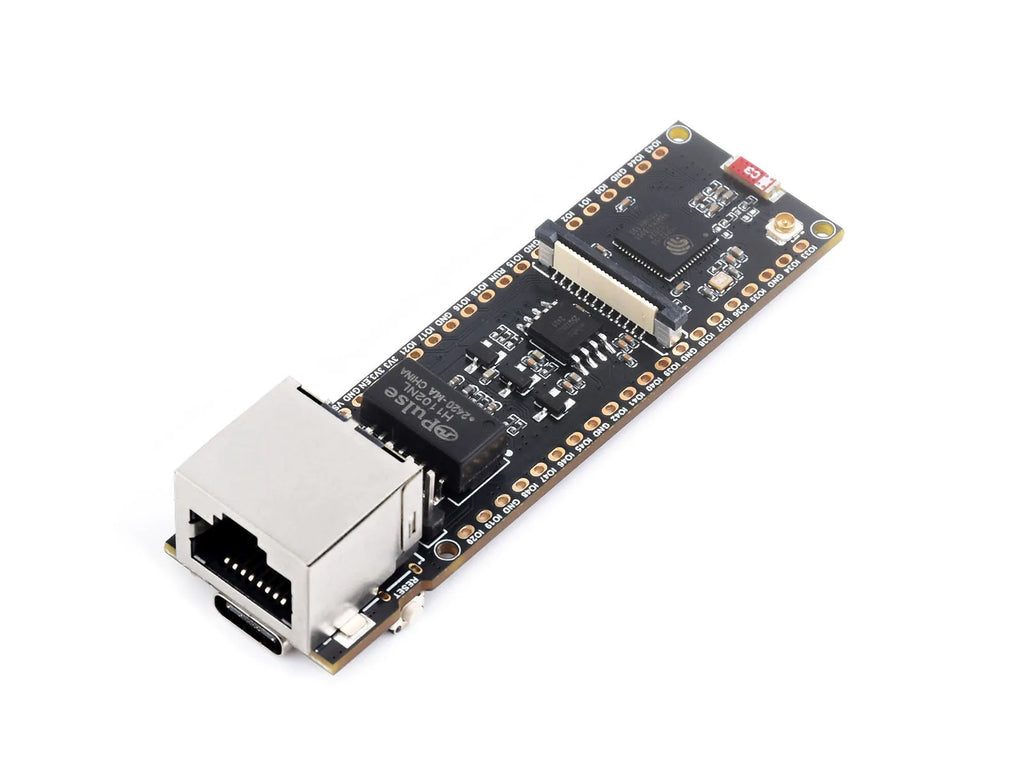

ESP32-S3 ETH Development Board

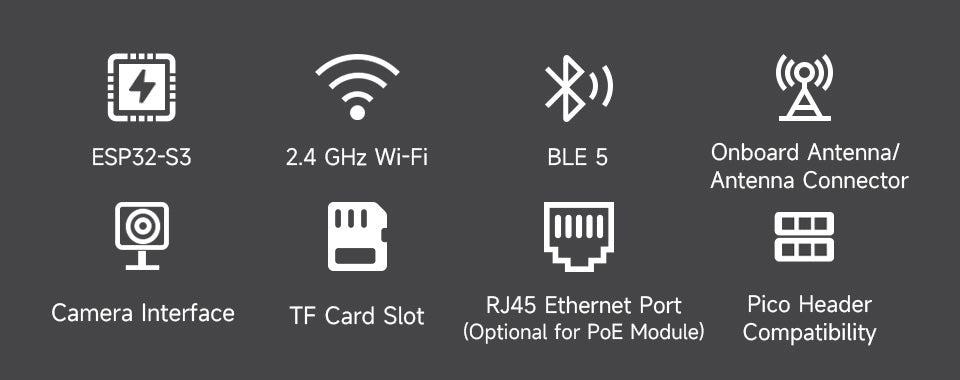

Supports Wi-Fi, Bluetooth, and Ethernet communication, Optional For PoE Function

Onboard TF card slot, camera interface and Pico-compatible header

Features

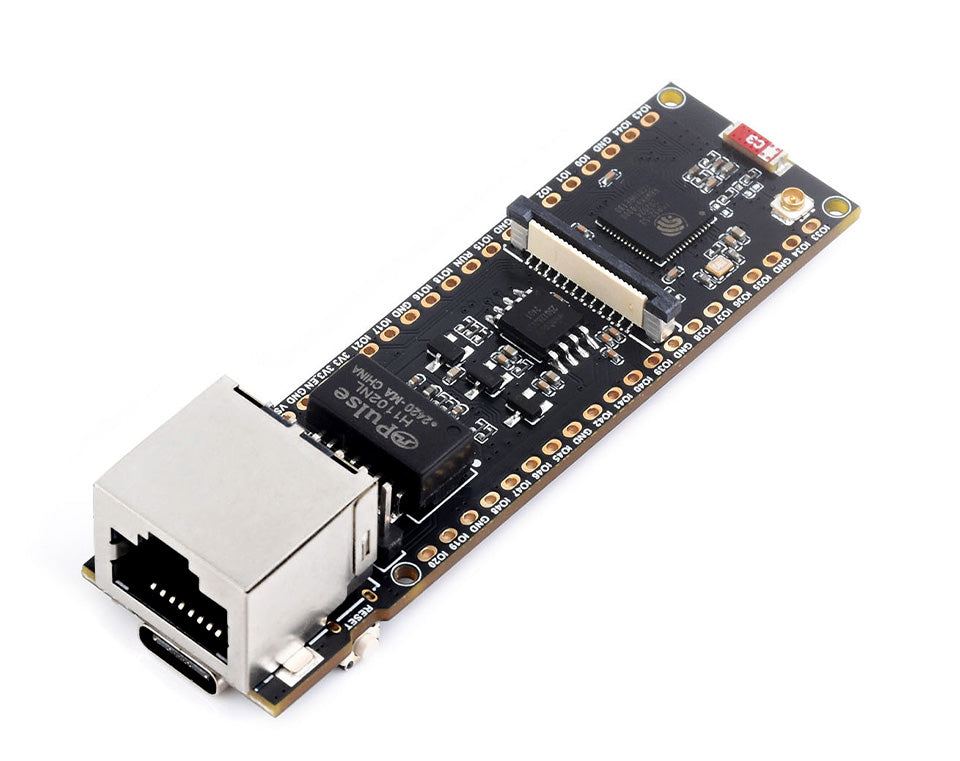

This is an ETH development board based on ESP32-S3R8, supports Wi-Fi and Bluetooth wireless communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, supports OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.

Key features include:

Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory

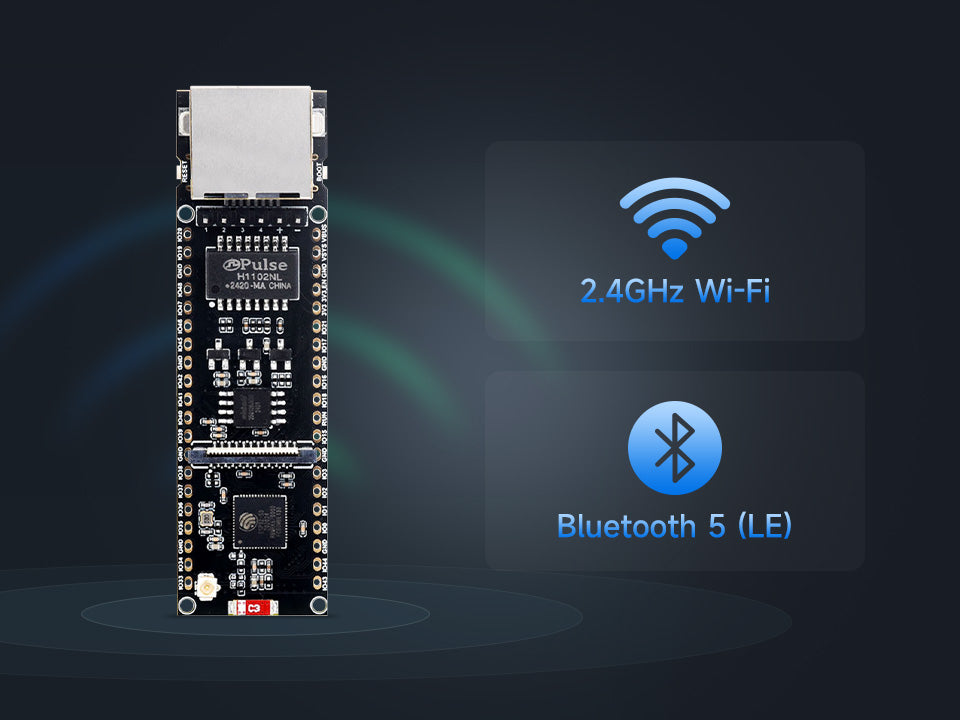

Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
Onboard camera interface, supports OV5640 and other mainstream cameras for image and video capture
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

OV5640 Camera

Lens Size	1/4inch	FOCAL LENGTH	4.1mm
APERTURE	2.8	FIELD OF VIEW	68°(D) × 55°(H) × 42°(V)
Max Resolution	2592 × 1944	Output Interface	DVP
Output format	RGB565 YUV/YCbCr422

Version options

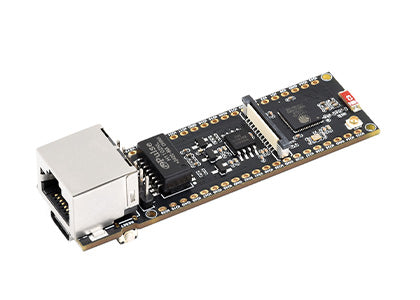

ESP32-S3-ETH
the ETH development board only

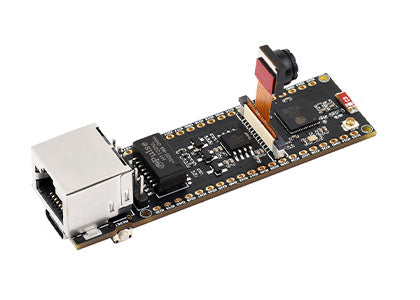

ESP32-S3-ETH-CAM-KIT
ETH development board + OV5640 camera

ESP32-S3-POE-ETH
ETH development board + PoE module

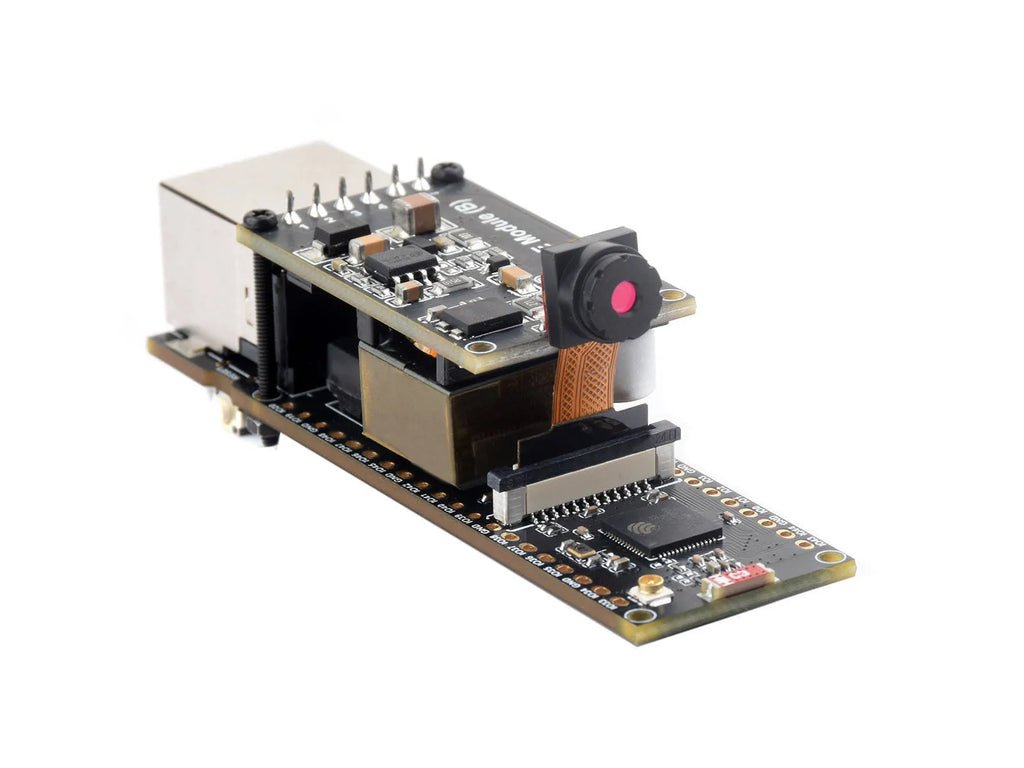

ESP32-S3-POE-ETH-CAM-KIT
ETH development board + OV5640 camera + PoE module

ESP32-S3 Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features

WIFI and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Easier to develop

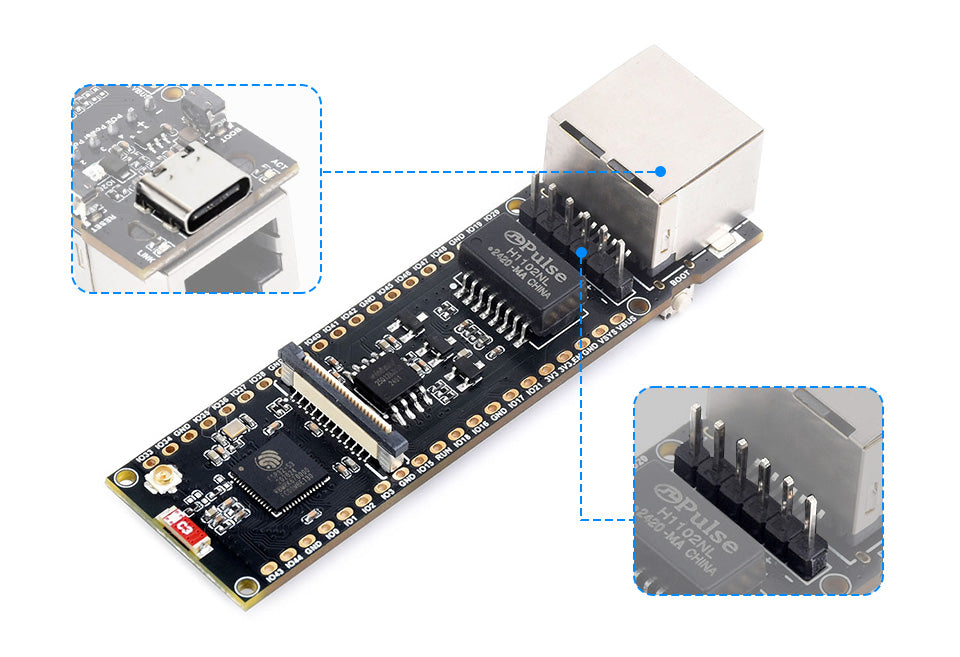

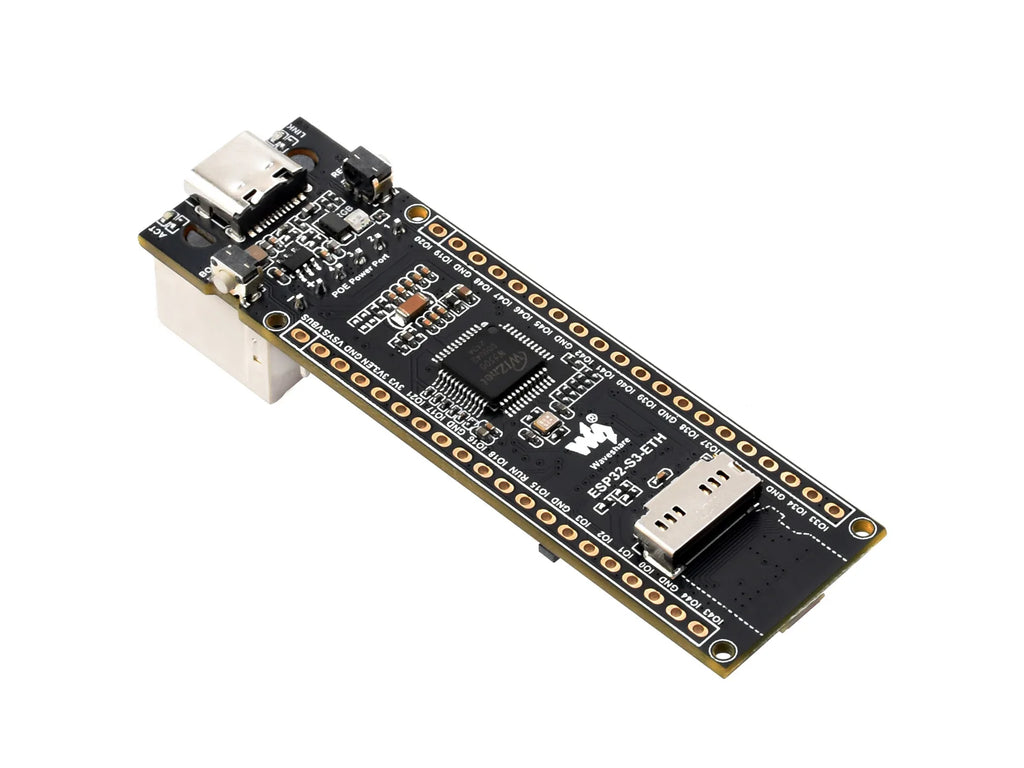

Integrates TF card slot, camera interface and Ethernet port

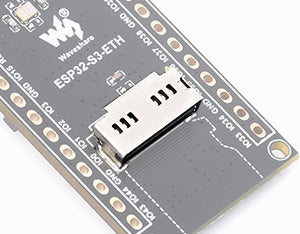

TF card slot

Camera interface

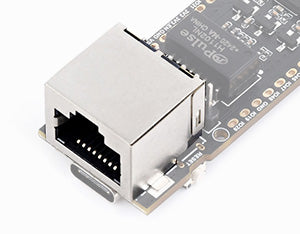

Ethernet port

Two power supply methods

Supports both PoE* and USB Type-C power supply

* the PoE module is required

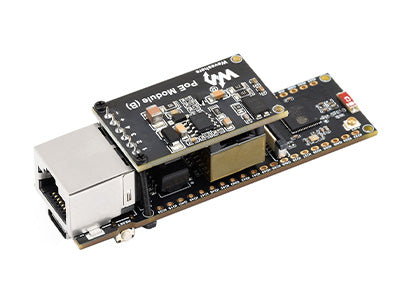

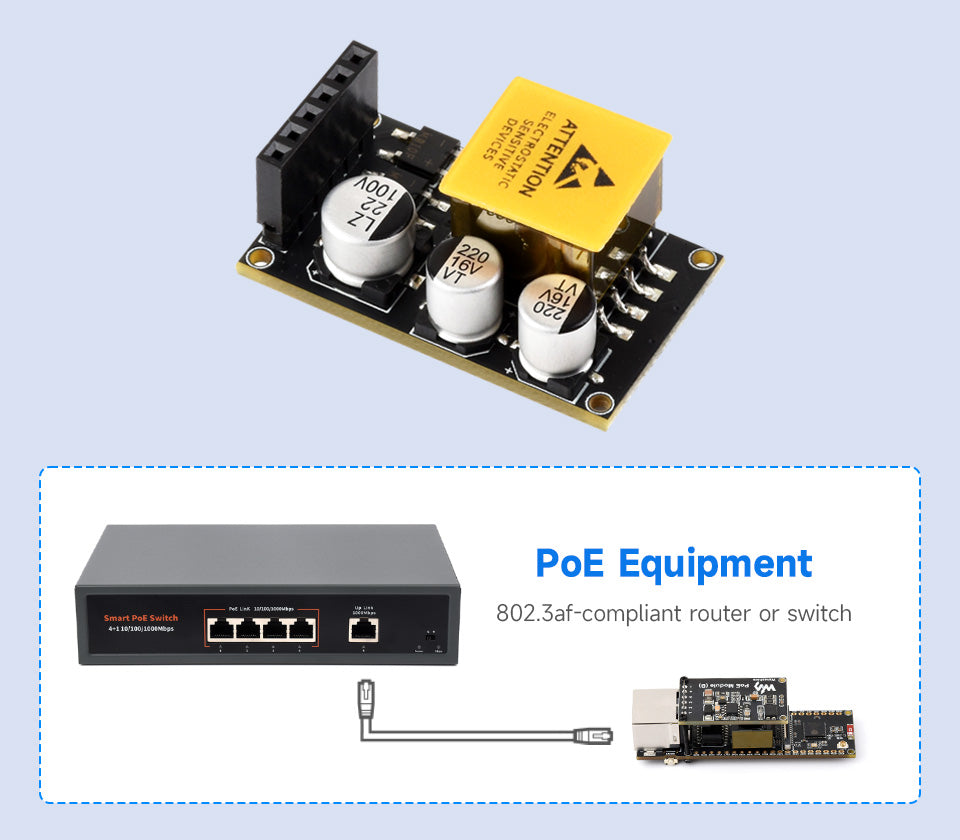

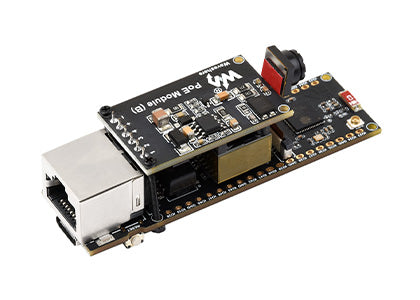

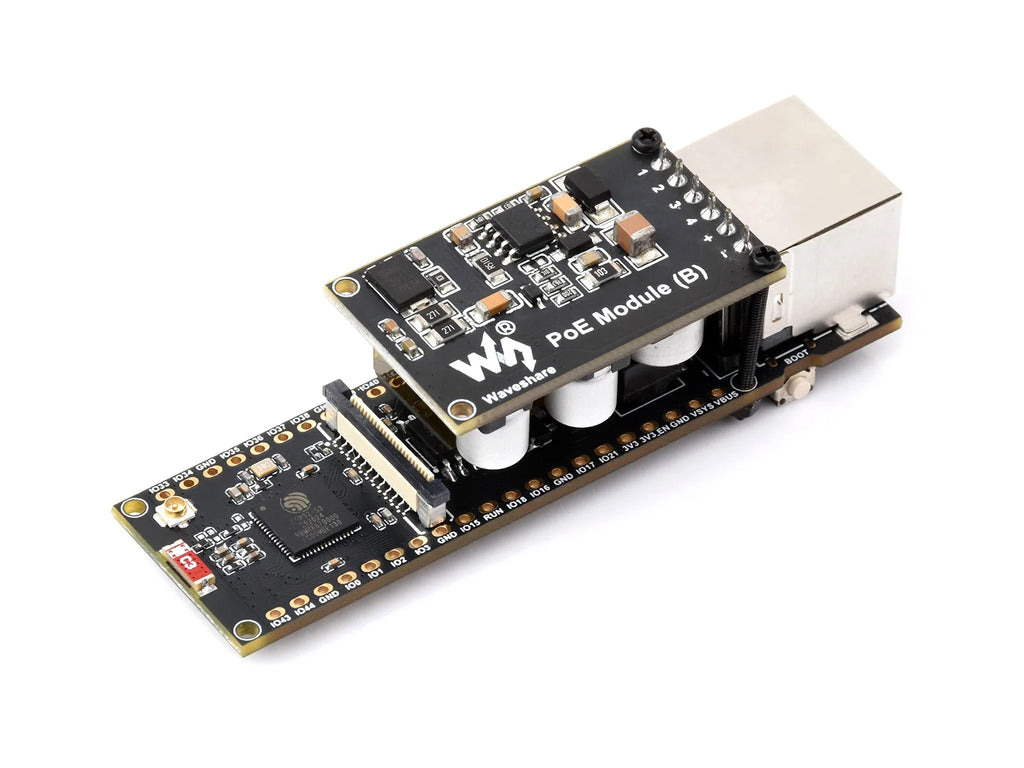

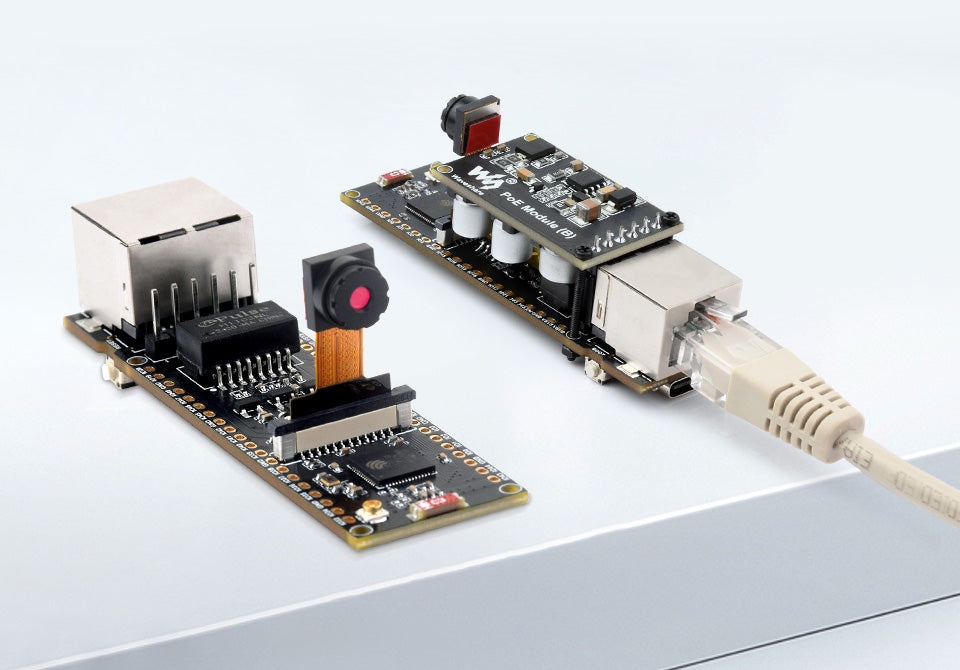

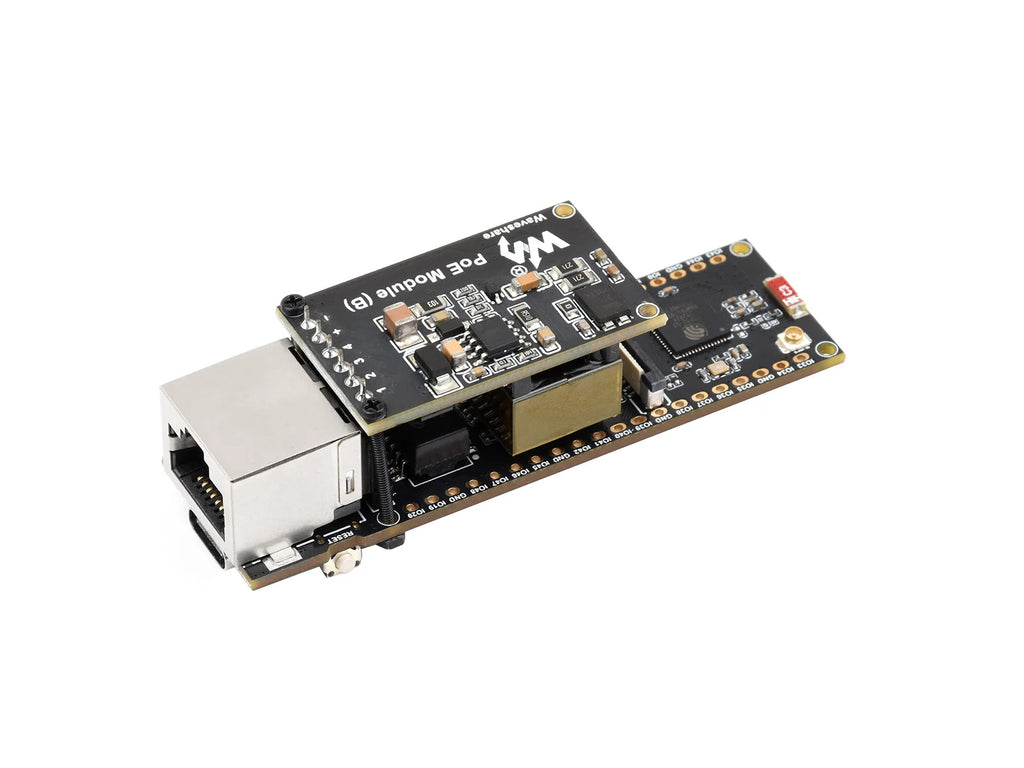

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.

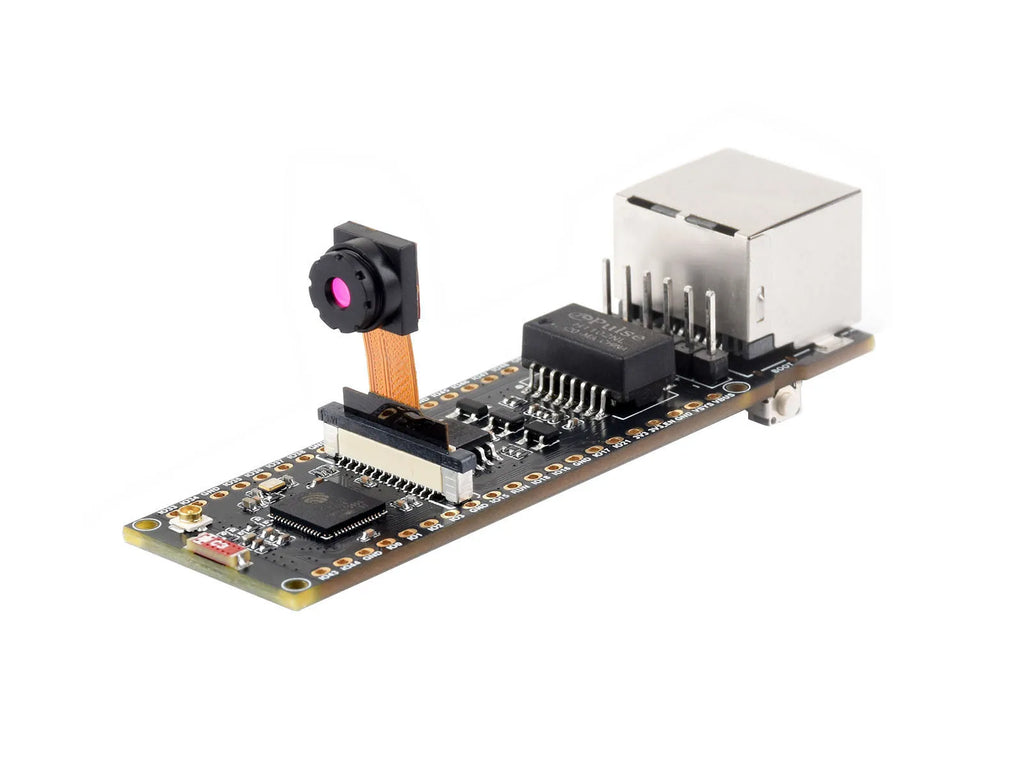

Supports OV5640 and other mainstream cameras

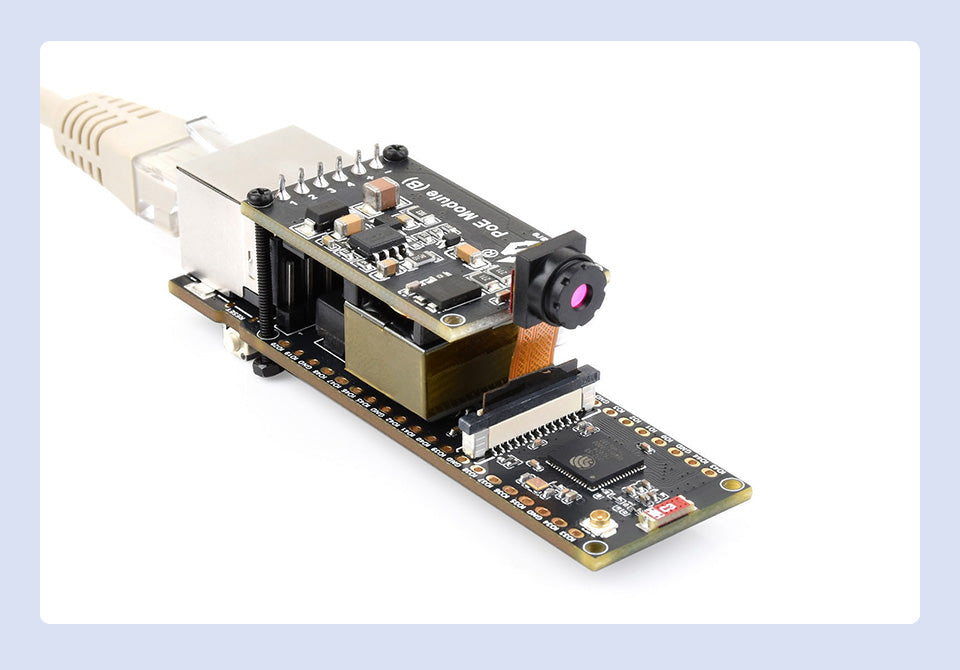

Optional for OV5640 5MP camera module, suitable for image capture, video monitoring and other applications to meet different needs

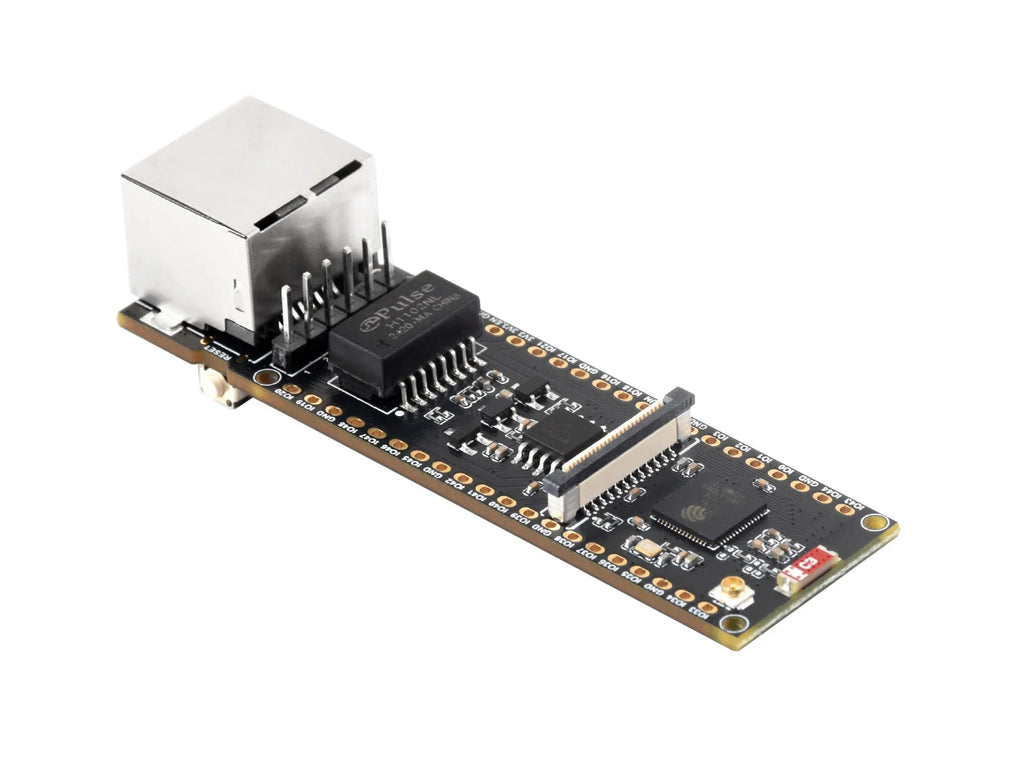

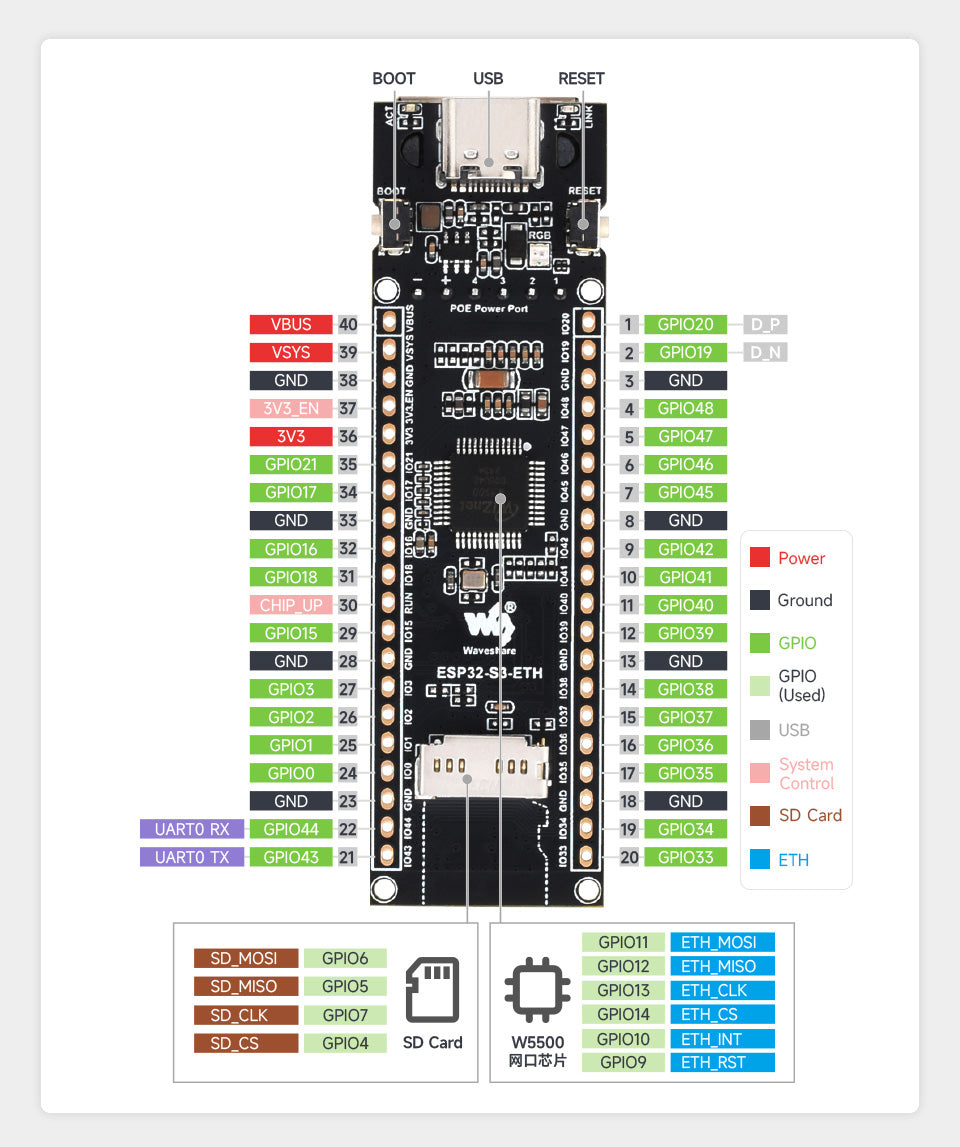

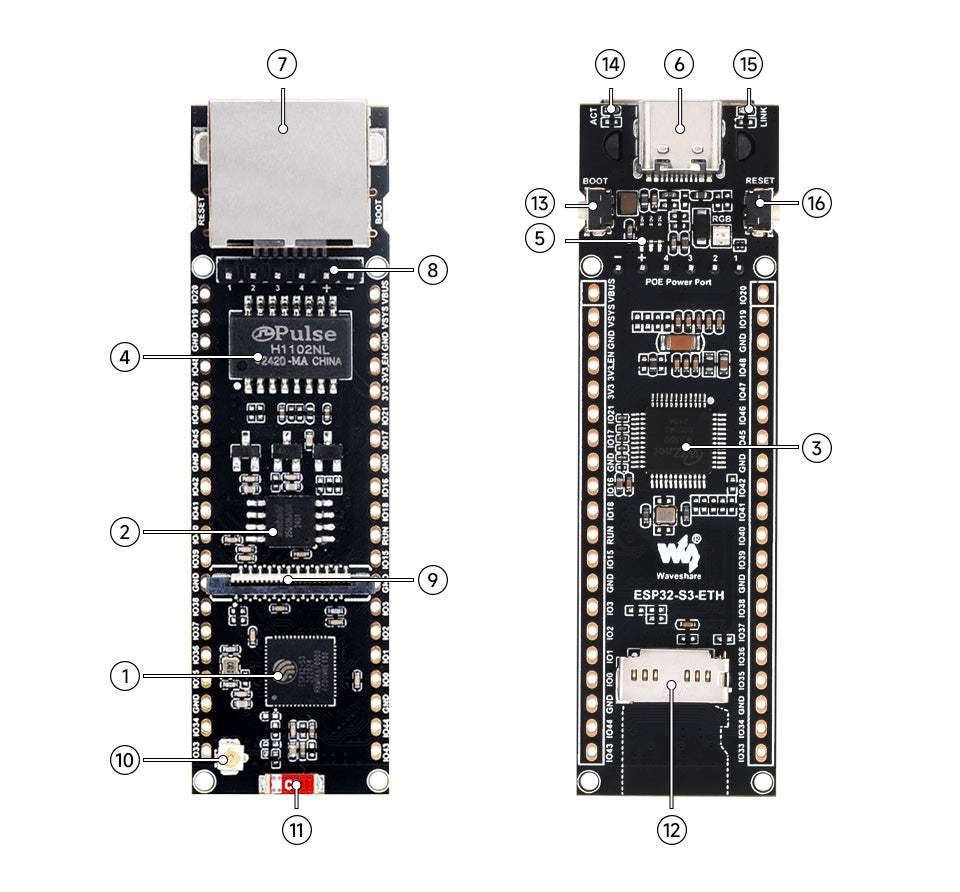

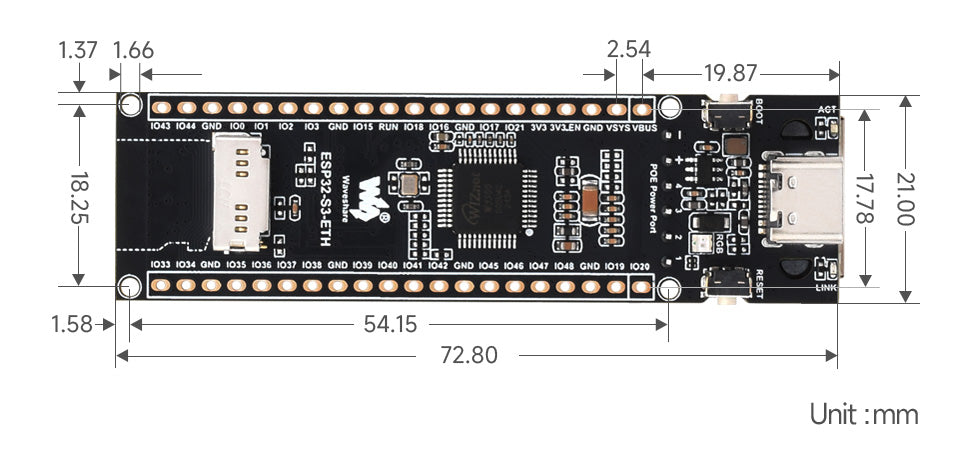

What's On Board

ESP32-S3R8
Xtensa 32-bit LX7 dual-core processor, up to 240MHz operating frequency
W25Q128
16MB Flash memory for program and data storage
W5500
Ethernet chip
H1102NLT
Ethernet transformer
JW5060
Voltage regulator
USB Type-C port
for power supply and program burning
RJ45 Ethernet port
10/100M auto-negotiation Ethernet port

PoE module header
for connecting PoE module

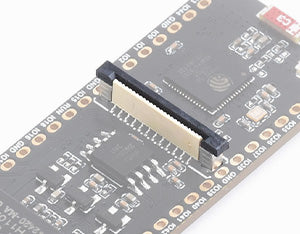

Camera interface
Compatible with OV5640 and other mainstream cameras
IPEX 1 antenna connector
Reserved connector, enabled via resoldering an onboard resistor
Ceramic antenna
used by default
TF card slot
BOOT button
ACT indicator
LINK indicator
RESET button
