SPECIFICATIONS

Notes:

The plug specifications corresponding to different regions are different. Please place an order according to the specifications that are suitable for use in your own country. Different specifications have different voltages.

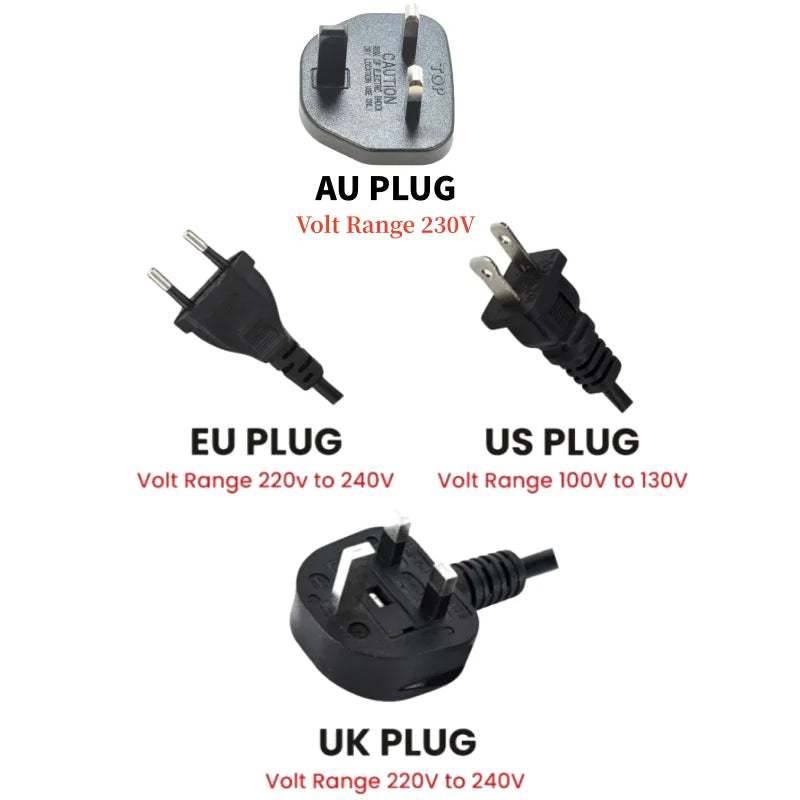

Plug type:

1-EU PLUG-Apply Russia/Europe/Spain

2-US PLUG-Apply Canada/USA/Mexico

3-UK PLUG-Apply to the UK and some Commonwealth countries

The classic FEITA 858D Hot Air Rework Station for Electronic Repair

APPLY TO VARIOUS SCENARIOS

• Mobile Phone Repair Shops

• Entry-Level Electronics Hobbyists

• Schools & Education Institutes

• Scientific Institutes

• Research & Development Labs

• Electronic Assembly Line

• √ Hot Air Soldering Station Zero-crossing triggering temperature control of microcomputer; Auto-cooling function, high-quality heating materials, long service life.

• √ High power, rapid rise of temperature, high and stable temperature;LED digital display, when the temperature is less than 70 degree, can stop rotation automatically.

• √ Adjust the air flow and temperature control keypad. Large and soft air flow via handle of rework station, air flow can be modulated via the knob.

• √ Brushless fan with soft air; Noise: Less than 45dB, has a long life span and little noise; Safely remove BAG- IC,keep pins intact.

• √ Soldering rework station operating voltage: 110V; Output Power: 500W; Air flow: Max. 120L/min; Component Length of Handle: ≦120cm.

• √ Automatic sleep & over temperature protection function: : I. Put the hot air handle on the bracket with the head facing upwards to stop the heat and only blow out air; II. When used 858D hot air gun's temperature exceeds 600 ℃, stop heating and only blow out air. All can extend the life of the heater and protect the hot air gun.

• √ FEITA 858D desoldering station kit includes: 1pc main unit, 1pc hot air gun handle, 3pcs Hot air round nozzles (3mm/0.11in, 5mm/0.20in, 75mm/0.30in), 1pc Spare Heating Element, 1pc US power cord, 1pc anti-static tweezer, 1pc hot air gun holder, 1pc manual.

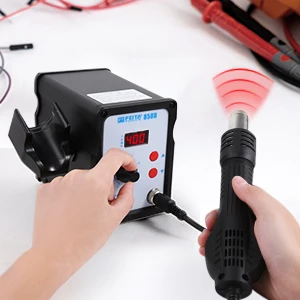

• Adjustable Air Volume



You can adjust airflow based on the size of your components, using lower airflow settings for small and lightweight components, or higher settings when you need to transfer heat to an area quickly.

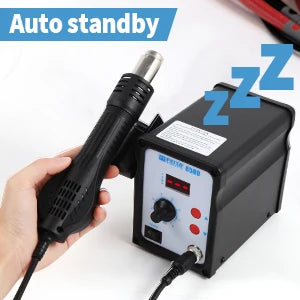

• Auto Standby



It greatly reduces unnecessary temperature loss when the hot air gun is not in use and improves the safety of users of the hot air gun. When you place the heat gun into the holder, the heat gun automatically cools down to 100°C and temporarily turns off until you pick it up again.

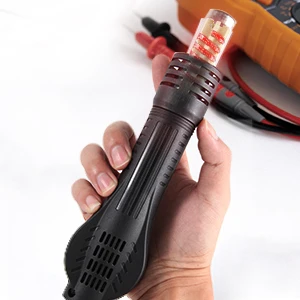

• Hot Air Desolder Gun



Optimized heating element design provides fast heating and reliable performance. A built-in temperature detector provides accurate actual temperature, protecting your components from temperature overshoots.

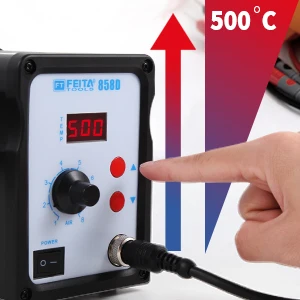

• Adjustable Temperature Settings



You can adjust the temperature setting from 100 to 500°C. The knob-type temperature adjustment can accurately adjust the value, increasing/decreasing by 1 unit each time.
