FNIRSI DSO-TC4/DSO-TC3 Digital Oscilloscope Transistor Tester 10MHz 48Ms/s Electronic Component Measurement Tool W/ USB Charger

FNIRSI DSO-TC4/DSO-TC3 Digital Oscilloscope Transistor Tester 10MHz 48Ms/s Electronic Component Measurement Tool W/ USB Charger

$304.36

$304.36 $0.00

Description

SPECIFICATIONS

AC Voltage: 3V

Battery Included: Yes

Brand Name: FNIRSI

DC Voltage: 3V

DIY Supplies: Electrical

Display Type: Digital Display

High-concerned chemical: none

Languages: Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian

Model Number: DSO-TC4

Operating Mode: Auto Range

Origin: Mainland China

Semi-finishedproduct: No

Product Description:

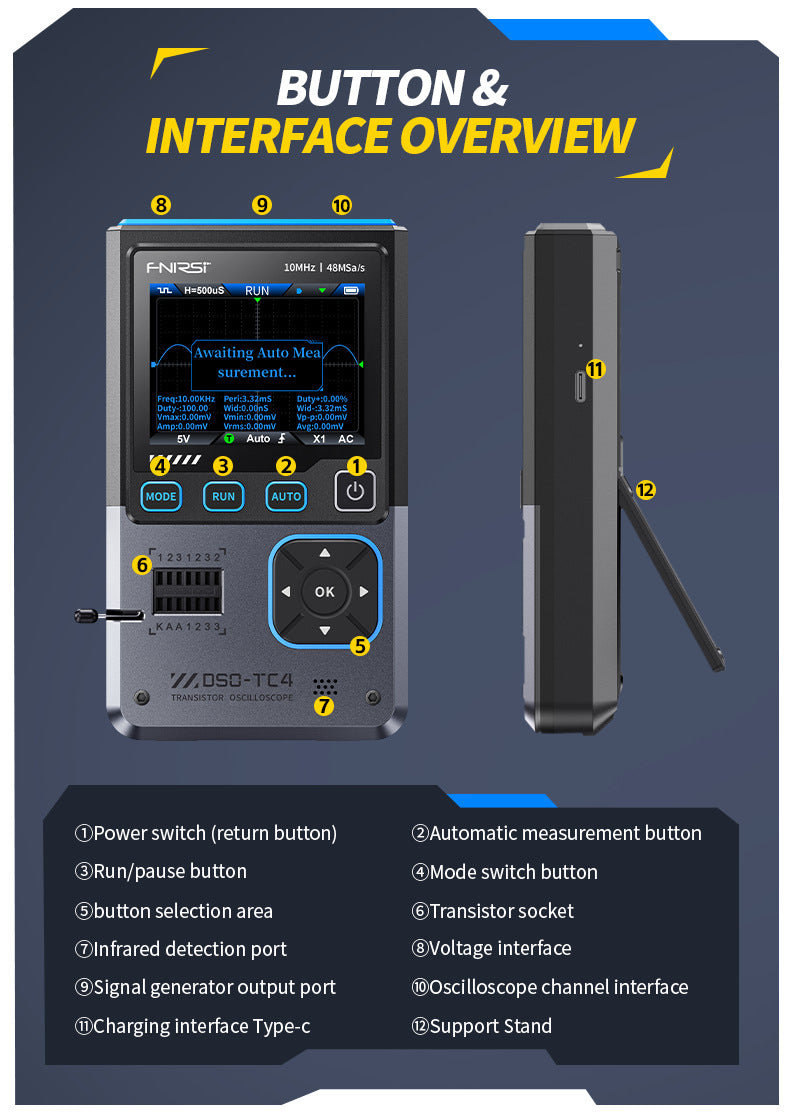

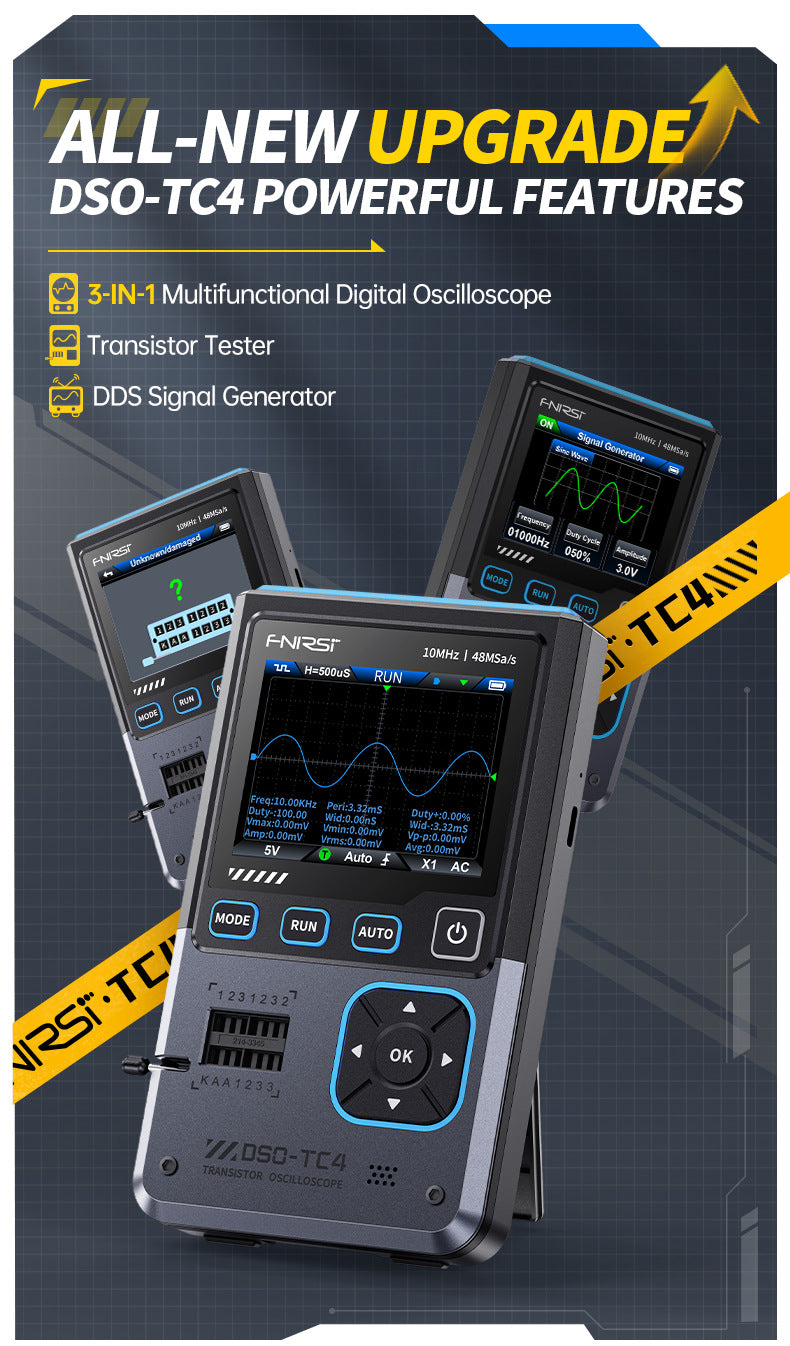

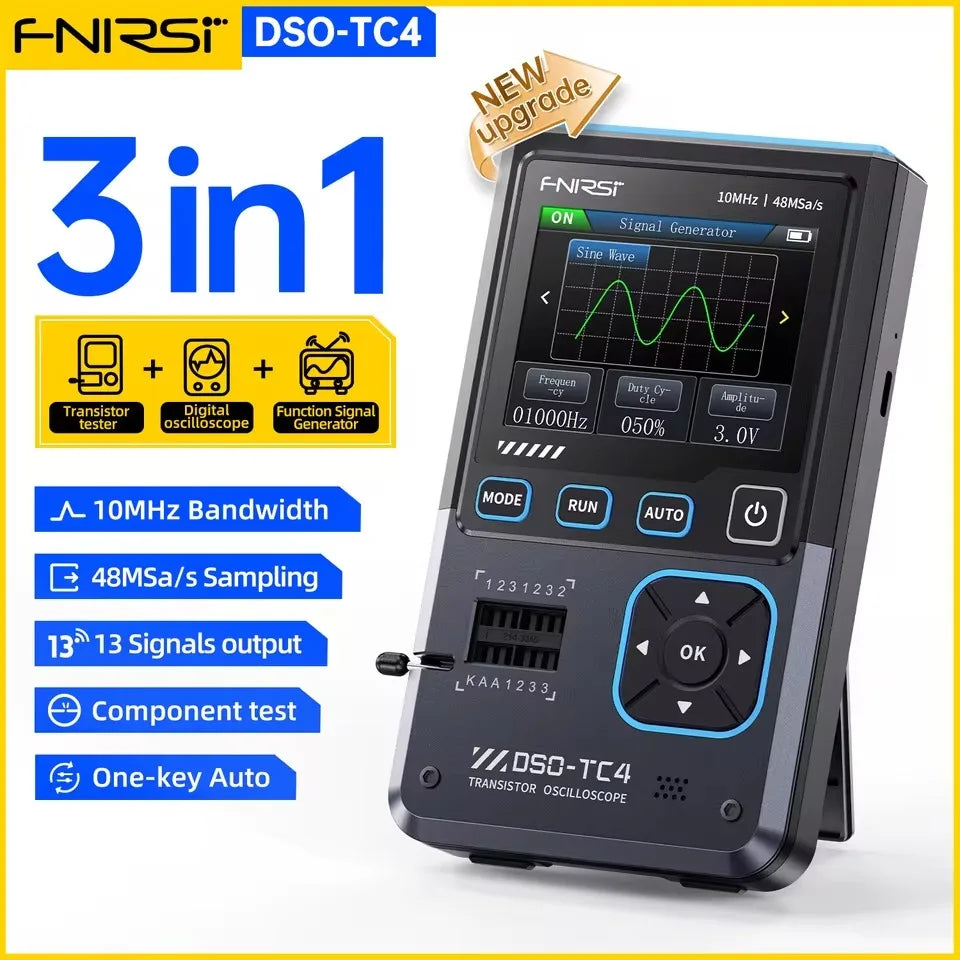

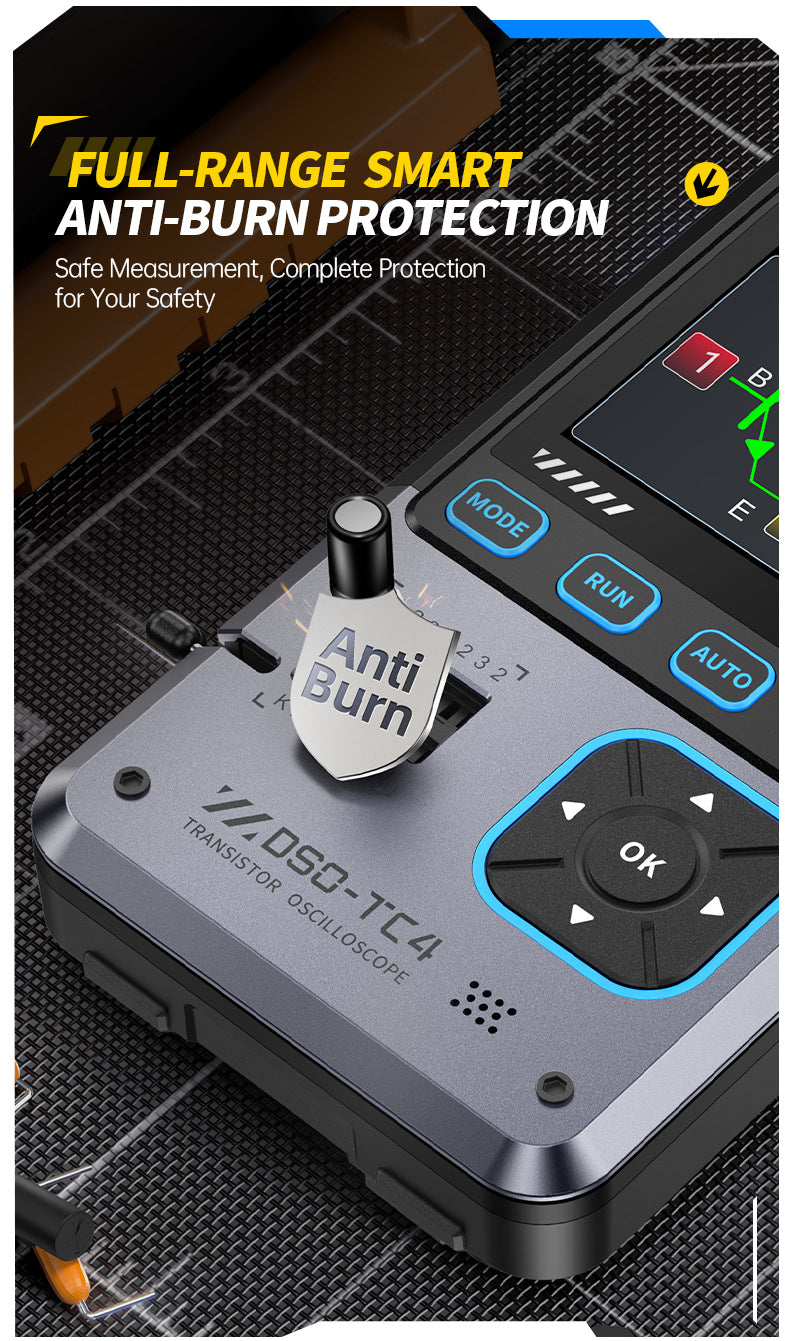

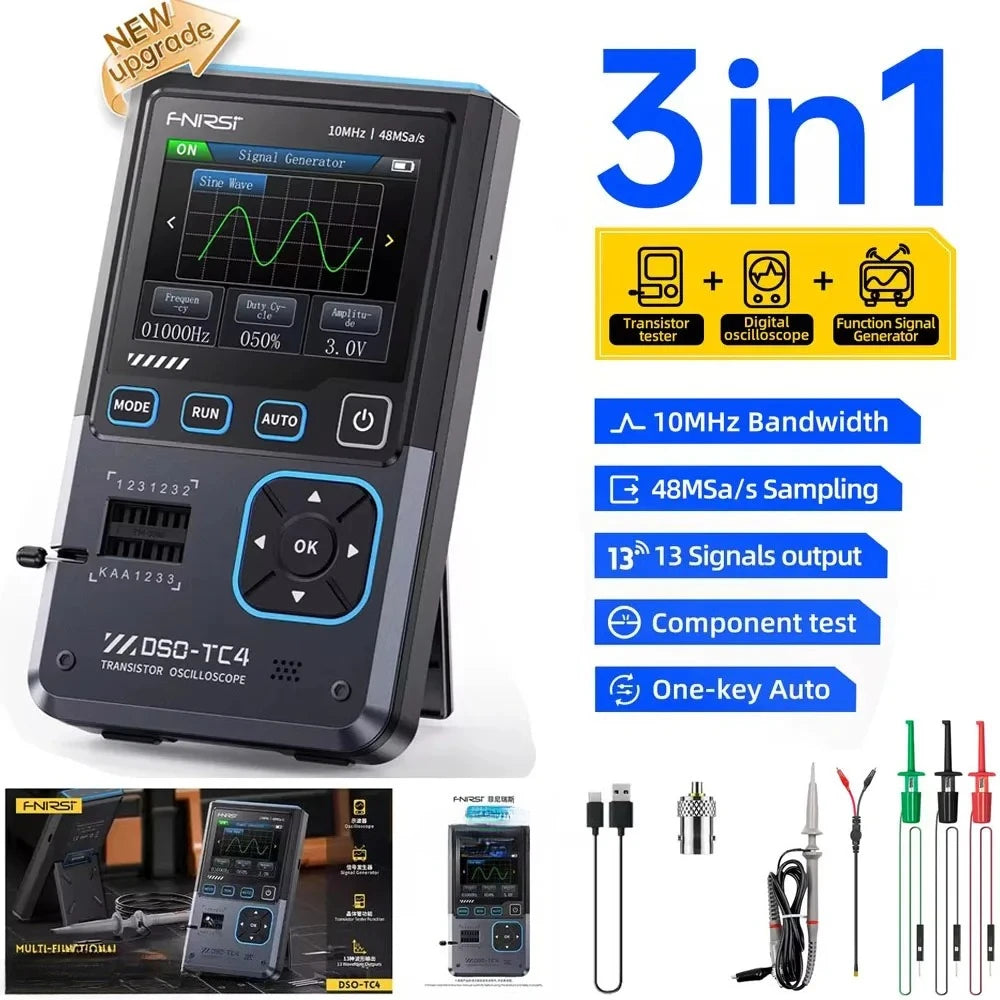

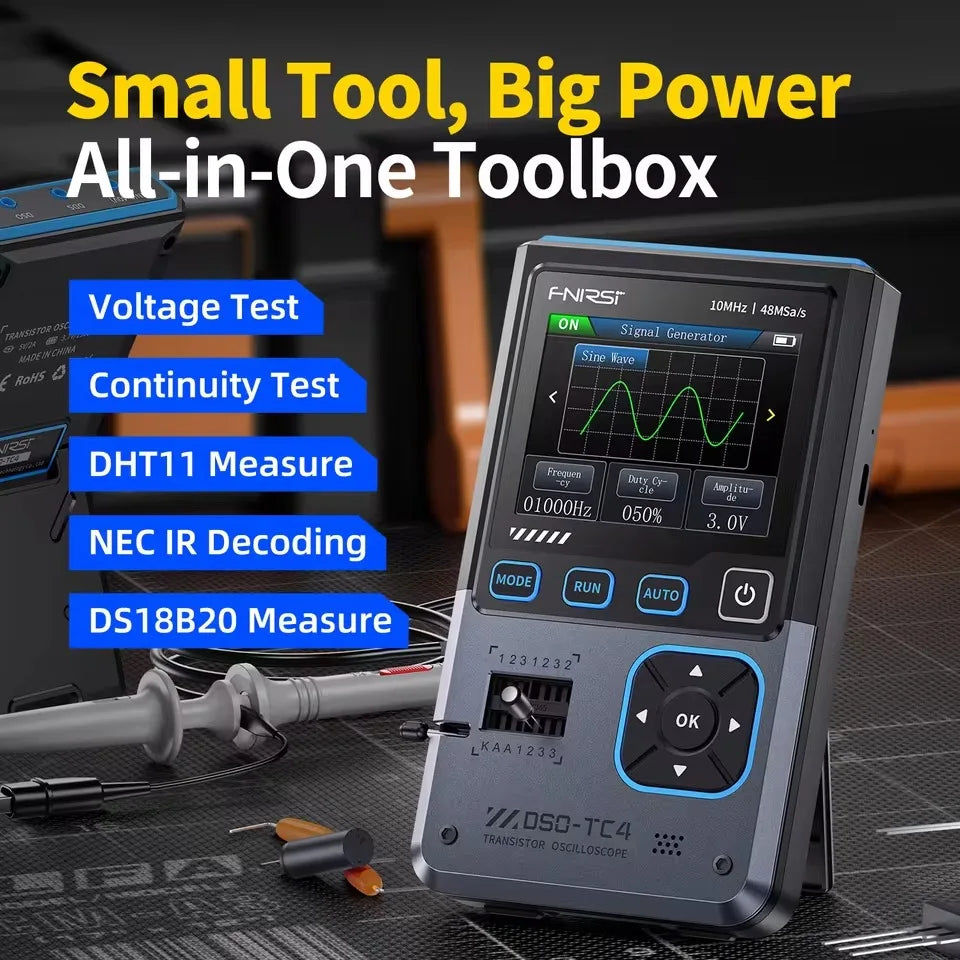

DSO-TC4 is a multifunctional transistor oscilloscope launched by FNIRSI, which is comprehensive and practical, and is designed for the maintenance and R&D industries. It integrates an oscilloscope, a signal generator, and a transistor.

The main features of the product are:

Oscilloscope functions:

• Sampling rate: 48MSa/s

• Analog bandwidth: 10MHz

• Voltage protection: ±400V

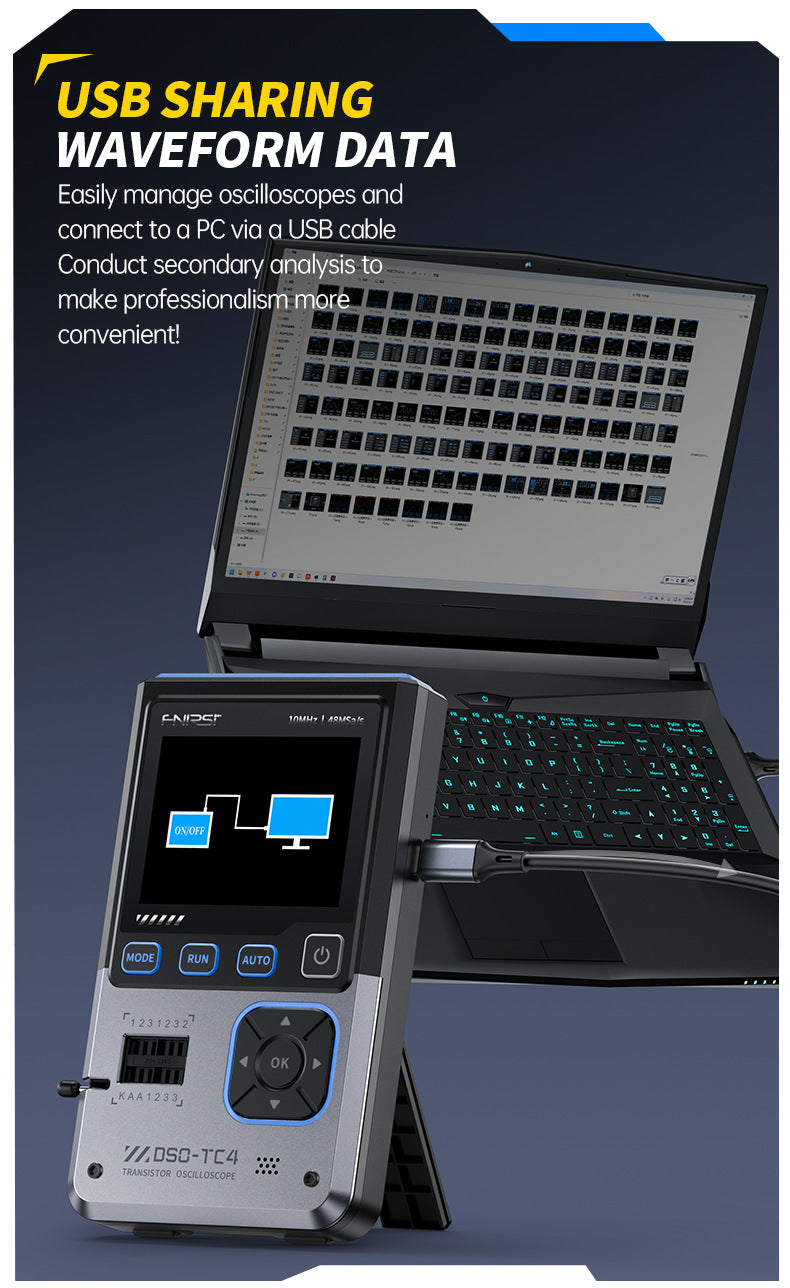

• Waveform storage: supports screenshot saving and viewing, which is convenient for data

analysis

Signal generator function：

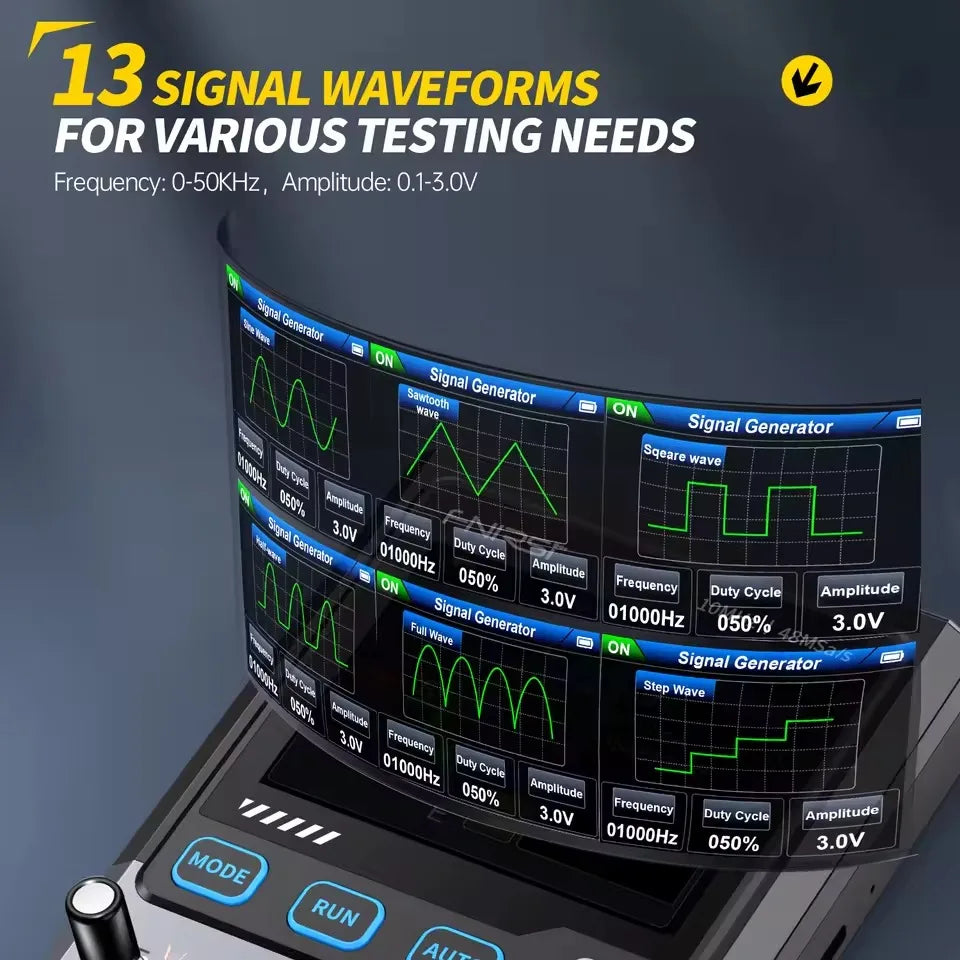

• Supports 13 waveform outputs, frequency range 0-50KHz, output voltage adjustable 0-3v.

• Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meet

various needs

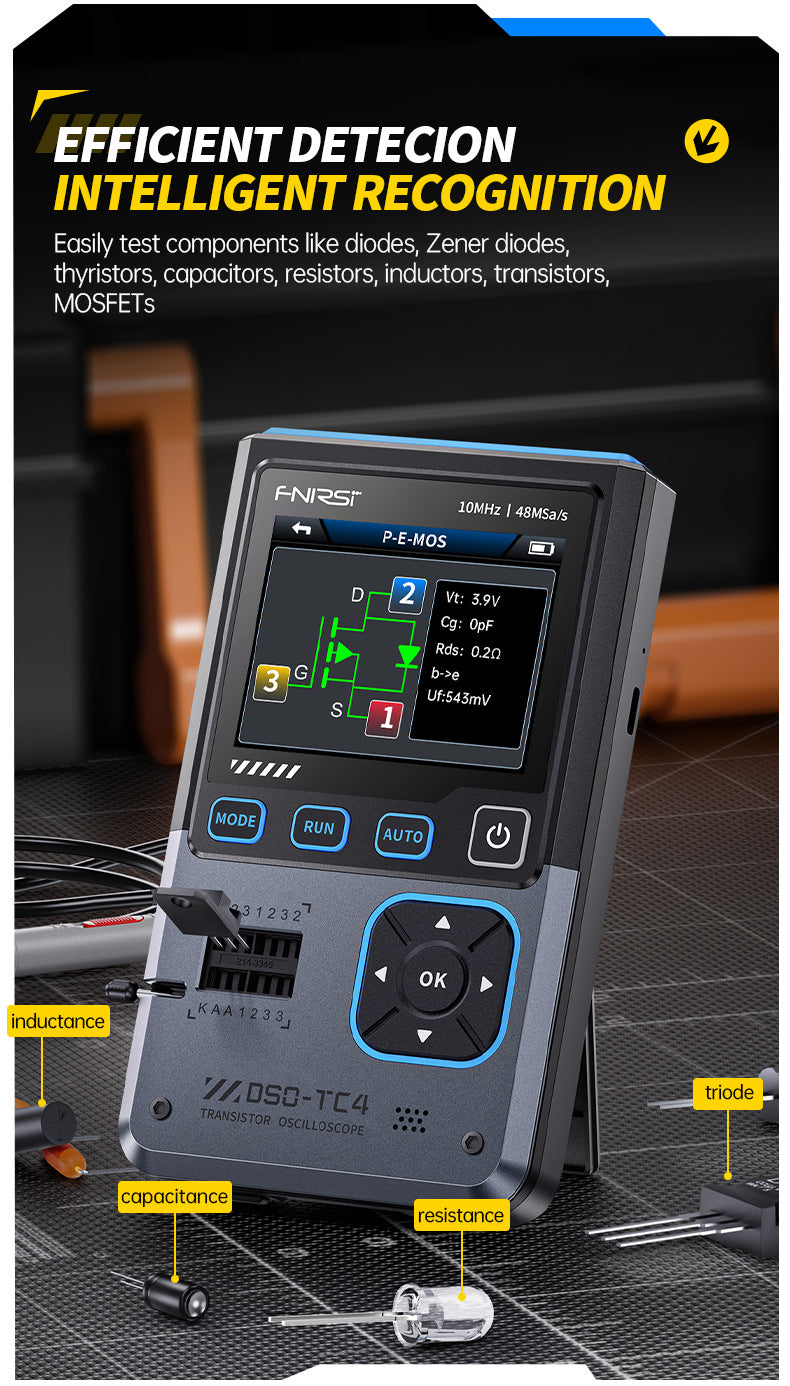

Transistor function：

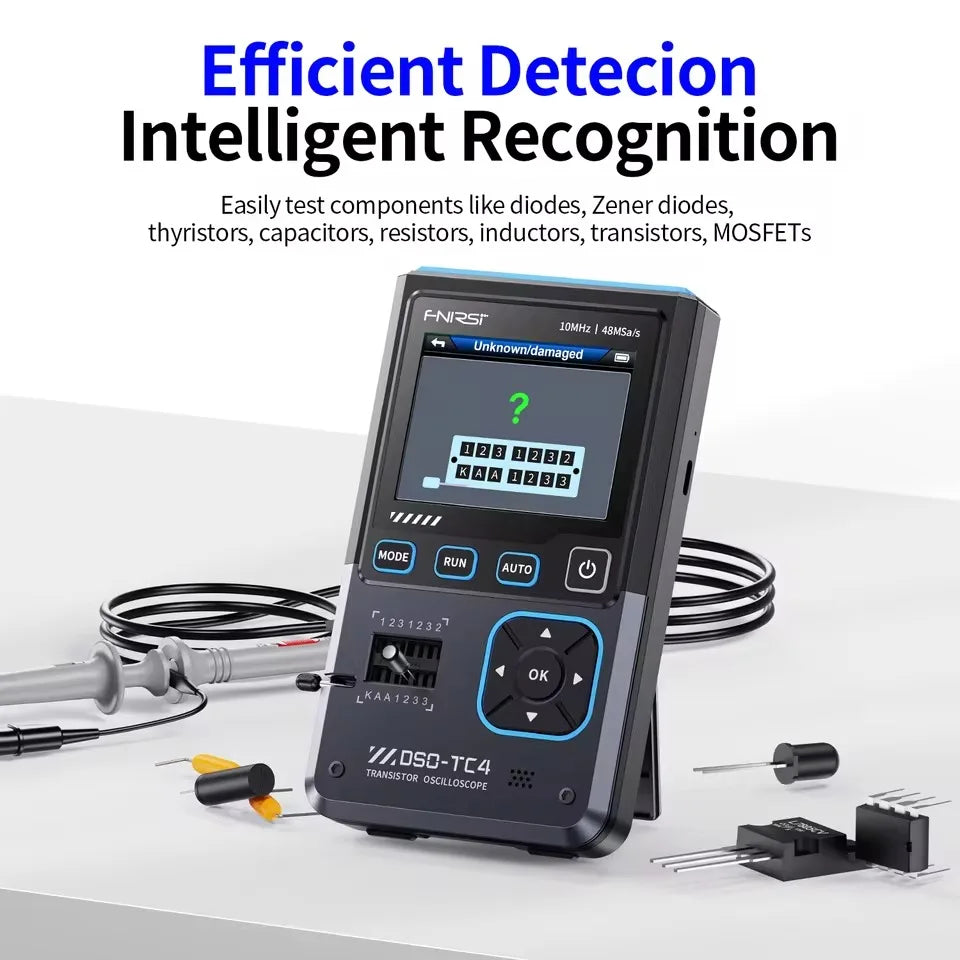

• High efficiency: Automatically identify the type and pin arrangement of the tested

component, simplify the operation process, and improve test efficiency

• Diverse categories: Detect and analyze the performance and characteristics of

semiconductor components such as transistors, diodes, triodes, field effect (FET), etc.

Portable design:

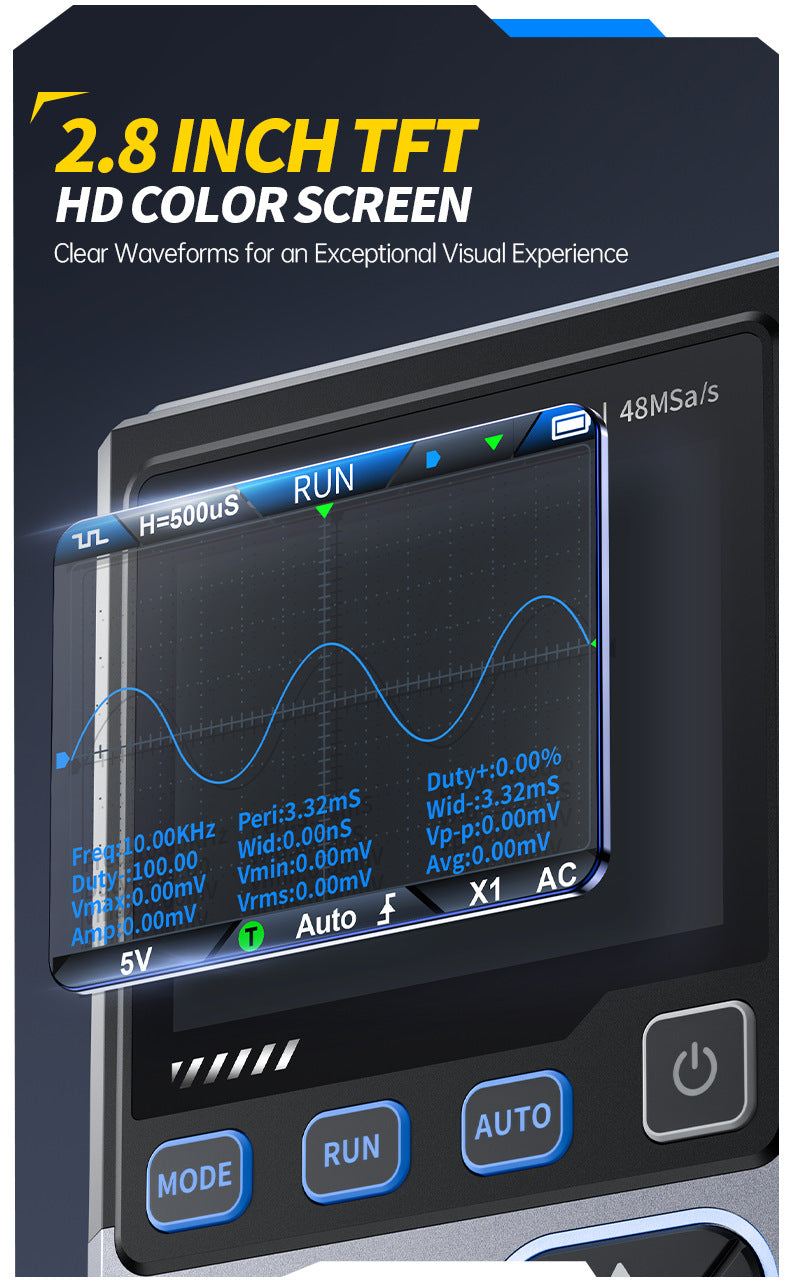

• Equipped with a 2.8-inch TFT color screen, the picture is clear and intuitive

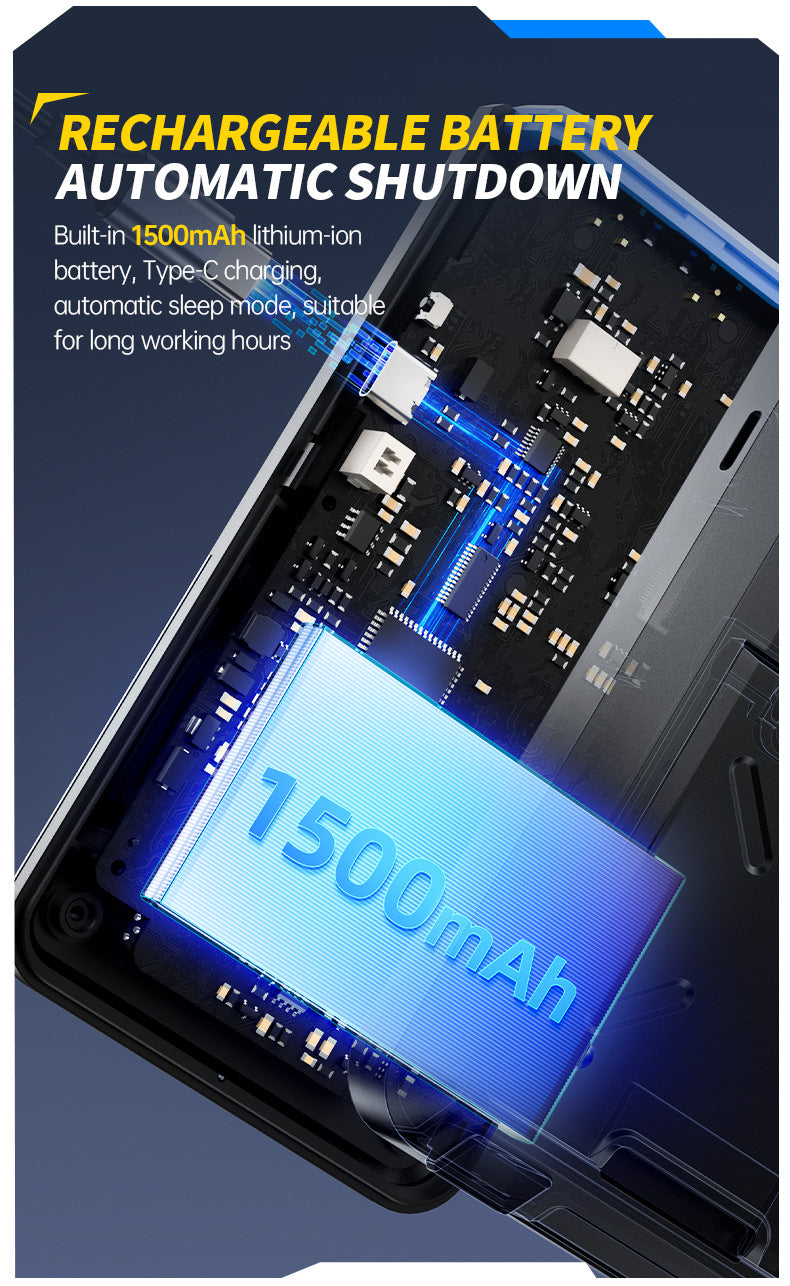

• Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours

• Small and light, suitable for mobile use.

FNIRSI-DSO-TC4 is committed to providing users with powerful, flexible functions and portable operation experience, and is an ideal tool for maintenance and R&D work.

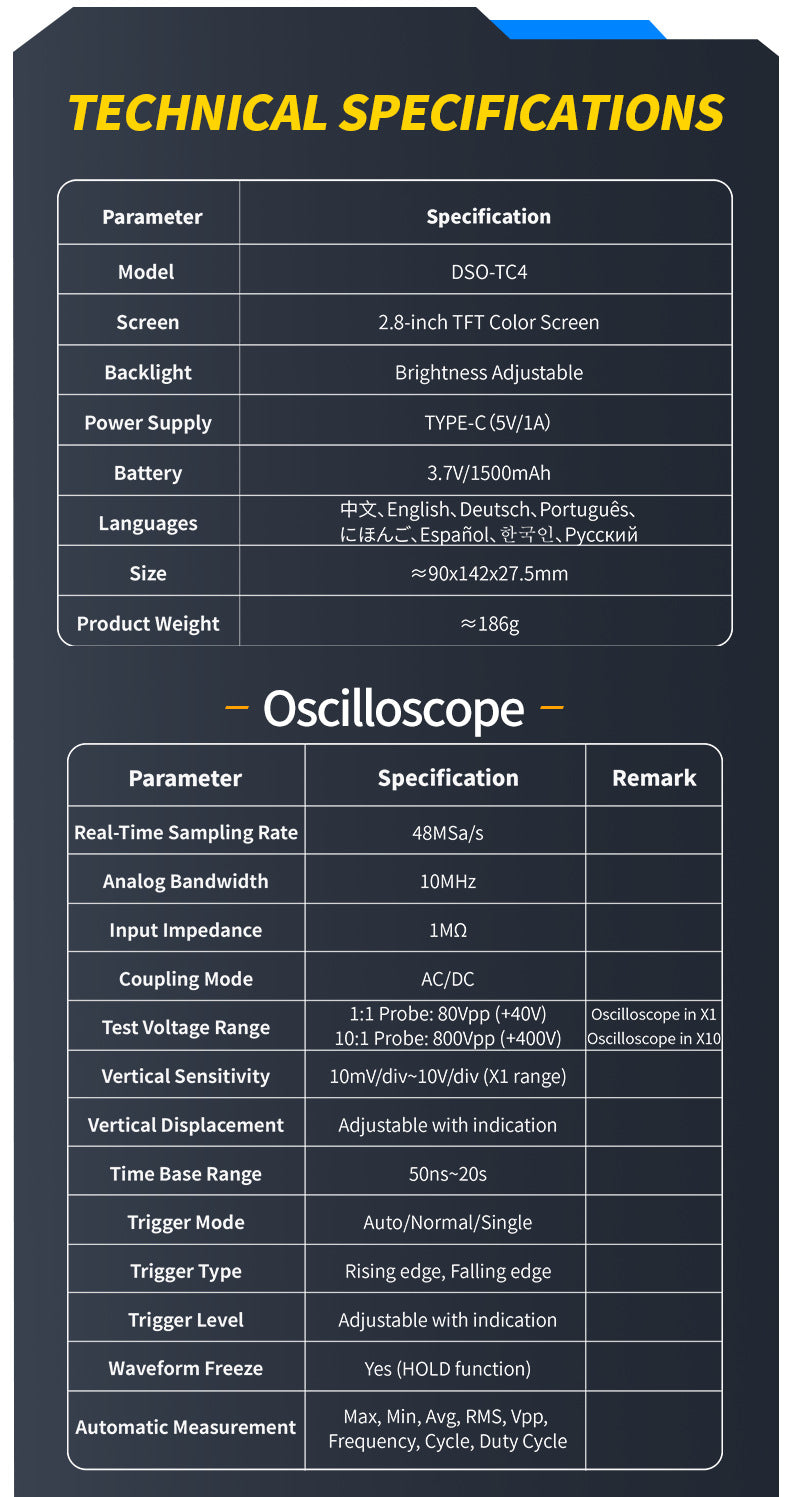

Product Parameters:

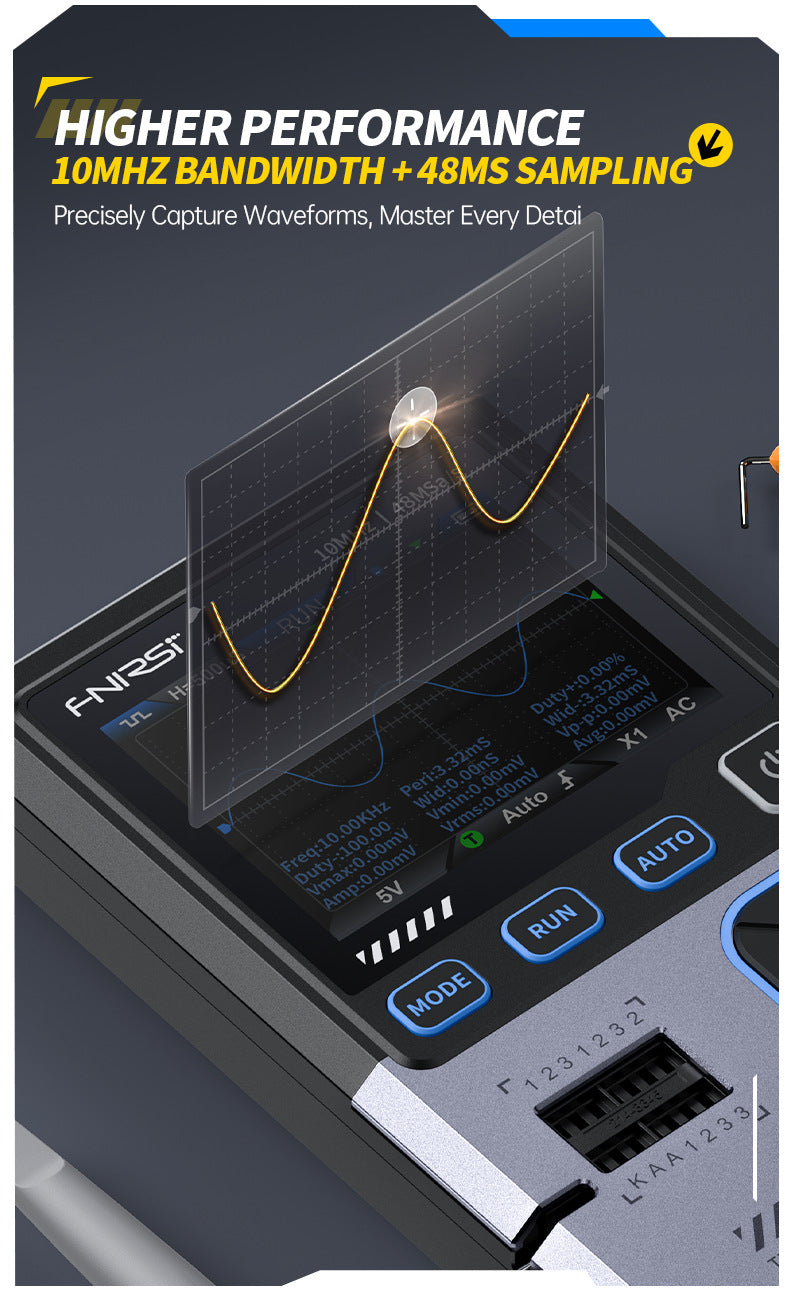

3.1 Oscilloscope Parameters

Real-Time Sampling Rate：48MSa/s

Analog Bandwidth：10MHz

Input Impedance：1MΩ

Coupling Mode：AC/DC

Test Voltage Range：1:1 Probe: 80Vpp (+40V)

10:1 Probe: 800Vpp (+400V)

Vertical Sensitivity：10mV/div~10V/div (X1 range)

Vertical Displacement：Adjustable with indication

Time Base Range：50ns~20s

Trigger Mode：Auto/Normal/Single

Trigger Type：Rising edge, Falling edge

Trigger Level：Adjustable with indication

Waveform Freeze：Yes (HOLD function)

Automatic Measurement：Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle

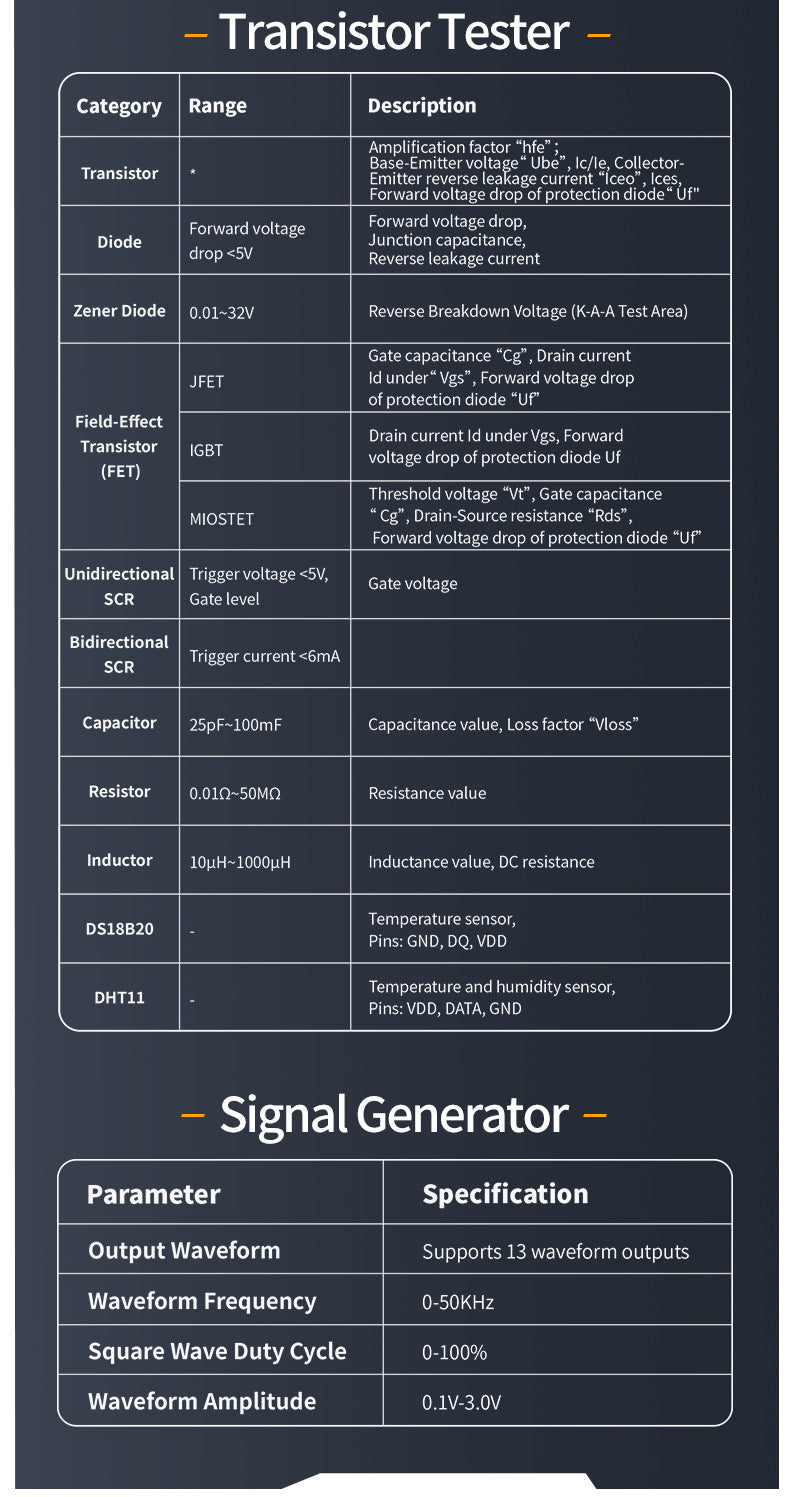

3.2 Componet Tester Parameters

Transistor Test：Support

Diode Test：Forward voltage drop <5V

Zener Diode Test：0.01~4.5V

Field-Effect Transistor (FET) Test：JFET, IGBT, MIOSTET

Unidirectional SCR Test：Trigger voltage <5V, Gate level

Bidirectional SCR Test：Trigger current <6mA

Capacitor Test：25pF~1000μF

Resistor Test：0.01Ω~50MΩ

Inductor Test：10μH~1000μH

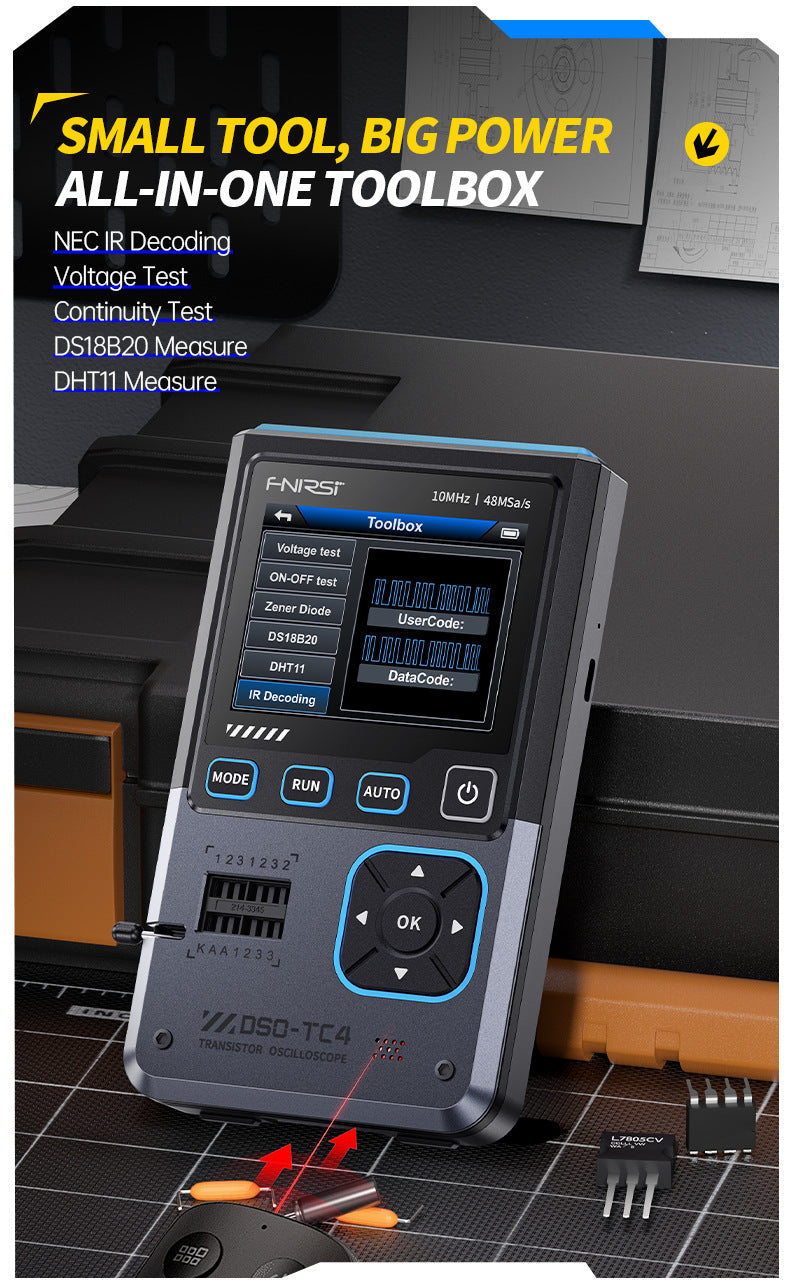

DS18B20 Test：Support

DHT11 Test：Support

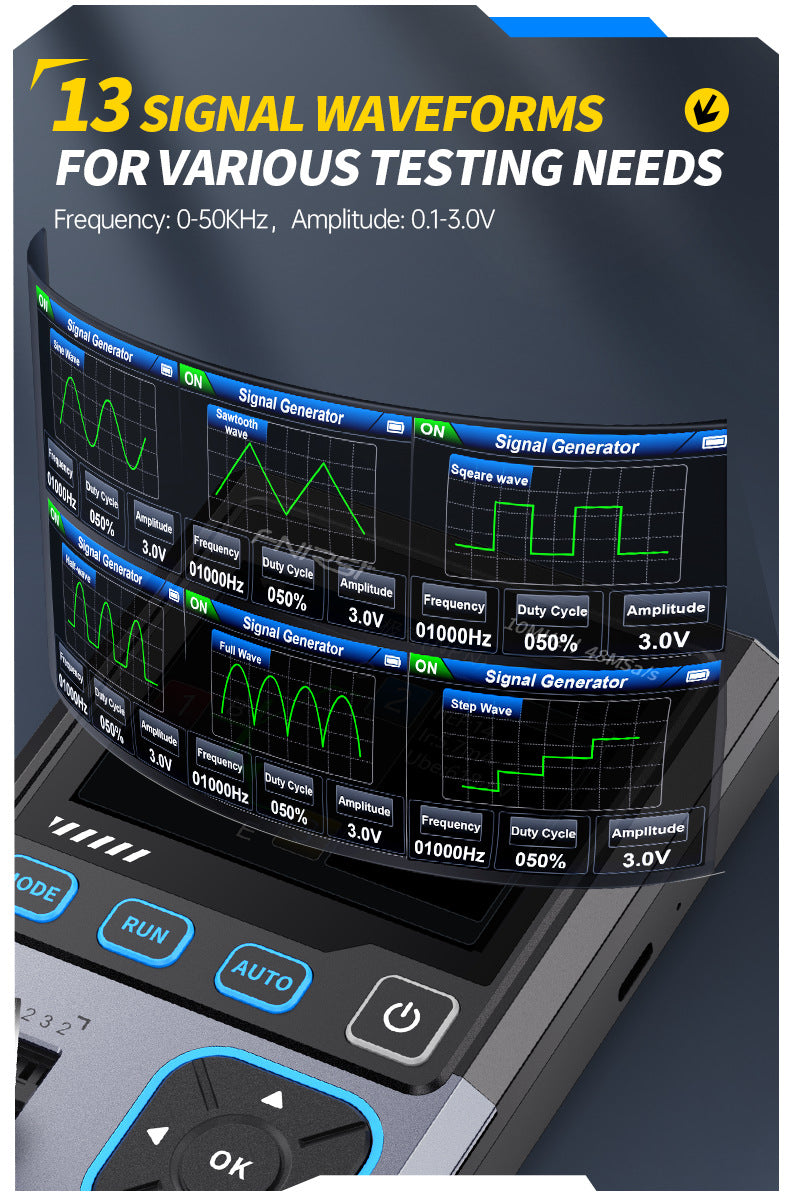

3.3 Signal Generator Parameters

Output WaveformSupports 13 waveform outputs

Waveform Frequency0-50KHz

Square Wave Duty Cycle0-100%

Waveform Amplitude0.1V-3.0V

3.4 Basic Parameters

Model：DSO-TC4

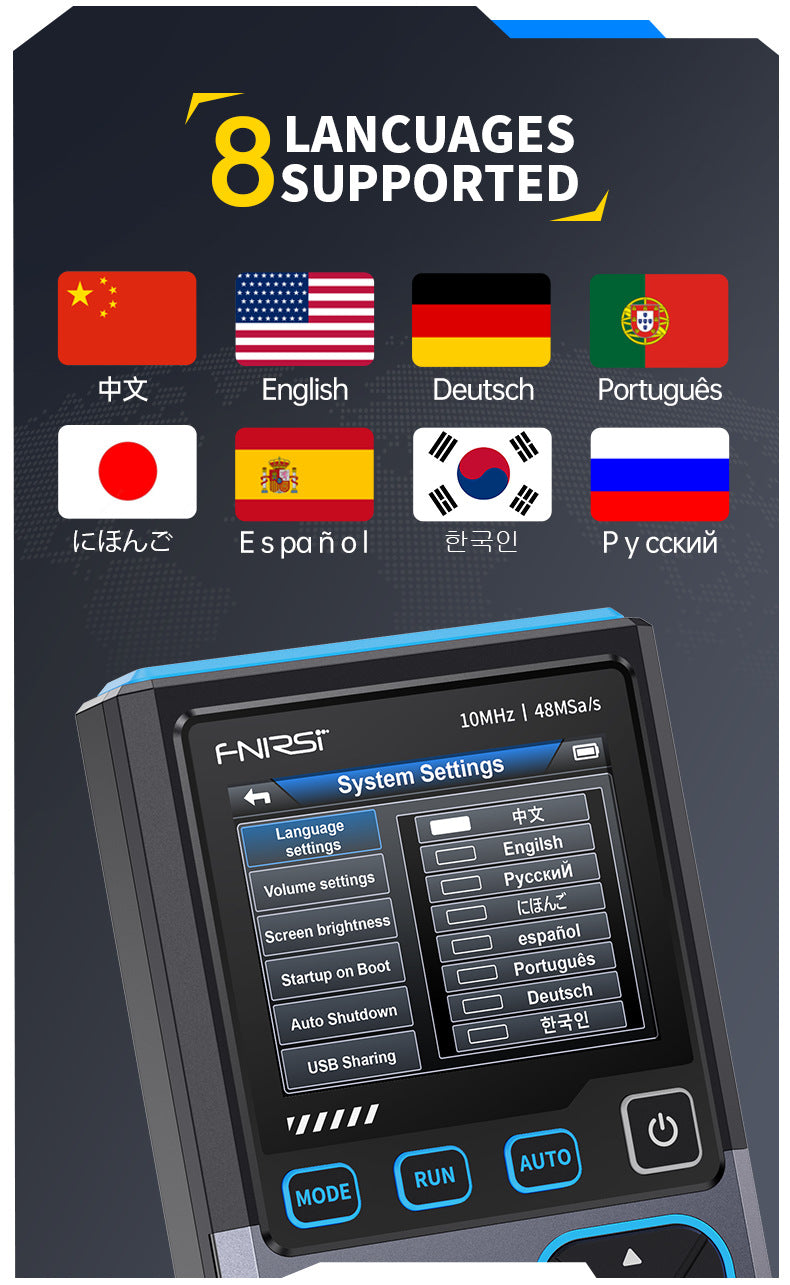

Languages：中文、English、Deutsch、Português、にほんご、Español、한국인、Pyccкий

Screen：2.8-inch TFT Color Screen

Backlight：Brightness Adjustable

Power Supply：TYPE-C（5V/1A）

Battery：3.7V/1500mAh

Size：≈90x142x27.5mm

Product Weight：≈186g

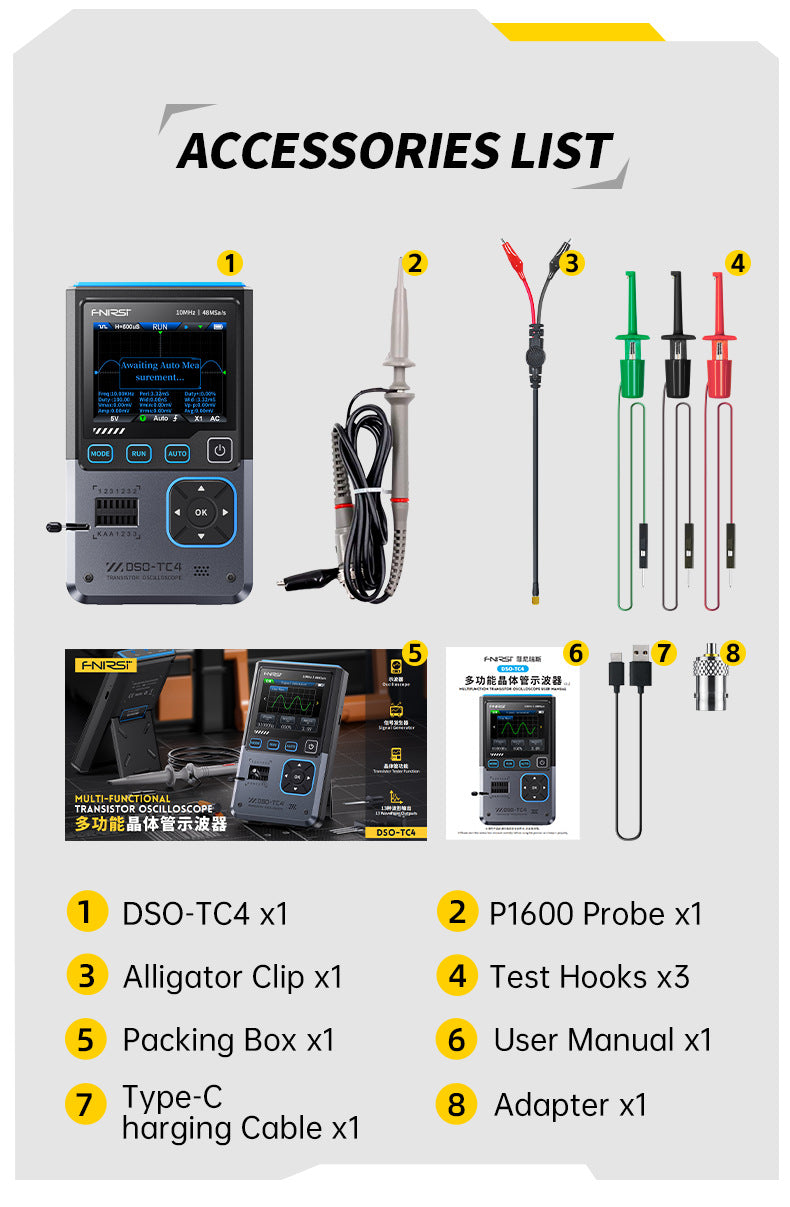

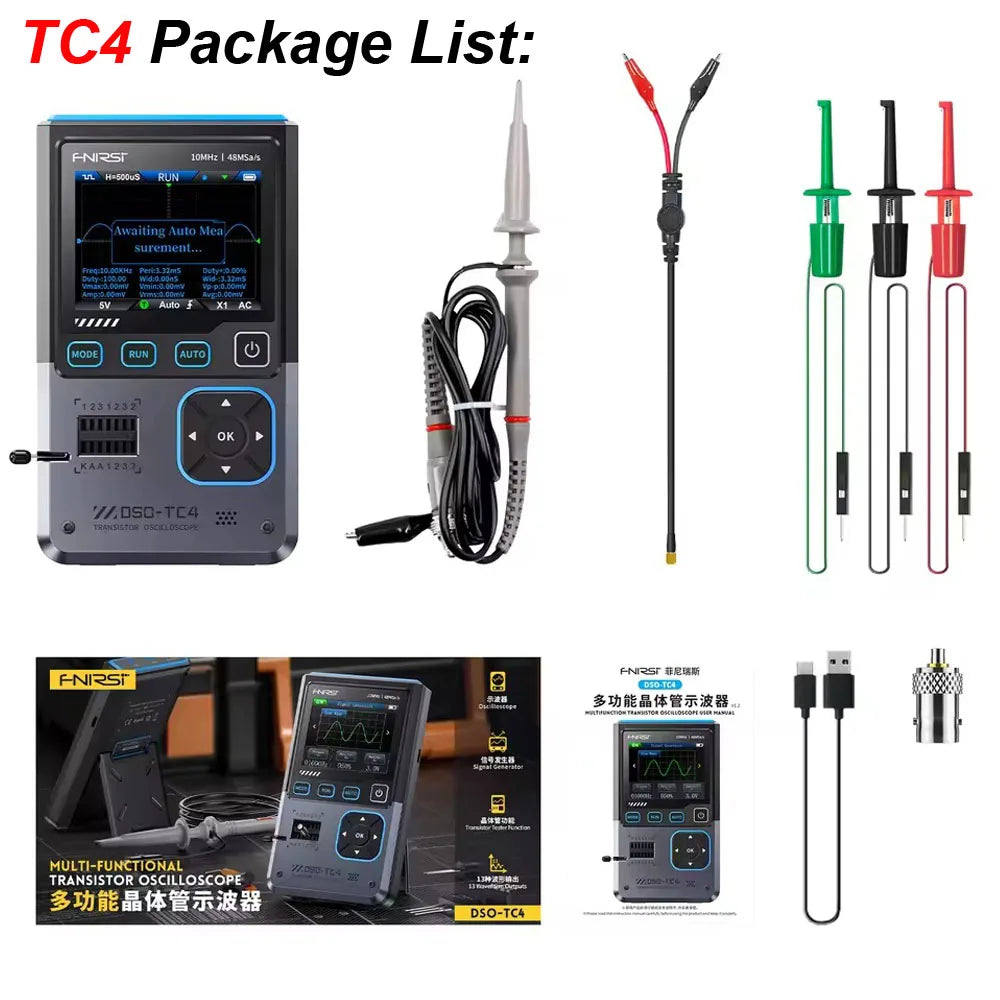

Packing List:

DSO-TC4 Host *1

Test Hook *3

P6100 Probe *1

Alligator Clip Probe *1

USB Type-C *1

User Manual *1

Package Box *1

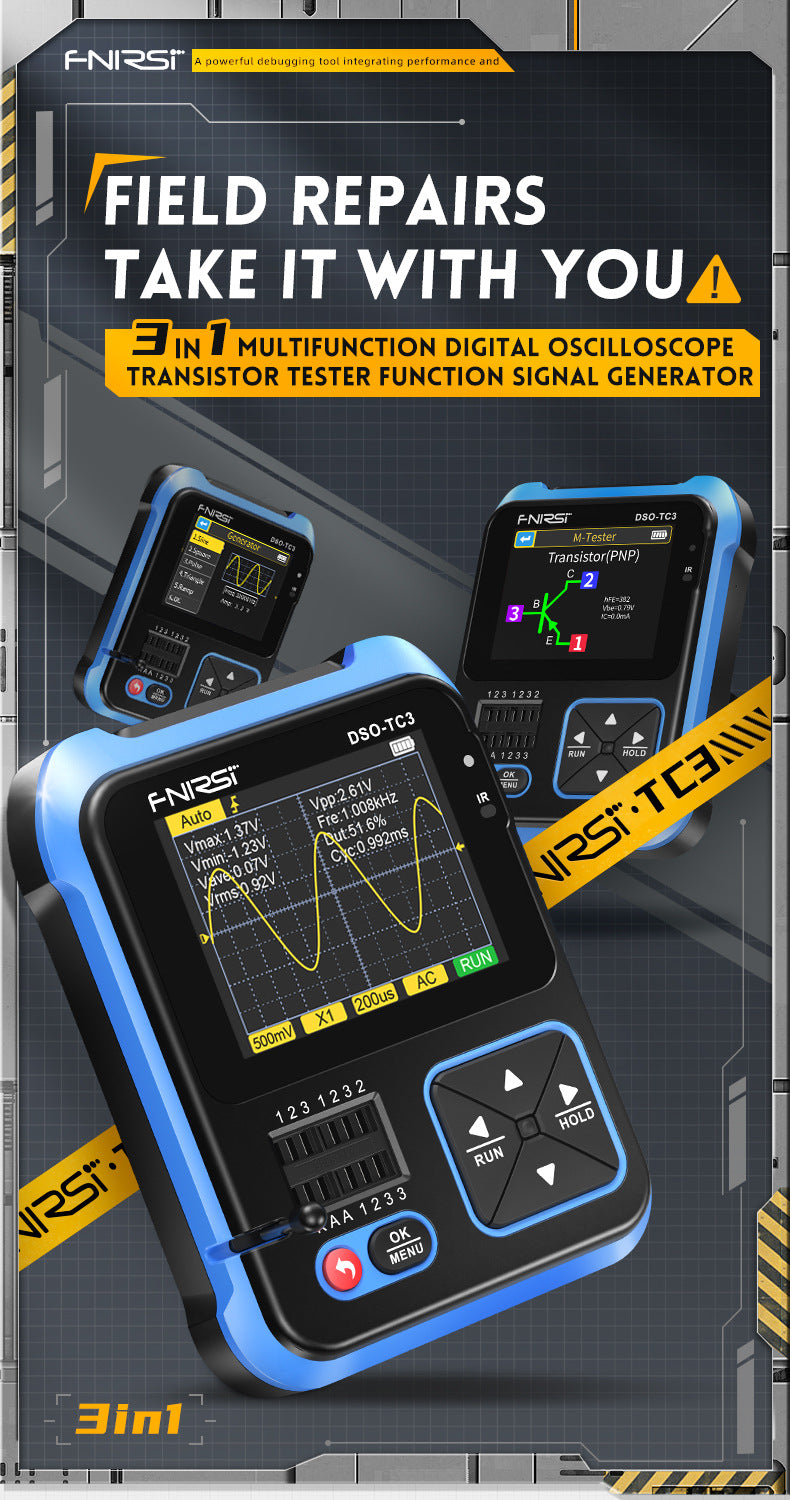

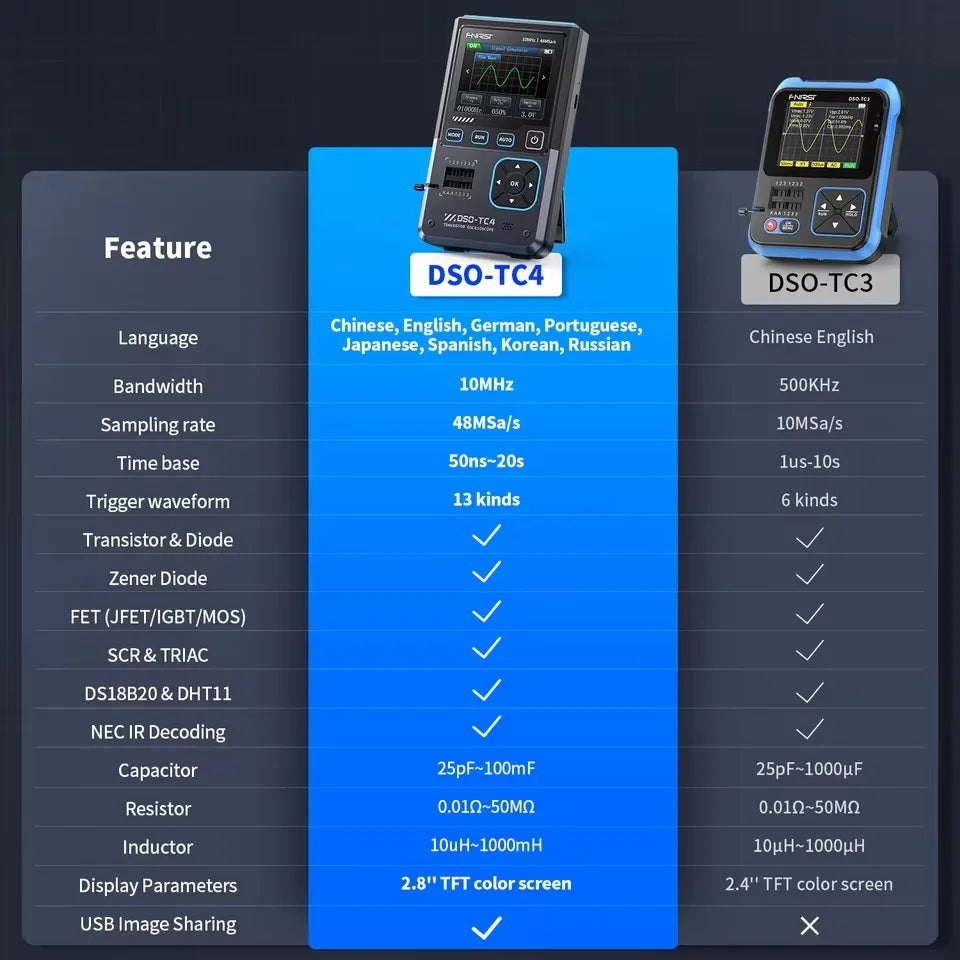

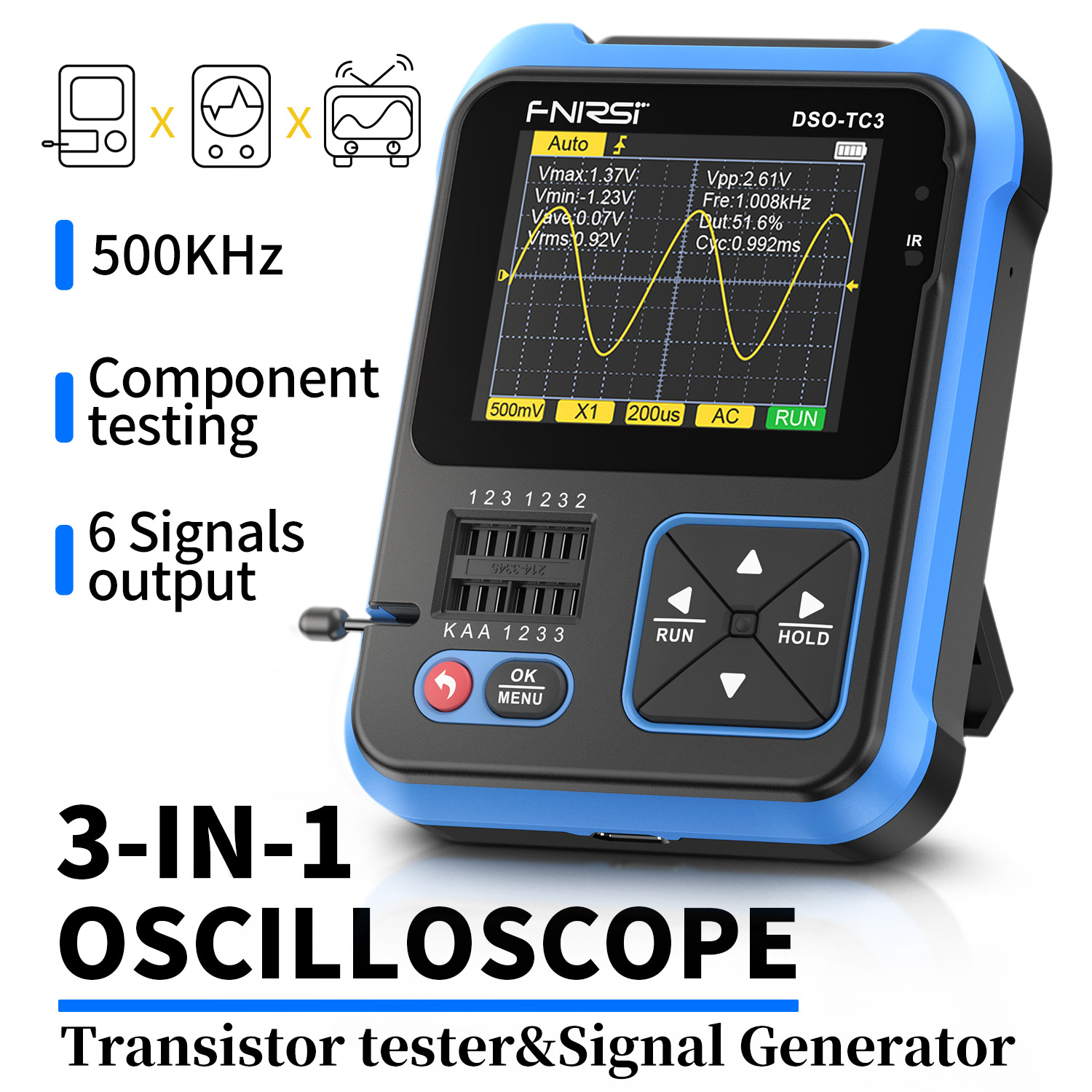

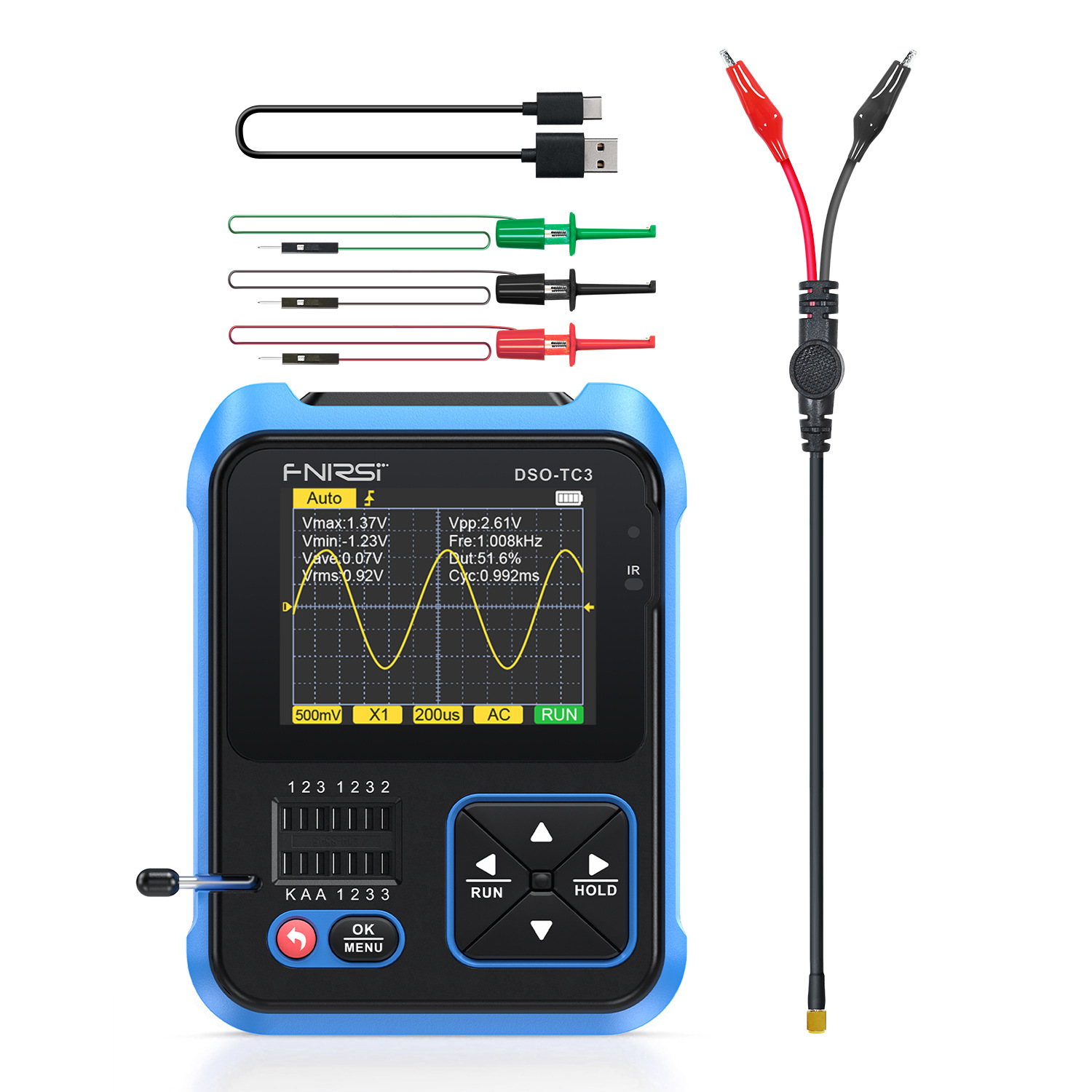

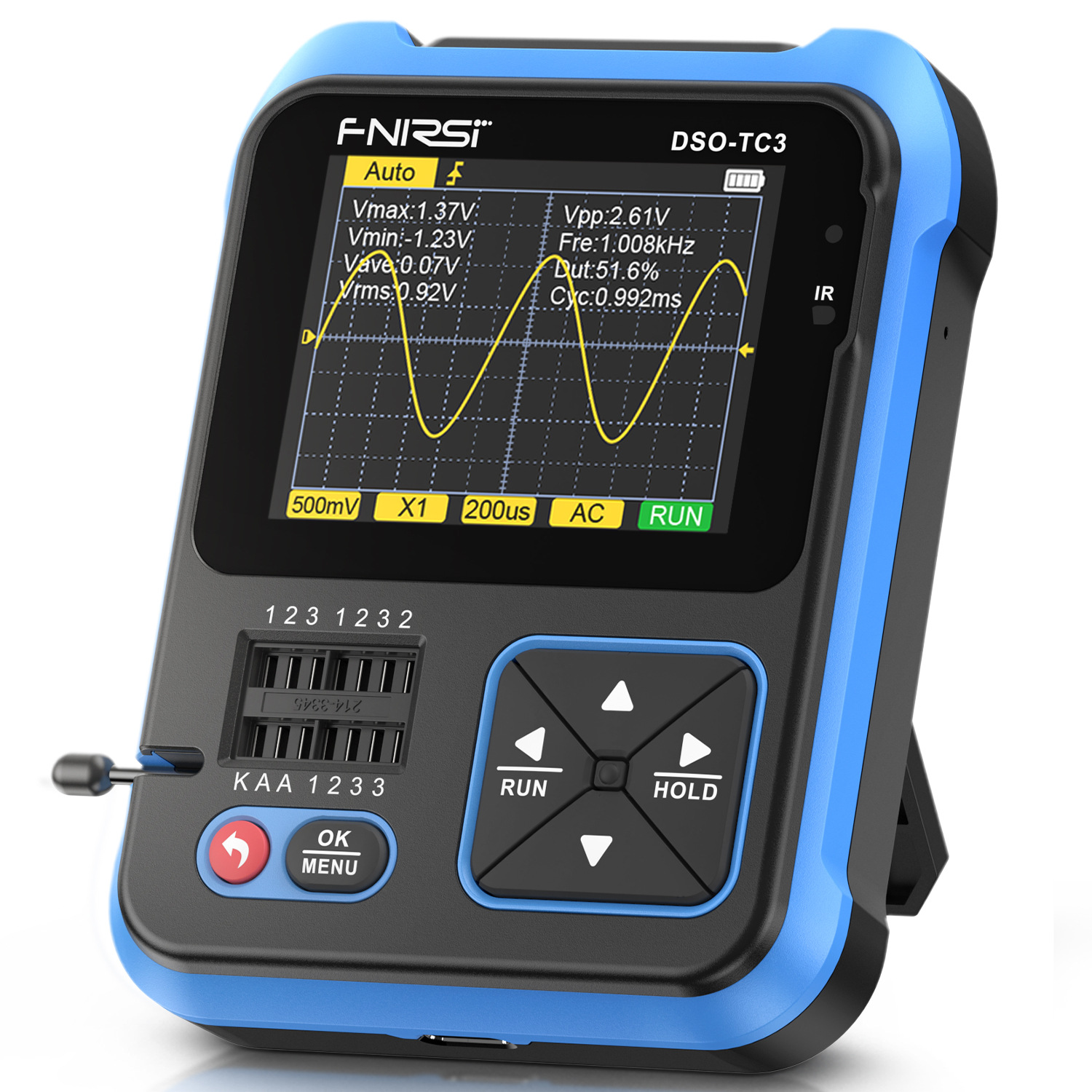

FNIRSI DSO-TC3

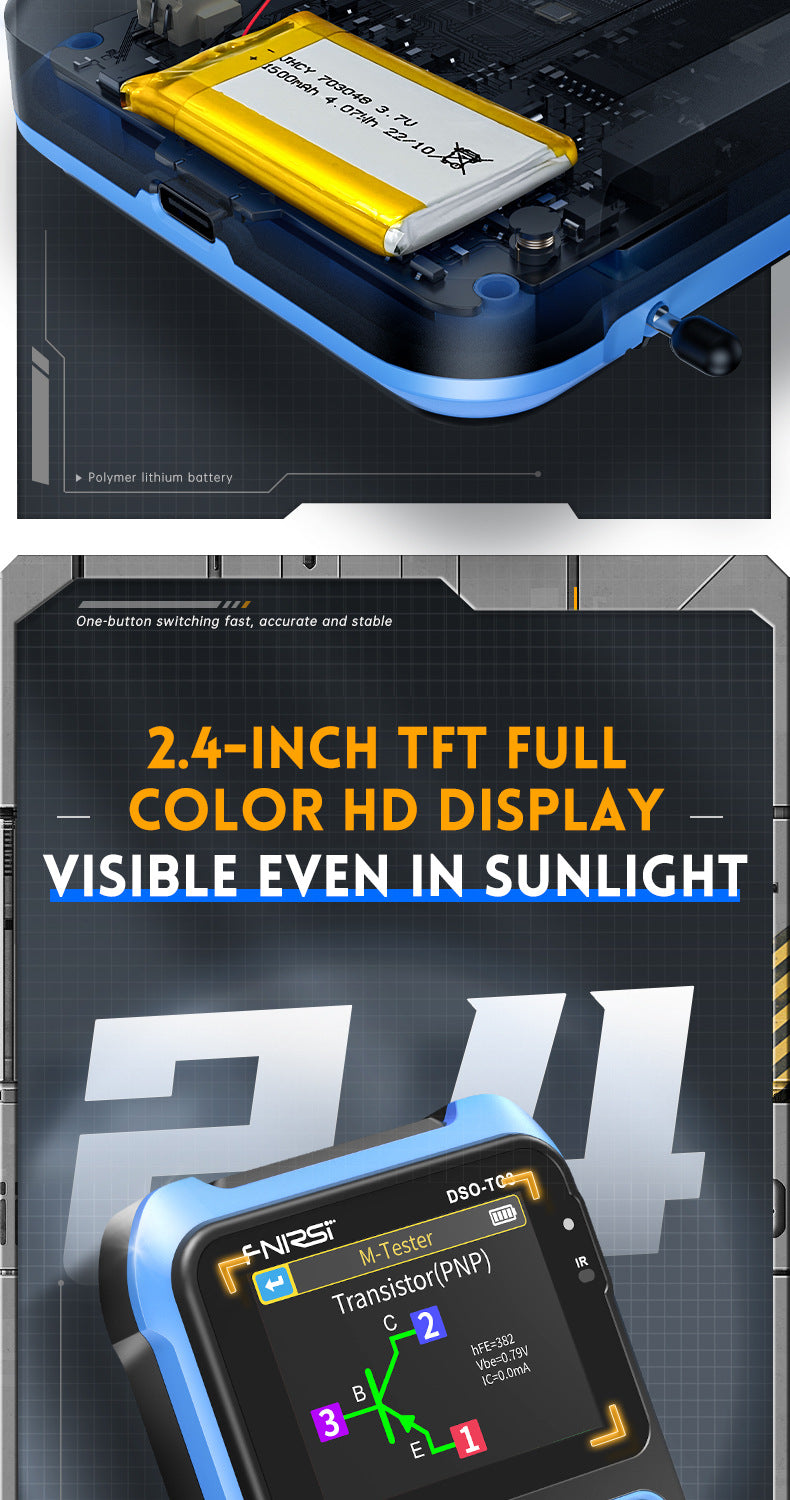

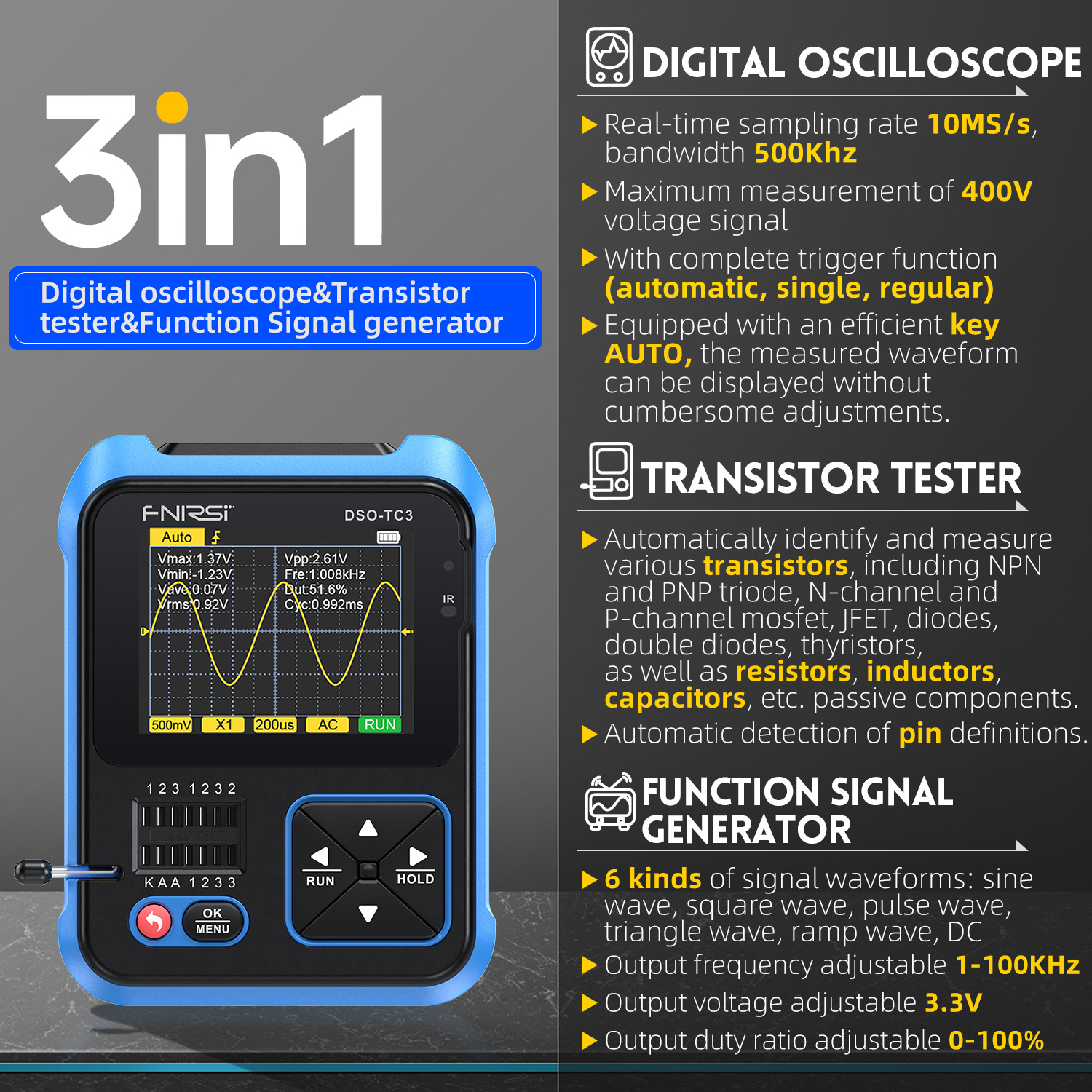

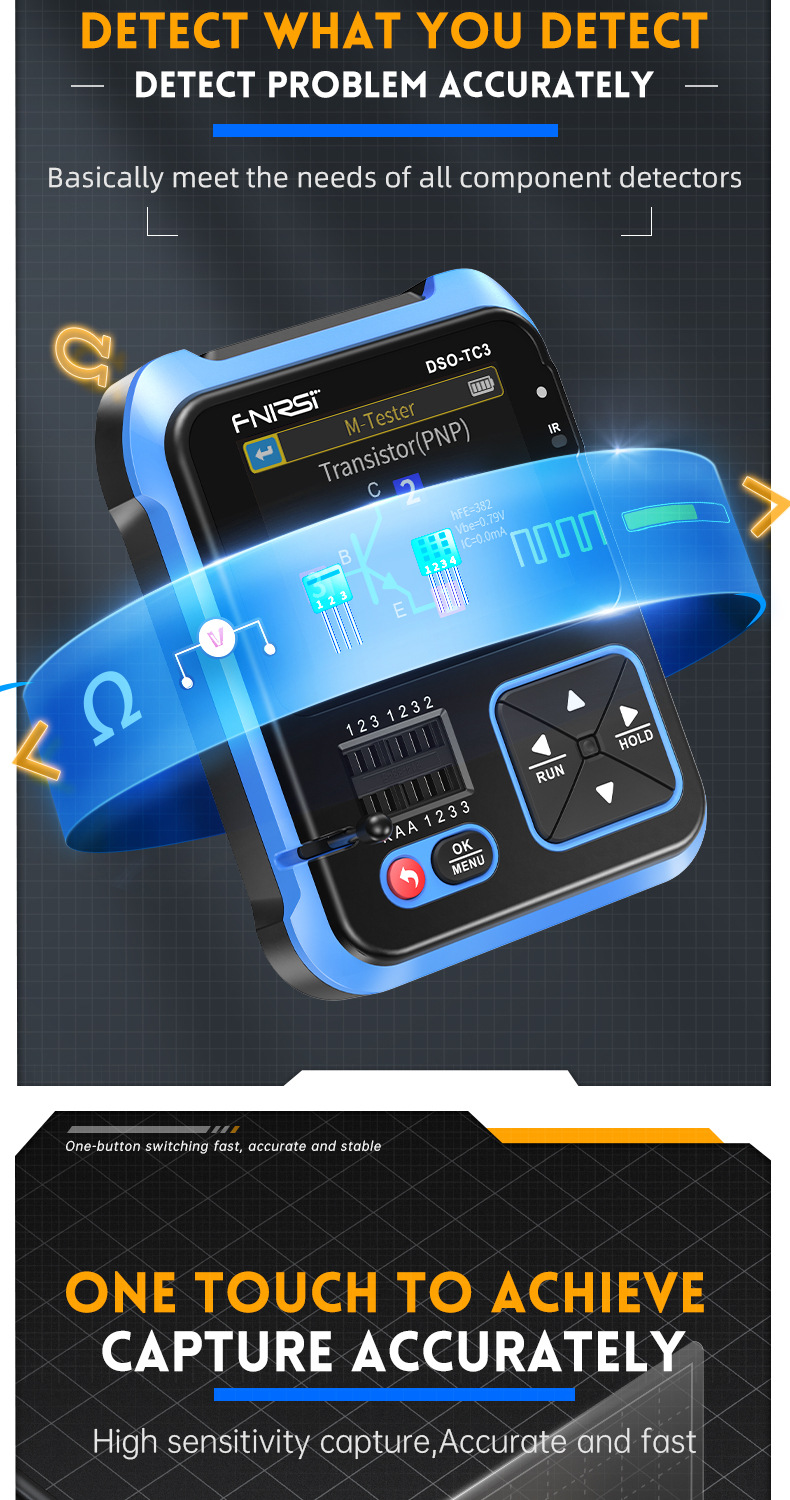

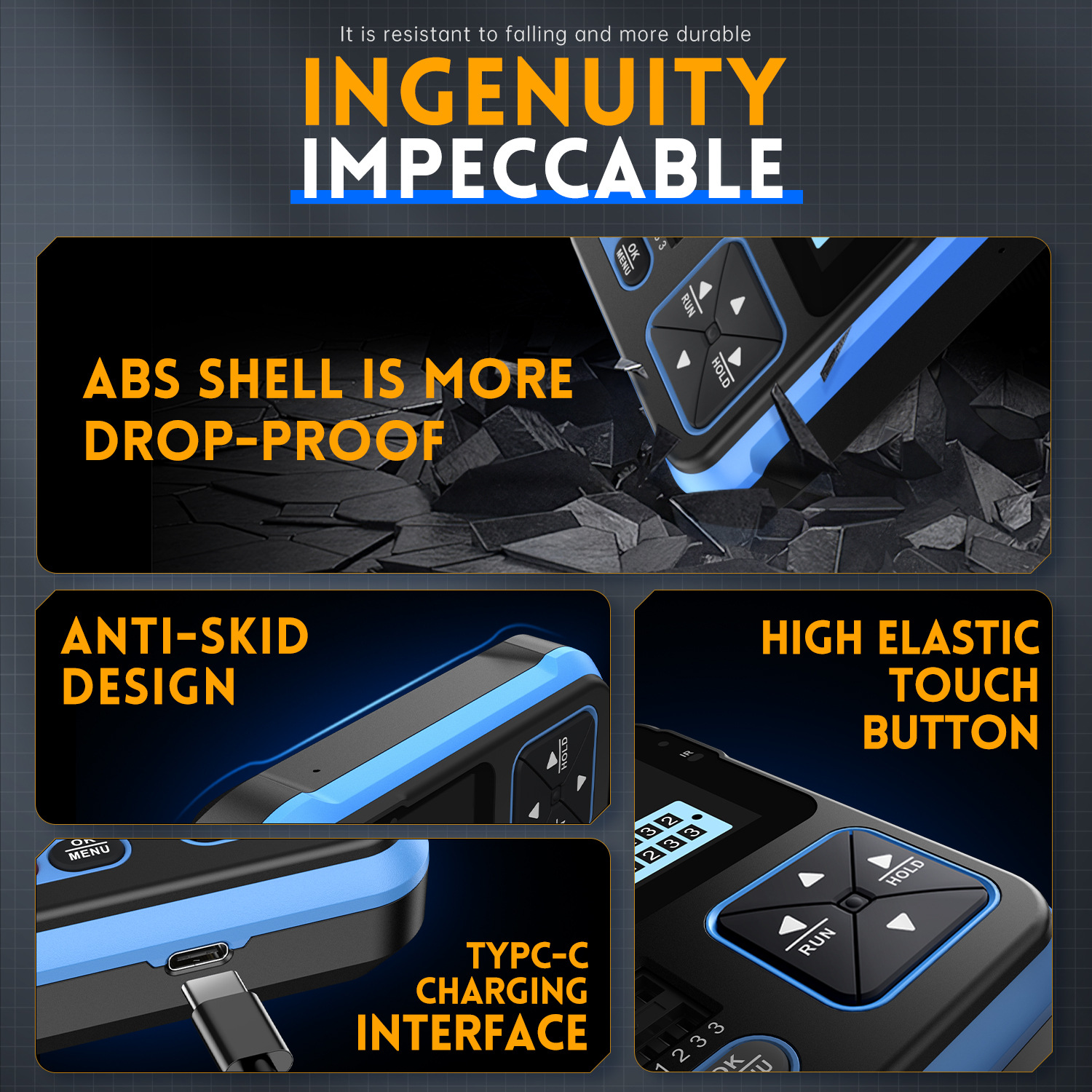

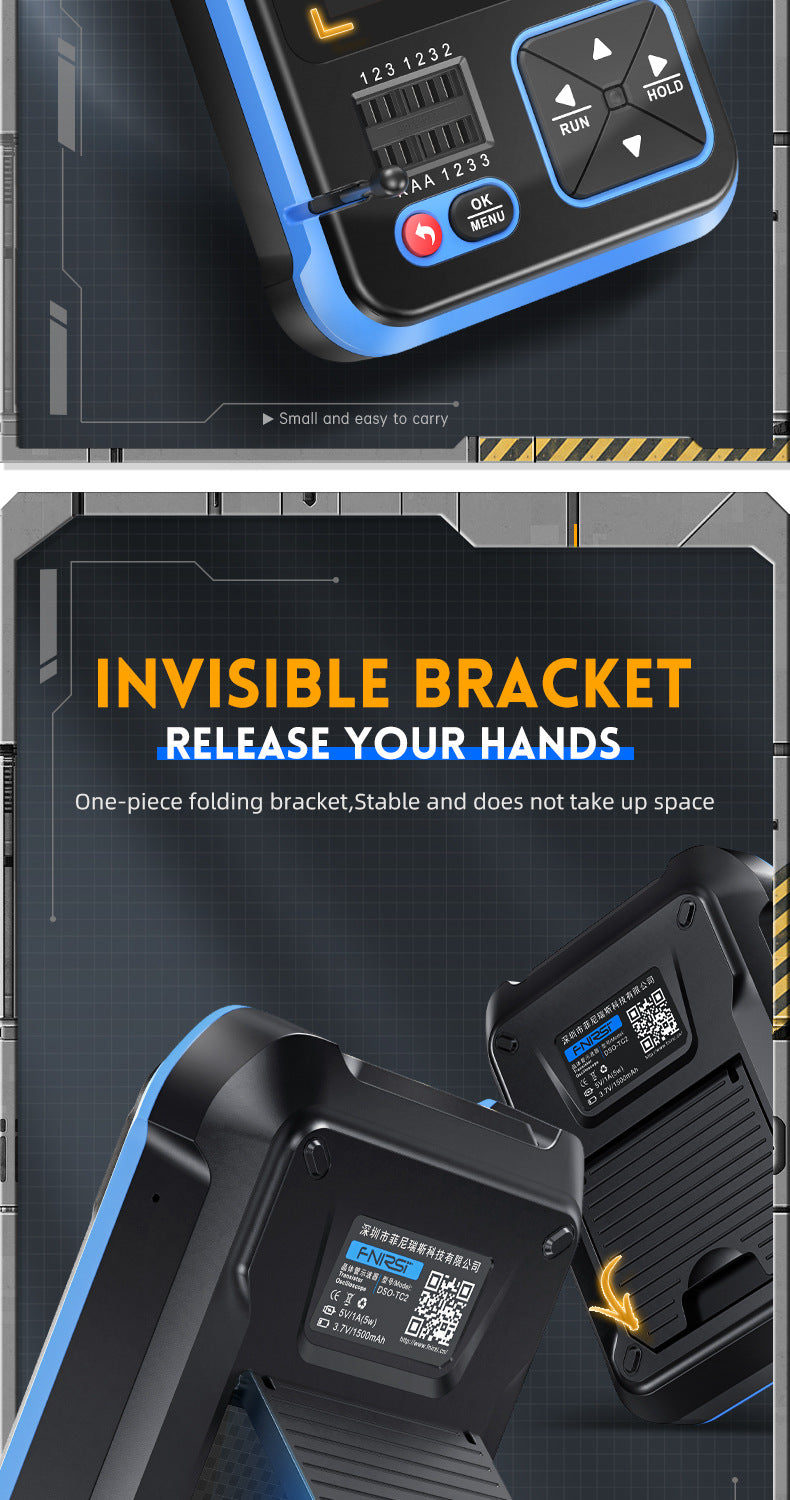

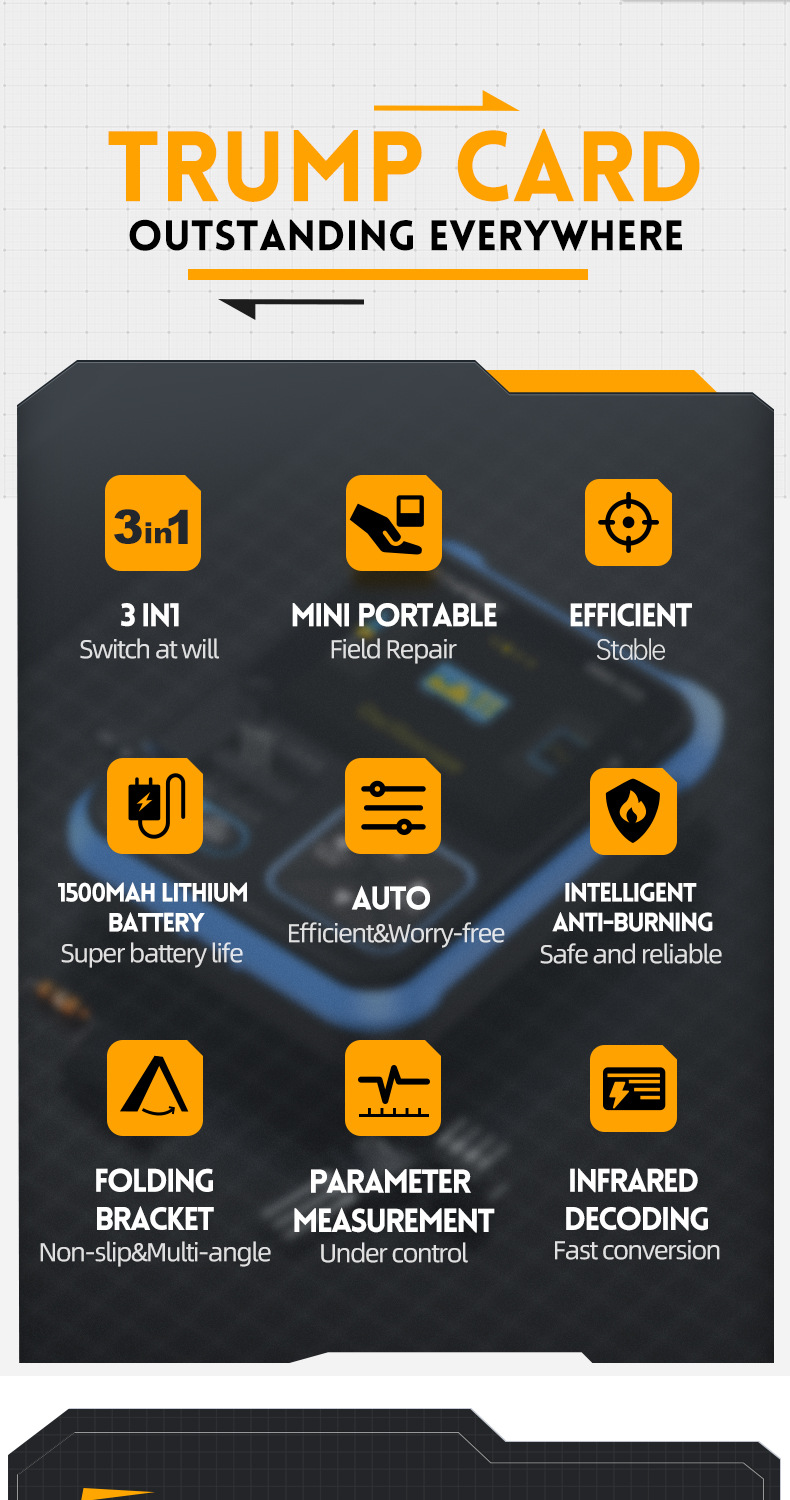

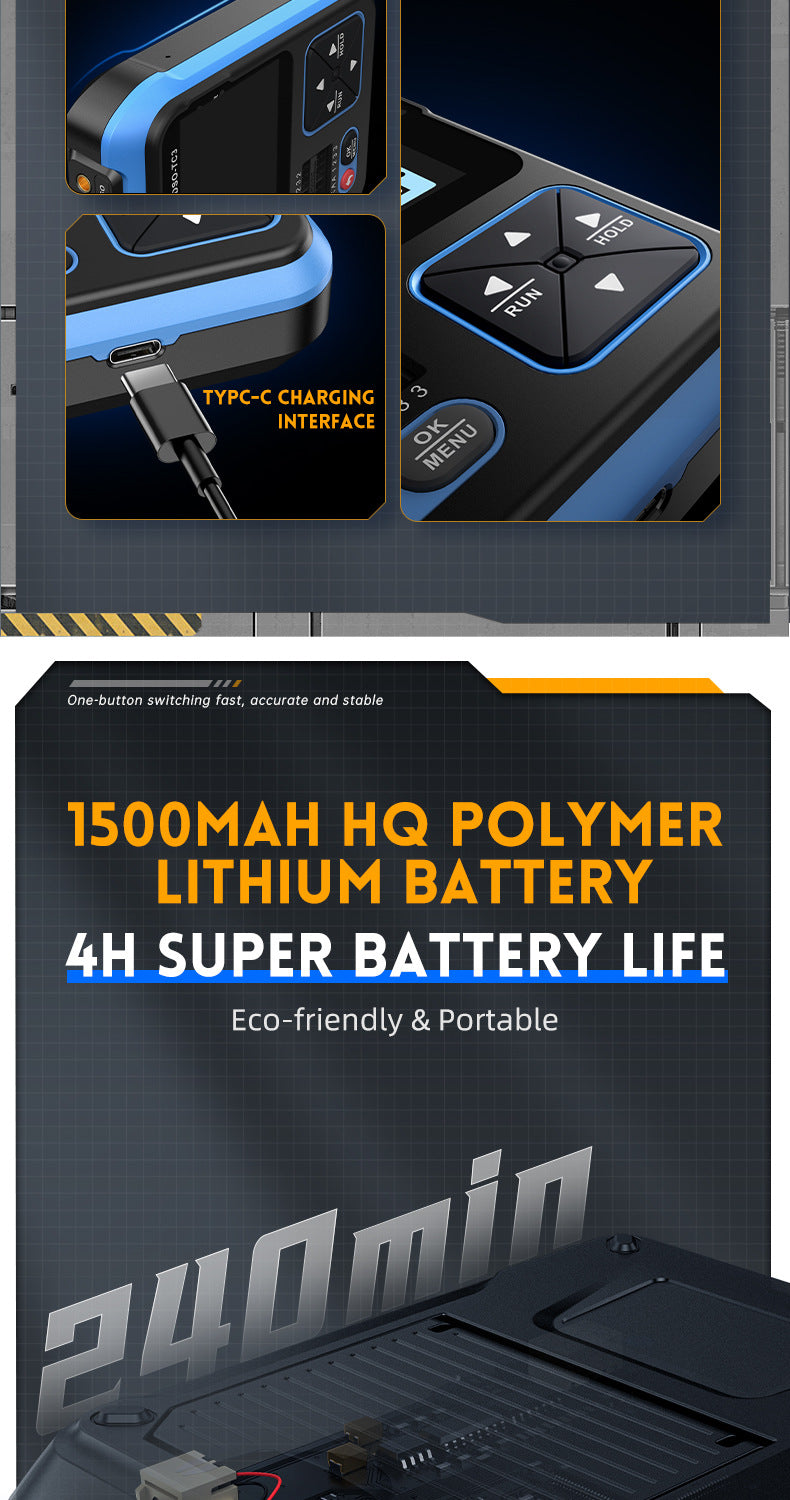

FNIRSI DSO-TC3 combines a digital oscillos , electronic component tester, signal source, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.

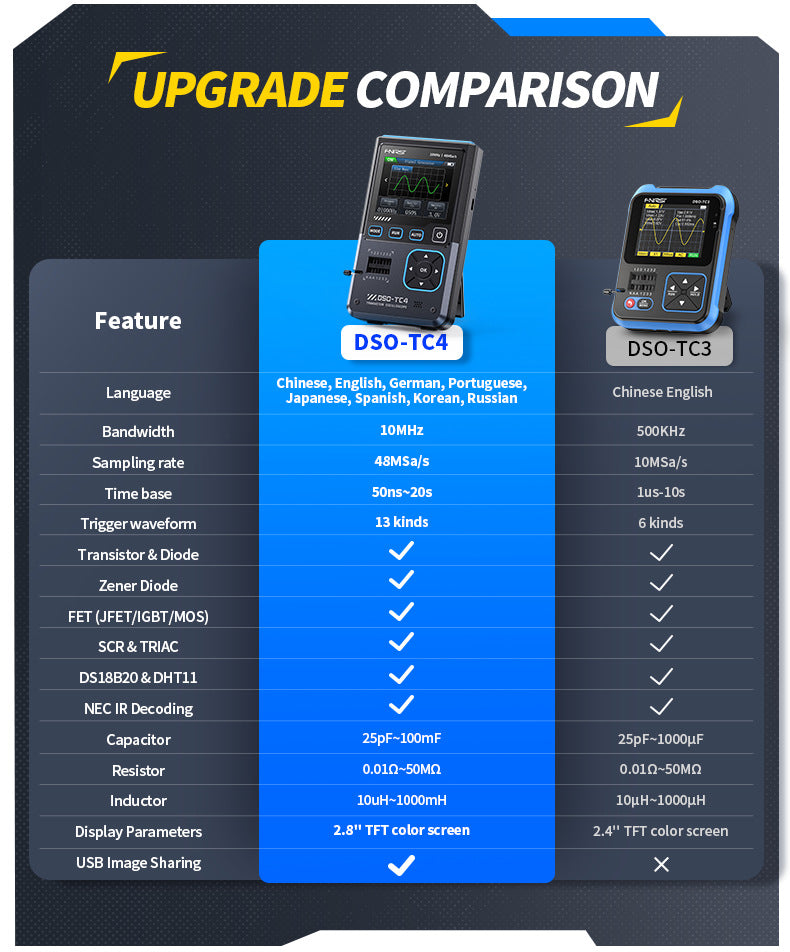

FNIRSI DSO-TC3 is an upgraded version of DSO-TC2. On the basis of DSO-TC2, it has upgraded capacitance ESR detection, function signal source output, Electronic measuring instrument bandwidth and sampling rate improvement, input voltage and diode detection range increase and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.

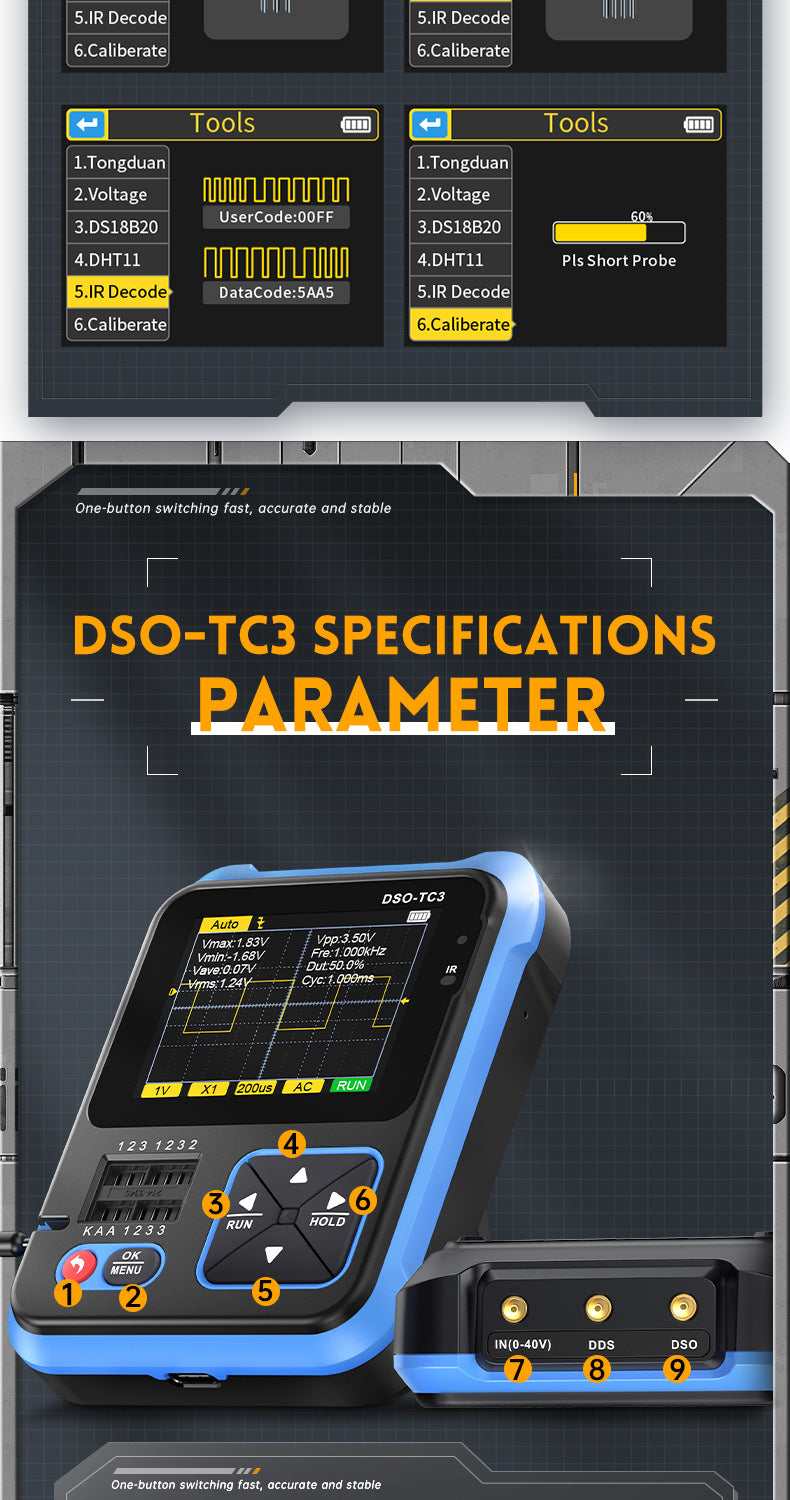

Product Description:

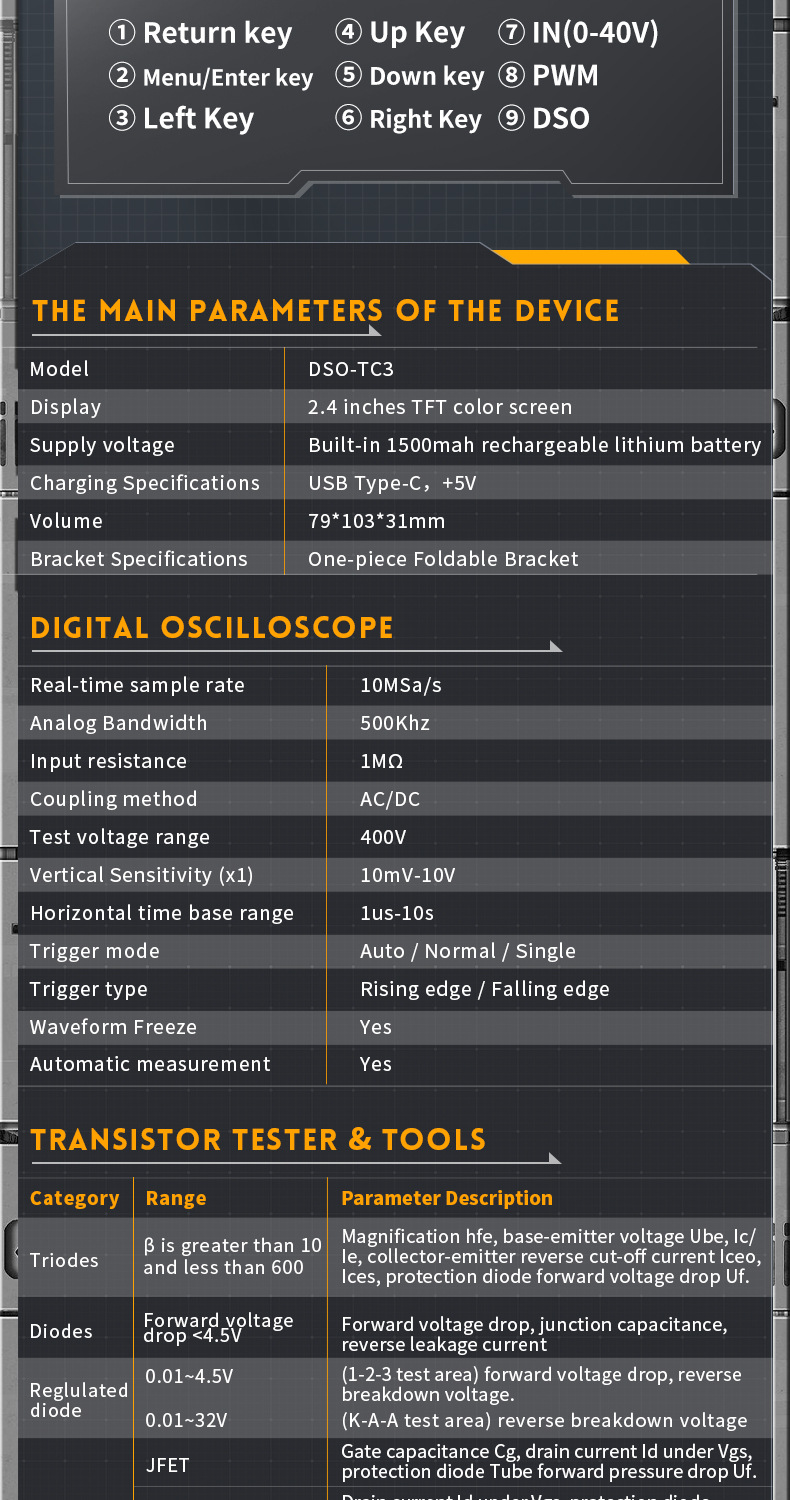

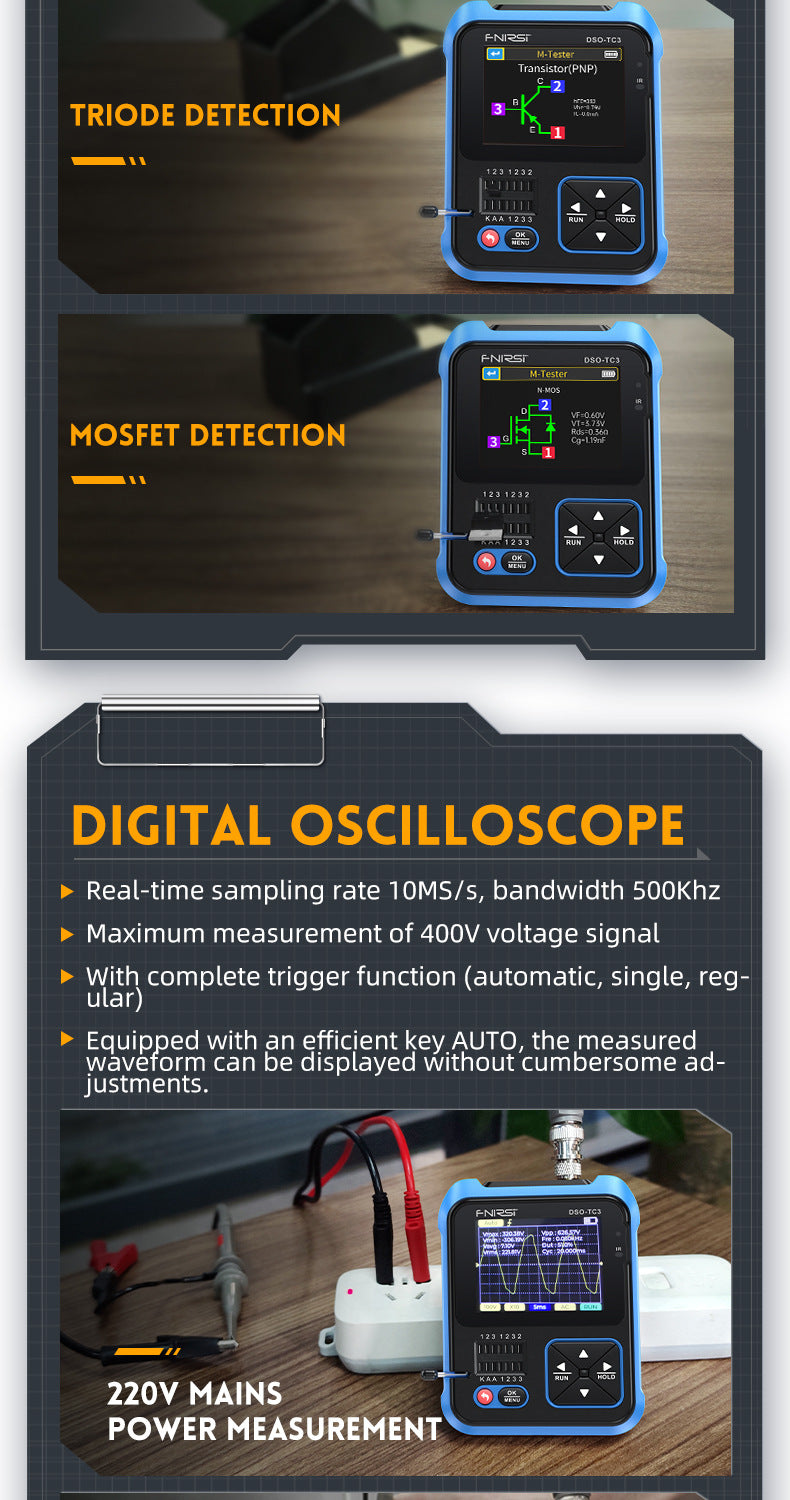

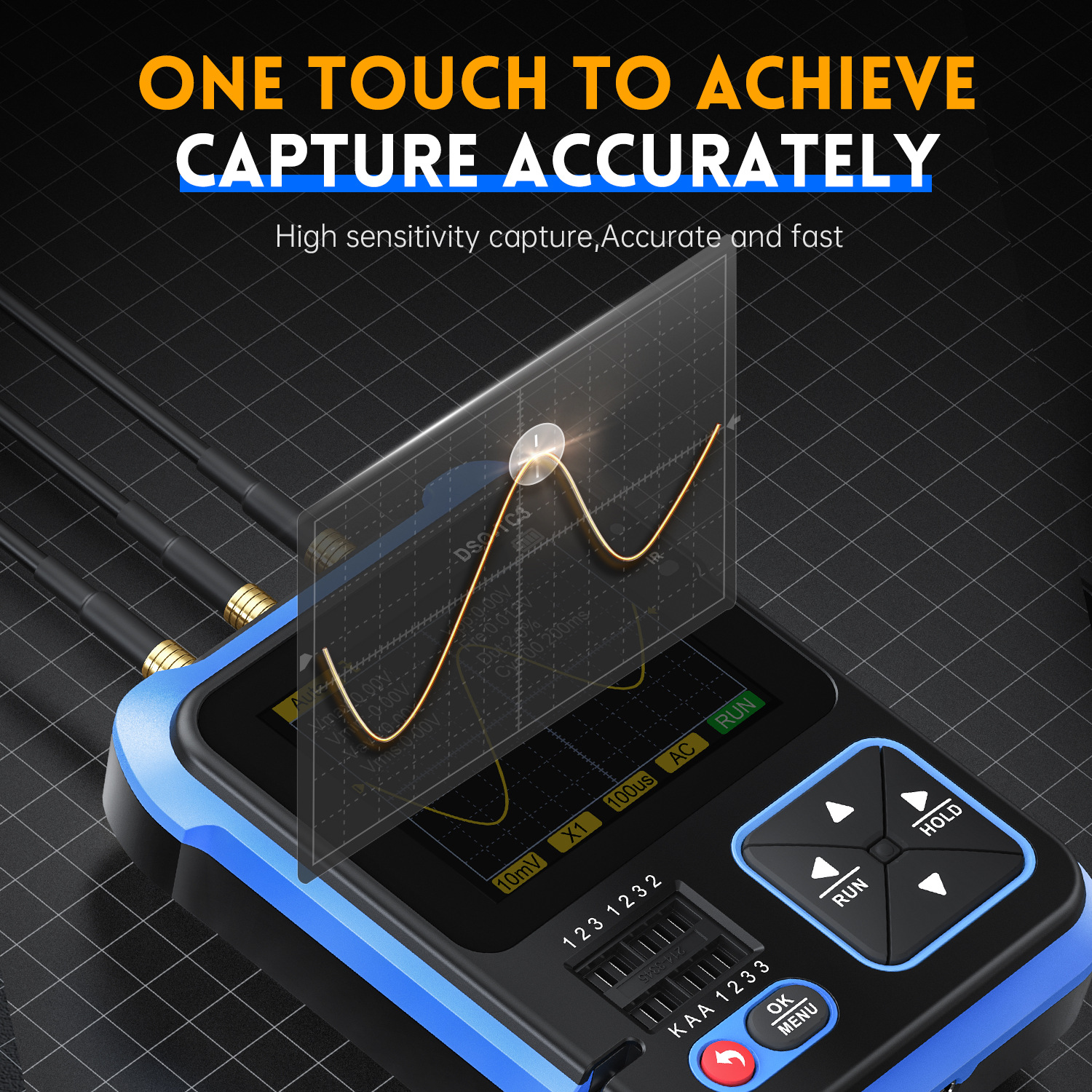

Digital Oscillos
Real-time sample rate：10MSa/s
Analog Bandwidth：500Khz
Input resistance：1MΩ
Coupling method：AC/DC
Test voltage range：400V
Vertical Sensitivity (x1)：10mV-10V
Horizontal time base range：1us-10s
Trigger mode：Auto / Normal / Single
Trigger type：Rising edge / Falling edge
Waveform Freeze：Yes
Automatic measurement：Yes

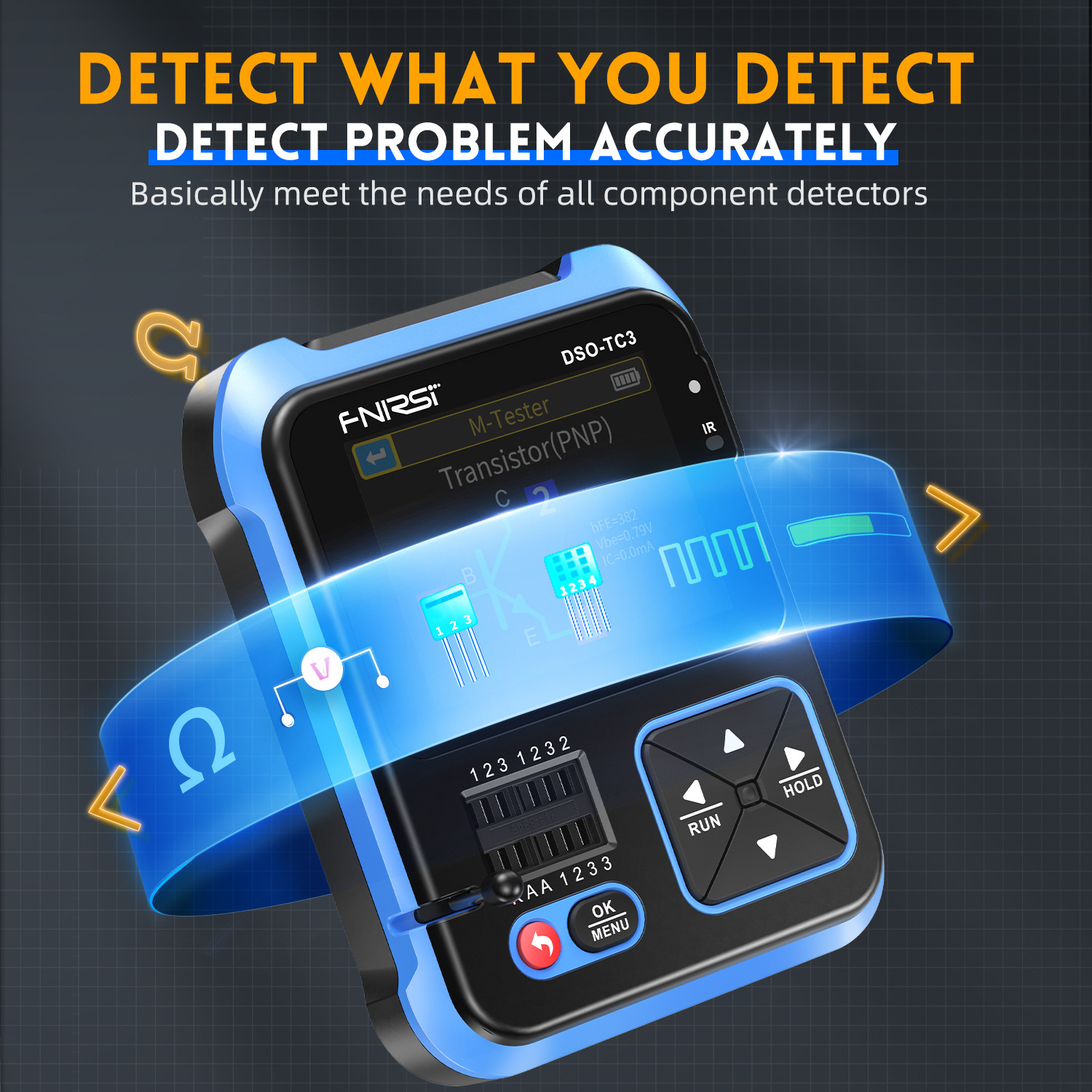

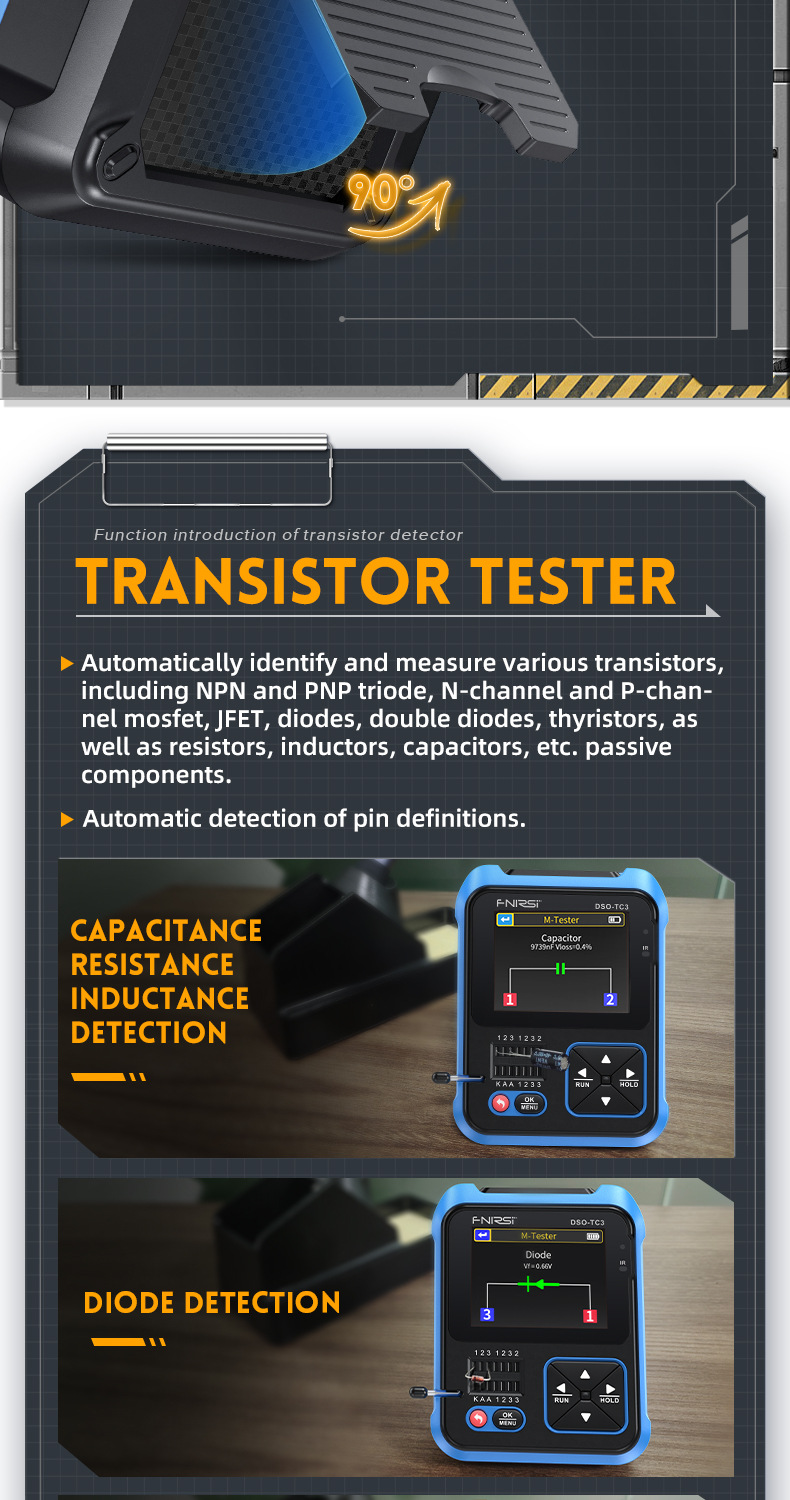

Transistor tester
Triodes：β is greater than 10 and less than 600
Diodes：Forward voltage drop <4.5V
Reglulated diode：0.01~32V
MOSFET：JFET，IGBT，MOSFET
SCRs：Turn-on voltage <5V, gate Pole trigger current <6mA
TRIAC：Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor：25pF~100mF
Resistor：0.01Ω~50MΩ
Inductor：10uH~1000mH
Battery：0.1~4.5V
Input voltage：0~40V
DS18B20：0-85℃
DHT11：0-60℃/5-95%
Infrared remote decoding：NEC protocol infrared cod
NOTE：
①Ices, Iceo, Uf are only displayed when they are valid.
② Junction capacitance and reverse leakage current are only displayed when they are valid.
③The turn-on or turn-off voltage of the FET must be less than 5V.
④ Displayed only when there is a protection of diode.
⑤Vloss is only displayed when it is valid.
⑥Two-legged components and measure the inductance when the resistance is less than 2.1kΩ.

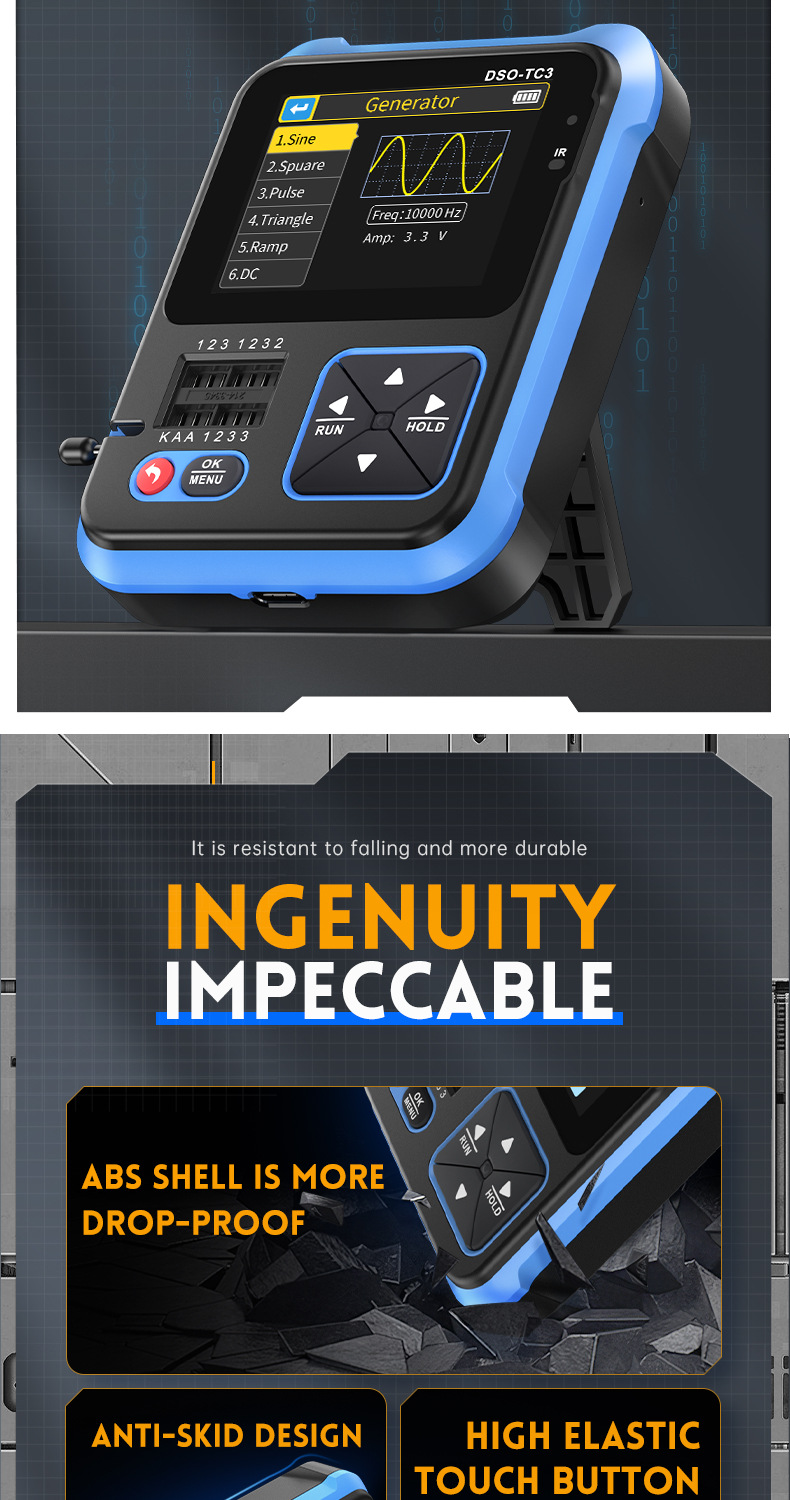

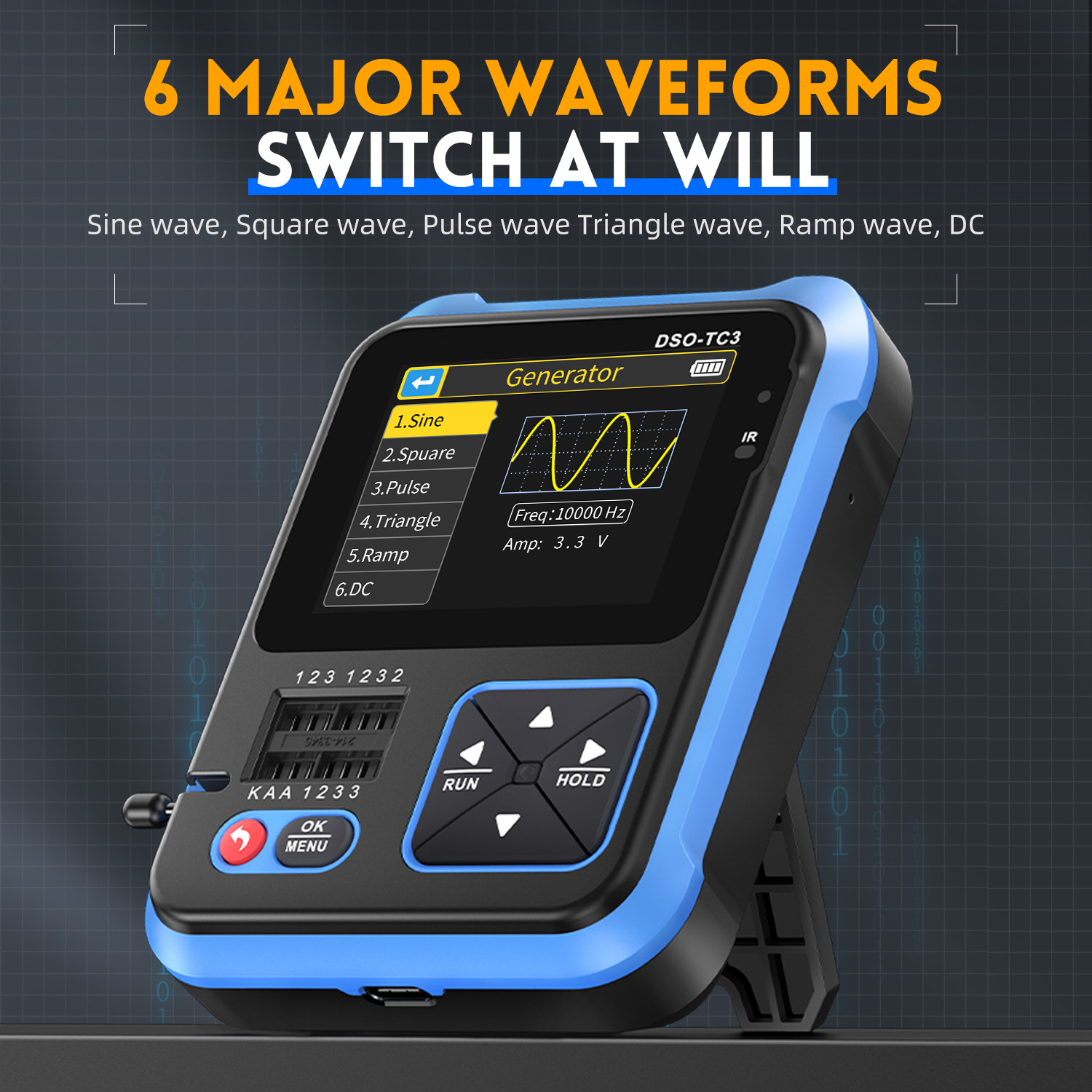

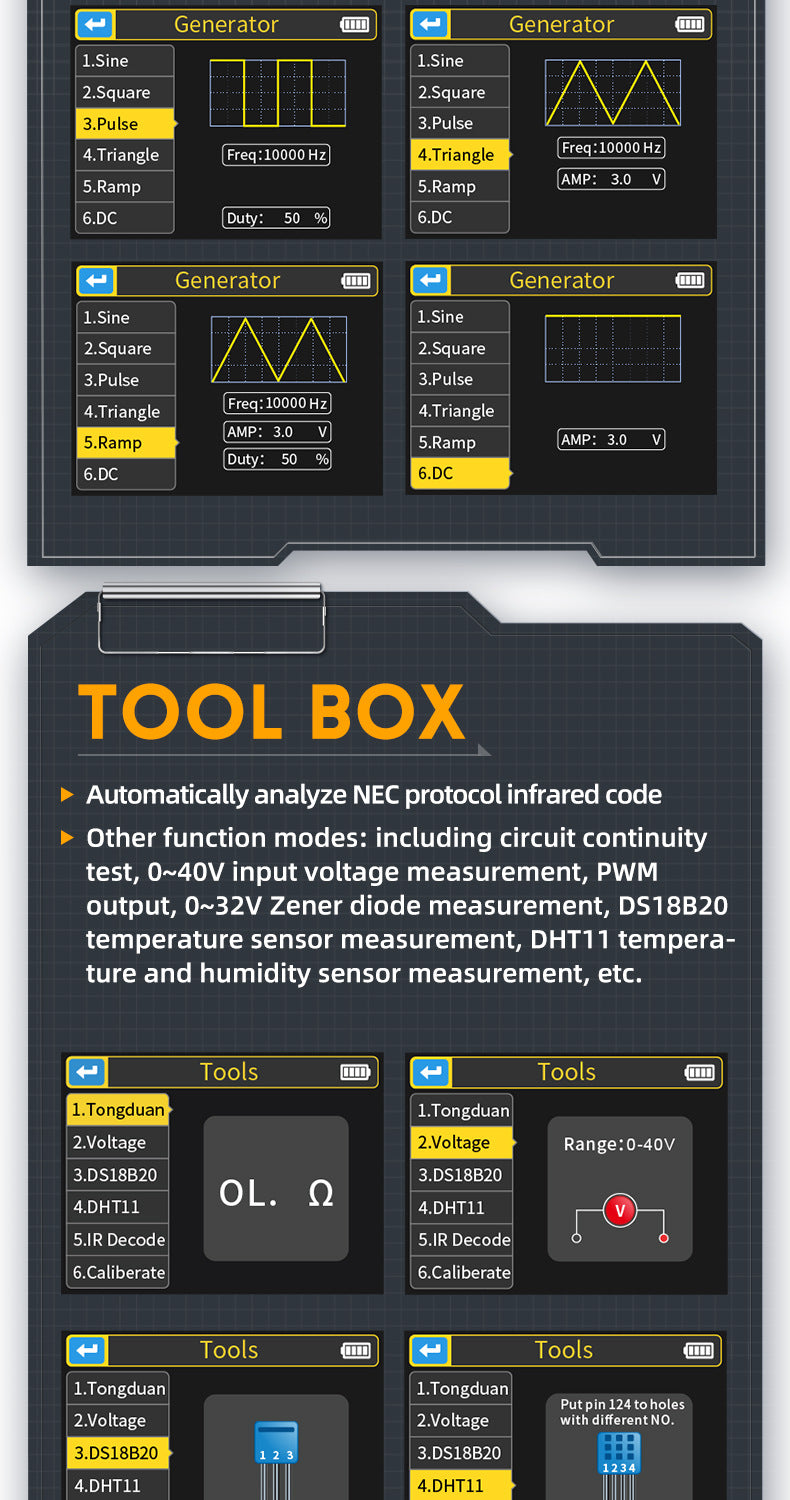

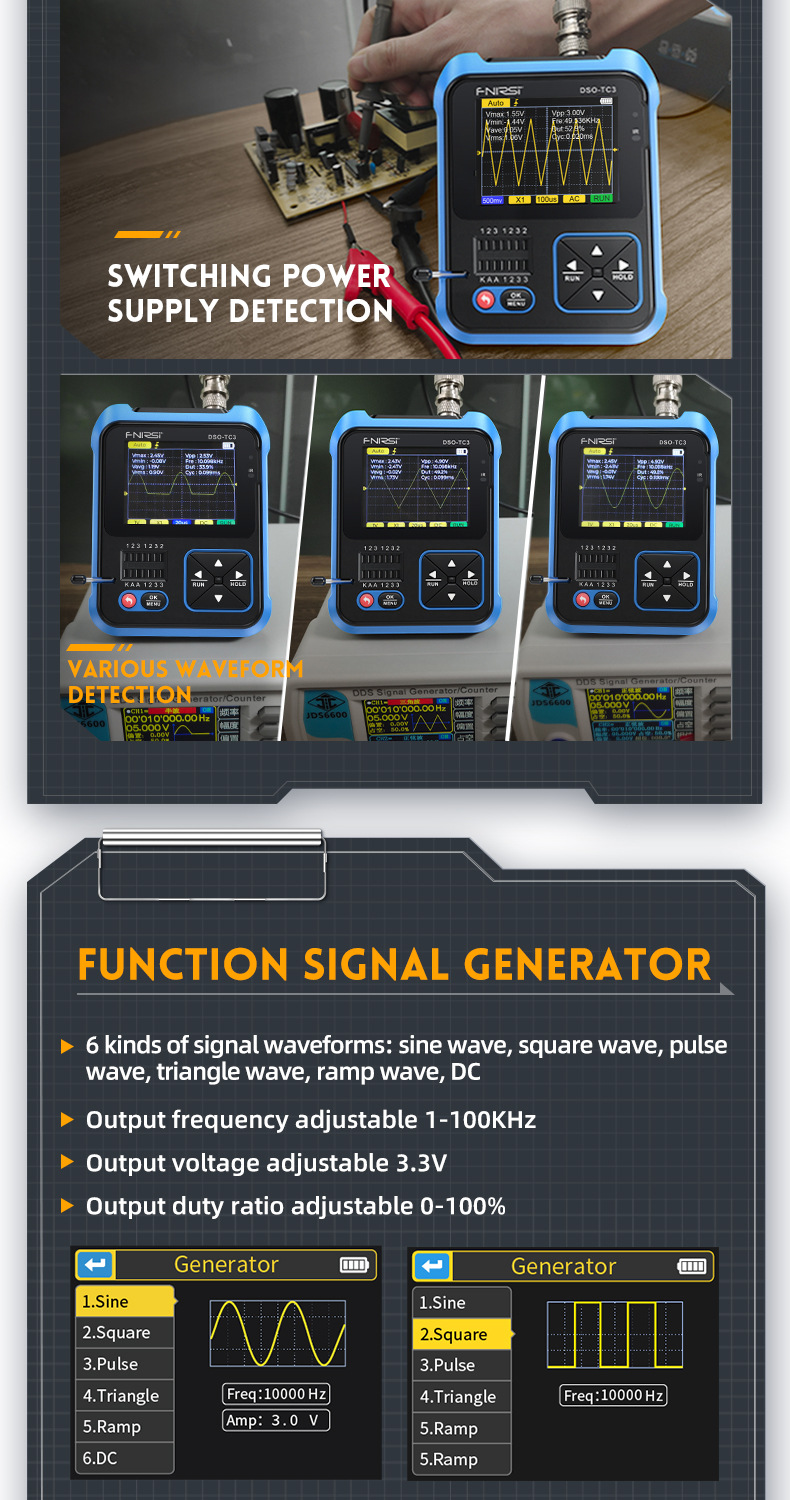

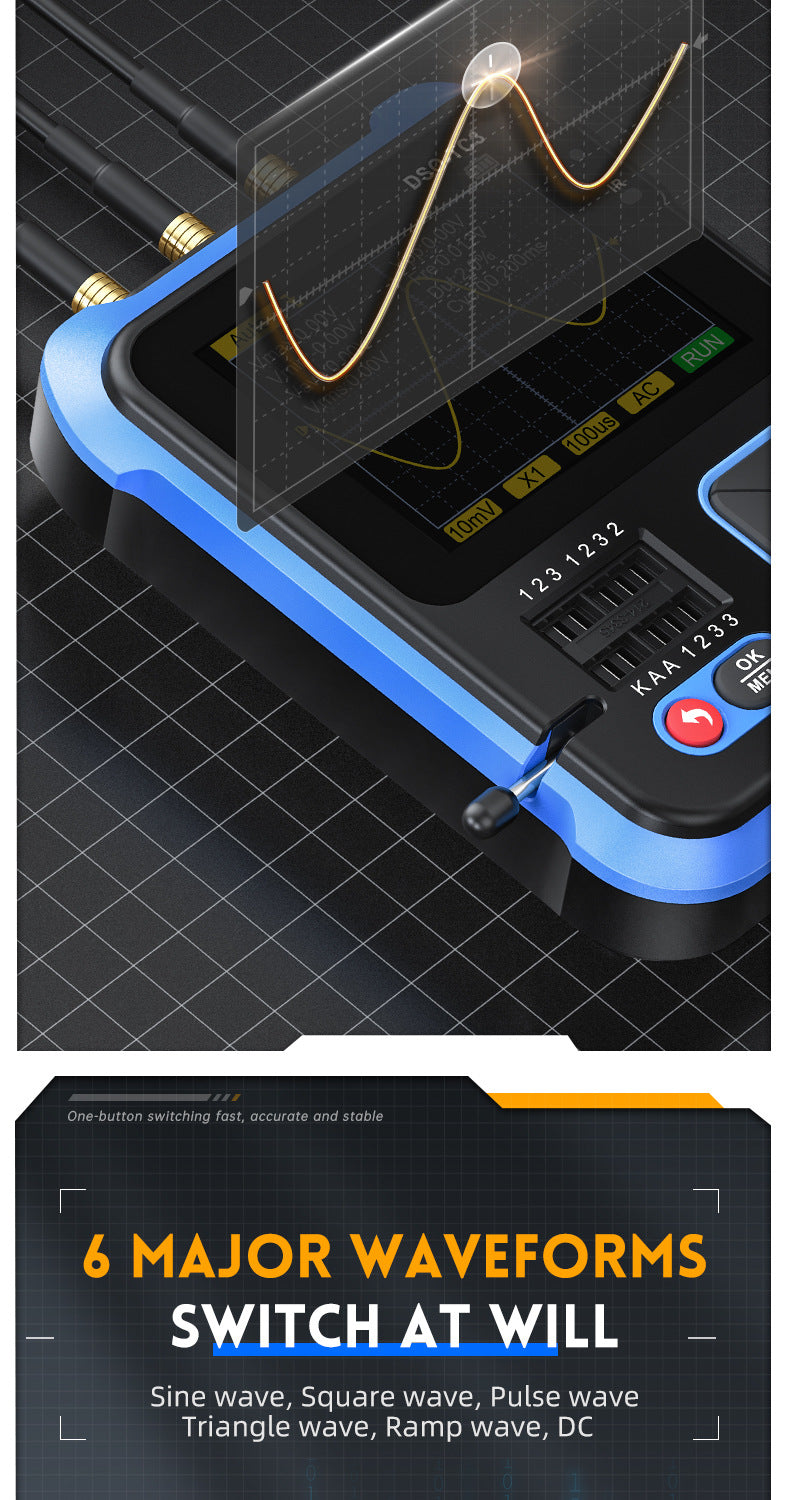

Signal Source
sine wavel：1-100KHz/0-3.3V/50%
Square wave：1-100KHz/3.3V/50%
Pulse wave：1-100KHz/3.3V/0-100%
Triangle wave：1-100KHz/0-3.3V/50%
Ramp：1-100KHz/0-3.3V/0-100%
DC：0-3.3V

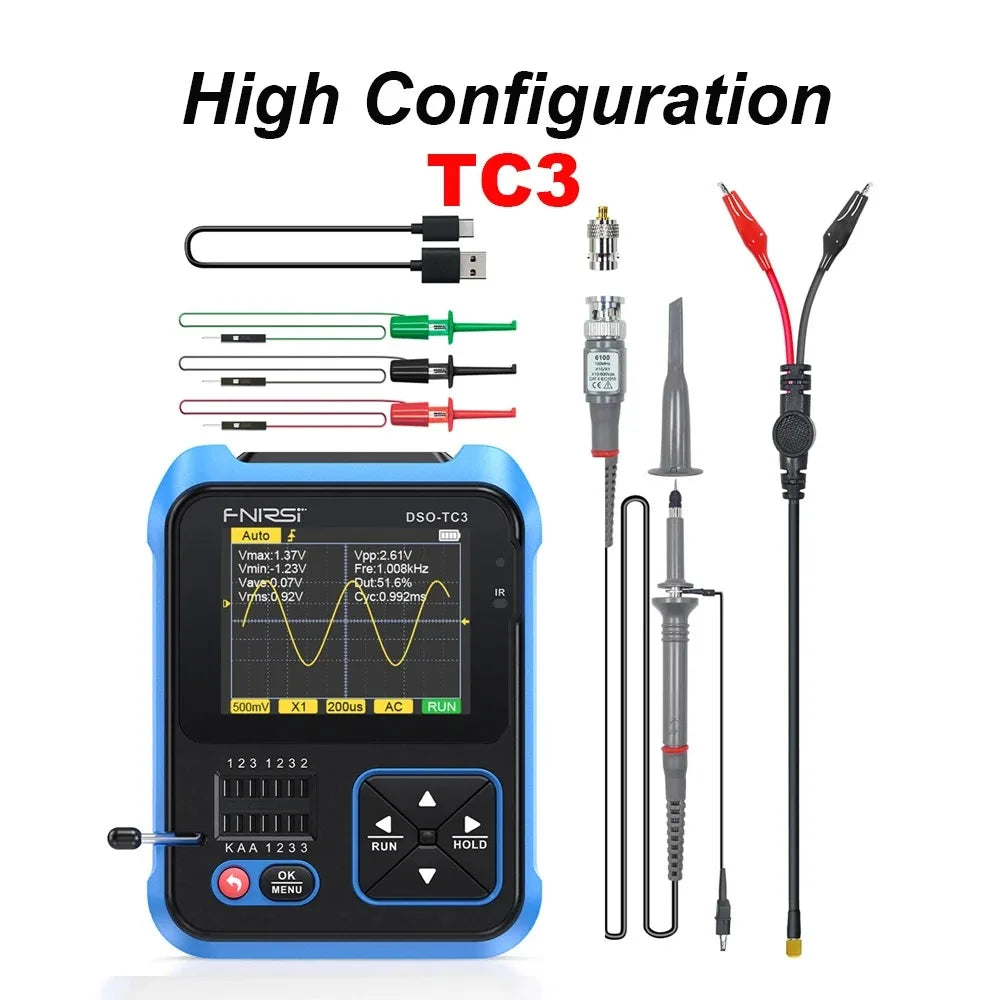

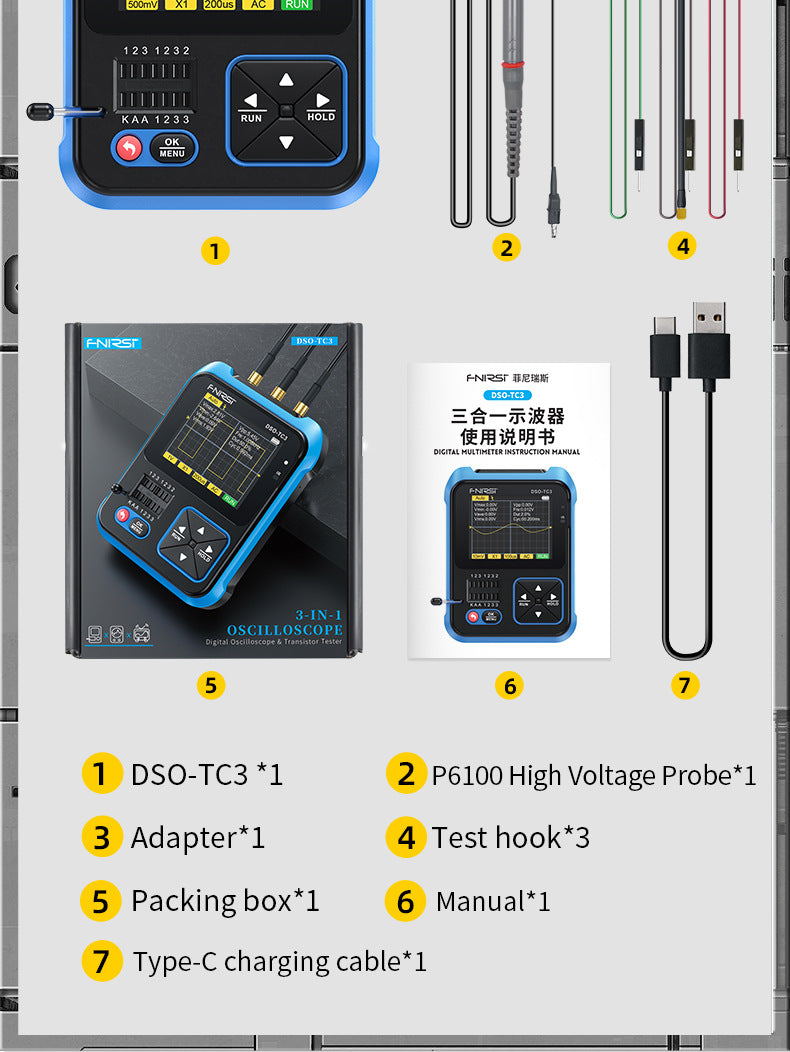

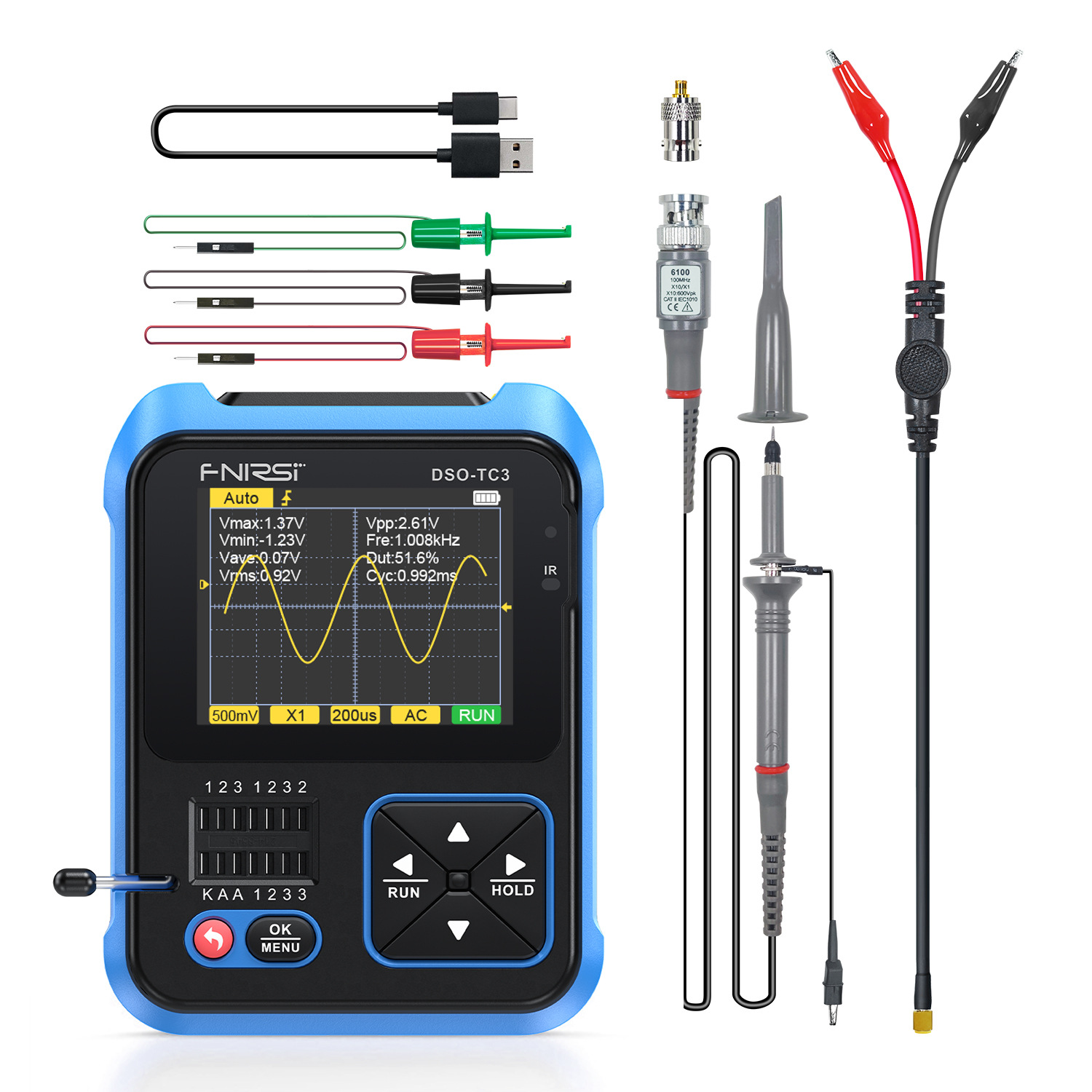

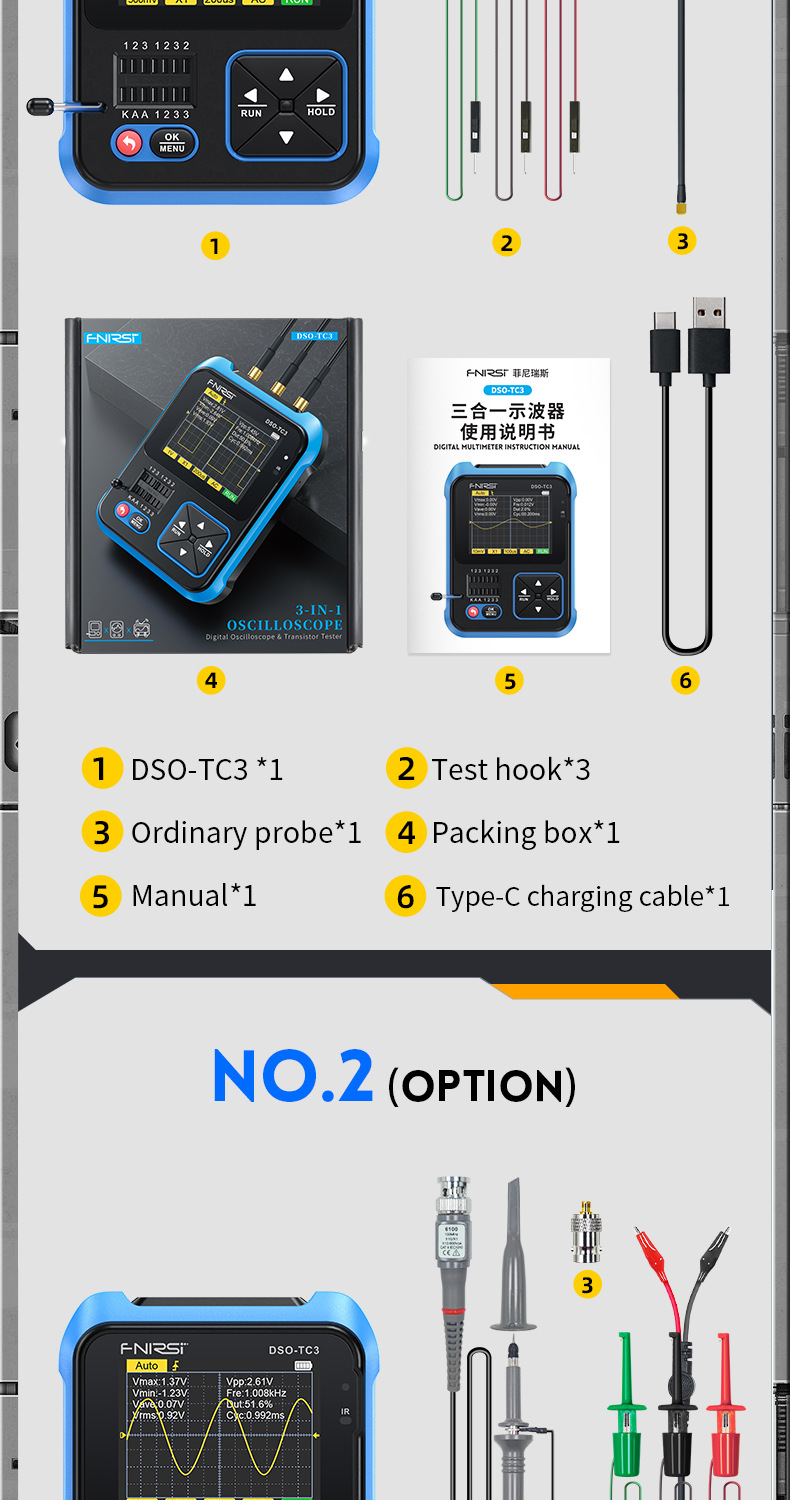

Packing List:
DSO-TC3 *1
P6100 High Voltage Probe*1
Ordinary probe*1
Test hook*3
Adapter*1
Type-C charging cable*1
Packing box*1
Manual*1
