SPECIFICATIONS

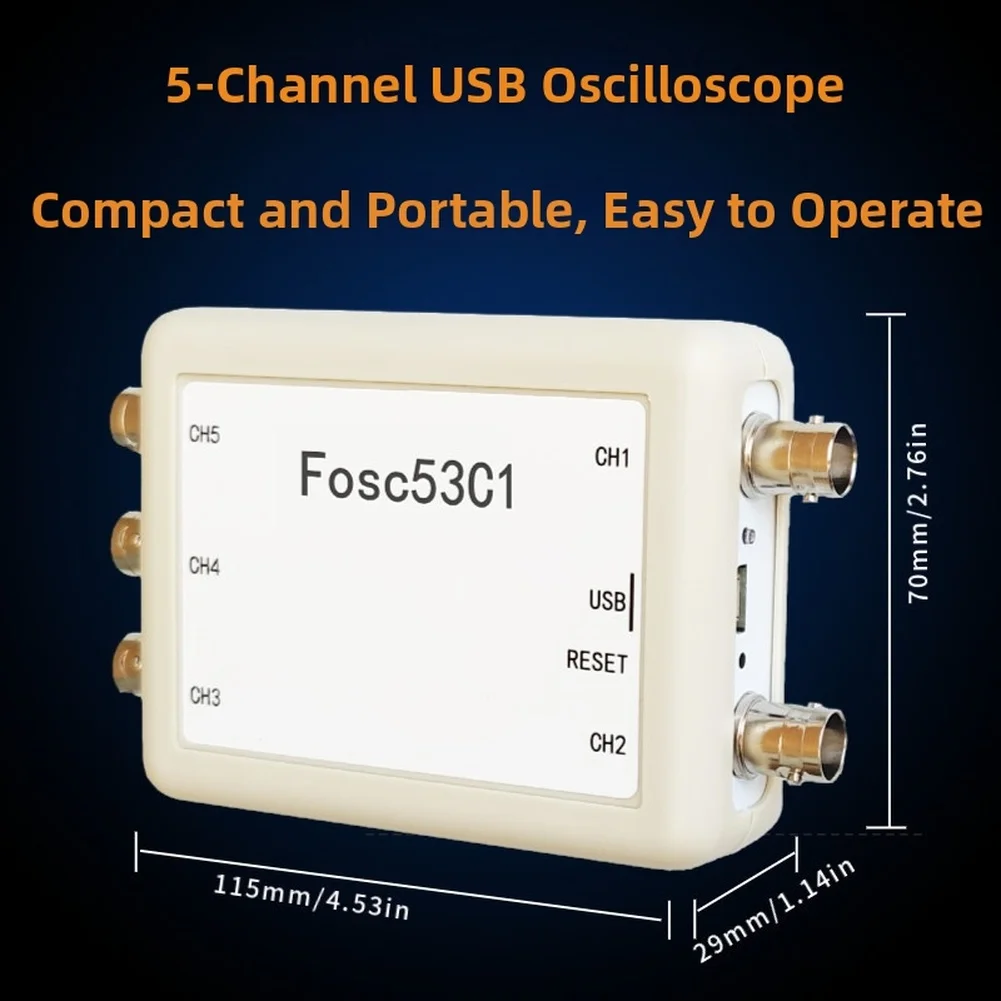

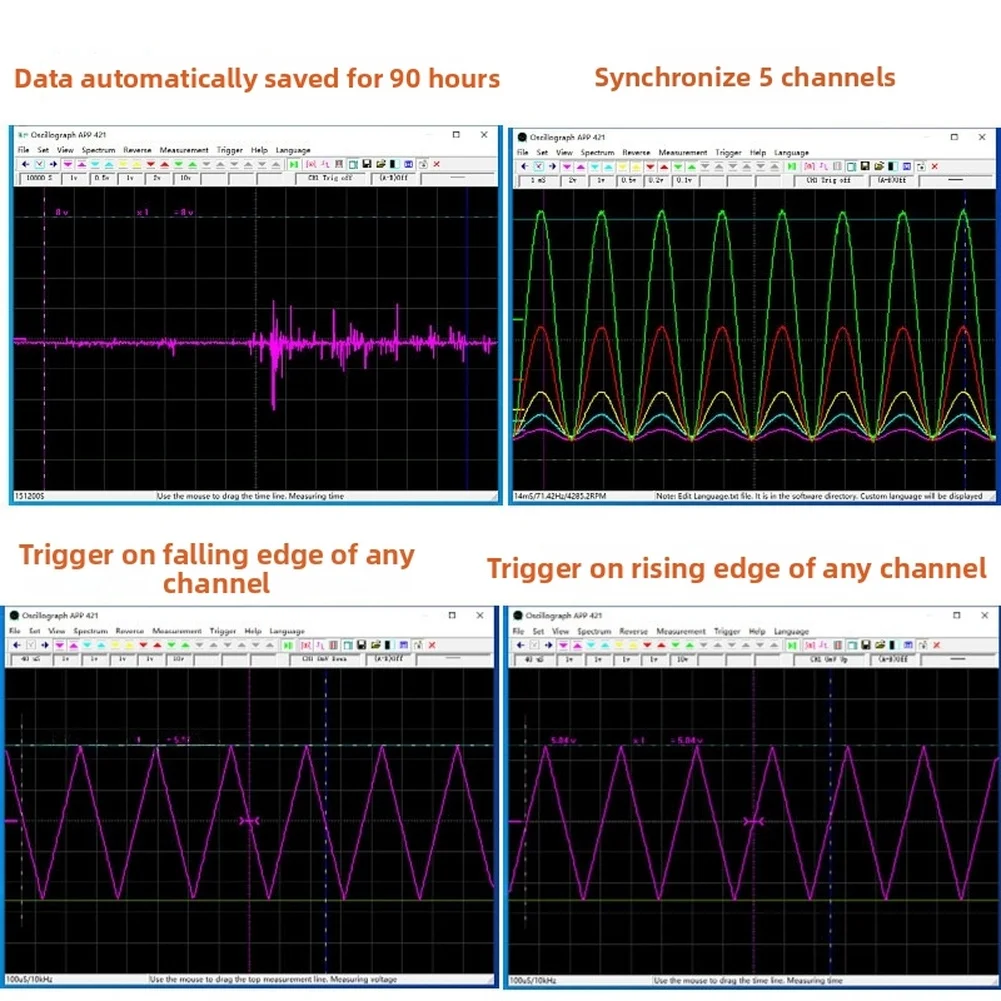

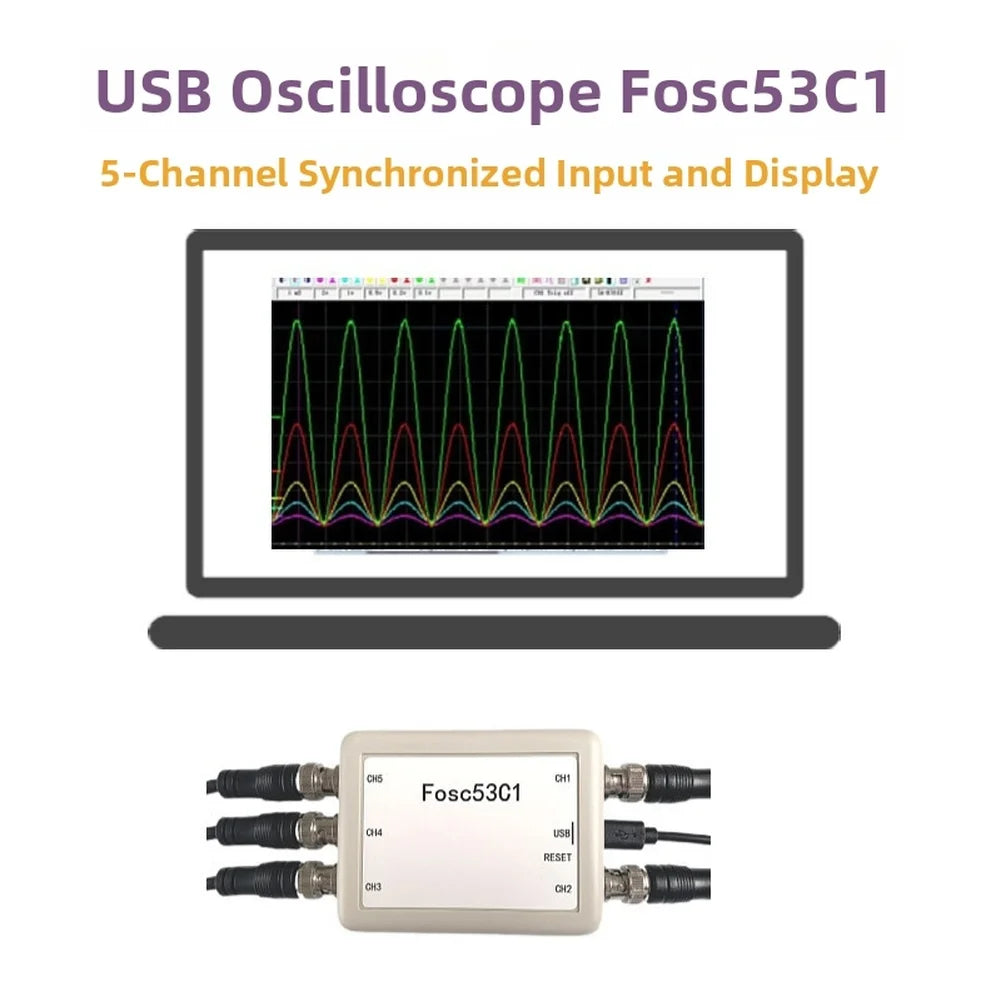

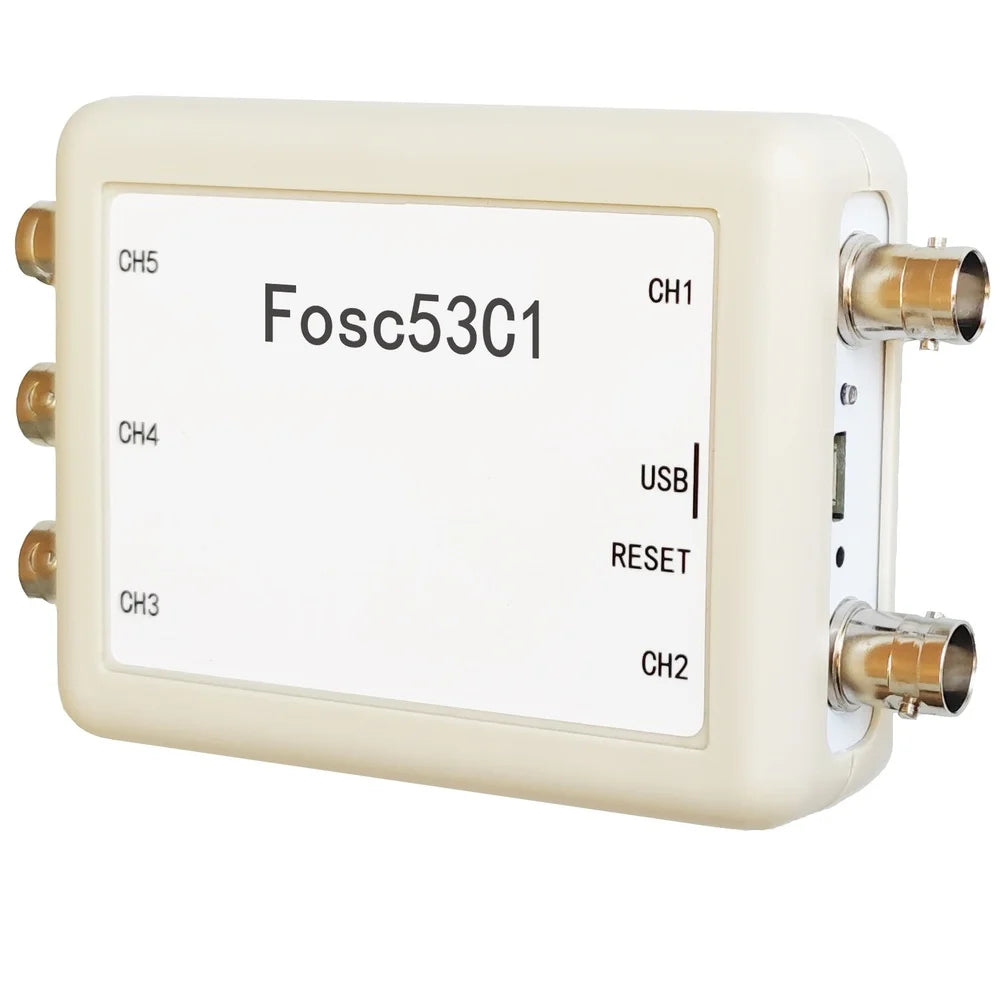

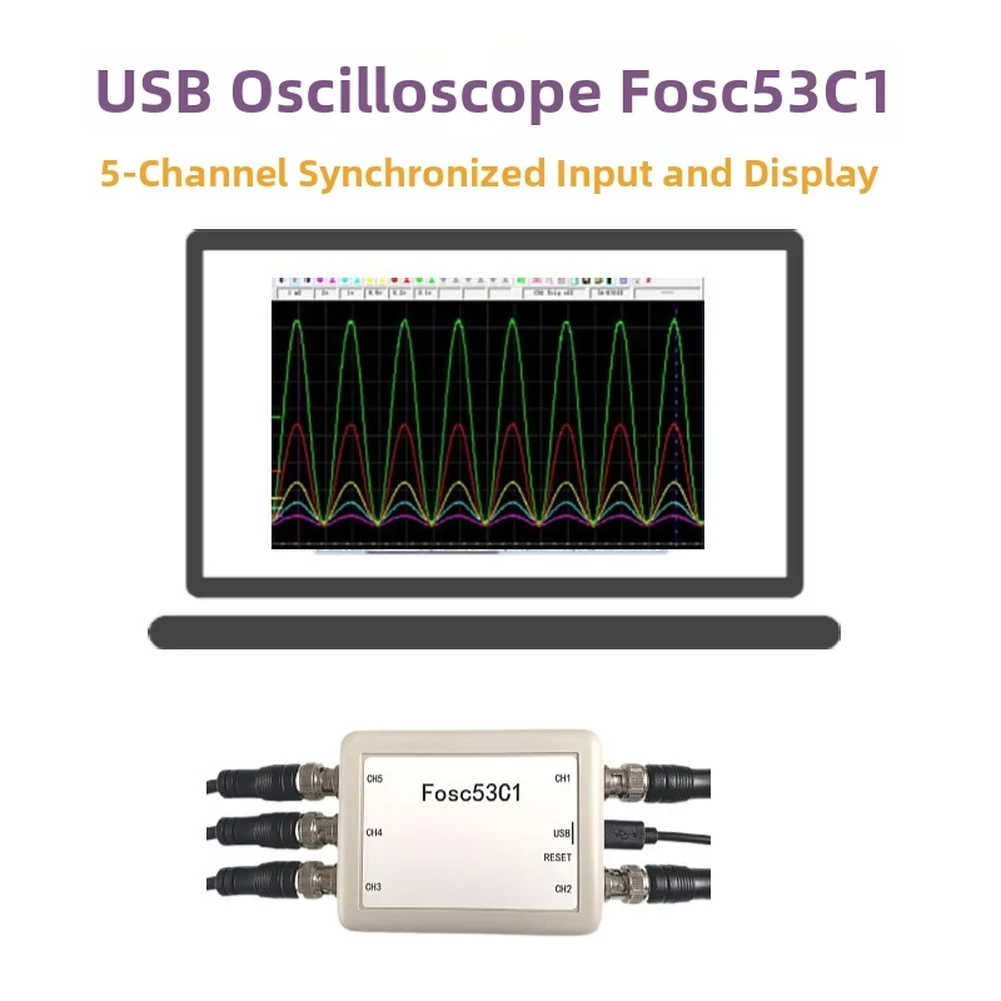

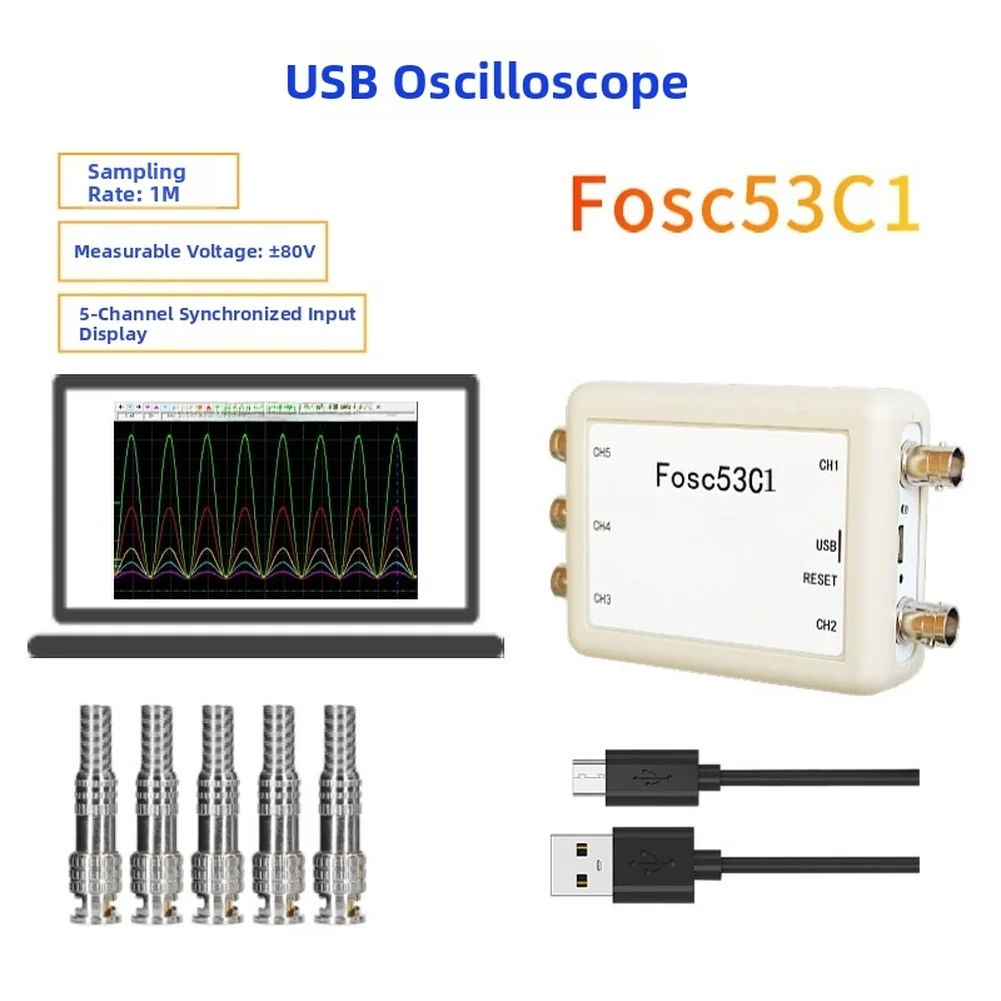

Features: *5-Channel Synchronous Input: Enables simultaneous monitoring of multiple signals for comprehensive analysis and diagnostics. *1MHz Sampling Rate: Delivers precise waveform for Capture with high- data acquisition for accurate measurements. *±80V Voltage Range: Supports a wide voltage measurement range for versatile applications in various electrical scenarios. *Compact and Portable Design: Features a lightweight and handheld factor for convenient use in for labs or fieldwork. *Auto-Save Function: Automatically records and stores data for up to 90 hours, continuous monitoring and analysis. Specifications: *Product Name:Fosc53C1 Oscilloscope *Material:abs *Color:white *Size:11.5*7*2.9cm 5 Passage into the country, same for journey Automatic drawing amount width, 4 Various types of measurement models available Captivity to for Capture (touch) ability Arbitrary path control signal for source Possible placement of upper and lower crossing signals for Capture signal (touch) signal The number of saved electricity can be set automatically, and the number of saved electricity can be set automatically when moving When the number is ready, the waveform can be checked at any time. Show any two-path differential signal After the lock signal, the for Maximum length of viewing is 90. short time waveform Applicable long-term operation status of electrical equipment equipment The combination of long-term temperature, humidity, light, etc. Number of technical consultants for Access for type: USB 2.0 operation Signal input for contact for type: for BNC for contact, connection for type wave indicator probe for Maximum rate: 1MHz (11MHz / 21MHz / 30.5MHz / 40.5MHz / 5*0.33MHz) Power: 5V USB connection power Consumption current: < 2A Quantity measurement: 250 kHz width degree 档position每格 (DIV): 2 mV; 5mV; 10mV; 20mV; 25mV; 40mV; 50mV; 80mV; 0.1V; 0.2V; 0.5V; 1V; 2V; 5V; 10V Import resistance: 1 MΩ/20pF for Maximum power consumption: ±80 V Time range: 10 uS/DIV----10800 S/DIV Number of records saved depth: 8388608 * 5 Longest recorded number saved: 90 hours Main desk size: 115mm * 70mm * 29mm Package Content: 1*Fosc53C1 Oscilloscope Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
