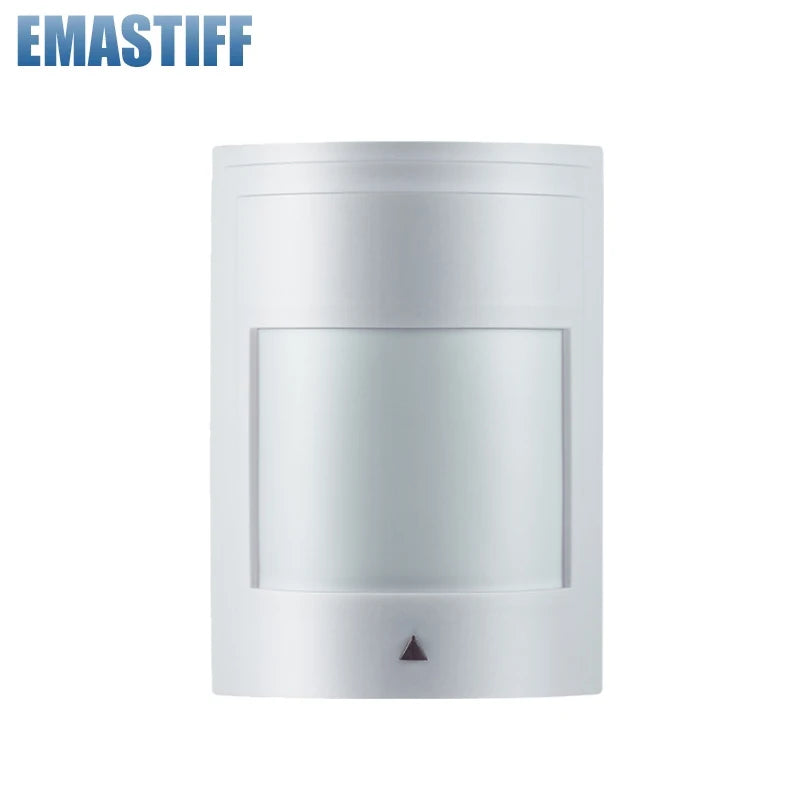

free shipping!New Univesal Wired PIR sensor for Home Alarm System Wired Infrared Motion Detector Sensor work with Alarm Panel
Default Title
$50.27
Sale price
$50.27
Regular price
$0.00
Skip to product information

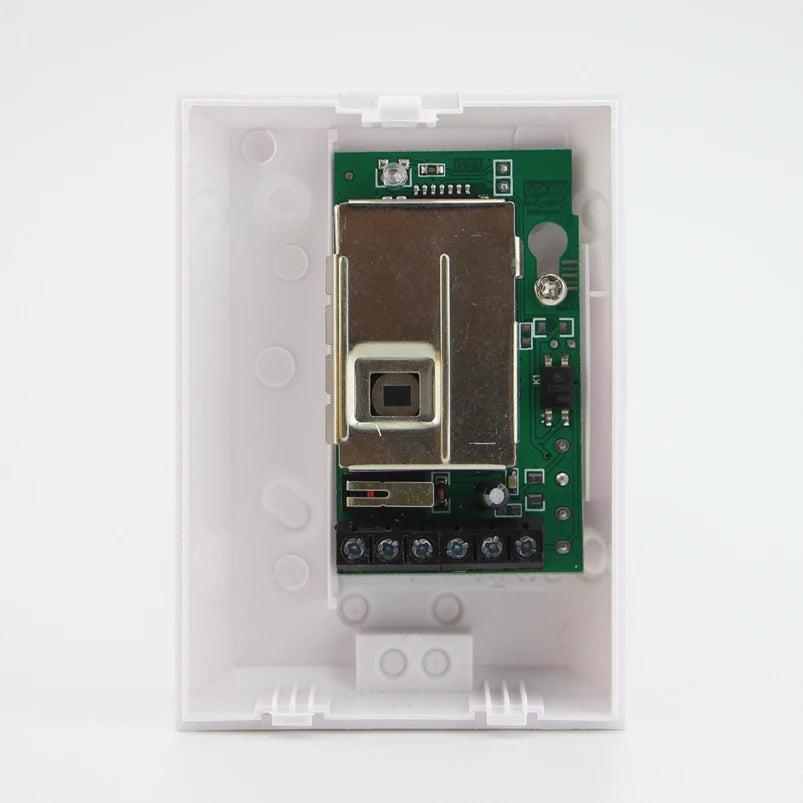

free shipping!New Univesal Wired PIR sensor for Home Alarm System Wired Infrared Motion Detector Sensor work with Alarm Panel
$50.27
Sale price
$50.27
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: eMastiff
Certification: NONE
Color: white
Communication Interface: Wired
High-concerned chemical: none
Kit Configuration: PIR Sensor
Model Number: Wire Motion Sensor
Origin: Mainland China
Power: 12V
Size: 94 x 66 x 52mm
Smart home platform: Other
feature: Wired Infrared motion Sensor
is_customized: Yes
manual: english

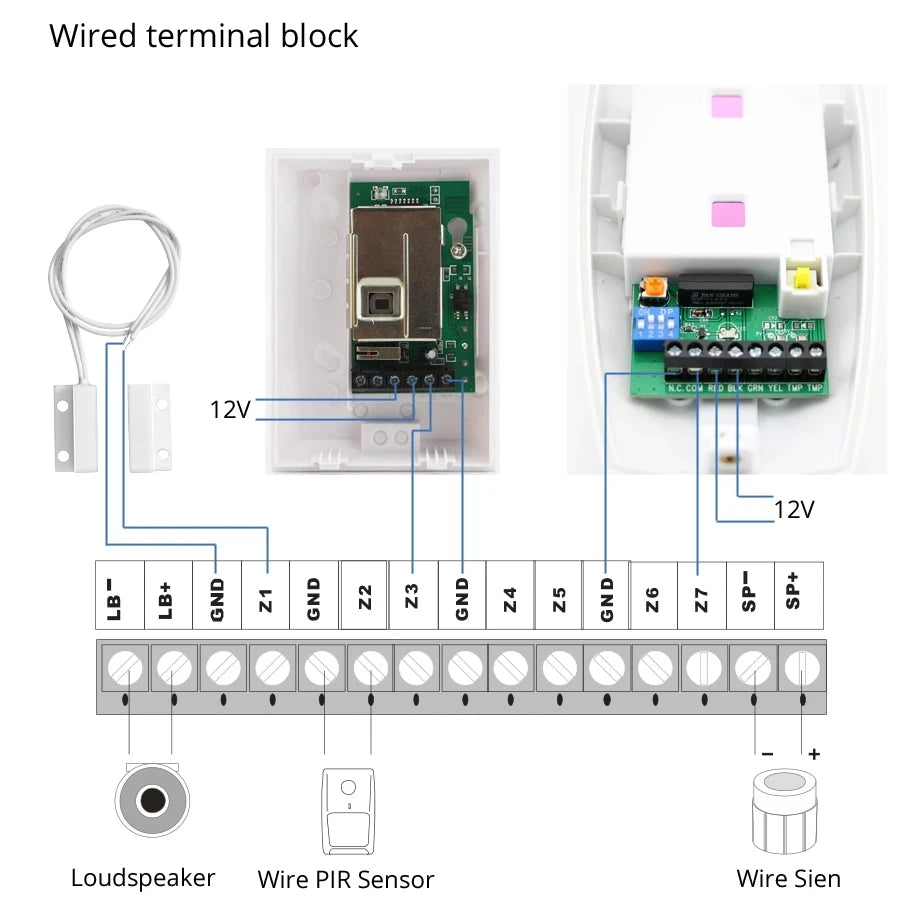

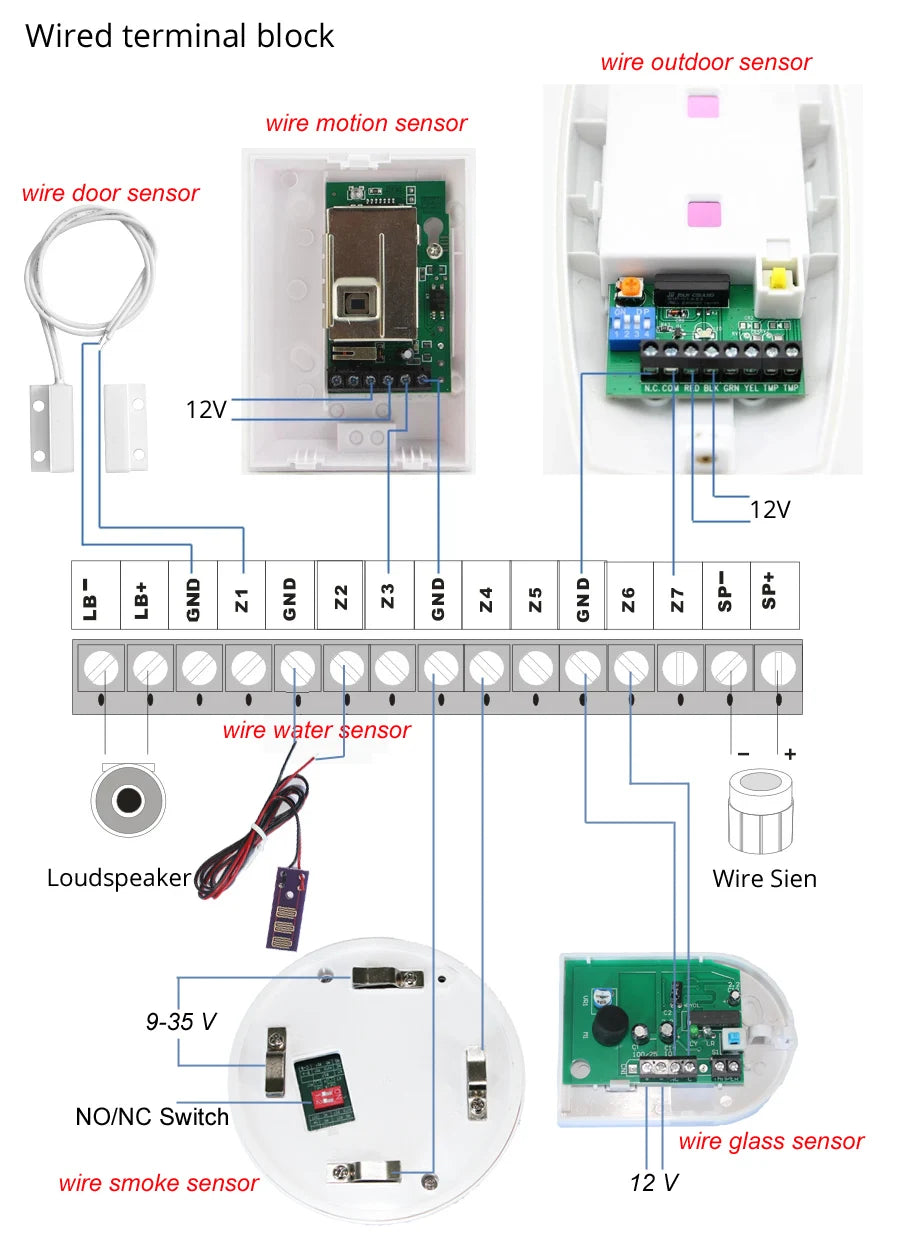

PS:This Wired PIR motion sensor can work with most home alarm system with wired defense zone function on ebay.If your alarm system can not work with wired sensor,plase do not order.Thank you.
Sensor:Low noise,high sensitivity,dual element,PIR sensor.
Pulse Count(Sensitivity):Two levels auto pulse signal processing,1~3 pulses or 2~6 pulse selectable
Temperature Compensation:Auto
Starup Time:60 Seconds after grow up
Detector Speed:0.2~7M/Sec
Lens:Second generation fresnel pet immunity lens
White Light Immunity:Yes
Coverage:12m x 1100
Zones:9+5+5+3=22
Installation Height:1.1~3.1m adjustable
Alarm Indication:Green LED contant light 3 seconds
Alarm output:N.C,rating 28VDC 0.15A
Anti-Tamper Switch:N.C.,opens when cover removed,rating 0.15A,28Vdc.
Power Input:9~16VDC,18mA
Operating Temperature:-10C~50C
Operating Humidity:95%
Size:94 x 66 x 52mm/3.7 x 2.6 x 2.oin (L x W x H)
Package include:

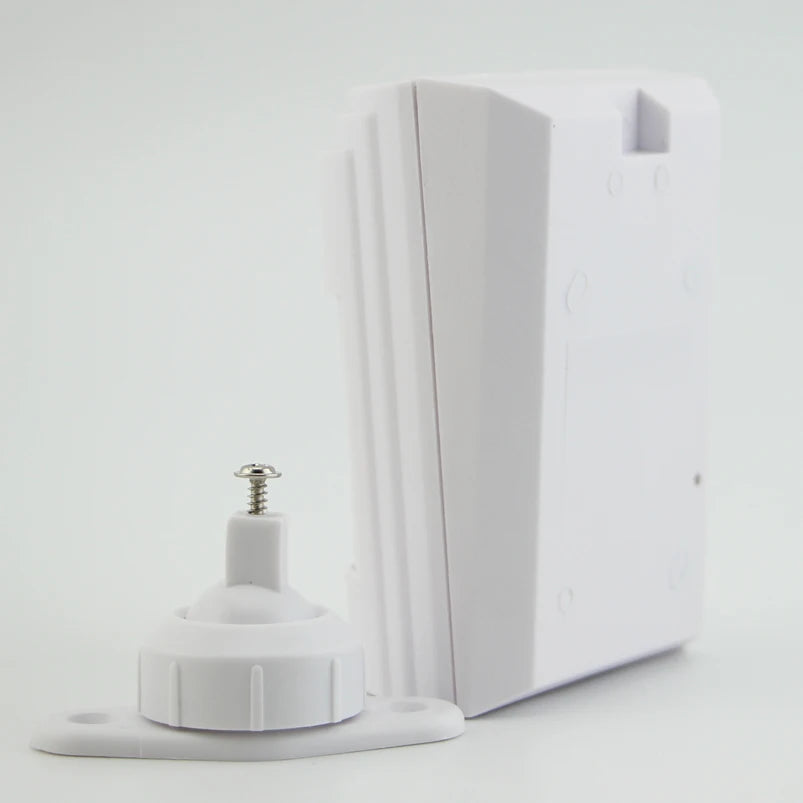

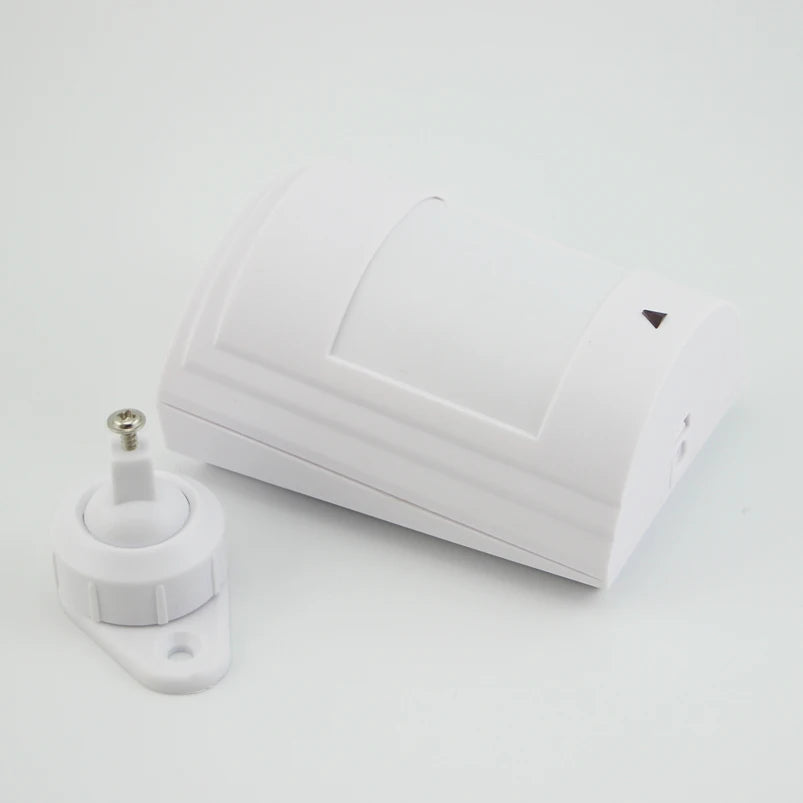

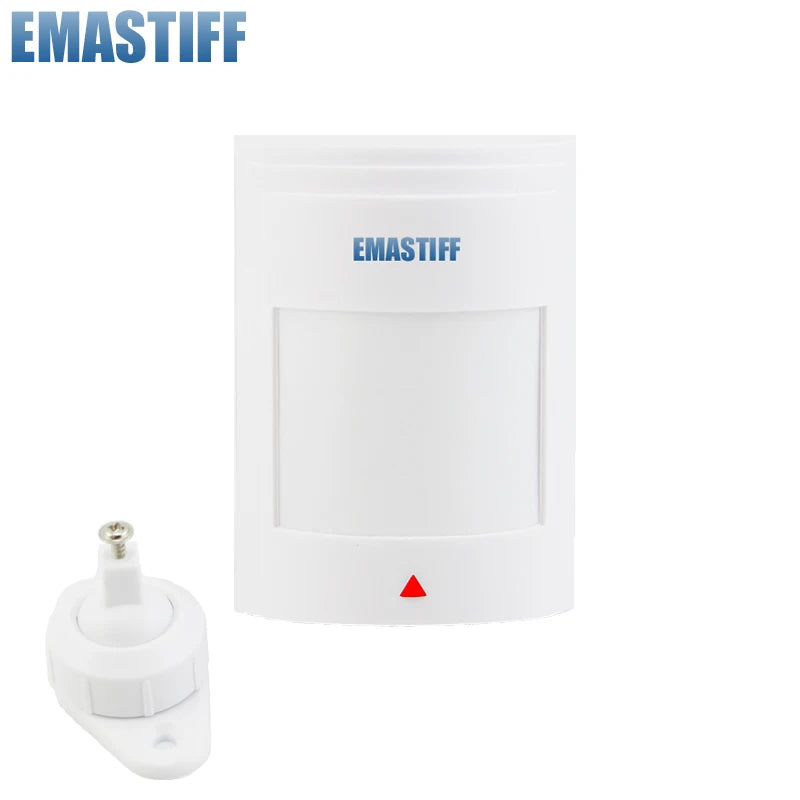

1 x Wired pir detector , 1 x Wall mounting
