SPECIFICATIONS

Accessory Type: Cases

Battery Included: no

Brand Name: Geekbord

Choice: yes

Compatible With: Raspberry Pi 4

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

[Overview]

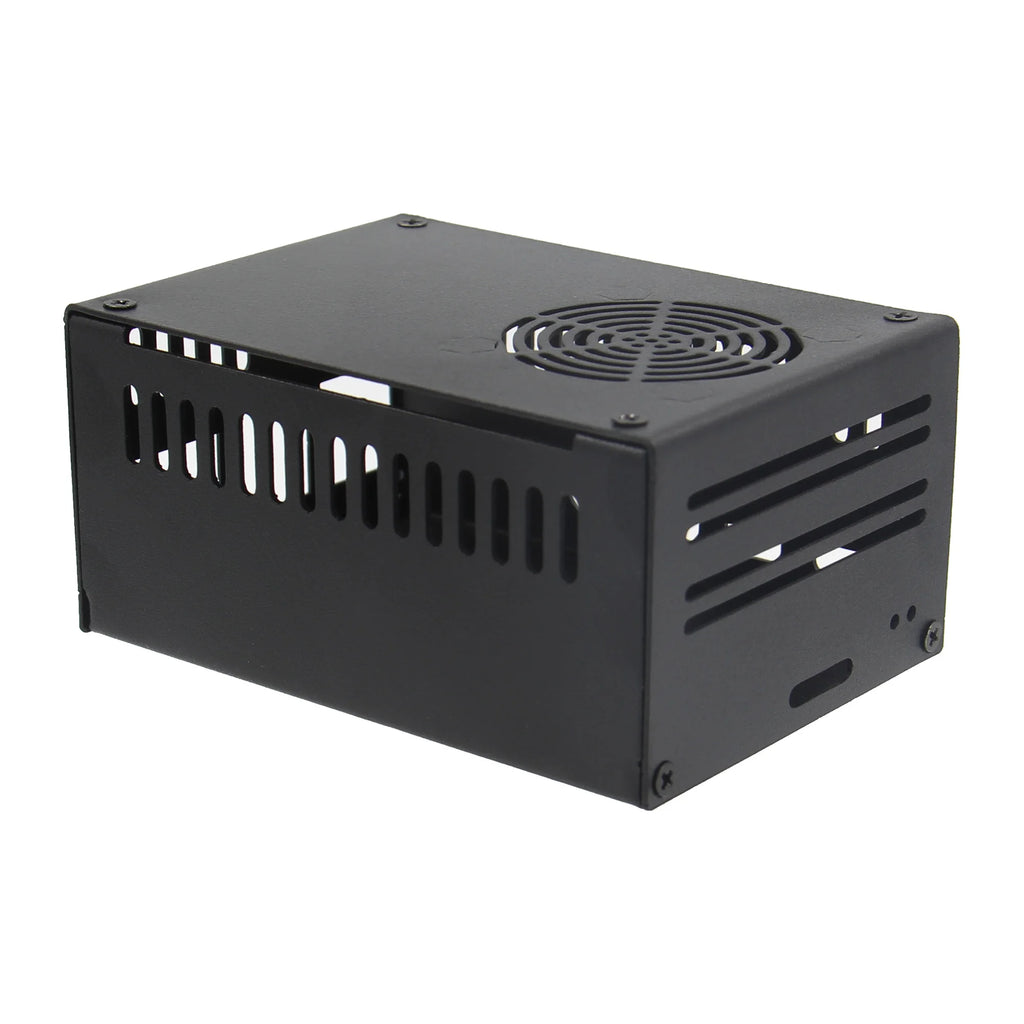

X630-C1 metal case is specially designed for Raspberry Pi 4 & X630 Hdmi to CSI-2 Module. It consists of X630-C1 metal case, 4010 2pin 5V cooling fan and 3 pieces of aluminum heatsinks, serving as an effectively protective and dissipative solution for your Raspberry Pi 4.

[Note]

• X630-C1 Only supports X630 Hdmi to CSI-2 Module, NOT SUPPORT other version Hdmi to CSI-2 module.

• Raspberry Pi 4 and X630 are NOT included in the packing list.

[Features]

• With all ports and slots match with Raspberry Pi 4B perfectly

• TF card slot is reserved to insert and remove the SD card easily

• Only support Raspberry Pi 4 Model B with X630 Hdmi to CSI-2 Module

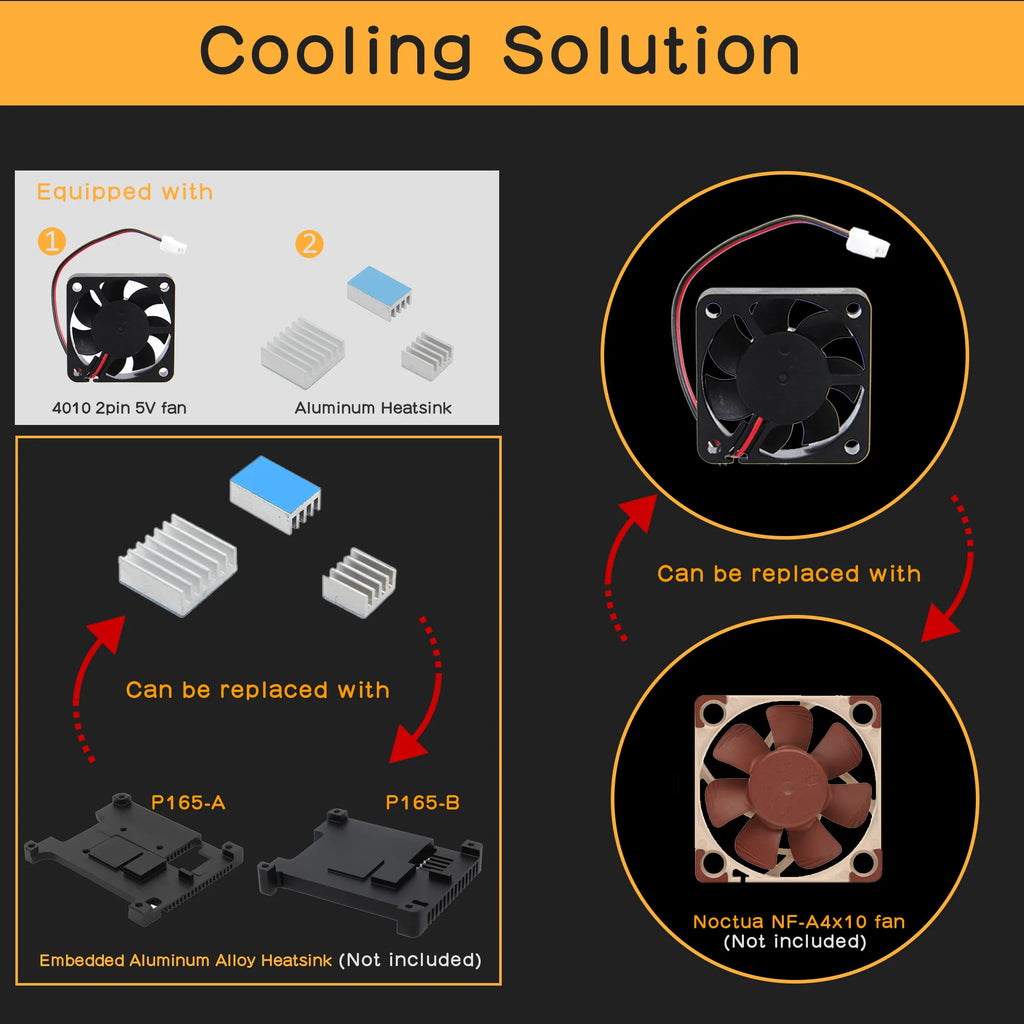

• Equipped with a 4010 2pin 5V cooling fan

• Can replace the 4010 fan to Noctua NF-A4X10 5V fan(Noctua NF-A4X10 5V fan is not included)

• The distance between the vesa mounting holes is 65mm

• Case Dimension: 93x65x45mm/3.66x2.55x1.77inch

• With 4pcs rubber feet for non-slip purpose

[Packing List]

• 1x X630-C1 metal case

• 1x 4010 cooling fan

• 3x Aluminum Heatsink

• 1x screws pack

[X630-C1 Details]

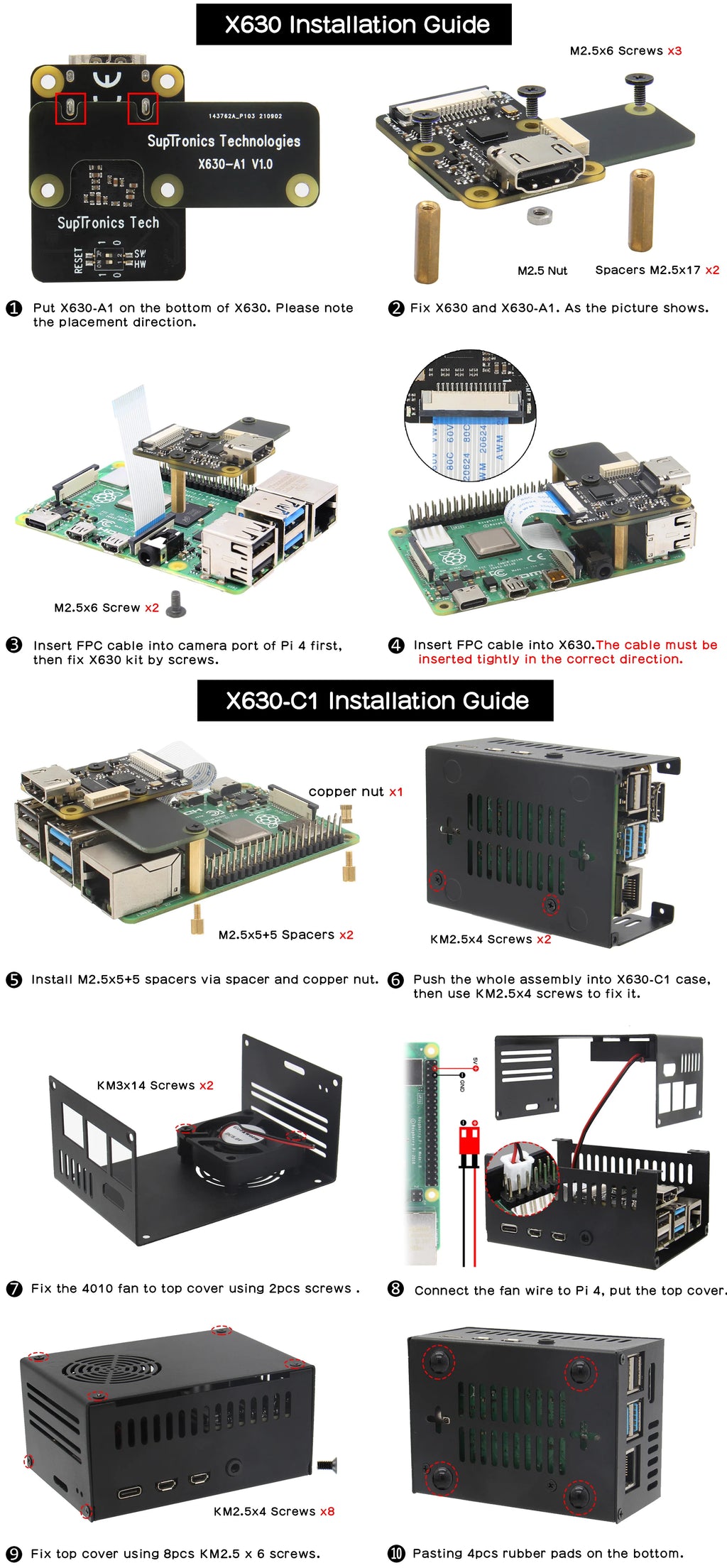

[How to install X630 & RPi 4 into X630-C1]

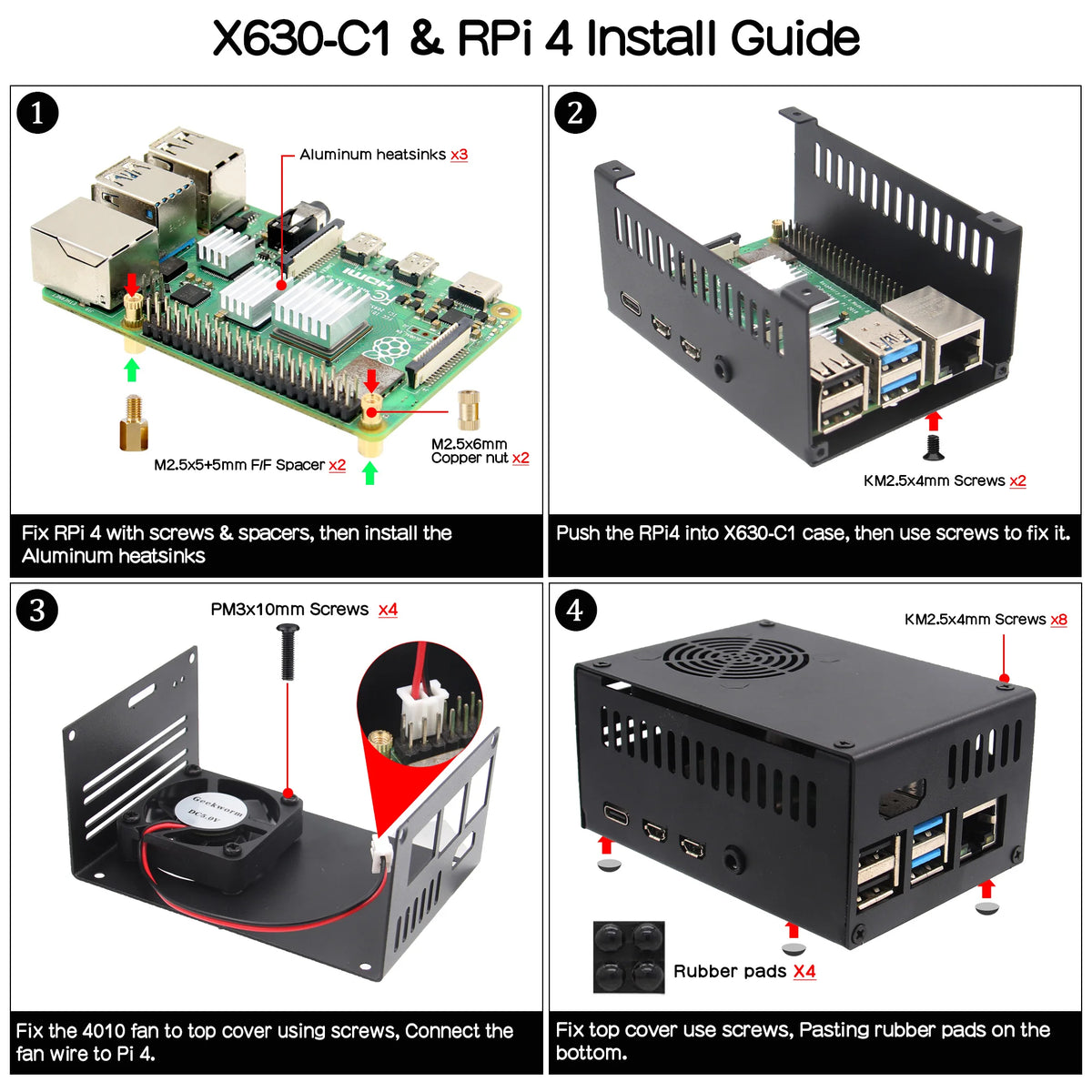

[How to install RPi 4 into X630-C1]
